Page 1

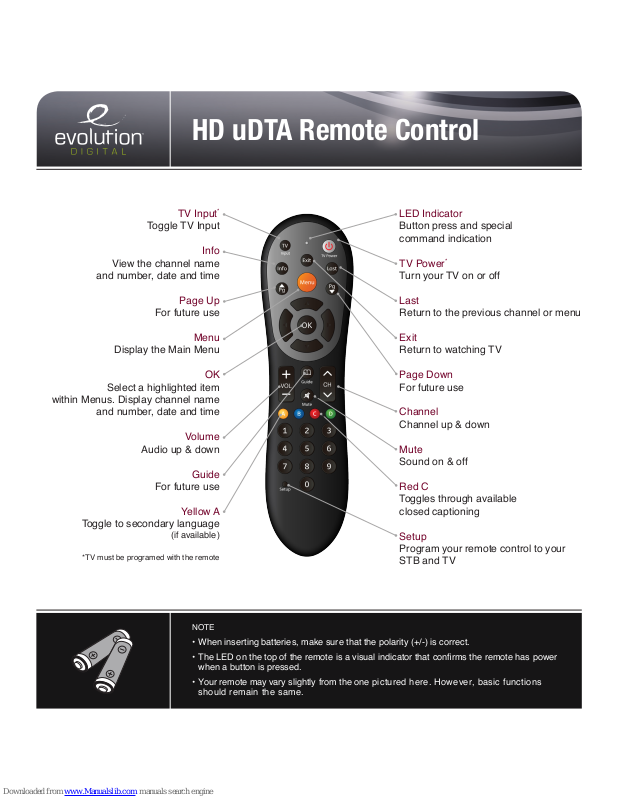

HD uDTA Remote Control

TV Input

Toggle TV Input

Info

View the channel name

and number, date and time

Page Up

For future use

Display the Main Menu

Select a highlighted item

within Menus. Display channel name

and number, date and time

Volume

Audio up & down

Guide

For future use

Yellow A

Toggle to secondary language

(if available)

*TV must be programed with the remote

LED Indicator

Button press and special command indication

TV Power

Turn your TV on or off

Last

Return to the previous channel or menu

Exit

Return to watching TV

Page Down

For future use

Channel

Channel up & down

Mute

Sound on & off

Red C

Toggles through available closed captioning

Setup

Program your remote control to your STB and TV

NOTE

• When inserting batteries, make sure that the polarity (+/-) is correct.

•TheLEDonthetopoftheremoteisavisualindicatorthatconrmstheremotehaspower when a button is pressed.

• Your remote may vary slightly from the one pictured here. However, basic functions should remain the same.

Page 2

3. Press and hold Setup button until the LED Indicator turns green.

4. Press the Menu button. Please allow a few seconds for the menu to display

5. Proceed by entering the pairing code displayed in blue on the pairing code pop-up screen.

Note: If you don’t see a pairing code screen, repeat steps 1 and 2.

To force remote control to send volume control commands to the TV

1. Press and hold Setup button until the LED Indicator turns green.

2. Press the volume up button

To force remote control to send volume control commands to the HD STB

1. Press and hold Setup button until the LED Indicator turns green.

2. Press the volume down button

Pair your remote control with your HD STB to install it out of sight

Your remote control can be paired directly with your HD STB, allowing you to place the device out of sight (in an entertain-

ment center or behind your TV, for example). Once your

remoteispairedtoaspecicHDSTB,itwillnotcontrolany

other set-top box in your home.

Note: Refer to the Remote Control Programming and Operating instructions, provided with your remote control, to program your remote to work on your TV and for more detailed information regarding pairing your remote.

HD uDTA Remote Pairing

REMOVE REMOTE CONTROL PAIRING

Ifyouwouldliketouseyourremotecontrolforadifferentset-topbox,youmustrstun-pair

the remote control from the current device. Follow the steps below to remove the pairing.

1 Press and hold the Setup button until the LED Indicator turns green.

2 Enter 9-8-7 on the remote control.

3 The LED Indicator will blink green twice. the same.

RESET REMOTE PAIRING

Exit

Last

Info

VOL

1. Press the Menu button.

2. Select Remote Control and then select Remote Control Pairing.

Page 3

HD uDTA Remote Control

Instructions for Programming Remote to Turn TV On & Off

The Evolution HD uDTA remote control will operate your Set Top Box. Additionally it may be programmed to turn your TV on and off.

TV Code Programming

Note: The remote control operates a Sony TV by default. If you have a Sony TV, point the remote control at the TV and press the power button. If the TV operates, there is no need to program the remote control.

Program by Device Brand Code

1. Manually turn on the TV.

2. At the end of this page, find the brand name and code number for your TV.

3. Press and hold the SET button. Then press (tap) the POWER button at the same time. The LED will turn on solid, indicating the remote is in program mode. Release both buttons.

4. Enter the 3-digit device code (for example: code 005 under Panasonic TV). If the LED turns off, the code has been accepted by the remote control.

5. If the LED flashes twice, it means the code entered is incorrect, and the remote control remains in program mode with a solid LED. Re-enter the correct number again. The remote control will exit the program mode if the code is not entered within 8-10 seconds, at this point the LED will turn off.

6. Point the remote control to the TV and press the POWER button. If the TV turns off, the remote is now programmed to operate the TV.

7. If the TV fails to operate, go back to step 2 and enter the next code listed under the TV brand. Please be certain to try all codes listed per your TV’s manufacturer.

Program by Auto Search

1. Manually turn on the TV.

2. Press and hold the SET button. Then press the POWER button simultaneously and hold them down for 3 seconds, The LED will begin flashing indicating the remote is in Auto Search mode. If the LED is not flashing, Wait till the LED turns off and then re-press both the SET and POWER buttons again.

3. Release both buttons and point the Remote Control to the TV. The POWER signal for TV is automatically transmitted to the device from the remote control (code scan). Once the

Page 4

TV switches off, immediately press any button (except SET button) to stop the Auto

Brand

TV Codes

Abex

011, 286

Accurian

140, 452

Accuscan

005, 014

Acme

156

Action

002, 006, 010, 042

ADA

167

ADC

152, 154

Admiral

003, 004, 005, 014, 015, 018, 025, 035, 040, 041, 055, 165, 308, 455

Advantz

049

Advent

030, 080, 087, 094, 101, 238, 326, 456, 457

Adventura

279

Adventuri

001

Adyson

011

Agna

030

Aiko

024

Aiwa

011, 295, 296, 309

Akai

010, 012, 020, 021, 028, 031, 064, 071, 149, 211, 230, 361, 362, 372, 373, 410, 442

Alaron

037, 040

Alba

011, 012, 045

Albatron

002

Alfide

064

Alleron

010, 037, 193

Amark

002, 007, 011, 013, 014, 018, 035, 165

Ambassador

030, 039

America Action

041

American High

001, 021

Ampro

079

Search.

4. Switch on the TV again by pressing the POWER button. If the TV operates, the Remote Control is programmed.

Program by Manual Search

1. Manually turn on the TV.

2. Press and hold SET button, then press (tap) the POWER button. The LED turns on solid indicating the Remote Control is in program mode.

3. Point the Remote Control to the TV and press the POWER button once every 2 seconds until the TV turns off. The LED will flash each time.

4. Once the TV turns off, do not press any keys and wait till the LED on Remote Control turns off. The Remote Control is now programmed.

Brand Code List

Page 5

Amstrad

013, 038, 039

Amtron

001, 041, 062

Anam

041

Anamnational

019, 062, 150, 169, 184, 293

AOC

002, 006, 010, 011, 012, 013, 041, 042, 151, 152, 155, 159, 264, 280, 288, 341, 429, 439, 461, 476

Aomni

399

Apex

078, 081, 113, 321, 367, 423

Apex Digital

033, 042, 078, 081, 083, 113

Archer

002, 165

Aspect

198

Astar

472

Asuka

045

Audinac

041

Audio-Technica

006

Audiovox

002, 024, 040, 041, 054, 061, 062, 074, 090, 112, 140, 147, 348, 436, 457

AUVIO

451, 489

Aventura

038

Axion

147, 281, 454

Bang&Olufsen

291

Basicline

045

Baycrest

011, 043

Baysonic

041

Beaumark

004, 006, 010, 040

Belcor

006, 010, 151

Bell&Howell

003, 018, 025, 032, 040, 133, 191

BenQ

139, 215, 226, 383, 462

Bluesky

258, 386

Boxlight

118

Bradford

041, 062

Brick

013

Brockwood

006, 010, 020

Broksonic

002, 013, 039, 041, 046, 055, 142, 253, 315, 320, 458, 459

Brokwood

151

Candle

010, 013, 020, 043, 151, 155, 279

Capehart

002, 004, 006, 010, 011, 024, 280

Carnivale

010

Carver

018, 037

CCE

122

Celea

081

Celebrity

001, 149

Celera

081

Centrios

274

Centurion

155

Cetronic

184

Changhong

033, 081, 083, 087, 321

Cinego

016

Cineral

024, 054, 258

Citek

011, 014

Citizen

001, 002, 003, 006, 007, 010, 011, 013, 018, 020, 021, 024, 038, 041, 043, 048, 049, 054, 055, 062, 127, 151, 155, 184, 230, 253

Page 6

Civet

042

Clairtone

042, 159

Clarion

041

Classic

006, 010, 020, 024, 081, 184, 321

COBY

359, 364, 463, 464

Color voice

156

Coloryme

004, 005, 006, 010, 011, 014, 018, 021, 151, 155, 156

Colt

006

Commercial solutions

014, 133

Concerto

020, 151, 155

Conic

006

Concierge

235

Contec

041, 042, 052, 159, 184, 062

Cornea

192

Craig

038, 040, 041, 049, 184, 062

Crosley

001, 010, 018, 026, 038, 041, 044

Crown

013, 020, 025, 041, 062, 064, 184

Crownmustang

064

CTX

165

Curtis Mathes

001, 003, 005, 006, 010, 011, 012, 013, 014, 015, 018, 020, 021, 025, 028, 032, 036, 040, 041, 054, 056, 071, 077, 124, 127, 131, 133, 151, 155, 160, 191, 230, 249, 318, 460

CXC

041, 184, 062

Cybervision

258

Daewoo

006, 007, 013, 024, 054, 061, 064, 064, 138, 139, 151, 15 2, 155, 156, 162, 163, 164, 181, 184, 185, 213, 225, 246, 247, 249, 256, 324

Dayton

024, 151, 155

Daytron

006, 010, 011, 013, 020, 024

Dell

006, 122, 134, 172, 251, 390

Denon

012, 019, 028, 060

Denstar

062

Diamond Vision

220, 304, 331

Digimate

346

Digistar

078, 087, 238, 251, 270, 272, 348, 384, 385

Digital Lifestyles

479

Digital Stream

453

Dimensia

133

Disney

253, 265

Dukane

198, 066

Dumont

003, 004, 006, 011, 041, 151, 235

Durabrand

002, 006, 038, 041, 055, 120, 253, 262, 290, 307, 370

Dwin

025, 077, 085

Dynasty

184

Dynex

421

Eaton

021

Electroband

001, 042, 149, 159

Electrograph

138

Electrohome

001, 006, 010, 011, 013, 020, 030, 031, 032, 042, 052, 150, 151, 155, 167

Elektra

003, 004, 061

Elite

045

Elite Video

297

Page 7

Emerald

006, 039

Emerson

006, 011, 012, 013, 014, 029, 030, 032, 037, 038, 039, 040, 041, 042, 046, 048, 049, 054, 055, 061, 062, 141, 142, 155, 166, 168, 169, 171, 174, 175, 176, 177, 179, 181, 182, 183, 184, 186, 187, 191, 193, 249, 253, 282, 290, 304, 309, 310, 313, 315, 325

Envision

006, 010, 011, 013, 092, 151, 155, 341

Epson

097, 100

ESA

038, 071, 290

Fisher

001, 018, 032, 034, 052, 191, 234, 034

Flex Vision

074

Fortress

025

Fujitsu

040, 043, 067, 091, 105, 193, 297, 338

Funai

001, 013, 038, 040, 041, 062, 141, 184, 193, 290, 309, 325

Futuretec

184, 062

Futuretech

041

Gateway

138, 139, 188

001, 005, 006, 008, 010, 012, 014, 015, 019, 021, 049, 054, 077, 124, 131, 133, 144, 150, 151, 155, 160, 167, 186, 194, 218, 232, 245, 190, 317

Gemini

014

Gibralter

001, 004, 006, 010, 151, 235

Go Video

116

Go Vision

147

Gold Star

005, 006, 010, 011, 013, 014, 018, 020, 052, 106, 151, 152, 155, 197, 213, 264, 309, 316

Goodmans

050

GPX

040

Gradiente

017, 020, 037, 151, 238, 262, 344, 389

Grandtec

480

Granprix

040

Granada

011

Grundig

064, 067, 072

Grundy

040, 041, 062, 193

Grunpy

040, 041

Guestvision

299

Gvision

337

Haier

078, 120, 139, 307, 380, 409, 432

Hallmark

006, 040, 041, 044, 046, 151, 155

Hannspree

132

Harley-Davidson

001, 006, 010, 021, 040, 041, 141

Harman/Kardon

018

Harvard

041, 062

Hauppauge

403

Havermy

025

Heathkit

004

Helios

110

Hellokitty

054

Hewlett-Packard

336, 465, 481

Hikone

045

Himitsu

041, 062, 086

Hisense

078, 209, 284, 345

Page 8

Hitachi

001, 003, 004, 005, 011, 012, 013, 014, 015, 018, 019, 020, 028, 031, 040, 042, 052, 066, 123, 141, 151, 155, 198, 199, 200, 254, 255, 257, 282, 309, 334, 437, 448, 482

Hyundai

103, 110, 369, 466, 467

ILO

259, 290, 298, 351, 357, 362, 408, 413

IMA

006, 040, 041, 046, 062

InFocus

133

Infinity

018, 314

Initial

259, 357, 357

Insignia

038, 173, 228, 238, 252, 253, 272, 290, 307, 325, 381, 417, 420, 477

Integra

283

Inteq

004, 028, 235

Janeil

279

JBL

018

JC Penney

008, 043, 052, 127, 133, 151, 152, 155, 160, 167, 174, 194, 218, 230, 232

JCB

001, 149

Jensen

030, 080, 094, 151, 155, 252

JIL

006, 010

Jutan

006, 010

JVC

010, 017, 018, 019, 052, 076, 170, 199, 203, 204, 206, 257, 266, 297, 311, 327, 434, 449

Kamp

004, 006, 041, 042

Kawasho

006, 010, 042, 149, 151, 155

Kaypani

280

KEC

021, 041

KEC0041

062

Kenmore

029

Kenwood

006, 010, 041, 151, 155

KLH

033, 041, 081, 083

Kloss

009, 010

Kloss Novabeam

205, 279

KMC

002, 011

Kogi

337

Konka

041, 045, 062, 073, 157, 161, 173, 189, 228, 322

KTV

010, 013, 041, 042, 048, 055, 062, 159, 166, 184, 207

Kurazai

003

Lark

032

Lasonic

304, 331

Legend

238

002, 006, 010, 018, 020, 021, 052, 106, 107, 128, 151, 152, 155, 192, 197, 213, 251, 263, 264, 309, 316, 392, 483

Liquidvideo

273, 281

Lloyd’s

010, 011, 013, 020, 040, 041, 046, 141

Lodgenet

003, 133, 300

Loewe

027, 018, 305, 485

Logik

003, 020, 040, 041, 046, 133

Luce

195

Luxman

020, 151, 155

Lxi

001, 003, 004, 005, 006, 007, 008, 009, 010, 011, 012, 013, 014, 015, 017, 018, 019, 020, 021, 025, 026, 029, 032, 033, 034, 035, 036, 038, 040, 048, 077, 127, 133, 151, 155, 160, 191, 232, 309

Page 9

Macy

013, 043

Magnasonic

001, 002, 006, 010, 018, 020, 024, 025, 033, 040, 141, 193

Magnavox

001, 006, 007, 009, 010, 014, 015, 018, 021, 024, 026, 032, 038, 040, 041, 043, 044, 047, 049, 051, 072, 090, 101, 134, 138, 141, 151, 155, 205, 210, 257, 285, 308, 314, 325, 368, 411

Majestic

003, 004, 133

Marantz

010, 018, 031, 106, 134, 151, 155, 283

Matsui

013, 020, 039

Matsushita

015, 047, 063

Maxent

138, 139, 188

Medion

265, 277, 298

Megapower

002

Megatron

002, 006, 014, 020, 028, 031, 151, 155, 198

Mei

42159

Memorex

003, 006, 010, 011, 013, 020, 030, 032, 035, 040, 041, 055, 133, 142, 143, 145, 146, 151, 155, 191, 193, 253, 315, 339, 468

MGA

006, 010, 030, 034, 052, 151, 152, 155, 167, 193, 257

MGN Technology

006

Microgenius

030

Midland

004, 005, 006, 011, 013, 014, 015, 020, 077, 133, 160, 194, 232, 235

Mintek

259

Minutz

008

Mitsubishi

006, 010, 025, 030, 032, 034, 099, 111, 126, 151, 152, 155, 167, 193, 257, 261, 415, 418, 426

Monivision

002, 178

Montgomery Ward

003, 133

Moteva

191, 344

Motorola

015, 018, 019, 025, 030, 150, 165

MTC

006, 010, 011, 013, 020, 021, 024, 041, 042, 049, 127, 151, 152, 155, 159, 230

Multitech

040, 041, 062

Multivision

216

Myron&Davis

306

NAD

006, 020, 033, 036, 127, 151, 155, 286

NEC

003, 006, 010, 014, 020, 031, 035, 037, 059, 114, 137, 150, 151, 152, 155, 156, 257, 283, 474

Net TV

138, 188, 244

Newtech

020

Nexxtech

272, 356

Nikei

184

Nikko

010, 006, 024, 151, 155

Nikkodo

006, 010, 024

Niko

376

Nishi

005, 010

Norcent

078, 095, 185, 196

Noshi

005

NTC

024,

Nyon

001

Olevia

130, 353, 374, 375, 387

Oncommand

299

Onking

184

Onwa

041, 062, 184

Page 10

Optimus

003, 006, 010, 011, 013, 020, 025, 030, 032, 035, 036, 041, 047, 063, 141, 145, 146, 275, 286

Optoma

132, 354

Optonica

025, 035, 165

Orion

004, 006, 039, 040, 041, 046, 055, 142, 177, 235, 253, 441

Pace

006, 024

Palsonic

086

Panasonic (National)

001, 005, 009, 010, 015, 018, 019, 033, 046, 047, 063, 129, 145, 146, 150, 194, 207, 275, 276, 323, 332, 405, 475

Panda

072

Pausa

040

Paxonic

006, 010, 011, 013, 021

PCE

021, 033, 040

Penney

001, 002, 003, 005, 006, 008, 010, 011, 012, 013, 014, 015, 020, 021, 033, 034, 047, 077, 131

Philco

006, 007, 009, 010, 012, 018, 026, 028, 040, 043, 044, 055, 088, 119, 150, 151, 152, 155, 157, 205, 210, 257, 285

Philips

010, 018, 020, 026, 038, 043, 044, 070, 101, 106, 134, 139, 150, 151, 205, 210, 217, 218, 257, 267, 285, 290, 302, 303, 314, 325, 382, 396, 400, 419, 444, 445

Philips Magnavox

018, 134, 285, 303, 308, 314

Pilot

006, 010, 013, 015, 020, 021, 151

Pioneer

012, 019, 036, 066, 151, 155, 219, 282, 283, 286, 424, 487

PIVA

358

Planar

339

Polaroid

081, 110, 173, 252, 278, 284, 348, 371, 468

Portland

002, 006, 011, 013, 024, 054, 151, 152, 155, 249,

Precision

039, 041, 042, 046, 049, 271

Price Club

230

Prima

030, 080, 087, 094, 238, 270, 272, 348

Princeton

002, 075

Princeton Graphics

075, 165

Prism

015, 019, 047, 194

Proscan

005, 014, 056, 077, 131, 133, 144, 160, 232, 268, 269, 425

Proton

002, 006, 013, 054, 056, 151, 155, 221, 280, 287, 342

Protron

346, 388

Proview

352, 353

Pulsar

003, 004, 006, 024, 151, 235

Pulser

006, 024

Quartz

006, 030

Quasar

003, 009, 015, 018, 019, 035, 047, 063, 145, 146, 150, 194, 207, 275, 276

Rabbit

014

Radio Shack

006, 010, 011, 013, 014, 020, 030, 032, 035, 041, 052, 062, 077, 133, 141, 143, 151, 155, 183, 184, 190, 191, 275, 309, 317

RCA

001, 005, 006, 008, 012, 014, 015, 018, 023, 025, 035, 066, 077, 085, 121, 124, 131, 133, 135, 144, 148, 150, 151, 152, 155, 160, 167, 190, 194, 222, 223, 225, 227, 232, 236, 245, 248, 268, 269, 282, 288, 289, 317, 431, 486

Realistic

002, 003, 006, 010, 011, 013, 014, 020, 030, 032, 035, 041, 052, 062, 133, 151, 155, 183, 184, 190, 191, 275, 309

Replay TV

484

Rhapsody

042, 159

Page 11

Road Authority

049

Runco

003, 004, 010, 021, 059, 235, 283

Sampo

010, 011, 013, 014, 052, 138, 139, 151, 155, 188, 244, 280

Samsung

004, 006, 010, 011, 013, 014, 018, 019, 020, 021, 032, 052, 056, 071, 082, 093, 127, 151, 152, 154, 155, 160, 211, 213, 229, 230, 231, 277, 318, 329, 393, 395, 401, 402, 404, 414, 416

Samsux

012, 013, 155

Samtron

230

Sanky

006, 010, 012, 013, 021, 048

Sansui

006, 010, 021, 035, 055, 141, 142, 253, 315, 441, 443, 492

Santeca

294

Sanyo

001, 014, 018, 022, 029, 032, 034, 038, 052, 055, 089, 118, 138, 151, 191, 224, 233, 234, 407, 412, 430

Saville

021

Sceptre

260, 367

Scimitsu

006

Scotch

006, 151, 155

Scott

006, 010, 013, 039, 040, 041, 046, 062, 151, 155, 168, 177, 184, 193

Sears

001, 003, 004, 005, 006, 007, 008, 009, 010, 011, 012, 013, 014, 015, 017, 018, 019, 020, 021, 025, 026, 029, 032, 033, 034, 035, 036, 038, 040, 048, 052, 077, 109, 127, 133, 141, 151, 155, 160, 191, 193, 201, 230, 232, 234, 290, 320, 325

Seimitsu

006

Selectron

078, 349, 350, 490, 491, 492

Semp

333

Sharp

006, 011, 013, 018, 025, 035, 040, 041, 051, 058, 068, 069, 104, 151, 153, 155, 165, 201, 242, 243, 308, 406, 438, 478

Shengchia

025

Shivaki

006

Shogun

006, 151

Siemens

011, 028

Signature

003, 010, 014, 025, 035, 039, 040, 044, 133

Silver

006

Simpson

010, 006, 043, 044

Singer

021, 024

Solardrape

001, 011

Sole

092

Sonic

159

Sony

001, 004, 017, 030, 032, 098, 141, 149, 158, 208, 319, 391, 394, 397, 446, 447, 471

Soundesign

006, 020, 040, 041, 043, 062, 151, 155, 184, 193

Sova

335, 360

Soyo

365, 366, 433

Spectra

304

Spectravision

006, 033, 034, 040, 043, 301

Spectricon

002, 011

Squareview

038, 290

SR1740

032, 038

SSS

006, 041, 062, 151, 184

Standard Components

045 Star Sight

202

Page 12

Starlite

006, 041, 046, 062

Sunbrite

427

Superscan

025, 109, 201, 325

Supersonic

330

Supra

151, 214

Supremacy

013, 043, 279

Supreme

001, 149

SV1740

018

SVA

078, 110, 306

Sylvania

001, 006, 007, 009, 010, 014, 015, 018, 020, 024, 026, 032, 034, 038, 040, 043, 044, 141, 151, 155, 205, 210, 253, 257, 267, 285, 290, 309, 325, 435

Symphonic

001, 006, 038, 040, 041, 062, 141, 168, 290, 309, 325

Syntax

130, 353, 374, 375

Tandy

013, 025, 035, 045, 165

Tatung

001, 002, 012, 015, 019, 139, 150, 298

Teac

029, 032, 034, 049, 069, 072

Technics

015, 018, 019, 047, 194

Technisat

488

Technol Ace

040

Technovox

010

Techwood

002, 015, 019, 020, 021, 047, 151, 155, 194

Teknika

003, 006, 011, 013, 018, 020, 021, 024, 030, 040, 041, 043, 052, 055, 062, 127, 133, 151, 152, 155, 184, 193, 230, 275, 279

Telecaption

239

Telecolor

004

Telefunken

020, 071

Telerent

133, 003

Teleton

043

Tera

151, 287

Tevion

298

Thomas

006, 013, 014, 020, 141

Thomson

014, 133

TMK

006, 020, 039, 041, 046, 151, 155

Tnci

004

Tocom

033

Tomashi

049

Toshiba

021, 028, 030, 032, 033, 035, 036, 052, 063, 096, 102, 123, 125, 127, 128, 136, 137, 191, 230, 239, 241, 257, 275, 283, 312, 318, 320, 328, 422, 440, 473

Tosonic

042

Totevision

013, 015

Toyomenka

006

Truetone

015, 019, 047

Trutech

355, 363, 378

TVS

055

Uher

006

Ultra

006, 013, 024

Unitech

013

Universal

008, 014, 218

Universum

011, 029, 037, 039

109, 115, 138, 139

Page 13

Vidtech

151, 152, 155

View Sonic

066, 108, 109, 115, 138, 188, 342, 377, 469

Viking

279

Viore

347, 428, 442

Vivtor

199

Visio

109, 115, 138, 139

Vizio

109, 115, 139, 343, 450

Vector Research

010

Victor

017

Vidikron

018

Vidtech

006

Viking

021

Wards

001, 003, 004, 005, 006, 007, 008, 010, 012, 013, 014, 015, 018, 020, 025, 026, 031, 032, 035, 036, 040, 043, 044, 046, 125, 133, 151, 152, 155, 168, 193, 205, 210, 218, 240

Waycon

033

Welton

006

Westinghouse

001, 054, 115, 117, 237, 379

White-Westinghouse

040, 046, 054, 055, 061, 117, 213, 225, 249, 309, 340, 470

World

041, 046, 054, 055

XR 0680

003, 026, 032, 038, 040, 041

Yamaha

006, 010, 084, 097, 151, 152, 155, 275

Yorx

010

Zenith

001, 003, 004, 006, 010, 013, 014, 024, 025, 028, 029, 038, 039, 055, 071, 123, 128, 141, 142, 151, 155, 180, 181, 192, 198, 202, 212, 235, 249, 250, 253, 262, 308, 309, 311, 314, 315, 316, 318, 398

Zonda

002, 086
