Thank you for purchasing your new EazyPod™ filter. We are sure you will be delighted with its performance. If you
are unsure about anything, please consult your Evolution Aqua dealer or contact us.

The EazyPod filtration unit has been designed on the principles of high performance, minimum maintenance and a
compact footprint. This design delivers optimum water quality by using K1 media. The concept of the EazyPod is based
on the world renowned Nexus Eazy system - please visit our website for more information -

www.evolutionaqua.com.

EazyPod Overview:

The concept is simple and yet innovative. Water enters via the inlet A (fig.1) and enters the outer chamber B, which
runs around the entire circumference of the EazyPod. Between B and the central chamber C, is a stainless steel
perforated screen. These perforations are situated in the lower half of the screen and around its entire face. This means
that when the water passes from the outer to inner chamber (B to C), a downward flow is created. This causes many of
the larger solids to settle in the base of the outer chamber, due to the force of gravity.

The size of the perforations will not allow large mechanical waste to enter the central chamber, thus acting as a
first stage mechanical filter. The central chamber holds 30 litres of static K1 media. As the water enters the central
chamber, the fine smaller solids become entrapped in the K1. After passing through the K1 media, the clean water then
rises and overflows into the inner return pipe D of the EazyPod. From here it returns to the pond via the return outlet E.

The EazyPod filtration system gives water quality and clarity that surpasses all expectations. The nature and volume of
the K1 media means, that when static, apart from being a very efficient mechanical filter, there is more than enough
surface area for beneficial bacteria to colonise. Therefore on a smaller pond, the Pod is an excellent complete filter.

Please note that in normal running, the K1 has to be static – it is only moved during cleaning and maintenance. If the

K1 is moved in normal operation, whether by air or by hand, all of the debris it has collected will be returned to the
pond! The K1 is cleaned and moved by connecting an air pump to the air line in the Pod, which in turn goes to an air
ring in the base of chamber C. This has small holes which cause the K1 to move and therefore clean itself.

During the cleaning cycle, the finer particles escape into chamber B from the K1. This waste water can then be dumped
via a 1.5 inch / 50mm slide valve F.

Please check the table opposite to make sure you run your EazyPod within the specified limits to
achieve best results.

2

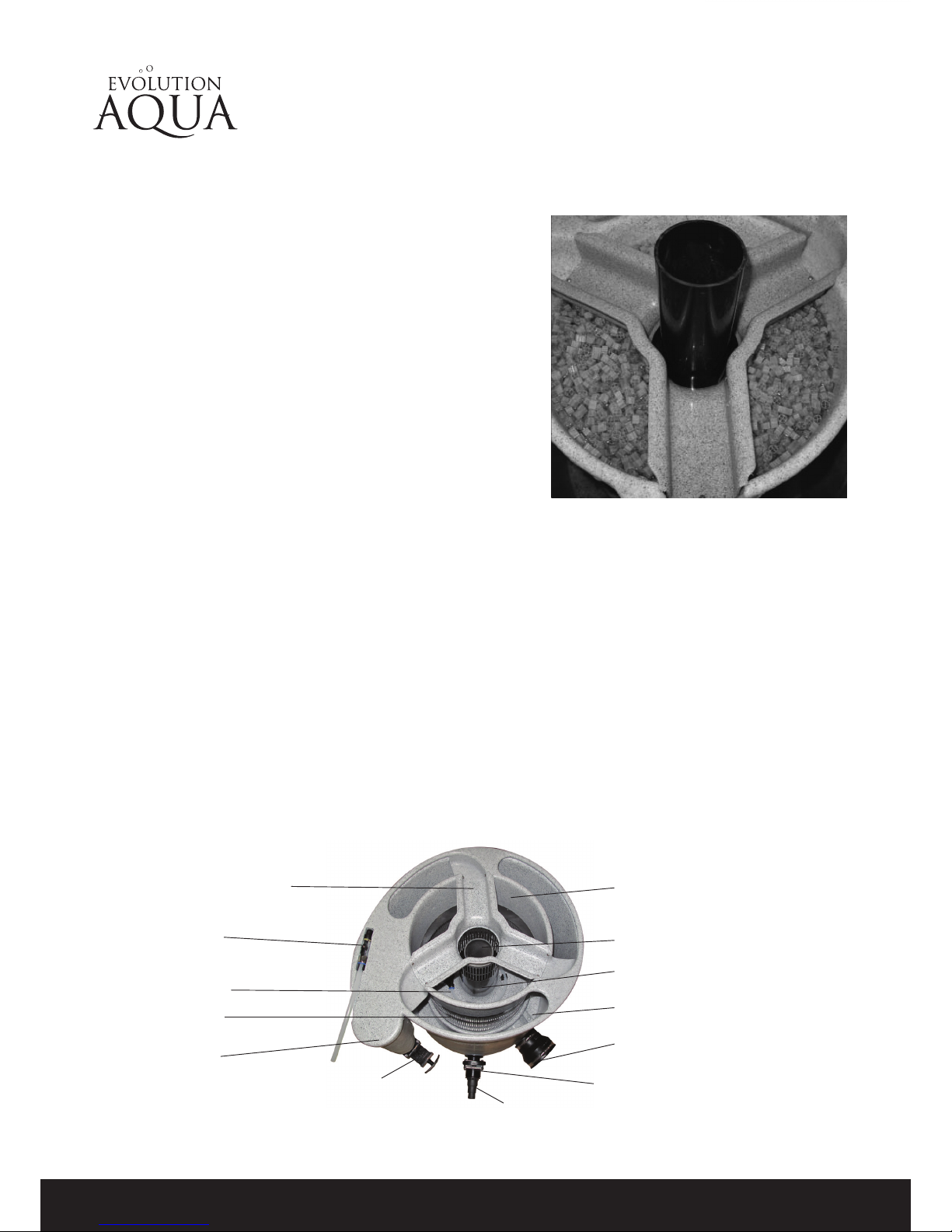

Fig.1

Overflow Assembly

Chamber C

Chamber B

Return Pipe D

Air Ring

Inlet A

Inlet 1½” (50mm)

Slide Valve G.
Stepped Hosetail (Optional)

Stepped Hosetail (Optional) H

Airline And Valve
Assembly For
Cleaning

Stainless Steel
Perforated Screen

Stainless Steel
Perforated Pipe

Outlet And 4” (90-115mm)
Rubber Connector E

Waste Purge
1½” (50mm) Slide Valve F

EazyPod Installation & Operating Instructions

Evolution Aqua Ltd

Evolution House Kellet Close Wigan WN5 0LP England [phone]

The EazyPod is truly multi-functional. It can be run in several different ways for different applications.

The EazyPod can be used:

• as a complete filter on a quarantine system

• as a pre-filter at the front of any new or existing system

• as a polisher at the end of any system

• off a mid water feed to aid mechanical filtration

• on a skimmer line as a mechanical filter

Remember that if you use the Pod solely as a mechanical filter, you will also get an enhanced biological benefit in your
system.

EazyPod Specifications and Flow Rates

Follow this manual carefully and your filter will provide a perfect environment for your fish. One of the factors that can
have a significant influence on our ponds is the turn over rate. This is the time that it takes for the total water volume
of the pond to pass through the filter system once. On EazyPod ponds, where it is used as the only filtration system, a
total pond volume turn over of every 1 to 2 hours is required.

Therefore if you have a 10,000 litre koi pond, a minimum rate of 5,000 litres per hour is needed giving a 2 hour
turnover, although you could also run at 10,000 litres per hour giving a turnover rate of once per hour.

On an ornamental pond of 20,000 litres, 10,000 litres per hour is the maximum flow rate and is ideal for that size and
type of pond. The lower the flow rate you use, the better the performance will be - as long as it does not result in a turn
over rate of more than two hours.

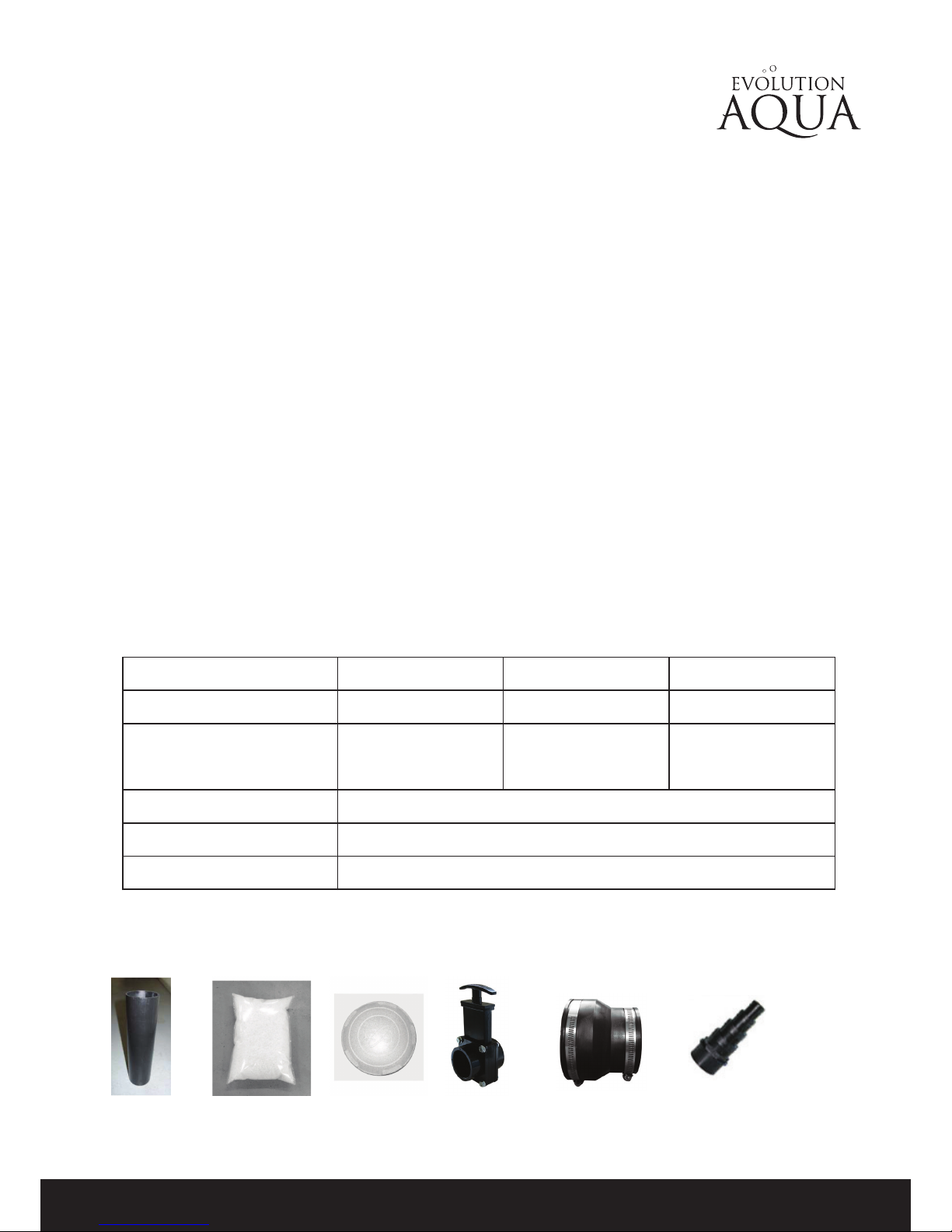

On opening your EazyPod you will find the following;

Max flow rate: 10,000 litres/hr 2,200 UK gallons/hr 2,640 US gallons/hr

Max koi pond size: 10,000 litres 2,200 UK gallons 2,666 US gallons

Max ornamental
pond size (goldfish,
shubumkins etc):

20,000 litres 4,400 UK gallons 5,333 US gallons

K1 30 litres

Max feed rate 100 - 120g per day

Recommended AirPump EA Airpump 70 or EA Airpump 75

Cleaning Pipe Bag of K1

30 Litres

EazyPod Lid 2 x Slide Valves

Pre-installed

2 x Stepped 1½”

Hosetail with

O-Ring

4” to 3”

EazyConnector

3

The difference is clear at www.evolutionaqua.com

EazyPod Installation & Operating Instructions

Installation - PLEASE NOTE: EazyPod comes set-up for a Pump Fed Installation.

The EazyPod filtration system can be set up in two ways, pump or gravity fed. In fig. 2 you can see a typical set-up of a
pump fed system, followed by a gravity fed system in fig. 3.

Figure 2. Pump Fed System: (water pumped from pond to filter)

Figure 3. Gravity Fed System (Water gravity fed into Pod and returned to pond by pump)

POND

3” / 90mm or 4” / 110mm return

PUMP

POND

PUMP

SLIDE
VALV E

WATER LEVEL

4” / 110mm return

Please Note: The pump must not be
placed on the base of the pond, as
failure in the pipe work or connectors
could lead to complete drainage of
the pond. The pump should be raised

atleast 12” off the ground or high

enough to leave sufficient water for the
fish to survive, in the unlikely event
that this occurs.

UV Recommended

UV Recommended

Please note: The EazyPod comes set up for a pump fed installation.

For installation instructions for Gravity Fed Systems please refer to page 6.

4

EazyPod Installation & Operating Instructions

Evolution Aqua Ltd

Evolution House Kellet Close Wigan WN5 0LP England [phone]

Installation Section (Pump + Gravity Fed)

Preparation

A base with level solid ground is required. It should be a minimum of 600mm x 600mm, to allow easy access to your valves and for
maintenance purposes.

Important: The EazyPod filter needs to be supported evenly on a level base (a paving flag is ideal).
Failure to do so could cause damage when it is full of water.

Installation Equipment required:

1. Pond Pump. Please ensure that the pumps maximum actual flow rate is no more than the specified limits (see page 3).

2. Air Pump for cleaning the K1 media. An EA Airpump 70 or 75 is recommended.

3. A length of garden hose or braided pipe (10 mm inner diameter) to connect your air pump to the air ring in the EazyPod.

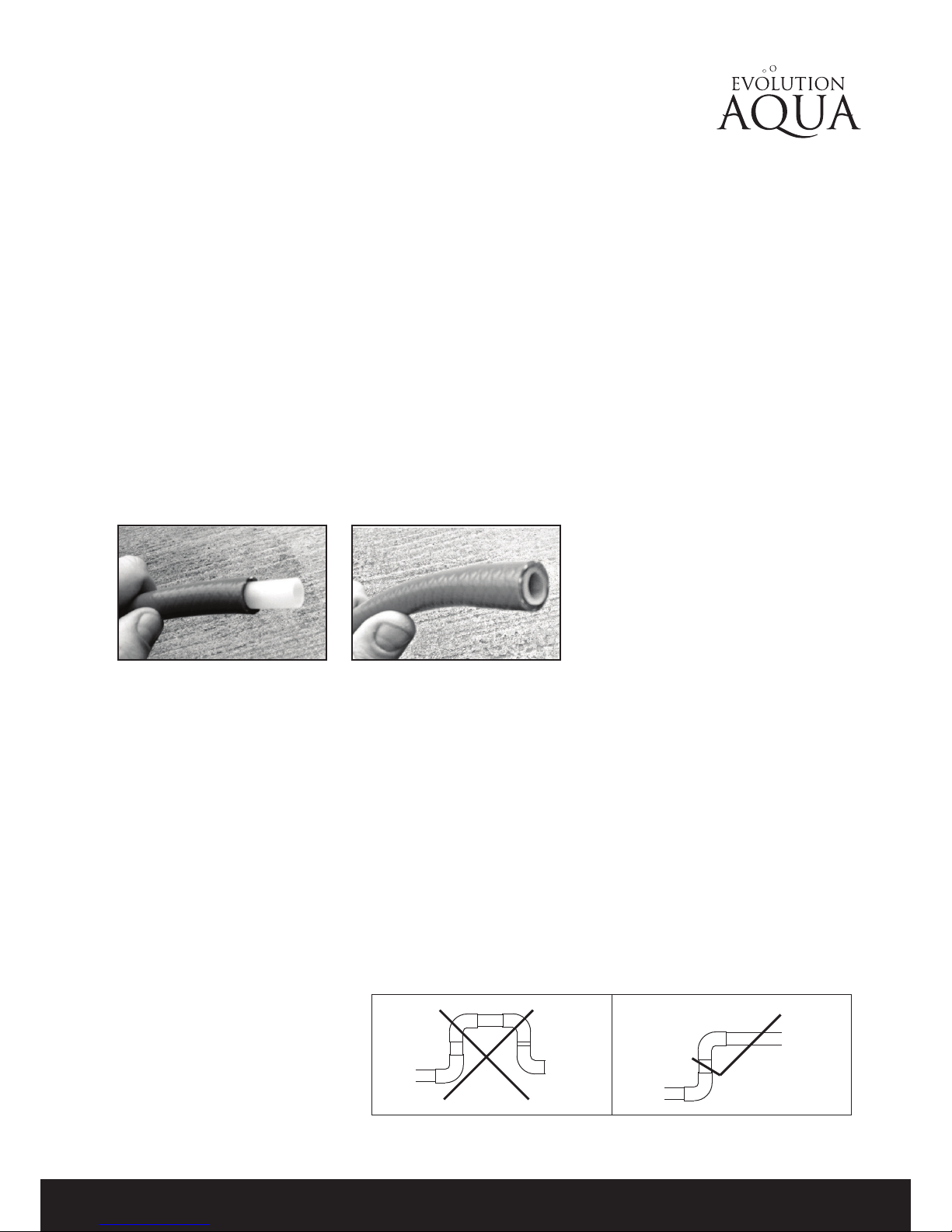

4. Tip: When connecting to your air pump, cut an inch from the airline supplied on the EazyPod. Insert this into the hose pipe that

connects to the air pump. This will help maintain the hosepipe’s rigidity when inserting it into the rubber connector and clip

supplied with your air pump.

5. Pipe work from the unit’s waste valves to the intended discharge point. This can be rigid pipe work or a simple

flexible hose.

Pump Fed Installation

The EazyPod comes to you ready for a pump fed installation - no changes to any of the fittings are required.
See figure 2 for reference diagram.

The unit should be situated at a height above the pond water level, to allow adequate gravity return to the pond (subject to the
maximum performance of your chosen pump). The gravity return pipe work from the exit point of the EazyPod to the pond needs to be

a minimum of 3 inches (90mm), 4” (110m) for flowrates over 7500 litres per hour and should have no restrictions. Great care should
be taken to ensure that no air locks are created within the gravity return pipe work. The return pipe should have an “appropriate fall”

from the EazyPod to the pond. The pipe work from the pond pump to the inlet of the EazyPod will need to be connected to the 1.5

inch (50mm) slide valve G. The 4 inch / 90-115 mm (minimum) gravity return pipe work will need to be connected to the rubber
adaptor E on the exit point of the Pod. This fitting when first connected to this pipe could appear too big (especially 90mm) or too
large 4” (115mm) – it will however reduce/stretch with the clip provided and make a tight seal – this is done with a screwdriver.

The return pipe is then extended and returned to the pond or waterfall as required.

5

From Pond

To EazyPod

From Pond

To EazyPod

Figure 6

The difference is clear at www.evolutionaqua.com

EazyPod Installation & Operating Instructions

Gravity Fed Installation Section

IMPORTANT…For gravity fed installations, you will need to reverse the exit pipe so that the return pipe D is lower. This is because
the exit pipe D although crucial for a pump fed system would impede a gravity unit when the media starts to filter out the debris
altering the water level. See figure 3 for reference diagram.

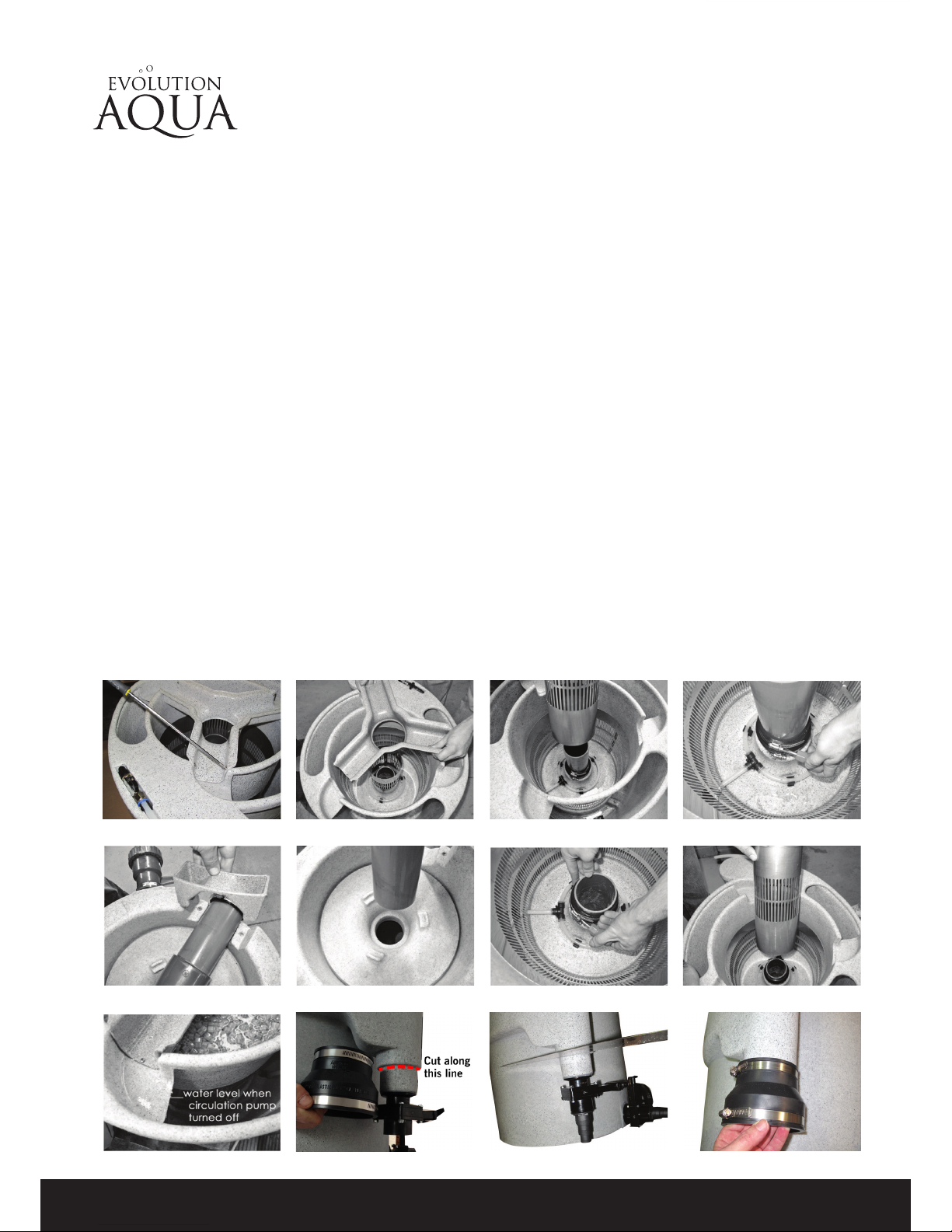

1. Remove the overflow assembly and safely store the 3 screws which secure it (see Fig.7).

2. Remove the stainless steel perforated centre pipe by pulling gently (see Fig.8).

3. Loosen the upper clip on the rubber connector (see Fig. 9)

4. Invert the Pod and remove the 2 screws and plastic pipe support bracket (see Fig. 10)

5. Remove the 90mm return pipe assembly from the EazyPod body (see Fig. 11).
NOTE: The pipe assembly is comprised of 1 long length and 1 short length joined by a 90 bend.

6. Refit the pipe assembly by pushing the shorter end back into the EazyPod, so that the long length is now the exit.

7. Tighten up the rubber connector to form a water tight seal (see Fig. 12).

8. Refit the steel pipe with the perforations at the top, not at the bottom (see Fig. 13).

9. Replace the overflow assembly and rescrew into the housing.

10. Using a hacksaw, cut off the pre-installed inlet (see Fig. 15 and 16).

The Pod must be situated at pond water level. That is to say, that when the circulating pump is switched off, water is level with the
overflow assembly. This level will lower when in operation (see Fig. 14 and Fig.6).

The rubber connector on the outlet port must be swapped over so that on the inlet you will have the optional 3 or 4 inch

(90-115mm) rubber connector to take your pipe work from the pond and on the outlet you will have the 1.5 inch (50mm) connector

for your return pressure line. The slide valve G can be used before your pump, to isolate it, if your pump has a 2½ inlet. The gravity

pipework needs to be 4” (110mm) for flows over 7500 litres per hour.

6

Fig.14 Fig.15 Fig.16

Fig.10 Fig.11 Fig.12 Fig.13

Fig.17

Fig.7A Fig.7B Fig.8 Fig.9

EazyPod Installation & Operating Instructions

Evolution Aqua Ltd

Evolution House Kellet Close Wigan WN5 0LP England [phone]

Recommendations

It is important be able to isolate the EazyPod for maintenance purposes. Therefore we recommend that you install an

isolating valve (3” or 4” inch / 90-115 mm slide or ball valve) on your inlet gravity line before the EazyPod.

Air Pump Installation (Pump + Gravity Fed)

Now that you have your EazyPod installed, you will need to connect your air pump to the EazyPod for the cleaning
cycle. This will agitate the K1 so that the waste which has collected in the media can be removed from the system. We
recommend an EA Airpump 70 or 75.

The air pump is connected to the air ring inlet using a garden hose or braided pipe (10 mm inner diameter). The air
ring inlet is positioned on the outside of the EazyPod. It is recommended that the air pump is positioned higher than
the water level in the EazyPod to prevent water flowing back into the air pump when it is switched off. However, the air
valve should be in the off position, and the air pump switched off or in use elsewhere when not in the cleaning mode.

Getting Started

Completely empty your bag of K1 into the inner chamber C. It is essential NEVER to remove or add any media other
than the 30 litres supplied. Cleaning and maintaining the EazyPod will depend on flow rate, feed, stocking, blanket
weed etc. An EazyPod on a summer pond with heavy blanket weed will need more frequent maintenance than a pond

in December with no food fed. Be aware that any movement of the EazyPod’s K1 whilst the pond pump is in operation

will dislodge the waste collected and will be sent back to the pond and clarity will suffer. If this does happen, the
EazyPod will eventually remove this waste again in time. The cleaning regimes for both pump and gravity installations
are listed below.

Please Note A pump fed system will need cleaning when the water level in chamber B/C has risen and is close to the
overflow assembly. A gravity fed system will need cleaning before the water level in chamber B has lowered by 4 inches
/ 100mm.

System running and maintenance

To achieve optimum water quality and clarity we recommend that the EazyPod be air backwashed and purged on a
regular basis. The frequency of cleaning will depend on the loading of the pond. However, the filter must be cleaned
regularly. In the event of a blockage, the circulation pump will become starved on a gravity system or the chamber will
overflow on a pump fed system. The overflow assembly (on fig 1) is a built in overflow. Should a blockage of the K1
media occur, water will bypass the stainless steel screen and return to the pond.

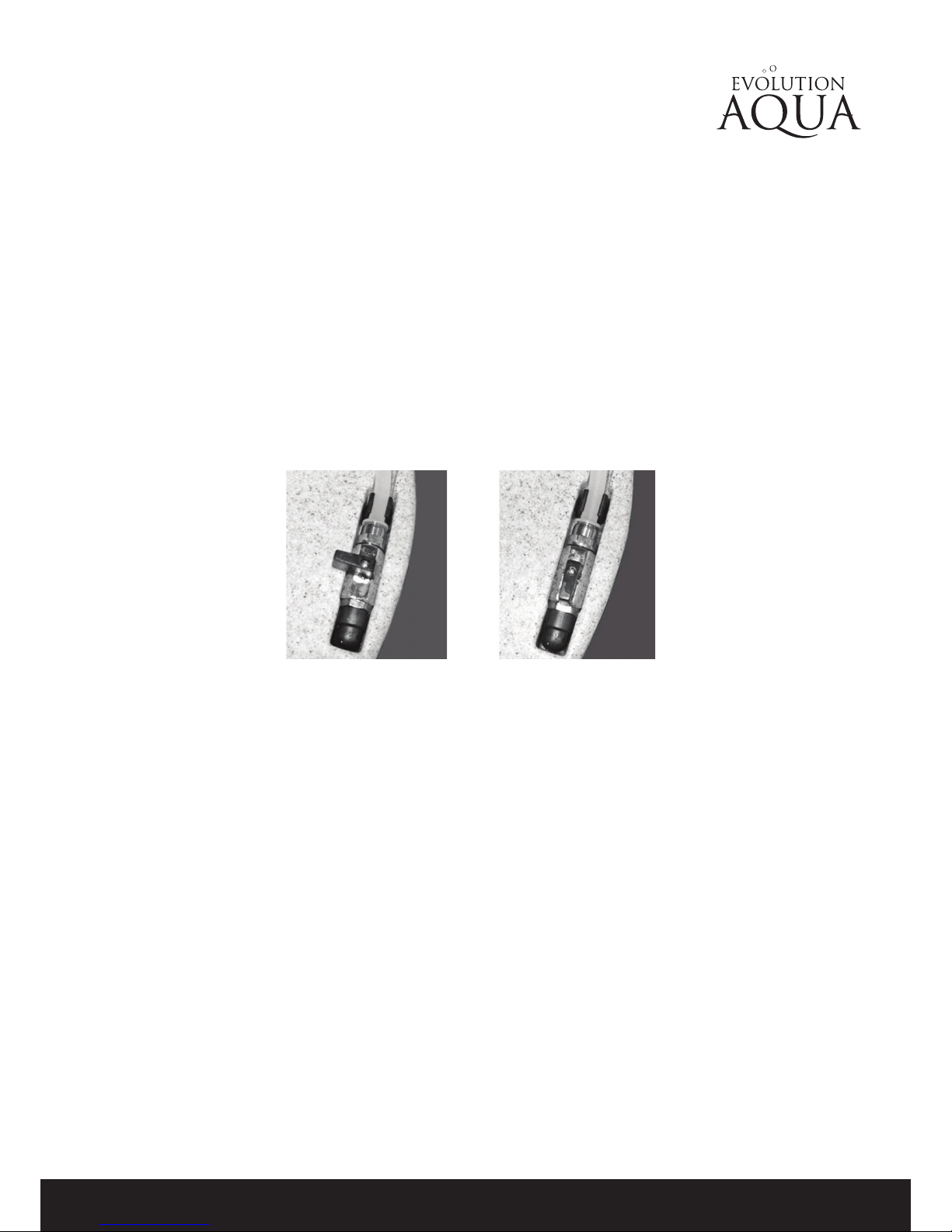

Air Valve Off Air Valve On

7

The difference is clear at www.evolutionaqua.com

EazyPod Installation & Operating Instructions

Cleaning - Pump fed Procedure

1. Insert the cleaning pipe into the plastic return pipe D. This

will prevent waste going back to the pond and maintain the
water level in the Pod whilst cleaning it (see Fig. 17).

2. When the water level in chamber B is just level with the
overflow assembly, close slide valve G on your inlet pressure
line. Ensure that this is fully closed as it is essential that this
water level is maintained to allow efficient cleaning. If there is
insufficient water, the K1 will not agitate and self clean.

3. Switch off the pond pump.

4. Turn on your air pump and open the air valve on the Pod. In a

few seconds the K1 media will start to ‘agitate’ and circulate,

thereby self cleaning.

5. After the K1 has been aerated for a minimum of two minutes,
open valve F and completely drain the EazyPod.

6. Once it is drained, close valve F.

7. Open your inlet slide valve G and turn on your circulation pump to refill the Pod.

8. When the water level in chamber B is just level with the overflow assembly, close the slide valve G on your inlet
pressure line and switch off the pump.

9. Allow the K1 media to agitate again for a minimum of two minutes.

10. Open valve F to drain again. If the water in the Pod is still not 100% clean, repeat the process.

11. Once the K1 is clean, turn off your air pump or re-divert it and close the air valve on the Pod.

Close valve F.

12. Remove the cleaning pipe.

13. Open inlet slide valve G.

14. Start your pond pump and refill the Pod.

Please note that normally 2 cleaning cycles will be needed to completely clean the K1. On a dirty
pond, maybe even 3 will be needed. When doing more than one cleaning cycle, there is no need
to remove the cleaning pipe and switch the air pump off. Only after the final clean can you
switch off the air pump, remove the cleaning pipe and run the EazyPod as normal.

Figure 17

8

Overflow Assembly

Chamber C

Chamber B

Return Pipe D

Air Ring

Inlet A

Inlet 1½” (50mm)

Slide Valve G.
Stepped Hosetail (Optional)

Stepped Hosetail (Optional) H

Airline And Valve
Assembly For
Cleaning

Stainless Steel
Perforated Screen

Stainless Steel
Perforated Pipe

Outlet And 4” (90-115mm)
Rubber Connector E

Waste Purge
1½” (50mm) Slide Valve F

EazyPod Installation & Operating Instructions

Evolution Aqua Ltd

Evolution House Kellet Close Wigan WN5 0LP England [phone]

Cleaning – Gravity Fed Procedure

1. Stop the circulation pump.

2. Wait a short period of time to allow the water levels within
the Pod to stabilise.

3. Insert the cleaning pipe into the plastic return pipe D. This
will prevent waste going back to the pond (see Fig. 18).

4. Isolate the pond from the pod by closing the valve on the inlet
line.

5. Close the slide valve G which you have fitted after your
circulating pump.

6. Turn on your air pump and open the air valve on the Pod. In a

few seconds the K1 media will start to ‘agitate’ and circulate,

thereby self cleaning.

7. After the K1 has been aerated for a minimum of two minutes,
open valve F to completely drain the Pod.

8. When drained close valve F and open your inlet valve to refill the Pod.

9. Allow the K1 to agitate again for a minimum of two minutes.

10. Open valve F to drain again. If the water in the Pod is still not 100% clean, repeat the process.

11. Once the K1 is clean, turn off your air pump or re-divert it and close the air valve on the Pod

12. Remove the cleaning pipe

13. Close valve F

14. Open your inlet valve to refill the pod from the pond and start you circulation pump

Please note that normally 2 cleaning cycles will be needed to completely clean the K1. On a dirty pond, maybe even 3
will be needed. When doing more than one cleaning cycle, there is no need to remove the cleaning pipe and switch the
air pump off. Only after the final clean can you switch off the air pump, remove the cleaning pipe and run the EazyPod
as normal.

Figure 18

9

Overflow Assembly

Chamber C

Chamber B
Optional Rubber Boot

(Not Included)

Return Pipe D

Air Ring

Inlet A

Outlet 1½” (50mm)

Slide Valve G

Airline And Valve
Assembly For
Cleaning

Stainless Steel
Perforated Screen

Stainless Steel
Perforated Pipe

Inlet and 4” (90-115mm)
Rubber Connector E

Waste Purge
1½” (50mm) Slide Valve F

Stepped Hosetail (Optional) H

The difference is clear at www.evolutionaqua.com

EazyPod Installation & Operating Instructions

Troubleshooting

Problem Solution

My K1 stays on the surface
of the water and will not sink

The K1 when brand new is buoyant and will want to float on the surface of the
water. This is perfectly normal.
As soon as fish have been added to the pond it takes the K1 approximately 24 to 48
hours to absorb the water and become semi-buoyant in the EazyPod.

The K1 doesn’t move well

during the cleaning cycle

The air pump is either not powerful enough or there isn’t enough water in the Pod –

check that you used the cleaning pipe to maintain the level on a pump fed system.

Check all air fittings and line for leaks. Make sure you haven’t inadvertently added

more K1 than the 30 litres

The pond gets dirty after
cleaning

Check that you turned your circulating pump off and that you have used the cleaning

pipe, so that the dirt in the K1 hasn’t returned to the pond. Please ensure that the

EazyPod has gone through a minimum of 2 to 3 cleaning cycles.

Too much maintenance,
poor clarity, or Pod
overflowing

Make sure that you haven’t exceeded the maximum flow rate. Please ensure that the

EazyPod has gone through a minimum of 2 to 3 cleaning cycles.

10

The difference is clear at www.evolutionaqua.com

EazyPod Installation & Operating Instructions

110mm

530mm

655mm

70mm

190mm

240mm

585mm

Gravity Fed Set-Up

580mm

710mm

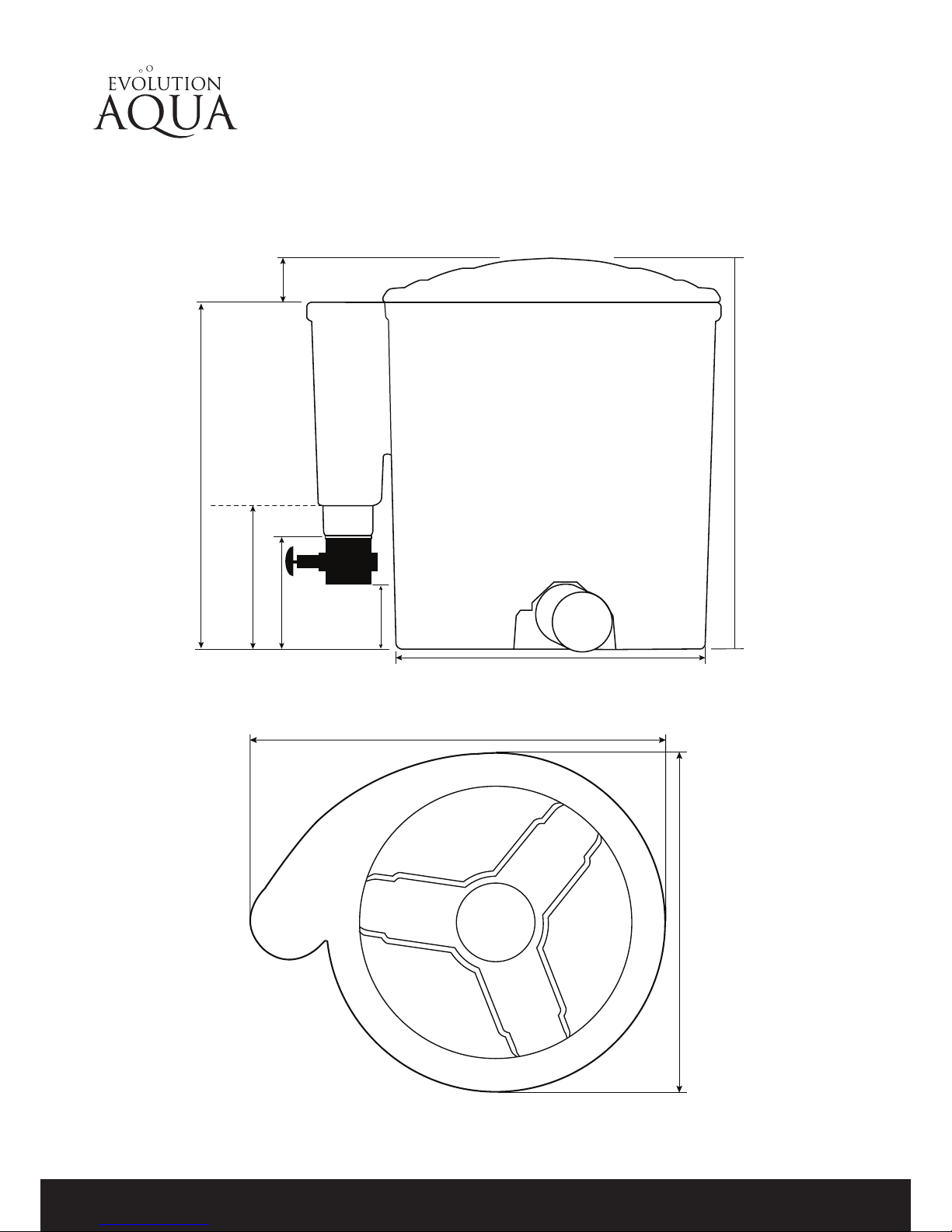

EazyPod Dimensions

11

The difference is clear at www.evolutionaqua.com

EazyPod Installation & Operating Instructions

12

SET UP GUIDE FOR THE EAZYPOD WITH AIR PUMP

Picture shows an EazyPod Complete
set-up for pump-fed use.

EazyPod Installation & Operating Instructions

Evolution Aqua Ltd

Evolution House Kellet Close Wigan WN5 0LP England [phone]

Register on our website to get a free monthly newsletter on new products and great pond tips

Distributed by:
Evolution Aqua Ltd
Evolution House, Kellet Close, Wigan, WN5 0LP
United Kingdom.
UK

EazyPod Guarantee

This product comes with a 2 year warranty, which is valid from date of purchase. Proof of purchase will be
required. Any unauthorised repairs, modifications or alterations to this unit will invalidate the warranty.

Evolution Aqua accepts no responsibility or liability due to accident, improper installation or misuse.
Liability is limited to replacement of the defective parts. This guarantee is not transferable. It does not affect
your statutory rights.

Evolution Aqua and its dealers shall not be held liable for any loss of fish, plants or any other livestock as a
result of any failure or defect of this product.

If there is a warranty issue please contact Evolution Aqua’s Technical Service department.

Claims for transport damage shall only be recognized if the damage is reported within 24 hours
after delivery and confirmed by the carrier.

Evolution Aqua reserve the right to change this product specification without prior notice.

All products designed to ISO 9001 and manufactured to ISO 9000
Patent Information: GB2.293333B; WO/00 61258; PCT/GB01/05533; PCT/GB01/05549; 0750591;
0575314; 5,543,039; 5,458,779; 6126829; 689246; 2119893; 3183406

eatips

For optimum
performance use

Evolution Aqua’s

PURE POND to
mature the EazyPod
and for general
maintenance.

pH

Maintaining the pH
level of the pond water
above 7 will allow the
friendly filter bacteria
in the Eazypod to
flourish.

Use the EazyPod in
conjunction with an
Evolution Aqua evoUV
for prevention of green
water (single cell
algae).

Water changes via an
Evolution Aqua Detox
Dechlorinator.

13

QUALITY ASSURANCE CHECK

EAZYPOD AIR MODELS ALSO INCLUDE:

PARTS NOT INCLUDED WITH
EAZYPOD MODELS

PARTS QUANTITY QTY PICKED

EAZYPOD 1

30 LITRES K1 MEDIA 1

4” TO 3” EAZYCONNECTOR 1

1½” HOSETAIL 2

CLEANING PIPE 1

MANUAL 1

PARTS QUANTITY QTY PICKED

AIRPUMP 70 1

10m ROLL OF SILICONE AIRLINE 1

4 PORT CHROME MANIFOLD 1

AIRSTONE 2

RUBBER ELBOW 2

2cm SILICONE TUBING 2

10cm AIRLINE (12mm) 2

12mm TEE 1

80cm AIRLINE (12mm) 1

Packed By:

Date:

The difference is clear at www.evolutionaqua.com

IF ANY PARTS ARE MISSING, PLEASE CONTACT EVOLUTION AQUA ON 01942 216554 IMMEDIATELY.

EAZYPOD AIR CHECKLIST CHECKED BY

Is AirPump 70 in the box?

Is there a sticker on the box to say it contains the Eazypod Air?
