Evolio Smart TV Box
User Manual
EVOLIO SMART TV BOX User
Manual
i
FCC Information and Copyright
This equipment has been tested and found to comply with
limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in
residential installations. This equipment generates, uses,
and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
The symbol means that the unit complies with
European safety and electrical interference directives.
The vendor makes no representations or warranties with
respect to the contents here and specially disclaims any
implied warranties of merchantability or fitness for any
purpose. Further the vendor reserves the right to revise
this publication and to make changes to the contents here
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not
allowed without first obtaining the vendor’s approval in
writing.
The content of this user manual is subject to be changed
without notice and we will not be responsible for any
mistakes found in this manual. All the brand and product
names are trademarks of their respective.
EVOLIO SMART TV BOX User
Manual
ii
Safety Precautions
1. Don’t use the TV box near water.
2. Clean only with a dry cloth.
3. Don’t block any of the ventilation openings, install
according to the manufacturer’s instructions.
4. Don’t install near any heat sources such as radiators,
heat registers, stoves, or other apparatus(including
amplifiers) that produce heat.
5. Don’t defeat the safety purpose of the polarized or
grounding - type plug. When the provided plug does
not fit into your AC power outlet, consult an
electrician for replacement of the obsolete outlet.
6. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
7. Only use attachments/accessories specified by the
manufacturer.
8. Unplug this apparatus during lightning storms or
unused for long periods of time.
9. Refer all servicing to qualified service personnel.
Servicing is required when the unit has been
damaged in any way.
Accessories
AC adapter/Power cable
Remote control
TV Box
User Manual
EVOLIO SMART TV BOX User
Manual
iii
Contents
FCC INFORMATION AND COPYRIGHT ............................. I
SAFETY PRECAUTIONS .................................................. II
CONTENTS ...................................................................... III
CHAPTER 1 BASICS ...................................................... 1
PARTS AND CONTROL ............................................................... 1
REMOTE CONTROL ................................................................... 1
POWER SUPPLY ................................ ................................ ......... 5
CONNECTIONS .......................................................................... 5
TRANSFERRING CONTENTS ....................................................... 6
HOME SCREEN .......................................................................... 8
MAIN MENU ............................................................................. 8
BUTTONS........................... ERROR! BOOKMARK NOT DEFINED.
ONSCREEN KEYBOARD ............................................................. 9
CHAPTER 2 GETTING STARTED ................................ 16
WEB BROWSER ....................................................................... 11
WATCHING VIDEOS ................................................................ 12
PLAYING MUSIC ..................................................................... 15
VIEWING PHOTOS ................................................................... 17
SHARECENTER .................. ERROR! BOOKMARK NOT DEFINED.
FILE EXPLORER ................. ERROR! BOOKMARK NOT DEFINED.
MANAGING THIRD PARTY APPLICATIONS ................................ 19
CHAPTER 3 SETTINGS ................................................ 37
EVOLIO SMART TV BOX User
Manual
iv
WIRELESS & NETWORKS ........................................................ 21
SOUND ................................................................................... 22
DISPLAY ................................................................................. 22
SCREEN .................................................................................. 22
STORAGE................................................................................ 22
APPS ...................................................................................... 22
SECURITY ............................................................................... 22
LANGUAGE & INPUT............................................................... 23
BACKUP & RESET ................................ ................................ ... 23
ADD ACCOUNT ....................................................................... 23
DATE& TIME................................................................ .......... 23
ACCESSIBILITY ....................................................................... 23
DEVELOPER OPTIONS .............................................................. 23
ABOUT DEVICE ...................................................................... 23
CHAPTER 4 TROUBLESHOOTING .............................. 40
CHAPTER 5 APPENDIX ............................................... 41
UPGRADING FIRMWARE ..... ERROR! BOOKMARK NOT DEFINED.
MAINTENANCE ................................ ................................ ....... 25
PRODUCT SPECIFICATIONS ..................................................... 25
DISPOSAL AND RECYCLING INFORMATION ............................. 26
Chapter 1 Basics
1
EVOLIO SMART TV BOX is a smart TV box based on
Android v4.2.2 operating system. It supports HDTV,
network function, and third party software. User can get
access to over 450,000 apps, share and enjoy TV shows,
movies, music and much more.

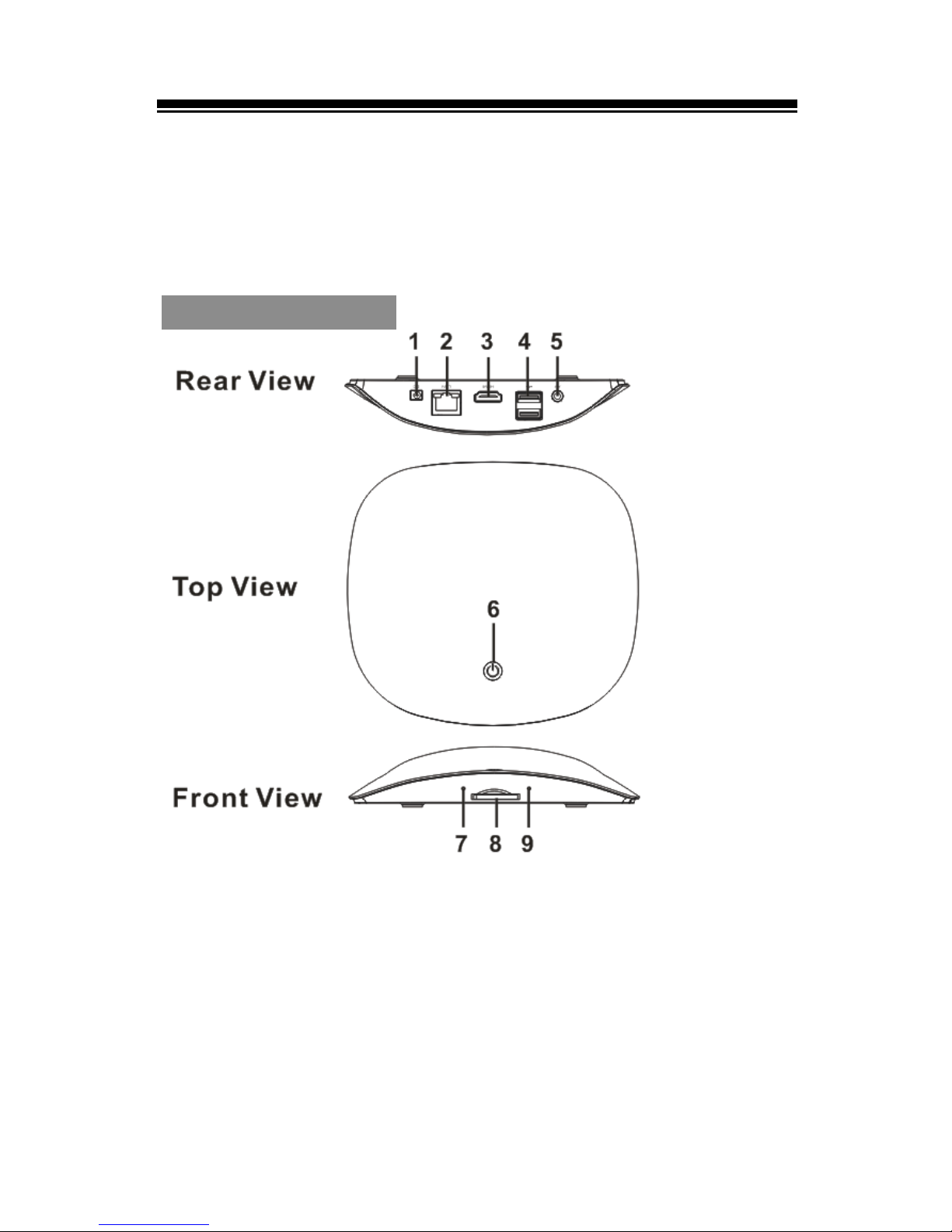

Parts and Control
1. DC-In jack – for connecting power cable to power
adapter.
2. LAN port – to connect Ethernet network via RJ45
cable.
3. HDMI port – to connect HDTV via HDMI cable.
4. USB jack – for connecting with external USB device.
5. AV jack – to connect TV/monitor via AV cable.
Chapter 1 Basics
2
6. Standby button – Press to go to standby or wake-up
mode.
7. IR window –To receive IR signal from IR remote
control.
8．Memory card slot – supports SD card
9．Status indicator – blue light for working mode, red
light for standby mode.
Remote Control
Chapter 1 Basics
3
STANDBY button
– press to go to standby/wake-up mode
SUB MENU button
– press to display the option menu
SETUP button
– press to enter into settings
PG.UP/DN button
– press to go to previous/next song/video
HOME button
– press to return to home screen
Exit button
– return button, to return the previous screen
Skip button
– press to fast rewind/ fast forward
Zoom button
– press to Zoom in/out
Repeat button
– press to set repeat mode
MUTE button
– press to mute the TV box.
TV OUT button
– press to select TV out mode.
AUDIO button
– press to select Audio mode.
SUBTITLE button
– press to change subtitle.
Chapter 1 Basics
4
BACKSPACE button
– press to delete a character
OK button
– press to confirm the selection
Directional buttons
– press to move the cursor left/right/up/down.
INFO button
– press to display the media file information.
PLAY/PAUSE button
– press to play or pause the playback
Volume button
– press to increase or decrease the volume.
STOP button
– press to stop the playback
APP button
– press to display the main menu
GOTO button
– press to go to the desired playback
Using the remote control
Remove the plastic sheet before using the remote
control.
To use the remote control, point the remote control at
the IR window located on the unit and press the
buttons.
The recommended effective distance for remote
operation is about 5 meters.
Chapter 1 Basics
5
Battery Replacement
When the battery become weak, the operating distance is
greatly reduced and you will need to replace them.
1. Take out the Lithium battery at the bottom of the unit
cover.
2. Insert a new identical Lithium battery.
Note: you can also use the wireless remote control
with mouse and keyboard (not included) for quick
operation and more control on TV screen.
Power supply
Using the AC adapter
The supplied 5V/2A adapter operates on AC 100-240V,
50/60HZ.
Connect the AC adapter to DC-in jack, and then plug
the AC adapter into AC outlet.
Note: While the AC adapter is connected and the unit is
on standby, power will still be consumed.
Connections
Connecting to HDTV using HDMI cable
1. Use the HDMI cable to connect the TV box to the
HDTV.
2. Use the AC adapter to connect a suitable wall outlet.
3. Turn on your HDTV.
Connecting to a TV using AV cable
Chapter 1 Basics
6
1. Use the AV cable to connect the unit to TV/Monitor.
2. Use the AC adapter to connect a suitable wall outlet.
3. Turn on your TV.
Connecting to the internet
Wi-Fi connection: if the unit detects Wi-Fi signal, in
Settings < Wi-Fi to set (See page 37) .
LAN connection: connect RJ45 cable, in Settings <
Wireless and network< More < Ethernet to set.
Transferring Contents
From USB Device
The TV box supports USB Mass Storage Device
function.
To import contents (video, audio, photo etc) into the
TV box, insert the USB device.
Upon successful connection to TV box, go to [File
Explorer], click to open.
From memory card
This unit supports SD card up to 32 GB
To insert a Memory card
Insert the card correctly with its label facing up until it
clicks into the place. You may damage the card and the
TV box if SD card is not inserted correctly.
Chapter 1 Basics
7
To remove SD card, push the card once again until it
clicks.
When a SD card is inserted in or ejected from the TV
box, it may take few seconds for the TV box to update
the content.
Please avoid inserting or ejecting SD card when other
operation is running as this may cause the system
hang.
Do not remove the card if the content inside the card is
being played. This will halt the operation of the TV box
and cause the TV box to restart.
Chapter 1 Basics
8
Home screen
When the TV box is turned on, it will enter into the Home
screen.
Use the Directional buttons and press OK button or
use Wireless Mouse key to press any icon on the home
screen to get started.
Press anytime to return to the Home screen.
Uninstalling the apps
Long press on the desired applications icon to show an
option menu, select Uninstall (The apps in “APP” “All”
can’t be uninstalled.).
Setting wallpaper for home screen
Go to the photo folder, then press the desired picture (full
screen mode), then Press Set picture as
wallpaper.
Main menu
All application icons are on the Main menu.
On home screen, press the App button on the remote
control or on TV screen to show the Main menu.
The Apps main menu is made into a series of categories.
Press All to show all the applications,
Press Ungrouped to enter the ungrouped
applications list.
Use the Directional buttons and press OK button or use
Chapter 1 Basics
9
Wireless Mouse key to press an desired application icon
to launch the application.
Press on remote control or on TV screen to
return to home screen.
Adding icons on category
You can add shortcuts or widgets to the media category.
On Home screen, press the Apps icon
Ungrouped to show all the applications ungrouped, long
press on the desired applications icon to show an option
menu, select Move to.
Moving icons
Long press on the desired applications icon of the media
category to show an option menu, select move to.
Uninstalling the apps
Long press on the desired applications icon to show an
option menu, select Uninstall (The apps in “APP” “All”
can’t be uninstalled.).
Onscreen keyboard
Use the onscreen keyboard to enter text, such
as web addresses.
Press on the text field to bring up the keyboard.
Uppercase key Backspace key
Enter key Input options
Chapter 1 Basics
10
Numeric/punctuation/symbol key
Chapter 2 Getting Started
11
Web browser
View a webpage
From Home screen or APPS, press the Browser
icon to open web browser.
On address bar, type the web address and press or
OK button on the remote control to open the webpage.
Press the link on the webpage to open a new
webpage.
Use the Directional buttons to scroll around the
webpage.
To return to the previous page, press the Exit or ESC
button.
Add bookmark
Press to add the current visited webpage as
bookmark.
Bookmarks List
Press to show bookmarks list, press a bookmark
to open the webpage. Touch and hold the bookmark to
display the option menu for bookmark.
History
Access to view history lists. To remove these
lists, press Menu then select Clear history.
Settings
Chapter 2 Getting Started
12
Press to use more available function, including
Privacy & security, Accessibility and so on.
Refresh/Stop
Press to refresh on the current page, press X to stop
loading the current page.
Forward
Press ←/→ go to previous/next webpage screen.
Using the option menu
Press Menu to display the browser
option menu. Press on the desired
item to use webpage viewing control.
Watching Videos
Playing videos
On the Home screen or APPS, press
VideoVideo folder to open video player.
Drag up and down to scroll through the file list.
Press to select a video file for playback.
Press and hold on the selected video file to delete it.
Chapter 2 Getting Started
13
Controlling Video Playback
When playing video, press Menu button on the remote
control to pop up control toolbar.
Play or Pause a
video
Press / .
Play previous/next
video
Press / .
Fast rewind or fast
forward
Press and hold /
.
Skip to any point in
a video
Press anywhere or drag
the playhead on the
progress bar.
Adjust the volume
level.
Press /
or use the buttons on the
side of TB2004A.
Adjust screen
brightness
Press .
Chapter 2 Getting Started
14
Adjust the screen
size: full
screen,16:9,4:3
Press .
Display video
playback menu
Press .
Return to the video
browser screen
Press .
Notices：
By default, the bookmark will be added automatically,
it allows you to continue playing from the bookmark
when you open the video file next time.
Video player supports subtitle file, please load the
subtitle file to be displayed on the current video,
unless the subtitle is integrated into the video itself.
The TV box supports subtitle of sub, ssa, srt, lrc
format,encoded in UTF8 format.
The file name of the subtitle must be identical to that of
the video file. The subtitle will be loaded automatically
during video playback.
Chapter 2 Getting Started
15
Playing Music
About music library
On the Home screen or APPS, press Music icon
to enter into music library.
Sorting by artist Sorting by album
All songs Sorting by Playlist
Return to Now playing screen
Playing songs
1. In music library, press on a desired tab to enter song
Chapter 2 Getting Started
16
list.
2. Press the Directional-up/down button to scroll the song
list.
3. Press the desired songs to start playing.
Note: If you want to exit music mode, press to
pause, then press Return button or .
Controlling Song Playback
Pause or play
songs.
Press / or press
on the remote control.
Stop music
playback
Press on the remote
control.
Play previous or
next song.
Press / on the
remote control.
Fast rewind or fast
forward
Press / on the
remote control.
Adjust the volume
level.
Press the volume buttons
on the remote control.
Display the current
song list
Press .
Set shuffle mode
Press .
Set Repeat mode
Press .
Display the music
playback menu
Press Menu button.
Chapter 2 Getting Started
17
Add the current
playing song to
playlist
Press Menu Add to
playlist.
To return to the
Media Library
Press the Return button.
Using the playlist
Use the playlist to manage the songs in the library
Creating a new playlist
In the music playback screen, press New,
and enter the name for the new playlist, then press
Save.
Adding the current song into playlist
In the music playback screen, press .
Press on a desired playlist, then the current song has
been added into the selected playlist.
Viewing photos
On the Home screen or APPS, press Gallery
Photo folder to view photos.
Thumbnail View
Chapter 2 Getting Started
18
Thumbnail view displays the catalog as a table of
thumbnail images in adjustable sizes.
Press to start photo slide show, press anywhere on
the screen to stop the slide show.
Press on the desired photo to full screen view.
Press and hold the desired photo to select it and press
again to deselect.
In thumbnail view mode, press to use the
option menu.
Select item: select multiple photos
Group by : sort the photo list
To delete photo files, press and hold the desired photo,
or press Select item to select the photo to be
deleted, then press .
In full screen mode, press to return to thumbnail
view mode.
Chapter 2 Getting Started
19
Start to view photo
Press on the screen to show / hide the control bar.
View the previous /
next photo.
Press
Directional-right/left
button
Zoom in or zoom out
Press the Zoom
button on the remote
control.
Edit the picture
Press Edit
Set the photo as
wallpaper
Press Set
Picture as wallpapter.
Share the photo with
others.
Press .
Return to thumbnail
mode.
Press the Return
button.
Managing third party applications
This unit support third party applications (such as Game
applications, etc.), you can install or uninstall applications
for the system.
Download and install the application.
1. Download the desired applications into your computer.
Chapter 2 Getting Started
20
2. Copy the downloaded applications to the unit via USB
device (you can also download the desired applications
from the browser in your device.).
Note: The system only supports XXX.apk format
applications to be installed.
3. From Main menu, press
SettingsSecurityunknown source.
4. In file explorer, find the directory where the application
is placed to press to start the installation.
5. After finishing the installation, you will see the
Applications on the Main menu.
Uninstall application
1. From the Main menu, then press Settings Apps.
2. Press the application you desire to uninstall, then press
Uninstall.
Note:The default applications can’t be uninstalled from
the unit.
Chapter 3 Settings
21
From Home screen or Main menu, press Settings tab
Settings icon, then press the desired items to be
configured to start the Setting.
Wireless & networks
The Wi-Fi settings allow you manage networks, such as
turn Wi-Fi on and join Wi-Fi networks.
Turn on Wi-Fi: From Home screen, choose Settings
Wireless & networksWi-Fi, and press the other end
next to “OFF”. Then “ON” will appear when you have
turned on the Wi-Fi.
Join a Wi-Fi network: From the detected network list,
select a network, if necessary, enter a password and
press "Connect" to save the settings for the encrypted
connection and connect to Wi-Fi. (Networks that require a
password appear with a lock icon).
Select “show advanced option” to show more network
control options.
If more than one previously used network is in
range,EVOLIO SMART TV BOX joins the one last used.
When EVOLIO SMART TV BOX is connected to a Wi-Fi
network, the
Wi-Fi icon at the bottom of the screen shows connection
strength.
Press Ethernet to use Ethernet network, then configure
the Ethernet settings, such as static IP settings etc..
Press More to use more wireless network control
including VPN, PPPOE settings, Portable hotspot, Mobile
Chapter 3 Settings
22
networks.
Sharing a Data Connection as a Portable Wi-Fi
Hotspot
1. From home screen or Main menu, press Settings
More portable hotspot.
2. If you select Portable Wi-Fi hotspot to share a data
connection, you can press Set up Wi-Fi hotspot to
configure portable Wi-Fi hotspots.
Sound
Customize the sound settings, including Volumes,
Default notification, Click sounds, Screen lock sound and
Audio output mode.
Display
Customize the display settings, including the setting for
Font size, and so on.
Screen
Customize the screen settings, including screen Scale,
Output interface, HDMI mode.
Storage
View the memory status of SD card and internal storage,
USB device, enable media scanning feature.
Apps
Allows you to manage the applications sorted by
download, On SD card, Running and All.
Security
Allows you to set Device administration and Credential
storage.
Chapter 3 Settings
23
Language & Input
Set region and language, text input methods.
Backup & reset
Allows you to backup account, app data, Wi-Fi
passwords, and other settings to Google servers.
Additionally, this item helps restore the EVOLIO SMART
TV BOX system to factory settings.
Add account
Add an account of Email or google to let you access all
your stuff( photo etc.) from EVOLIO SMART TV BOX .
Date& Time
Set date, time, time zone and display format.
Accessibility
Allows you to install web scripts, set large text, touch and
hold delay and so on.
Developer options
Helps you manage the EVOLIO SMART TV BOX system,
such as USB debugging, Development device ID, Allow
mock locations, HDCP checking and so on.
About Device
Display the information about EVOLIO SMART TV BOX,
such as legal information, model number, firmware
version, Build number and so on.
Chapter 4 Troubleshooting
24
Power on the TV box, but TV detects no signal
Make sure the HDMI /AV cable is securely connected
firmly. Make sure the TV is selected for the correct
HDMI/AV port.
Can’t power on the TV box
Make sure the power adapter is correctly plugged, if the
unit is powered on, the status indicator at the front panel
will lights in red.
Can’t connect to Wi-Fi or Ethernet network
Make sure you have connected to Wi-Fi network or
Ethernet network, check whether the network has
been successfully encrypted password.
TV display is not in full screen size
Please check the display settings.
Chapter 5 Appendix
25
Maintenance
If TV box does get wet, turn off TV box immediately.
Wait for TV box to dry completely before turning on
again.
Clean the unit with a soft and dry cloth; be careful
not to wipe it with anything abrasive.
Never use alcohol, benzene, thinner, cleaning fluid
or other chemicals. Don’t use compressed air to
remove dust.
If TV box needs service, please consult the
authorized dealer through the contact information
provided in the warranty card. Faulty service may
void the warranty.
Product Specifications
System Properties
Operating System: Android 4.2.2
Processor: A20
Architecture: ARM Cortex-A7, Dual-Core
Speed: 1.2GHz
RAM Memory: DDR3 1G
Storage memory
Built in memory: 4GB
Supports SD card: up to 32GB
Media File Format supported
Audio: MP3, WMA, AAC, WAV, OGG
Photo: JPG, BMP, GIF, PNG
Video: MKV/ISO/VOB/RMVB/Divx
Chapter 5 Appendix
26
Connectivity
Data transfer: USB 2.0 High Speed
Audio: phone jack (L/R Stereo audio ),SPDIF,HDMI1.4
LAN : RJ45 (10/100MB)
Wireless connectivity
Wi-Fi : Built-in, 802.11b/g/n
Power supply
DC 5.0V, 2.0A
Physical properties
Dimension:160*145*33mm
Weight:171G
※ Design and specifications are subject to change
without prior notice.
Disposal and Recycling Information
Your TV box must be disposed of properly according to
local laws and regulations. When your TV box reaches its
end of life, contact your local authorities to learn about
recycling options.
Because the remote control contains a battery, it must be
disposed of separately from household waste.
Battery Replacement:
The battery in remote control should be replaced only by
an authorized service provider.
This symbol on the product or in the instruction
means that your electrical or electric equipment
should be disposed at the end of its life separately from
your household waste. There are separate collection
systems for recycling in the EU, For more information,
Chapter 5 Appendix
27
please contact the local authority or your retailer where
you purchased the product.
Loading...
