User’s Manual
1

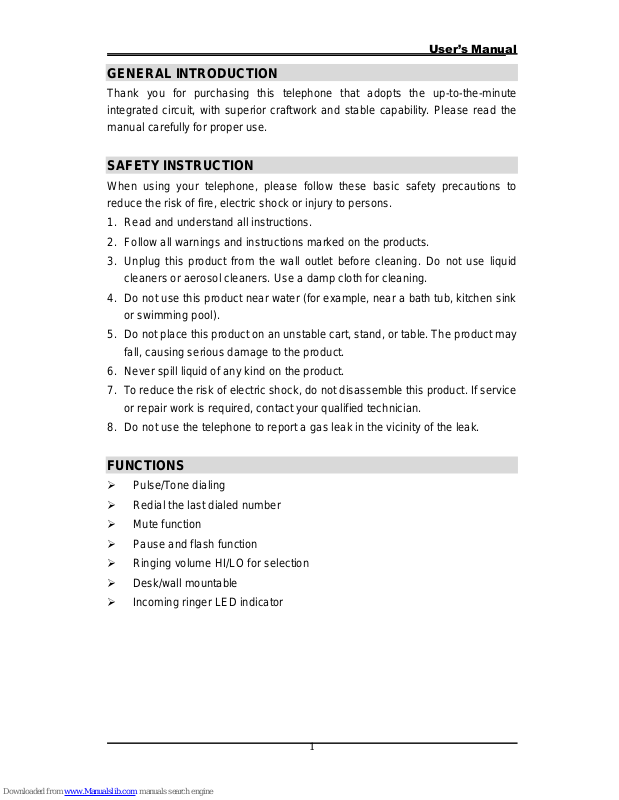

GENERAL INTRODUCTION
Thank you for purchasing this telephone that adopts the up-to-the-minute
integrated circuit, with superior craftwork and stable capability. Please read the
manual carefully for proper use.
SAFETY INSTRUCTION
When using your telephone, please follow these basic safety precautions to
reduce the risk of fire, electric shock or injury to persons.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the products.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub, kitchen sink
or swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
6. Never spill liquid of any kind on the product.
7. To reduce the risk of electric shock, do not disassemble this product. If service
or repair work is required, contact your qualified technician.
8. Do not use the telephone to report a gas leak in the vicinity of the leak.
FUNCTIONS
Pulse/Tone dialing
Redial the last dialed number
Mute function
Pause and flash function
Ringing volume HI/LO for selection
Desk/wall mountable
Incoming ringer LED indicator
User’s Manual
2
LOCATION DESCRIPTION
User’s Manual
3
OPERATION
1) Preparation
1.1 Connect the line plugs into phone line jack and the other plug to connect to the
wall jack.
1.2 Insert the handset coil cord into the phone jack at the bottom.
1.3 Set the dial mode according to local network, while T refers to Tone dialing and
P refers to pulse dialing.
2) Receiving
As it rings, pick up the handset from the cradle to answer, and put back the
handset to hang up to end the conversation.
3) Dialing
Pick up the handset, dial the desired number as hearing the dialing tone, then if
you hear the long tone like “do—do”, the line has got through. If you hear the short
tone like “do... do... do” busy tone, you could press the hook switch then press
REDIAL to dial it out again after some time. You could repeat the above process
till getting the line through.
4) Redial
Pick up the handset, press the REDIAL button, the unit will redial the last number
automatically.
5) Pause
The key is used for inserting a 3.6s pause in the dialing process. If you want to dial
out from the extension phone, press PABX code (normally “0” or “9”) + PAUSE +
desired number, then you could just press FLASH key and then press REDIAL to
dial out again when the dialed number is busy.
6) Flash
The flash time is 100ms, flash function is available working in special PABX.
7) Pulse/Tone
Slide the mode switch to T for tone dialing while P for pulse dialing accordingly.
8) Mute
When making a phone call, if you need a temporal talk with someone else and you
don’t want the phone receiver hear your speaking, press and hold MUTE key to
hold the line and keep the conversation at your side. And if you want to return to
conversation, release the MUTE key.
9) Wall Mountable
The phone can be used for desktop, and it can also be used as wall-mounted.
User’s Manual
4
Before mounting it on wall, pull out the handset backer near hook switch, and then
insert it again in reverse. So the backer can hold and keep the handset not to drop
down.
10) Ringing volume
There are two levels for the ringing volume control: HI & LO for selection. If you
don't want to be disturbed by the incoming calls, slide the RING switch which is
located at the bottom of the unit to LO position when the switch at the high level,
the ringing sound will be cut down.
11) RINGER LED indicator
When there is a new ringing comes, the LED indicator located on the top of base
will flash.
TROUBLESHOOTING
Trouble
Check
Solution
No voice
Whether the handset or
transmission line breaks
off or not.
Connect them properly or change
the line.
Receiving
available
only
Whether dialing system is
proper.
Reset the dialing mode (T/P).
Noise
a. Whether the circuit
breaks off or the line is
loose;
b. Whether the connector
box is moist or rusty.
a. Change the line;
b. Change the connector box.
Ring only
once, then
break off but
out-dialing
is available
Whether the connection site is moist or extension too much.
