Evolio ARIA
User Manual
Main functions
9.7″1024*768 capacitive touch screen .
Support MP3/WMA/ AAC/OGG /WAV music
format.
Support video of AVI/ 3GP/MP4/ MKV/ MOV /TS/
FLV format ,up to 1080P.
Support TF card.
Support picture auto browse in JPG/BMP/JPEG
/GIF format
Support multi languages.
Support APK program installation.
OTG function.
Support firmware upgrade.
Support G-Sensor.
Support multi-point touch function.
Support WIFI Wireless Connection.
support external 3G.
Support HDMI output.
Precautions
1. During the formatting or uploading/downloading,
do not disconnect the tablet from the PC.
Disconnection during updating or data transfer may
damage files or the tablet.
2. Dismantling the tablet will void the warranty. Please
check the trouble shooting section of this manual if
experiencing problems.
3. Our company reserves the right to improve the
product. Different software and hardware versions
might affect the product performance and functions,
therefore the product shall be subject to change
without further notice
※ All warranty information, product features and
specifications are subject to change without notice.

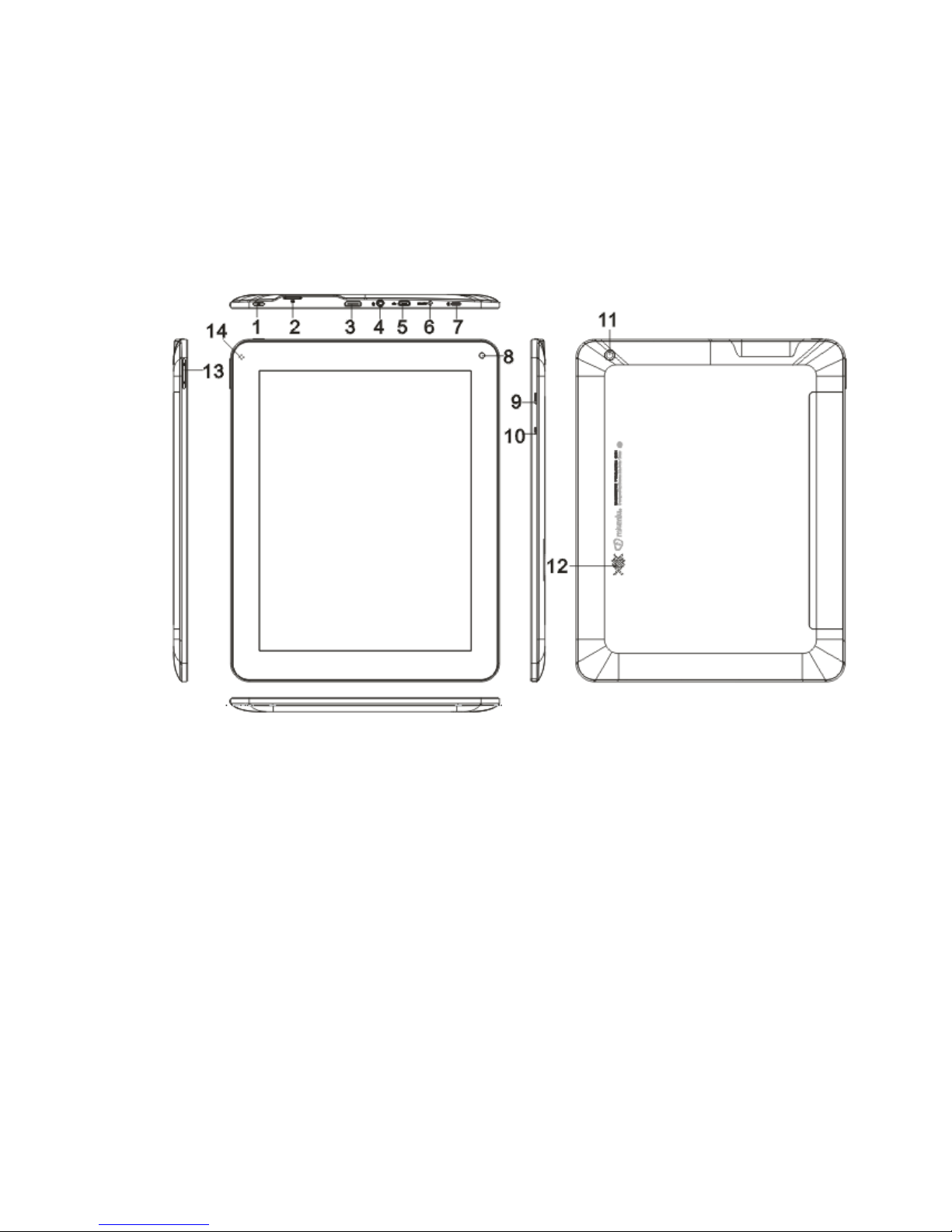

Buttons overview
Item
Name
Item
Name
1
Power
8
Front camera
2
TF card slot
9
Reset button
3
HDMI port
10
MIC hole
4
Earphone port
11
Back camera
5
OTG/USB port
12
Speaker
6
Charging port
13
Volume button
7
Infrared receptor
14
Charging indicator
1)Press volume button to increase or decrease the
volume.
2) Press and hold Power button for 3S to turn on the
tablet. Pressing and holding the Power button for 3S to
show “Power off” window. Choose “ok” to turn off the
tablet, choose “cancel” to return.
3) Pressing the power and volume button at the same
time will cut picture from the screen.
Note: When the screen has a screen timeout, short press
the Power button to wake it up.
Basic Operations
Touch & type
Use your fingers to manipulate icons, buttons, menus,
the onscreen keyboard, and other items on the
Touch screen. You can also change the screen's
orientation.
To select or activate something, touch it.
To type something, such as a name, password, or
search terms, just touch where you want to type. A
Keyboard pops up that lets you type into the field.
Other common gestures include:
a) Touch & hold: Touch & hold an item on the screen by
touching it and not lifting your finger until an
Action occurs. For example, touching an icon on home
screen and hold it, when the Remove icon is
shown on the screen, dragging the selected icon to this
icon can remove it from the home screen.
b) Drag: Touch & hold an item for a moment and then,
without lifting your finger, move your finger on
the screen until you reaches the target position. For
example, you can drag to reposition shortcuts on
the Home screen.
c) Swipe or slide: Quickly move your finger across the
surface of the screen, without pausing when
you first touch (so you don't drag something instead). For
example, you can slide a Home screen left
or right to view the other Home screens.
d) Double-tap: Tap quickly twice on a webpage, map, or
other screen to zoom. For example, double tap
a webpage in Browser to zoom in and double-tap again
to zoom out.
e) Pinch: In some apps (such as Maps, Browser, and
Gallery), you can zoom in and out by placing two
fingers on the screen at once and pinching them together
(to zoom out) or spreading them apart (to zoom in ).
f) Rotate the screen: On most screens, the orientation of
the screen rotates with your device as you
turn it. You can change this Display setting.
Related settings
Settings > Device > Display
How to reset the tablet?
If your tablet cannot response to any function key, please
use pin to press the reset button in the reset hole to
reset the tablet
How to save power?
The battery icon on the screen shows the rest
volume of electricity. To save the power, in system
setting interface, please set Brightness and Sleep to
a reasonable level.
How to charge the tablet?
Please charge the tablet timely before the battery
icon shows blank.
The tablet can be charged via the commanded DC
charger.
The whole charging period need 5 hours. It is
normal to find that the machine surface is warm
under charging state.
G-sensor
If do settings setting→display→Auto-rotate screen
→on, the tablet will switch the screen orientation
automatically when it is being rotated.
Connect to Computer and File Transfer
When the tablet on,connect the tablet using the
supplied USB cable, an interface is shown for your
choice, on which if touch “turn on usb storage”, then
the player enters the USB connection mode.
In the USB connection mode, the tablet will be
detected as standard removable disks by your
computer and allows the transfer and management
of files on the player without the need for the
installation of 3rd party software.
Touch “turn off usb storage”can exit USB connection
mode.

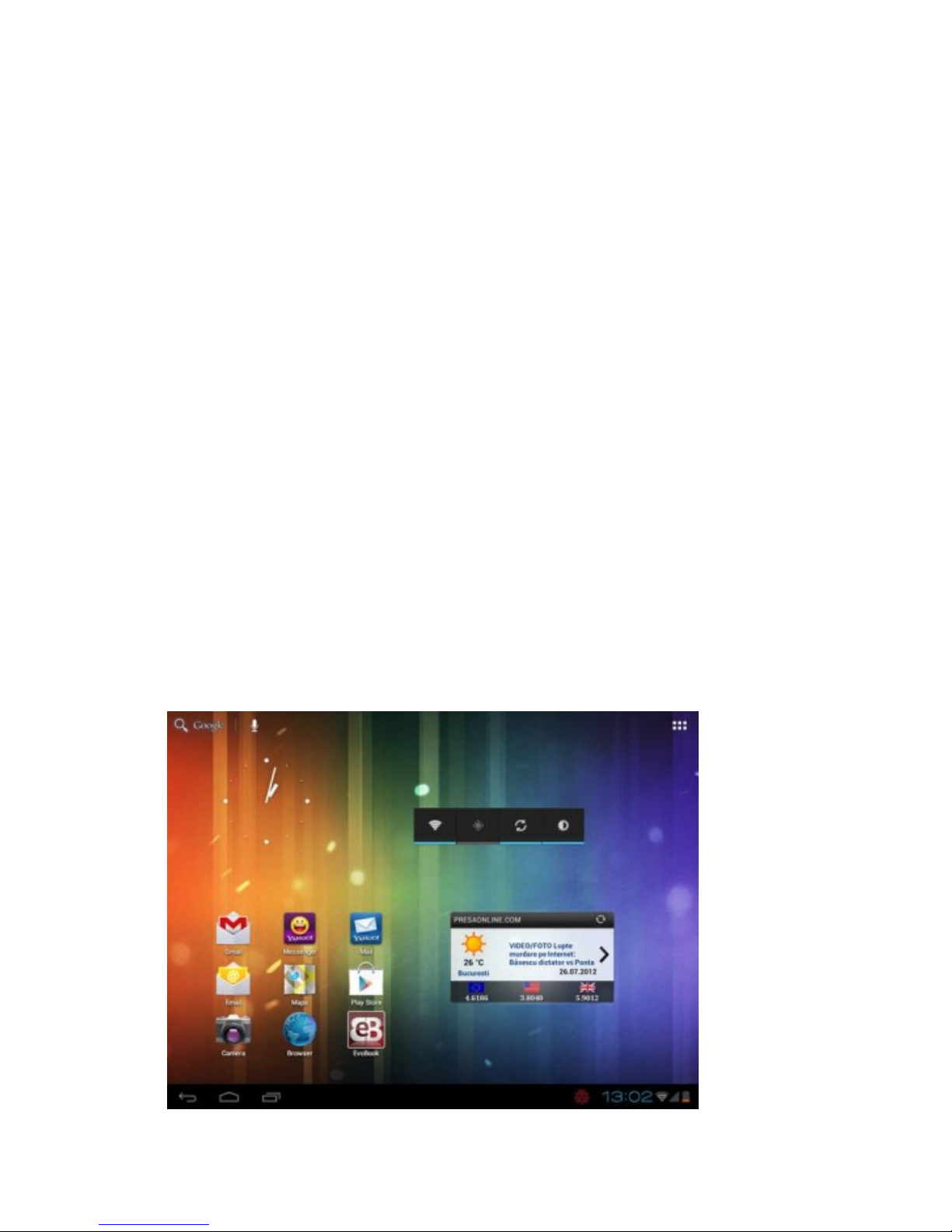

Home screen
Press power key and hold for 3S to power on the tablet,
then the default home screen is shown as the below:
At the bottom of the screen, you'll find three
Navigation buttons. They're always available. No
matter
what you're doing with your tablet, you can always
get back to the main Home screen or return to
previous screens:
Back: Opens the previous screen you were
working in, even if it was in a different app.
Once you back up to the Home screen, you can’t
go back any further in your
history.
Home: Opens Home. If you're viewing a left
or right Home screen, opens the central Home
screen.
Recent apps:
Opens a list of thumbnail images of apps you've
worked with recently.To open an app, touch it. To
remove a thumbnail from the list, swipe it left or
right.
Note:After a short time without getting used,
these buttons may shrink to dots or fade away,
depending on the current app. To bring them back,
touch their location.
Status icons: it is used to
show the current status of network connection,
battery volume and system time.

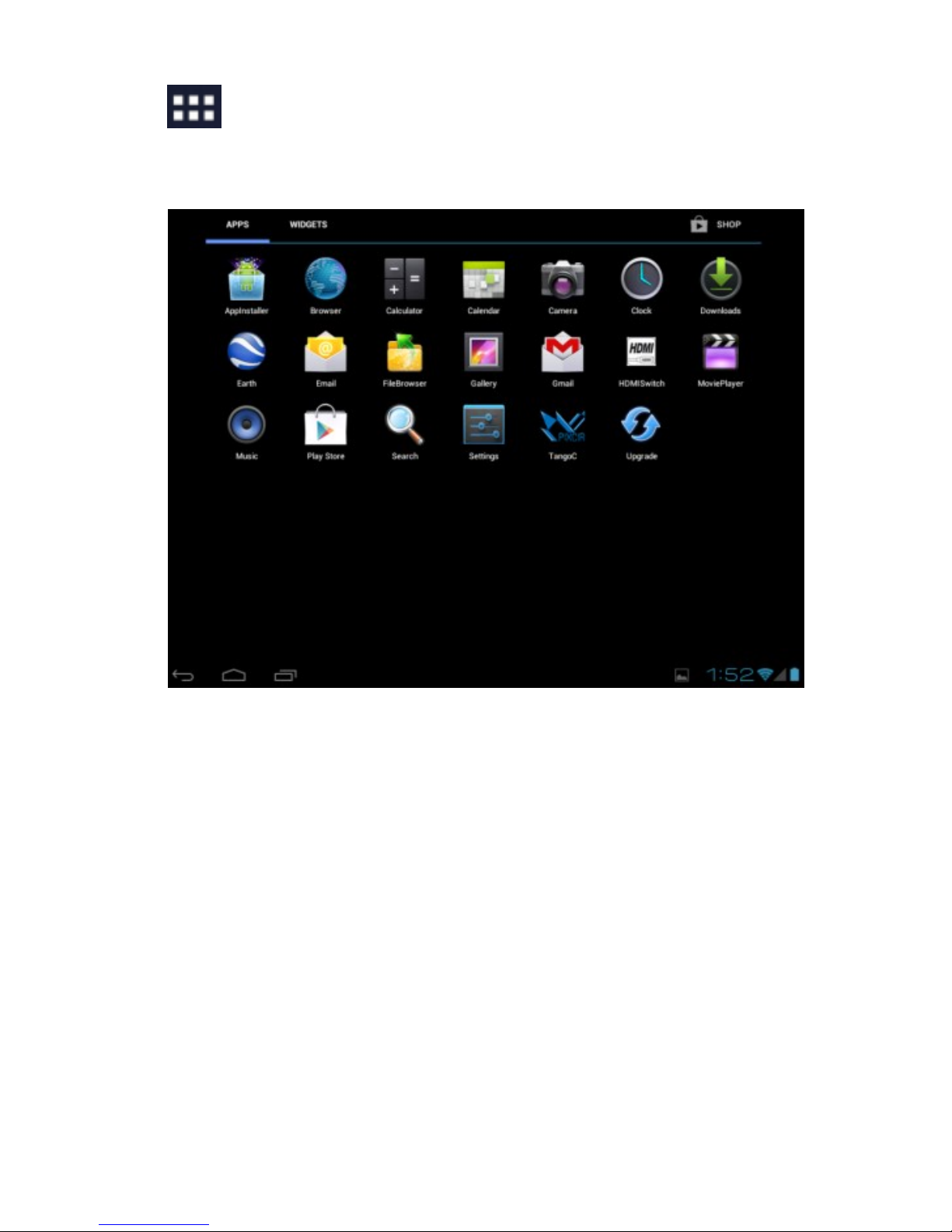

All Apps: Touch it to see all your apps and widgets.
To open an app, folder, or widget, touch its icon.

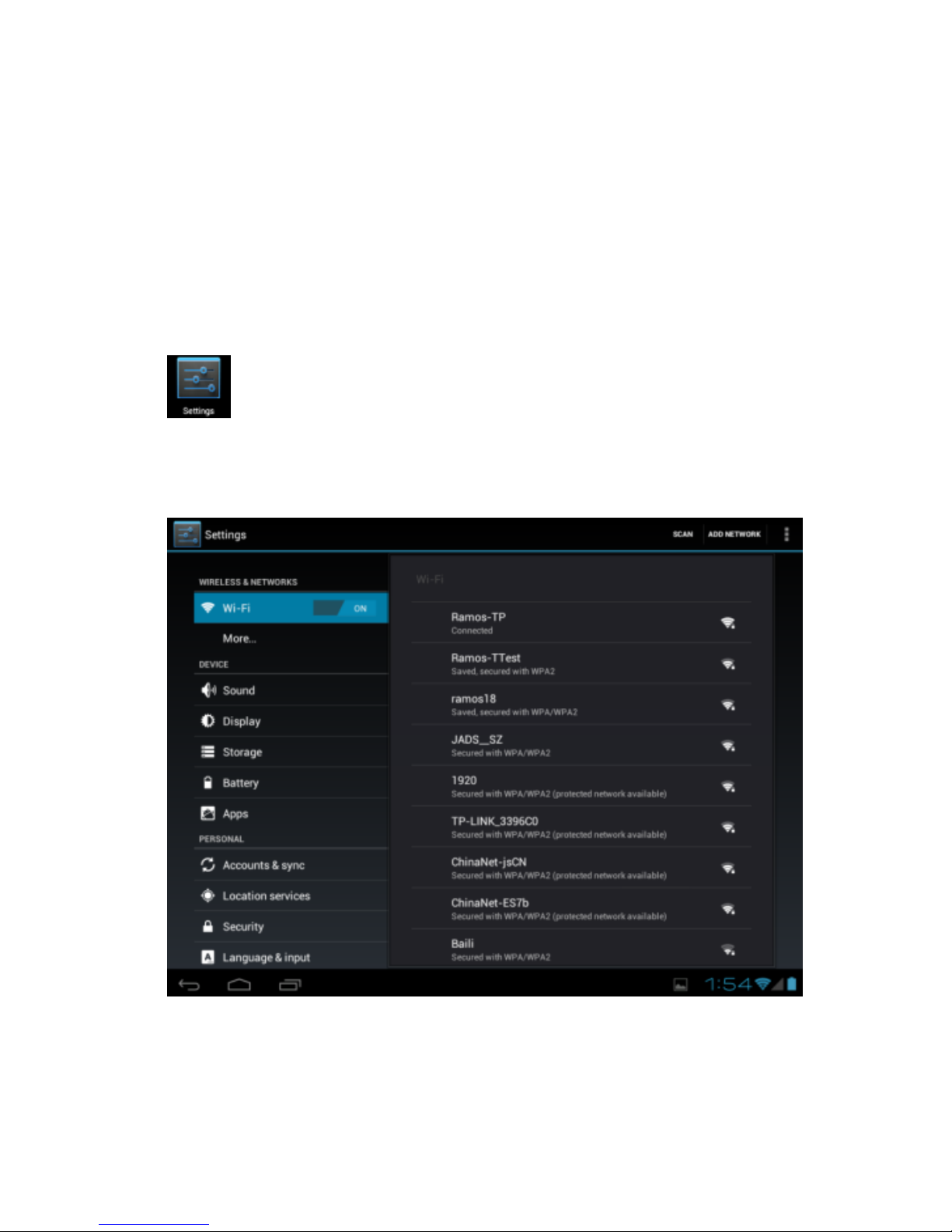

Settings
From a Home or All Apps screen, touch the Settings icon
to enter the system setting interface, on which
user can do settings shown below:
a) Wireless & networks: touch to enter Wi-Fi managing
interface, on which user can view current Wi-Fi
connection under item Wi-Fi. On Wi-Fi managing
interface, if user touch item Wi-Fi settings, then your
tablet will scan all available Wi-Fi networks and list
them on the screen .
On the Wi-Fi network list, touching any Wi-Fi network
scanned can view its signal status and select whether
connect it or not, and touching menu icon popup
more advanced settings.
b)Mobible networks:when user want external connect
3G dongle,please do settings- Wireless &
networks-more- Mobible networks-Data enabled.
c) Sound: touch to setting “volume, Default
notification,Touch sounds,screen lock sounds”
d)Display:touch to
setting ”Brightness,Wallpaper,auto-rotate
screen,Sleep,Font size”
Wi-Fi networks scanned
e)Storage: touch to view SD card & device storage
setting.
f)Battery:touch to scan the situation of the battery.
g)Apps:touch to scan the APPS .
h)Location & services: Location settings.
i)Security:user can do screen security here.
j)Backup & reset:touch to enter”Factory data
reset”interface.
k)Language & input: touch to set system language and
text inputting method.
l)Accessibility:accessibility setting
k) Date & time: touch to set system time and date.
l) About tablet : touch to view basic information about
your tablet.
Note: it is important to do system setting, please enter
the setting interface of your tablet to view each
setting items carefully before using your tablet.

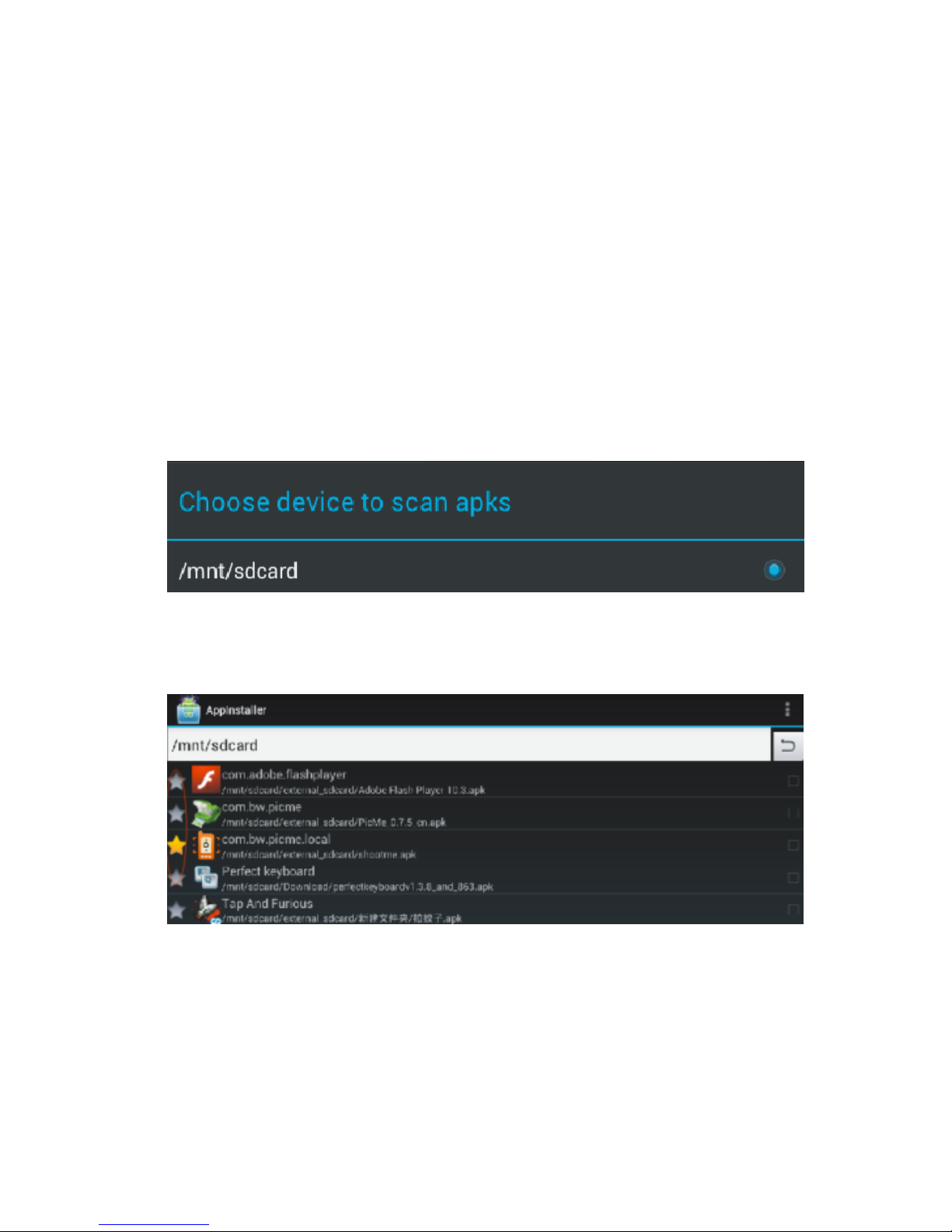

Appinstaller
From a Home or All Apps screen,touch the Appinstaller
icon.Enter the corresponding interface,on which user can
choose device to scan apks
Choose the device,touch to enter into the APP list.
The star highlighting before the app means this app have
already installed.
The grey star means this app uninstalled.

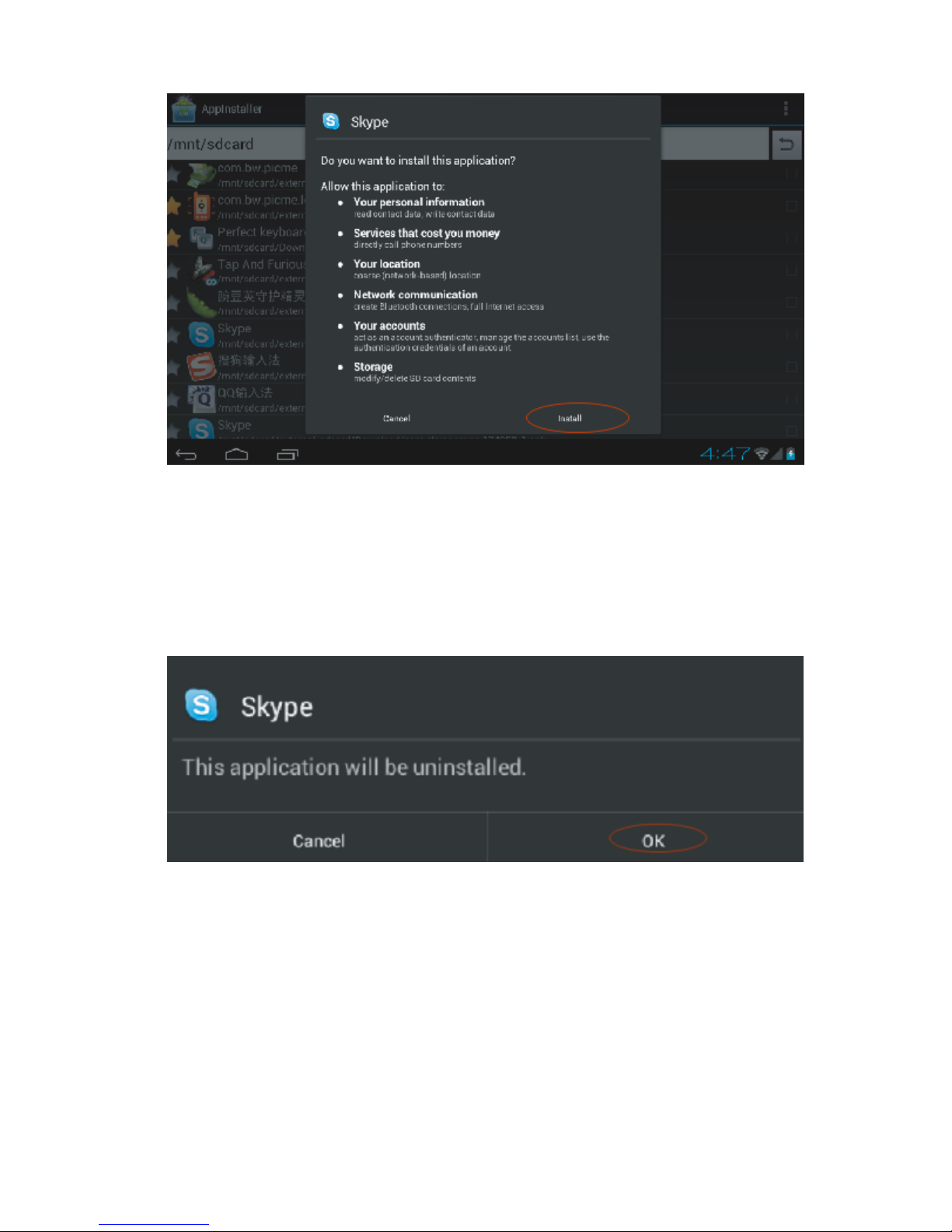

Touch an uninstalled app show installing window.Choose
“install” to install the app,choose “cancel” to return.
Touch an installed app show uninstalled window.Choose
“OK” to uninstall the app,choose “cancel” to return.
Note:No matter in which interface,tap icon,can
show submenu.
FileBrowers
From a Home or All Apps screen, touch the FileBrowers
icon , enter the corresponding interface, on which
user can enter file management interface.
Select/open mode: when this icon popup light,you
can play the music/movie direactly;when this icon popup
grey,tough Can popup edit
dialog(cut,copy,paste,delete)
show home page
Select/open mode
Show edit dialog
show sort dialog
Back to parent dir
View by thumbnail
Help
When this icon show highlight,user can play the
music and movie directly.
When this icon show grey,user can copy,cut,delete
the file in this tablet.
HdmiSwitch
Error! Reference source not found.
From a Home or All Apps screen, touch the HdmiSwitch
icon , enter the corresponding interface,
Use Hdmi cable connect the Tablet to other device.
User can use remote control .
When Hdmi connect ,user can choice “PANEL” to
disconnect the Hdmi.
When HDMI connect with the TV,the screen will show
grey,the panel can use as touch mouse.
Troubleshooting
The tablet cannot be turned on.
Please charge it via the DC charger to check if the
battery is low. If not, then please reset the tablet.
Incorrect language displayed.
Please make sure that you have selected the correct
language. Set language in (Settings) => (personal) =>
(Language &input)
Files cannot be downloaded.
1. Make sure the proper connection between computer
and tablet.
2. Check if the memory is full.
3. Check if the USB cable is damaged and replace if
necessary.
Audio files not playable.
This tablet cannot play audio files that are copy protected.
Please ensure that only files that contain no copy
protection are transferred to the tablet.
Fail to open the web page.
Please check whether successfully create the Wi-Fi
connection.
