Evolights Laser PRO RGB 3W Animation User Manual

LASER PRO RGB 3W ANIMATION

User Manual

Instrukcja Obsługi

Laser PRO RGB 3W Animation

- - 1 - -

ENGLISH

Contents

Introduction------------------------------------------------------------------------------------------------P2

Symbol and Safety instructions-----------------------------------------------------------------------P3

Installation/Technical specification-------------------------------------------------------------------P4

SD control system/Menu--------------------------------------------------------------------------------P4

DMX512 Channel------------------------------------------------------------------------------------------P5

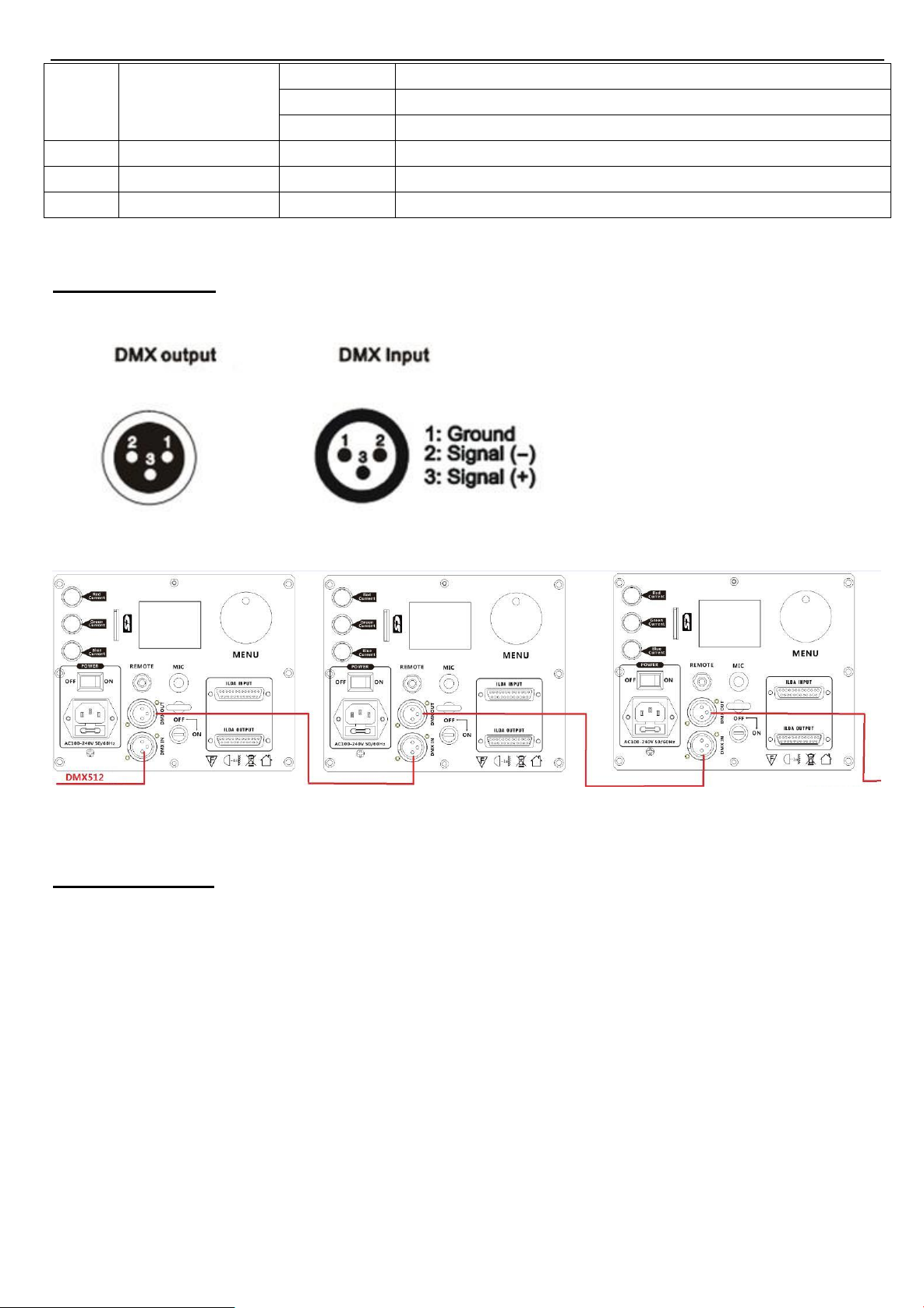

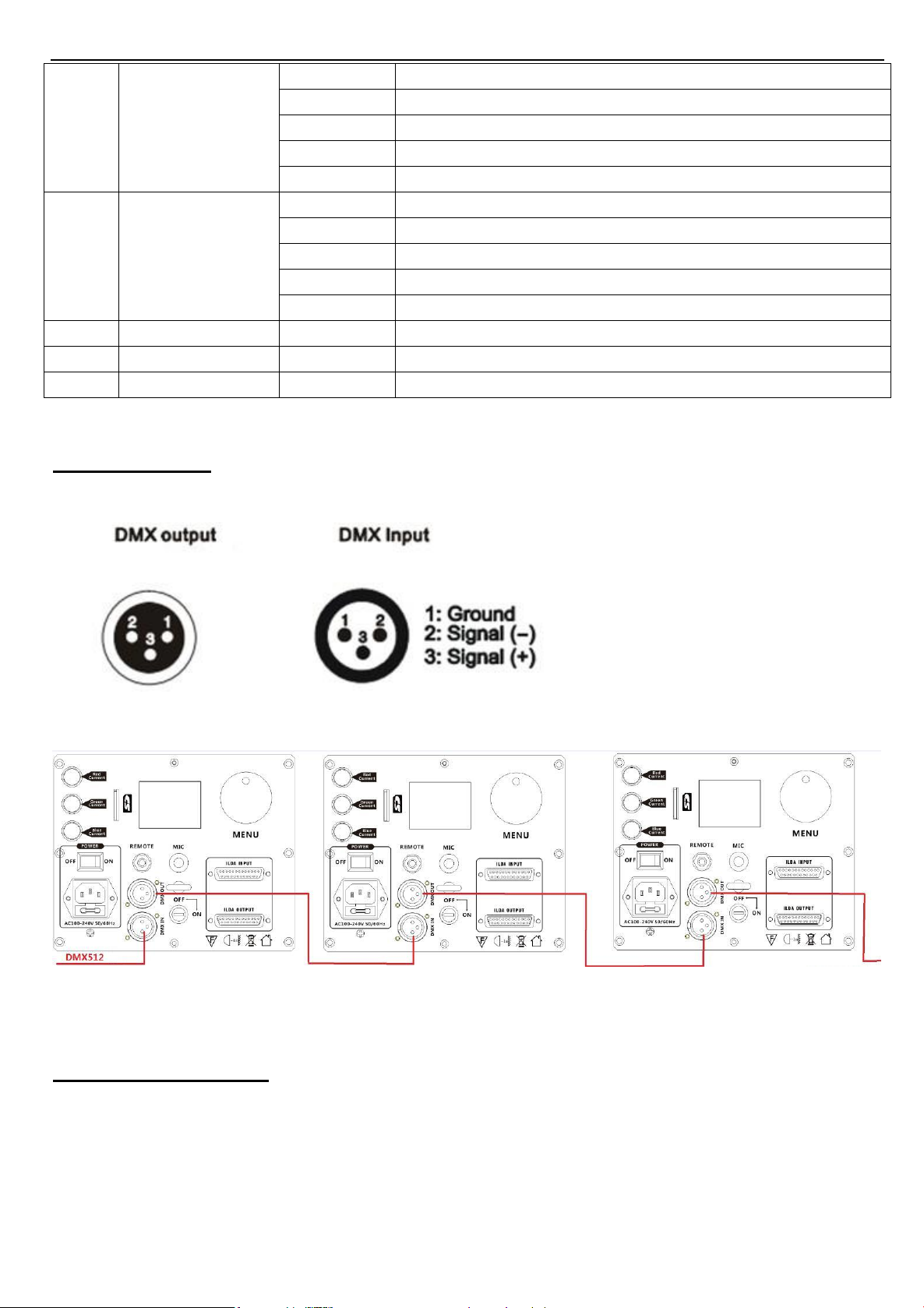

DMX Adress setting/DMX512 connection----------------------------------------------------------P7

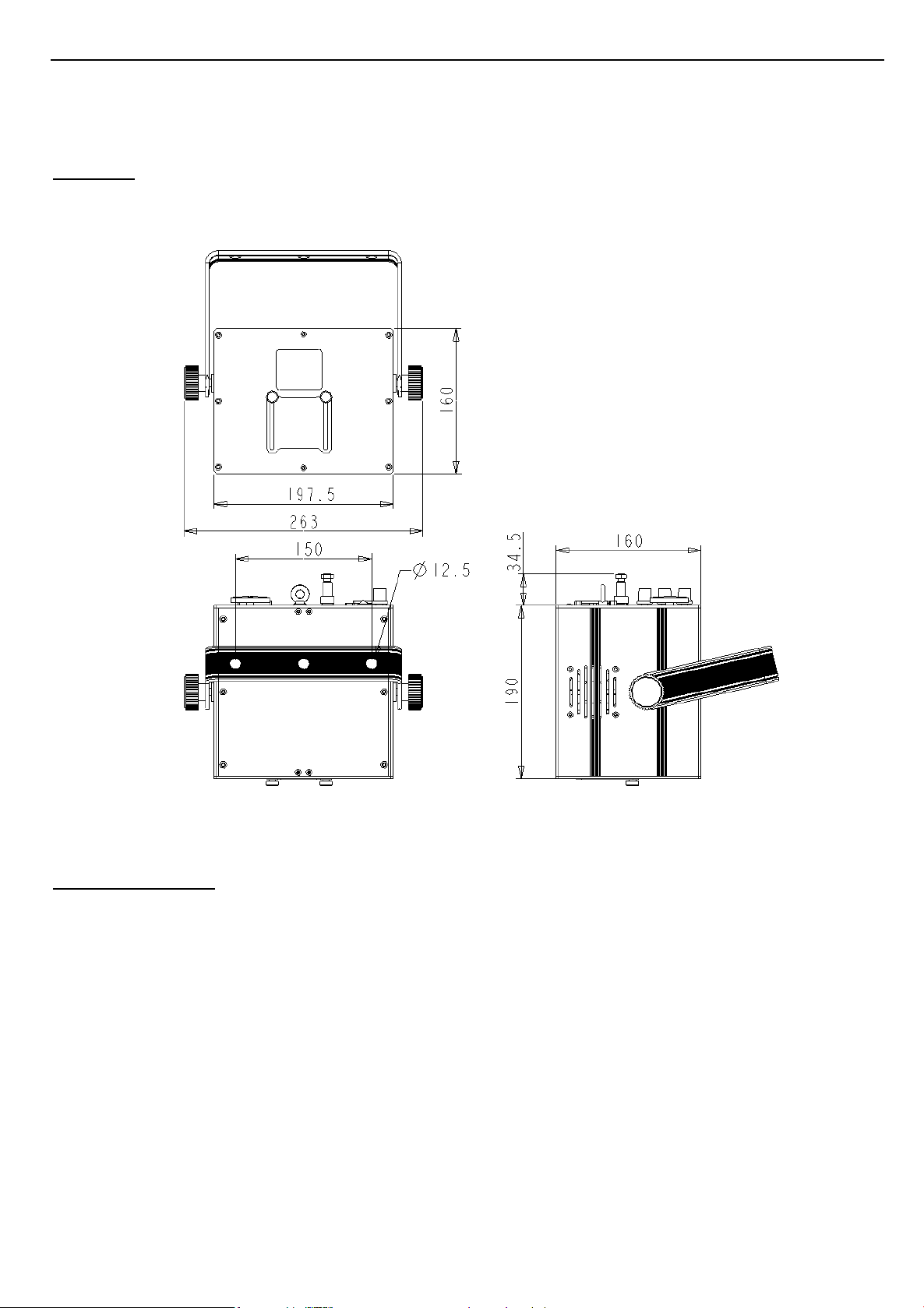

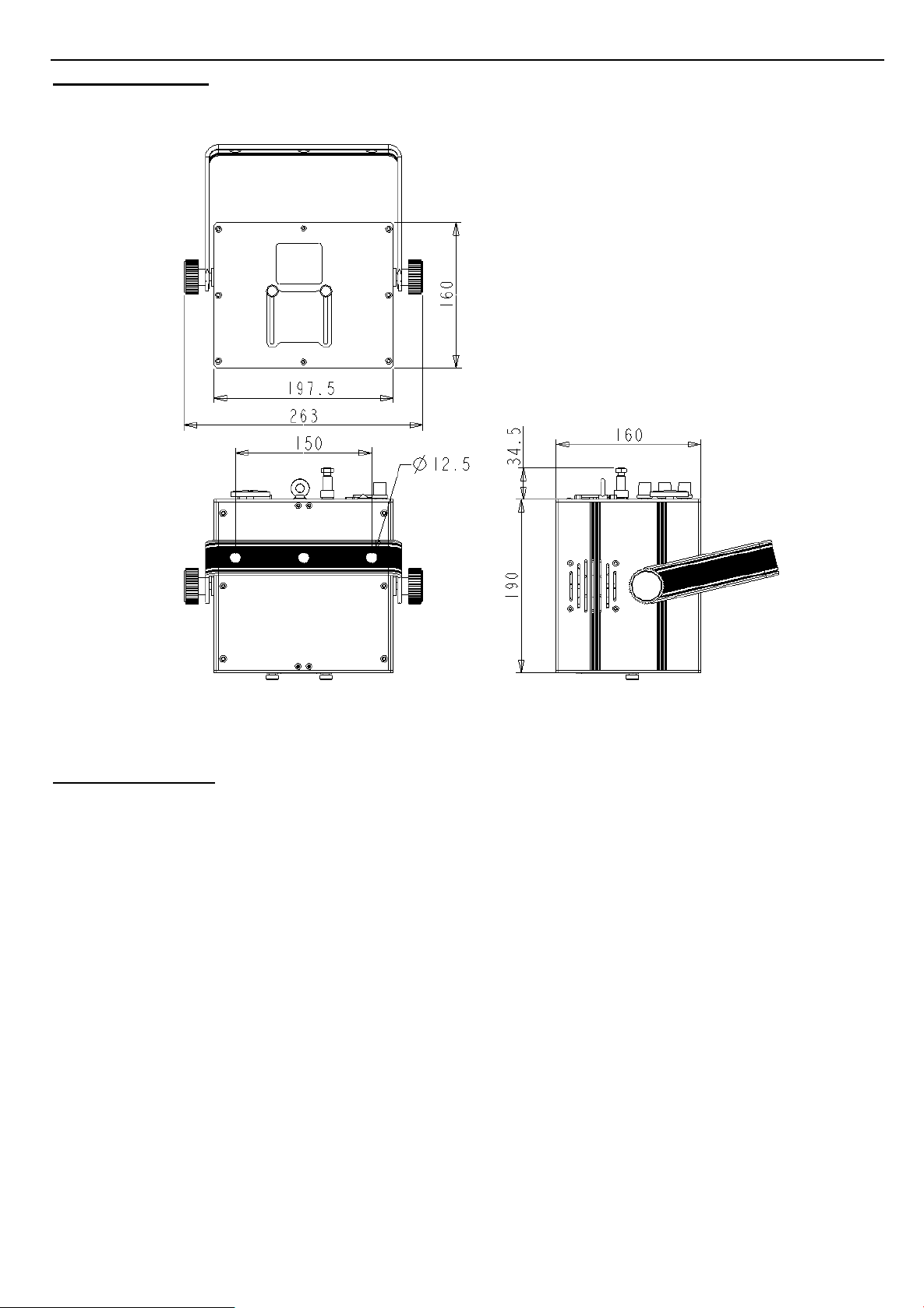

Product size-------------------------------------------------------------------------------------------------P8

Installation warnings--------------------------------------------------------------------------------------P8

Cleaning and maintenance/Warning -----------------------------------------------------------------P9

Laser PRO RGB 3W Animation

- - 2 - -

Introduction

Thank you for purchasing this product. To optimize the performance of this product, prior to use, please read
these operating instructions carefully to familiarize yourself with the basic operation of this unit. Please keep
the manual in safe price for future reference.

This unit has been tested at our factory before being shipped to you, there is no assembly required.

Once after received this product , please take and put carefully. And check cautiously that whether the
product was damaged or not during the transportation.

Checking Parts
Please check if the following parts are included:
1 x Laser light
1 x User manual
1 x Power cable

Caution

Symbol Instruction On The Device

CE Certificate

Only indoor use

Environmental protection

The minimum distance from lighted objects(meter)

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

Warning!

Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or

Laser PRO RGB 3W Animation

- - 3 - -

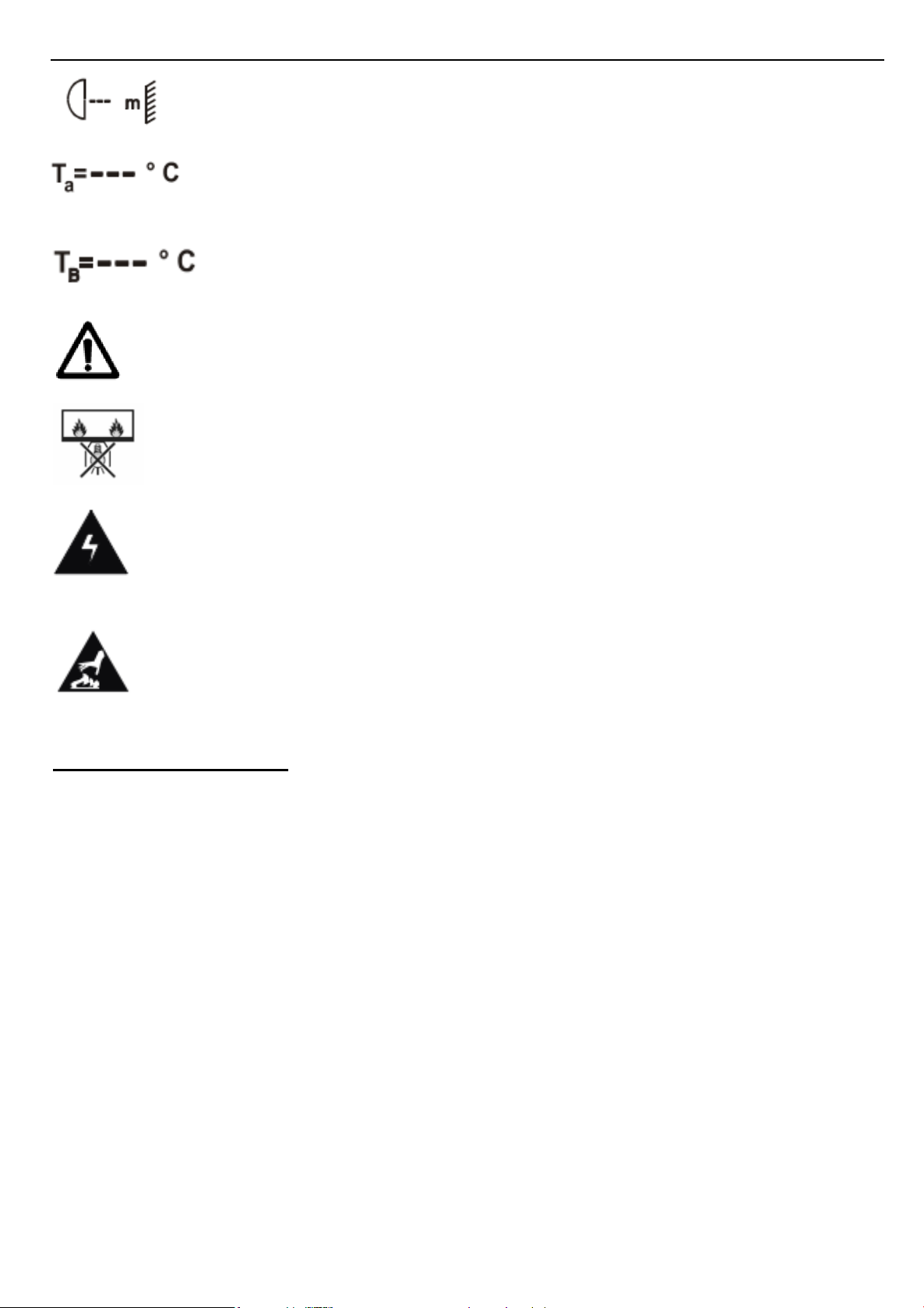

Max. Ambient Temp

Max. Housing Temp

Safety caution

Careful burns

Careful electric shock

Not suitable for directly installed on the surface of ordinary combustible materials

Safety Instructions

⚫ Please open and check whether break or not for transport once receive this fixture, if yes, not use it

and contact dealer or manufacture as soon as possible.

⚫ The Max applicable temperature for the light is 40°C. Do not use the light under or above the

temperature. ta=40℃

⚫ The fixture is applicable for many occasions, it should keep clean, and avoid long use in overheating

or dusty environment. To prevent the fixture from the chemical liquid .

⚫ User must be careful of fire, heat, electric and fall-off that make heavy or fatal injury. Please read this

user manual carefully before power on and installation, following safety and operation instruction in
it. If still have any questions, please contact dealer or manufacture.

⚫ User must following this user manual, do not open fixture by yourself, if any problems, please contact

professional technician, maintenance should by technician.

⚫ Do not power on or start the fixture before installation, please stop after working more than 8 hours,

which will longer use life.

⚫ Fixed installation, do not by strong shocks.
⚫ The minimum distance between light and the illuminated surface must be more than 1 meter.
⚫ Never look directly into the light source to avoid hurt to eyes (especially epileptics)!

When dustproof glass at light output breaks, cracks or other visible damage, user should replace with

new glass to continue to use.

Laser PRO RGB 3W Animation

- - 4 - -

Installation

⚫ When install this equipment please make sure there's no flammable surfaces (decorated things, etc) and

minimum distance of 0.5M from the equipment to the flammable.

⚫ The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight

and without any harming deformation.

⚫ The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety

rope. Never stand directly below the device when mounting, removing or servicing the fixture.

Technical Specifications

Input voltage: AC100-240V, 50/60Hz
Fuse: BGDP ￠5x20mm 250VAC F2A
Total power:75W
Light source: 3W RGB (600mW/638nm+600mW/520nm+1800mW/445nm)
Control mode: Auto/Sound/DMX512/ILDA/Master-slave/SD
Channels：17CH
Scanning system: 30Kpps Scanner, ±30º
Surface temp: Tb=45ºC ( this data testing when the environment temp is 30ºC)
Working temp: 10ºC--65ºC
Modulation: Analog modulation
N.W: 4.1Kg
G.W: 5Kg

Carton packing size: 30*25*26cm

SD laser control system

1. MENU operation

Rotate the knob at display’s right side to operate the menu, press knob to enter sub-menu or exit menu,
after operation, Non-stop double-click the knob to save the option and exit the menu, once back DMX
display means success record and setting.(Eg: when setting DMX address should Non-stop Double click the
knob and exit MENU, till back to DMX display, then DMX address can success save)

The potentiometer at display’s left side can adjust the power of laser: Red Current( adjust red laser
power), Green Current(adjust green laser power),Blue Current (adjust blue laser power). Anti-clockwise
rotation the potentiometer is down the power, and clockwise rotation is up the power. Below the display,
safety key location, is closed the laser when the key at OFF, and is open when the key at ON.

2. MENU display

MENU

Display

Function

Dmx Address

1-512

DMX address setting

Show mode

Prg Mode

Display list mode： display PRG file, the 2rd line

displays the current file name

ILDA Mode

ILDA mode，display shows in ILDA file circularly（file’s

expanded-name is ILD）

Sound

Sound activate mode

Laser PRO RGB 3W Animation

- - 5 - -

DMX Channel Instructions

Channel

Value

Function

CH1

control mode

0-49

auto mode

50-99

sound activated mode

100-149

PRG file display orderly

150-199

ILD file display circularly

200-255

DMX Mode

CH2

choose

pattern/file

0-255

DMX Mode

PRG/ILD mode

choose pattern, 1 pattern for 3 digits

choose file

CH3

strobe and display

file

0-10

no strobe

choose display file

11-199

strobe automatically from slow to fast

200-255

strobe via sound activated

CH4

choose color

0-5

laser off

6-16

white
6-10

ILD file's original color

11-16

white

17-33

red

34-50

green

51-67

blue

68-84

yellow

85-101

purple

102-118

cyan

119-135

white,red, green, blue subsection

136-152

blue, yellow, purple, cyan subsection

153-169

white, red, green, blue, yellow, purple, cyan subsection

Auto Mode

Auto mode

Sound sense

0-100

Sound sensitivity setting

SD File

choose SD card file

SIZE

0-100

Set pattern size

Phasic set

X Y

Speed set

Set show speed，set the speed according to the

scanner speed, too high speed will hurt the scanner

DMX STATE

Show mode

When no DMX，the working mode is show mode

Black out

When no DMX，light stands by

HOLD

When no DMX，light holds the last scene

Slave

Master/ slave

Master/slave mode

Fixture Hours

Fixture total working hours

Version Software version
