COMPONENTS
STEP 1 STEP 2
STEP 4 STEP 5
STEP 3
D
C
B
A
A
D
E
I
CAUTION
Make sure the surface is stable before
mounting any monitor arm.
Place the monitor face down on a flat, soft surface. Attach each Monitor Mount (D) to the
back of each monitor using a Phillips screwdriver and the M4 screws provided (G). There
are two screw lengths provided for your convenience. Use the longest screw that will fully
tighten the Monitor Mount (D) to the back of the monitor. The Monitor Mount (D)
is designed to fit the industry standard VESA 75mm & 100mm patterns.
Insert the two provided Wire Clips (F) into the underside of the extension Arm (C).
Run the monitor cables through the Wire Clips (F). Maker sure the cables are not
pulled tight. There should be some slack in the cables to allow the arm
to move freely without restriction.
Adhere the Base Cushion (E) to underside of the Riser (A).
Insert the Clamp Washer (I) on top of the Clamp Screw (pre-installed in the Riser)
and tighten to desktop in the desired location using the M6.3 Hex Key (H).
The Monitor Mount (D) tilits up/down. Once you have the monitor installed,
carefully loosen the nut behind the bracket with the Wrench (J). Position the
monitor where you want it and tighten the nut with the Wrench (J).
Slide the Single Adapter (B) over the Riser/Pole Assembly (A) and secure
in place by tightening the set screw on the Single Adapter using M3 Hex Key (H).
Insert the Gas Spring Arms (B) into the Dual Adapter (E).
Insert the Extension Arms (C) into the Gas Spring Arms (B).
Insert the Monitor Mounts (D) with the monitors attached
into the Extension Arms (C).
Once the monitor arms are
assembled, lightly tighten the small
screws at each joint to prevent the
arm from lifting apart.
Use the M2.5 Hex Key (H) provided.
Do not over-tighten the screws.
NOTE:
Extension Arm (C) may be
excluded if desired.

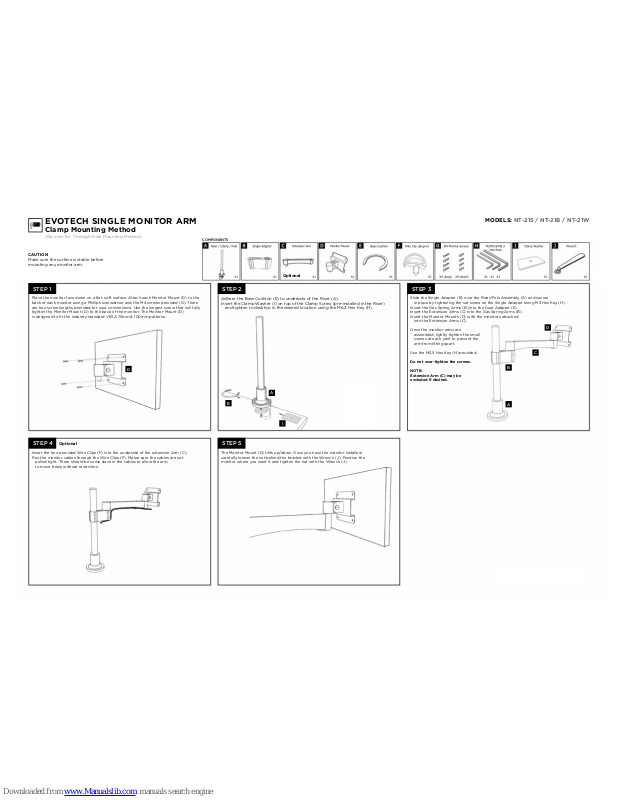

EVOTECH SINGLE MONITOR ARM
MODELS: NT-21S / NT-21B / NT-21W
Clamp Mounting Method
(flip over for Through-Hole Mounting Method)
Optional
Optional
COMPONENTS
STEP 1 STEP 2
STEP 4 STEP 5
STEP 3
D
C
B
A
A
D
E
I
K
hole required
DESKTOP
hole required
DESKTOP
Place the monitor face down on a flat, soft surface. Attach each Monitor Mount (D) to the
back of each monitor using a Phillips screwdriver and the M4 screws provided (G). There
are two screw lengths provided for your convenience. Use the longest screw that will fully
tighten the Monitor Mount (D) to the back of the monitor. The Monitor Mount (D)
is designed to fit the industry standard VESA 75mm & 100mm patterns.
If the Clamp Mount is attached to the underside of the Riser (A), remove it using
the M6.3 Hex Key (H). The Clamp Mount (shown on reverse side) is not needed
for Through-Hole mounting.
Adhere the Base Cusion (E) to underside of the Riser (A).
Pass the Long Bolt (part K) through the Clamp Washer (I) and from under the
desktop. Work the Long Bolt (park K) into the the Riser (A). Tighten the Long
Bolt (K) using a wrench (not provided).
Slide the Single Adapter (B) over the Riser/Pole Assembly (A) and secure
in place by tightening the set screw on the Single Adapter using M3 Hex Key (H).
Insert the Gas Spring Arms (B) into the Dual Adapter (E).
Insert the Extension Arms (C) into the Gas Spring Arms (B).
Insert the Monitor Mounts (D) with the monitors attached
into the Extension Arms (C).
Once the monitor arms are
assembled, lightly tighten the small
screws at each joint to prevent the
arm from lifting apart.
Use the M2.5 Hex Key (H) provided.
Do not over-tighten the screws.
NOTE:
Extension Arm (C) may be
excluded if desired.
The Monitor Mount (D) tilits up/down. Once you have the monitor installed,
carefully loosen the nut behind the bracket with the Wrench (J). Position the
monitor where you want it and tighten the nut with the Wrench (J).
Insert the two provided Wire Clips (F) into the underside of the extension Arm (C).
Run the monitor cables through the Wire Clips (F). Maker sure the cables are not
pulled tight. There should be some slack in the cables to allow the arm
to move freely without restriction.
Optional
EVOTECH SINGLE MONITOR ARM
MODELS: NT-21S / NT-21B / NT-21W
Through-Hole/Grommet Mounting Method
(flip over for Clamp Mounting Method)
CAUTION
Make sure the surface is stable before
mounting any monitor arm.
Optional
