Page 1

EC0-1815V2NAR

ATX 单板

ATX Motherboard

Version: C01

Page 2

Information offered in this manual is believed to be correct at the time of printing, and

is subject to change without prior notice in order to improve reliability, design and

function and does not represent a commitment on the part of the manufacturer. In no

event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of improper installation and/or use, or inability to

use the product or documentation.

This user manual is protected by copyright. No part of this manual may be reproduced,

stored in any retrieval system, or transmitted, in any form or by any means,

mechanical, electronic, photocopied, recorded or otherwise, without the prior written

permission from the manufacturer.

Trademarks

EVOC is a registered trademark of EVOC Intelligent Technology Co., Ltd. Other

product names mentioned herein are used for identification purposes only and may be

trademark and/or registered trademarks of their respective companies.

Please visit our website: http://www.evoc.com

for more information, or send an email to the Technical Support Mailbox [email protected] (International) or [email protected]

(Domestic) for consultation.

Hotline: 4008809666

Page 3

Safety Instructions

1. Please read this manual carefully before using the product;

2. Leave the board or card in the antistatic bag until you are ready to use it;

3. Touch a grounded metal object (e.g. for 10 seconds) before removing the board

or card from the anti-static bag;

4. Before installing or removing a board, wear the ESD gloves or ESD wrist strap;

handle the board by its edges only;

5. Before inserting, removing or re-configuring motherboards or expansion cards,

first disconnect the computer and peripherals from their power sources to

prevent electric shock to human bodies or damage to the product;

6. Remember to disconnect the AC power cord from the socket before removing

the board or moving the PC;

7. For PC products, remember to disconnect the computer and peripherals from the

power sources before inserting or removing a board;

8. Before connecting or disconnecting any terminal, peripheral or any device, be

sure the system is powered off and all the power sources are disconnected;

9. After turning off the computer, wait at least 30 seconds before turning it back on.

Page 4

Contents

Chapter 1 Product In

troduction.....................................................................................1

Overview ..................................................................................................................1

Mechanical Dimensions, Weight

and Environment .................................................1

Typical Consumption ...............................................................................................1

Microprocessor ........................................................................................................2

Chipset .....................................................................................................................2

System Memory.......................................................................................................2

Display Function......................................................................................................2

Network Function ....................................................................................................3

Audio Function ........................................................................................................3

Power Feature ..........................................................................................................3

Expansion Bus .........................................................................................................3

Watchdog Function ..................................................................................................3

Operating System.....................................................................................................3

On-board I/O............................................................................................................4

Chapter 2 Installation....................................................................................................5

Product Outl

ine ........................................................................................................5

Locations of Connectors ..........................................................................................6

Structure...................................................................................................................7

Jumper Setting .........................................................................................................8

Serial Port ................................................................................................................9

Status Indicating and Control Connector..................................................................9

Page 5

ATX Power Switch and Hard D

isk Indicator Connector..........................................9

Power Indicator Connector.......................................................................................9

Loudspeaker Output Connector..............................................................................10

7pin SATA Connector.............................................................................................10

KB/MS Connector..................................................................................................10

USB Port................................................................................................................10

Audio Connector.................................................................................................... 11

GPIO Connector.....................................................................................................12

TPM Connector......................................................................................................13

LAN Port................................................................................................................13

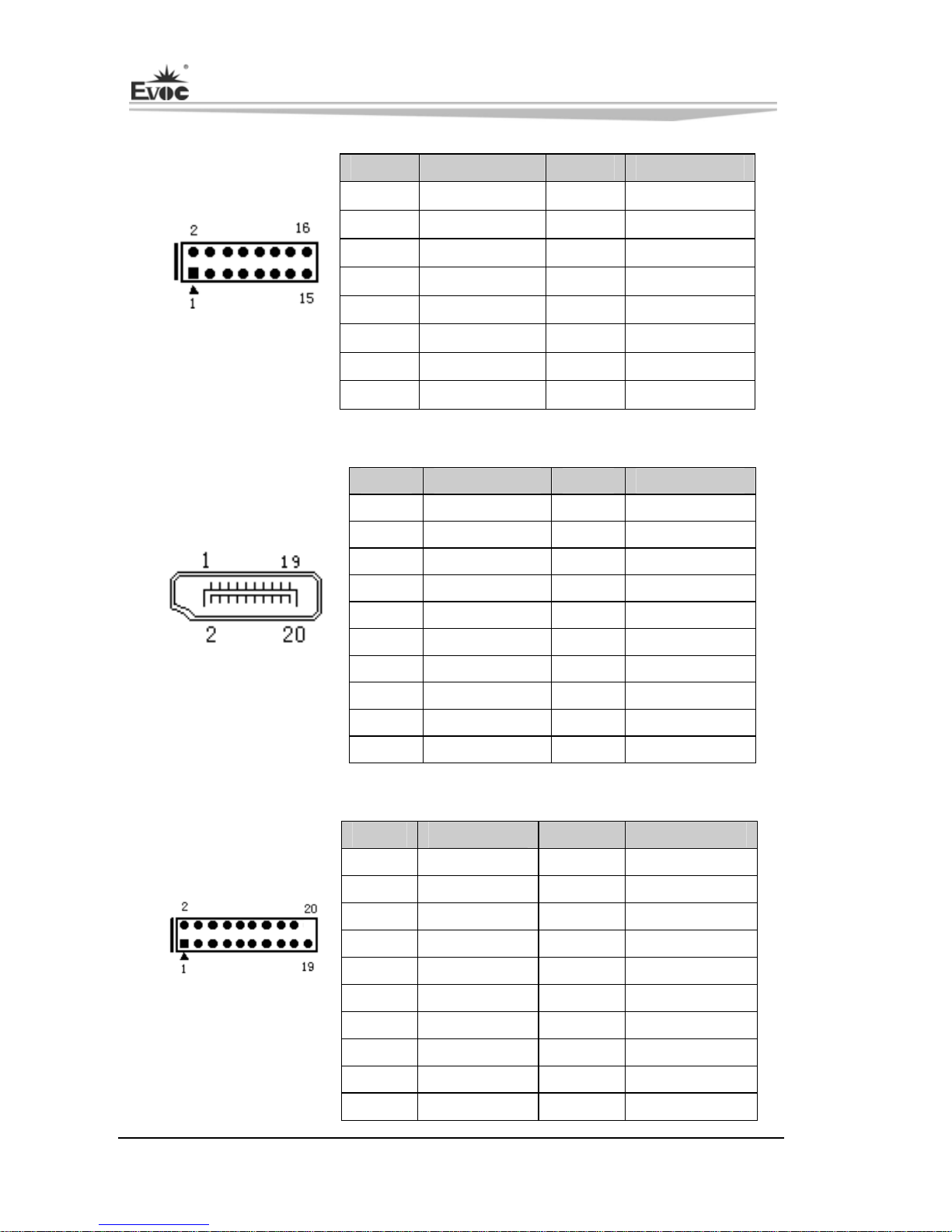

2x8 Pin VGA Connector ........................................................................................14

Display Port ...........................................................................................................14

DVI Connector.......................................................................................................14

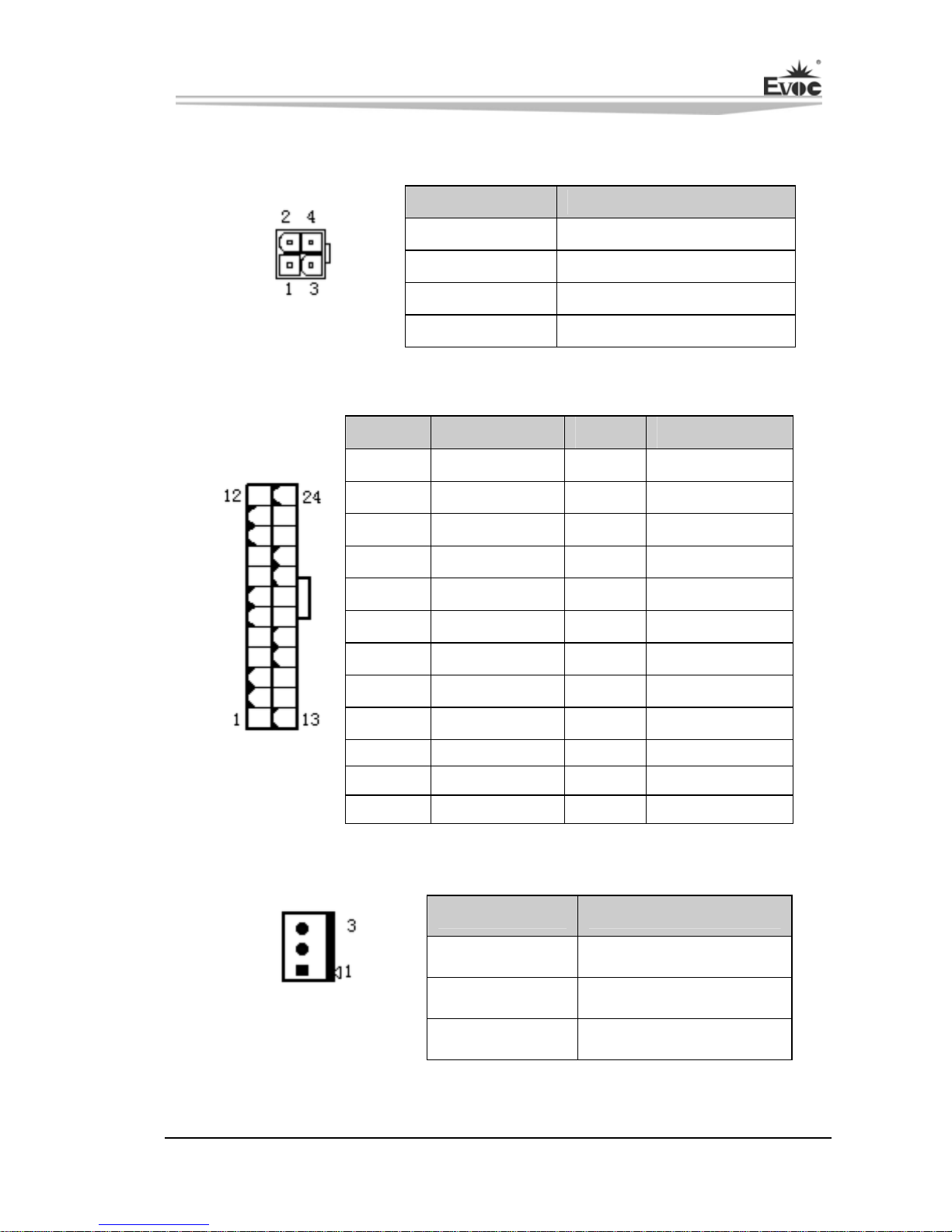

Motherboard Power Supply Connector..................................................................15

3-pin System Fan Connector..................................................................................15

4-pin CPU Fan Connector......................................................................................16

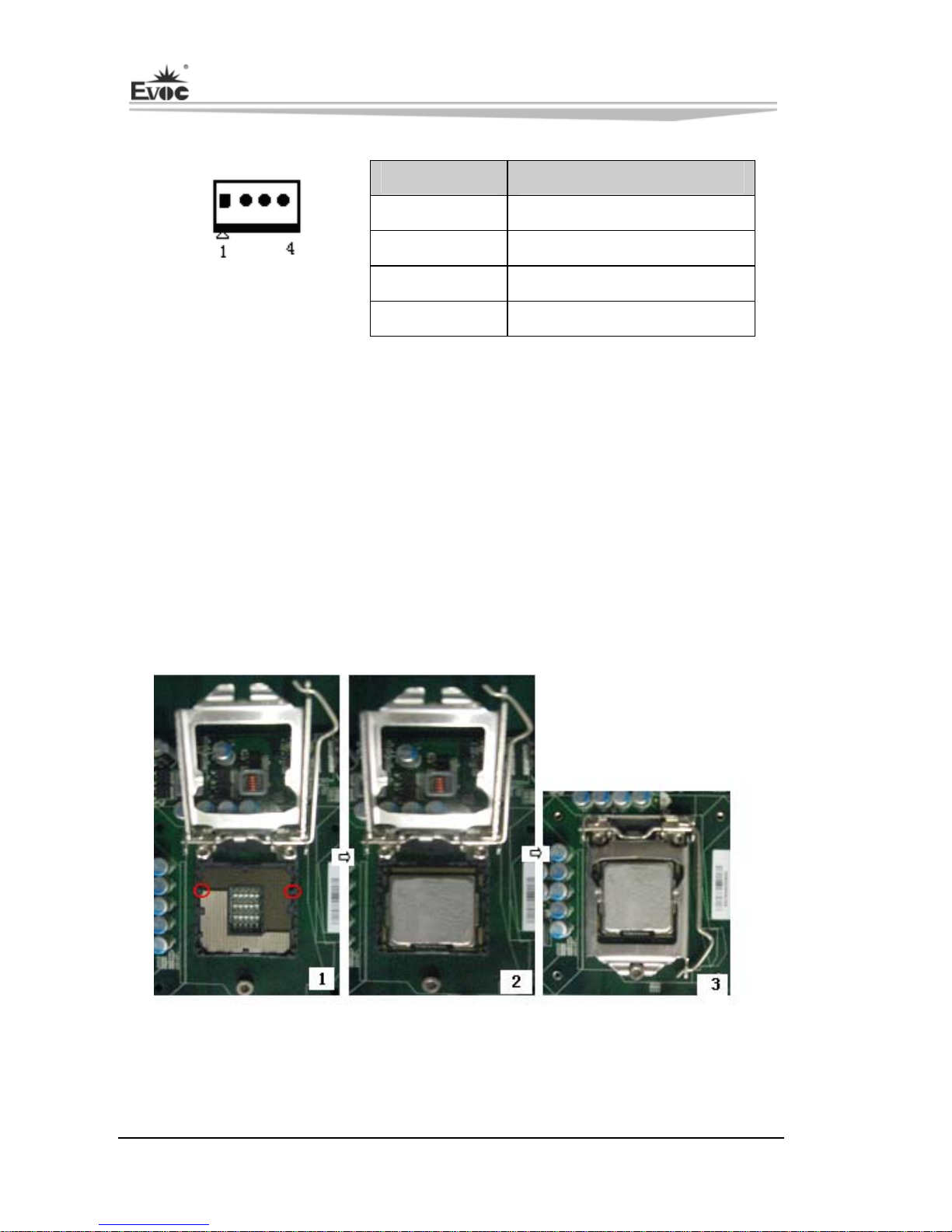

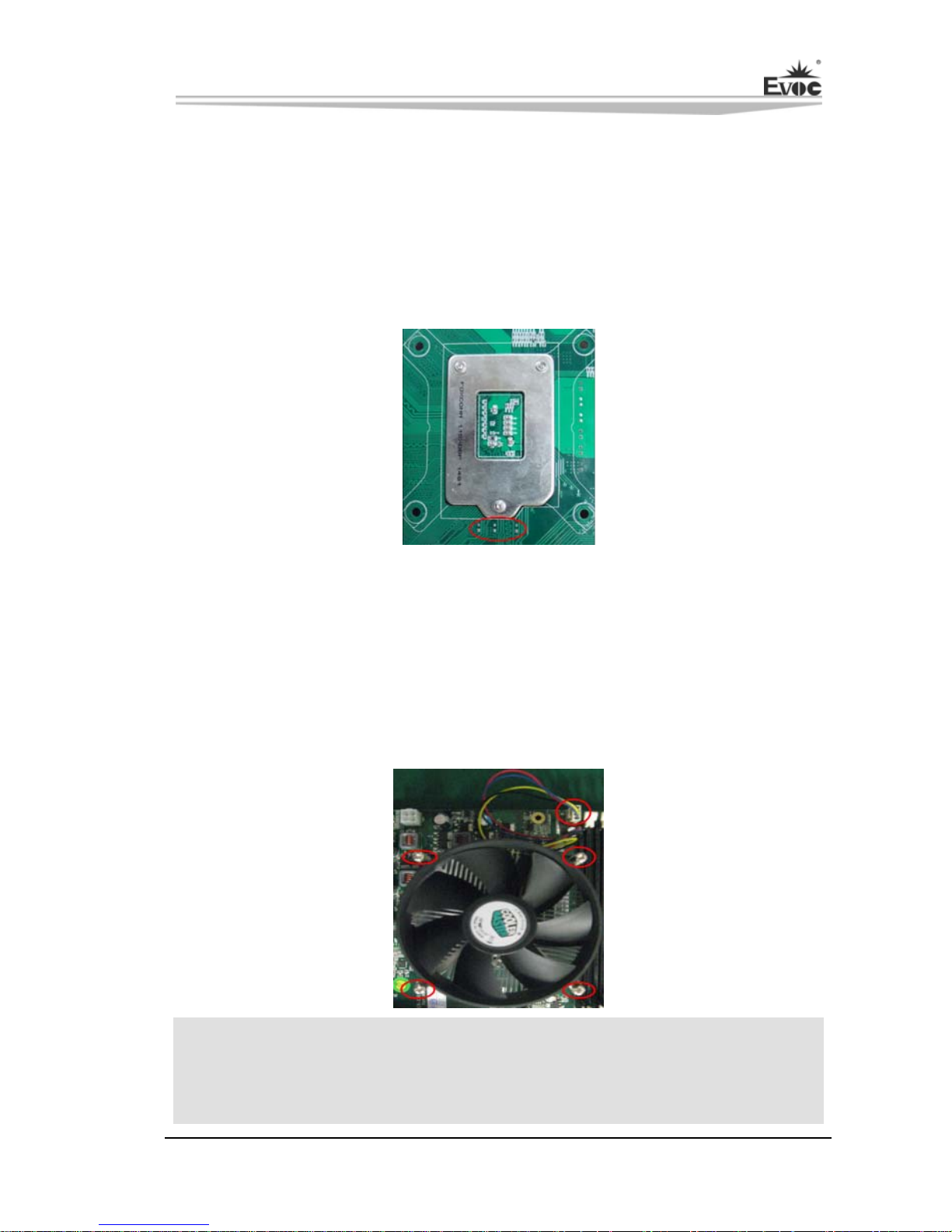

Installing the CPU.................................................................................................. 16

Installing the CPU Fan...........................................................................................16

PCI Connector........................................................................................................18

PCIe x16 Connector ...............................................................................................19

PCIe x4 Connector.................................................................................................20

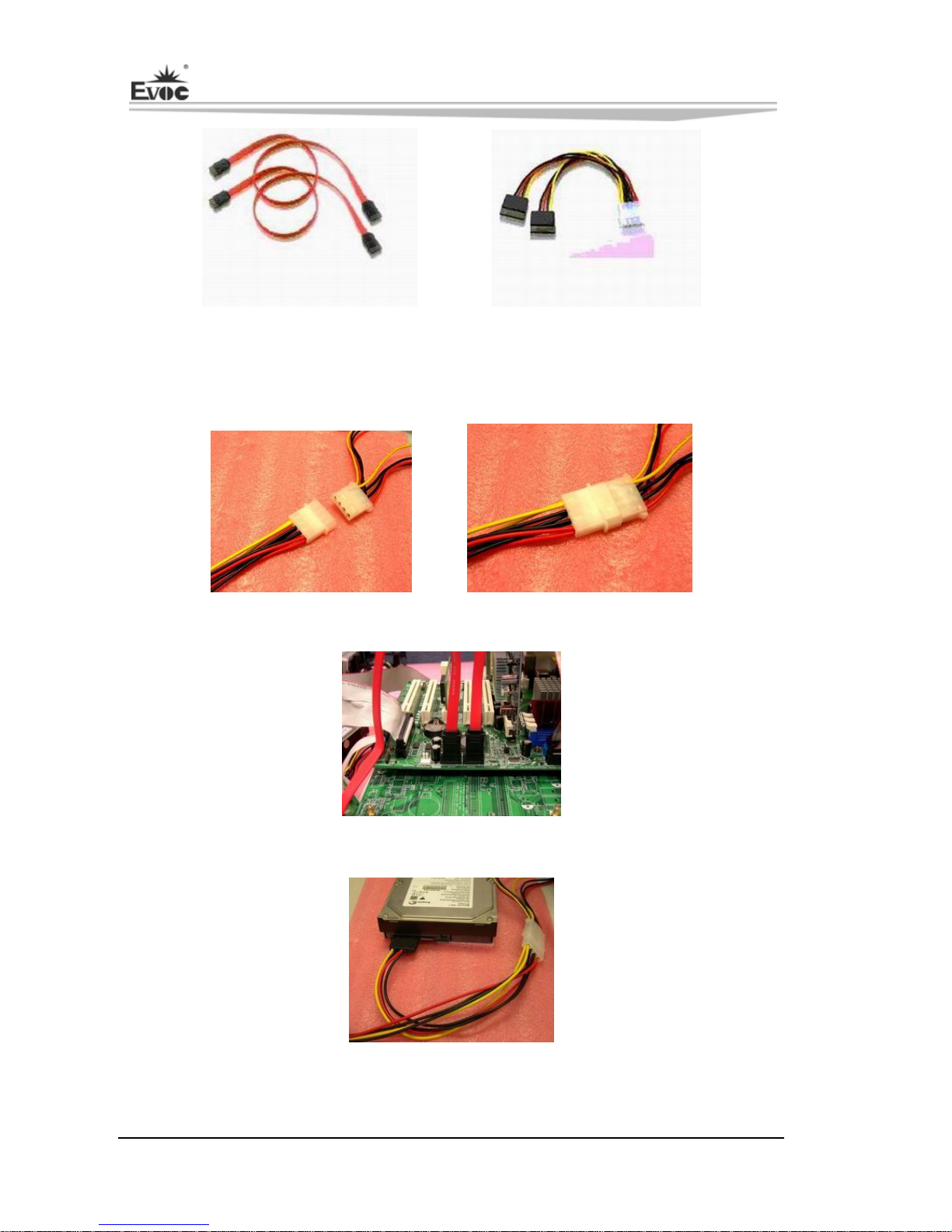

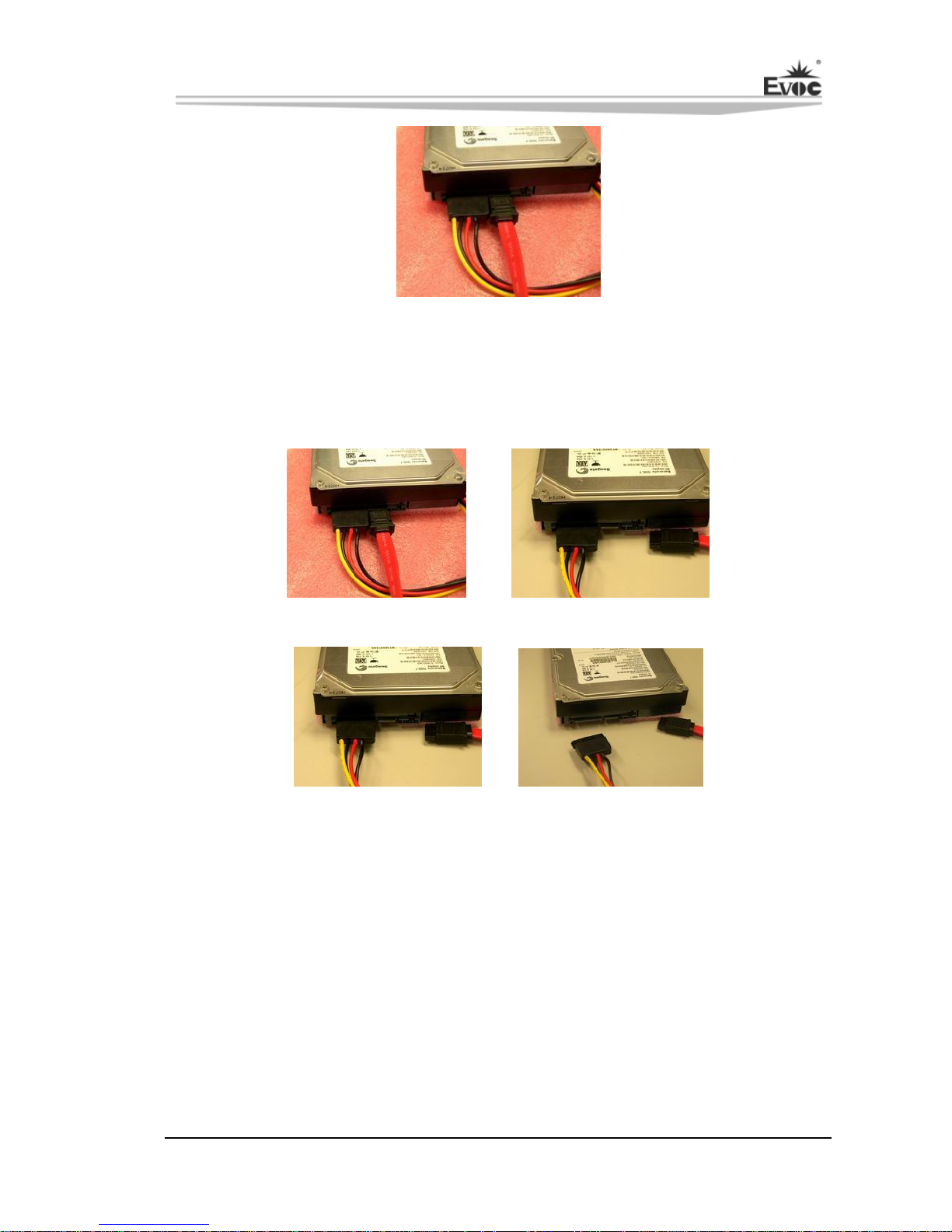

Hot-swap of SATA Hard Disk ................................................................................21

Chapter 3 BIOS Setup ................................................................................................ 24

Page 6

UEFI Overview......................................................................................................24

UEFI Parameter Setup............................................................................................24

Basic Function Setting for U

EFI............................................................................25

System Resource Managed by UEFI under X86 Platform.....................................41

Chapter 4 Installing the Drivers..................................................................................46

Appendix ....................................................................................................................47

BPI Overview.........................................................................................................47

Troubleshooting and Solutions

...............................................................................48

Page 7

Chapter 1 Product Introduction

EC0-1815V2NAR - 1 -

Chapter 1 Product Introduction

Overview

EC0-1815V2NAR is an ATX single board computer, developed based on Intel® Q77

chipset. It complies with Ivy Bridge/Sandy Bridge LGA1155 dual core/quad core

processor; supports 1600/1333/1066MHz DDR3 memory up to 16GB; six SATA high

speed connectors, supporting RAID0/1/5/10; various display connectors supporting

triple display function; two gigabit LAN ports; six RS232 ports (two support

RS232/485); four USB3.0 ports and four USB2.0 ports; PCIe x16, PCIe

x4(EC0-1815V2NAR-01 is not supported)and PCI bus expansion.

EC0-1815V2NAR mainly targets such application fields as railway transportation,

financing and telecom terminals, etc. Its high-end performance and abundant

functions will play an important role in various application fields.

Mechanical Dimensions, Weight and Environment

 Dimensions: 304.8mm (L) x 190.5mm (W) x 80mm (H);  Net Weight: 0.56Kg;  Operating Environment:

Temperature: -5C ~ 60C;

Humidity: 10% ~ 90% (non-condensing);

 Storage Environment:

Temperature: -20C ~ 80C;

Humidity: 10% ~ 90% (non-condensing);

Typical Consumption

The typical consumption is based on the following idle status values.

CPU: Ivy [email protected];

Page 8

Chapter 1 Product Introduction

- 2 - EC0-1815V2NAR

Memory: Kingston DDR3 1066 4GB*2 ;

Operating System: Windows XP;

 [email protected]；+5%/-3%；  [email protected]；+5%/-3%；

 [email protected]；+5%/-3%；

Microprocessor

Intel® Core™ Ivy Bridge/Sandy Bridge CPU of LGA1155 package.

Note: different CPUs may have different requirements for memory and functions of

the motherboard.

Chipset

Intel® Q77

System Memory

Provides two 240Pin DDR3 memory slots, supporting Un-buffered

Non-ECC/Un-buffered ECC (requiring support from CPU) memory and dual-channel

function. The maximum memory capacity supported by a single bank is up to 4GB

while the total memory capacity is up to 16GB.

Display Function

 Supports DVI, VGA and DP display: DVI and DP support hot swap function as

well as independent display, dual display clone mode, dual display expansion

mode, triple display clone mode or triple display expansion mode output;

 VGA supports 2048x1536@75HZ, 32bit color depth in maximum, DVI

supports 1920x1200@60HZ in maximum, while DP supports

2560x1600@60HZ in maximum.

Note: triple display function only supports two DisplayPorts with VGA or DVI mode.

Page 9

Chapter 1 Product Introduction

EC0-1815V2NAR - 3 -

Network Function

Provides two 10/100/1000Mbps LAN ports; LAN1 supports Wake-on-LAN, LAN

booting and AMT8.0 functions.

Audio Function

Adopts HDA standard, supporting rear panel MIC-IN/LINE-IN/LINE-OUT (default),

SPDIF (optional), 5.1 sound track (optional) or dual channel power amplifier function

(optional, power consumption for single channel is 2W).

Power Feature

Adopts standard ATX power supply; the board supports the status of S0, S1, S4 and

S5.

Expansion Bus

Provides four 32-bit PCI slots, complying with PCI Rev2.3 standard; one PCI Express

x16 slot, complying with PCI Express 1.0, 2.0 and 3.0 standards; one PCI Express x4

slot(EC0-1815V2NAR-01 is not supported), complying with PCI Express 1.0 and 2.0

standards.

Watchdog Function

 255 levels, programmable by minute or second;  Supports watchdog timeout interrupt or reset system.

Operating System

Supported Oss: Windows xp, Windows 7, linux;

Note: it is recommended to use Windows 7 operating system, the driver program of

USB 3.0 only supports Windows 7.

Page 10

Chapter 1 Product Introduction

- 4 - EC0-1815V2NAR

On-board I/O

 Six serial ports: COM1/COM2 supports RS-232/RS-485 mode selection while

COM3/COM4 supports Pin9 12V/5V/RI selection;

 Six SATA connectors (SATA1 and SATA2 support SATA3.0 standard) support

hot swap function (Please set the function in BIOS) and RAID0, 1, 5 and 10;

 Four USB2.0 ports; the rear panel provides four USB3.0 ports (complying with

USB2.0);

 One PS/2 keyboard/mouse connector;  One TPM connector;  One 16-channel digital I/O connector;

Tips: how to identify the alarms

1. Long “beep” indicates system memory error;

2. Short “beep” indicates to power on the computer.

Page 11

Chapter 2 Installation

EC0-1815V2NAR - 5 -

Chapter 2 Installation

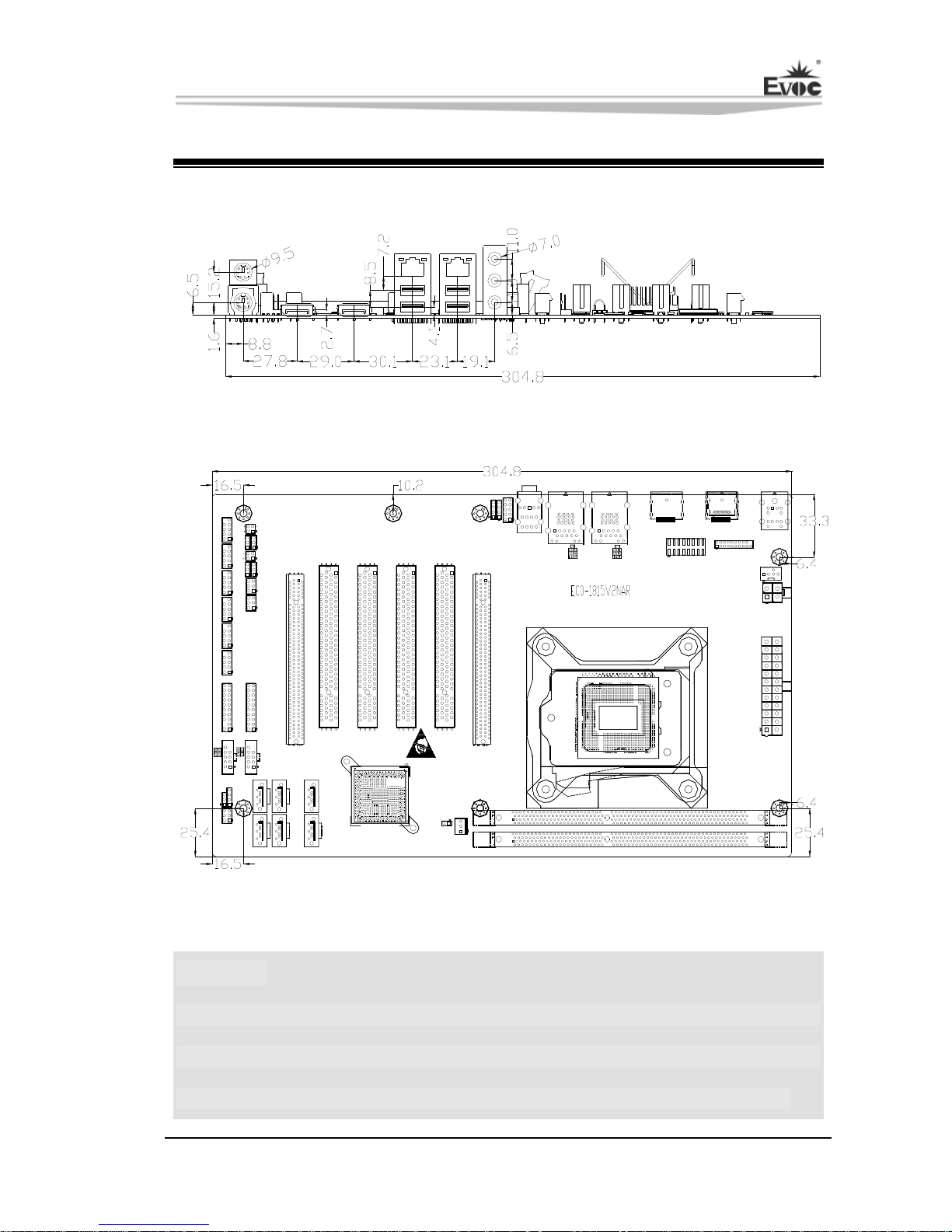

Product Outline

COM1

JP2

COM2

COM3

COM4

COM5

COM6

JP3

JP4

JP5

JP6

JP7

JP8

JP9

GPIO1

FP2

FP3

FP1

SATA6

PCIE2

PCI2

PCI1

PCIE1

PCI3

PCI4

SATA5

SATA3

SATA4

SATA2

SATA1

JCC1

SYSFAN1

VGA1

DVI1

KM1

AUDIO1

DIMM1

DIMM2

PWR2

PWR1

CPUFAN1

TPM

DP2

DP1

SPK1

Unit: mm

Warning!

Please adopt appropriate screws and proper installation methods (including board allocation, CPU and heat sink installation, etc); otherwise, the board may be damaged. It is recommended to use M3x6 GB9074.4-88 screws at H1 ~ H7.

Page 12

Chapter 2 Installation

- 6 - EC0-1815V2NAR

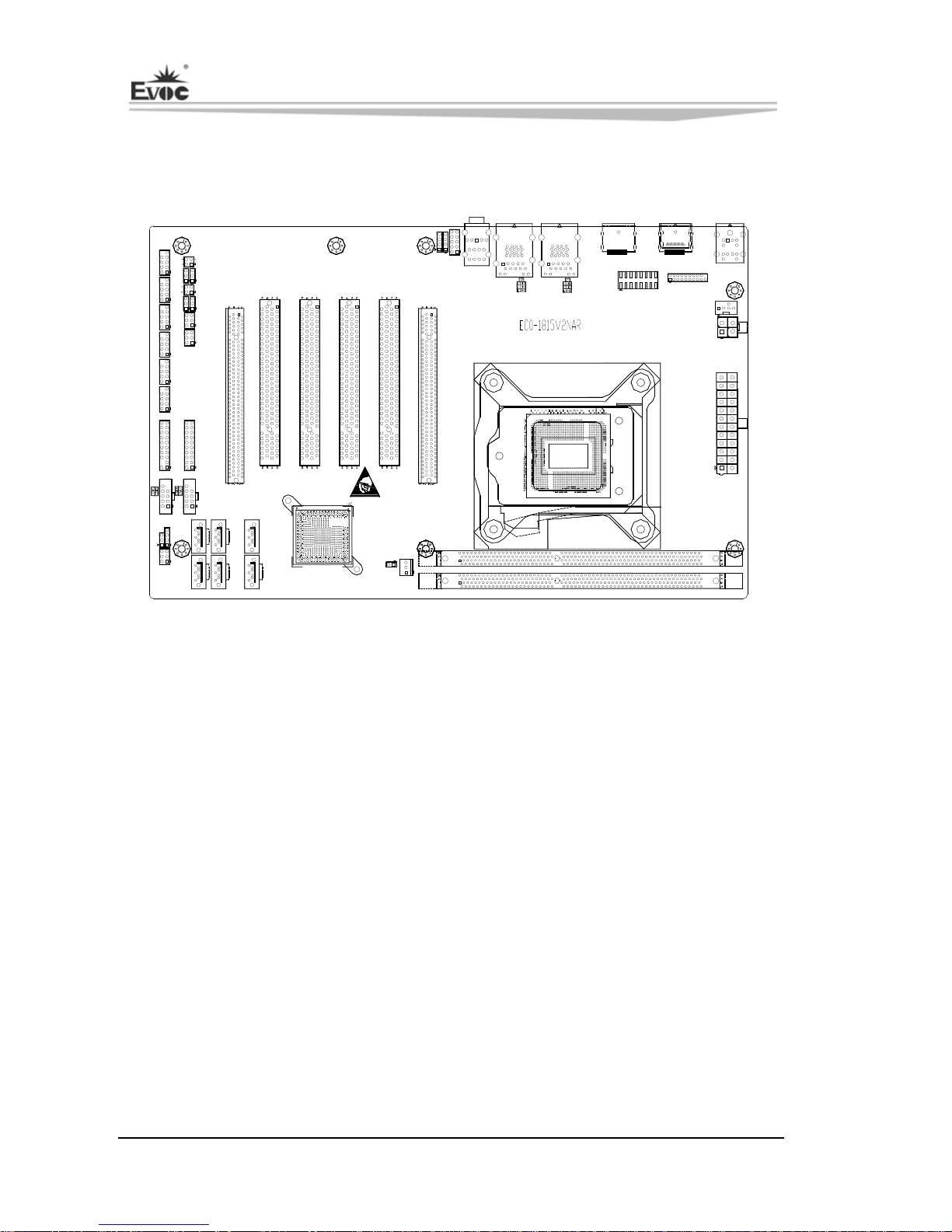

Locations of Connectors

COM1

JP2

COM2

COM3

COM4

COM5

COM6

JP3

JP4

JP5

JP6

JP7

JP8

JP9

GPIO1

FP2

FP3

FP1

SATA6

PCIE2

PCI2

PCI1

PCIE1

PCI3

PCI4

SATA5

SATA3

SATA4

SATA2

SATA1

JCC1

SYSFAN1

VGA1

DVI1

KM1

AUDIO1

DIMM1

DIMM2

PWR2

PWR1

CPUFAN1

TPM

DP2

DP1

SPK1

Page 13

Chapter 2 Installation

EC0-1815V2NAR - 7 -

Structure

5.1 Surround

Amplifier

PCI Slot*4

LPC

Audio Jack

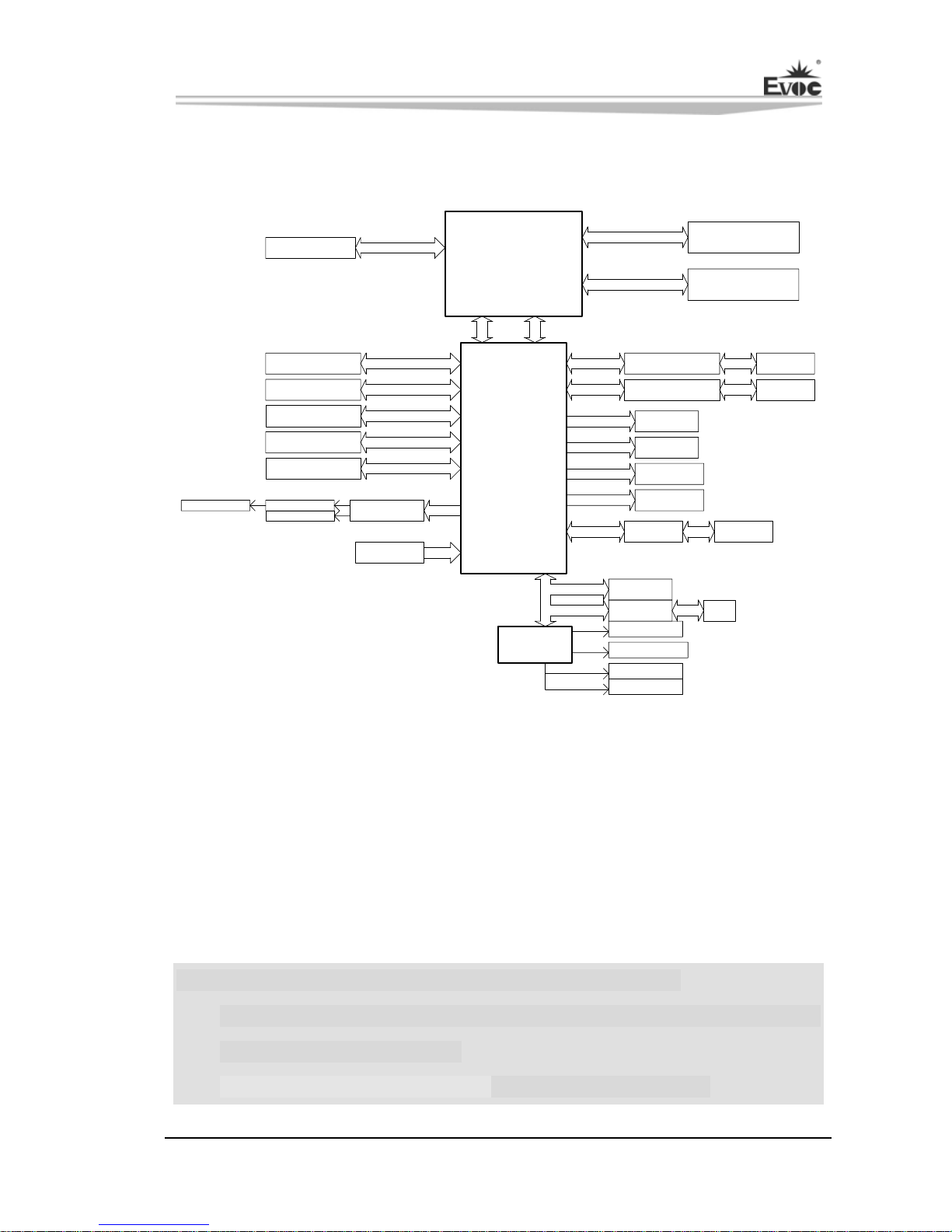

EC0-1815 Function block diagram

SATA*6

DIMM1 1066/1333/1600

DIMM2 1066/1333/1600

Channel B DDR3

Channel A DDR3

SIO

DMIX4

FDI

DDPC

Display Port

DDPD

SMBUS

SMB--GPIO 16Bit*GPIO

USB3.0*4

TPM Header

Hardware Monitor

PCIE

Giga LAN1

VGA

CRT Header

DDPB

DVI Header

COM1/COM2

PCIe X4

BGA942 TDP:6.1W 27 x 27mm

9.5 x 10.6 DieSize Thickness 2.21mm

KeyBoard/Mouse

PCI Bus

Sata *6

USB3.0 /USB2. 0 *4

SPI Flash*2

HDA AUDIO

PCH

Socket H2

LPC

CPU/SYSTEM FAN

PCIE x4 Slot

Option

LPC--UARTs

LPC

COM*4

LGA 1155 95W/65W/45W 77W/55W/45W/35W

37.5 x 37.5mm

USB2. 0*4

USB2.0*4

SPI

PCIE x16 Slot

LAN2

Giga LAN2

RJ45

LAN1

RJ45

PCIe X16

Support AMT8.0

Tip: How to identify the first pin of the jumpers and connectors

1. Observe the letter beside the socket: the first pin is usually marked with “1” or

bold lines or triangular symbols;

2. Observe the solder pad on the back; the square pad is the first pin.

Page 14

Chapter 2 Installation

- 8 - EC0-1815V2NAR

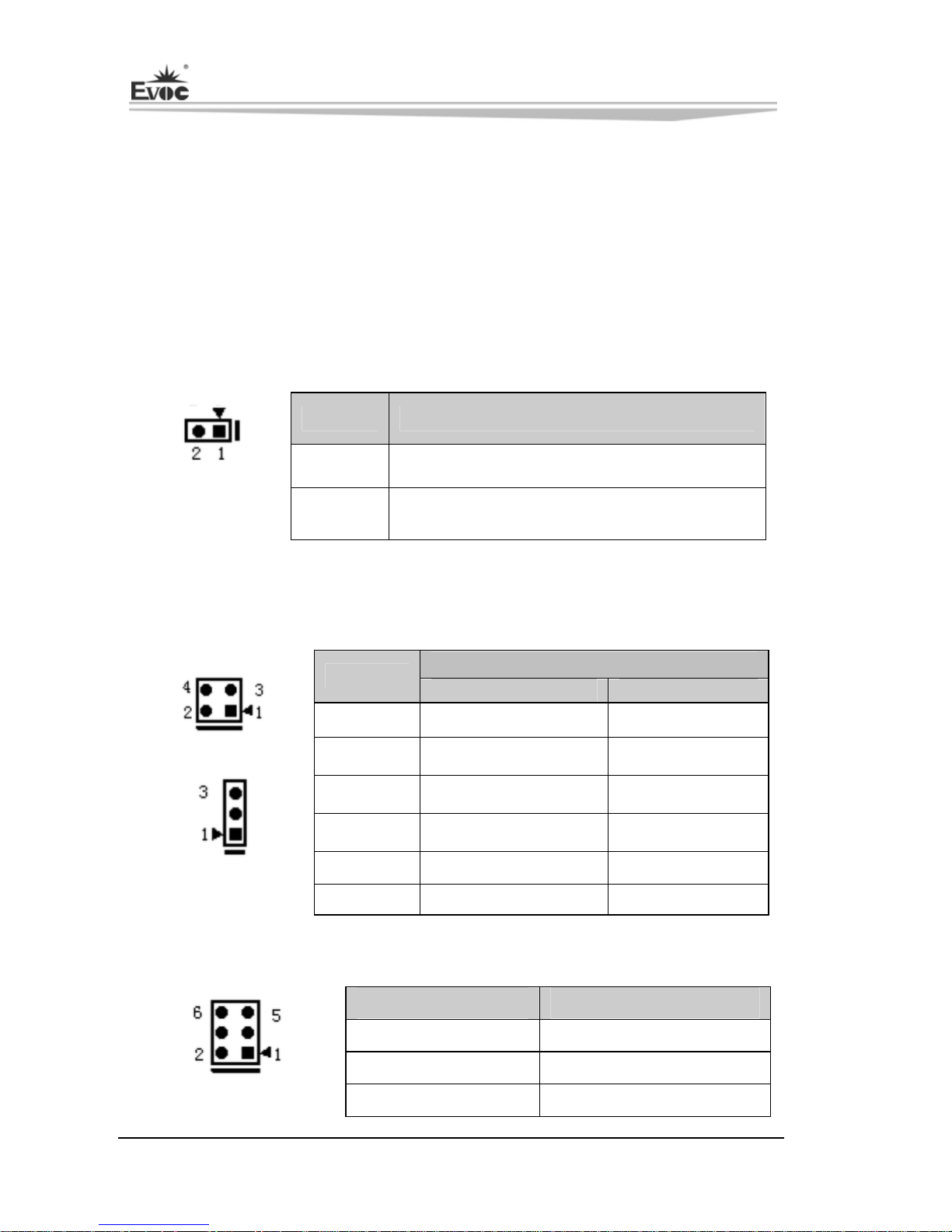

Jumper Setting

1. Clear/Keep CMOS Setting

CMOS is powered by the button battery on board. Clearing CMOS will restore

original settings (factory default). The steps are listed as follows: (1) Turn off the

computer and unplug the power cable; (2) Instantly short circuit JCC1; (3) Turn on

the computer; (4) Follow the prompt on screen to enter BIOS setup when booting the

computer, load optimized defaults; (5) Save and exit. Please set as follows:

Setup Function

1-2 Open Normal ((Default)

JCC1

(Pitch: 2.54mm)

1-2 Short

Clear the contents of CMOS and all BIOS

settings will restore to factory default values.

2. Serial Port Configuration

Please set the mode for COM1/COM2 by JP2 ~ JP7 (Pitch: 2.54mm):

Signal Name

RS-232(Default

)

RS-485

JP2 1-2 3-4

JP3 1-2 2-3

JP4 1-2 2-3

JP5 1-2 3-4

JP6 1-2 2-3

JP2/JP5

JP3/JP4/JP6/JP7

JP7 1-2 2-3

Please set the mode of Pin9 on COM3/COM4 by JP8 and JP9 (Pitch: 2.54mm):

Definitions for Pin9 Pin

RI 1-2 (Default)

5V 3-4

JP8/JP9

12V 5-6

Page 15

Chapter 2 Installation

EC0-1815V2NAR - 9 -

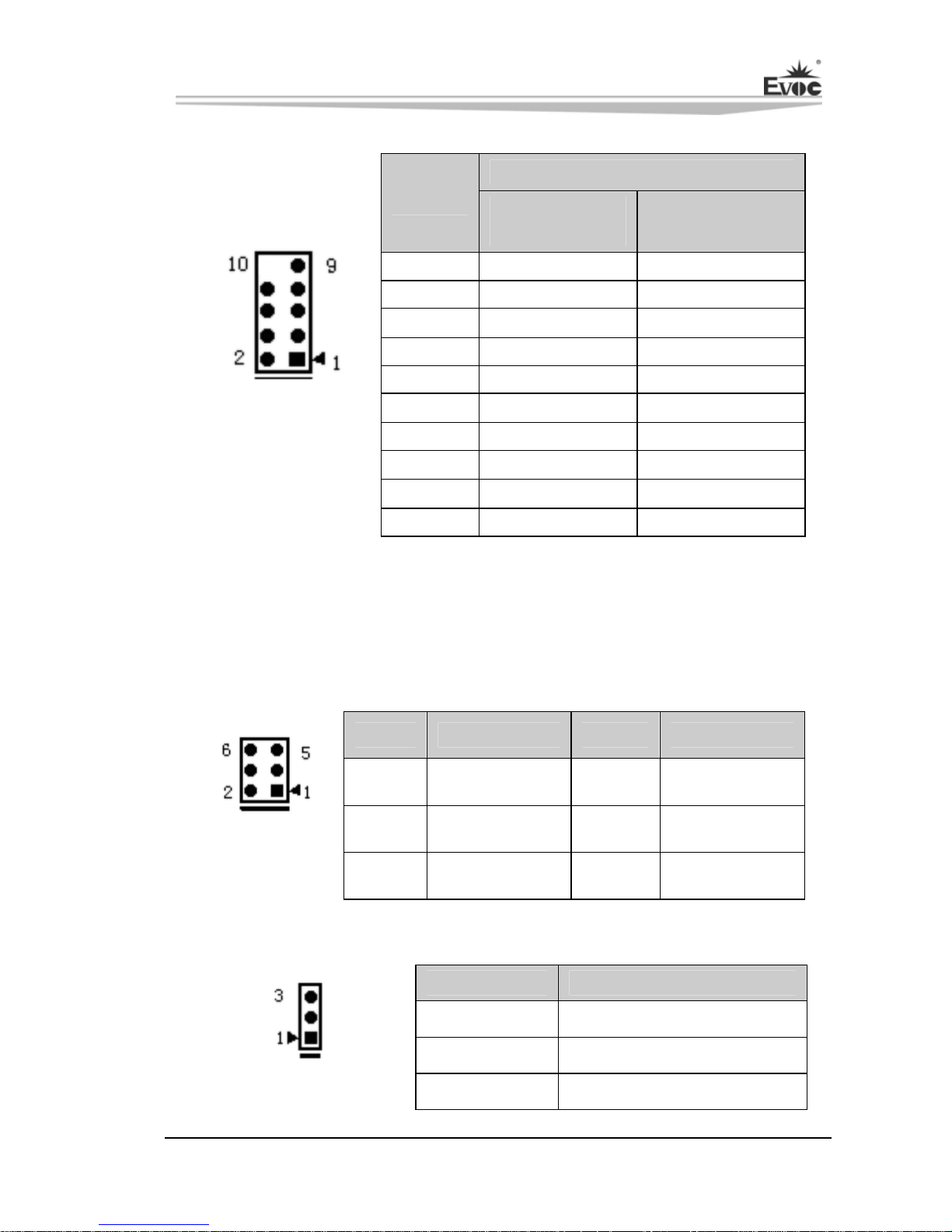

Serial Port

Signal Name

RS-232

COM1 ~ COM6

RS-485

COM1/COM2

1 DCD# Data-

2 RXD Data+

3 TXD NC

4 DTR# NC

5 GND GND

6 DSR# NC

7 RTS# NC

8 CTS# NC

9 RI# NC

COM1/COM2

Pitch: 2.54mm

10 NA NA

Note: 1. The data transmission direction is controlled automatically under RS485

mode; 2. The pin definitions for Pin9 on COM3 and COM4 include RI#/5V/12V.

Status Indicating and Control Connector

ATX Power Switch and Hard Disk Indicator Connector

Pin Signal Name Pin Signal Name

1 PWRBTN# 2 GND

3 GND 4 RESET#

FP1

(Pitch: 2.54mm)

5 HDD_LED- 6 HDD_LED+

Power Indicator Connector

Pin Signal Name

1 PWR_LED+

2 NC

FP2 (Pitch: 2.54mm)

3 GND

Page 16

Chapter 2 Installation

- 10 - EC0-1815V2NAR

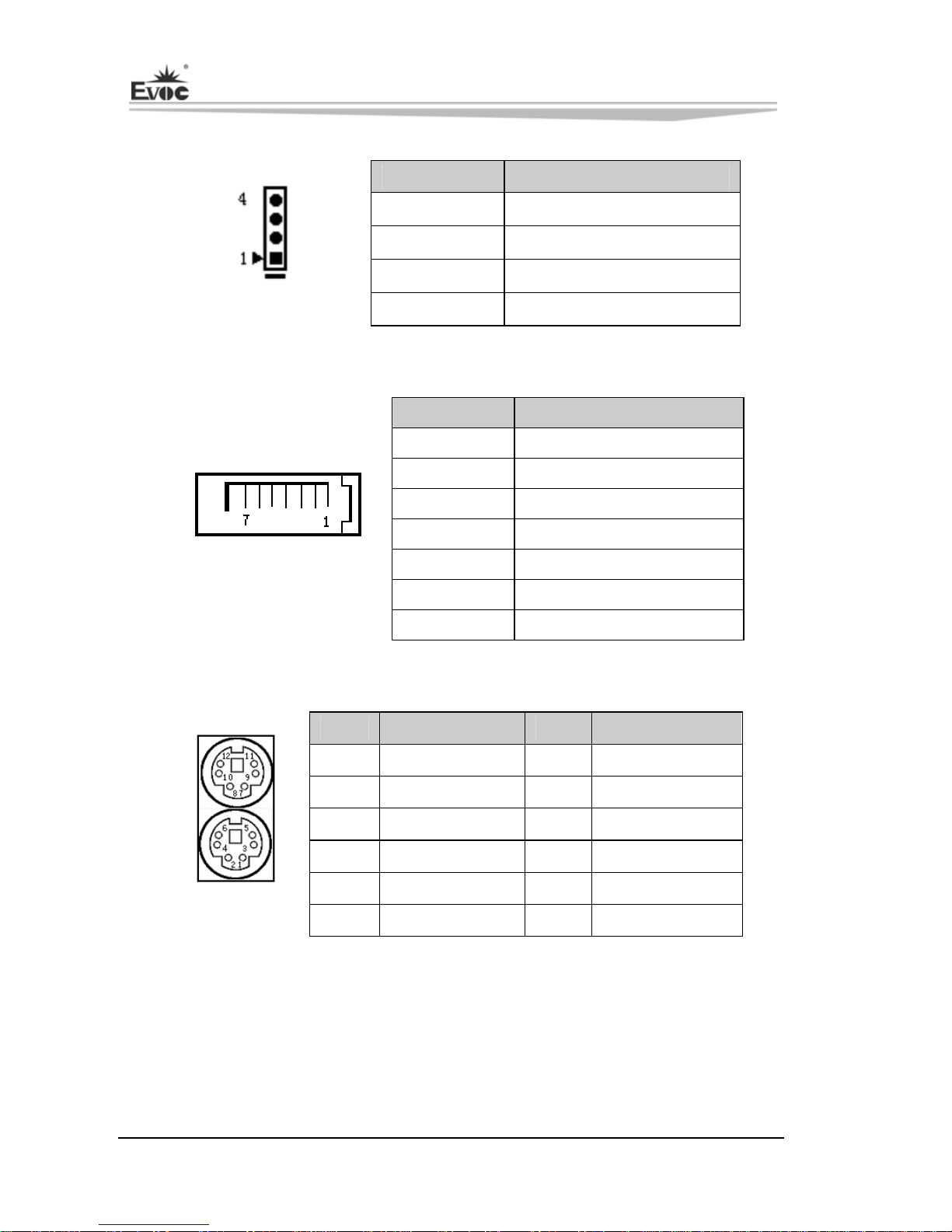

Loudspeaker Output Connector

Pin Signal Name

1 SPEAKER

2 NC

3 GND

FP3 (Pitch: 2.54mm)

4 +5V

7pin SATA Connector

Pin Signal Name

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

SATA1 ~ SATA6

7 GND

KB/MS Connector

Pin Signal Name Pin Signal Name

1 KB_DATA 7 MS_DATA

2 NC 8 NC

3 GND 9 GND

4 +5V 10 +5V

5 KB_CLK 11 MS_CLK

KM1

6 NC 12 NC

USB Port

The board provides four USB 3.0 ports, brought out by rear panel; the other two USB

2.0 ports are brought out by 2x5Pin headers (Pitch: 2.54mm).

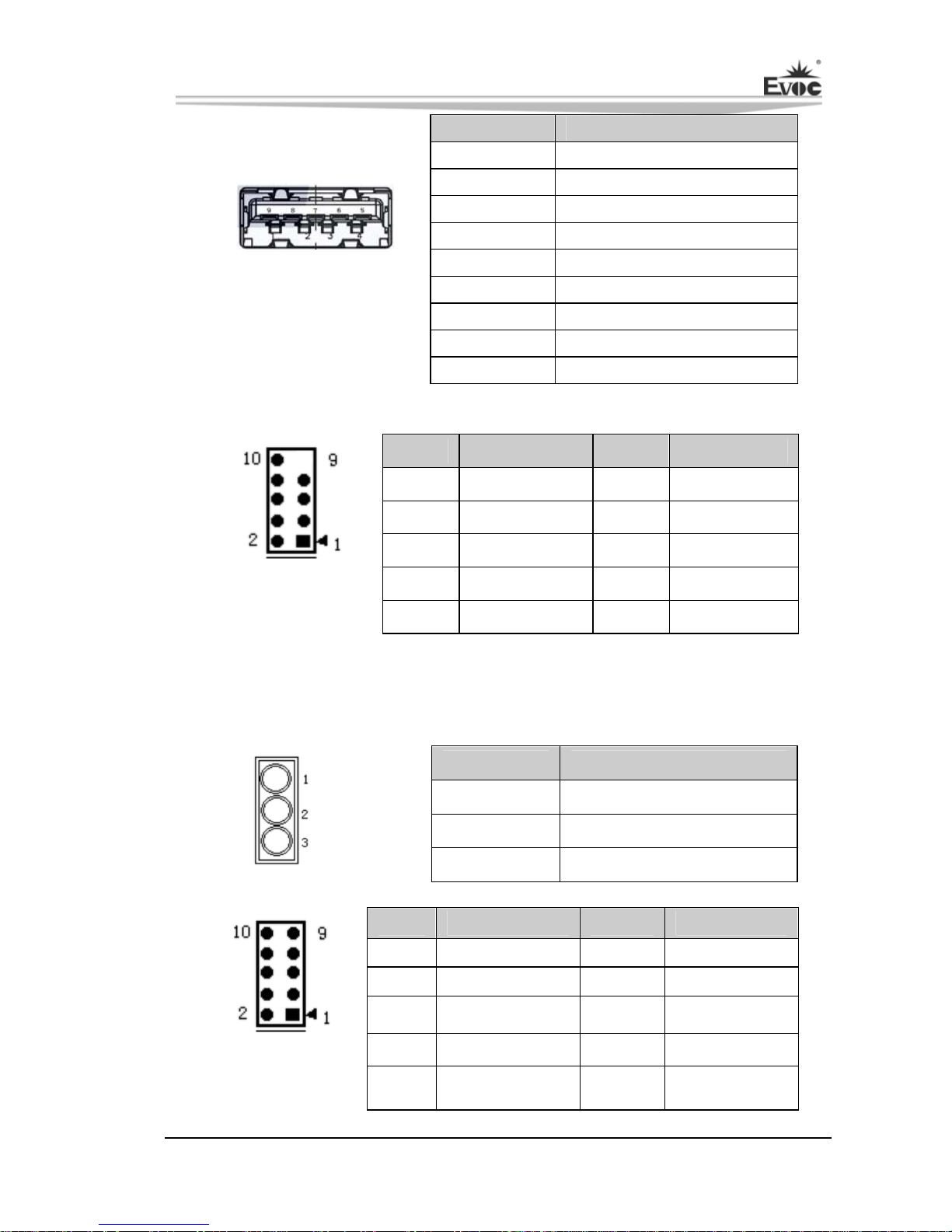

1. USB3.0 Port:

Page 17

Chapter 2 Installation

EC0-1815V2NAR - 11 -

Pin Signal Name

1 +5V

2 USB_Data-

3 USB_Data+

4 GND

5 USB_SSRX-

6 USB_SSRX+

7 GND

8 USB_SSTX-

J1(USB1/USB2)

J2(USB3/USB4)

9 USB_SSTX+

2. USB2.0 Port:

Pin Signal Name Pin Signal Name

1 +5V 2 +5V

3 USB1_Data- 4 USB2_Data-

5 USB1_Data+ 6 USB2_Data+

7 GND 8 GND

J3(USB5/USB6) J4(USB7/USB8)

(Pitch: 2.54mm)

9 NA 10 GND

Audio Connector

The board provides AUDIO JACK function (Default), 5.1 track output, SPDIF and

dual channel power amplify output (optional).

Pin Signal Name

1 LINE_IN

2 LINE_OUT

AUDIO1

3 MIC_IN

Pin Signal Name Pin Signal Name

FRONT_R 2 FRONT_L

GND_AUDIO 4 GND_AUDIO

SURR_R 6 SURR_L

GND_AUDIO 8 GND_AUDIO

(5.1 track output)

(

Pitch: 2.54mm

)

CENTER_OUT 10 LFE_OUT

Page 18

Chapter 2 Installation

- 12 - EC0-1815V2NAR

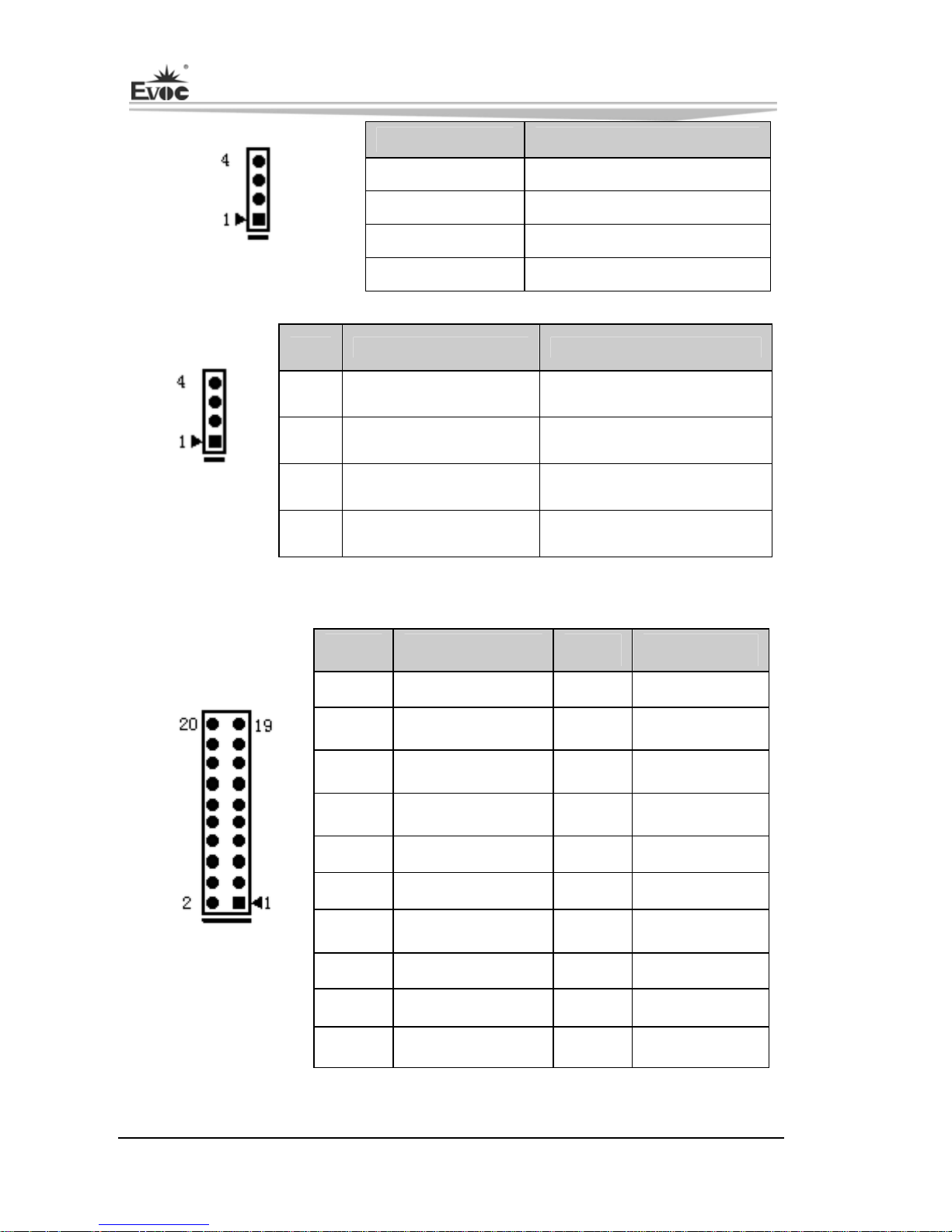

Pin Signal Name

1 +5V

2 NC

3 SPDIF_OUT

J6 (Pitch: 2.54mm)

4 GND

Pin Signal Name Note

1 SPEAKOUT_LEFT+

Positive Pole of the Left

Loudspeaker

2 SPEAKOUT_LEFT-

Negative Pole of the Left

Loudspeaker (Ungrounded)

3 SPEAKOUT_RIGHT-

Negative Pole of the Right

Loudspeaker (Ungrounded)

SPK1

(Pitch: 2.54mm)

4 SPEAKOUT_RIGHT+

Positive Pole of the Right

Loudspeaker

GPIO Connector

Pin Signal Name Pin Signal Name

1 GPIO1 2 GPIO5

3 GPIO2 4 GPIO6

5 GPIO3 6 GPIO7

7 GPIO4 8 GPIO8

9 GPIO9 10 GPIO13

11 GPIO10 12 GPIO14

13 GPIO11 14 GPIO15

15 GPIO12 16 GPIO16

17 +5V 18 +5V

GPIO1

(Pitch: 2.54mm)

19 GND 20 GND

Note: the factory default value of GPIO is TTL input and the voltage range for

input/output signal is 0-5V.

Page 19

Chapter 2 Installation

EC0-1815V2NAR - 13 -

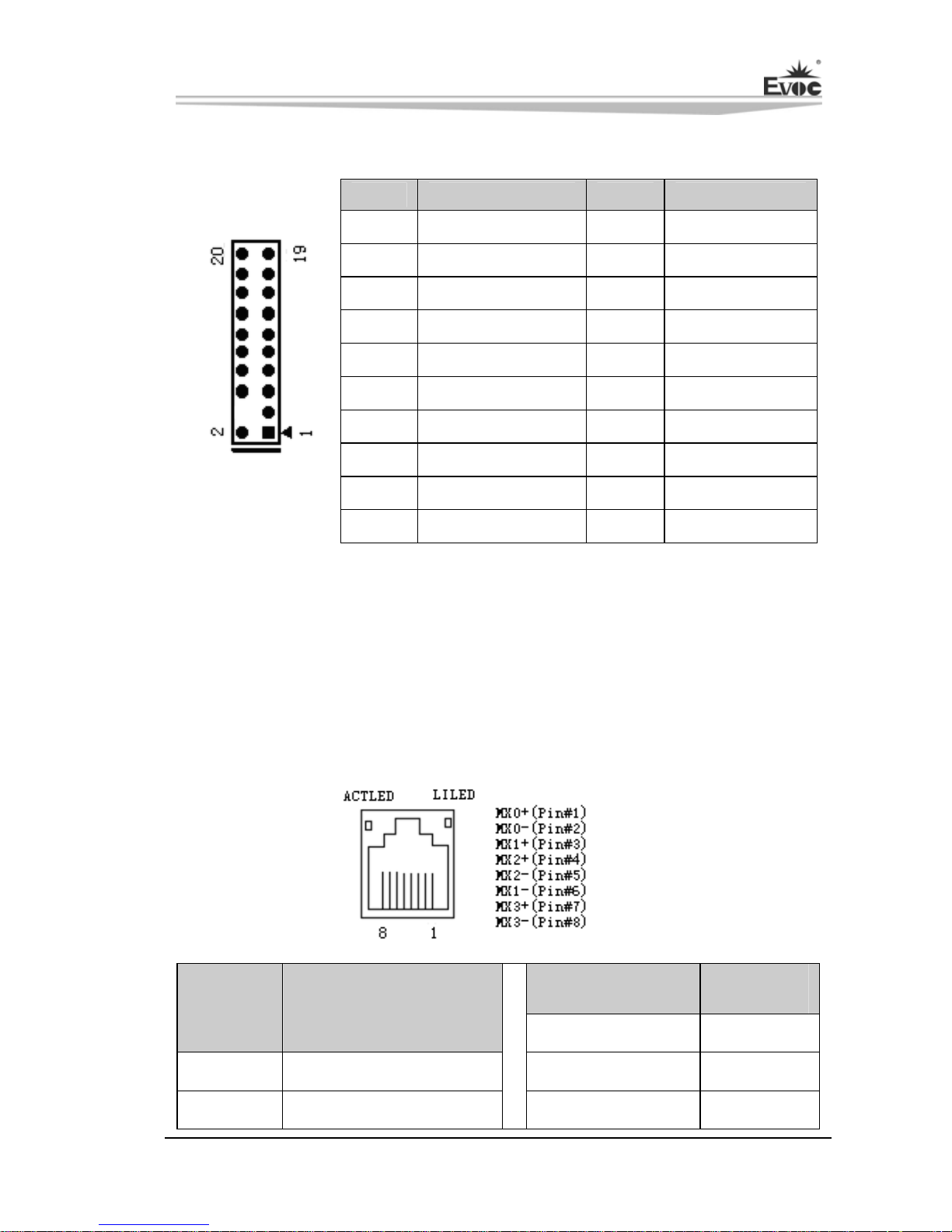

TPM Connector

The board provides one 2x10 TPM pin header (PIN4 is NA, Pitch: 2.54mm).

Pin Signal Name Pin Signal Name

1 CLOCK 2 GND

3 LPC_FRAME- 4 NA

5 PLT_RST- 6 VCC5

7 AD3 8 AD2

9 VCC3.3 10 AD1

11 AD0 12 GND

13 SMB_CLK 14 SMB_DATA

15 VCC3SB 16 SERIRQ

17 GND 18 CLKRUN

TPM

19 SUS_SATA- 20 DRQ-

LAN Port

The board provides two 10/100/1000Mbps LAN ports, J1 (LAN1) and J2 (LAN2).

LAN1 supports Wake-on-LAN, and AMT8.0 functions. ACTLED and LILED are the

green and dual color LED indicators on both sides of the Ethernet port, which

respectively indicates the activity status and the speed of LAN. Please refer to the

status description for each LED:

LAN1/LAN2

LILED

(Dual-Color: O/G)

LAN Speed

Indicator

ACTLED

(Green)

LAN Activity

Status Indicator

Green 1000Mbps

Blink Data being transmitted Orange 100Mbps

Off No data being transmitted Off 10Mbps

Page 20

Chapter 2 Installation

- 14 - EC0-1815V2NAR

2x8 Pin VGA Connector

Pin Signal Name Pin Signal Name

1 Red 2 GND

3 NC 4 Green

5 GND 6 DDCDATA

7 Blue 8 GND

9 HSYNC 10 NC

11 NC 12 VSYNC

13 GND 14 GND

VGA1

15 DDCCLK 16 Shield_gnd

Display Port

Pin Signal Name Pin Signal Name

1 LANE0P 2 GND

3 LANE0N 4 LANE1P

5 GND 6 LANE1N

7 LANE2P 8 GND

9 LANE2N 10 LANE3P

11 GND 12 LANE3N

13 GND 14 GND

15 AUXCHP 16 GND

17 AUXCHN 18 HPD

DP1/DP2

19 RETURN 20 DP_PWR

DVI Connector

Signal

Pin Signal Name

1 DATA2- 2 DATA2+

3 GND 4 GND

5 DATA1- 6 DATA1+

7 GND 8 GND

9 DATA0- 10 DATA0+

11 GND 12 GND

13 CLK+ 14 CLK-

15 +5V 16 HPDET

17 DDCDATA 18 DDCCLK

DVI1

(Pitch: 2.0mm)

19 GND 20 NA

Page 21

Chapter 2 Installation

EC0-1815V2NAR - 15 -

Motherboard Power Supply Connector

1. 4pin CPU Power Connector (Pitch: 4.2mm)

Pin Signal Name

1 GND

2 GND

3 +12V

PWR1

4 +12V

2. 24pin ATX Power Connector (Pitch: 4.2mm)

Pin Signal Name Pin Signal Name

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 GND 15 GND

4 +5V 16 PS_ON#

5 GND 17 GND

6 +5V 18 GND

7 GND 19 GND

8 PWROK 20 -5V

9 +5VSB 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

PWR2

12 +3.3V 24 GND

3-pin System Fan Connector

Pin Signal Name

1 GND

2 +12V

SYSFAN1

Pitch: 2.54mm

3 FAN_IO

Note: FAN_IO: fan speed impulse output.

Page 22

Chapter 2 Installation

- 16 - EC0-1815V2NAR

4-pin CPU Fan Connector

Pin Signal Name

1 GND

2 +12V

3 FAN_IO

CPUFAN1

Pitch: 2.54mm

4 FAN_PWM

Note: FAN_I: fan speed impulse output; FAN_PWM: fan speed PWM control.

Installing the CPU

Please install the CPU as follows (refer to the figure below):

 Align the notches on the CPU with tabs on the CPU socket and put the CPU into

the socket.

 When the CPU is fully seated in the socket, close the upper cover on CPU

socket and then lock the CPU into place by the clip.

Installing the CPU Fan

Please install the CPU fan as follows: (refer to the figure below):

Page 23

Chapter 2 Installation

EC0-1815V2NAR - 17 -

 Assemble the bracket of the cooling fin with the fixing holes on the rear of the

CPU card. Note: the T-shaped gap shall correspond with the bracket of the CPU

socket;

Warning: please use the bracket of the metal cooling fin with care, so as to prevent the short circuit of the pins within the red circle on the back of the CPU!

 Connect the front side of cooling fin with the bracket and fix them; ensure well

contact between CPU surface and cooling fin;

 Fix the cooling fin with two screws on the cross (do not tighten it) and then the

other two screws; then tighten the four screws;

 Lastly, connect the fan power cable with the fan socket on the CPU card.

Note! It is recommended to use cooling fan authenticated by Intel; before installing

the fan, smear the heat sink compound on the surface between CPU and the fan

cooling fin to improve the heat dissipation performance.

Page 24

Chapter 2 Installation

- 18 - EC0-1815V2NAR

PCI Connector

The board provides four standard PCI connectors, PCI1 ~ PCI4 (Version 2.3); the pin definitions are as follows:

Pin Signal Name Pin Signal Name Pin Signal Name Pin Signal Name

A1 TRST# A31 PCI_AD18 B1 -12V B31 +3.3V

A2 +12V A32 PCI_AD16 B2 TCK B32 PCI_AD17

A3 TMS A33 +3.3V B3 GND B33 PCI_C/BE#2

A4 TDI A34 PCI_FRAME# B4 TDO B34 GND

A5 +5V A35 GND B5 +5V B35 PCI_IRDY#

A6 INTA# A36 PCI_TRDY# B6 +5V B36 +3.3V

A7 INTC# A37 GND B7 INTB# B37 PCI_DEVSEL#

A8 +5V A38 PCI_STOP# B8 INTD# B38 GND

A9 Reserved A39 +3.3V B9 PRSNT1# B39 PCI_LOCK#

A10 +5V A40 SMBCLK B10 Reserved B40 PCI_PERR#

A11 Reserved A41 SMBDATA B11 PRSNT2# B41 +3.3V

A12 GND A42 GND B12 GND B42 PCI_SERR#

A13 GND A43 PCI_PAR B13 GND B43 +3.3V

A14 3.3Vaux A44 PCI_AD15 B14 Reserved B44 PCI_C/BE#1

A15 PCI_RST# A45 +3.3V B15 GND B45 PCI_AD14

A16 +5V A46 PCI_AD13 B16 PCI_CLK B46 GND

A17 PCI_GNT# A47 PCI_AD11 B17 GND B47 PCI_AD12

A18 GND A48 GND B18 PCI_REQ# B48 PCI_AD10

A19 PCI_PME# A49 PCI_AD9 B19 +5V B49 GND

A20 PCI_AD30 A50 PCI_C/BE#0 B20 PCI_AD31 B50 PCI_AD8

A21 +3.3V A51 +3.3V B21 PCI_AD29 B51 PCI_AD7

A22 PCI_AD28 A52 PCI_AD6 B22 GND B52 +3.3V

A23 PCI_AD26 A53 PCI_AD4 B23 PCI_AD27 B53 PCI_AD5

A24 GND A54 GND B24 PCI_AD25 B54 PCI_AD3

A25 PCI_AD24 A55 PCI_AD2 B25 +3.3V B55 GND

A26 PCI_IDSEL A56 PCI_AD0 B26 PCI_C/BE#3 B56 PCI_AD1

A27 +3.3V A57 +5V B27 PCI_AD23 B57 +5V

A28 PCI_AD22 A58 PCI_REQ64# B28 GND B58 PCI_ACK64#

A29 PCI_AD20 A59 +5V B29 PCI_AD21 B59 +5V

A30 GND A60 +5V B30 PCI_AD19 B60 +5V

Page 25

Chapter 2 Installation

EC0-1815V2NAR - 19 -

PCIe x16 Connector

The board provides one PCIE x16 slot (PCIE1); the pin definitions are as follows:

Pin Signal Name Pin Signal Name Pin Signal Name Pin Signal Name

A1 PRSNT1# A2 +12V B1 +12V B2 +12V

A3 +12V A4 GND B3 RSVD B4 GND

A5 TCK A6 TDI B5 SMCLK B6 SMDATA

A7 TDO A8 TMS B7 GND B8 +3.3V

A9 +3.3V A10 +3.3V B9 TRST# B10 3.3Vaux

A11 PWRGD/PERST# A12 GND B11 WAKE# B12 RSVD

A13 REFCLK+ A14 REFCLK- B13 GND B14 PETp0

A15 GND A16 PERp0 B15 PETn0 B16 GND

A17 PERn0 A18 GND B17 PRSNT2# B18 GND

A19 RSVD A20 GND B19 PETp1 B20 PETn1

A21 PERp1 A22 PERn1 B21 GND B22 GND

A23 GND A24 GND B23 PETp2 B24 PETn2

A25 PERp2 A26 PERn2 B25 GND B26 GND

A27 GND A28 GND B27 PETp3 B28 PETn3

A29 PERp3 A30 PERn3 B29 GND B30 RSVD

A31 GND A32 RSVD B31 PRSNT2#A B32 GND

A33 RSVD A34 GND B33 PETp4 B34 PETn4

A35 PERp4 A36 PERn4 B35 GND B36 GND

A37 GND A38 GND B37 PETp5 B38 PETn5

A39 PERp5 A40 PERn5 B39 GND B40 GND

A41 GND A42 GND B41 PETp6 B42 PETn6

A43 PERp6 A44 PERn6 B43 GND B44 GND

A45 GND A46 GND B45 PETp7 B46 PETn7

A47 PERp7 A48 PERn7 B47 GND B48 PRSNT2#B

A49 GND A50 RSVD B49 GND B50 PETp8

A51 GND A52 PERp8 B51 PETn8 B52 GND

A53 PERn8 A54 GND B53 GND B54 PETp9

A55 GND A56 PERp9 B55 PETn9 B56 GND

A57 PERn9 A58 GND B57 GND B58 PETp10

A59 GND A60 PERp10 B59 PETn10 B60 GND

A61 PERn10 A62 GND B61 GND B62 PETp11

Page 26

Chapter 2 Installation

- 20 - EC0-1815V2NAR

A63 GND A64 PERp11 B63 PETn11 B64 GND

A65 PERn11 A66 GND B65 GND B66 PETp12

A67 GND A68 PERp12 B67 PETn12 B68 GND

A69 PERn12 A70 GND B69 GND B70 PETp13

A71 GND A72 PERp13 B71 PETn13 B72 GND

A73 PERn13 A74 GND B73 GND B74 PETp14

A75 GND A76 PERp14 B75 PETn14 B76 GND

A77 PERn14 A78 GND B77 GND B78 PETp15

A79 GND A80 PERp15 B79 PETn15 B80 GND

A81 PERn15 A82 GND B81 PRSNT2#C B82 RSVD

PCIe x4 Connector

The board provides one PCIE x16 slot (PCIE2), supporting PCIE x4 signals

(EC0-1815V2NAR-01 not support this interface). The pin definitions are as follows:

Pin Signal Name Pin Signal Name Pin Signal Name Pin Signal Name

A1 PRSNT1# A2 +12V B1 +12V B2 +12V

A3 +12V A4 GND B3 RSVD B4 GND

A5 TCK A6 TDI B5 SMCLK B6 SMDATA

A7 TDO A8 TMS B7 GND B8 +3.3V

A9 +3.3V A10 +3.3V B9 TRST# B10 3.3Vaux

A11 PWRGD/PERST# A12 GND B11 WAKE# B12 RSVD

A13 REFCLK+ A14 REFCLK- B13 GND B14 PETp0

A15 GND A16 PERp0 B15 PETn0 B16 GND

A17 PERn0 A18 GND B17 PRSNT2# B18 GND

A19 RSVD A20 GND B19 PETp1 B20 PETn1

A21 PERp1 A22 PERn1 B21 GND B22 GND

A23 GND A24 GND B23 PETp2 B24 PETn2

A25 PERp2 A26 PERn2 B25 GND B26 GND

A27 GND A28 GND B27 PETp3 B28 PETn3

A29 PERp3 A30 PERn3 B29 GND B30 NC

A31 GND A32 NC B31 NC B32 GND

A33 NC A34 GND B33 NC B34 NC

A35 NC A36 NC B35 GND B36 GND

Page 27

Chapter 2 Installation

EC0-1815V2NAR - 21 -

A37 GND A38 GND B37 NC B38 NC

A39 NC A40 NC B39 GND B40 GND

A41 GND A42 GND B41 NC B42 NC

A43 NC A44 NC B43 GND B44 GND

A45 GND A46 GND B45 NC B46 NC

A47 NC A48 NC B47 GND B48 NC

A49 GND A50 NC B49 GND B50 NC

A51 GND A52 NC B51 NC B52 GND

A53 NC A54 GND B53 GND B54 NC

A55 GND A56 NC B55 NC B56 GND

A57 NC A58 GND B57 GND B58 NC

A59 GND A60 NC B59 NC B60 GND

A61 NC A62 GND B61 GND B62 NC

A63 GND A64 NC B63 NC B64 GND

A65 NC A66 GND B65 GND B66 NC

A67 GND A68 NC B67 NC B68 GND

A69 NC A70 GND B69 GND B70 NC

A71 GND A72 NC B71 NC B72 GND

A73 NC A74 GND B73 GND B74 NC

A75 GND A76 NC B75 NC B76 GND

A77 NC A78 GND B77 GND B78 NC

A79 GND A80 NC B79 NC B80 GND

A81 NC A82 GND B81 NC B82 NC

Hot-swap of SATA Hard Disk

Notes for hot-swap of SATA hard disk:

1. The hard disk shall support SATA 2.0 and use 15-pin SATA hard disk power

connector.

2. The SATA hard disk only supports hot swap function when operating under

AHCI mode and the hot swap option is enabled.

3. The driver of chipset shall support the hot-swap of SATA hard disk.

4. Hot-swap of SATA hard disk with the operating system is forbidden when system

is powered-on.

Page 28

Chapter 2 Installation

- 22 - EC0-1815V2NAR

Please carry out hot plugging as follows. Improper operation may destroy the hard

disk or result in data loss.

Hot Plug

Step 1: Please plug the 1 x 4 pin SATA power connector (white) into the power adapter.

Step 2: Please connect the SATA data cable to the SATA connector on board.

Step 3: Please connect the 15-pin SATA power connector (black) to the SATA hard disk.

SATA Data Cable

SATA Power Cable

Page 29

Chapter 2 Installation

EC0-1815V2NAR - 23 -

Step 4: Please connect the SATA data cable to the SATA hard disk.

Hot Unplug

Step 1: Uninstall the hard disk from the device manager.

Step 2: Unplug the data cable from the SATA hard disk.

Step 3: Unplug the SATA 15-pin power connector (black) from the SATA hard disk.

Page 30

Chapter 3 BIOS Setup

- 24 - EC0-1815V2NAR

Chapter 3 BIOS Setup UEFI Overview

UEFI (Unified Extensible Firmware Interface) is the latest computer firmware to

replace traditional BIOS. UEFI is solidified in the flash memory on the CPU board. Its

main functions include: initialize system hardware, set the operating status of the

system components, adjust the operating parameters of the system components,

diagnose the functions of the system components and report failures, provide hardware

operating and controlling interface for the upper level software system, guide

operating system and so on. UEFI provides users with a human-computer interface in

menu style to facilitate the configuration of system parameters for users, control power

management mode and adjust the resource distribution of system device, etc.

Setting the parameters of the UEFI correctly could enable the system operating stably

and reliably; it could also improve the overall performance of the system at the same

time. Inadequate even incorrect UEFI parameter setting will decrease the system

operating capability and make the system operating unstably even unable to operate

normally.

UEFI Parameter Setup

Prompt message for UEFI setting may appear once powering on the system. At that

time (invalid at other time), press the key specified in the prompt message (usually

<Del> or <F2>) to enter UEFI setting.

All the setup values modified by UEFI (excluding data and time) are saved in the flash

storage in system; the contents will not be lost even if powered down or remove the

battery of the board. The data and time are saved in CMOS storage, which is powered

by battery; unless clearing CMOS is executed, its contents would not be lost even if

powered off.

Note! UEFI setting will influence the computer performance directly. Setting

parameter improperly will cause damage to the computer; it may even be unable to

power on. Please use the internal default value of UEFI to restore the system.

Our company is constantly researching and updating UEFI, its setup interface may

be a bit different. The figure below is for reference only; it may be different from

your UEFI setting in use.

Page 31

Chapter 3 BIOS Setup

EC0-1815V2NAR - 25 -

Basic Function Setting for UEFI

After starting SETUP program, the main interface of Aptio Setup Utility - Copyright

Main Advanced Chipset Boot Security Save & Exit

BIOS Information

Project Name EC0-1815V2NAR

BIOS Name J5044000

BIOS Version A00

Build Date and Time 12/09/2011 11:09:23

Total Memory 2048 MB (DDR3) Memory Frequency 1067 Mhz

ME FW Version 8.0.0.1351 ME Firmware SKU 5MB

System Date [Thu 10/06/2011]

System Time [09:41:55]

Access Level Administrator

Set the Date. Use ‘Tab’ to switch

between Date elements.

→←: Select Screen

↑↓: Select Item

Enter: Select

+/-: Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save ESC: Exit

 Main  System Date

Choose this option and set the current date by < + > / < - >, which is displayed

in format of month/date/year. Reasonable range for each option is: Month

(1-12), Date (01-31), Year (Maximum to 2099), Week (Mon. ~ Sun.).

 System Time

Page 32

Chapter 3 BIOS Setup

- 26 - EC0-1815V2NAR

Choose this option and set the current time by < + > / < - >, which is displayed

in format of hour/minute/second. Reasonable range for each option is: Hour

(00-23), Minute (00-59), Second (00-59).

 Advanced

Main Advanced Chipset Boot Security Save & Exit

WARNING: Setting wrong values in below sections may cause system to malfunction!

 Trusted Computing  CPU Configuration  SATA Configuration  Intel TXT(LT) Configuration  AMT Configuration  USB Configuration  Super IO Configuration  H/W Monitor  CPU PPM Configuration

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Trusted Computing

Advanced

Configuration

TPM SUPPORT [Disabled]

Current Status Information NO Security Device Found

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Page 33

Chapter 3 BIOS Setup

EC0-1815V2NAR - 27 -

 TPM SUPPORT

Enable TPM function.

 CPU Configuration

Advanced

CPU Configuration

Genuine Intel® CPU @ 2.20GHz CPU Signature 306a4 Microcode Patch 7 Max CPU Speed 2200 MHz Min CPU Speed 1600 MHz CPU Speed 2200 MHz Processor Cores 4 Intel HT Technology Not Supported Intel VT-x Technology Supported Intel SMX Technology Supported 64-bit Supported

L1 Data Cache 32 kB x 4 L1 Code Cache 32 kB x 4 L2 Cache 256 kB x 4 L3 Cache 8192 kB

Active Processor Cores [All] Intel Virtualization Technology [Disabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Display the relevant information of CPU. Note: the relevant information of the CPU

are related to the CPU installed in the platform; different series of CPUs will display

different information.

 Active Processor Cores

Active CPU core number, only available for multi-core CPU.

 Intel Virtualization Technology

Switch for the Intel Virtualization Technology.

Page 34

Chapter 3 BIOS Setup

- 28 - EC0-1815V2NAR

 SATA Configuration

Advanced

SATA Controller(s) [Enabled] SATA Mode Selection [IDE]

Serial ATA Port 1 Empty Serial ATA Port 2 Empty Serial ATA Port 3 Empty Serial ATA Port 4 Empty Serial ATA Port 5 Empty Serial ATA Port 6 Empty

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 SATA Controller(s)

Switch for the SATA Controller(s).

 SATA Mode Selection

SATA controller type selection, corresponding with three options: IDE, RAID

and AHCI.

Note: when choosing AHCI or RAID Mode to implement system installation,

the relevant drivers of the Floppy device and specified chipset are required.

 Serial ATA Port 1 ~ 6

Serial ATA Port1 ~ 6 dynamically detect whether there are SATA devices on

motherboard. If devices are connected with the corresponding ports, then it will

display the SATA device type. Otherwise, it will display “Empty”.

Page 35

Chapter 3 BIOS Setup

EC0-1815V2NAR - 29 -

 Intel TXT(LT) Configuration

Advanced

Intel Trusted Execution Technology Configuration

Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extensions(SMX) Enabled

Intel TXT(LT) Support [Disabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Intel TXT(LT) Support

Enable Intel TXT function.

 AMT Configuration

Advanced

Intel AMT [Enabled] Un-configure ME [Disabled] Disable ME [Disabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Page 36

Chapter 3 BIOS Setup

- 30 - EC0-1815V2NAR

 Intel AMT

Control switch for AMT function.

 Un-configure ME

Switch for reconfiguring ME without password. When this option is Enabled, it

will load ME default value without requiring the password during POST

period.

 Disable ME

Enable ME function control switch.

 USB Configuration

Advanced

USB Configuration

USB Devices:

1 Keyboard, 1 Mouse, 2 Hubs

Legacy USB Support [Enabled]

Mass Storage Devices: Netac [Auto]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Legacy USB Support

This option is used to support legacy USB devices (keyboard, mouse, storage

device, etc). When it is set to Enabled, the USB devices can be used in the OS

that does not support USB, such as DOS. When it is set to Disabled, the legacy

devices cannot be used in the OS that does not support USB.

Note: USB can be used in EFI application, such as in Shell.

Page 37

Chapter 3 BIOS Setup

EC0-1815V2NAR - 31 -

 Super IO Configuration

Advanced

Super IO Configuration

Serial Port 1 Configuration Serial Port 2 Configuration Serial Port 3 Configuration Serial Port 4 Configuration Serial Port 5 Configuration Serial Port 6 Configuration

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Serial Port 1 ~ 6 Configuration

Advanced

Serial Port 1 ~ 6 Configuration

Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4;

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

* Serial Port

This option is used to enabled or disable the current serial port.

* Device Settings

This option is used to display the current resource configuration of the serial port.

Page 38

Chapter 3 BIOS Setup

- 32 - EC0-1815V2NAR

 H/W Monitor

Advanced

PC Health Status

System Temperature : +29 C CPU Temperature : +30 C SYSFAN1 : 3068 RPM CPUFAN1 : 2086 RPM Vcore : +0.992 V V3.3 : +3.296 V V5.0 : +5.007 V V12.0 : +12.091 V VBAT : +3.232 V

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Display the currently detected hardware monitoring information, such as voltage,

temperature, fan speed, etc.

 System Temperature

Current system temperature, monitored by the thermal resistor on motherboard.

 CPU Temperature

Current CPU temperature, monitored by the temperature sensor on motherboard.

 SYSFAN1/CPUFAN1

Monitor the speed of the current system fan and the CPU fan.

 Vcore

CPU core voltage.

 V3.3/ V5.0/V12.0

Turn on/off the power to output voltage.

 VBAT

CMOS battery voltage.

Page 39

Chapter 3 BIOS Setup

EC0-1815V2NAR - 33 -

 CPU PPM Configuration

Advanced

CPU PPM Configuration

EIST [Enabled] Turbo Mode [Enabled] CPU C3 Report [Enabled] CPU C6 Report [Enabled] CPU C7 Report [Enabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Display the information relevant to CPU. Note: the displayed CPU information is

relevant to the CPU installed within the platform; different series CPU may have

different display information.

 EIST

Enable the SpeedStep function of CPU.

 Turbo Mode

Enable the Turbo Mode function.

 CPU C3 ~ C7 Report

Enable the power saving function of CPU.

 Chipset

Main Advanced Chipset Boot Security Save & Exit

WARNING: Setting wrong values in below sections may cause system to malfunction!

 PCH-IO Configuration  System Agent (SA) Configuration

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Page 40

Chapter 3 BIOS Setup

- 34 - EC0-1815V2NAR

 PCH-IO Configuration

Chipset

 USB Configuration

LAN1 Controller [Enabled] LAN2 Controller [Enabled] Audio Controller [Auto] Restore AC Power Loss [Last State] Audio Internal Codec [Enabled] Audio codec Port DP1 [Enabled] Audio codec Port DP2 [Enabled] PCIe Speed [Auto]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 LAN1 Controller

Enable LAN1 controller switch.

 LAN2 Controller

Enable LAN2 controller switch.

 Audio Controller

Enable audio card controller switch.

 Restore AC Power Loss

This option could set the system status when the computer is re-electrified after

powered off under AC. “Power Off” is to make the system at power off status;

“Power On” is to power on the system automatically; “Last State” is to recover

the status before powering off.

 Audio Internal Codec

Enable the control switch of audio internal codec.

 Audio codec Port DP1

Page 41

Chapter 3 BIOS Setup

EC0-1815V2NAR - 35 -

Enable the control switch of audio codec port DP1.

 Audio codec Port DP2

Enable the control switch of audio codec port DP2.

 PCIe Speed

Speed control switch for PCIE2.

 USB Configuration

Chipset

USB Configuration

XHCI Mode [Smart Auto] HS Port #1 Switchable [Enabled]

HS Port #2 Switchable [Enabled] HS Port #3 Switchable [Enabled] HS Port #4 Switchable [Enabled]

EHCI1 [Enabled] EHCI2 [Enabled]

USB Ports Per-Port Disable Control [Disabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

* XHCI Mode

Enable xhci mode control.

* HS Port #1~4 Switchable

Enable xhci and ehci switch function.

* EHCI 1

Switch for EHCI controller 1.

* EHCI 2

Switch for EHCI controller 2.

* USB Ports Per-Port Disable Control

Page 42

Chapter 3 BIOS Setup

- 36 - EC0-1815V2NAR

General control switch for the USB Port.

* USB 1~8 Disable

Switches for USB Port 1 ~ 8.

 System Agent (SA) Configuration

Chipset

VT-d Capability Supported

VT-d [Enabled] PEG0 – Gen X [Auto] De-emphasis Control [-3.5 dB]

 Graphics Configuration  Memory Configuration

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 VT-d

Switch for the Intel virtualization technology.

 PEG0 – Gen X

Speed control switch for PCIE1.

 De-emphasis Control

De-emphasis control switch for PCIE1.

Page 43

Chapter 3 BIOS Setup

EC0-1815V2NAR - 37 -

 Graphics Configuration

Advanced

Graphics Configuration

Primary IGFX Boot Display [CRT] Secondary IGFX Boot Display [Disabled] Primary Display [Auto] DVMT Pre-Allocated [64M] DVMT Total Gfx Mem [256M]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Primary IGFX Boot Display

Set the primary IGFX boot display device.

 Secondary IGFX Boot Display

Set the secondary IGFX boot display device.

 Primary Display

This option is used to specify the display device type with boot priority.

 DVMT Pre-Allocated

Select the memory size pre-allocated by DVMT.

 DVMT Total Gfx Mem

Select the DVMT total Gfx memory size.

Page 44

Chapter 3 BIOS Setup

- 38 - EC0-1815V2NAR

 Memory Configuration

Advanced

Memory Information

Memory Frequency 1067 Mhz Total Memory 2048 MB (DDR3) DIMM1 Not Present DIMM2 2048 MB (DDR3) CAS Latency(tCL) 7 Minimum delay time

CAS to RAS (tRCDmin) 7 Row Precharge (tRPmin) 7

Active to Rrecharge (tRASmin) 20 XMP Profile 1 Not Supported XMP Profile 2 Not Supported

Memory Remap [Enabled]

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Memory Remap

This option is used on the platform supporting North Bridge above 4G (such as

64GB); it will map the addresses occupied by the traditional devices less than

4G, such as BIOS, APIC, PCIE and PCI MEMORY, etc. to the memory above

4G. Therefore, when plenty of the physical memories are adopted, the OS can

make full use of the physical memories.

Page 45

Chapter 3 BIOS Setup

EC0-1815V2NAR - 39 -

 Boot

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

Quiet Boot [Disabled]

Boot Option Priorities

Boot Option #1 [Netac] Boot Option #2 [UEFI: Netac]

Hard Drive BBS Priorities

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Quiet Boot

Boot mode selection switch, which is used to enable or disable the Quiet Boot

function.

 Boot Option Priorities

This option is used to configure the system booting priorities. #1 represents the

highest priorities while #n represents the lowest priorities.

 Hard Drive BBS Priorities

This option is used to configure the priorities of the legacy devices in BBS. #1

represents the highest priorities while #n represents the lowest priorities.

Page 46

Chapter 3 BIOS Setup

- 40 - EC0-1815V2NAR

 Security

Main Advanced Chipset Boot Security Save & Exit

Password Description

If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

 Administrator Password

This option is used to set administrator password.

 Save & Exit

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Reset Discard Changes and Reset

Boot Override Netac UEFI: Netac

→←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Page 47

Chapter 3 BIOS Setup

EC0-1815V2NAR - 41 -

 Save Changes and Reset

The option is used to save changes and reset.

 Discard Changes and Reset

The option is used to discard changes and reset.

 Boot Override

This option is used to select the boot device.

System Resource Managed by UEFI under X86 Platform

We define three kinds of system resources here: I/O port address, IRQ interrupt

number and DMA number.

 DMA

Level Function

DMA0 Unassigned

DMA1 Unassigned

DMA2 Unassigned

DMA3 Unassigned

DMA4 Used for DMAC cascade

DMA5 Unassigned

DMA6 Unassigned

DMA7 Unassigned

 APIC

Advanced programmable interrupt controller. Most motherboards above P4 level

support APIC and provide more than 16 interrupt sources, like IRQ16 - IRQ23; while

some others can have up to 28 interrupt sources, such as motherboard supporting

PCI-X. However, relevant OS are required to enable that function.

Page 48

Chapter 3 BIOS Setup

- 42 - EC0-1815V2NAR

 IO Port Address

Only 16 IO address lines are designed for X86, from 0 ~ 0FFFFh; there is 64K for the

system I/O address space. In traditional ISA connector, only the foregoing 1024 (0000

~ 03FFh) are adopted while the ports above 0400h are adopted by PCI and EISA

connectors. Each peripheral will occupy portion of the space. The table below shows

parts of the I/O connectors used in X86 platform.

Address Device Description

000h - 01Fh DMA Controller

00h – CF7h PCI bus

010h - 01Fh Motherboard Resource

020h - 021h Programmable Interrupt Controller

022h - 03Fh Motherboard Resource

024h - 025h Programmable Interrupt Controller

028h - 029h Programmable Interrupt Controller

02Ch – 02Dh Programmable Interrupt Controller

02Eh - 02Fh Motherboard Resource

030h - 031h Programmable Interrupt Controller

034h - 035h Programmable Interrupt Controller

038h – 039h Programmable Interrupt Controller

03Ch – 03Dh Programmable Interrupt Controller

040h - 043h System Timer

044h - 05Fh Motherboard Resource

04Eh - 04Fh Motherboard Resource

050h - 053h System Timer

060h Standard 101/102 Key or Microsoft Natural PS/2 Keyboard

061h Motherboard Resource

Page 49

Chapter 3 BIOS Setup

EC0-1815V2NAR - 43 -

062h – 063h Motherboard Resource

063h Motherboard Resource

064h Standard 101/102 Key or Microsoft Natural PS/2 Keyboard

065h Motherboard Resource

065h - 06Fh Motherboard Resource

067h Motherboard Resource

070h Motherboard Resource

070h - 077h Real Time Clock, NMI

072h – 07Fh Motherboard Resource

080h Motherboard Resource

081h - 091h DMA Controller

084h - 086h Motherboard Resource

088h Motherboard Resource

08Ch – 08Eh Motherboard Resource

090h - 09Fh Motherboard Resource

092h Motherboard Resource

093h – 09Fh DMA Controller

0A0h - 0A1h Programmable Interrupt Controller

0A2h – 0BFh Motherboard Resource

0A4h - 0A5h Programmable Interrupt Controller

0A8h - 0A9h Programmable Interrupt Controller

0ACh - 0ADh Programmable Interrupt Controller

0B0h – 0B1h Programmable Interrupt Controller

0B2h – 0B3h Motherboard Resource

0B4h – 0B5h Programmable Interrupt Controller

Page 50

Chapter 3 BIOS Setup

- 44 - EC0-1815V2NAR

0B8h – 0B9h Programmable Interrupt Controller

0BCh – 0BDh Programmable Interrupt Controller

0C0h – 0DFh DMA Controller

0E0h - 0EFh Motherboard Resource

0F0h - 0FFh Numeric data processor

210h - 217h COM3

218h - 21Fh COM 4

220h - 227h COM 5

228h - 22Fh COM 6

274h – 277h ISAPNP Read Data Port

279h ISAPNP Read Data Port

2F8h - 2FFh COM 2

3B0h – 3BBh Intel(R) HD Graphics

3C0h – 3DFh Intel(R) HD Graphics

3F8h - 3FFh COM1

400h - 453h

Motherboard Resource

454h –457h Motherboard Resource

458h –47Fh Motherboard Resource

4D0h – 4D1h Motherboard Resource

4D0h – 4D1h Programmable Interrupt Controller

500h - 57Fh Motherboard Resource

680h - 69Fh Motherboard Resource

A00h – A0Fh Motherboard Resource

A30h – A3Fh Motherboard Resource

A79h ISAPNP Read Data Port

0D00h-FFFFh PCI bus

Page 51

Chapter 3 BIOS Setup

EC0-1815V2NAR - 45 -

 IRQ Assignment Table

There are 15 interrupt sources of the system. Some are occupied by the system

devices. Only the ones that are not occupied can be assigned to other devices. ISA

device requests exclusive use of its interrupt. Only the plug and play ISA devices can

be assigned by the UEFI or the OS. And several PCI devices share one interrupt,

which is assigned by UEFI or OS. Interrupt assignment of some devices of X86

platform is shown in the table below, but it does not show the interrupt source

occupied by the PCI devices.

Level Function

IRQ0 System Timer

IRQ1 PS2 Keyboard

IRQ2 Programmable Interrupt Controller

IRQ3 COM2

IRQ4 COM1

IRQ5 Reserved

IRQ6 Reserved

IRQ7 Reserved

IRQ8 System CMOS/Real Time Clock

IRQ9 ACPI-Compliant System

IRQ10 Reserved

IRQ11 COM3/4/5/6

IRQ12 Mouse

IRQ13 Numeric data processor

IRQ14 Master IDE Channel

IRQ15 Slave IDE Channel

Page 52

Chapter 4 Installing the Drivers

- 46 - EC0-1815V2NAR

Chapter 4 Installing the Drivers

Regarding the driver program of this product, please refer to the enclosed CD.

Page 53

Appendix

EC0-1815V2NAR - 47 -

Appendix

BPI Overview

EVOC BPI (BIOS Programming Interface) is a cross-platform, easy-to-maintain

software interface specification, which supports access to hardware under the

Protected Mode of the operating system. The function of the product is to provide a

unified standard interface for the application software or driver; therefore, when the

hardware of the motherboard is upgraded, there is no need to modify the application

software or driver and the former software can operate on the new platform normally.

It has greatly sped up the product development and reduced the maintenance cost.

Currently, BPI supports the configuration of WDT and GPIO as well as H/W monitor

function. As for the test program and function library, please refer to the relevant

documents in the enclosed CD.

Features of the BPI include:

1、 Platform Irrelevant

The software developed by BPI function library can operate on a new platform,

supporting BPI function, normally without making any modification.

2、 Security and High Reliability

The BPI function library accessing the hardware is programmed by the

motherboard developer and is strictly tested; therefore, it can avoid system

malfunction caused by improper operation of the system hardware.

3、 Flexible Configuration

Take GPIO configuration as an example, users may conveniently configure an

arbitrary GPIO function by BPI function library or test program.

4、 Easy Maintenance

Traditional WDT and GPIO programming are closely related to the hardware

Page 54

Appendix

- 48 - EC0-1815V2NAR

with complicated test and debug process and software of different platforms;

however, the software developed by BPI only requires one set of the

maintenance software.

5、 Low Cost

Developing the applications by BPI will not result in additional hardware and

software cost, but it will reduce the development difficulty, development cycle

and time-to-market for the system integrator.

Troubleshooting and Solutions

NO. Phenomenon Troubleshooting and Solution

Analysis: it could be the problem of the CMOS battery.

BIOS setting cannot be saved

Solution: measure the CMOS battery with a multi-meter; if the voltage is insufficient, replace the battery; re-set the BIOS and save again. Analysis: it may be caused by poor connection. Remove the power plug from power socket on motherboard, you may find that certain pin of the motherboard power has been collapsed to one side after some forceful insertion.

The computer can only be powered-on occasionally

Solution: power off the computer and remove the power plug; erect the bended power pin with tweezers and re-insert in the power socket. Reboot the computer and test for several times until the problem no longer exits.

Analysis: A USB flash drive is a high-speed USB2.0; when connecting with the computer, it prompts that a high-speed device has been connected with a low-speed connector, which indicates that the connector on motherboard is regarded as a USB1.1 port.

When connecting with a USB flash drive, the system prompts that a high-speed device has been connected with a low-speed connector.

Solution: enable the USB high-speed transmission mode on the motherboard. Different motherboards may have different settings. Change the FULLSPEED option to HISPEED in USB device option.

The screen has no display after replacing with a new memory

Analysis: it could result from improper operation when inserting or removing the memory and cause abnormal operation of the components on the motherboard. Focus on the circuit related to the memory on the motherboard.

Page 55

Appendix

EC0-1815V2NAR - 49 -

and cannot enter system; even when the former memory is re-installed, the system cannot be booted as well.

Solution: check the hardware such as memory, video card first; if it shows that the hardware are all OK, then check the circuit around the memory slot on motherboard carefully; you may find that the two pins connected with the gold finger in the first memory slot are shorted while the second memory slot is normal, then you may know that there is short circuit in the first memory slot. Remove the two pins to their original location with tweezers carefully, insert the memory, reboot the system and the system will be booted smoothly.

Analysis: the data cable of the hard disk may get knocked when installing the CD-ROM, which leads to poor connection of the hard disk data cable, or the master and slave jumpers on hard disk and CD-ROM are wrongly set.

The system cannot be booted after replacing a CD-ROM.

Solution: check the data cable of the hard disk and the IDE connectors on hard disk and motherboard first; if there are no problems, then check the master and slave jumper setting. You may find that the hard disk and CD-ROM are connected with different data cables while their jumpers are all set to master; thus, the hard disk cannot be booted. Set the CD-ROM jumper to slave and then re-install it.

Analysis: make sure the PCI card functions normally; re-insert the PCI card or insert it into another PCI slot to see whether it is normal; find out the power type in use (AT or ATX); find out users’ requirement for the PCI card voltage.

No PCI card can be detected after entering the system.

Solution: if the PCI card functions abnormally, replace it with a new one; if it functions normally when re-inserted or inserted in another PCI slot, then there is something wrong between the PCI card and the slot. If AT power is adopted and the PCI card requires 3.3V voltage, then the AT power shall be replaced with ATX power because AT power cannot provide 3.3V voltage. (Suggestion: when purchasing power supplies, please check whether the PCI card in use requires 3.3V voltage or not).

Page 56

Appendix

- 50 - EC0-1815V2NAR

Analysis: devices are not connected; no drivers are loaded; devices are broken.

No peripheral devices can be detected.

Solution: check whether the cable between the device and the motherboard is normal; if it is normal, replace it with a new cable to make sure the connection is OK. Re-install the device driver and check whether it can be recognized; check whether the device is normal; if the device is normal, then check whether the device is compatible with the motherboard.
