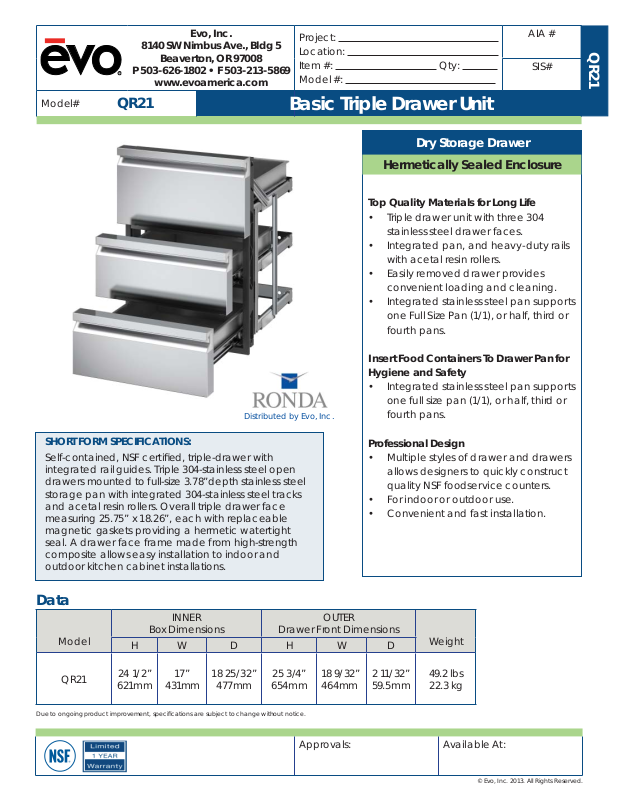

Page 1
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97008
P 503-626-1802 • F 503-21 3-5869
R
www.evoamerica.com
Project:
Location:
Item #: Qty:
Model #:
AIA #
QR21
SIS#
Model#
QR21
Basic Triple Drawer Unit
Distribute d b y E v o, Inc.
Dry Storage Drawer
Hermetically S ealed Enclo sur e
Top Quality Materials for Long Life
• Triple drawer unit with three 304
stainless steel drawer faces.
• Integrated pan, and heavy-duty rails
with acetal resin rollers.
• Easily removed drawer provides
convenient loading and cleaning.
• Integrated stainless steel pan supports
one Full Size Pan (1/1), or half, third or
fourth pans.
Insert Food Containers To Drawer Pan for
Hygiene and Safety
• Integrated stainless steel pan supports
one full size pan (1/1), or half, third or
fourth pans.
SHORT FORM SPECIFICATIONS:
Self-contained, NSF certifi ed, triple-drawer with
integrated rail guides. Triple 304-stainless steel open
drawers mounted to full-size 3.78”depth stainless steel
storage pan with integrated 304-stainless steel tracks
and acetal resin rollers. Overall triple drawer face
measuring 25.75” x 18.26”, each with replaceable
magnetic gaskets providing a hermetic watertight
seal. A drawer face frame made from high-strength
composite allows easy installation to indoor and
outdoor kitchen cabinet installations.
Data
INNER
Box Dimensions
Model
QR21
Due to ongoing product improvement, specifi cations are subject to change without notice.
HW D H WD
24 1 /2”
621 mm
17”
431mm
18 25/32”
477mm
Drawer Fron t Dimensions
25 3/4”
654mm
OUTER
18 9/32”
464mm
Professional Design
• Multiple styles of drawer and drawers
allows designers to quickly construct
quality NSF foodservice counters.
• For indoor or outdoor use.
• Convenient and fast installation.
Weight
2 11/32”
59.5mm
49 .2 lbs
22.3 kg
Approvals: Available At:
© Evo, Inc. 2013. All Rights Reserved.
Page 2
R
5252
7.5
477
621
16.516.5
193.7
6
193.7
6
254.6
654
Altezza
interna
cassa 96.1
Altezza
interna
cassa 96.1
Altezza
interna
cassa 96.1
Passaggio
utile
123
Passaggio
utile
128
Passag gio
utile
189
30
95 246 95
SEZIONE
SEZIONE
D-D
D
D
Sm.=
R=
Codice commerciale
Scala
Foglio
Data
Tratt.
TITOLO
Raccordi non quotati
Lav. gen.
Smussi non quotati
Disegnato
REV.
Vericato
QUOTE SENZA TOLLERANZA UNI EN 22768
Via Vegri, 83
Materiale
oltre
2000
no a
4000
oltre
1000
no a
2000
Scostamenti limite ammessi
oltre
400
no a
1000
oltre
120
no a
400
oltre
30
no a
120
oltre
6
no a
30
oltre
3
no a
6
da
0,5
no a
3
Classe di
tolleranza
m media
m media
m media
Dimensioni lineari
Dimensioni angolari
Dimensioni lineari
di smussi e raccordi
`
0,1`0,1`0,2`0,3`0,5`0,8`1,2
`
2
`
0,2`0,5`1
-
-
-
-
-
<= 10
>10 <=50
>50 <=120
>120<=400
>400
`1~
`
0~30'
`0~
20'
`0~
10'
`0~
5'
**
1:5 1 1
22.09.2009
G.Ferrari
Cassettiera tripla neutra
464
16.5
16.5
431
361.4
52
7.5
477
621 16.5
516.5
193.7
6
193.7
6
254.6
654
Altezza
interna
cassa 96.1
Altezza
interna
cassa 96.1
Altezza
interna
cassa 96.1
Passaggio
utile
123
Passaggio
utile
128
Passaggio
utile
189
30
78.5
274
78.5
30
95 246 95
5
10
m 04.06.2010 Aggiunto etichette NSF.
(G.Ferrari)
SEZIONE
A-A
SEZIONE
D-D
Etichetta NSF
AA
D
D
Passaggio
utile
123
Passaggio
utile
128
Passaggio
utile
189
95 246 95
30
95
246 95
Model#
Side
QR21 Basic Triple Drawer Unit
16.5
Altezza
interna
cassa 96.1
Altezza
interna
621
cassa 96.1
246
Altezza
interna
cassa 96.1
SEZIONE
16.
16.5
-
SEZIONE
A-A
Etichetta NSF
78.5
Top
431
361.4
274
464
78.5
16.5
Front
123
utile
Passaggio
128
utile
Passaggio
189
utile
Passaggio
Evo, Inc. is the North and South America Distributor for Ronda Drawers and Doors
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • [email protected]
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
Evo® is a registered trademark of Evo, Inc. Ronda® is a registered trademark of Ronda S. p.A.
