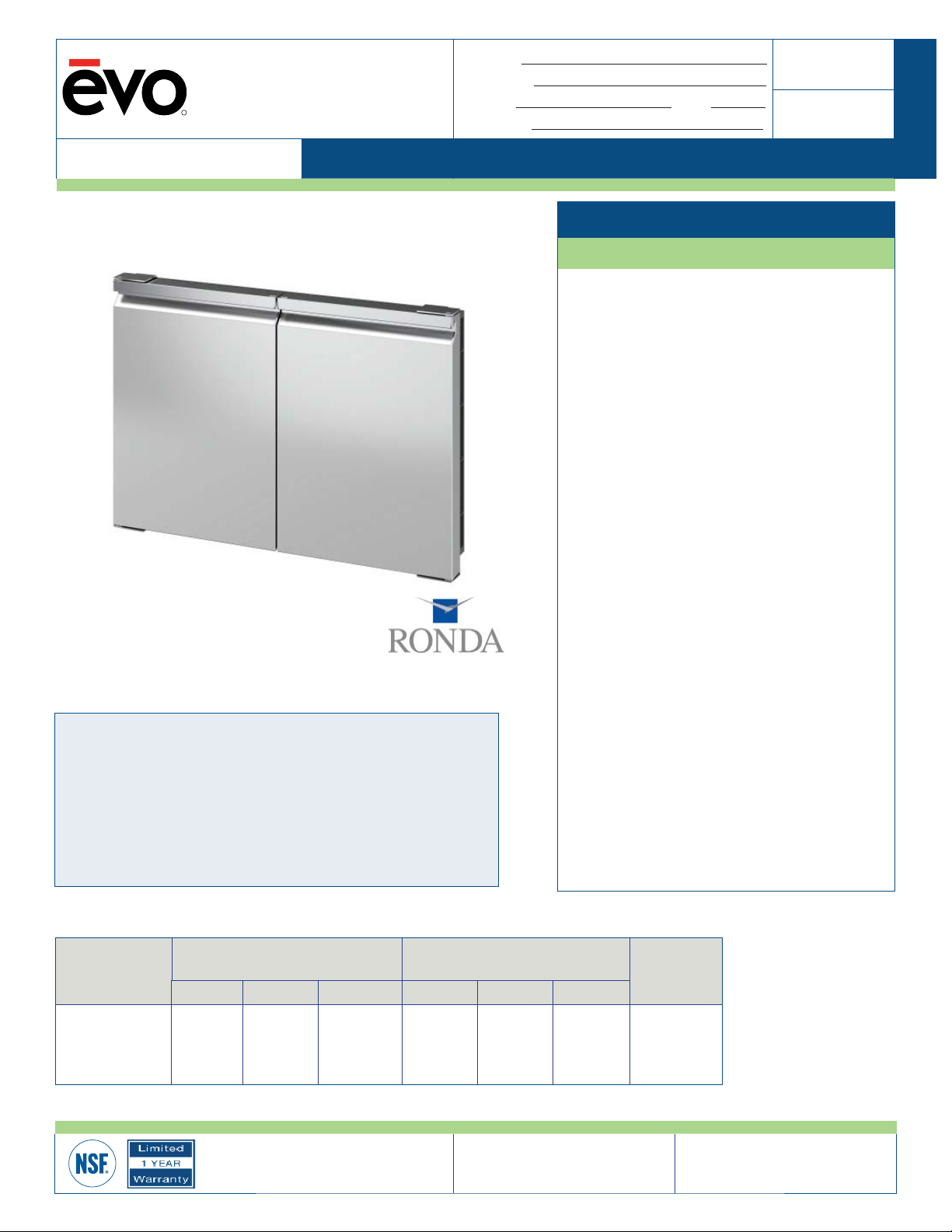

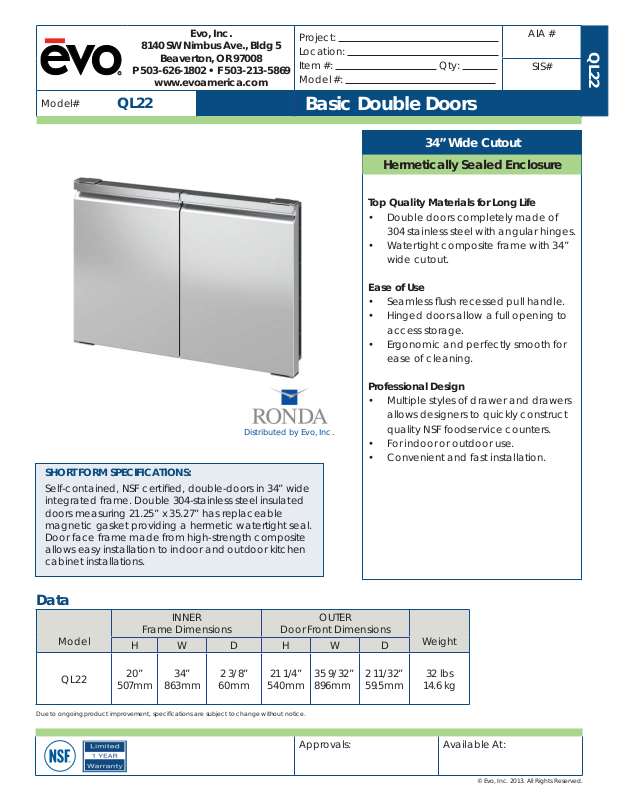

Page 1
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97008
P 503-626-1802 • F 503-21 3-5869
R
www.evoamerica.com
Project:
Location:
Item #: Qty:
Model #:
AIA #
QL22
SIS#
Model#
SHORT FORM SPECIFICATIONS:
Self-contained, NSF certifi ed, double-doors in 34” wide
integrated frame. Double 304-stainless steel insulated
doors measuring 21.25” x 35.27” has replaceable
magnetic gasket providing a hermetic watertight seal.
Door face frame made from high-strength composite
allows easy installation to indoor and outdoor kitchen
cabinet installations.
QL22
Distribute d b y E v o, Inc.
Basic Double Doors
34” Wi de C u to ut
Hermetically S ealed Enclo sur e
Top Quality Materials for Long Life
• Double doors completely made of
304 stainless steel with angular hinges.
• Watertight composite frame with 34”
wide cutout.
Ease of Use
• Seamless fl ush recessed pull handle.
• Hinged doors allow a full opening to
access storage.
• Ergonomic and perfectly smooth for
ease of cleaning.
Professional Design
• Multiple styles of drawer and drawers
allows designers to quickly construct
quality NSF foodservice counters.
• For indoor or outdoor use.
• Convenient and fast installation.
Data
INNER
Frame Dimensions
Model
QL22
Due to ongoing product improvement, specifi cations are subject to change without notice.
HW D HW D
20”
507mm
34”
863mm
2 3/8”
60mm
Door Front Dimensions
21 1/4”
540mm
OUTER
Weight
35 9/3 2”
896mm
Approvals: Available At:
2 11/32”
59.5mm
32 lbs
14.6 kg
© Evo, Inc. 2013. All Rights Reserved.
Page 2
R
b=507
7.5
s=6060
540
896
16.516.5
82.5 114 114 114 82.5
30
a=863
b=507
7.5
s=6060
16.5
540
896
16.516.5
16.5
259 202
23
303023
251.5
150.5
30
82.5 114 114 114 82.5
30
10
30
Etichetta NSF
b=507
7.5
s=6060
16.516.5
82.5
114
114 114 82.5
30
Model#

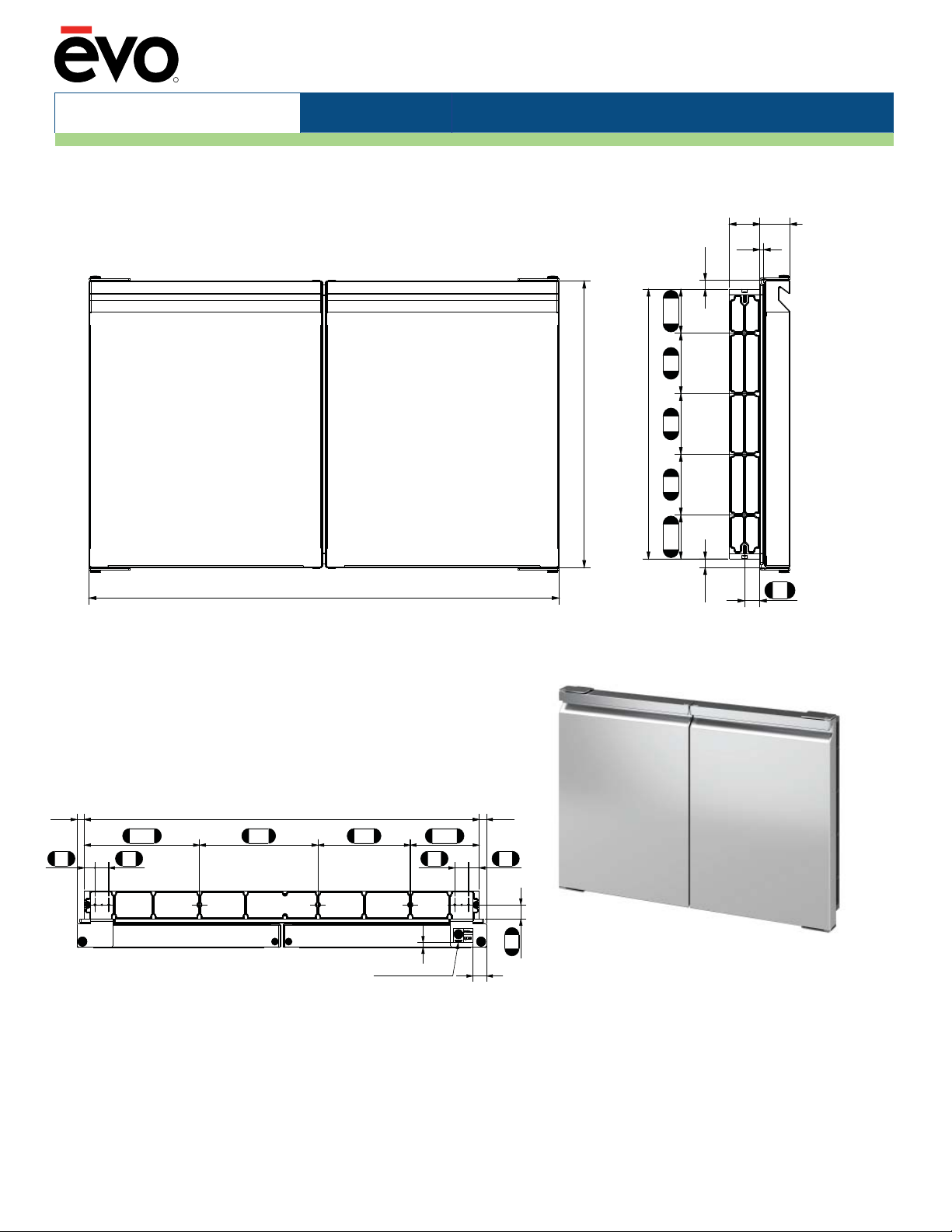

QL22 Basic Double Doors | 34” Wide Cutout
b=507
Side
s=60
114
114
82.5
Front
30
Top
150.5
30
16.5
30
a=863
259
Etichetta NSF
Evo, Inc. is the North and South America Distributor for Ronda Drawers and Doors
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • [email protected]
Evo® is a registered trademark of Evo, Inc. Ronda® is a registered trademark of Ronda S. p.A.
