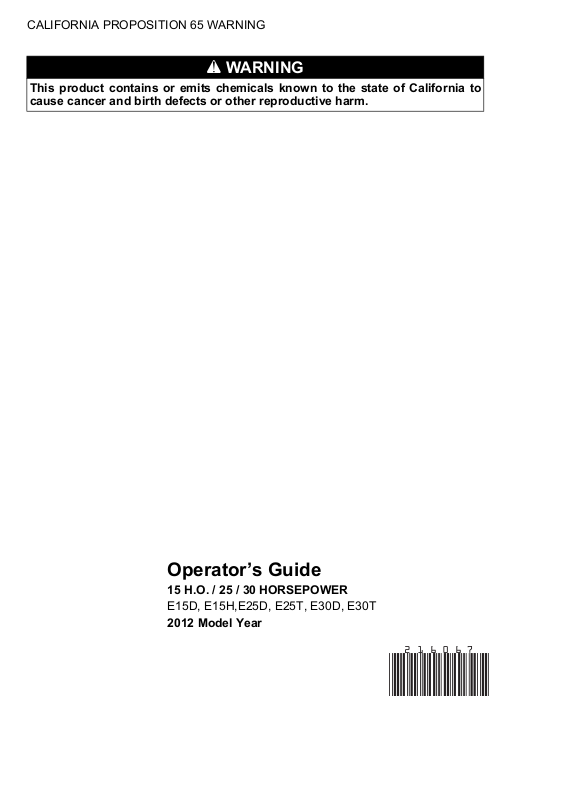

Operator’s Guide
*216067*
CALIFORNIA PROPOSITION 65 WARNING
A WARNING
This product contains or emits chemicals known to the state of California to
cause cancer and birth defects or other reproductive harm.
15 H.O. / 25 / 30 HORSEPOWER
E15D, E15H,E25D, E25T, E30D, E30T
2012 Model Year
Page 2
Page 3
Easy to Own and Operate
• Three-Year Limited Warranty
• No Scheduled Dealer Maintenance for
Three Years of Normal Recreational Use
• No Operational Break-In Procedure
• Easy Starts (no choking or priming)
• Digital Engine Management
• Self Flushing Cooling System
• Long Term Storage Design
• Simplified Winterization Procedure
• Digital Diagnostics
• Low Oil Usage
Durable and Reliable
• Full Corrosion Protection
• Evinrude E-TEC Lubrication System
• Auto-Calibrated Linkage
• Robust, Heavy-Duty Design
• Posi-Lock Latches
• Extra Capacity Water Pump
• Iridium Spark Plugs
• Vibration Isolated Electronics
• Beltless 15 Amp Charging System
• Stainless Steel Thermostat
• Nickel/Chrome-Faced Piston Rings
• Micro Finished Connecting Rods/Crankshaft
Cleaner and Quieter
• EPA Emissions Compliance
• European Union Emissions Compliance
• California 3-Star Emissions Compliance
• Sealed Fuel System
• Low Friction Design (No powerhead
gears, belts, cams, oil scraping rings,
or mechanical oil pump)
• Full Length Insulated Lower Pans
• Quiet Signature Sound
• Air Intake/Silencer
• Idle Air Bypass
FEATURES AT A GLANCE
The following trademarks are the property of Bombardier Recreational Products Inc. or its affiliates:
Evinrude® Evinrude®/Johnson® XD30™ I-Command™
Evinrude® E-TEC® BRP Logo S.A.F.E.™
Evinrude®/Johnson® Genuine Parts 2+4™ Fuel Conditioner SystemCheck™
Evinrude®/Johnson® XD100™ HPF XR™ Gearcase Lubricant Triple-Guard™ Grease
Evinrude®/Johnson® XD50™ HPF Pro™ Gearcase Lubricant
© 2011 BRP US Inc. All rights reserved.
Page 4
Page 5
Dear New Evinrude E-TEC Owner,
Congratulations on the purchase of our industry-leading Evinrude E-TEC outboard
engine. Your purchase comes with the full commitment and support of the BRP Outboard team. Your new engine will provide you with years of reliable enjoyment.
The many benefits of the Evinrude E-TEC engine will add hours of fun for you and
your family and your time on the water…
Power and performance…
An Evinrude E-TEC engine is up to 300 pounds lighter than competitive outboard en-
gines. This translates to faster planing with less bow rise so you can see the open
water in front of you. You demand performance and immediate response. That’s
why instant throttle response and hole shot are so important. The key with Evinrude
E-TEC is that every revolution is a power stroke. That means twice the power
strokes of a 4-stroke. Plus the computer-controlled engine management system delivers the perfect fuel mix directly to the combustion chamber for hair-trigger response. The natural 2-stroke advantage combined with our super-natural fuelinjection and combustion system means that you will gain up to 23% more torque
than a comparable 4-stroke outboard engine. Simply stated – more torque, instant
throttle response, less weight, and more power – Evinrude E-TEC will deliver.
In addition, Evinrude E-TEC engines require no dealer scheduled maintenance for
three years or 300 hours. No inspections or adjustments, no changing gearcase
lube, no spring tune-ups – for a full three years, then every three years after that.
This means more time on the water for you and your family.
History & heritage…
Evinrude outboard engines are manufactured in Sturtevant, Wisconsin, in a state-ofthe-art manufacturing facility that is less than 30 miles away from where Ole
Evinrude invented the first outboard engine more than 100 years ago. One hundred
years of life on the water…and counting. And, Evinrude is part of the BRP family of
products; inclusively, over 200 years of heritage. Powerful brands including legendary names such as Ski-Doo
boats, and Can-Am
®
off-road and on-road products. No other company is able to
®
snowmobiles, Sea-Doo® personal watercraft and
leverage all of their brands in such an effective way to bring consumers the most innovative and expertly engineered products. Only BRP does this.
Thank you again for your confidence in Evinrude E-TEC engines. As you enjoy your
time on the water, we'd love to hear from you online and encourage you to share your
Evinrude E-TEC pictures. Visit us on Facebook www.facebook.com/BRPEvinrude
or visit the Evinrude E-TEAM blog at www.evinrudeeteam.com.
Sincerely,
Steve Laham
Vice President
Sales, Marketing & After-sales Service
Page 6
TABLE OF CONTENTS
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Important Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product References, Illustrations and Specifications . . . . . . . . . . . . . . . . . 9
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using Your Evinrude E-TEC Outboard
Safety Information on the Outboard . . . . . . . . . . . . . . . . . 12
Safety Alert Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Hang Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Control Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Tiller Handle Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Component Identification – Manual Tilt Models . . . . . . . 14
Component Identification – Power Tilt Models . . . . . . . . 16
Component Identification – Tiller Models . . . . . . . . . . . . . 18
Oil and Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Oil Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Oiling System information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Priming the Oil System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fuel Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fueling Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Fuel System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Engine Starting / Stopping - Tiller Models . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Shifting and Speed Control - Tiller Models . . . . . . . . . . . . . . . . . . . . . . . . . 28
Idle Speed Control Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Trim/Tilt Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Tiller Handle Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Engine Starting / Stopping - Remote Control Models . . . . . . . . . . . . . . . . 30
Remote Controls - Evinrude/Johnson (BRP) Controls . . . . . . . . . . . . . . . . 34
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tilting and Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Manual Tilt Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Power Trim and Tilt Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Impact Damage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Engine Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
S.A.F.E. Engine System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Engine Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Engine Monitoring System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
4
Page 7
Special Operating Conditions . . . . . . . . . . . . . . . . . . . . . .46
Cold and Freezing Weather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
High Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Salt Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Shallow Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Under Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Weedy Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Transporting the Outboard . . . . . . . . . . . . . . . . . . . . . . . . .48
Trailering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Transporting / Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Pre-Ride Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Maintenance
Engine Emissions Information . . . . . . . . . . . . . . . . . . . . . .52
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Anti-Corrosion Anodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Outboard External Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Spark Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Submerged Outboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Short-Term Storage (Between Uses) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Long-Term Storage (Winterization) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Pre-Season Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Product Information
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Transom Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Installing the Outboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Boat-Mounted Fuel Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Battery - Electric Start Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Propeller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Product Warranty Information . . . . . . . . . . . . . . . . . . . . . .71
Readiness Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . .83
Change of Address / Change of Ownership . . . . . . . . . . .85
Confirmation of Receipt . . . . . . . . . . . . . . . . . . . . . . . . . . .87
5
Page 8
ABOUT THIS GUIDE
CAUTION
NOTICE
This Operator’s Guide is an essential part of
your Evinrude E-TEC outboard. It contains
pertinent information which, if followed, will
provide you with a thorough understanding
needed for proper operation, maintenance,
care, and—above all—safety. Safety is our
first priority and it should be yours too. It is
strongly recommended you read this Guide
from cover to cover. The more you know and
understand about your Evinrude E-TEC outboard, the greater the safety and pleasure
you will get from using it. Following this recommendation will assure the completeness of
the information essential to your safety, the
safety of any passengers, and other water users.
This Operator’s Guide identifies important
safety messages.
Although the mere reading of such information does not eliminate the hazard, the understanding and application of the information
will promote the correct use of your outboard
engine.
Safety Alert Symbol
This is the Safety Alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
This Guide should be kept in a waterproof bag
with the outboard at all times during operation. If the product ownership is transferred,
this Guide should be forwarded to the new
owners.
A responsible, educated boater will fully appreciate the pleasures of boating and will be a
safe boater. Boating Safety Classes are conducted by the U.S. Coast Guard Auxiliary, the
U.S. Power Squadron and some Red Cross
Chapters. For information about classes, call
toll free 1-800-336-BOAT.
For additional information about boating safety and regulations, call:
• U.S. Coast Guard Boating Safety Hotline
1-800-368-5647.
Outside North America please contact your
Dealer or distributor for details about boating
safety.
This Operator’s Guide uses the following signal words identifying important safety messages.
A DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious injury.
A WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
Indicates a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
Indicates an instruction
which, if not followed, could severely
damage engine components or other
property.
IMPORTANT: Identifies information that will
help with assembly and operation of the product.
6
Page 9
IMPORTANT SAFETY MESSAGES
This Operator’s Guide contains essential information to help prevent personal injury and
damage to equipment. Safety messages appear throughout this Guide in the applicable
section.
Be careful! Human error is caused by many
factors: carelessness, fatigue, overload, preoccupation, unfamiliarity of operator with the
product, drugs and alcohol to name a few.
Damage to your boat and outboard can be
fixed in a short period of time, but injury or
death, has a lasting effect.
A WARNING
For your safety and the safety of others,
follow all safety warnings and recommendations. Do not disregard any of the
safety precautions and instructions.
Anyone operating your boat should first
read and understand this guide before
they operate your boat and outboard.
SAFETY MEASURES — General
To fully appreciate the pleasures, enjoy-
–
ment and excitement of boating there are
some basic rules that should be observed and followed by any boater.
Some rules may be new to you and others may be common sense or obvious...
irrespective, take them seriously!
Be sure at least one of your passengers
–
knows how to handle your boat in case of
an emergency.
All passengers should know the location
–
of emergency equipment and how to use
it.
Know the marine traffic laws and obey
–
them.
All safety equipment and personal floata-
–
tion devices must be in good condition
and suitable for your type of boat. Always
comply with the regulations that apply to
your boat.
Remember, gasoline fumes are flamma-
–
ble and explosive. Always adhere to the
fueling procedure contained in this Operator’s Guide and those given to you by
the fueling station. Always verify fuel level before use and during the ride. Apply
the principle of 1/3 fuel to destination, 1/
3 back and 1/3 reserve fuel supply. Do
not carry spare fuel or flammable liquids
in any storage or engine compartments.
Whenever running the engine, assure
–
there is proper ventilation to avoid the accumulation of carbon monoxide (CO),
which is odorless, colorless, and tasteless, and can lead to unconsciousness,
brain damage, or death if inhaled in sufficient concentrations. CO accumulation
can occur while docked, anchored, or underway, and in many confined areas
such as the boat cabin, cockpit, swim
platform, and heads. It can be worsened
or caused by weather, mooring and operating conditions, and other boats. Avoid
exhaust fumes from your engine or other
boats, provide proper ventilation, shut off
your engine when not needed, and be
aware of the risk of backdrafting and conditions that create CO accumulation. In
high concentrations, CO can be fatal
within minutes. Lower concentrations are
just as lethal over long periods of time.
Avoid standing up or shifting weight sud-
–
denly in light weight boats.
Keep your passengers seated in seats.
–
The boat’s bow, gunwale, transom and
seat backs are not intended for use as
seats.
Insist on the use of personal floatation
–
devices, approved by the U.S. Coast
Guard, by all passengers when boating
conditions are hazardous, and by children and nonswimmers at all times.
Proceed with caution and at very low
–
speed in shallow water. Grounding or
abrupt stops may result in personal injury
or property damage. Also be alert for debris and objects in the water.
7
Page 10
Be familiar with the waters you are oper-
–
ating in. The gearcase of this outboard
extends below the water surface and
could potentially come in contact with underwater obstructions. Contact with underwater obstructions may result in loss
of control and personal injury.
Respect no wake zones, rights of other
–
water users and the environment. As the
"skipper" and owner of a boat you are responsible for damage to other boats
caused by the wake of your boat. Allow
no one to throw refuse overboard.
Do not operate your boat if you are under
–
the influence of drugs or alcohol.
High performance boats have a high
–
power-to-weight ratio. If you are not experienced in the operation of a high performance boat, do not attempt to operate
one at, or near, its top speed until you
have gained that experience.
Become completely familiar with the con-
–
trol and operation of your boat and outboard before embarking on your first trip
or taking on a passenger(s). If you have
not had the opportunity to do so with your
Dealer, practice driving in a suitable area
and feel the response of each control. Be
familiar with all controls before applying
the throttle above idle speed. As the operator, you are in control and responsible
for safe operation.
SAFETY MEASURES — Installation
and Maintenance
The outboard must be correctly installed.
–
Failure to correctly install the outboard
could result in serious injury, death or
property damage. We strongly recommend that your Dealer install your outboard to ensure proper installation.
Do not overpower your boat by using an
–
engine that exceeds the horsepower indicated on the boat’s capacity plate.
Overpowering could result in loss of control. If your boat has no capacity plate,
contact your Dealer or the boat’s manufacturer.
When replacement parts are required,
–
use Evinrude/Johnson Genuine Parts or
parts with equivalent characteristics, including type, strength and material. Using substandard parts could result in
injury or product malfunction.
Only perform service procedures which
–
are detailed in this Operator’s Guide. Attempting to perform maintenance or repair on your outboard if you are not
familiar with the correct service and safety procedure could cause personal injury
or death. Further information can be obtained from your authorized Evinrude/
Johnson Dealer. In many instances proper tools and training are required for certain service or repair procedures.
Maintain your boat and engine in top
–
condition at all times. Adhere to the
Maintenance Schedule on page 53.
Operate your boat and outboard pru-
–
dently and have fun. Do not forget that all
persons must assist other boaters in
case of emergency.
Prevent injury from contact with rotating
–
propeller; remove propeller before flushing or before performing any maintenance.
8
Page 11
PRODUCT REFERENCES, ILLUSTRATIONS AND SPECIFICATIONS
BRP reserves the right to make changes at any time, without notice, to features, specifications
and model availability, and to change any specification or part at any time without incurring
any obligation to update older models. The information in the Guide is based on the latest
specifications available at the time of publication.
Photographs and illustrations used in this Guide might not depict actual models or equipment
but are intended as representative views for reference only.
Certain features of systems discussed in this Guide might not be found on all models in all
marketing areas.
Owner’s Identification
United States and Canada — At the time of purchase, your Dealer will complete your outboard registration forms. Your portion provides proof of ownership and date of purchase.
Outside United States and Canada — See your Dealer or distributor for details.
Model and Serial Numbers
The model and serial numbers appear on a plate attached to the stern bracket or swivel bracket. Record your outboard’s:
Model Number _______________________
Serial Number ________________________
Purchase Date _______________________
Ignition Key Number ___________________
Stolen Outboards
United States and Canada — Report stolen outboards to your local dealer or distributor.
Outside United States and Canada — Report the theft to the Bombardier Recreational Prod-
ucts distributor where the outboard was registered.
Technical Literature
BRP offers technical literature specifically for your outboard. A service manual, a parts catalog, or an extra Operator’s Guide can be purchased from your selling Dealer. For the name
and location of the nearest Evinrude Dealer in the United States and Canada visit
www.evinrude.com.
9
Page 12
DECLARATION OF CONFORMITY
• Application of Council Directives:
Directive 94/25/EC as amended by 2003/44/EC – Recreational-Craft
• Relevant Harmonized Standard(s):
•EN ISO 8178-1
•EN ISO 14509
• Relevant Directive(s):
Directive 89/336EC as amended by 2004/108/EC – Electromagnetic Compatibility
• Relevant Harmonized Standard(s):
•EN ISO 55012:2007
•EN ISO 61000-6-1:2007
•EN ISO 61000-4-2:2008
•EN ISO 61000-4-3:2008
• Product Type:
Marine Outboard 2-Stroke Cycle SI Engine
• Manufacturer:
BRP US Inc.
10101 Science Drive
Sturtevant, WI 53177
• EC Type Certificate:
Engine Model(s)
E15D, E15H,E25D, E25T, E30D, E30T EXBOMB009 SDBOMB023
E40D, E50D EXBOMB002 SDBOMB012
E60D EXBOMB002 SDBOMB013
E65W EXBOMB006 SDBOMB020
E55M EXBOMB007 SDBOMB020
E75D, E90D, E90W EXBOMB003 SDBOMB014
E115D, E115H, E130D EXBOMB004 SDBOMB022
E150D, E150H, E175D, E200DP, E200DS, E200DC EXBOMB005 SDBOMB015
E200H, E200DH, E225D, E225H, E250DP, E250DC,
DE250P, DE250C
E250H, E250DH EXBOMB001 SDBOMB021
E300D, DE300P, DE300C EXBOMB008 SDBOMB021
Exhaust Emissions
Certificate Number
EXBOMB001 SDBOMB016
Sound Emissions
Certificate Number
Engine models represented here are partials; additional suffixes are added to define additional
features or accessories which do not affect certification.
I, the undersigned, hereby declare that the product specified above conforms to the above Directive(s) and Standard(s).
George Broughton
Director of Engineering
Outboard Engines
10
Page 13
Using Your
Evinrude E-TEC
Outboard
11
Page 14
Using Your Evinrude E-TEC Outboard
Operator's
Guide
Operator's
Guide
355926
008488
Shift position
Reverse / Neutral / Forward

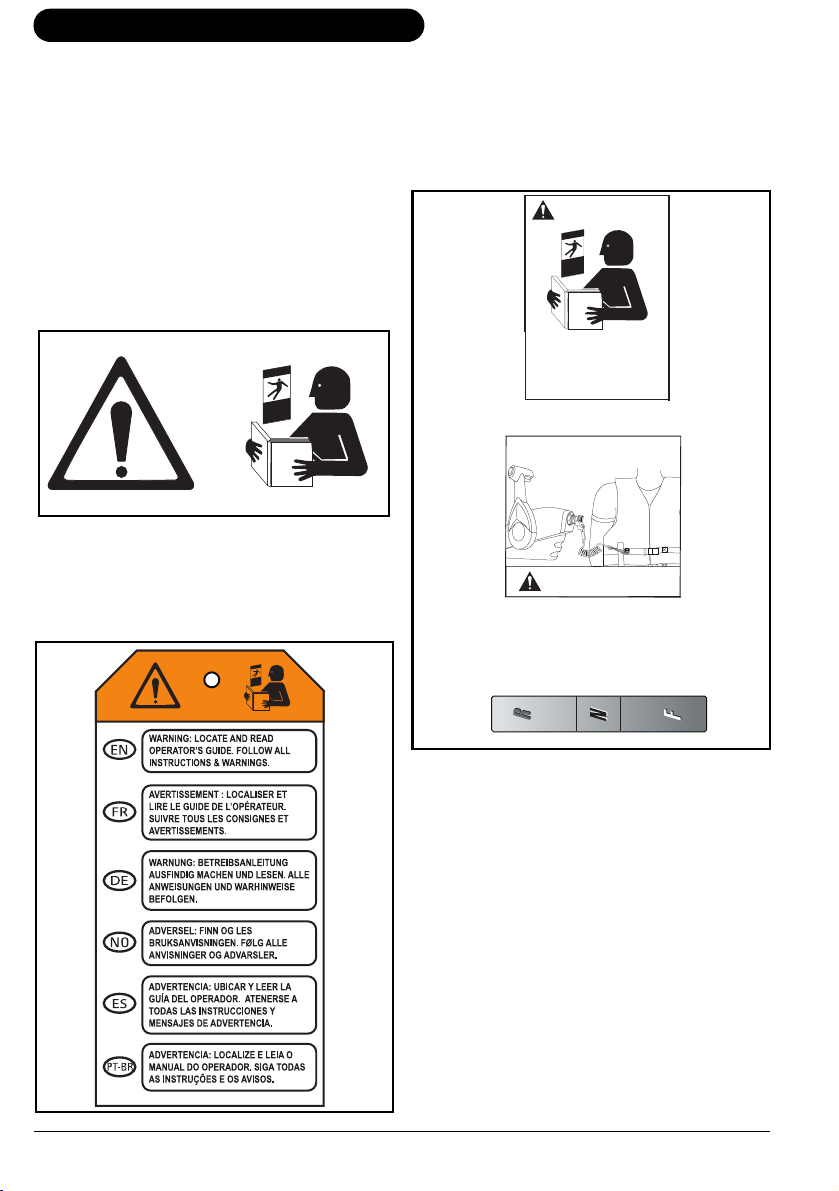

SAFETY INFORMATION ON THE OUTBOARD
This outboard comes with hang tags and labels containing important safety information
about the operation of the outboard. Any person who operates this outboard should read
and understand this safety information.
SAFETY ALERT SYMBOLS
The following symbols are used together to indicate “Read the engine’s Operator’s Guide
before continuing.”
355633
HANG TAG
All outboards are shipped with the following
hang tag attached.

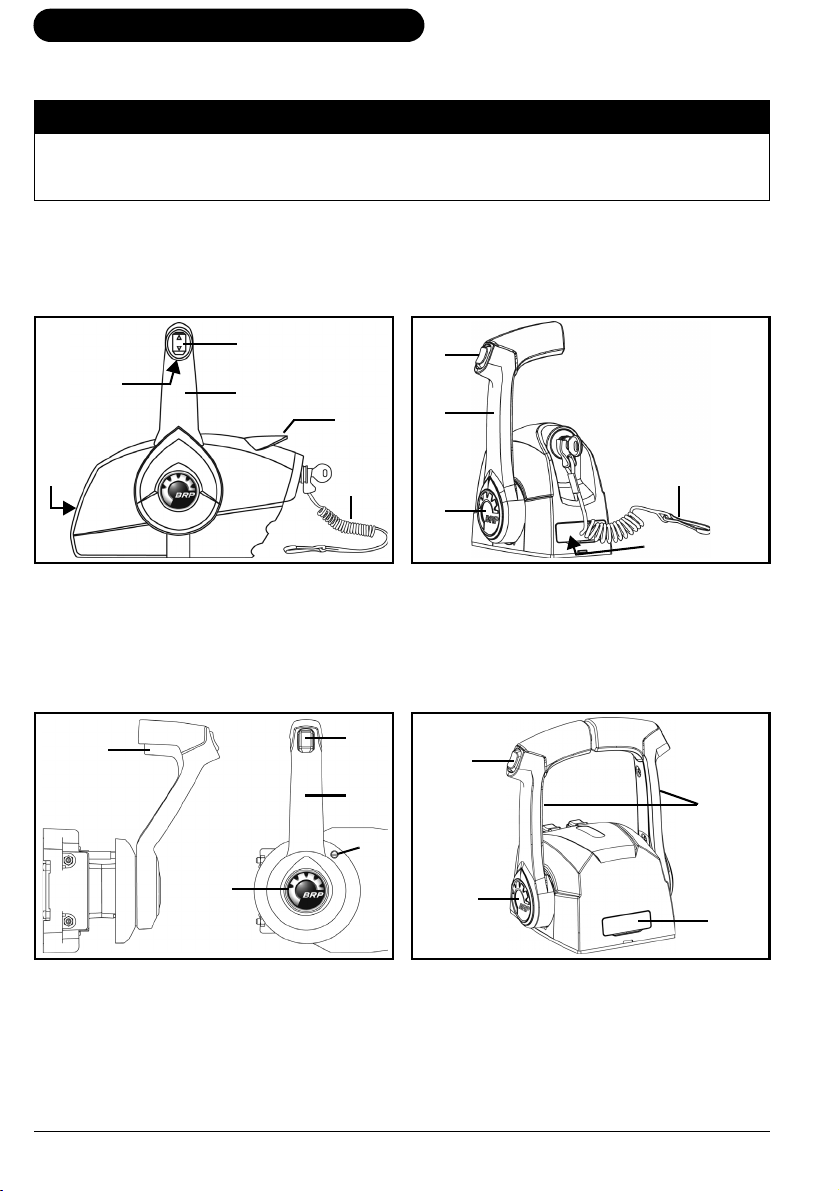

REMOTE CONTROL DECALS
All remote controls have the following labels
attached.
WARNING
Operator's
Guide
Locate, read and
understand operator's
guide and all warnings.
Failure to do so could
result in serious injury.
Attach engine shut-off cord
(Lanyard) to operator.
WARNING
12
Page 15

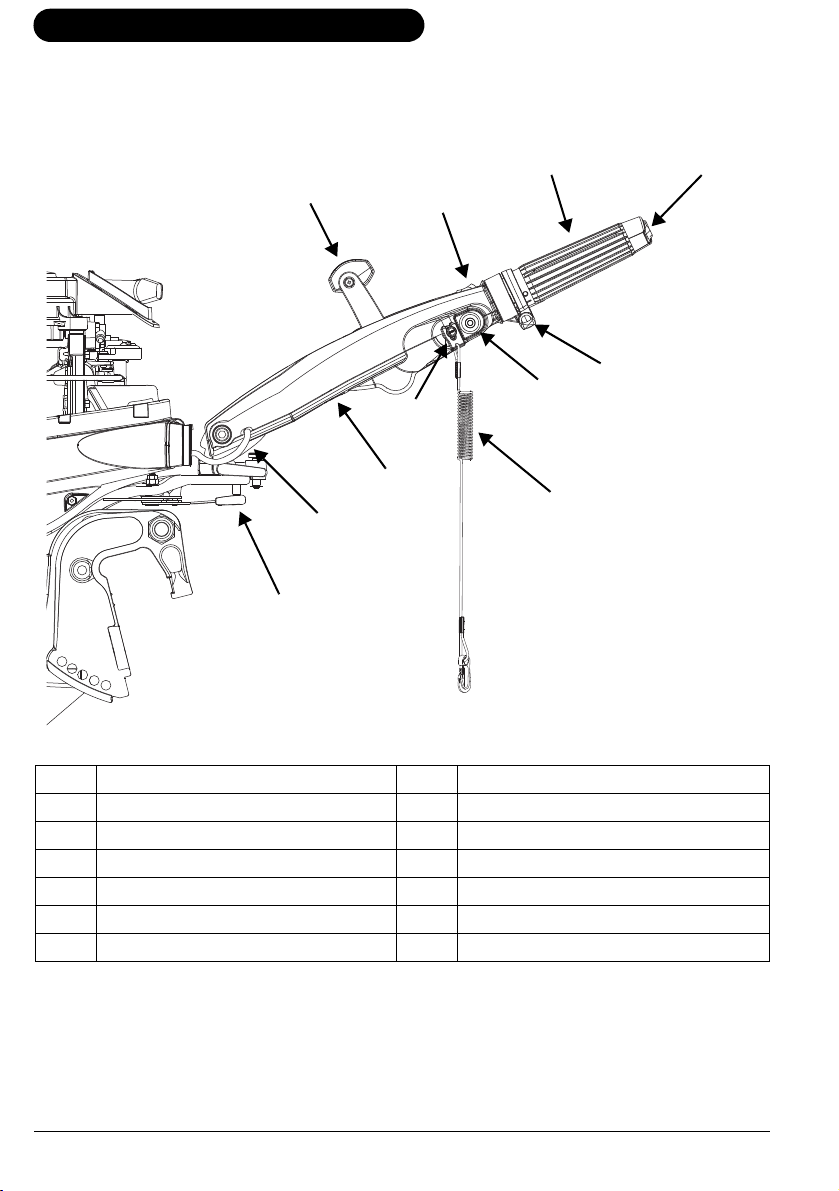

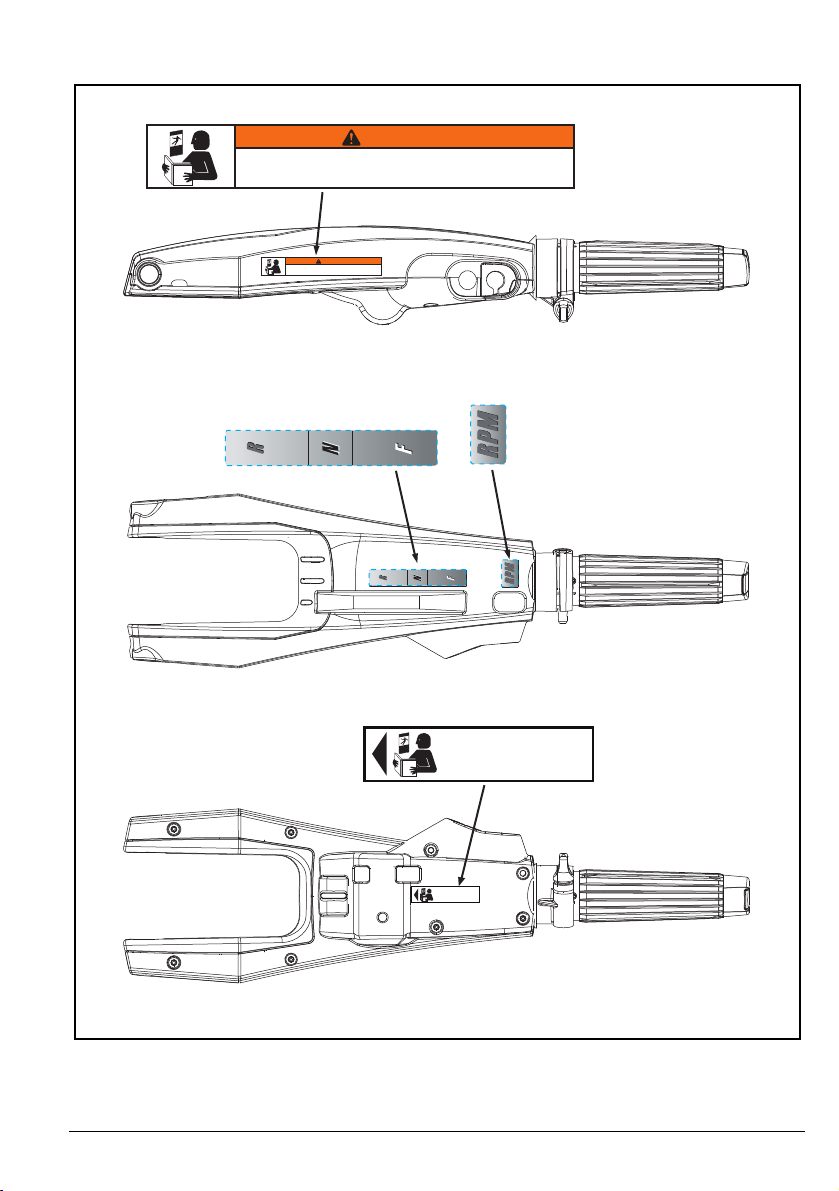

TILLER HANDLE DECALS
Shift position
Reverse / Neutral / Forward
008487
Idle speed control
SAFETY INFORMATION ON THE OUTBOARD
Operator's
Guide
353417
• Attach engine cut-out switch tether cord to operator.
WARNING
• Shift control must be in Neutral (N) to start motor.
WARNING
• Attach engine cut-out switch tether cord to operator.
Operator's
Guide
• Shift control must be in Neutral (N) to start motor.
355620
353772
355620
355620
EMERGENCY RESTART CLIP
Operator's
Guide
EMERGENCY RESTART CLIP
Operator's
Guide
355621
355621
335621
13
Page 16
Using Your Evinrude E-TEC Outboard
1
3
4
562
7
008493

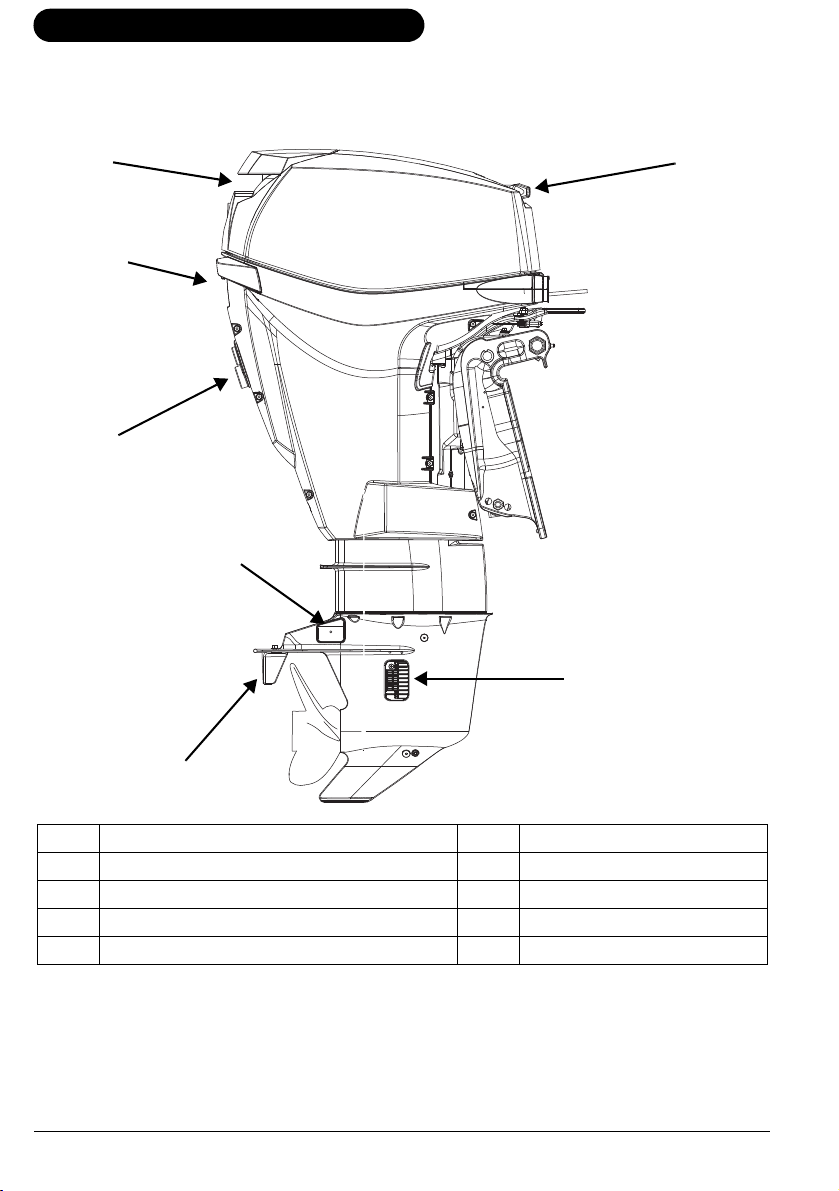

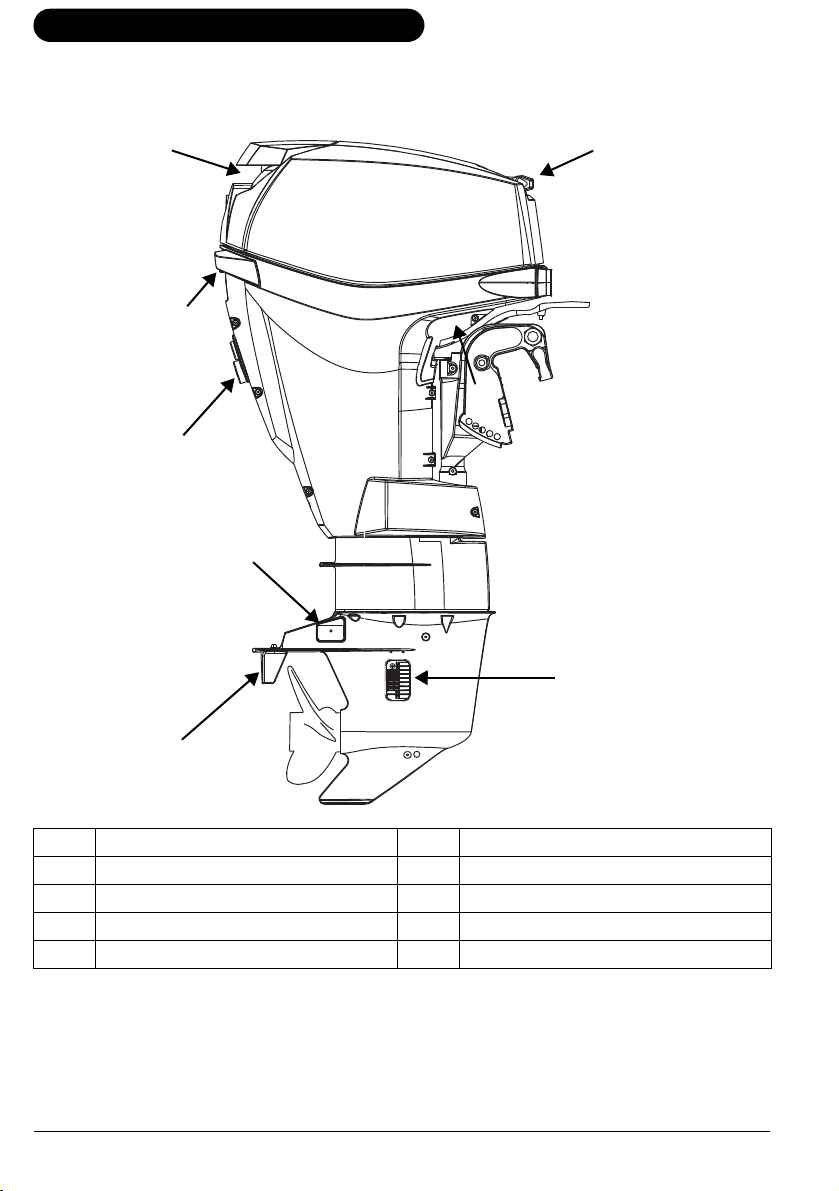

COMPONENT IDENTIFICATION –
MANUAL TILT MODELS
Item Description Item Description
Air Inlet, Tilt Handle
1
Engine Cover Latch
2
Water Pump Indicator, Flushing Port
3
Anti-Corrosion Anodes
4
Trim Tab
5
Water Intake Screens
6
Rope Pull Start Handle
7
14
Page 17
Starboard
17
16
15
008495
14
12119813
008494
Port
10

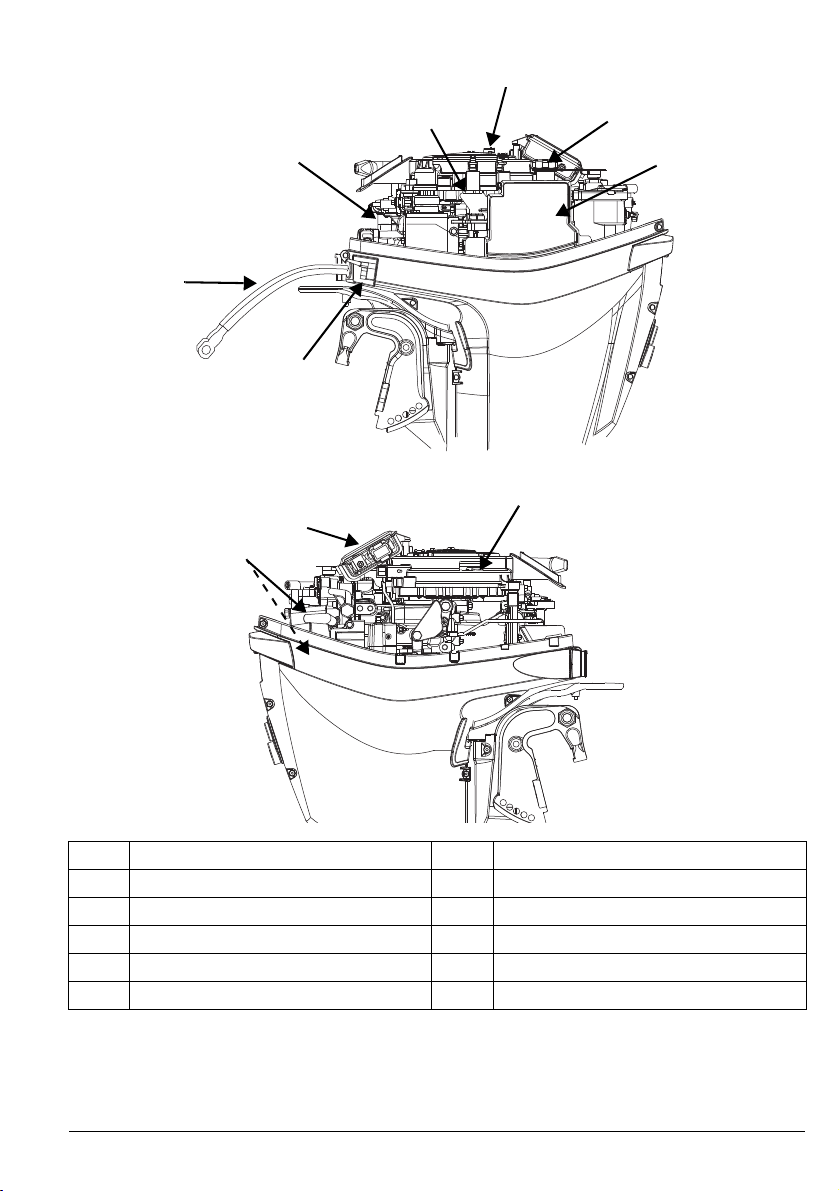

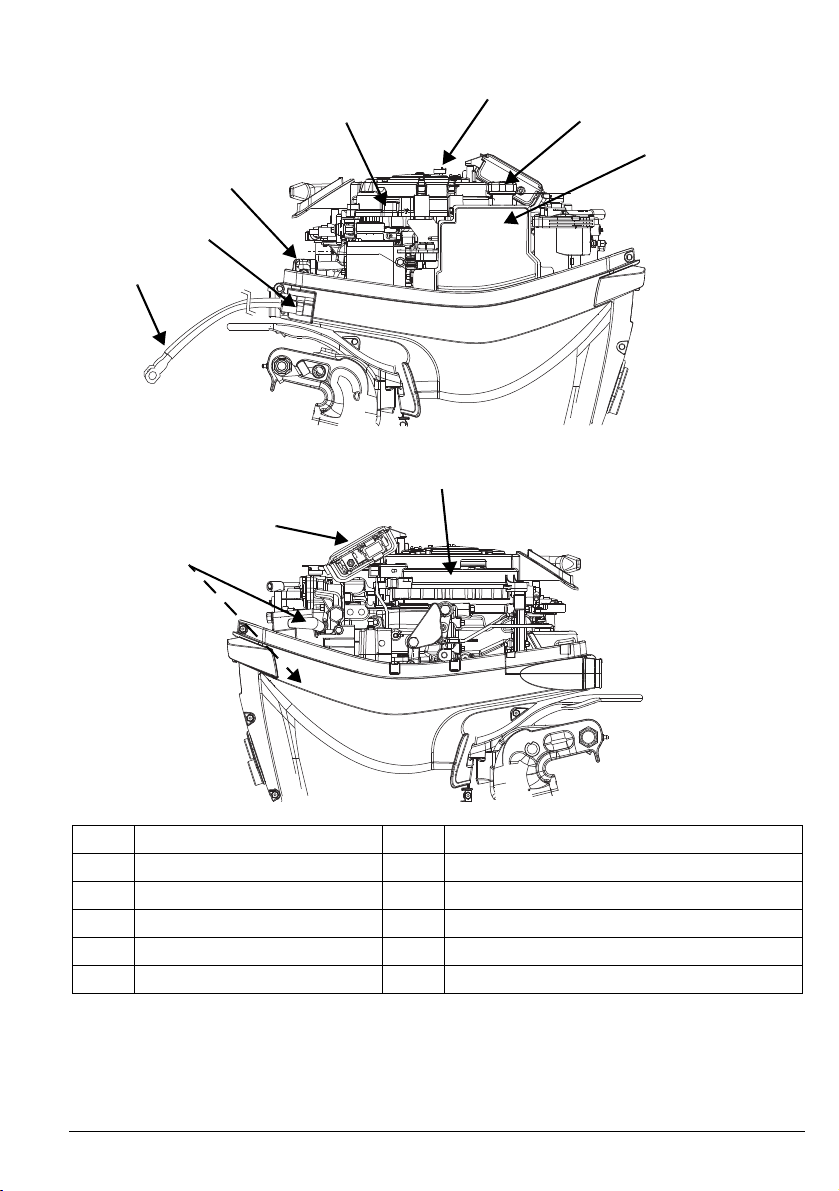

COMPONENT IDENTIFICATION – MANUAL TILT MODELS
Item Description Item Description
8 Oil Tank 13 Battery Cable
9 Oil Fill Cap 14 Fuel Connector
10 Fuse 15 Spark Plugs
11 Spare Fuse 16 EMM (Engine Management Module)
12 Air Silencer 17 Rewind Starter / Flywheel Guard
(electric start models only)
15
Page 18
Using Your Evinrude E-TEC Outboard
1
2
3
6
547
006997
COMPONENT IDENTIFICATION –
POWER TILT MODELS
Item Description Item Description
1 Air Inlet, Tilt Handle 5 Trim Tab
2 Engine Cover Latch 6 Water Intake Screens
3 Water Pump Indicator, Flushing Port 7 Rope Pull Start Handle
4 Anti-Corrosion Anodes
16
Page 19
15
16
Starboard
17
006999
12
13811
10
9
006998
Port
14
COMPONENT IDENTIFICATION – POWER TILT MODELS
Item Description Item Description
8 Oil Tank 13 Fuel Connector
9 Oil Fill Cap 14 Battery Cables
10 Fuse 15 Spark Plugs
11 Spare Fuse 16 EMM (Engine Management Module)
12 Air Silencer 17 Rewind Starter / Flywheel Guard
17
Page 20
Using Your Evinrude E-TEC Outboard
21463
5
008492
7910
11
8
COMPONENT IDENTIFICATION –
TILLER MODELS
Item Description Item Description
Steering Friction Adjustment
1
Tiller Arm Tilt Release
2
Emergency Start Clip
3
Stop Button/Engine Cut–off Switch
4

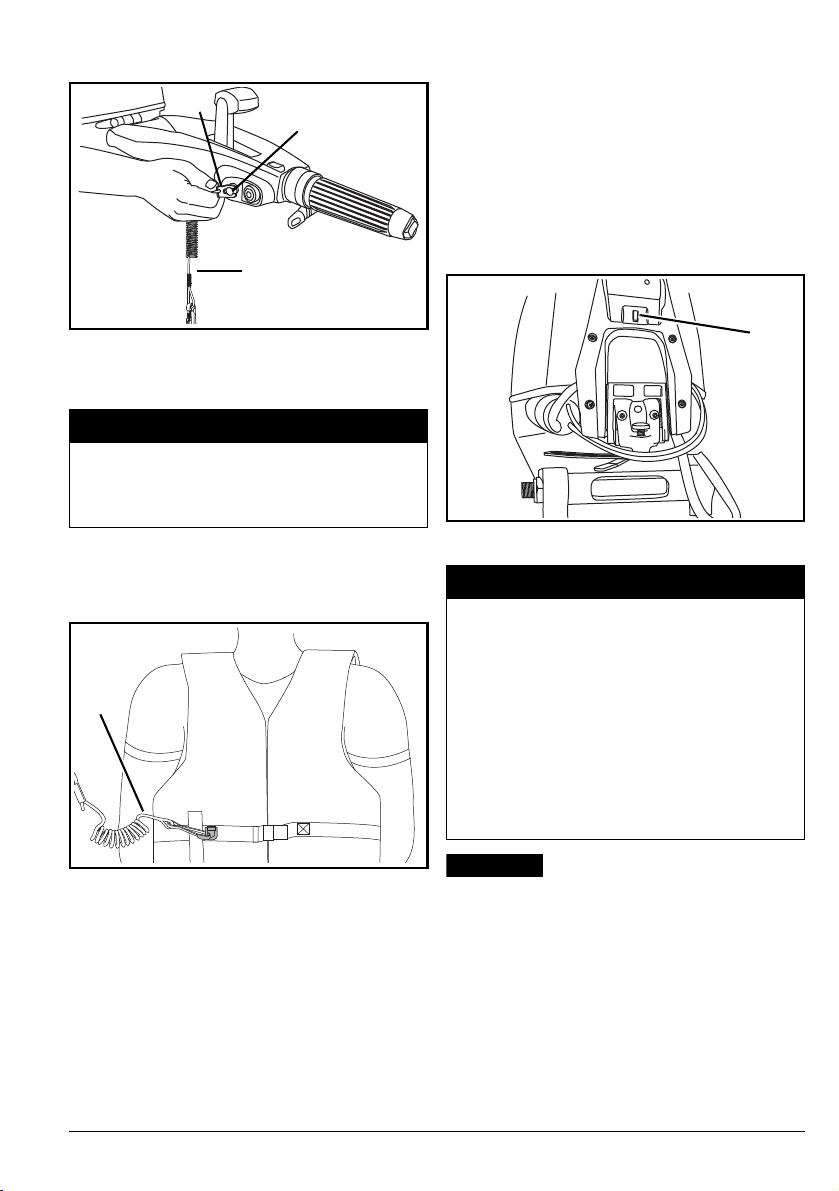

Clip and Tether Cord Assembly
5
Start Button (electric start models only)
6
Throttle Friction Adjustment
7
Steering Handle Twist Grip™ Throttle
8
Tilt Switch (power tilt models only)
9
Touch Troll ™ Idle Speed Adjustment
10
Shift Lever
11
18
Page 21
OIL AND FUEL
NOTICE
OIL REQUIREMENTS
Evinrude/Johnson Brand Oils
Evinrude/Johnson outboard oils are formulated to give best engine performance while controlling piston and combustion chamber
deposits, providing superior lubrication, and
ensuring maximum spark plug life.
The following outboard oils are recommended
for use in your Evinrude E-TEC outboard:
• Evinrude/Johnson XD100;
• Evinrude/Johnson XD50; or
• Evinrude/Johnson XD30.
Evinrude/Johnson XD100 Oil
Evinrude/Johnson XD100 oil is preferred
for your Evinrude E-TEC outboard. This
synthetic formula oil provides uncompromised lubrication and superior performance,
even in extreme conditions—especially in
cold temperatures down to 0°F (-17°C).
If requested, an authorized dealer can program your Evinrude E-TEC outboard EMM for
the exclusive use of Evinrude/Johnson
XD100. Only an authorized Evinrude deal-
er can program your outboard for this optional benefit. Oil consumption is reduced if
the outboard is programmed for exclusive use
of Evinrude/Johnson XD100 as compared to
using a conventional oil. The XD100 oil setting is not available on all models.
IMPORTANT: If your EMM has been programmed for Evinrude/Johnson XD100,
DO NOT use any other oil unless in an emer-
gency. If Evinrude/Johnson XD100 is temporarily unavailable, a one-time-only use of an
oil that meets NMMA TC-W3 certification
standards is allowed. If you discontinue using
Evinrude/Johnson XD100, you MUST first return to your Dealer to have the EMM reprogrammed back to the original factory setting.
OILING SYSTEM INFORMATION
IMPORTANT: The oiling system must be
primed on new outboards. Refer to Priming
the Oil System on page 20.
If a “LOW OIL” warning occurs, you have a
limited amount of time of normal operation before running out of oil. Refill the oil tank with
approved oil as soon as possible.
Refer to Engine Monitoring on page 43.
Check the oil tank level frequently. Always
“top off” your oil tank prior to prolonged usage
or long trips.
New outboards are programmed to use additional oil during the first two hours of operation
above 2000 RPM.
When operating in conditions
under 32°F (0°C), Evinrude/Johnson
XD100 oil must be used.
Always keep an extra supply of outboard oil in
the boat. Refer to Oil Requirements on page
19.
If you run the oil tank empty, you MUST refill
the oil tank and prime the oil system before
using the engine. Refer to Filling the Oil
Tank on page 20 and Priming the Oil System on page 20.
Other Oils
If Evinrude/Johnson brand oils are not available, you must use an oil that meets NMMA
TC-W3 certification standards.
Failure to follow oil specifications could void
the engine warranty if a lubrication-related
failure occurs.
19
Page 22
Using Your Evinrude E-TEC Outboard
1
NOTICE

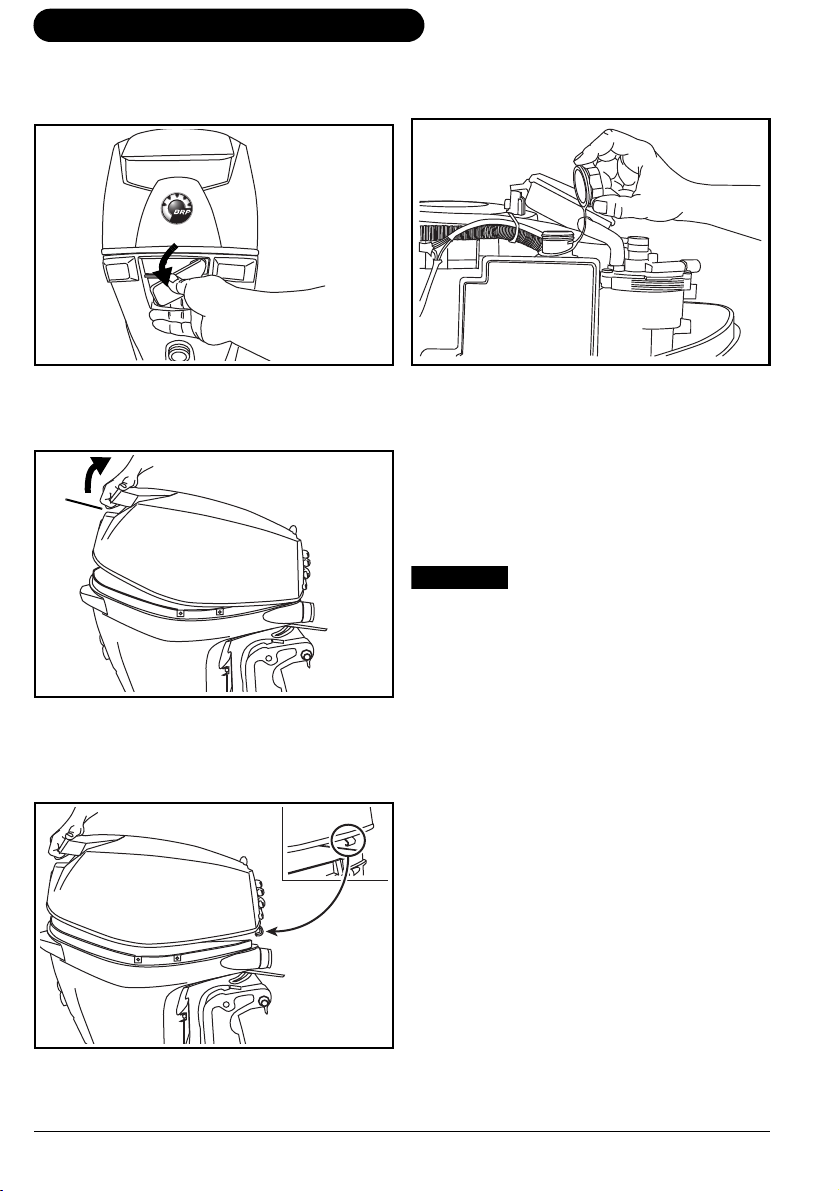

Filling the Oil Tank
Release rear engine cover latch by pulling the
handle back and turning downward.
007000
Pull up on the tilt handle to release the engine
cover seal on the engine cover.
1. Tilt handle
Release the hook from its catch in the front
and remove the engine cover to access the oil
tank.
007001
Remove the filler cap and fill the tank with the
recommended outboard lubricant, as specified in Oil Requirements on page 19.
007003
Replace the filler cap and tighten securely.
Reinstall the engine cover.
IMPORTANT: The oil tank capacity is 1.5
quarts (1.4 liters).
PRIMING THE OIL SYSTEM
The oiling system MUST be
primed to avoid engine damage from a
lack of lubrication.
Prime the oiling system to remove air from the
system before operating the outboard if:
• The outboard is new – Dealer must prime
the oiling system using Evinrude Diagnostic
software;
• The oil tank is emptied or outboard is run out
of oil;
• The outboard is laid down for transportation
or storage.
Prime the oiling system by performing winterization. Refer to Long-Term Storage (Win-
terization) on page 58.
20
007002
Page 23
OIL AND FUEL
NOTICE
NOTICE
NOTICE
FUEL REQUIREMENTS
A WARNING
Gasoline is extremely flammable and
highly explosive under certain conditions. Follow the instructions in this section explicitly. Improper handling of fuel
could result in property damage, serious
injury or death.
Leaking fuel is a fire and explosion hazard. All parts in the fuel system should
be inspected frequently and replaced if
signs of deterioration or leakage are
found. Inspect the fuel system each time
you refuel, each time you remove the
engine cover and annually.
Gasoline will oxidize; the result is loss of
octane, volatile compounds, and the production of gum and varnish deposits
which can degrade the fuel system.
Recommended Fuel
Use unleaded gasoline with the following octane rating.:
Inside North America 87 (R+M)/2 AKI
Outside North
fuels. Do not use fuel containing more
than 10% ethanol. The use of non-recommended fuel can result in loss of performance and damage to critical parts in the
fuel system and engine.
Using unleaded gasoline that contains methyl
tertiary butyl ether (MTBE) is acceptable
ONLY if the MTBE content does not exceed
15% by volume.
Always use fresh gasoline.
Minimum Octane Rating
America
Never experiment with other
90 RON
Alcohol Fuels
Your outboard has been designed to operate
using the specified fuels; however, be aware
of the following:
• The boat’s fuel system may have different
requirements regarding the use of alcohol
fuels. Refer to the boat’s owner guide.
• Alcohol blended fuel may cause engine performance problems.
Alcohol attracts and holds
moisture that can cause corrosion of
metallic parts in the fuel system.
Using alcohol-extended fuels is acceptable
ONLY if the alcohol content does not exceed:
• 10% ethanol by volume; or
• 5% methanol with 5% cosolvents by volume.
FUEL ADDITIVES
The only fuel additives approved for use in
your Evinrude E-TEC outboard are:
• Evinrude/Johnson 2+4 Fuel Conditioner
• Evinrude/Johnson Fuel System Cleaner
Use of other fuel additives can result in
poor performance or engine damage.
Evinrude/Johnson 2+4 Fuel Conditioner will
help prevent gum and varnish deposits from
forming in fuel system components and will
remove moisture from the fuel system. It can
be used continuously and should be used
during any period when the outboard is not
being operated on a regular basis. Its use will
reduce spark plug fouling, fuel system icing,
and fuel system component deterioration.
Evinrude/Johnson Fuel System Cleaner will
help keep fuel injectors in optimal operating
condition.
21
Page 24
Using Your Evinrude E-TEC Outboard
1
2
FUELING PROCEDURE
A WARNING
Fuel is flammable and explosive under
certain conditions. Follow these instructions to ensure safety when handing
fuel:
• Always work in a well ventilated area.
• Always turn off the engine before fueling.
• Never permit anyone other than an
adult to refill the fuel tank.
• Do not smoke, or allow open flames, or
sparks or use electrical devices such as
cellular phones in the vicinity of a fuel
leak or while fueling.
• When fueling, keep boat level.
• Remove portable fuel tanks from the
boat before fueling.
• Fuel tank may be pressurized, turn cap
slowly when opening.
• Do not overfill or top off the fuel tank
and leave boat in the sun. As temperature increases, fuel expands and might
overflow.
• Always wipe off any fuel spillage.

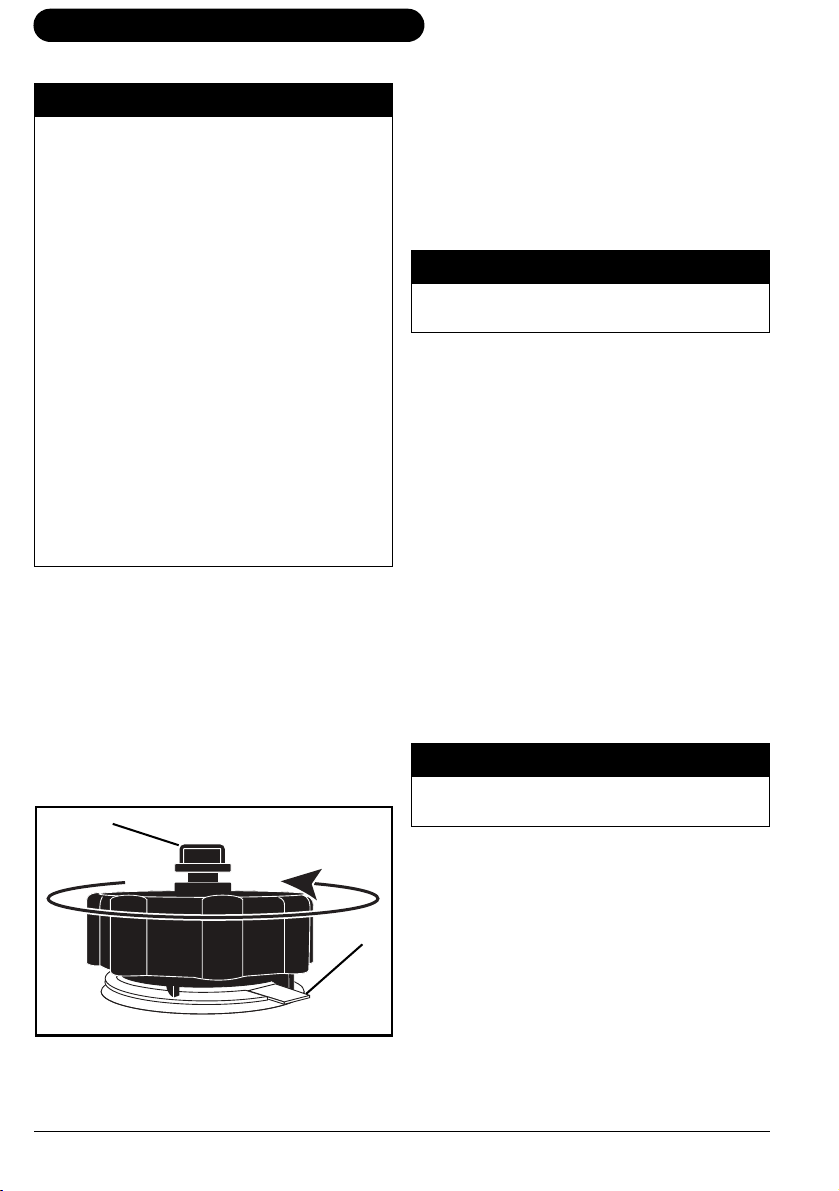

Portable Fuel Tank Cap
Allow fuel vapor to escape before removing
the fuel tank cap.
1) Open the vent screw on fuel tank cap.
2) Turn the cap counterclockwise until the cap
contacts the pressure relief tab.
3) Press down on the tab and turn the cap
one-quarter turn counterclockwise until the
cap contacts the pressure relief tab again.
4) Allow fuel vapor to escape.
5) Press down on tab to remove cap.
Always follow the instructions provided with
the fuel tank and cap.
On a Trailer
1) Make sure the boat is level.
2) Slowly turn the fuel tank cap counterclockwise to remove it.
3) Insert the gas pump nozzle into the filler
neck of the fuel tank.
4) Fill the fuel tank.
A WARNING
To prevent fuel back-flow, fill the fuel
tank slowly so air can escape from tank.
5) Stop filling immediately when the automatic shut-off feature of the gas pump handle
activates.
6) Wait a moment before removing the gas
pump nozzle from the filler neck. Do not retract the gas pump nozzle from the filler
neck to top off the fuel tank.
7) Install the fuel tank cap and turn clockwise
to fully tighten it.
In the Water
1) Turn off engine.
2) Tie boat securely to the fueling pier.
3) Do not allow anyone to remain in or on the
boat.
4) Have a fire extinguisher close at hand.
5) Slowly turn the fuel tank cap counterclockwise to remove it.
6) insert the gas pump nozzle into the filler
neck of the fuel tank.
7) Fill the fuel tank.
A WARNING
To prevent fuel back-flow, fill the fuel
tank slowly so air can escape from tank.
8) Stop filling immediately when the automatic shut-off feature of the gas pump handle
activates.
9) Wait a moment before removing the gas
pump nozzle from the filler neck. Do not retract the gas pump nozzle from the filler
neck to top off the fuel tank.
Install fuel tank cap and turn clockwise to fully
tighten it.
1. Vent screw
2. Pressure relief tab
22
008556
Page 25
OIL AND FUEL
1
FUEL SYSTEM INFORMATION
A WARNING
If engine is equipped with a quick-disconnect fuel hose, you MUST disconnect
the fuel hose from the engine and the
fuel tank to prevent fuel leaks:
• Whenever the engine is NOT being
used
• Whenever the engine is being trailered
• Whenever the engine is in storage
A small amount of fuel may be released
when the fuel connector is disconnected.
Always wipe off any fuel spillage.
Store portable fuel tanks in well-venti-
lated areas, away from heat sources and
open flames. Close the vent screw of the
fuel tank cap, if equipped, to prevent
escape of fuel or fuel vapors which could
accidentally ignite. Do not allow disconnected fuel hoses to leak fuel.
In the United States, the U.S. EPA requires
"low permeability" fuel hose, fuel primer
bulbs, portable fuel tanks and fuel caps to be
used with outboard engines.
IMPORTANT: Fuel distribution hoses in the
boat must deliver fuel at a specific flow rate.
Minimum inside diameter of fuel hoses must
be 5/16 in. (7.9 mm).
Fuel systems with built-in tanks, particularly
those that include antisiphon valves and filter/
primer units, may have restrictions not allowing the engine fuel pump to deliver sufficient
fuel under all conditions. This can result in a
loss of performance. If a performance problem exists, see your Dealer.
Fuel Connector
If equipped, disconnect fuel hose connectors
from the engine’s fuel connector when the engine is not in use.
1. Fuel connector
007004
Fuel System Priming
If the outboard is run out of fuel, refill the fuel
tank and squeeze the primer bulb until firm.
Rope Start Models
Prime the electric fuel pump by first removing
the engine cut–off switch clip and then pulling
the rope at least two times. This will cause the
fuel pump to fill the injectors. Replace the engine cut–off switch clip and follow the normal
starting procedure.
Fuel Filters
A boat-mounted water-separating fuel filter
assembly will help prevent water and other
contaminants from entering the engine fuel
system.
Use of a boat mounted water-separating fuel
filter is highly recommended on all boats.
Boat-mounted water-separating fuel filter assemblies must meet the required fuel flow and
filter specification. Refer to Boat-Mounted
Fuel Filters on page 66.
23
Page 26

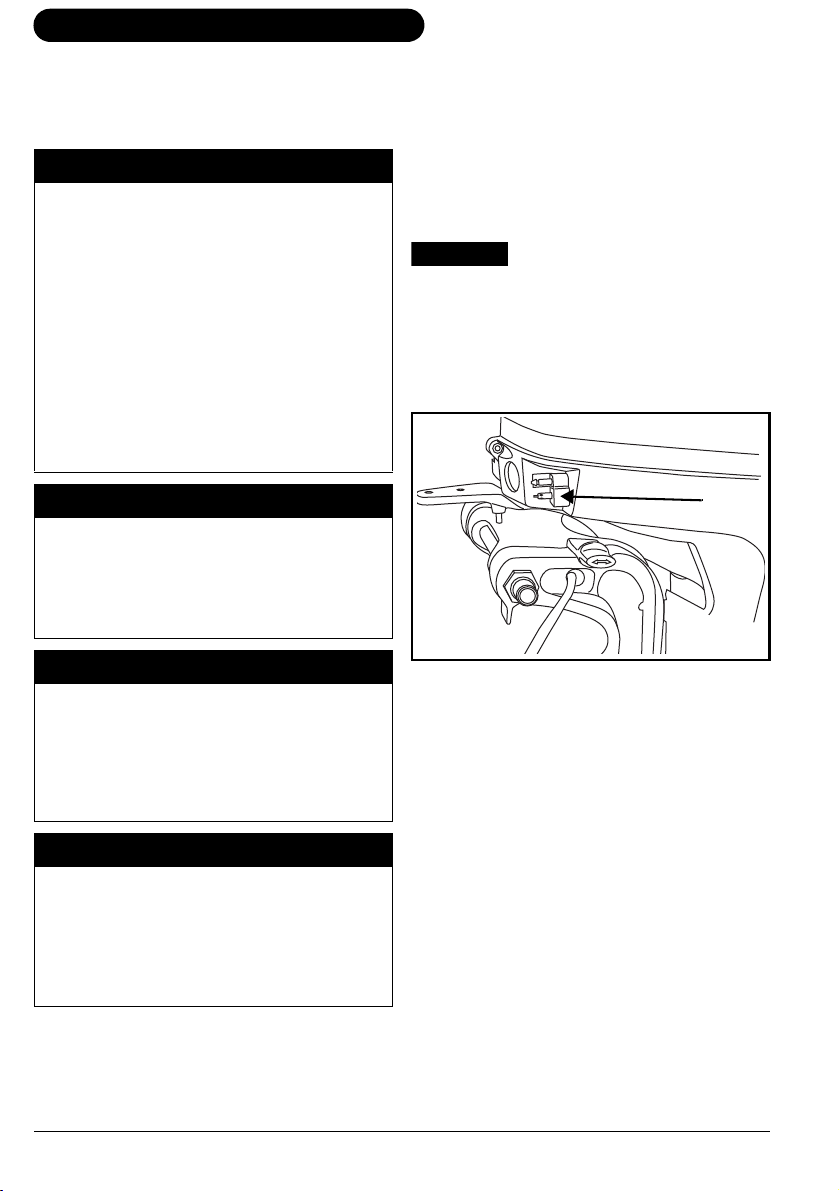

Using Your Evinrude E-TEC Outboard
NOTICE
1
OPERATION
SAFETY INFORMATION ENGINE STARTING / STOPPING -
A DANGER
Serious injury or death can result from
contact with a rotating propeller or moving boat and outboard.
Blades can be sharp and the propeller
can continue to turn even after the
engine is off.
Assure the engine and prop area is clear
of people and objects before starting
engine or operating the boat.
Be alert of people in the water.
Always shift the outboard to NEUTRAL
and shut off the engine immediately
when your boat is in an area where there
might be people in the water.
A DANGER
DO NOT run the engine indoors or without adequate ventilation or permit
exhaust fumes to accumulate in confined
areas. Engine exhaust contains carbon
monoxide which, if inhaled, can cause
serious brain damage or death.
TILLER MODELS
Refer to the Pre-Ride Inspection on page 49.
Complete the inspection before using your
Evinrude E-TEC outboard.
You MUST supply water to the
engine before attempting to start it.
Engine damage can occur quickly.
Be sure the water intake screens are below
the water surface.
Connecting the Fuel Hose
Connect the fuel hose to the fuel connector.
A WARNING
The engine cover is a machinery guard.
DO NOT operate your outboard with the
cover off unless you are performing
maintenance or emergency starting, and
then be careful to keep hands, hair, and
clothing clear of all moving parts. Contact with moving parts could cause injury
A WARNING
Be familiar with the waters you are operating in. The gearcase of this outboard
extends below the water surface and
could potentially come in contact with
underwater obstructions. Contact with
underwater obstructions may result in
loss of control and personal injury.
24
1. Fuel connector
If equipped, open vent screw on fuel tank cap.
Squeeze fuel primer bulb, outlet end up, until
firm.
007004
Engine Cut–off Switch
The engine cut–off switch is on the steering
handle. Use of the engine cut–off switch feature is highly recommended on all boats.
Page 27
OPERATION
1
2
3
1
1
NOTICE

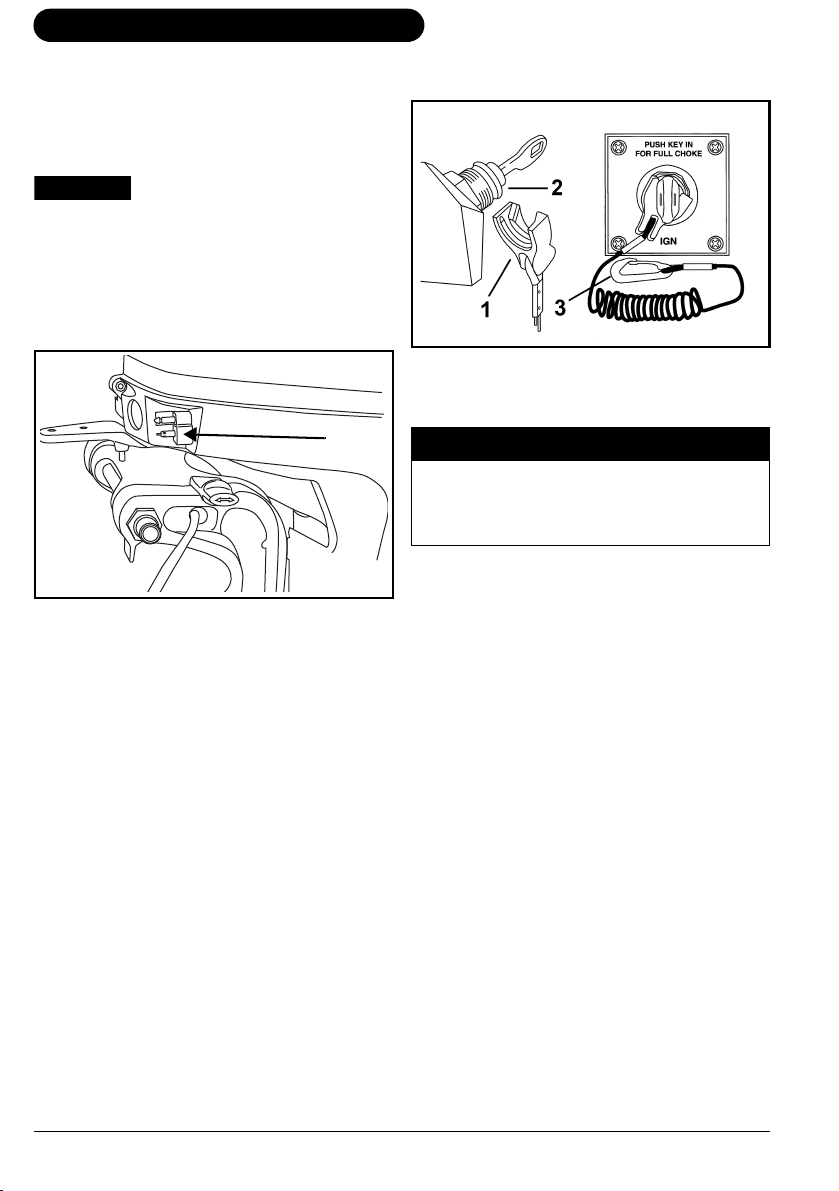

Connect the clip to the engine cut–off switch.
1. Clip
2. Engine cut–off switch clip / switch
3. Tether cord
007013
A WARNING
Always use the tether cord when operating your boat to help prevent a runaway
boat and reduce the risk of personal
injury or death.

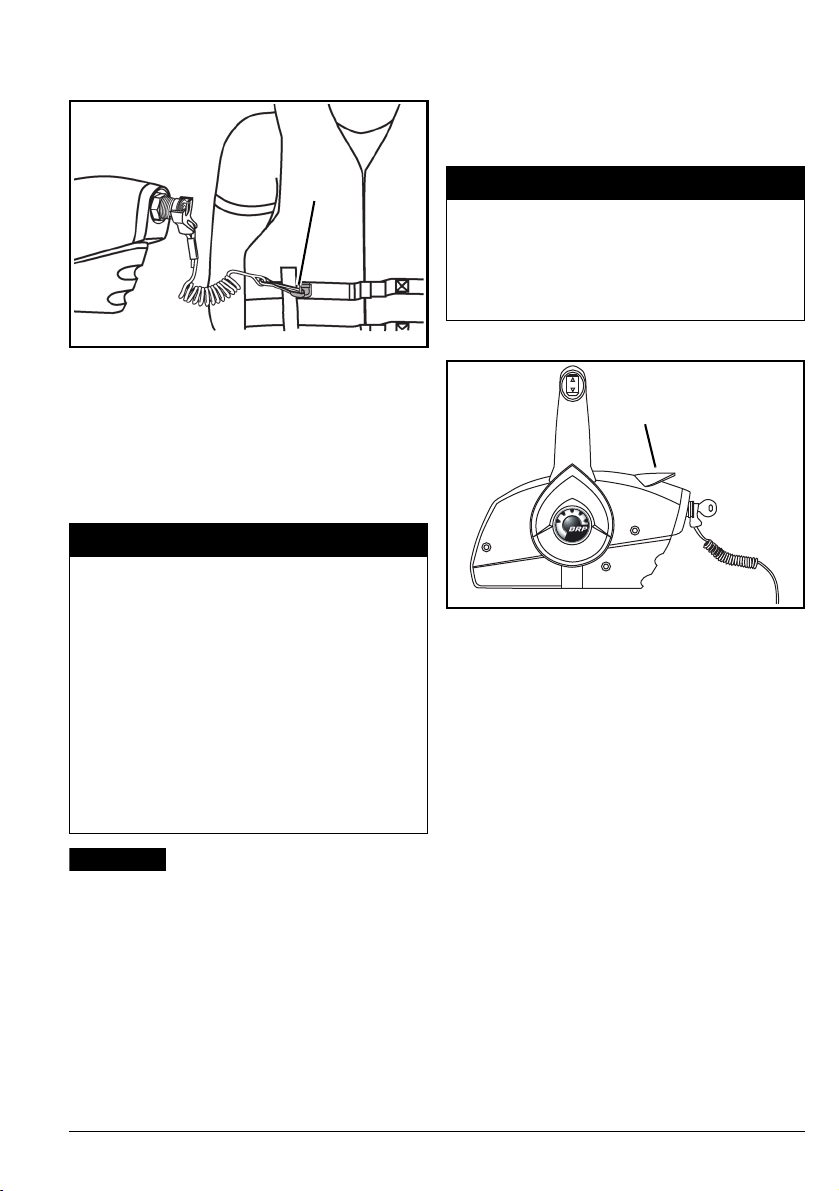

Snap the tether cord to a secure place on the
operator’s clothing or life vest — not where it
might tear away instead of activating the stop
switch.
Disconnecting the clip and tether cord will
stop the engine and prevent the boat from becoming a runaway if the driver moves beyond
the range of the tether cord. If the tether cord
is too long, it can be shortened by knotting or
looping it. DO NOT cut and retie the tether
cord.
An extra clip is stored on the tiller handle. If
the operator is thrown from the boat, another
person can insert the extra clip in the engine
cut–off switch and start the outboard.
1. Extra clip
007014
A WARNING
Avoid knocking or pulling the clip off the
engine cut–off switch during normal
boating. The resulting unexpected loss
of forward motion can throw occupants
forward, causing injury.
Keep the tether cord free from obstructions and entanglements.
At each outing, test the system’s operation. With the engine running, remove
the clip from the switch by pulling the
tether cord. If the engine does not stop
running, see your Dealer.
1. Tether cord
008489
of all control and engine systems before
leaving the dock. DO NOT shift the engine
into FORWARD or REVERSE while it is
shut off.
Carefully check the function
25
Page 28

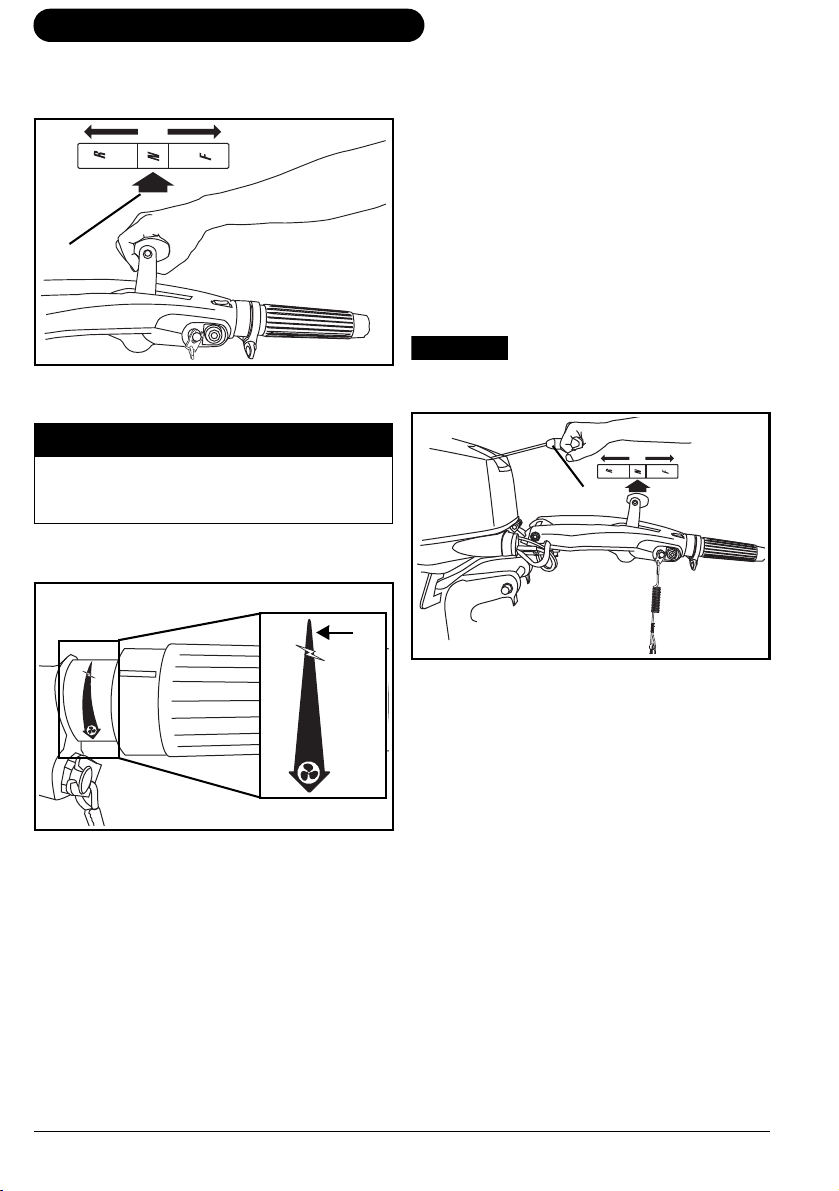

Using Your Evinrude E-TEC Outboard
1
1
1
NOTICE
1
Move the shift lever to NEUTRAL. Refer to
Shifting and Speed Control - Tiller Models
on page 28.
1. NEUTRAL
007006
A WARNING
Always shift to NEUTRAL before starting
the outboard to prevent sudden boat
movement, which can cause injury.
Twist throttle grip to SLOWEST speed position.
If the outboard is started with the throttle advanced, the outboard will be in a safety mode.
It will not respond to throttle until the throttle
twist grip is returned to slowest speed position.
After the engine starts, the engine management module (EMM) automatically increases
idle speed slightly. Idle speed will decrease as
the engine warms up.
Starting – Tiller Rope Models
While seated, grasp the starter handle and
pull slowly until the starter engages, then pull
hard. Repeat, if needed, until outboard starts.
To prevent damage to starter
assembly, allow starter cord to rewind
before releasing starter handle.
1. SLOWEST speed position
DO NOT advance the throttle before start-up.
Advancing the throttle overrides the electronic
idle control system.
26
007067
1. Starter handle
2. NEUTRAL
IMPORTANT: Engine will not start if outboard
is in gear or if tether cord is not in place.
If your outboard does not react normally to
this starting procedure or if it fails to start, refer to Troubleshooting on page 62.
007009
Starting – Tiller Electric Models
While seated, press the start button. (If
equipped with a key switch, it must be in the
Page 29
OPERATION
1
NOTICE
1
1
1
ON position.) Crank the engine no longer than
20 seconds.
1. Start button
Upon start-up, release the button.
If the engine did not start, release the button
momentarily, then try again.
The starter motor can be damaged if operated continuously for more
than 20 seconds.
IMPORTANT: Engine will not start if outboard
is in gear or if tether cord is not in place.
If your outboard does not react normally to
this starting procedure or if it fails to start, refer to Troubleshooting on page 62.
007010

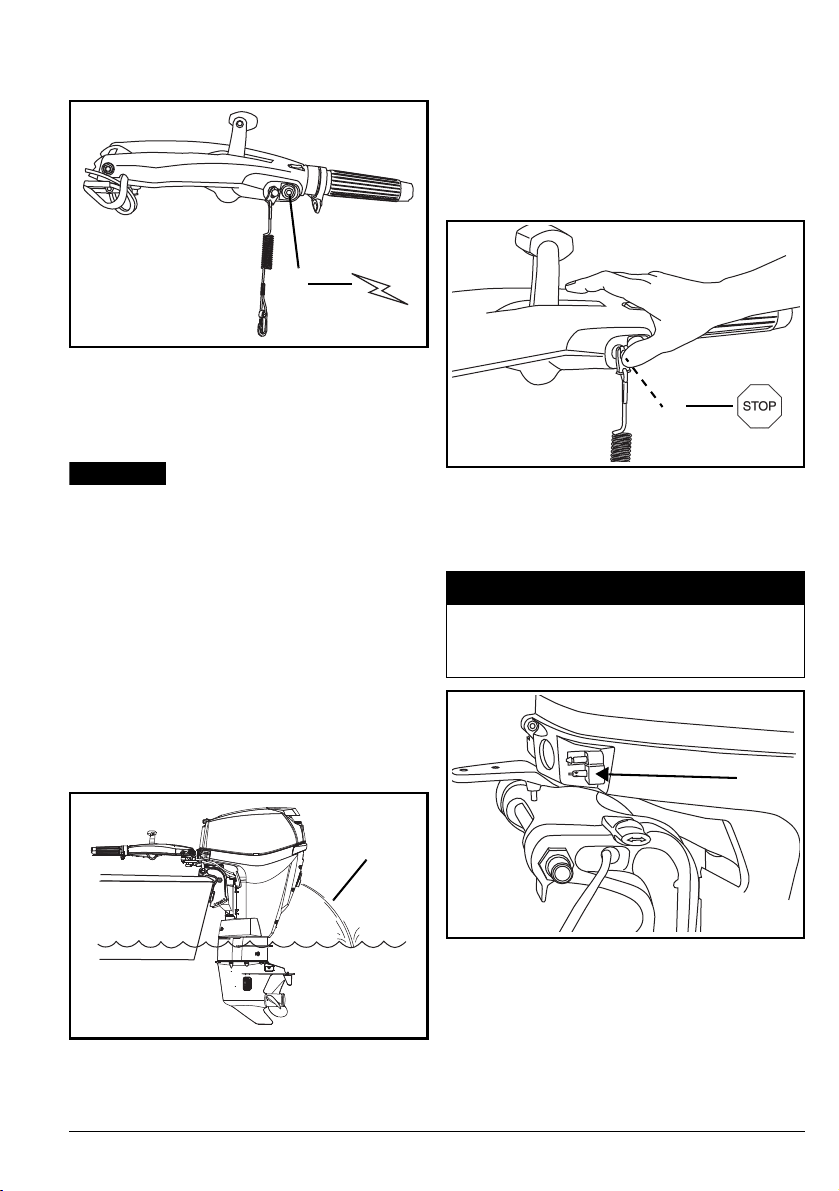

After Engine Starts

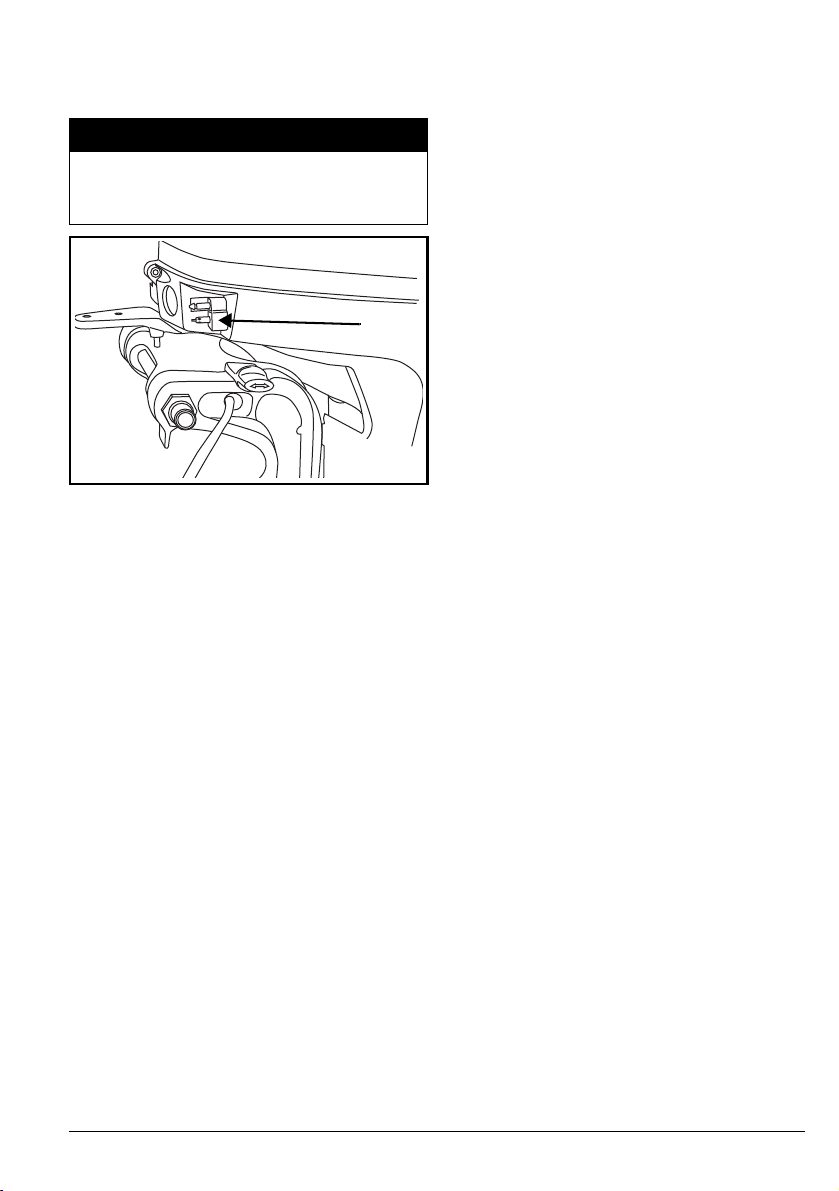

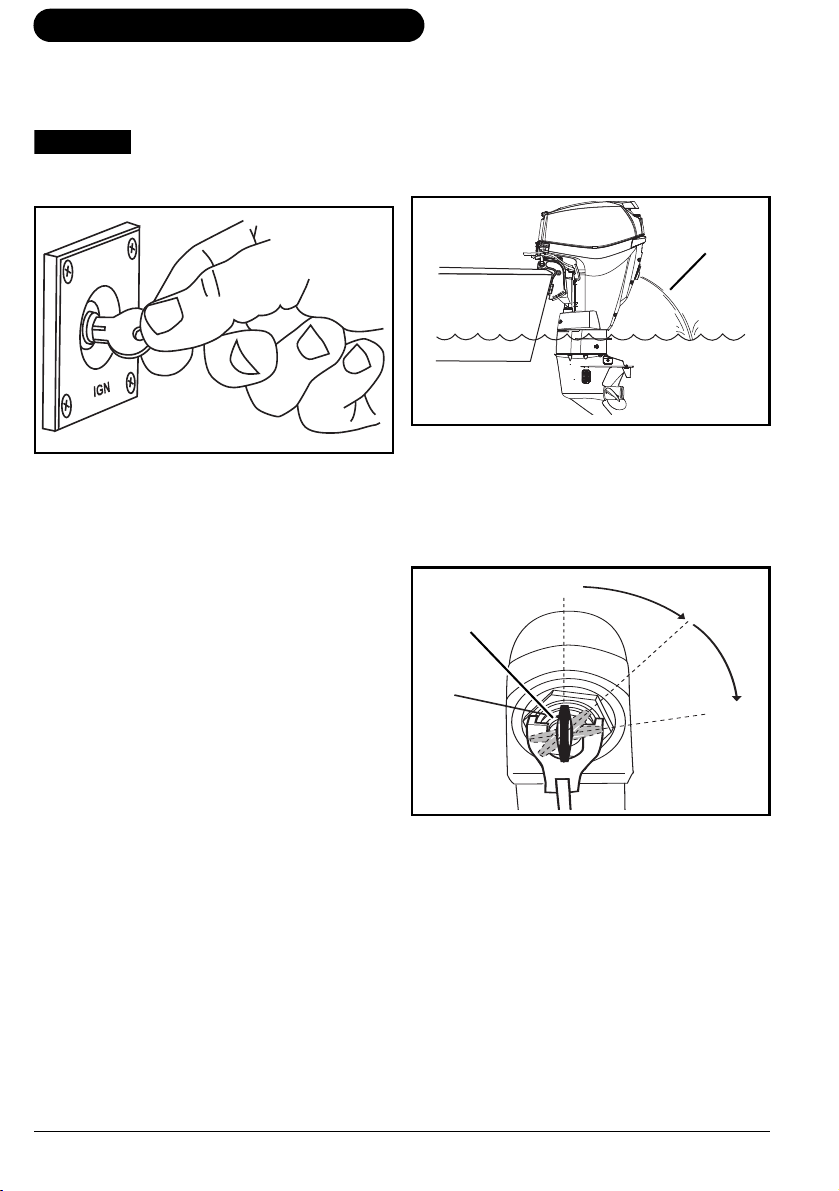

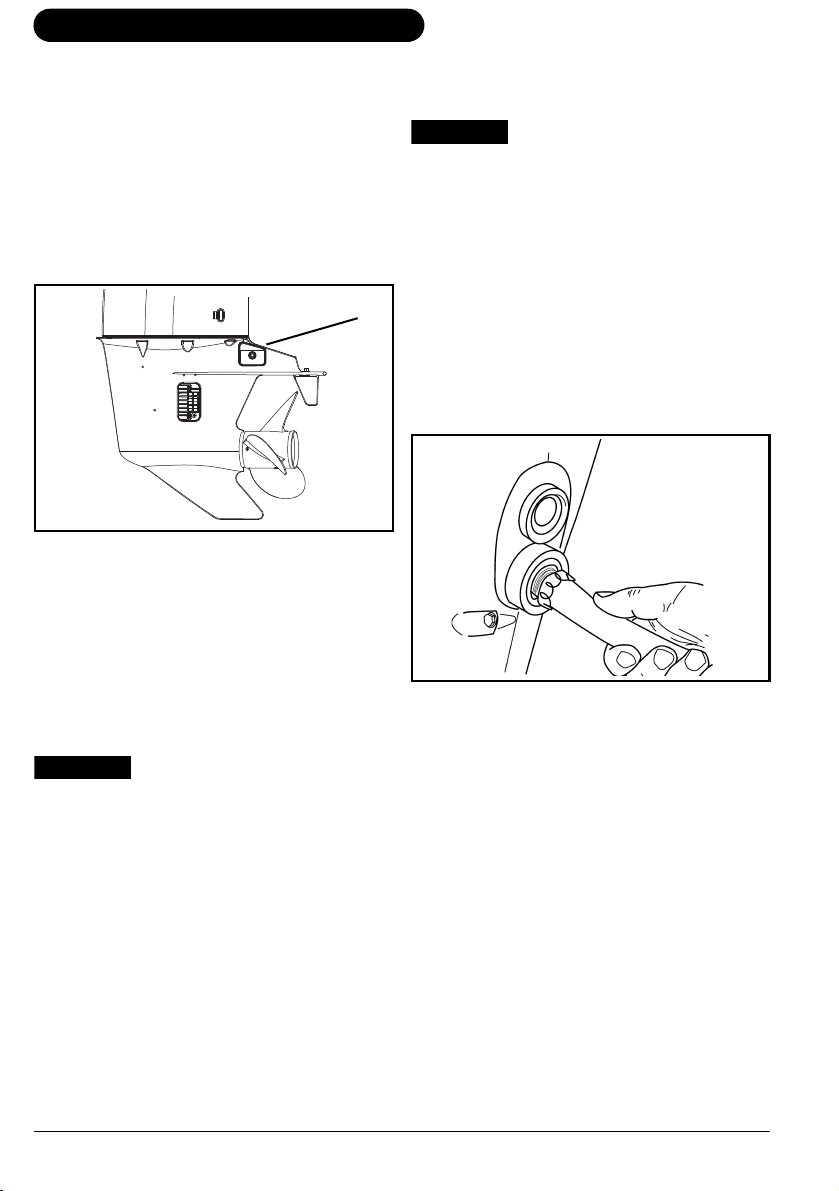

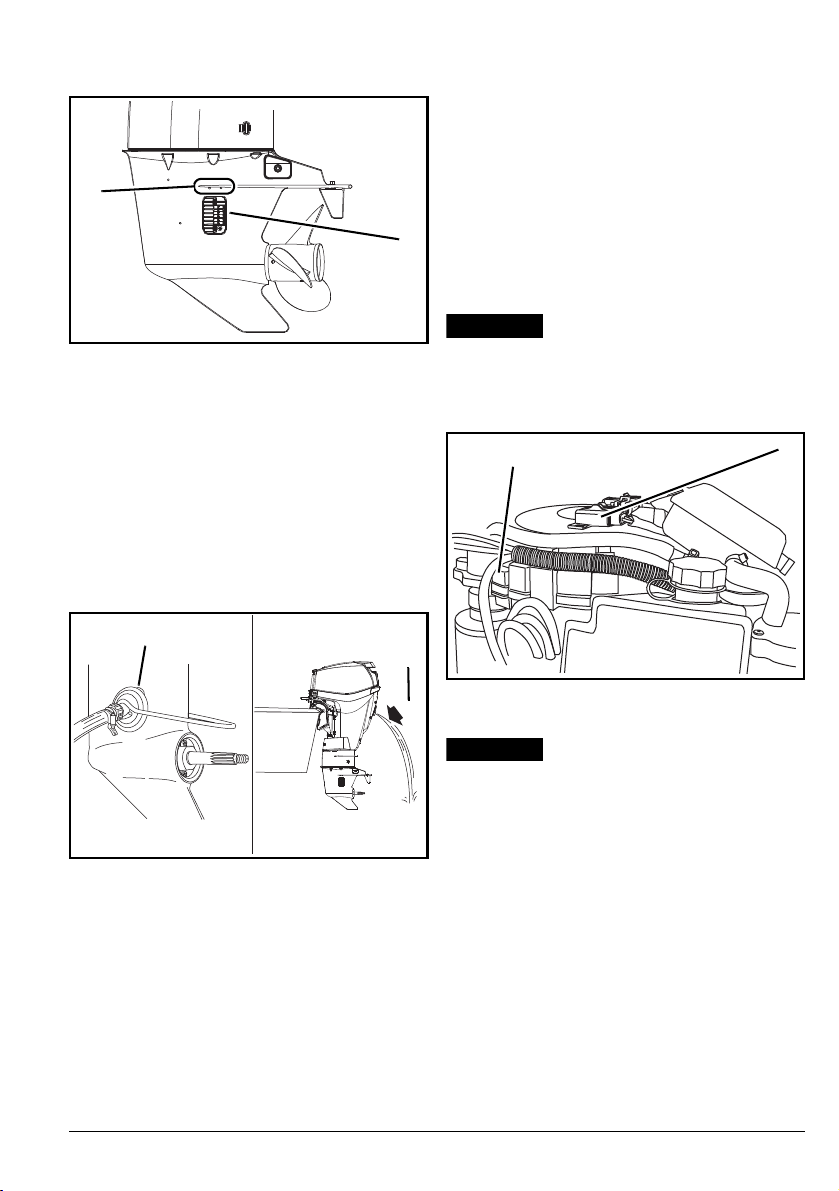

Check the water pump indicator. A steady
stream of water indicates the water pump is
working. If a steady stream of water from the
water pump indicator is not visible, stop the
engine. Refer to Engine Overheating on
page 43.
Engine Stopping
Twist the throttle grip to SLOWEST speed position.
Move shift lever to NEUTRAL.
Press the engine cut–off switch until the outboard stops running. If equipped, close the
vent screw on the fuel tank’s filler cap.
1. STOP button
007012 HK
Disconnecting the Fuel Hose
Disconnect the fuel hose from the fuel connector.
A WARNING
A small amount of fuel may be released
when the fuel connector is disconnected.
Always wipe off any fuel spillage.
1. Water pump indicator
1. Fuel connector
If equipped, close vent screw on fuel tank cap.
007011
007004
27
Page 30
Using Your Evinrude E-TEC Outboard
NOTICE
2
3
1
NOTICE
2
1
1
SHIFTING AND SPEED CONTROL TILLER MODELS
of all control and engine systems before
leaving the dock. DO NOT shift the outboard into FORWARD or REVERSE while
it is shut OFF.

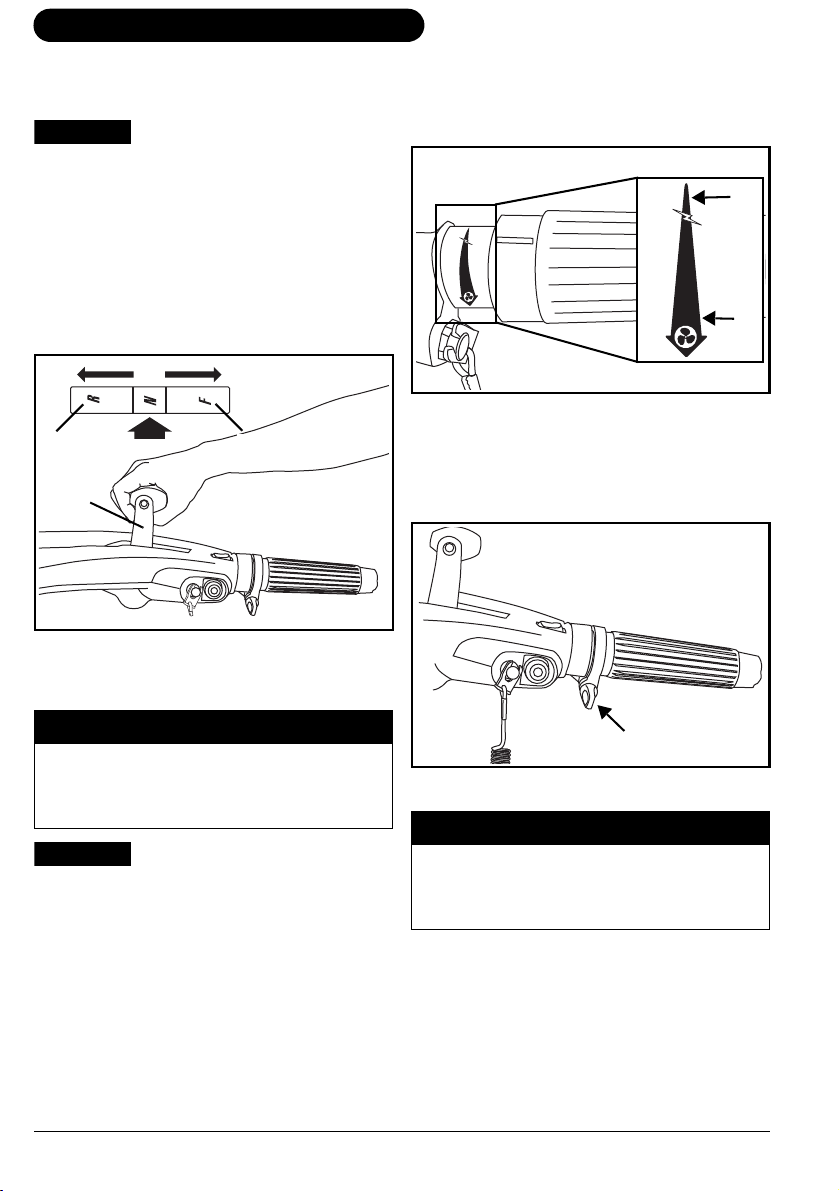

Shifting
With engine running, twist the throttle grip to
SLOWEST speed position.
Move the shift lever with a firm, quick motion,
to FORWARD or REVERSE gear.
1. Shift lever
2. FORWARD
3. REVERSE
Carefully check the function
007006
Speed Control
With the outboard running, twist throttle grip:
• Clockwise to decrease speed; or
• Counterclockwise to increase speed
1. Decrease speed
2. Increase speed
007067
Throttle Friction
Adjust the throttle friction knob to reduce the
effort required to hold a throttle setting.
A WARNING
Do not operate the outboard in
REVERSE with the tilt/run lever in TILT.
The outboard may tilt out of the water,
resulting in loss of control.
WARD to REVERSE or from REVERSE to
FORWARD, pause at NEUTRAL until the
engine is at idle speed and the boat has
slowed.
28
When shifting from FOR-
1. Throttle friction screw
007017
A WARNING
Tighten knob only enough to hold throttle at a constant engine speed. Overtightening will prevent quick throttle change
in case of emergency.
Page 31
OPERATION
+
–
1
1
2
1
1

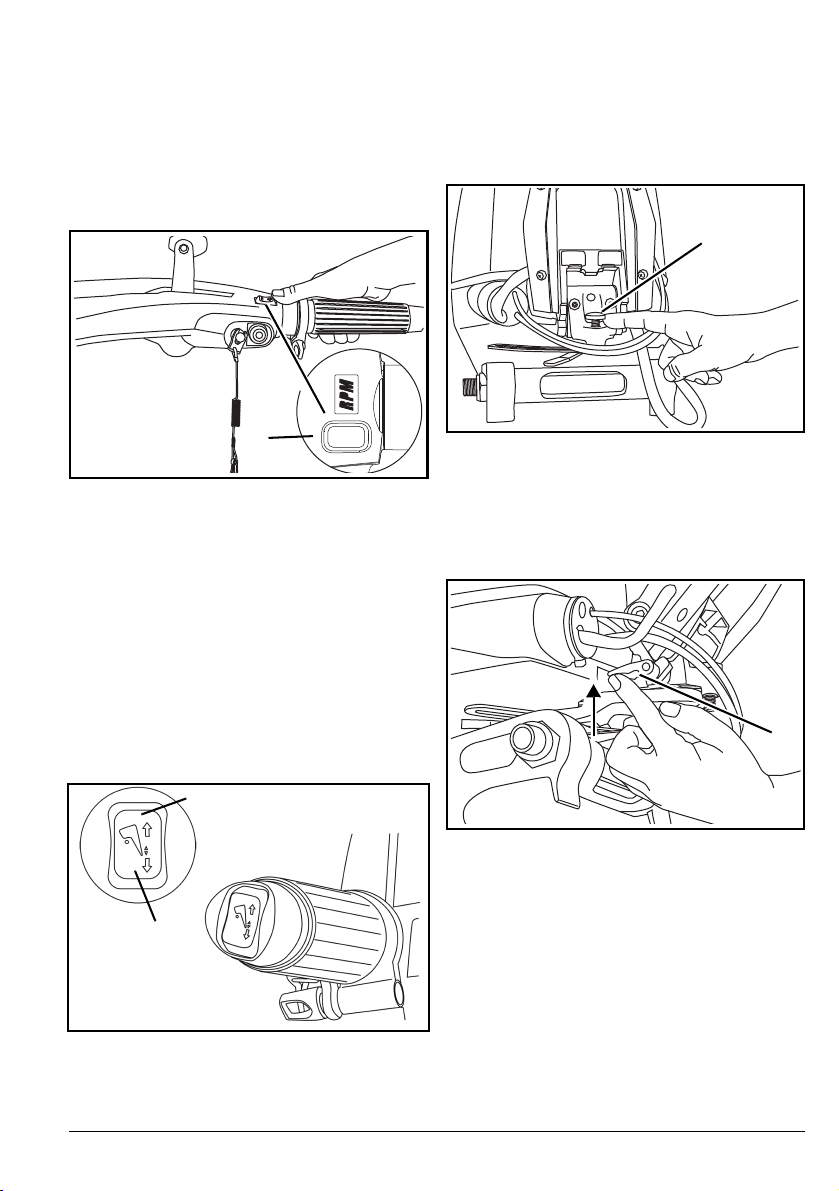

IDLE SPEED CONTROL SWITCH
This switch allows idle speed to be adjusted
between 600 RPM and 900 RPM (approximate).
Press and release the – side of the switch to
decrease speed. Press and release the + side
of the switch to increase speed. Engine speed
changes in 50 RPM increments.
1. Touch Troll switch
This switch can be used to fine tune speeds
between 600 to 2300 rpm. Advance the throttle twist grip to desired rpm. Use switch to increase or decrease engine speed.
Shifting out of gear or changing throttle twist
grip position will deactivate speed control.
Stopping the engine restores the factory idle
speed setting.
007068

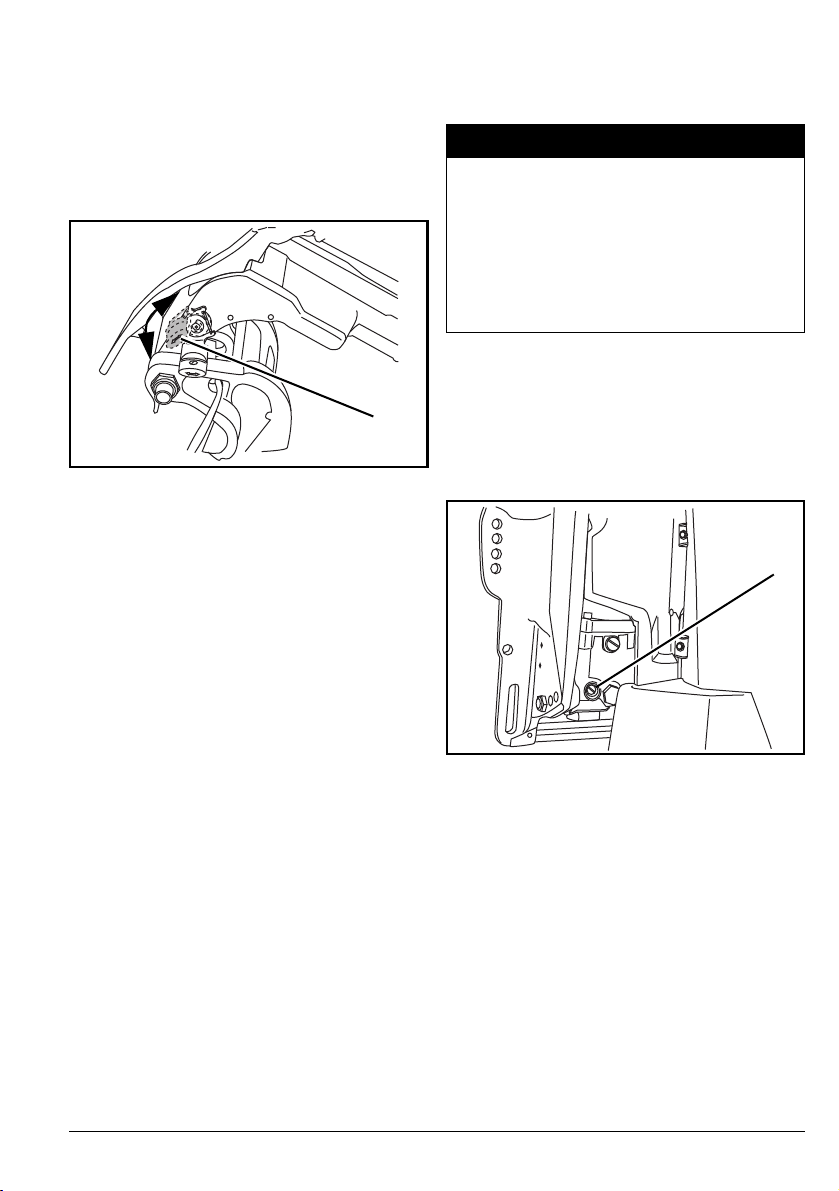

TILLER HANDLE ADJUSTMENTS
Tiller Handle Angle
Tiller handle angle can be raised or lowered
by turning the adjustment screw under the
handle.
1. Adjustment screw
Tiller Handle Ratchet
Tiller models feature a ratchet which holds the
tiller arm at approximately 30° or 90° positions. Press up on the release lever to lower
tiller arm.
007020
TRIM/TILT SWITCH
If equipped, the trim/tilt switch is located in the
end of tiller handle. Press switch as indicated
for UP and DOWN operation.
1. Release lever
007019
1. Trim/tilt switch UP
2. Trim/tilt switch DOWN
005107
29
Page 32
Using Your Evinrude E-TEC Outboard
NOTICE
1
ENGINE STARTING / STOPPING REMOTE CONTROL MODELS
Refer to the Pre-Ride Inspection on page 49.
Complete the inspection before using your
Evinrude E-TEC outboard.
engine before attempting to start it.
Engine damage can occur quickly.
Be sure the water intake screens are below
the water surface.
Connecting the Fuel Hose
Connect the fuel hose to the fuel connector.
1. Fuel connector
If equipped, open vent screw on fuel tank cap.
Squeeze fuel primer bulb, outlet end up, until
firm.
Engine Cut–off Switch/Key Switch
A combination engine cut–off switch and key
switch is a feature of Evinrude prewired remote controls and all Evinrude control wiring
kits. Use of the engine cut–off feature is highly
recommended on all boats.
You MUST supply water to the
007004
Connect the clip to the engine cut–off stop/
key switch.
1. Clip
2. Engine cut–off/key switch
3. Tether cord
DR6819
DR5992A
A WARNING
Always use the tether cord when operating your boat to help prevent a runaway
boat and reduce the risk of personal
injury or death.
In an emergency situation, the engine can be
started without the clip in place. Follow the
normal starting procedure. Reinstall a clip as
soon as possible. The operator should al-
ways use the clip and tether cord anytime
the engine is running. Refer to Engine Cut–
off Switch/Key Switch on page 30.
IMPORTANT: Your engine cut–off switch can
be effective only when in good working condition. At each outing, inspect clip and tether
cord for cuts, breaks, or wear. Replace worn
or damaged parts.
Snap the tether cord to a secure place on the
operator’s clothing or life vest — not where it
30
Page 33
OPERATION
1
NOTICE
1
might tear away instead of activating the engine cut–off switch.
1. Tether cord
Disconnecting the clip and tether cord will
stop the engine and prevent the boat from becoming a runaway if the driver moves beyond
the range of the tether cord. If the tether cord
is too long, it can be shortened by knotting or
looping it. DO NOT cut and retie the tether
cord.
004850
A WARNING
Avoid knocking or pulling the clip off the
engine cut–off switch during normal
boating. Avoid bumping the key if operating without the clip on the switch. The
resulting unexpected loss of forward
motion can throw occupants forward,
causing injury.
Keep the tether cord free from obstructions and entanglements.
At each outing, test the system’s operation. With the engine running, remove
the clip from the switch by pulling the
tether cord. If the engine does not stop
running, see your Dealer.
of all control and engine systems before
leaving the dock. DO NOT shift the engine
into FORWARD or REVERSE while it is
shut off.
Carefully check the function
If the following directions are not suitable for
your boat’s control, see your Dealer before
proceeding.
Move the remote control handle to NEUTRAL.
A WARNING
If you are using a remote control that
does not have start-in-gear prevention,
the outboard can be started while it is in
gear. Always shift to NEUTRAL before
starting the outboard to prevent sudden
boat movement, which can cause injury.
Set control to SLOWEST speed position.
1. SLOWEST speed position
DO NOT advance the throttle before start-up.
Advancing the throttle overrides the electronic
idle control system.
If the outboard is started with the throttle advanced, the outboard will be in a safety mode.
It will not respond to throttle until the throttle is
returned to slowest IDLE position
After the engine starts, the engine management module (EMM) automatically increases
idle speed slightly. Idle speed will decrease as
the engine warms up.
007071
31
Page 34
Using Your Evinrude E-TEC Outboard
NOTICE
1
1
Key
OFF
ON
START
Engine Starting
Turn the key switch fully clockwise to the
START position.
The starter motor can be damaged if operated continuously for more
than 20 seconds.
007015
Upon start-up, release the key.
If the engine did not start, release the key momentarily, then try again.
Each time the key switch is turned from OFF
to ON, the warning system will self-test. Refer

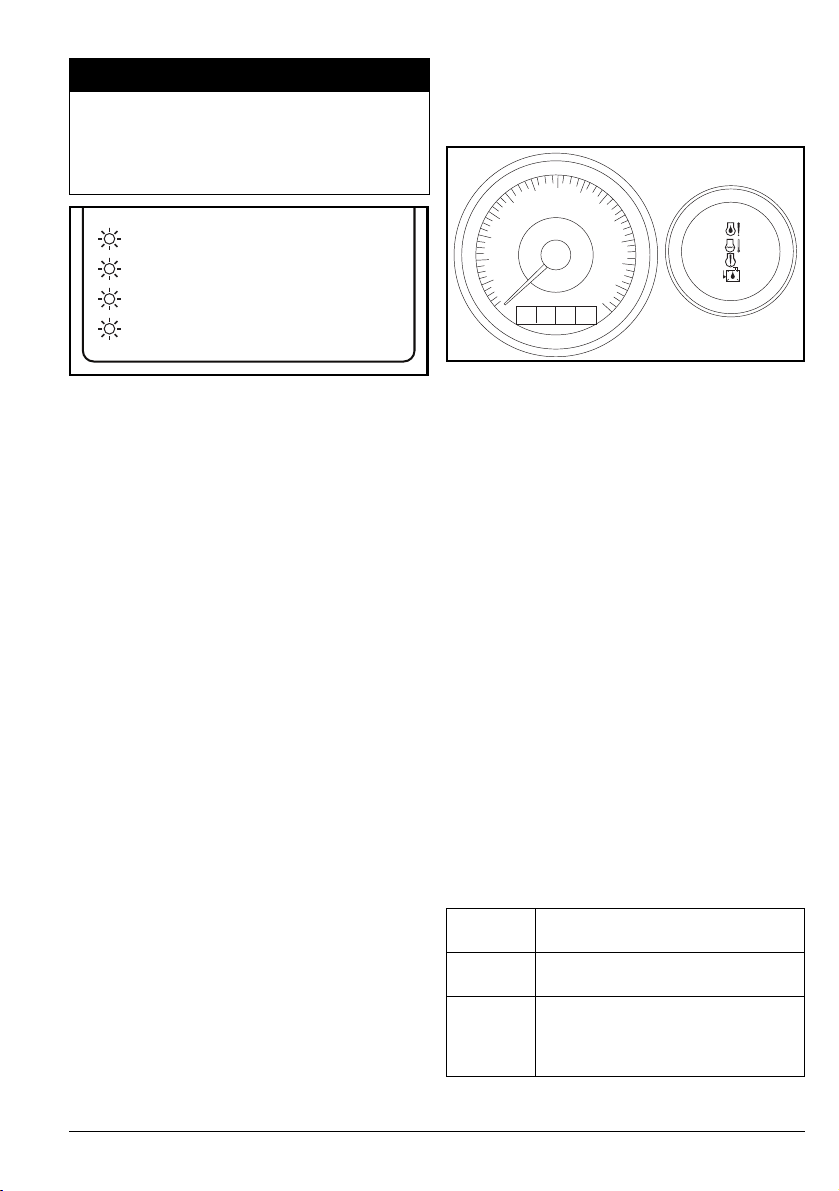

to Engine Monitoring on page 43. If the
warning system fails to self-test during startup, see your Dealer.
If your outboard does not react normally to
this starting procedure or if it fails to start, refer to Troubleshooting on page 62.
After Engine Starts
Check the water pump indicator. A steady
stream of water indicates the water pump is
working. If a steady stream of water from the
water pump indicator is not visible, stop the
engine. Refer to Engine Overheating on
page 43.

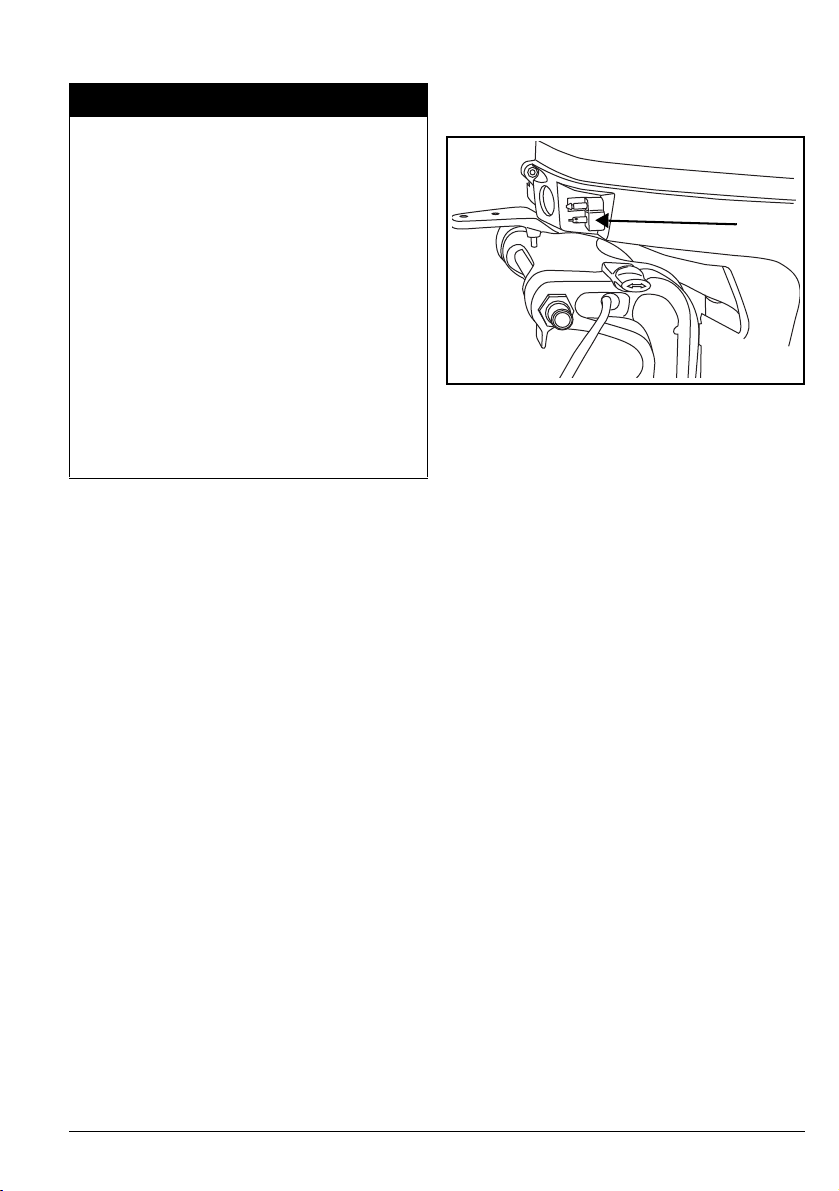

1. Water pump indicator
007016
Engine Stopping
Move control handle to NEUTRAL.
Turn key switch counterclockwise to the OFF
position.
32
1. Key switch, OFF position
007072
Remove the key when the boat will be unattended.
Page 35
Disconnecting the Fuel Hose
1
Disconnect the fuel hose from the fuel connector.
A WARNING
A small amount of fuel may be released
when the fuel connector is disconnected.
Always wipe off any fuel spillage.
OPERATION
1. Fuel connector
If equipped, close vent screw on fuel tank cap.
007004
33
Page 36
Using Your Evinrude E-TEC Outboard
5
1
4
6
3
2
5
1
2
3
4
3
2
4
1
5
1
2
3
4
REMOTE CONTROLS - EVINRUDE/JOHNSON (BRP) CONTROLS
A WARNING
If you choose a non-Evinrude remote control, it must have a start-in-gear prevention
feature. This feature can prevent injuries resulting from unexpected boat movement
when the engine starts.
IMPORTANT: When selecting the remote control system for your boat, specify Evinrude com-
ponents. Evinrude controls deliver the cable stroke your outboard needs for positive shift and
throttle control, and they incorporate such safety and convenience features as:
• Start-in-gear prevention
• Plug-in compatibility with Evinrude Modular Wiring System (MWS)
Side Mount Control 006448
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle lever (warm-up)
5. Throttle friction adjusting screw
6. Engine cut–off switch clip and tether cord
Concealed Side Mount Control 006447
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle button (warm-up)
5. Throttle friction adjusting screw
34
Single Lever Binnacle Mount Control 006446
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
5. Engine cut–off switch clip and tether cord
Dual Lever Binnacle Mount Control 006445
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
Page 37
OPERATION
NOTICE
32°
32°
FORWARD
REVERSE
REVERSE
FORWARD
NEUTRAL
FORWARD
FORWARD
REVERSE
REVERSE
NEUTRAL
2
1

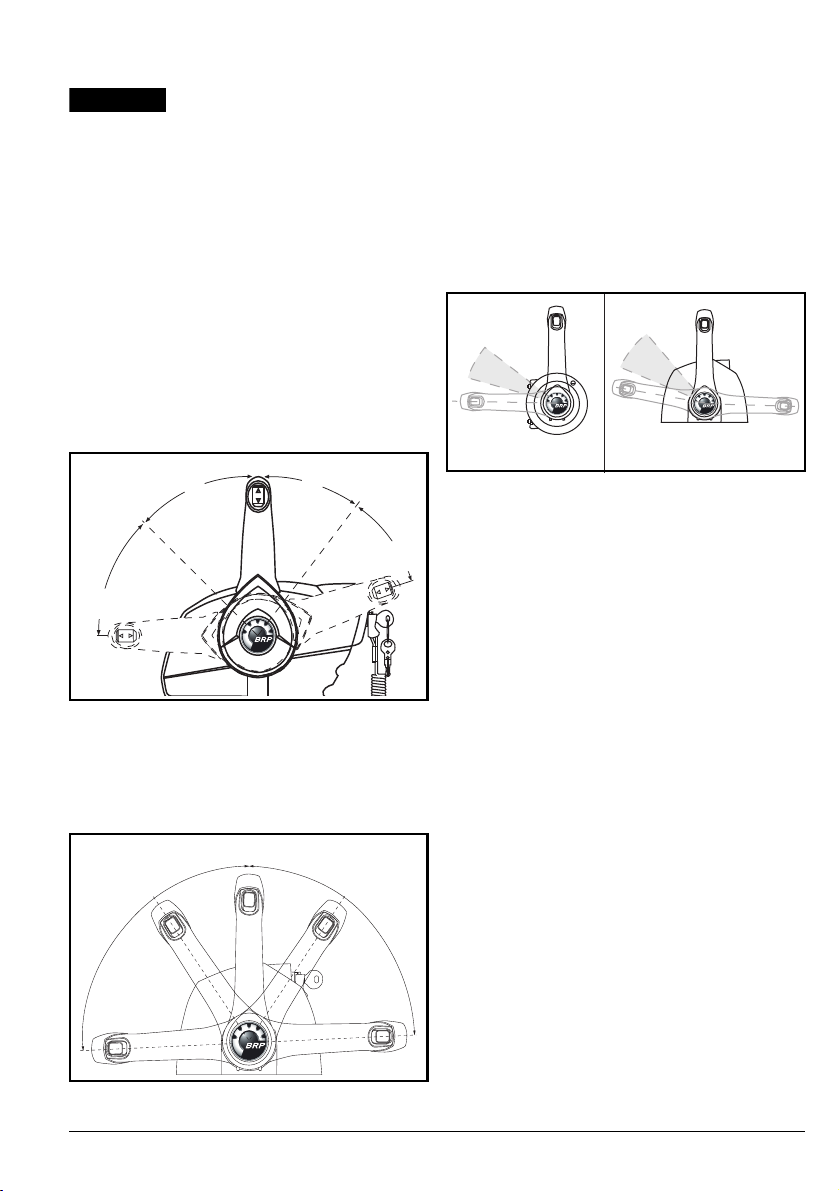

Shifting
When shifting from FORWARD to REVERSE or from REVERSE to
FORWARD, pause at NEUTRAL until the
engine is at idle speed and the boat has
slowed.
If the following directions are not suitable for
your boat’s control, see your Dealer before
proceeding.
With engine running and control handle in
NEUTRAL:
Side Mount Controls
Unlock the control handle by lifting the neutral
lock lever on the hand grip. Move the control
handle with a firm, quick motion, forward or aft
until it engages the forward or reverse gear
detent.
Speed Control
After gear engagement, move the control
handle slowly in the same direction to increase speed.
FUEL ECONOMY
Fuel economy can vary depending on boat
load, hull design, and throttle setting. When
boat reaches top speed, throttle back from
FULL SPEED to a lower throttle setting. You
will save fuel with a minimal loss of speed.
Typical Fuel Economy Throttle Range 008490
1. Side mount control
2. Binnacle mount control
004854
Binnacle Mount Controls
Move the control handle with a firm, quick motion, forward or aft until it engages the forward
or reverse gear detent.
35°
53°
005502
58°
35°
35
Page 38
Using Your Evinrude E-TEC Outboard
1
1
1
1
NOTICE

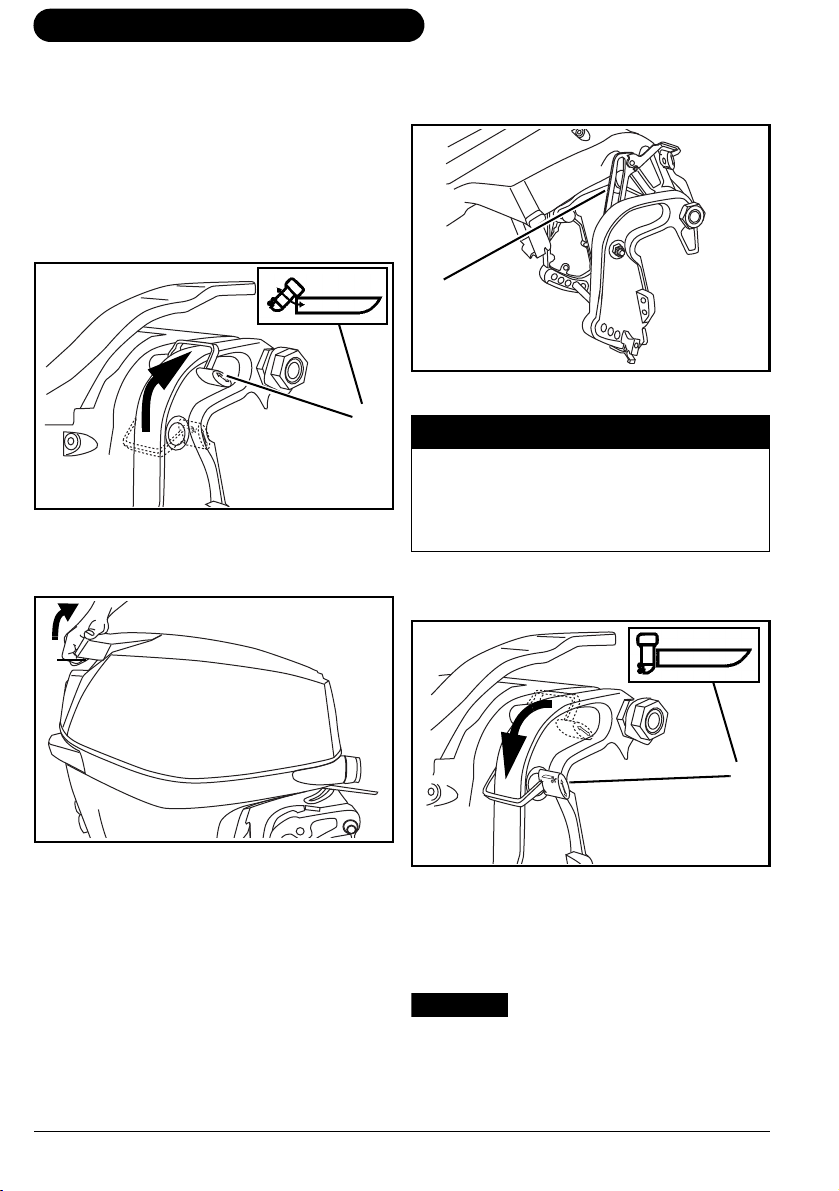

TILTING AND TRIM
MANUAL TILT MODELS
IMPORTANT: Use the tilt grip to tilt your out-
board. Do not use the tiller handle as a lever.

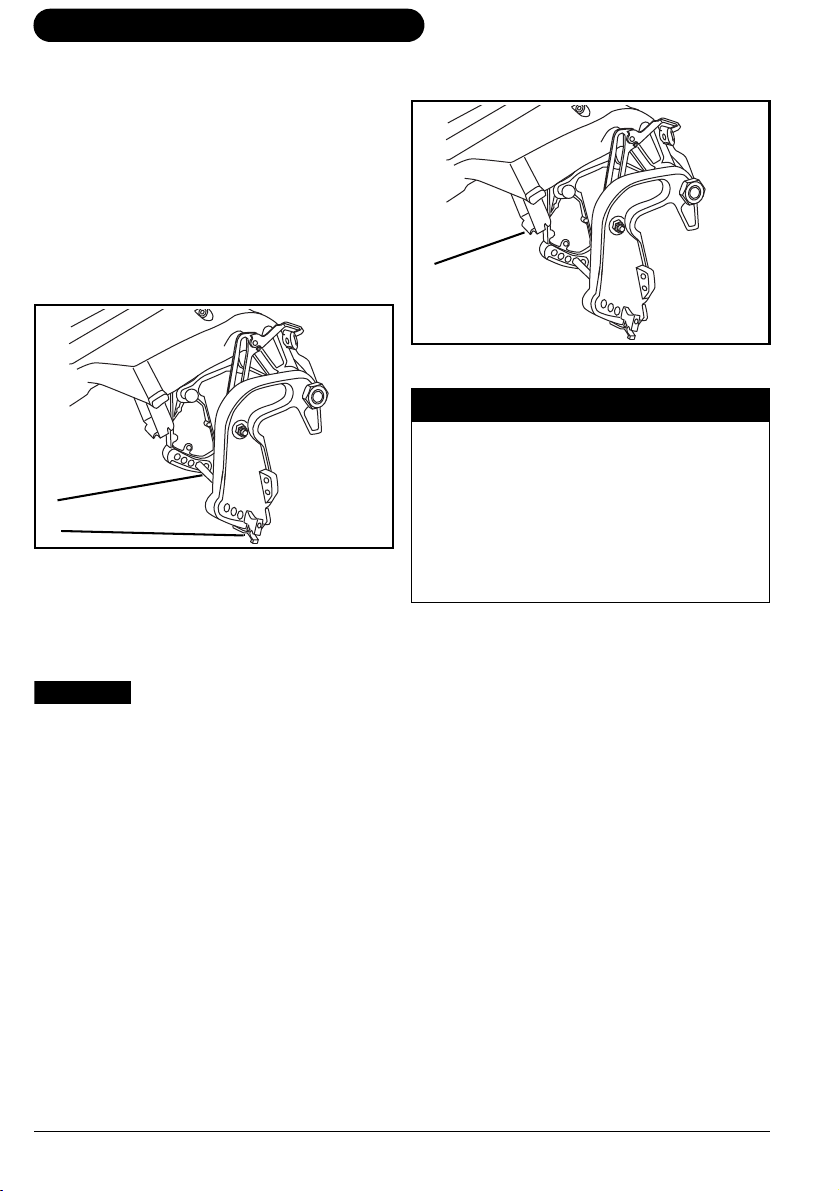

Tilt UP
Move the tilt/run lever to TILT position.
1. TILT position
Grasp the tilt grip on engine cover and tilt outboard to the full tilt position.
1. Tilt grip
The tilt support bracket will automatically engage.
007022
007023
1. Tilt support bracket
007025
A WARNING
Leave tilt/run lever in the TILT position
while outboard is tilted. If the tilt/run
lever is moved to the RUN position, the
tilt support bracket can release and the
outboard could drop down unexpectedly.
Tilt DOWN
Move tilt/run lever to RUN position.
1. RUN position
Grasp the tilt grip on engine cover and raise
outboard slightly. The tilt support will automatically disengage. Slowly lower outboard to its
normal operating (RUN) position.
007024
36
operating position with tilt/run lever in the
RUN position.
Operate outboard in normal
Page 39
TILTING AND TRIM
132
Trim Angle Adjustment
A WARNING
Boat stability and steering torque can vary due to changing water conditions. If any
adverse conditions occur, reduce throttle and/or adjust tilt angle to maintain control.
If you experience boat instability and/or high steering torque, see your Dealer to correct these conditions.
If the bow of the boat plows the water at high speeds, the boat may bow steer or spin
suddenly, possibly ejecting or otherwise seriously injuring occupants.

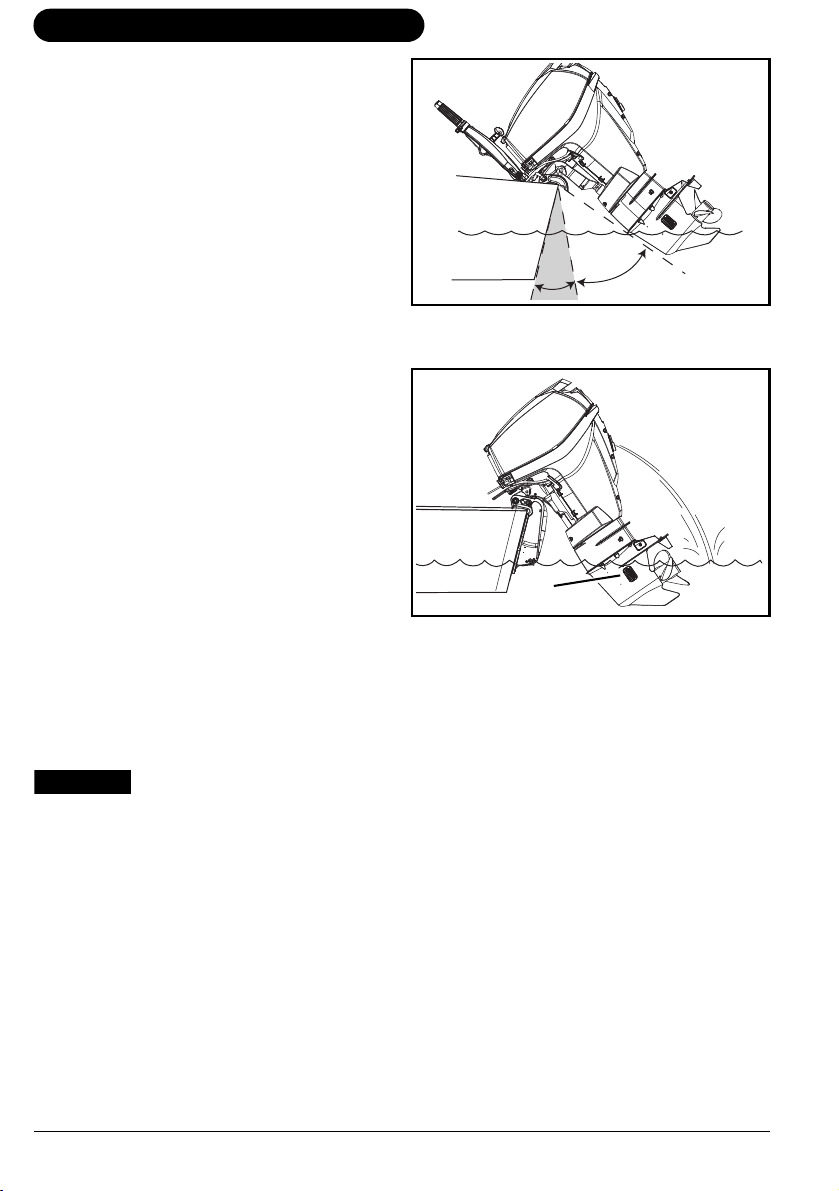

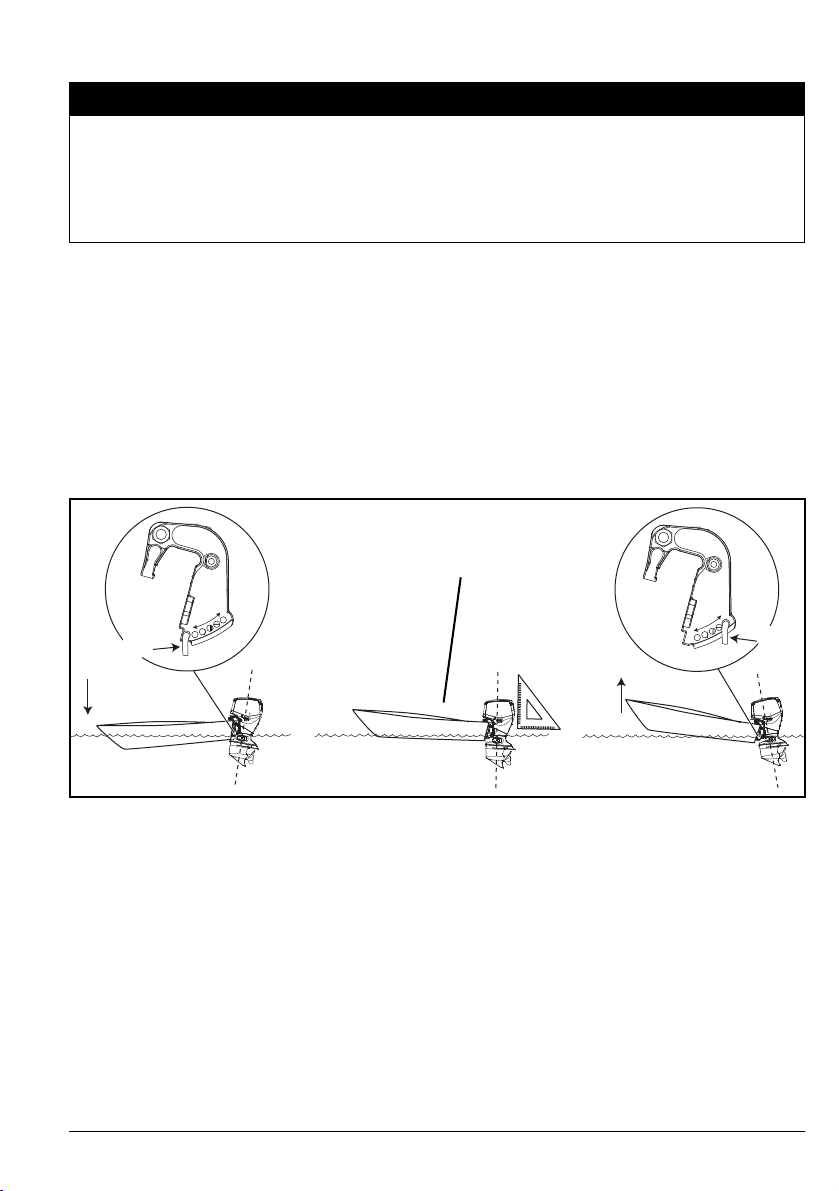

Trim angle adjustment is accomplished by changing the location of the tilt pin.
Run the boat in the water to determine the best trim angle.
IMPORTANT: Weight distribution can affect the performance of the boat. Distribute weight
evenly in the boat before adjusting trim angle.
The boat should accelerate quickly, plane easily, and run parallel to the surface of the water
at high speeds.

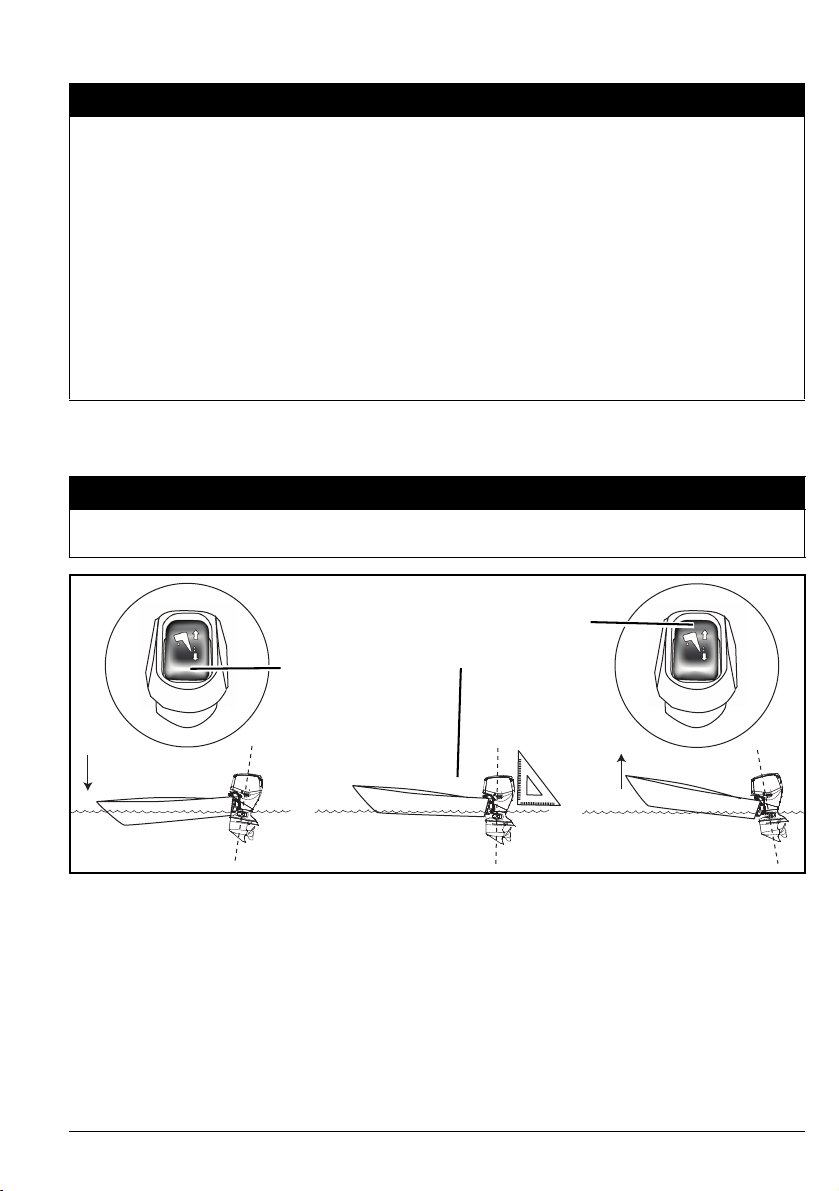

If tilt pin is positioned too LOW the front of boat will be DOWN and push water.
If tilt pin is positioned too HIGH the front of boat will be UP and bounce.
To adjust the trim angle, refer to Tilt Pin on page 38.
1. Parallel to the surface of the water
2. Tilt pin – LOW position
3. Tilt pin – HIGH position
007026
37
Page 40
Using Your Evinrude E-TEC Outboard
2
1
NOTICE
1
Tilt Pin
To adjust the trim angle:
Place the outboard in full TILT position. Refer
to Tilt UP on page 36.
• Grasp the tilt pin retainer and squeeze to release. Slide tilt pin all the way out.
• Insert tilt pin in desire position. Make sure
the trim angle adjustment rod passes
through both stern brackets.
• Push in against retainer to lock in place.
Make sure the tilt pin is locked on the stern
bracket.
1. Tilt pin retainer
2. Tilt pin
007025
Shallow Water Drive
Tilt the outboard to any position within the tilt
range for shallow water operation.
board, do not run above idle speed. Keep
the water intakes submerged at all times
to prevent the engine from overheating.
Engaging Shallow Water Drive
Slow the engine and shift to NEUTRAL before
engaging or disengaging shallow-water drive.
Move tilt/run lever to TILT position.
Grasp tilt grip on engine cover and tilt outboard until shallow water drive link engages
tilt pin.
When operating a tilted out-
Relocate the tilt pin if necessary. Refer to Tilt
Pin on page 38.
1. Shallow water drive link
007025
A WARNING
When in shallow water drive, your motor
has no protection from the effects of
underwater impact.
Operate the motor in FORWARD and
ONLY at slow speed. The motor can tilt
up forcibly and drop suddenly if it hits an
underwater object or if you shift to
REVERSE and apply throttle. You could
lose control.
Disengaging Shallow Water Drive
Move tilt/run lever to RUN position.
Grasp tilt grip on engine cover and raise outboard slightly.
The shallow water drive link will automatically
disengage.
Slowly lower outboard to its normal operating
position.
38
Page 41
TILTING AND TRIM
1
2
3
POWER TRIM AND TILT MODELS
A WARNING
Any malfunction of the power trim and tilt unit could result in loss of shock absorber
protection if an underwater obstruction is hit. Malfunction can also result in loss of
reverse thrust capability.
Correct fluid level must be maintained to ensure operation of the impact protection
on this unit.
When operating in rough water or crossing a wake, excessive bow-up trim may result
in the boat’s bow suddenly rising skyward, possibly ejecting or otherwise seriously
injuring occupants.
Some boat/outboard/propeller combinations may encounter boat instability and/or
high steering torque when operated at high speed at or near the outboard’s trim
range limits (full bow-up or bow-down). Boat stability and steering torque can also
vary due to changing water conditions. If any adverse conditions occur, reduce throttle and/or adjust trim angle to maintain control. If you experience boat instability and/
or high steering torque, see your Dealer to correct these conditions.
Some boats plow, or are difficult to plane, when operated in the trim’s lowest position. If your
boat handles unsuitably when trimmed fully bow-down, adjust transom angle or limit the travel
of the power trim.
A WARNING
If the bow of the boat plows the water at high speeds, the boat may bow steer or spin
suddenly, possibly ejecting or otherwise seriously injuring occupants.
1. Parallel to the surface of the water
2. Trim switch, DOWN
3. Trim switch, UP
007027
39
Page 42
Using Your Evinrude E-TEC Outboard
NOTICE
1
2
1
Trim Angle Adjustment
Use the trim/tilt switch to adjust the outboard
position in the tilt range or trim range.
Run the boat in the water to determine the
best trim angle.
IMPORTANT: Weight distribution can affect
the performance of the boat. Distribute weight
evenly in the boat.
The boat should accelerate quickly, plane
easily, and run parallel to the surface of the
water at high speeds.
If trim position is too LOW the front of boat will
be DOWN and push water.
If trim position is too HIGH the front of boat will
be UP and bounce.
Tilt
The tilt range allows the operator to tilt the
outboard for clearance when beaching, mooring, launching, or trailering.
Trim
In most operating conditions, it is recommended to trim the outboard to the full down
position when accelerating. Once on plane,
trim the outboard up for best performance.
Over-trimming increases engine RPM while
decreasing speed. The best trim setting is
when the highest speed is achieved with the
lowest engine RPM.
1. Tilt range
2. Trim range
1. Water intakes
007028
007069
Shallow Water Drive
Adjust the outboard position within the tilt
range for shallow water operation.
board, do not run above idle speed. Keep
the water intakes submerged at all times
to prevent the engine from overheating.
40
When operating a tilted out-
Page 43
TILTING AND TRIM
1
1
Tilt Support Lever
If you intend to leave the outboard tilted for a
period of time, engage the tilt support lever:
1) Tilt the outboard UP using the trailering tilt
switch.
2) Flip the tilt support lever down.
3) Lower the outboard until the tilt support lever rests solidly on the stern brackets.
1. Tilt support lever
When you are finished tilting the outboard,
disengage the tilt support lever:
1) Tilt the outboard UP.
2) Flip the tilt support lever up.
3) Lower the outboard to operating position.
007029
Manual Release Valve
If needed, the outboard will tilt up or down
manually, using the manual release valve.
A WARNING
Keep everyone clear of a tilted outboard
when backing out the manual release
screw. The outboard could drop suddenly and forcibly. Be sure to tighten the
manual release screw after manually
repositioning the outboard. Tightening
the screw also reactivates the outboard’s
impact protection and reverse thrust
capability.
1) Turn the manual release screw counterclockwise, slowly (about 3 1/2 turns), until
it lightly contacts its retaining ring.
2) Reposition the outboard.
3) Tighten the manual release valve to hold
the outboard in its new position.
4) Thrust rod is normally in the lowest position, position 1.
1. Manual release screw
007030
41
Page 44
Using Your Evinrude E-TEC Outboard
NOTICE

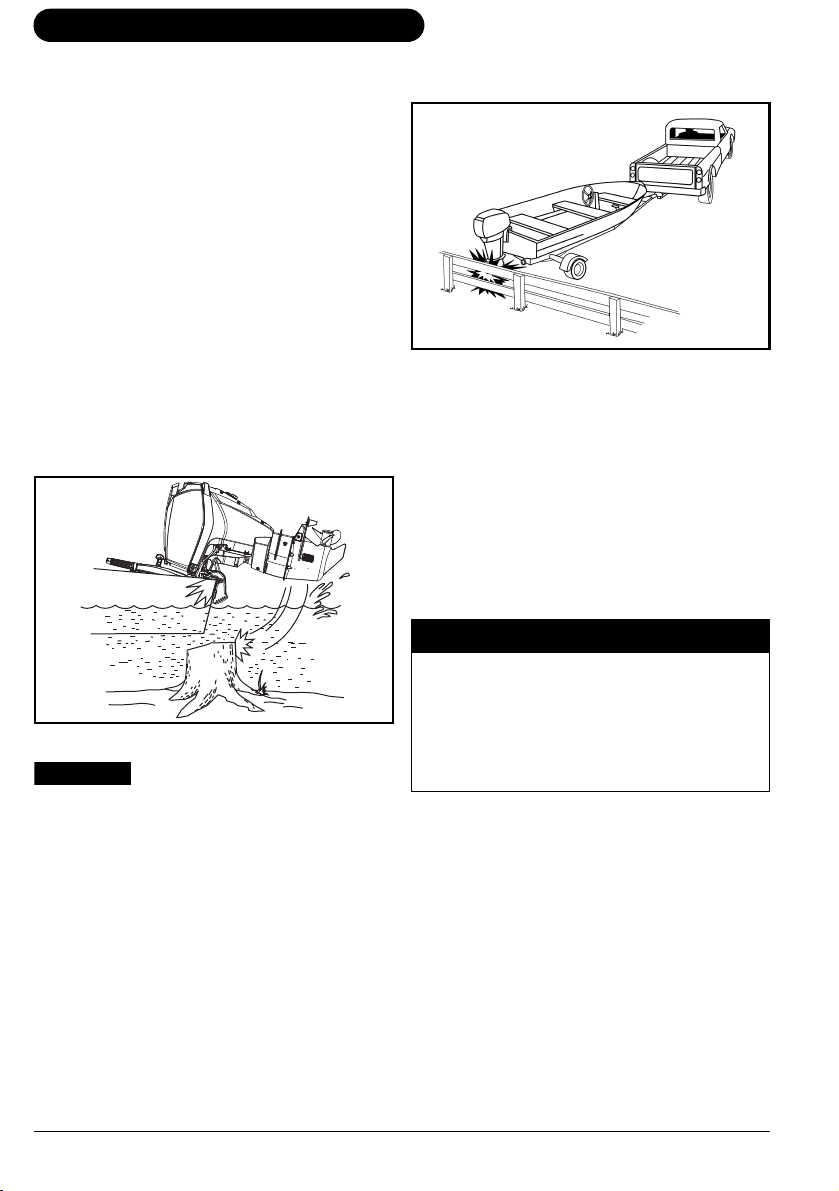

IMPACT DAMAGE PROTECTION
Your outboard has a shock absorption system
designed to help withstand damage from impact with underwater objects at low to moderate speeds. High speed impacts with rigid
underwater objects like pilings or boulders
can be beyond the capability of the absorption
system. Such impacts can result in serious
damage to your outboard and injury to boat
occupants from the outboard or its parts entering the boat. Occupants can also be ejected or injured by falling against portions of the
boat as a result of rapid deceleration following
impacts.
When boating in unfamiliar, shallow, or debris-laden waters, seek information on safe
boating areas and navigation hazards from a
reliable local source. Reduce your speed and
keep a sharp lookout!
IMPORTANT: Impact damage is NOT covered by the outboard warranty.
007021
The outboard’s shock absorption system does not work while operating in reverse. If you back into an object,
either in the water or while trailering, your
boat and outboard can be seriously damaged.
DR4412
If you hit any object:
• STOP immediately and examine the outboard for loosening of attaching hardware.
• INSPECT for damage to swivel and stern
brackets, and steering components.
• EXAMINE the boat for structural damage.
• TIGHTEN any loosened hardware.
If the collision occurred in the water, proceed
slowly to harbor. Before boating again, have
your Dealer thoroughly inspect all components.
A WARNING
Failure to inspect for damage after an
accident or striking an object could
result in sudden, unexpected component
failure, loss of boat control, and personal
injury. Unrepaired damage could reduce
your boat and outboard’s ability to resist
future impacts.
42
Page 45
ENGINE MONITORING
NOTICE
1
2
S.A.F.E. ENGINE SYSTEM
This outboard is equipped with Speed Adjusting Failsafe Electronics (S.A.F.E.).
S.A.F.E. is an engine warning system controlled by the Engine Management Module
(EMM). The EMM monitors engine sensors. If
conditions which could cause permanent engine damage exist, the EMM limits engine
speed to 1200 RPM.
If engine is in S.A.F.E. mode, the outboard will
shake noticeably when accelerated above
1200 RPM.
For additional protection during severe operating conditions the EMM will shut OFF the
engine.
A WARNING
In the S.A.F.E. mode, the engine speed is
limited. Under certain conditions, the
engine’s limited speed may reduce
maneuverability of your boat.
If the S.A.F.E. mode is activated and you
are unable to correct the problem, seek
assistance and/or return to safe harbor.
Serious engine damage, engine shutoff,
and/or reduced maneuverability may be
imminent.
The EMM activates S.A.F.E. mode for:
• NO OIL warning; indicates a nearly empty
oil tank. Refer to Filling the Oil Tank and
Priming the Oil System on page 20.
• OVERHEAT warning; indicates an engine
or EMM overheat condition. Refer to En-
gine Overheating on page 43.
• FAULT warning; indicates a problem exists.
The EMM has identified a problem with the
outboard. Seek assistance and/or return to
harbor immediately. See your Dealer.
ENGINE OVERHEATING
even for a brief start-up—without supplying water to it. Refer to Flushing on page
54.
While boating, the outboard’s water intakes
must stay completely submerged and unobstructed. Observe proper transom height and
tilt angle. While the outboard is running, the
outboard’s water pump indicator must discharge a steady stream of water. Check the
indicator often, especially when operating in
weeds, muddy and debris-laden water, and at
extreme trim angles.
1. Water intake screens
2. Water pump indicator
If the engine overheats, the S.A.F.E. (Speed
Adjusting Failsafe Electronics) mode will immediately limit the engine’s speed to 1200
RPM. If the engine was running faster than
1200 RPM when the S.A.F.E. mode activated, it will shake noticeably. The protection
system must be RESET before the engine will
operate at speeds over 1200 RPM. Under
certain conditions the EMM will shut off the
engine.
To RESET the system after an overheat:
• The engine must be shut off and the cooling
temperature restored.
IF the S.A.F.E. mode activates and the
stream from the water pump indicator becomes intermittent or stops, reduce speed to
idle and:
1) Shift to NEUTRAL.
2) SHUT OFF the engine.
Do not run your outboard—
007031
43
Page 46
Using Your Evinrude E-TEC Outboard
NOTICE
NOTICE
321
3) Tilt the outboard up.
4) Clean the intake screens of any blockage.
5) Clean the water pump indicator of any
blockage.
6) Lower the outboard.
7) Restart the engine and run at idle.
IF cleaning the screens and indicator does
not restore the water pump indicator’s steady
discharge, the engine will operate only in “get
home” mode. Return to harbor immediately.
See your Dealer.
IF cleaning the screens and indicator does re-
store the water pump indicator’s steady discharge, you might have to run for two minutes
in NEUTRAL to allow the engine to cool.
If cooling is not restored, the
EMM will identify a progressive overheating condition and shut off the engine. The
engine will not restart until the engine is
allowed to cool.
After any overheat causing engine shutdown,
see your Dealer for:
• Inspection of the water pump for excessive
wear or damage.
• Inspection of the thermostat(s).
Although the S.A.F.E. mode
can help prevent engine damage, it does
not guarantee you can run your engine
indefinitely without engine damage.

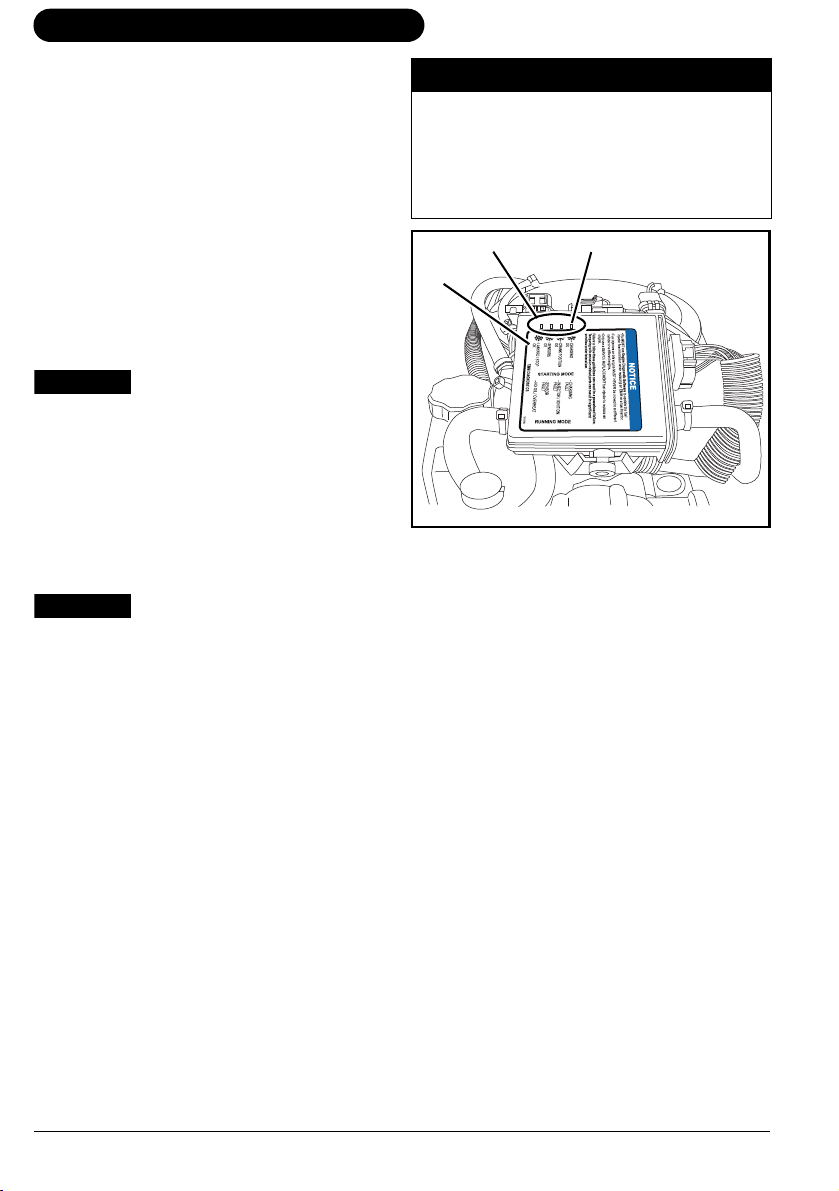

Diagnostic LEDs
The Engine Management Module (EMM) has
four LED indicators located on the top corner
of the circuit board.
The LEDs provide quick reference to the status of several outboard systems.
The LEDs can be used to identify specific
warning functions of S.A.F.E. mode activation
without ending a day on the water.
IMPORTANT: LED 1 is closest to the center
of the EMM.
To view the LEDs the engine cover must be
removed. Refer to Filling the Oil Tank on
page 20.
A WARNING
The engine cover and flywheel guard are
machinery guards. Use caution when the
engine is running.
DO NOT wear jewelry or loose clothing.
Keep hair, hands and clothing away from
rotating parts.
1. EMM
2. LEDs
3. LED 1
The LEDs identify system functions in two
modes, Start Mode and Running Mode.
As the outboard is being started, all four LEDs
should light and then go OFF in sequence.
When the outboard is running, all LEDs
should be OFF.
Running Mode
If any LED is ON while the outboard is running, it may indicate a system problem. Refer
to EMM Diagnostics Label.
LED 1, 2, or 3 ON, return to port as soon as
practical to avoid operational difficulties. See
your Dealer.
LED 4 ON indicates:
• EMM temp. ABOVE range, refer to Engine
Overheating on page 43.
• Engine temp. ABOVE range, refer to En-
gine Overheating on page 43.
• Low / No Oil condition. Refer to Filling the
Oil Tank and Priming the Oil System on
page 20.
007056
44
Page 47
A WARNING
EMM DIAGNOSTICS
3011761
STARTING MODE
RUNNING MODE
- CHARGING
OK
- CRANK POSITION
OK
- SENSORS
OK
- LANYARD / STOP
OK
- CHARGING
FAULT
- INJECTOR / IGNITION
FAULT
- SENSOR
FAULT
- NO OIL / OVERHEAT
1
NO OIL
WATER TEMP
CHECK ENGINE
LOW OIL
0
2
1
3
4
5
6
7
NO
OIL
HOT
CHK
ENG
LOW
OIL
Do not run the engine in a low oil condition for a long period of time. If run in
excess of 4 hours, the engine will shut
down and will not restart. See dealer if
engine shuts down.
ENGINE MONITORING SYSTEM
Evinrude outboards equipped with remote
controls use the SystemCheck engine monitoring system.
EMM Diagnostics Label 008539
Start Mode
If any of the LEDs does NOT light during starting, it may indicate an engine problem. Refer
to EMM Diagnostics Label.
LED 1, 2, or 3 OFF, seek assistance to return
to port. See your Dealer.
LED 3 flashing indicates a hazardous fuel
condition may exist. Seek assistance to return
to port. See your Dealer.
LED 4 OFF indicates the stop circuit is activated, make sure the engine cut–off switch tether cord is attached.
LED 4 flashing indicates engine shut down:
• EMM temp. OVER range, refer to Engine
Overheating on page 43.
• Engine temp. OVER range, refer to Engine
Overheating on page 43.
• Excessive No Oil condition. Seek assistance to return to port.
Typical SystemCheck gauges 008491
Self-Test
During engine start-up, pause with the key
switch in the ON position. The engine monitoring system self-tests the warning horn by
sounding a half-second beep. The System-
Check gauge self-tests by turning the indicator lights on simultaneously, then off in
sequence.
IMPORTANT: If the self-test does not happen
as stated, see your Dealer.
LOW OIL Warning
The LOW OIL warning activates the warning
horn for 10 seconds and the low oil gauge
light for a minimum of 30 seconds.
The SystemCheck warning will reoccur at the
next startup if the problem is not corrected.
If the “LOW OIL” warning light illuminates, refill the oil tank immediately. You have a limited
amount of normal operation before running
out of oil. Fill the oil tank with recommend oil
as soon as possible. Refer to Oiling System
information on page 19.
“LOW OIL”
Symptom
Result
Action
Low oil light is ON. Oil in the oil
tank is at reserve level or lower.
EMM will activate S.A.F.E.
mode soon.
Refill oil tank with the
recommended oil. If the oil tank
is full, return to safe harbor and
seek assistance.
45
Page 48
Using Your Evinrude E-TEC Outboard
NOTICE
NOTICE
1
1
2
SPECIAL OPERATING CONDITIONS
COLD AND FREEZING WEATHER
When operating in conditions
under 32°F (0°C), Evinrude/Johnson
XD100 oil, must be used.
During operation in freezing weather, keep
the gearcase submerged at all times.
Upon removing your outboard from the water,
leave it in a vertical position until its cooling
system is drained. Store the outboard vertically.
If the outboard’s gearcase is equipped with an
integral speedometer pickup, all water must
be cleared from the hose to prevent gearcase
damage. Refer to Transporting / Storage on
page 48.
Water remaining in the gearcase, cooling system or other components can freeze, causing serious engine
damage.
DUAL OUTBOARD OPERATION
When in reverse above slow speed, be sure
both outboards are running, even if one is in
NEUTRAL.
If it is necessary to return to harbor with one
outboard not running, tilt the inoperative outboard high enough to keep its propeller out of
the water.
SALT WATER
Anode protection for the outboard has been
provided for use in salt or brackish water.
Upon removal from salt water, leave outboard
in a vertical position until its cooling system
has drained. During long periods of mooring,
tilt the gearcase out of the water, except in
freezing temperatures. Flush the outboard, if
desired. Refer to Flushing on page 54.

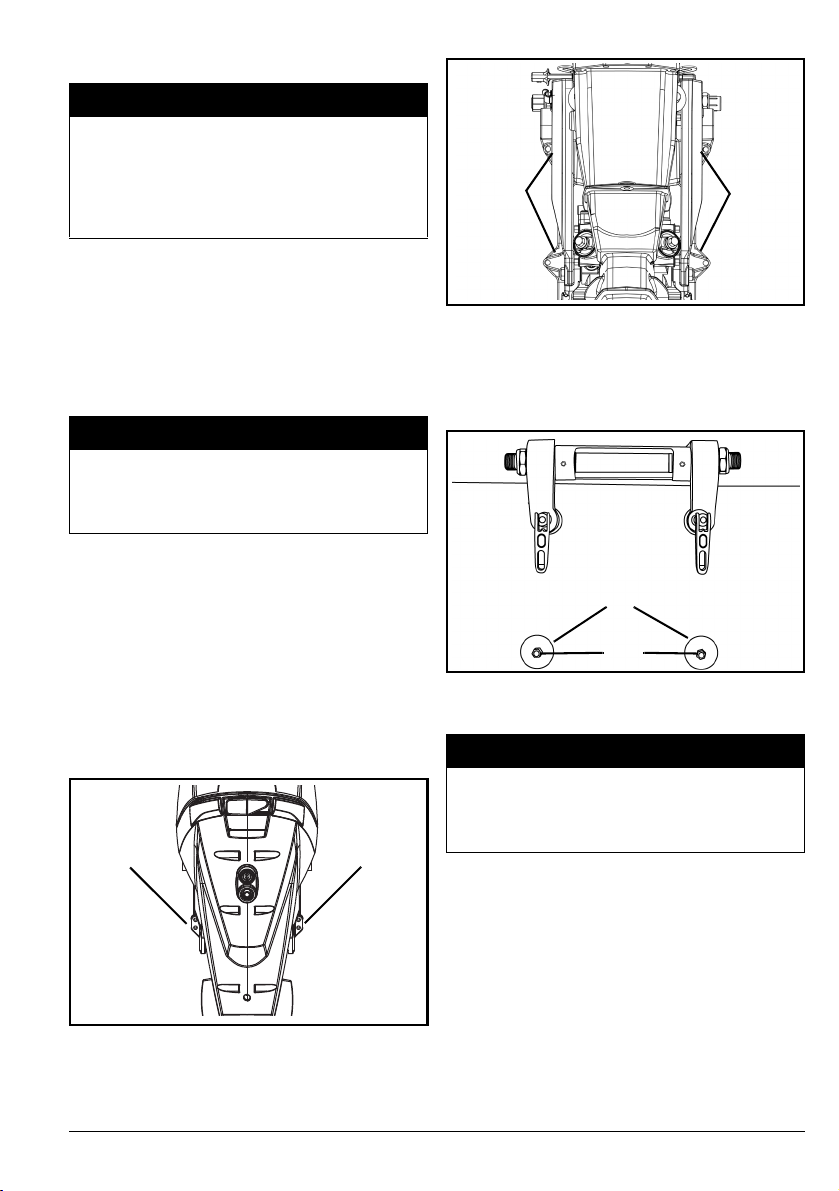

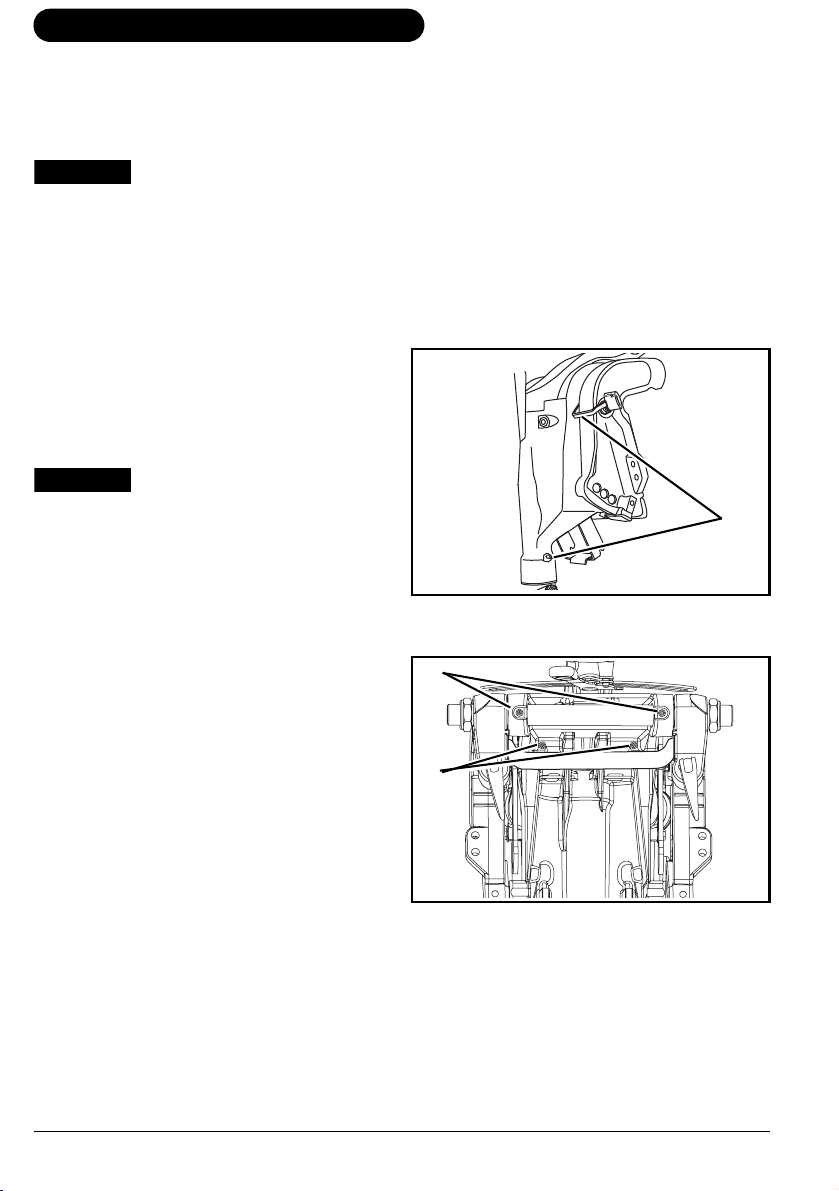

Salt Water Lubrication Points
1. Tilt lever and swivel bracket lubrication points (annually)
007032
HIGH ALTITUDE
Your outboard’s EMM will automatically compensate for changes in altitude. However, if
you boat above 3000 ft. (900 m), you will experience a slight loss of power due to reduced
air density.
If your engine drops below the recommended
RPM operating range at full throttle, have your
Dealer select a lower pitch propeller.
If you return to sea level, have your Dealer install the original propeller and verify correct
RPM operating range.
46
1. Tilt tube lubrication points (annually)
2. Tilt lever shaft (annually)
007033
Page 49

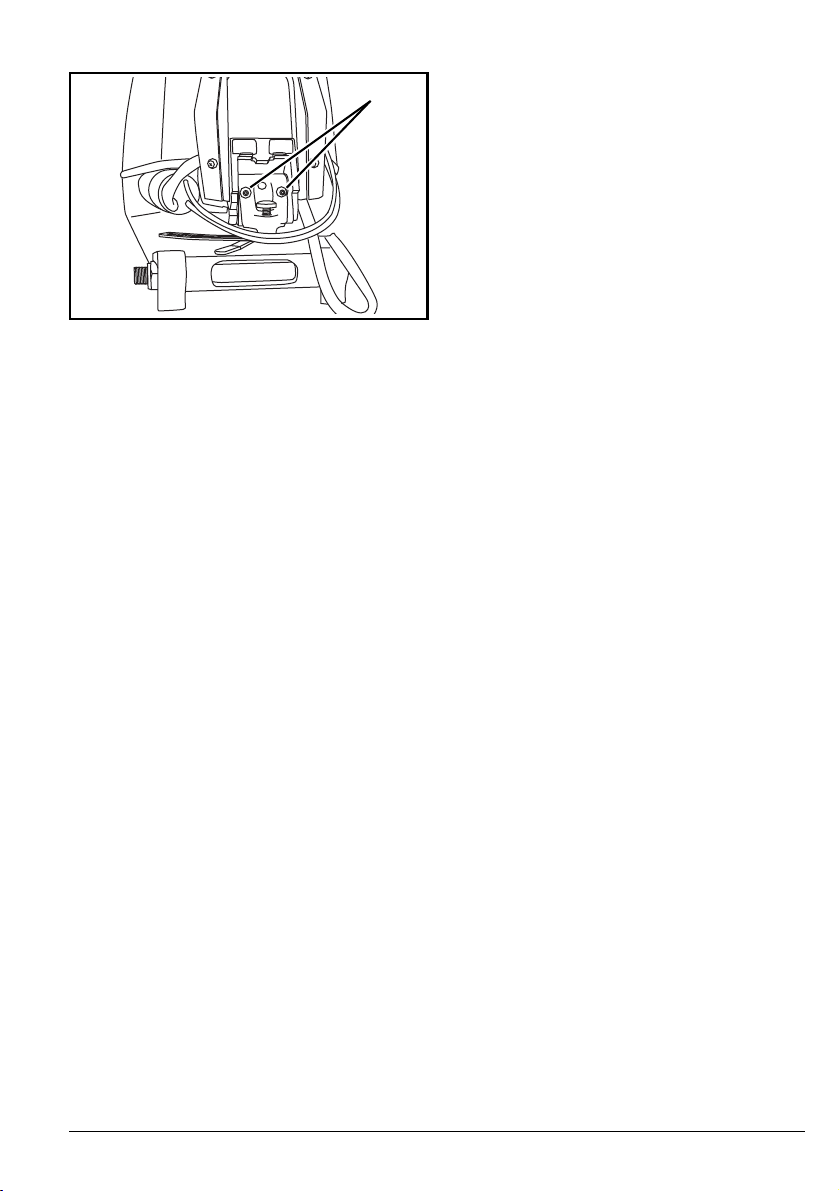

1. Tiller handle lubrication points (an-
1
nually)
007020
SHALLOW WATER
Gearcase damage can occur if the gearcase
is allowed to drag on the waterway bottom.
Use caution when operating in shallow water.
SPECIAL OPERATING CONDITIONS
IMPORTANT: Impact damage is NOT covered by the outboard warranty.
UNDER TOW
Should you require a tow from another boat:
• Shift your engine to NEUTRAL;
• Tilt its gearcase out of the water;
• Off-load all persons into another boat; and
• Keep speed slower than planing speed.
WEEDY WATER
Weeds block water intakes and may cause
your outboard to overheat. Weeds on the propeller create vibration and reduce boat speed.
When operating in weedy water, run at slow
speeds and in REVERSE frequently to clear
weeds from the propeller and water intakes.
Check the water pump indicator often.
If REVERSE operation does not clear away
weeds, SHUT OFF the engine. Remove
weeds from propeller area and water intakes
before operating at higher speed.
47
Page 50
Using Your Evinrude E-TEC Outboard
NOTICE
NOTICE
NOTICE
1
1
TRANSPORTING THE OUTBOARD
A WARNING
If engine is equipped with a quick-disconnect fuel hose, you MUST disconnect
the fuel hose from the engine and the
fuel tank to prevent fuel leaks:
• Whenever the engine is NOT being
used
• Whenever the engine is being trailered
• Whenever the engine is in storage
A small amount of fuel may be released
when the fuel connector is disconnected.
Always wipe off any fuel spillage.
Store portable fuel tanks in well-venti-
lated areas, away from heat sources and
open flames. Close the vent screw of the
fuel tank cap, if equipped, to prevent
escape of fuel or fuel vapors which could
accidentally ignite. Do not allow disconnected fuel hoses to leak fuel.

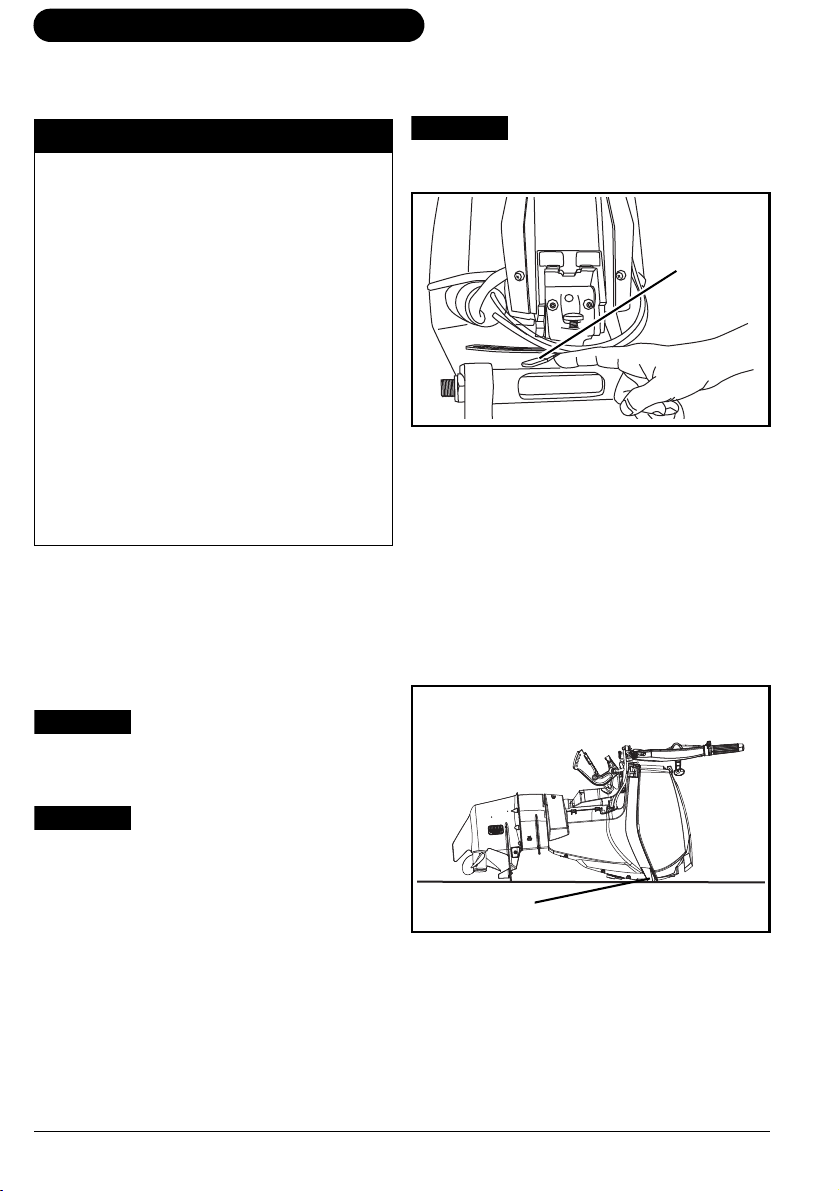

TRAILERING
Trailer your boat with the outboard in a vertical position. If your trailer does not provide adequate road clearance, tilt the outboard as
needed and support the outboard with an accessory trailering bracket.
lever to position the outboard for trailering may cause damage to the outboard.
1. Steering friction lever
Use of the steering friction
007042
TRANSPORTING / STORAGE
If the outboard is laid down for transportation
or storage it should be laid on its back.
IMPORTANT: The oiling system must be
primed before reusing the outboard. Refer to
Priming the Oil System on page 20.
If the engine is transported laying on its side,
protect the motor covers, by laying it on an old
blanket or other soft cloth.
restrained when trailering. Bouncing during transport may damage the outboard
and the boat’s transom.
or tilt lock lever when trailering may
cause damage to the outboard.
The outboard must be
Use of the tilt support bracket
48
1. Transport outboard resting on
bumpers
007043
Page 51
PRE-RIDE INSPECTION
A WARNING
Always perform a pre-ride inspection before operating the boat. Check the proper
operation of critical controls, safety features and mechanical components. Correct
any problems BEFORE leaving the dock. Make sure all safety equipment required by
local law is onboard.
ITEM OPERATION
Hull Inspect.
Propeller
Cooling system Inspect water intake screens.
Safety equipment Ensure safety equipment is onboard.
Oil level Check. Refill as needed.
Bilge Drain. Ensure drain plug(s) are securely installed.
Battery
Fuel level Check. Refill as needed.
Navigation lights Check operation.
Steering system Check operation.
Boat systems (horn, pumps, radio) Check operation.
Engine cut–off tether cord
Operator’s Guide
Engine Start switch (tiller control) Test operation.
Engine cut–off switch (tiller control) Test operation.
Key switch (remote control) Test operation.
Engine cut–off switch/ tether cord
Shift and Throttle Check operation.
Cooling system Confirm operation (water pump indicator).
Inspect condition of propeller. Repair or replace
damaged propeller.
Check battery connections are clean, tight, and
insulated. Ensure battery/battery box are secure.
Inspect condition. Attach tether cord to key switch
(remote control) or engine cut–off switch (tiller
control).
Confirm this Operator’s Guide is onboard and
readily accessible.
Test operation. Reattach tether cord to key switch
(remote control) or engine cut–off switch (tiller
control).
49
Page 52
50
Page 53
Maintenance
51
Page 54
Maintenance
ENGINE EMISSIONS INFORMATION
Maintenance, replacement, or repair of the
emission control devices and systems
may be performed by any marine SI (spark
ignition) engine repair establishments or
individual.
Manufacturer’s Responsibility
Beginning with 1999 model year outboards,
manufacturers of marine engines must determine the exhaust emission levels for each engine horsepower family and certify these
outboards with the United States of America
Environmental Protection Agency (EPA). An
emissions control information label, showing
emission levels and engine specifications,
must be placed on each outboard at the time
of manufacture.
Dealer’s Responsibility
When performing service on all 1999 and
more recent Evinrude outboards that carry an
emissions control information label, adjustments must be kept within published factory
specifications.
Replacement or repair of any emission related component must be executed in a manner
that maintains emission levels within the prescribed certification standards.
Dealers are not to modify the outboard in any
manner that would alter the horsepower or allow emission levels to exceed their predetermined factory specifications.
Exceptions include manufacturer’s prescribed
changes, such as altitude adjustments, for example.
Owner Responsibility
The owner/operator is required to have engine maintenance performed to maintain
emission levels within prescribed certification
standards.
The owner/operator is not to, and should not
allow anyone to, modify the engine in any
manner that would alter the horsepower or allow emissions levels to exceed their predetermined factory specifications.
Tampering with the fuel system to change
horsepower or modify emission levels beyond
factory settings or specifications will void the
product warranty.
EPA Emission Regulations
All new 1999 and more recent Evinrude outboards manufactured by BRP are certified to
the EPA as conforming to the requirements of
the regulations for the control of air pollution
from new watercraft marine spark ignition engines. This certification is contingent on certain adjustments being set to factory
standards. For this reason, the factory procedure for servicing the product must be strictly
followed and, whenever practicable, returned
to the original intent of the design. The responsibilities listed above are general and in
no way a complete listing of the rules and regulations pertaining to the EPA requirements
on exhaust emissions for marine products.
For more detailed information on this subject,
you may contact the following locations:
VIA U.S. POSTAL SERVICE:
Office of Mobile Sources
Engine Programs and Compliance Division
Engine Compliance Programs
Group (6403J)
401 M St. NW
Washington, DC 20460
VIA EXPRESS or COURIER MAIL:
Office of Mobile Sources
Engine Programs and Compliance Division
Engine Compliance Programs
Group (6403J)
501 3rd St. NW
Washington, DC 20001
EPA INTERNET WEB SITE:
www.epa.gov
52
Page 55
MAINTENANCE SCHEDULE
Routine inspection and maintenance is necessary to prolong outboard life. The following
chart provides guidelines for inspection and
maintenance to be performed by an authorized Dealer.
Description
(4)
(2)
(2)
(3)
Anti-corrosion anodes
Electrical and ignition wires, inspect for wear or chafing
Engine to transom mounting hardware, re-torque (40 ft. lbs.)
Fasteners, inspect any loosened components
Fuel and oil system components, inspect and repair leaks
Fuel filter, replace
Gearcase lubricant, replace
Grease fittings, lubricate
Muffler foam, inspect, replace if necessary (40–90 HP models only)
Oil Filter, replace (V4 & V6 models only)
Power trim/tilt system and fluid level, inspect
Propeller shaft splines, inspect and lubricate
Spark plugs, inspect and replace if necessary
Starter pinion shaft, inspect and lubricate (electric start models only)
Steering system, inspect and lubricate
Thermostat and pressure valve, inspect
Throttle cable and shift cable inspect
Water pump, inspect or replace if necessary
(1) Average recreational use. Commercial use, heavy use, or use in salt or polluted water requires more
frequent inspection and maintenance (annual checks are recommended).
(2) Annually in salt water applications – Refer to Service on page 54.
(3) Emission-related component. Refer to Owner Responsibility on page 52, Product Warranty Information
on page 71 and, if applicable, California Emission Control Warranty Statement on page 74.
(4) Replace boat-mounted fuel filter annually. Refer to Boat-Mounted Fuel Filters on page 66.
IMPORTANT: Outboards used in rental, commercial, or other high hour applications require more frequent inspections and
maintenance. Adjust schedule for operating
and environmental conditions.
Engine
Care
Product
(3)
A
C
B
(2)
(3)
C
D
C
Every 300
Hours or
3 Years
(1)
HPF XR Gearcase Lubricant
A.
HPF Pro Gearcase Lubricant in high performance or commercial applications
B. Evinrude/Johnson Biodegradeable TNT Fluid
C. Triple-Guard Grease
D. Starter Bendix Lube ONLY, P/N 337016
53
Page 56
Maintenance
1
NOTICE
NOTICE
SERVICE
ANTI-CORROSION ANODES
Your outboard is equipped with one or more
anodes that protect it from galvanic corrosion.
Disintegration of the anode is normal and indicates it is working. Check each anode periodically. Replace anodes smaller than 2/3
their original size. See your Dealer for replacements.
1. Anti-corrosion anode
Galvanic corrosion destroys underwater metal parts and can occur in fresh or salt water;
however, salt, brackish, and polluted waters
will accelerate corrosion.
Metal-based antifouling paint on the boat or
outboard and the use of improperly installed
shore power in the area of your moored boat
will also accelerate corrosion.
NEVER paint the anode, its
fasteners, or its mounting surface. Painting will reduce its corrosion protection.
007035
FLUSHING
Flush the outboard with fresh water following
use in brackish, salt or polluted water to minimize the accumulation of scale and silt deposits in cooling system passages. The outboard
can be flushed on the trailer or at dockside.
Place outboard in vertical (down) position in a
well ventilated area.
board in the recommended vertical posi-
If you cannot store the out-
tion, be sure the cooling system is
drained completely. Never place the gearcase higher than the powerhead. Any
water remaining in the exhaust passages
can run into the cylinders and cause serious damage.
Using Lower Engine Cover Flushing
Port
1) Place the outboard in an area with good
drainage.
2) Connect garden hose to flushing port.
3) Turn on the water. It is not necessary to
run the engine for a good flushing.
002024
4) Leave the outboard in vertical position long
enough to completely drain the powerhead.

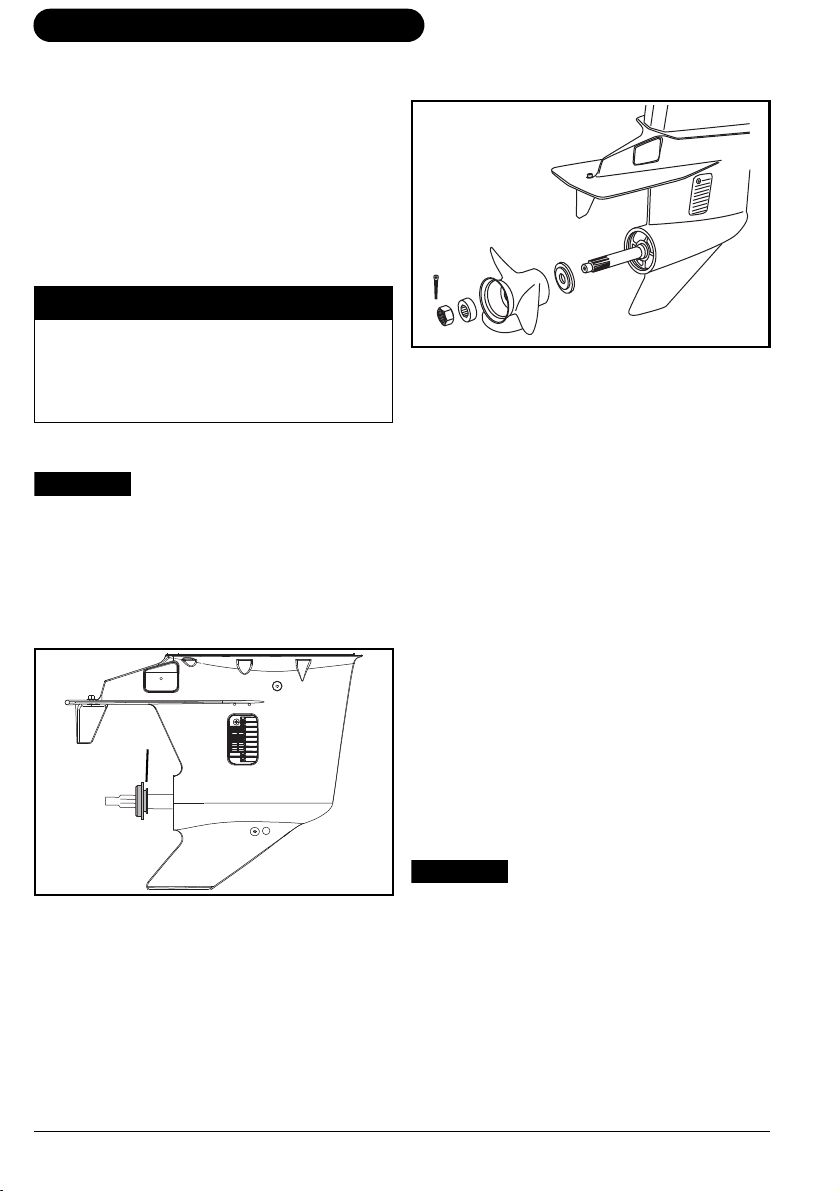

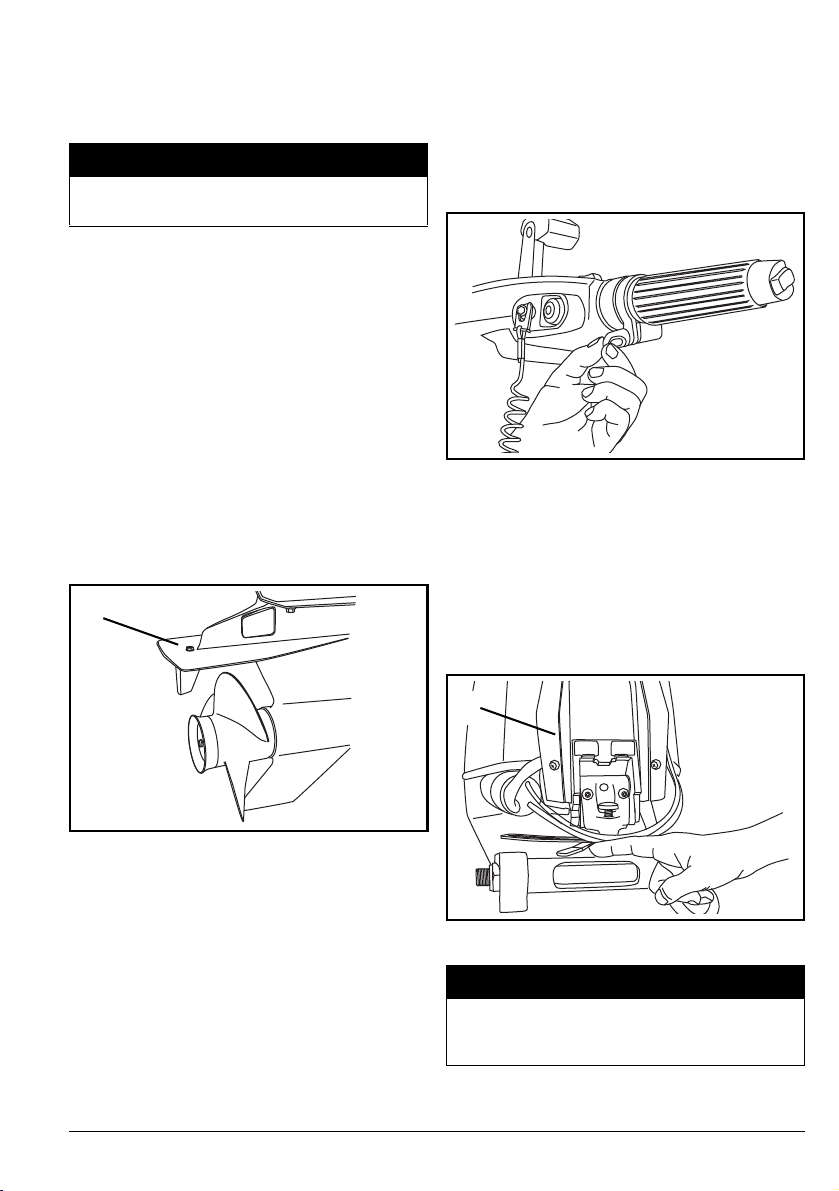

Using Gearcase Flushing Device
1) Place the outboard in an area with good
drainage.
2) Temporarily cover the two small auxiliary
water inlet holes on each side of the gearcase with heavy tape to insure enough water travels to the powerhead from the water
intakes. Water can drain from auxiliary inlets, resulting in engine overheat Remem-
54
Page 57
SERVICE
2
1
1
2
NOTICE
2
1
NOTICE
ber to uncover the holes after flushing the
engine.
1. Auxiliary water inlet holes
2. Water intakes
3) Remove propeller and place the shift lever
in NEUTRAL position.
4) Connect garden hose to flushing device
and install flushing device on gearcase.
5) Turn on the water. Keep the water pressure between 20 and 40 psi (140 to
300kPa).
6) Start the engine and RUN AT IDLE
SPEED. Flush engine for at least five minutes. A steady stream of water must flow
from exhaust relief port of outboard.
007035
FUSE
On outboards equipped with an accessory
electric starter, a blown fuse will not allow
the engine to start. Replace it with a fuse of
the same rating. A spare fuse is provided.
Repeated fuse failures indicate a potentially
serious problem. Do not replace it with higher
rated fuse; see your Dealer for service.
In an emergency, the engine may be ropestarted and run, this will not harm the engine.
Fuse Replacement
Use only fuses of the same
rating. Your Evinrude E-TEC outboard
uses 10-amp fuses.
Remove engine cover. Install spare fuse in
place of failed fuse.
1. Flushing device
2. Stream of water
7) Turn engine OFF. Leave the outboard in
vertical position long enough to completely
drain the powerhead.
008032
1. Fuse
2. Spare fuse
Failure to install cover
securely may cause electrical problems.
007034
HULL FINISH
The condition of your boat’s bottom affects
performance. Marine growth or bottom painting may reduce speed and fuel efficiency.
For maximum performance, keep the boat’s
running surface clean by rinsing it with fresh
water and wiping it dry. Apply Evinrude anticorrosion spray to any surface subject to corrosion, but avoid the anti-corrosion anode(s).
55
Page 58
Maintenance
NOTICE
NOTICE
NOTICE
NOTICE
OUTBOARD EXTERNAL FINISH
Your outboard’s upper and lower engine covers use molded-in color technology, providing
a deep, durable gloss with maximum ultraviolet (sunlight) protection.
The high gloss finish will show polish marks
when viewed closely in certain light conditions. This glossing is NORMAL.
Periodically, wash the entire boat and outboard with soapy water and apply a coat of
automotive wax. Leave the engine cover in
place when washing the outboard.
When trailering your outboard, DO NOT cover the engine with canvas—it will dull the finish of the
outboard’s engine covers.
SCRATCH REPAIR
Surface scratches on the upper and lower engine covers can be polished out with buffing
compound.
Treat affected areas using these steps:
1) Sand the affected area with 800-grit sand-
paper.
2) Wet sand the area with 1200-grit sandpa-
per.
3) Using a composite material buffing com-
pound, polish the area, closely following
the product directions.
Spark plugs should be serviced by an
Evinrude E-TEC Dealer. Incorrect spark plug
maintenance can lead to engine damage.
MUST be indexed correctly.
Replacement spark plugs
Marine Engine Duty Cycles
The International Council of Marine Industry
Associations (ICOMIA) Standard No. 36-88
specifies a marine engine duty cycle based on
documented studies. A duty cycle is a profile
of engine running and usage. This duty cycle
is used to determine average spark plug longevity and maintenance requirements for
Evinrude E-TEC outboards.
ICOMIA Marine Engine Duty Cycle
Engine Speed as
Percentage of Rated
Speed (RPM)
IDLE 40%
40% 25%
60% 15%
80% 14%
100% 6%
conditions can lead to spark plug wear
sooner than expected. Depending on your
specific usage, the spark plug maintenance schedule may require adjustment.
Some running profiles and
Time at Specified RPM
(Percentage of total
engine running time)
sional materials to properly repair scratches. Do not attempt to paint over marks or
scratches in the composite material. See
your Dealer to repair any deep scratches
or gouges.
Your Dealer has the profes-
SPARK PLUGS
A CAUTION
The ignition system presents a serious
shock hazard. Use caution to avoid
injury from shock or injury resulting
from your reaction to shock. Do not handle primary or secondary ignition components while the engine is cranking or
running.
56
SUBMERGED OUTBOARD
If your outboard has been under water, have
it serviced immediately upon recovery. If
immediate service is unavailable, resubmerge it in fresh water to avoid prolonged exposure to the atmosphere.
After submersion, all boat and engine electrical, fuel, and oiling systems must be inspected for signs of water intrusion. Your Dealer
should perform this service.
Page 59
STORAGE
NOTICE
A WARNING
DO NOT run the engine indoors or without adequate ventilation or permit
exhaust fumes to accumulate in confined
areas. Engine exhaust contains carbon
monoxide which, if inhaled, can cause
serious brain damage or death.
You must protect against natural environmental conditions that can be damaging to an outboard. Your warranty does not cover engine
failure caused by these conditions.
Temperature and humidity
changes during storage period can cause
corrosion of internal engine components.
Winterization prepares your outboard for
long-term off-season storage. During winterization, the engine is “fogged” and extra oil is
used to coat internal engine components. Refer to Long-Term Storage (Winterization)
on page 58.
Stabilize the fuel supply. Fuel remaining in
your fuel tank can oxidize, resulting in loss of
octane and fuel system deposits.
Use Evinrude/Johnson 2+4 Fuel Conditioner
to prevent gum and varnish deposits from
forming in fuel system components. Refer to
Operation on page 24.
A WARNING
Prevent injury from moving engine components. Before starting the outboard:
• Shift it to NEUTRAL.
• Keep hands, clothes, and hair clear of
powerhead.
• Remove the propeller.
A WARNING
If engine is equipped with a quick-disconnect fuel hose, you MUST disconnect
the fuel hose from the engine and the
fuel tank to prevent fuel leaks:
• Whenever the engine is NOT being
used
• Whenever the engine is being trailered
• Whenever the engine is in storage
NOTE: A small amount of fuel may be
released when the fuel connector is disconnected.
Store fuel tanks in well-ventilated areas,
away from heat sources and open
flames.
Prevent escape of fuel or fuel vapors
which could accidentally ignite.
Close the vent screw of the fuel tank cap
(if equipped).
Do not allow disconnected fuel hoses to
leak fuel.
If the outboard is laid down for transportation
or storage, the oiling system must be primed
before reusing the outboard. Refer to Prim-
ing the Oil System on page 20.
SHORT-TERM STORAGE
(BETWEEN USES)
If you must tilt the outboard to remove it from
the water, lower it and allow the cooling system to drain completely as soon as you clear
the launch area. Between uses, store your
outboard in a vertical position.
57
Page 60
Maintenance
LONG-TERM STORAGE
(WINTERIZATION)
A WARNING
Outboard must be in NEUTRAL before
performing winterization. Starting outboard in gear can cause personal injury.
If winterizing on a trailer, the propeller
must be removed before performing procedure. Failure to remove propeller can
cause personal injury or death.
Winterization prepares your outboard for
long-term off-season storage. During winterization, the engine is “fogged” and extra oil is
used to coat internal engine components.
Note: The Long-Term Storage procedure can
be used to prime the oiling system.
Winterization requires a specific process of
steps.
Closely follow the applicable winterization
procedure for your outboard:
• Remote control
• Tiller control
• Remote control with foot throttle
If you are unsure which procedure is right for
you, contact your Dealer for assistance.
You can confirm your outboard enters winterization mode when the engine runs at fast idle
and:
• The SystemCheck gauge lights flash (if
equipped).
• The I-Command gauge displays winterization message (if equipped).

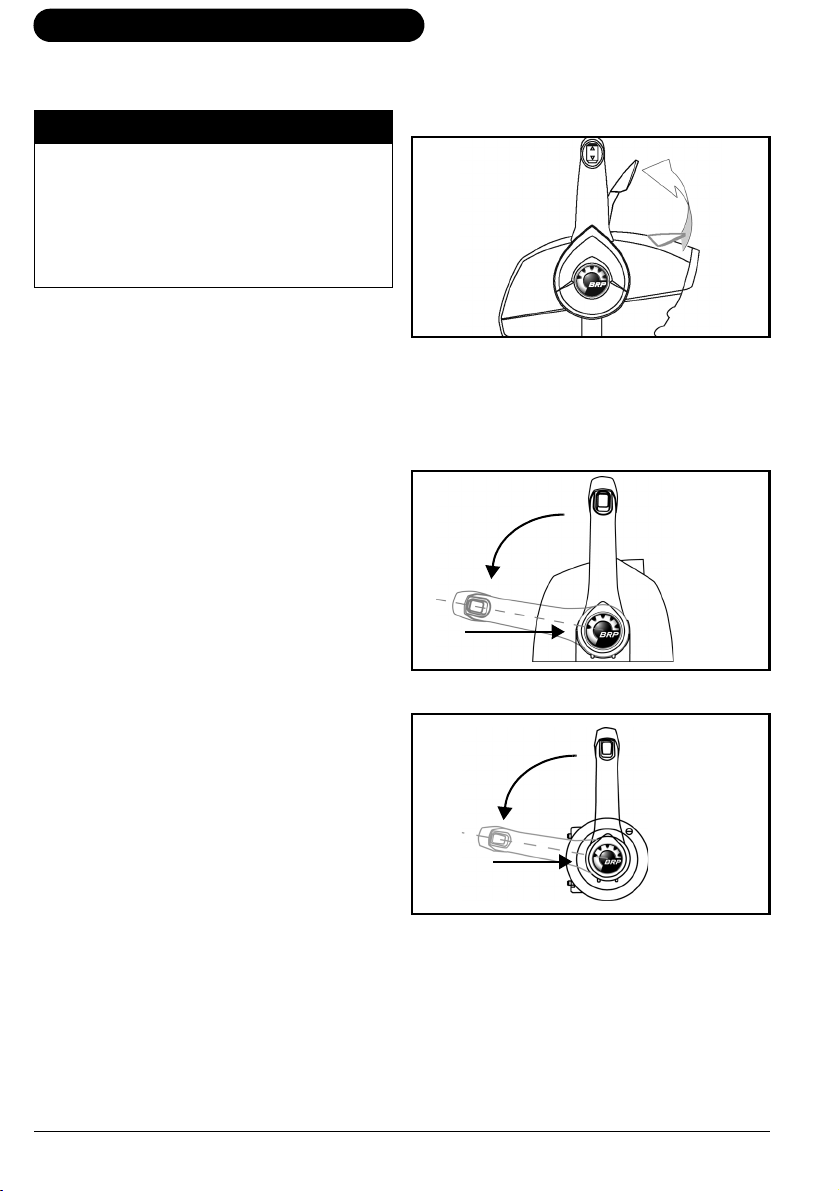

Remote Control Outboards
1) For side mount controls, lift fast idle lever. Start the outboard. Outboard runs at
slow idle speed.
Side Mount Control – Typical 006455A
For binnacle or concealed side mount
controls, press fast idle button and ad-
vance throttle handle to a position above
HALF THROTTLE. Start the outboard.
Outboard runs at slow idle speed.
Binnacle Control – Typical 006456
Preparation
Your outboard can be winterized in the water.
If winterizing in water, make sure the water
intake screens are completely submerged.
1) Stabilize the engine’s fuel supply. Add 2+4
Fuel Conditioner following instructions on
container. Fill fuel tank.
2) If winterizing on a trailer, remove the propeller. Attach a garden hose to flushing
port and turn on the water. Refer to Flush-
ing on page 54.
3) Outboard must be in NEUTRAL, and remote control and shift linkage must be in
NEUTRAL position at all times during winterization procedure.
58
Concealed Side Mount Control – Typical 006457

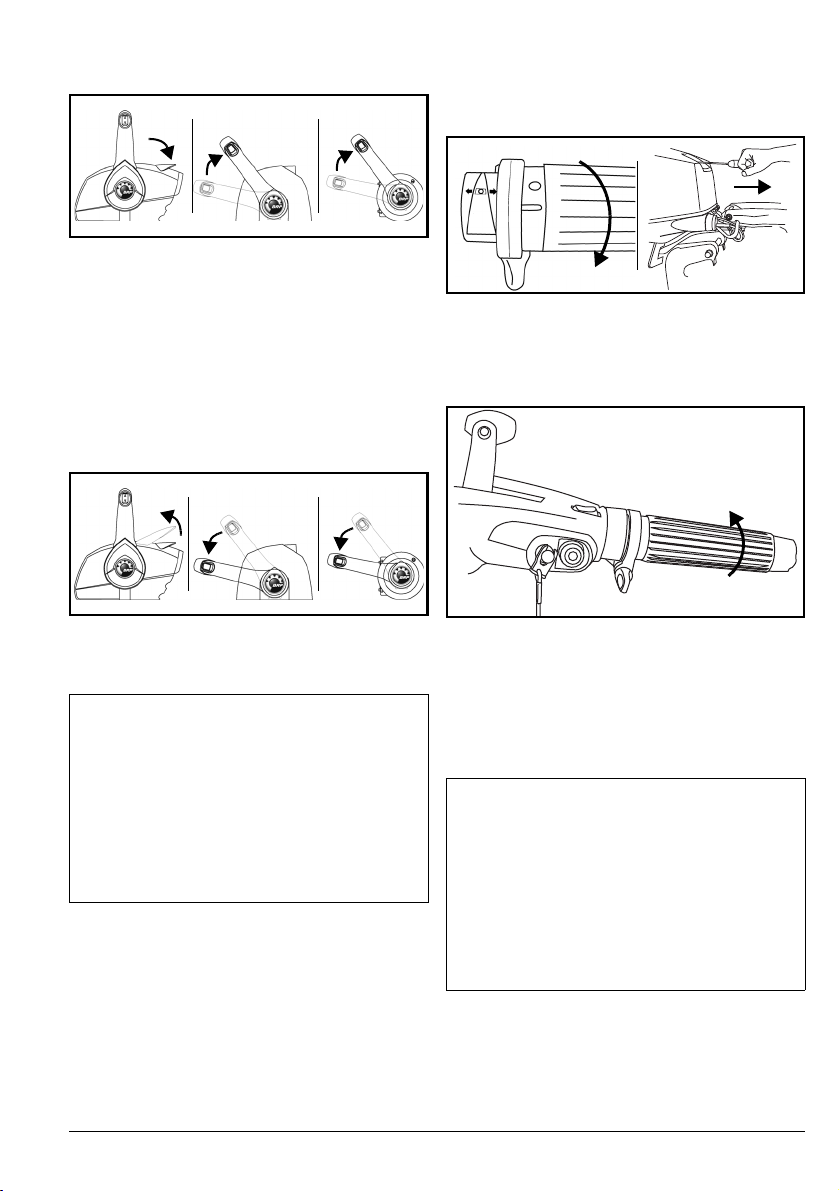

2) After outboard runs for about 15 seconds:
For side mount controls, lower fast idle
lever.
For binnacle or concealed side mount
controls, return throttle handle to IDLE po-
sition.
Page 61
STORAGE
Outboard continues to run at slow idle
speed.
006458
3) After outboard runs for another 15 seconds:
For side mount controls, raise fast idle
lever again.
For binnacle or concealed side mount
controls, advance throttle handle to a po-
sition above HALF THROTTLE.
Outboard will accelerate to fast idle speed
and fog itself.
006459
Tiller Control Outboards
1) Advance throttle grip to a position above
HALF THROTTLE. Start the outboard.
Outboard runs at slow idle speed.
Tiller Control – Typical 007036
2) After outboard runs for about 15 seconds,
move throttle grip to IDLE position. Outboard continues to run at slow idle speed.
007037
007038
4) Allow outboard to run until it shuts itself
OFF automatically (less than one minute).
Winterization is complete when outboard
shuts itself off.
• If the outboard DOES NOT shut itself
off, you may not have used the fast idle lever or button and the outboard was shifted
into gear.
• If the engine exceeds 3000 RPM, the outboard may have been shifted into gear.
In either event, immediately turn key switch
OFF and re-start the procedure.
3) After outboard runs for another 15 seconds, advance throttle grip to a position
above HALF THROTTLE. Outboard will
accelerate to fast idle speed and fog itself.
4) Allow outboard to run until it shuts itself
OFF automatically (less than one minute).
Winterization is complete when outboard
shuts itself off.
• If the outboard DOES NOT shut itself
off, you may not have properly advanced
throttle grip.
• If the engine exceeds 3000 RPM, the outboard may have been shifted into gear.
In either event, immediately press engine
cut–off switch to turn outboard OFF and restart the procedure.
59
Page 62
Maintenance
NOTICE

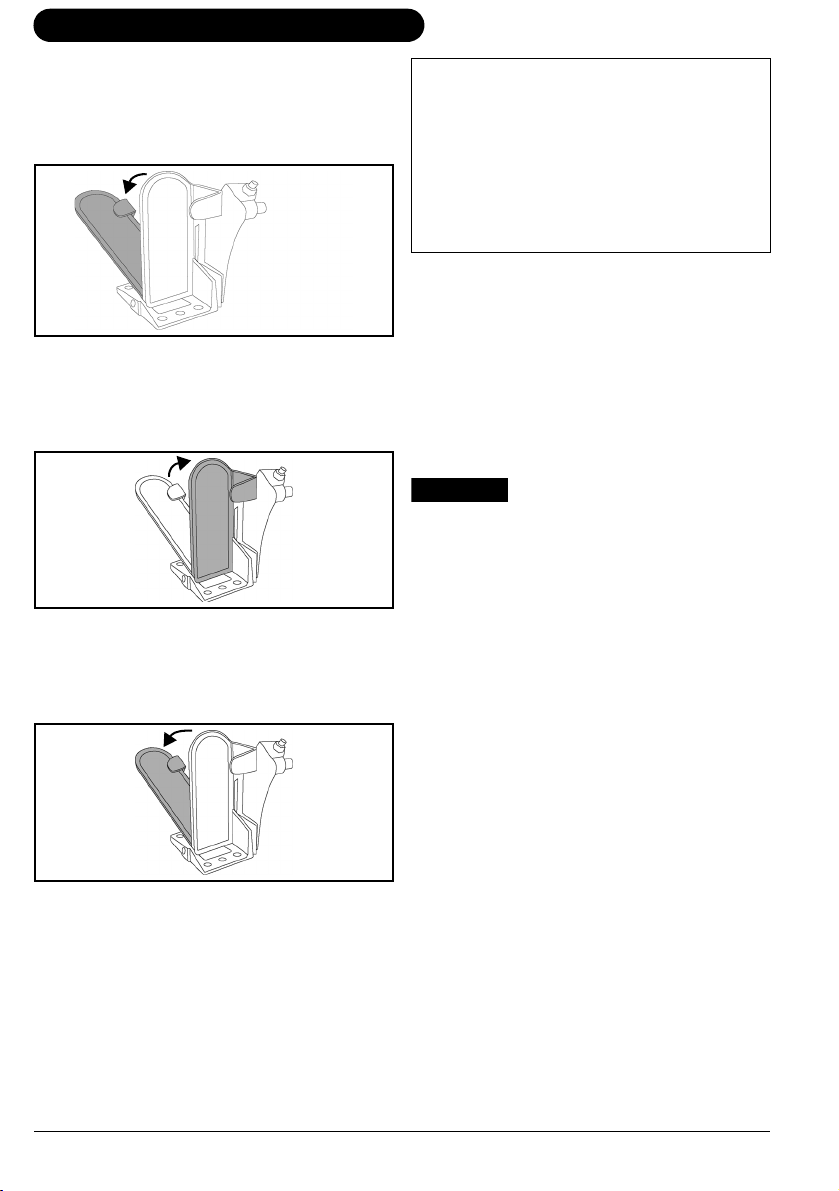

Remote Control Outboards with Foot
Throttle
1) Advance foot throttle to a position above
HALF THROTTLE. Start the outboard.
Outboard runs at slow idle speed.
Foot Throttle – Typical 006454
2) After outboard runs for about 15 seconds,
remove foot from foot throttle and allow
throttle to return to IDLE position. Outboard
continues to run at slow idle speed.
006466
3) After outboard runs for another 15 seconds, Advance foot throttle to a position
above HALF THROTTLE. Outboard will
accelerate to fast idle speed and fog itself.
Winterization is complete when outboard
shuts itself off.
• If the outboard DOES NOT shut itself
off, you may not have allowed enough running time at a throttle position.
• If the engine exceeds 3000 RPM, the outboard may have been shifted into gear.
In either event, immediately turn key switch
OFF and re-start the procedure.
After Winterization – All Outboards
1) After the outboard shuts itself off, turn key
switch OFF. (For tiller models, remove engine cut–off switch clip / key switch.) Do not
start the outboard again after winterization
is completed.
2) If winterizing on a trailer, turn off water
and detach garden hose. Grease propeller
shaft splines with recommended lubricant,
and re-install propeller.
When winterizing is finished,
leave the outboard in vertical position
long enough to completely drain the powerhead. If equipped, disconnect the
speedometer pickup at the upper connection and blow all water out of the hose
using air pressure of 25 psi or less.
Reconnect speedometer pickup after all
the water has been removed.
3) Top off oil tank.
Extra engine oil is used during the winterization procedure. Some excess oil may appear
on the skeg below the gearcase area. This is
normal.
Avoid potential oil stains by placing a shop
towel or suitable container under the propeller
and skeg for the duration of the storage.
4) Allow outboard to run until it shuts itself
OFF automatically (less than one minute).
60
006454
Page 63
STORAGE
NOTICE
PRE-SEASON CHECK
Remove your outboard from storage and prepare it for a season of reliable service by performing a general check and a few preventive
maintenance procedures.
Examine all loosened or removed hardware.
Replace damaged or missing parts with
Evinrude/Johnson Genuine Parts or equivalent. Check the gearcase for leakage. If leakage is evident, the gearcase seals should be
replaced. See your Dealer.
IMPORTANT: Gearcase lubricant is thick
and clear. Do not confuse this with engine oil,
which may normally appear on the skeg after
performing the long-term (winterization) storage procedure.
Anticorrosion anodes — Check condition.
Refer to Anti-Corrosion Anodes on page
54.
Battery — Charge fully. Refer to Battery Electric Start Models on page 66.
A WARNING
Do not use a booster battery and jumper
cables to start the outboard. Gasoline
fumes can cause explosion and fire,
resulting in property damage, personal
injury or death.
even for a brief start-up—without supply-
Do not run your outboard—
ing water to it.
Following Engine Starting / Stopping - Tiller
Models on page 24 or Engine Starting /
Stopping - Remote Control Models on page
30, start the outboard. If the outboard was
auto-winterized, it will emit a puff of smoke on
the first start of the season.
Let engine idle while you:
Observe running quality. If poor, refer to
Troubleshooting on page 62 or see your
Dealer.
Confirm water pump operation. Water must
flow from the water pump indicator in a steady
stream. If it does not, shut off the outboard
and investigate. Refer to Engine Overheat-
ing on page 43.
Stop the outboard and check the fuel system
for leaks.
A WARNING
Failure to check for fuel leakage could
allow a leak to go undetected, resulting
in fire or explosion.
Review your outboard’s warning system selftest routine. During your preseason start-up,
make sure the warning system self-tests
properly. If it does not, see your Dealer.
61
Page 64
Maintenance
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE
Starter motor will not operate • Shift handle not in NEUTRAL.
Engine will not start • Not following starting instructions. Refer to
Engine will not idle properly • Debris on propeller.
Engine loses power • S.A.F.E. protection mode activated. Refer to
Engine runs, but makes little or
no progress
Warning system activates • Refer to Engine Overheating on page 43.
• Fuse blown.
• Battery is dead.
Engine Starting / Stopping - Remote Control
Models
• Fuel system not primed after running out of fuel.
Refer to
• Fuel tank empty.
• Fuel hose kinked.
• Fuel system contaminated with water or dirt.
• Fuel filter obstructed.
• Spark plugs incorrect. Refer to
54.
• Spark plugs improperly gapped, carboned,
burned, or wet.
• S.A.F.E. protection mode activated. Refer to
Engine Monitoring on page 43.
• Spark plugs damaged or incorrect. Refer to
Service on page 54.
• Fuel system contaminated with water or dirt.
Engine Monitoring on page 43.
• Water intakes obstructed and cooling system not
operating correctly. Refer to
on page 43.
• Spark plugs damaged or incorrect. Refer to
Service on page 54.
• Fuel filter obstructed.
• Fuel system contaminated with water or dirt.
• Oiling system malfunction.
• Throttle needs to be reset, refer to Refer to
Operation on page 24.
• Propeller hub loose, slipping.
• Propeller blades bent or missing.
• Propeller shaft bent.
• Propeller debris.
on page 30.
Operation on page 24.
Service on page
Engine Overheating
62
Page 65
Product Information
63
Page 66
Product Information
NOTICE
2
3
1
INSTALLATION
A WARNING
Your outboard must not exceed the maximum horsepower indicated on the
boat’s capacity plate. Such overpowering can cause loss of control. Contact
your Dealer or the boat’s manufacturer if
your boat lacks a capacity plate.
Boats designed for remote-steered outboards might be overpowered by a tillersteered outboard of the maximum rated
horsepower. Ask your Dealer or boat
manufacturer if you are unsure about
your boat’s suitability.

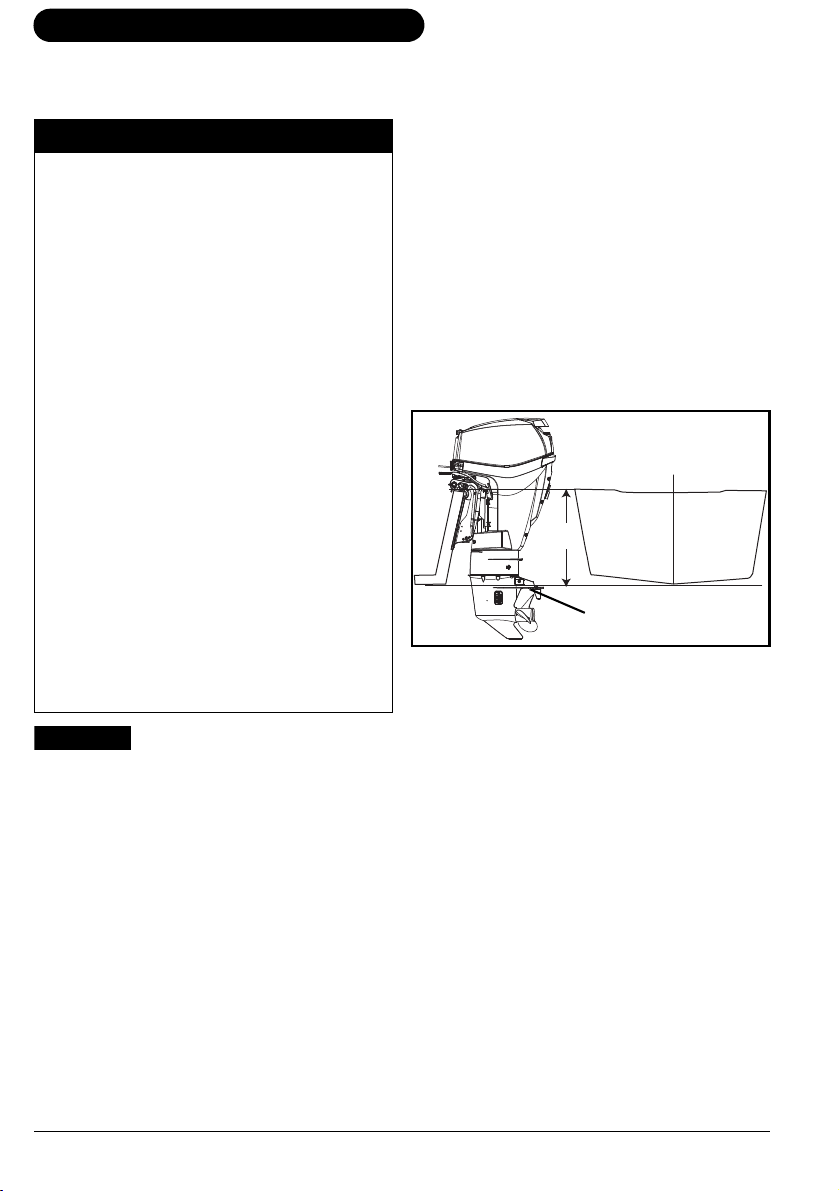

Incorrectly matched boat and outboard
transom heights can cause boat instability and loss of control. Refer to Transom
Height.
Prevent lateral movement and possible
outboard loss by using the mounting
hardware supplied or hardware of sufficient size, strength, and quality. Refer to
Installing the Outboard on page 65.
A mounting surface that is damaged or
too thin to support your outboard while
underway might fail during operation,
causing a loss of control. Be sure the
boat’s transom or mounting bracket is
structurally sound and between 1 5/8 in.
(41 mm) and 2 3/4 in. (70 mm) in thickness.
Use an appropriate hoist to lift
the engine. Refer to Specifications on
page 70 for engine weight.
TRANSOM HEIGHT
Make sure the transom height matches the
length of the outboard to be installed.
• A 19 to 21 in. (48.3 to 53.3 cm) transom
height uses a 20 in. (50.8 cm) shaft outboard.
• The shaft length of the outboard being installed should come close to matching the
transom height of the boat.
• Refer to Specifications on page 70 for
transom height.
Determine transom height by measuring from
the top edge of the transom, along the centerline.
1. Centerline
2. Antiventilation plate
3. Transom Height
Boat performance depends on outboard
mounting height.
Generally, the anti-ventilation plate of the
gearcase should align with the bottom of the
hull. Conventional V-hulls often perform well
with the anti-ventilation plate approximately 1
in. (25 mm) above the bottom of the hull.
The anti-ventilation plate should NOT extend
more than 2 in. (5 cm) BELOW the bottom of
the hull.
Test outboard and boat performance at different heights until the best performance is
achieved.
IMPORTANT: Be sure that outboard water
pressure is not adversely affected by the
mounting height of the outboard.
007039
64
Page 67
INSTALLING THE OUTBOARD
1
1
1
1
2
1
A WARNING
The outboard must be correctly installed.
Failure to correctly install the outboard
could result in serious injury, death or
property damage. We strongly recommend that your Dealer install your outboard to ensure proper installation.
IMPORTANT: Follow all directions carefully.
The outboard’s warranty will not cover product damage or failure that results from incorrect outboard installation.
Refer to Priming the Oil System on page 20.
Mounting DH, DR, DRL, HP and HT
Models
A WARNING
Even if equipped with clamp screws,
your outboard must be bolted to the boat
to prevent it from “working off the transom” during operation.
Center the outboard on the transom (or
mounting bracket) and tighten clamp screws
by hand.
Use the outboard stern brackets as a template for location and size of holes to drill in
the transom.
Use each stern bracket’s mounting holes as a
guide to drill 5/16 in. (7.9 mm) holes through
the transom. Drill two (2) mounting holes on
25 / 30 HP models and (4) mounting holes on
15 H O models
INSTALLATION
15 DH, HP & HT Models
1. Drilled transom holes
Install the mounting bolts through the stern
brackets and transom. Install large washers
and locknuts onto bolts and tighten securely.
1. Large washers
2. Bolts
007999
18961
A WARNING
When replacing bolts, screws, or other
fasteners, use Evinrude/Johnson parts
or parts of equivalent strength and material.
25 / 30 DR & DRL Models
1. Drilled transom holes
007040
65
Page 68
Product Information
NOTICE
BOAT-MOUNTED FUEL FILTERS
Boat-mounted fuel filters and water-separating fuel filter assemblies must meet the following requirements:
• Fuel flow – 0.4 in. Hg maximum pressure
drop at 20 gph (76 l/hr) flow.
• Filter area – 150 in.2 (1290 cm2) of filter
area.
The filter must be mounted to a rigid surface
above the full level of the fuel tank and accessible for servicing.
Fuel Filter Assembly, P/N 174176, meets all
requirements for a water-separating fuel filter.
Replace boat-mounted fuel filter annually.
BATTERY - ELECTRIC START
MODELS
Requirements
• 12-volt, heavy-duty, designated for "marine"
use;
• Vented/refillable or maintenance-free; and
• Rated according to the minimum requirements in Specifications on page 70.
Deep-cycle batteries are suitable IF they
meet or exceed the minimum CCA requirements.
Ask your Dealer about your outboard’s requirements before installing longer battery cables or a battery switch.
Installation
A WARNING
Read and understand the safety information supplied with your battery BEFORE
you begin installation.
clean and free of corrosion. Connect the
RED (+) cable to the positive (+) battery
post first. Connect the BLACK (–) cable to
the negative (–) battery post last.

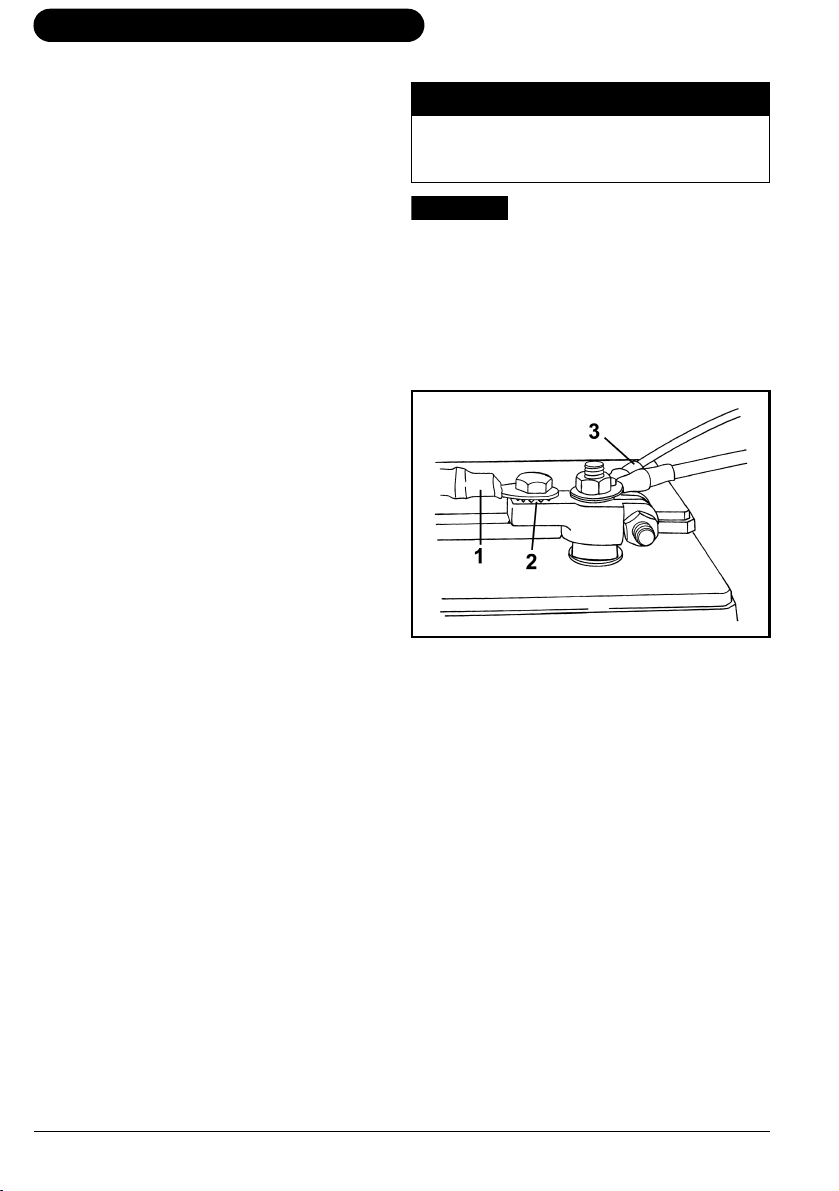

If you have marine battery posts, install each
main cable on the clamp adapter with a starwasher below it. Install all wires from accessories on the threaded portion of the post.
1. Main cable
2. Starwasher
3. Accessory wires
Make sure all components are
DR6495
66
Page 69
INSTALLATION
NOTICE
NOTICE
If you have automotive battery posts, place a
starwasher on the clamp adapter first, then
the main cable, and then the wires from the
accessories.
1. Main cable
2. Starwasher
3. Accessory wires
Tighten all connections securely and coat the
installation with Triple-Guard grease.
DR6496
A WARNING
Keep the battery connections clean,
tight, and insulated to prevent their
shorting or arcing and causing an explosion. If the battery mounting system
does not cover the connections, install
covers. Check often to see that connections stay clean and tight.
tery connections even if they came with
DO NOT use wing nuts on bat-
the battery. Wing nuts can loosen and
cause errant warning signals or electrical
system damage.
Service
Before servicing the battery or the outboard,
remove both battery cables from the battery,
battery negative (–) cable first. Keep metal
objects from contacting either battery post.
Service electrical components
only while the outboard is NOT running.
Be careful when identifying positive and
negative battery cables and posts.
A WARNING
Battery electrolyte is acidic — handle
with care. If electrolyte contacts any part
of the body, immediately flush with water
and seek medical attention.
Do not use a booster battery and jumper
cables to start the outboard. Gasoline
fumes can cause explosion and fire,
resulting in property damage, personal
injury or death.
DR5104
67
Page 70
Product Information
NOTICE
1
NOTICE
PROPELLER
Propeller Selection
To select the correct propeller for your boating
application, your boat and outboard MUST be
water tested. See your Dealer for assistance.
IMPORTANT: The correct propeller for your
boat, under normal load conditions, will allow
the engine to run near the midpoint of the
RPM operating range at full throttle. Refer to
Specifications on page 70.
A WARNING
When servicing the propeller, always
shift the outboard to NEUTRAL position,
turn the key switch OFF, and twist and
remove all spark plug wires so the outboard cannot be started accidentally.
Installation
Apply Triple-Guard grease to
the entire propeller shaft before installing
the propeller. At least annually, remove
the propeller and check for debris. Clean
the shaft and regrease it before reinstalling a propeller.
Slide thrust washer onto shaft with fishline
trap groove facing forward.
Slide spacer onto the shaft and engage the
propeller shaft splines.
007055
Wedge a block of wood between the propeller
blade and the anti-ventilation plate.
Install propeller nut and tighten to a torque of
120-144 in. lbs. (13.6-16.3 N·m).
IMPORTANT: If cotter pin holes in the propeller nut and propeller shaft are not aligned,
tighten the nut until they are in line. Do not
loosen.
Install new cotter pin and bend ends to secure.
Remove block of wood. Make sure engine is
in NEUTRAL; give propeller a spin. It must
turn freely.
1. Groove
Slide propeller onto shaft, engaging the
splines and seating it on the thrust bushing.
68
007054
Repair
If your propeller hits a solid object, the impact
is partially absorbed by the bushing in the hub
to help prevent damage to the outboard. A
strong impact can damage the hub and propeller blades. Damage to blades can cause
unusual and excessive vibration. Damage to
the hub can cause excessive engine RPM
with little forward movement.
Avoid or limit operation using
a damaged propeller. Carry a spare propeller.
Keep your propeller in good condition. Use a
file to smooth slight damage to blade edges.
See your Dealer for repair of serious damage.
Page 71
ADJUSTMENTS
1
1
1
Trim Tab
A WARNING
Improper trim tab adjustment can cause
difficult steering.
A propeller will generate steering torque when
the propeller shaft is not running parallel to
the water’s surface. The trim tab is adjustable
to compensate for this steering torque.
IMPORTANT: A single trim tab adjustment
will relieve steering effort under only one set
of speed, outboard angle and load conditions.
No single adjustment can relieve steering effort under all speed, outboard angle and load
conditions. If the boat pulls to the left or right
when its load is evenly distributed, adjust the
trim tab as follows:
With the outboard shut OFF, loosen the trim
tab screw. If the boat pulled to the right, move
the rear of the trim tab slightly to the right. If
the boat pulled to the left, move the rear of the
trim tab slightly to the left.
Friction
Throttle Friction — Adjust until a slight
drag is felt when accelerating or decelerating
only. DO NOT overtighten.
1. Throttle friction screw
Steering Friction — The steering friction
was set on your outboard at the factory. A
slight drag should be felt when turning the outboard with the steering handle.
If adjustment is necessary, turn the adjustment screw:
• Clockwise to increase friction; or
• Counterclockwise to decrease friction.
007041
1. Trim tab screw
Tighten the trim tab screw to a torque of 60-84
in. lbs. (7-9 N·m).
Test the boat and, if needed, repeat the procedure until steering effort is as equal as possible.
High outboard installations — The trim
tab might be above the water when the outboard is trimmed out. Steering effort might increase. Steering effort will be reduced if you
trim the outboard in and submerge the trim
tab.
007044
1. Steering friction lever
007042
A WARNING
DO NOT overtighten for “hands-off”
steering. Reduced steering control could
result.
69
Page 72
Product Information
SPECIFICATIONS
15 HO, 25, 30 Models
Displacement 35.1 cu. in. (576 cc)
Engine Type In-line, 2 Cylinder, Two-Cycle, E-TEC
Full Throttle Operating
Range
(1)
Power
Idle RPM in Neutral
Ignition Timing
Emission Control
System: per SAE
(2)
J1930
(2)
Fuel Requirements
Oil – Lubricant
– Capacity
Warning Signals Controlled by the outboard’s EMM
Battery, Minimum
Spark Plug
(3)
(2)
Fuses P/N 967545 – Refer to Fuse on page 55
Fuel Filter In-line Replaceable
Battery Charging 15-Amp, Fully Regulated
Gearcase – Lubricant
– Capacity
Power Trim/Tilt – Fluid
Capacity
Propeller Refer to Propeller Selection on page 68
Weight
Sound at Drivers Ear
(LpA) ICOMIA 39.94
Transom Height DR / DTE Models – 14.5 to 15 in (368 to 381 mm)
(1) Rated following the standards of ICOMIA 28.83, ISO 3046 and NMMA.
(2) Emission Control Information.
(3) Use a 800 CCA (1000 MCA) battery when operating in temperatures below 32°F (0°C).
(4) Use Evinrude/Johnson HPF Pro Gearcase Lubricant for high performance outboards and commercial
applications. Evinrude/Johnson HPF Pro Gearcase Lubricant delivers exceptional durability and
reliability and promotes long gearcase life in marine use.
15 HP (HO) – 5500 to 6100 RPM
25, 30 HP – 5500 to 6000 RPM
15 HP (HO) – 15 HP (11.2 kw) @ 5800 RPM
25 HP – 25 HP (18.4 kw) @ 5750 RPM
30 HP – 30 HP (22.1 kw) @ 5750 RPM
(2)
750 ± 50
Not Adjustable
ECM, E-TEC (Engine Control Module, E-TEC)
(2)
87 Pump Posted AKI (90 RON)
– Refer to Fuel Requirements on page 21
TC-W3 NMMA-certified oil or Evinrude/Johnson XD100 oil
– Refer to Oil Requirements on page 19
1.5 qt. (1.4 l)
640 CCA (800 MCA) 12 volt or
800 CCA (1000 MCA) 12 volt below 32°F (0°C)
Refer to ECI Label
(4)
Evinrude HPF XR
11 fl. oz. (325 ml)
11.7 fl. oz. (345 ml)
DR / DRL Models 150 /154 lbs. (68 / 70 Kg),
DEL / DTE / DTEL Models 160 / 162 /166 lbs. (73 / 74 / 75 Kg),
DPL / DHPL / HPSL Models 181 lbs. (82 Kg),
DTL / DHTL / HTSL / HPSX Models 187 lbs. (85 Kg),
HTSX Models 193 lbs. (88 Kg)
76.8 dB(A)
DRL / DTEL / DPL / DTL / DHTL / DHPL / HTSL / HPSL Models – 19.5
to 20 in (495 to 508 mm)
HTSX / HPSX Models – 24.5 to 25 in (622 to 635 mm)
70
Page 73
PRODUCT WARRANTY INFORMATION
Product Information
BOMBARDIER RECREATIONAL PRODUCTS LIMITED WARRANTY FOR 2012
EVINRUDE OUTBOARD ENGINES SOLD IN THE UNITED STATES AND CANADA
1. SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products* (“BRP”) warrants its 2012 Evinrude® outboard engines sold by authorized Evinrude dealers in the fifty United States and Canada (“Product”) from defects in material or
workmanship for the period and under the conditions described below.
2. EXCLUSIONS — The following are not warranted under any circumstances:
• Replacement of parts due to normal wear and tear;
• Routine maintenance parts and services including but not limited to: maintenance requirements, engine
and lower unit oil changes, lubrication, valve and linkage adjustments and replacement of fuses, zinc
anodes, thermostats, timing belts, starter motor bushings, trim motor brushes, filters, propellers, propeller bushings and spark plugs;
• Damage caused by improper or lack of installation, maintenance, winterization and/or storage, failure
to follow the procedures and recommendations in the Operator’s Guide;
• Damage resulting from removal of parts, improper repairs, service, maintenance, or modification, or use
of parts or accessories not manufactured or approved by BRP, which in its reasonable judgment, are
either incompatible with Product or adversely affect its operation, performance, or durability, or resulting
from repairs done by a person that is not an authorized Dealer;
• Damage caused by abuse, misuse, abnormal use, neglect, racing, improper operation or operation of
the Product in a manner inconsistent with the recommended operation described in the Operator’s
Guide;
• Damage resulting from external damage, accident, submersion, water ingestion, fire, theft, vandalism
or any act of God;
• Operation without proper fuel, oil or lubrication, or with fuels, oils or lubricants which are not suitable for
use with the Product (see the Operator’s Guide);
• Damage resulting from rust or corrosion;
• Damage caused from cooling system blockage by foreign material;
• Damage resulting from sand or debris in the water pump;
• Cosmetic or paint changes due to exposure to the elements.
This warranty will be voided in its entirety and rendered null and void where:
• Product has been altered or modified in such a way so as to adversely affect its operation, performance
or durability, or change its intended use, horsepower or emission levels; or
• Product is or has been used for racing at any point, even by a prior owner.
3. LIMITATIONS OF LIABILITY
ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE LIFE OF THE EXPRESS LIMITED WARRANTY.
ALL INCIDENTAL, CONSEQUENTIAL, DIRECT, INDIRECT OR OTHER DAMAGES OF ANY KIND
ARE EXCLUDED FROM COVERAGE UNDER THIS WARRANTY INCLUDING, BUT NOT LIMITED TO:
expense for gasoline, expense for transporting Product to and from Dealer, removal of Product from a
boat and reinstallation, mechanic’s travel time, in-and-out of water charges, slip or dock fees, trailering or
towing, storage, telephone, cell phone, fax or telegram charges, rental of a like or replacement Product or
boat during warranty services or down time, taxi, travel, lodging, loss of or damage to personal property,
inconvenience, cost of insurance coverage, loan payments, loss of time, loss of income, revenue or profits, or loss of enjoyment or use of Product.
SOME STATES, PROVINCES, OR JURISDICTIONS DO NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR OTHER EXCLUSIONS IDENTIFIED ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH MAY VARY FROM
STATE TO STATE, OR PROVINCE TO PROVINCE.
No distributor, Dealer or any other person is authorized to make any affirmation, representation or warranty regarding Product other than those contained in this limited warranty and, if made, shall not be enforceable against BRP. BRP reserves the right to modify this warranty at any time, being understood that
such modification will not alter the warranty conditions applicable to the Products sold while this warranty
is in effect.
71
Page 74
Product Information
4. WARRANTY COVERAGE PERIOD
This limited warranty will be in effect from the date of delivery to the first retail consumer or the date the
Product is first put to use, whichever occurs first, for a period of:
THIRTY-SIX (36) CONSECUTIVE MONTHS for private, recreational use; or
TWELVE (12) CONSECUTIVE MONTHS for commercial use, except that exhaust emission-related components are warranted for sixty (60) consecutive months or one hundred seventy five (175) hours of engine use, whichever occurs first; and evaporative emission related components are warranted for twentyfour (24) consecutive months. The Product is used commercially when it is used in connection with any
work or employment that generates income, during any part of the warranty period. The Product is also
used commercially when, at any point during the warranty period, it is installed on a boat that has commercial tags or is licensed for commercial use. Please see your Authorized Evinrude Outboard Engine
Dealer for emission-related service.
In cases where the delivery date is not established to BRP’s satisfaction, the date of sale will be used to
determine the warranty start date.
The repair or replacement of parts or the performance of service to Product under this warranty does not
extend the life of this limited warranty beyond its original expiration date. All Evinrude/Johnson® Genuine
Parts and accessories installed by an authorized dealer at the time of sale, including but not limited to propellers, bear the standard BRP parts and accessories one-year limited warranty.
California residents who purchased or warranty-registered a Product in California should refer to BRP’s
California Emissions Control Warranty Statement.
5. CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only on Evinrude outboard engines purchased as new and unused
from a dealer authorized to distribute Evinrude products in the country in which the sale occurred (“Dealer”), and then only after the BRP specified pre-delivery inspection process has been completed and documented by the purchaser and Dealer. Warranty coverage only becomes available upon proper
registration of Product by Dealer or owner.
Only the original purchaser and any subsequent owners who reside in the United States and Canada and
have purchased Product from a U.S. or Canadian Dealer are eligible for warranty registration and warranty coverage hereunder. Such limitations are necessary in order to allow BRP to protect the safety of its
products, its consumers, and the general public.
As outlined in the Operator’s Guide, timely routine required maintenance must be performed to maintain
warranty coverage. BRP may require proof of proper maintenance prior to authorizing warranty coverage.
6. WHAT TO DO TO OBTAIN WARRANTY COVERAGE
The registered owner must notify an authorized Dealer within two (2) days of the appearance of a defect.
Owner must bring Product, including any defective part therein, to Dealer promptly after the appearance
of the defect, and in any event, within the warranty period, and must provide Dealer with reasonable opportunity to repair the defect. The expenses of transporting Product to and from Dealer for warranty service are to be borne by the owner.
If the Product has not previously been registered, the owner may also be required to present proof of purchase to Dealer for warranty repairs. Owner is required to sign the repair/work order prior to the start of
the repair in order to validate the warranty repair.
All parts replaced under this warranty become the property of BRP.
7. WHAT BRP WILL DO
BRP’s obligations under this warranty are limited to, at its sole discretion, repairing or replacing parts of
Product found to be defective in material or workmanship, in the reasonable judgment of BRP. Such repair
or replacement of parts will be done without charge for parts and labor, at any authorized Dealer. BRP’s
responsibility is limited to making the required repairs or replacements of parts with new or BRP-certified
re-manufactured parts. No claim of breach of warranty shall be cause for cancellation or rescission of the
sale of Product to owner.
In the event that warranty service is required outside of the fifty United States or Canada, owner will bear
responsibility for any additional charges due to local practices and conditions, such as, but not limited to,
freight, insurance, taxes, license fees, import duties, and any and all other financial charges, including
those levied by governments, states, territories and their respective agencies.
BRP reserves the right to improve, modify or change Products from time to time without assuming any
obligation to modify Products previously manufactured.
72
Page 75
PRODUCT WARRANTY INFORMATION
8. TRANSFER
If the ownership of Product is transferred during the warranty coverage period, this warranty shall also be
transferred and be valid for the remaining coverage period provided that the former or new owner promptly
contacts BRP or Dealer and gives the name and address of the new owner.
9. CONSUMER ASSISTANCE
• In the event of a controversy or dispute in connection with this BRP limited warranty, BRP recommends
that you first try to resolve the issue at the dealership level by discussing the issue with Dealer’s service
manager or owner;
• If further assistance is required, please contact BRP US Inc. / Outboard Engines Division, After Sales
Support, P.O Box 597, Sturtevant, WI 53177, 1-847-689-7090.
BOMBARDIER RECREATIONAL PRODUCTS LIMITED WARRANTY FOR 2012
EVINRUDE OUTBOARD ENGINES SOLD OUTSIDE THE UNITED STATES AND
CANADA
For a copy of the Limited Warranty, see your Bombardier Recreational Products (“BRP”) distributor/dealer
authorized to distribute Evinrude products in the country in which the sale occurs.
If further assistance is required, please contact BRP US Inc. / Outboard Engines Division, After Sales
Support, P.O Box 597, Sturtevant, WI 53177, or the affiliate of BRP where the Product was registered for
warranty.
* Engines sold in Canada are distributed and serviced by Bombardier Recreational Products Inc.
Limited Warranty Revision US/CA March 2011
73
Page 76
Product Information
CALIFORNIA EMISSION CONTROL
WARRANTY STATEMENT
Your Evinrude E-TEC outboard has a special environmental label required by the California Air Resources Board. The
label has one, two, three, or four stars. A hangtag, provided with your outboard, describes the meaning of the star rating
system.

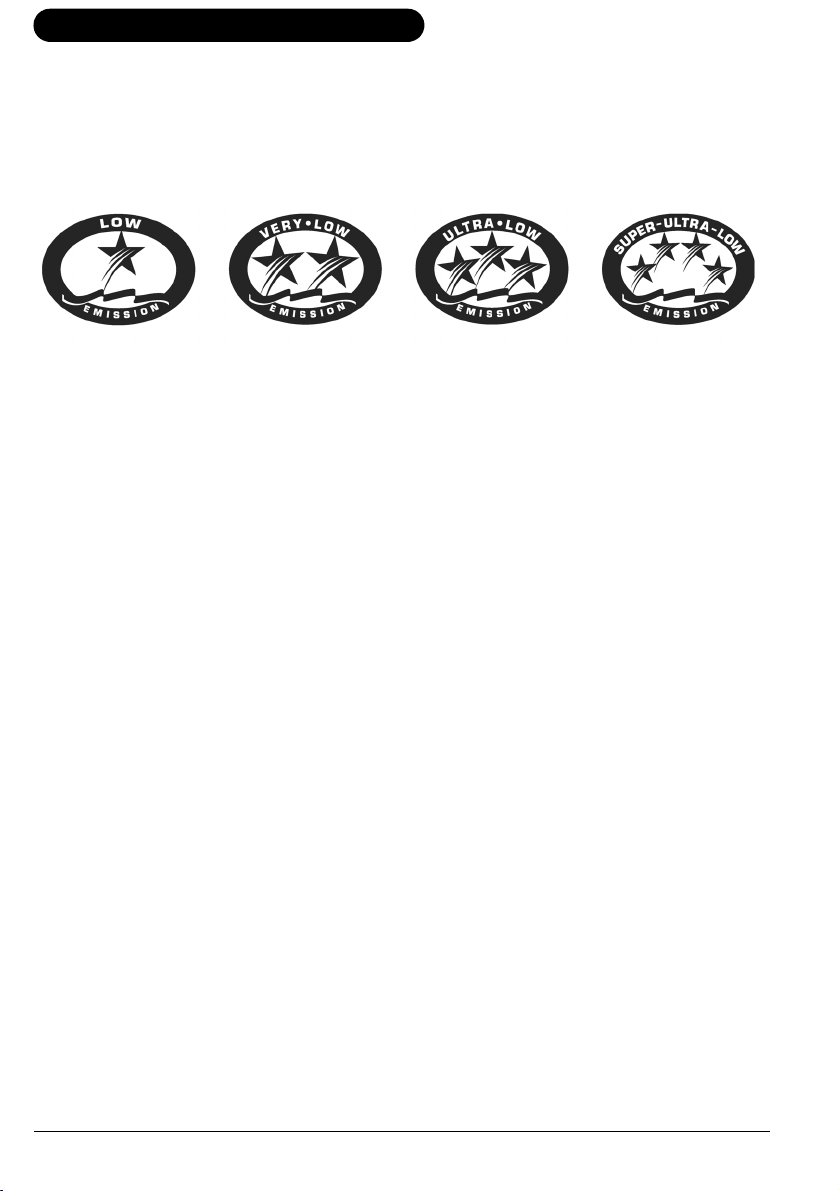

The Symbol for Cleaner Marine Engines:
Cleaner Air and Water
For a healthier lifestyle and environment.
Better Fuel Economy
Burns up to 30 to 40 percent less gas and oil than conventional carbureted two-stroke engines,
saving money and resources.
Longer Emission Warranty
Protects consumer for worry free operation.
One Star – Low Emission
The one-star label identifies Personal Watercraft, Outboard, Sterndrive and Inboard engines that meet the Air Resource
Board's Personal Watercraft and Outboard marine engine 2001 exhaust emission standards. Engines meeting these
standards have 75% lower emissions than conventional carbureted two-stroke engines. These engines are equivalent to
the U.S. EPA's 2006 standards for marine engines.
Two Stars – Very Low Emission
The two-star label identifies Personal Watercraft, Outboard, Sterndrive and Inboard engines that meet the Air Resources
Board's Personal Watercraft and Outboard marine engine 2004 exhaust emission standards. Engines meeting these
standards have 20% lower emissions than One Star – Low Emission engines.
Three Stars – Ultra Low Emission
The three-star label identifies engines that meet the Air Resources Board's Personal Watercraft and Outboard marine
engine 2008 exhaust emission standards or the Sterndrive and Inboard marine engine 2003 exhaust emission standards.
Engines meeting these standards have 65% lower emissions than One Star – Low Emission engines.
Four Stars – Super Ultra Low Emission
The four-star label identifies engines that meet the Air Resources Board's Sterndrive and Inboard marine engine 2009
exhaust emission standards. Personal Watercraft and Outboard marine engines may also comply with these standards.
Engines meeting these standards have 90% lower emission than One Star – Low Emission engines.
For more information: Cleaner Watercraft – Get the Facts
The Star Label Means Cleaner Marine Engines
1-800-END-SMOG
www.arb.ca.gov
74
Page 77
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR EMISSION CONTROL WARRANTY RIGHTS AND OBLIGATION
The California Air Resources Board and Bombardier Recreational Products (“BRP”) are pleased to explain the emission
control system warranty on your 2012 Evinrude E-TEC outboard. In California, new outboard engines must be designed,
built, and equipped to meet the State's stringent anti-smog standards. BRP must warrant the emission control system on
your outboard for the periods of time listed below provided there has been no abuse, neglect, or improper maintenance
of your outboard.
Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and
catalytic converter. Also included may be hoses, belts, connectors, and other emission-related assemblies.
Where a warrantable condition exists, BRP will repair your outboard at no cost to you including diagnosis, parts, and labor
provided that such work is performed by an authorized BRP dealer.
Manufacturer's Limited Warranty Coverage
This emission limited warranty covers Evinrude outboards certified and produced by BRP for sale in California, that are
originally sold in California to a California resident, or subsequently warranty-registered to a California resident. The BRP
U.S. and Canada limited warranty conditions for Evinrude outboards are still applicable to these models with the neces-
sary modifications.
Select emission control parts of your Evinrude E-TEC outboard are warranted from the date of purchase by the first retail
consumer or the date the product is first put to use, whichever occurs first, for a period of: 4 years, or for 250 hours of
use, whichever occurs first.
However, warranty coverage based on the hourly period is only permitted for outboards equipped with the appropriate
hour meters or their equivalent. If any emission-related part on your engine is defective under warranty, the part will be
repaired or replaced by BRP.
Parts covered are:
1. Electrical System 4. Air Induction System
A. EMM (Engine Management Module) A. Reed Valves
B. Spark Plugs and Wires B. Throttle Body Assembly
C. Ignition Coils C. Intake Manifold
D. Wiring Harness
5. Oil System
2. Exhaust System
A. Inner Exhaust Housing B. Oil Lines, Fittings, and Clamps
B. Adaptor (Exhaust Manifold)
C. Megaphone (Inner Exhaust)
3. Fuel System
A. Fuel Lift Pump C. Throttle Position Sensor
B. Fuel Supply Pump D. Water Temperature Sensor
C. Fuel Injectors E. Thermostat
D. Vapor Separator
E. Fuel Lines, Fittings, and Clamps
The emission warranty covers damage to other engine components that is caused by the failure of a warranted part.
The BRP Operator's Guide provided contains written instructions for the proper maintenance and use of your outboard.
All emission warranty parts are warranted by BRP for the entire warranty period of the outboard, unless the part is scheduled for replacement as required maintenance in the Operator's Guide.
Emission warranty parts that are scheduled for replacement, as required maintenance, are warranted by BRP for the period of time before the first scheduled replacement date for that part. Emission warranty parts that are scheduled for regular inspection but not regular replacement are warranted by BRP for the entire warranty period of the outboard. Any
emission warranty part repaired or replaced under the terms of this warranty statement is warranted by BRP for the remainder of the warranty period of the original part. All parts replaced under this limited warranty become the property of
BRP.
Maintenance receipts and records should be transferred to each subsequent owner of the outboard.
Owner's Warranty Responsibilities
As the outboard owner, you are responsible for the performance of the required maintenance listed in your Operator's
Guide. BRP recommends that you retain all receipts covering maintenance on your outboard, but BRP cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.
As the outboard owner, you should however be aware that BRP may deny you warranty coverage if your outboard or a
part has failed due to abuse, neglect, improper maintenance, or unapproved modifications.
You are responsible for presenting your outboard to an authorized BRP dealer as soon as a problem exists. The warranty
repairs will be completed in a reasonable amount of time, not to exceed 30 days.
For any questions regarding your warranty rights and responsibilities or for the name and location of the nearest authorized BRP dealer, contact BRP US Inc. / Outboard Engines Division, After Sales Support, P.O Box 597, Sturtevant, WI
53177, 1-847-689-7090 or visit www.evinrude.com.
A. Oil Injector
6. Sensors
A. Air Temperature Sensor
B. Crank Position Sensor
7. Gaskets
A. All Emission Component Gaskets
75
Page 78
Product Information
PRODUCT WARRANTY INFORMATION
BRP LIMITED WARRANTY FOR 2012 EVINRUDE OUTBOARD ENGINES USED
IN EUROPEAN UNION MEMBER STATES, TURKEY, AUSTRALIA, NEW
ZEALAND AND JAPAN
1. SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. (“BRP”) warrants its Evinrude® outboard engines that are sold by
authorized Evinrude distributors / dealers and exclusively used, during the warranty period, in European
Union member states, Turkey, Australia, New Zealand or Japan ("Product") from defects in material or
workmanship for the period and under the conditions described below. For the purpose of this limited warranty.
All Evinrude/Johnson® Genuine Parts and accessories, including but not limited to propellers, gauges, oil
tanks, remote controls, wiring and key switches that are installed by an authorized distributor / dealer at
the time of sale, whether or not shipped with Product, bear the standard BRP limited warranty for
Evinrude/Johnson Genuine Parts and accessories. See your authorized distributor / dealer for a full copy
of such limited warranty.
2. EXCLUSIONS -The following are not warranted under any circumstances:
• Replacement of parts due to normal wear and tear;
• Routine maintenance parts and services including but not limited to: maintenance requirements, lower
unit oil change, lubrication, linkage adjustments and replacement of fuses, zinc anodes, thermostats,
starter motor bushings, trim motor brushes, filters and spark plugs;
• Damage caused by improper installation or lack of maintenance, winterization and/or storage, failure to
follow the procedures and recommendations in the Operator's Guide;
• Damage resulting from removal of parts, improper repairs, service, maintenance, or modification, or use
of parts or accessories not manufactured or approved by BRP, which in its reasonable judgment, are
either incompatible with Product or adversely affect its operation, performance, or durability, or resulting
from repairs done by a person that is not an authorized Distributor / Dealer;
• Damage caused by abuse, misuse, abnormal use, neglect, racing, improper operation or operation of
the Product in a manner inconsistent with the recommended operation described in the Operator's
Guide;
• Damage resulting from accident, submersion, water ingestion, fire, theft, vandalism or any act of God;
• Operation with fuels, oils or lubricants which are not suitable for use with the Product (see the Operator's
Guide);
• Damage resulting from rust or corrosion;
• Damage caused from cooling system blockage by foreign material;
• Damage resulting from sand or debris in the water pump; or
• Cosmetic or paint changes due to exposure to the elements.
This warranty will be voided in its entirety and rendered null and void where:
• Product has been altered or modified in such a way so as to adversely affect its operation, performance
or durability, or has been altered or modified to change its intended use; or
• Product is or has been used for racing or any other competitive activity, at any point, even by a prior
owner.
3. LIMITATIONS OF LIABILITY
ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO THE LIFE OF THE EXPRESS LIMITED WARRANTY.
ALL INCIDENTAL, CONSEQUENTIAL, DIRECT, INDIRECT OR OTHER DAMAGES OF ANY KIND ARE
EXCLUDED FROM COVERAGE UNDER THIS WARRANTY INCLUDING, BUT NOT LIMITED TO:
expense for gasoline, expense for transporting Product to and from Distributor / Dealer, removal of
Product from a boat and reinstallation, mechanic's travel time, in-and-out of water charges, slip or dock
fees, trailering or towing, storage, telephone, cell phone, fax or telegram charges, rental of a like or
replacement Product or boat during warranty services or down time, taxi, travel, lodging, loss of or
damage to personal property, inconvenience, cost of insurance coverage, loan payments, loss of time,
loss of income, revenue or profits, or loss of enjoyment or use of Product.
76
Revision 1
Page 79
PRODUCT WARRANTY INFORMATION
SOME COUNTRIES, PROVINCES, OR JURISDICTIONS DO NOT ALLOW FOR THE DISCLAIMERS,
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR OTHER EXCLUSIONS
IDENTIFIED ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH MAY VARY FROM
COUNTRY TO COUNTRY, OR PROVINCE TO PROVINCE.
Neither the Distributor any BRP Distributor / Dealer nor any other person has been authorized to make
any affirmation, representation or warranty regarding Product other than those contained in this limited
warranty and, if made, shall not be enforceable against BRP.
BRP reserves the right to modify this warranty at any time, being understood that such modification will
not alter the warranty conditions applicable to the Products sold while this warranty is in effect.
4. WARRANTY COVERAGE PERIOD
This limited warranty will be in effect from the date of purchase by the first retail consumer or the date the
Product is first put to use, whichever occurs first, for a period of:
36 CONSECUTIVE MONTHS for private, recreational use; or
12 CONSECUTIVE MONTHS OR 750 HOURS OF OPERATION as determined by Product's Engine
Management Module (EMM), whichever occurs first, for commercial use. The Product is used commercially when it is used in connection with any work or employment that generates income, during any part
of the warranty period. The Product is also used commercially when, at any point during the warranty period, it is installed on a boat that has commercial tags or is licensed for commercial use.
For products sold in Australia: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The repair or replacement of parts or the performance of service to Product under this warranty does not
extend the life of this limited warranty beyond its original expiration date.
5. CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following conditions has been fulfilled:
a. Evinrude outboard engines must be purchased as new and unused by its first owner from a BRP dis-
tributor / dealer authorized to distribute Evinrude products in the country in which the sale occurred (hereinafter "Distributor / Dealer"),
b. and then only after the BRP specified pre delivery inspection process has been completed and documented by the purchaser and Distributor / Dealer.
c. The product must have undergone proper registration of Product by an authorized BRP Distributor /
Dealer.
d. The Evinrude products must be purchased in the country or union of countries in which the purchaser
resides.
e. Routine maintenance outlined in the operator's guide must be timely performed in order to make warranty coverage contingent upon proof of proper maintenance.
BRP will not honour this limited warranty to any private use owner or commercial use owner if the preceding conditions have not been met. Such limitations are necessary in order to allow BRP to protect the safety of its products, its consumers, and the general public.
As outlined in the Operator's Guide, timely routine required maintenance must be performed to maintain
warranty coverage. BRP may require proof of proper maintenance prior to authorizing warranty coverage.
6. WHAT TO DO TO OBTAIN WARRANTY COVERAGE
Registered owner ("Owner") must notify within 2 months an authorized Distributor / Dealer of the appearance of a defect. Owner must bring Product, including any defective part therein, to Distributor / Dealer
promptly after the appearance of the defect, and in any event, within the warranty period, and must provide
Distributor / Dealer with reasonable opportunity to repair the defect. The expenses of transporting Product
to and from Distributor / Dealer for warranty service are to be borne by the Owner.
The Owner must also present proof of purchase to the authorized BRP Distributor / Dealer for warranty
repairs. Owner is required to sign the repair/work order prior to the start of the repair in order to validate
the warranty repair.
All parts replaced under this warranty become the property of BRP.
Note that the notification period is subject to the applicable national or local legislation in your country.
Revision 1
77
Page 80
Product Information
7. WHAT BRP WILL DO
BRP's obligations under this warranty are limited to, at its sole discretion, repairing or replacing parts of
Product found to be defective in material or workmanship, in the reasonable judgment of BRP. Such repair
or replacement of parts will be done without charge for parts and labour, at any authorized Distributor /
Dealer, under the conditions described above.
BRP's responsibility is limited to making the required repairs or replacements of parts. No claim of breach
of warranty shall be cause for cancellation or rescission of the sale of Product to Owner.
In the event that warranty service is required outside of country of original sale, Owner will bear responsibility for any additional charges due to local practices and conditions, such as, but not limited to, freight,
insurance, taxes, license fees, import duties, and any and all other financial charges, including those levied by governments, states, territories and their respective agencies.
BRP reserves the right to improve, modify or change Products from time to time without assuming any
obligation to modify Products previously manufactured.
8. TRANSFER
If the ownership of Product is transferred during the warranty coverage period, this warranty shall also be
transferred and be valid for the remaining coverage period provided that the former or new Owner promptly contacts BRP or Distributor / Dealer and gives the name and address of the new Owner.
9. CONSUMER ASSISTANCE
• In the event of a controversy or dispute in connection with this BRP limited warranty, BRP recommends
that you first try to resolve the issue at the distributorship / dealership level by discussing the issue with
Distributor's / Dealer's service manager or owner;
• You can also locate A BRP office or distributor through our website at www.brp.com.
• If further assistance is required, please contact the Customer Support Services of a BRP affiliate at one
of the following numbers, depending on your location:
Australia and New Zealand - Telephone 612-9794-6600, Fax 612-9794-6697
Europe, Turkey, Cyprus - Telephone (41) 21 318 78 00, Fax (41) 21 318 78 61
Japan - Telephone (65) 622-767-55, Fax (65) 622-629-32
Limited Warranty Revision EU January 2012
78
Revision 1
Page 81
PRODUCT WARRANTY INFORMATION
BRP LIMITED WARRANTY FOR 2012 EVINRUDE OUTBOARD ENGINES USED
IN AFRICA, MIDDLE EAST, LATIN AMERICA, PACIFIC ISLANDS, ASIA,
ALBANIA, FORMER YUGOSLAVIAN REPUBLIC OF MACEDONIA, SERBIA AND
MONTENEGRO, BOSNIA AND HERZEGOVINA AND THE COMMONWEALTH
OF INDEPENDENT STATES
1. SCOPE OF THE LIMITED WARRANTY
Bombardier Recreational Products Inc. ("BRP") warrants its Evinrude® outboard engines ("Product") from
defects in material or workmanship for the period and under the conditions described below, when they
are sold by authorized Evinrude distributors / dealers and used, at any point during the warranty period,
in the following territories:
•Africa,
• Middle East (excluding Turkey),
• Latin America (including but not limited to the Caribbean Islands, Bahamas and Bermuda),
• Pacific Islands (excluding Hawaii),
• Asia (excluding Japan),
• Albania, Former Yugoslavian Republic of Macedonia, Serbia and Montenegro,
• Bosnia and Herzegovina, or
• Commonwealth of Independent States (former Soviet Union) (excluding Lithuania, Latvia and Estonia)
All Evinrude/Johnson® Genuine Parts and accessories, including but not limited to propellers, gauges, oil
tanks, remote controls, wiring and key switches that are installed by an authorized distributor / dealer at
the time of sale, whether or not shipped with Product, bear the standard BRP limited warranty for
Evinrude/Johnson Genuine Parts and accessories. See your authorized distributor / dealer for a full copy
of such limited warranty.
2. EXCLUSIONS - ARE NOT WARRANTED:
The following are not warranted under any circumstances:
• Replacement of parts due to normal wear and tear;
• Routine maintenance parts and services including but not limited to: maintenance requirements, lower
unit oil change, lubrication, linkage adjustments and replacement of fuses, zinc anodes, thermostats,
starter motor bushings, trim motor brushes, filters and spark plugs;
• Damage caused by improper installation or lack of maintenance, winterization and/or storage, failure to
follow the procedures and recommendations in the Operator's Guide;
• Damage resulting from removal of parts, improper repairs, service, maintenance, or modification, or use
of parts or accessories not manufactured or approved by BRP, which in its reasonable judgment, are
either incompatible with Product or adversely affect its operation, performance, or durability, or resulting
from repairs done by a person that is not an authorized Distributor / Dealer;
• Damage caused by abuse, misuse, abnormal use, neglect, racing, improper operation or operation of
the Product in a manner inconsistent with the recommended operation described in the Operator's
Guide;
• Damage resulting from accident, submersion, water ingestion, fire, theft, vandalism or any act of God;
• Operation with fuels, oils or lubricants which are not suitable for use with the Product (see the Operator's
Guide);
• Damage resulting from rust or corrosion;
• Damage caused from cooling system blockage by foreign material;
• Damage resulting from sand or debris in the water pump; or
• Cosmetic or paint changes due to exposure to the elements.
This warranty will be voided in its entirety and rendered null and void where:
• Product has been altered or modified in such a way so as to adversely affect its operation, performance
or durability, or has been altered or modified to change its intended use; or
• Product is or has been used for racing or any other competitive activity, at any point, even by a prior
owner.
79
Page 82
Product Information
3. LIMITATIONS OF LIABILITY
THIS WARRANTY IS EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT THEY
CANNOT BE DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE LIFE
OF THE EXPRESS LIMITED WARRANTY.
ALL INCIDENTAL, CONSEQUENTIAL, DIRECT, INDIRECT OR OTHER DAMAGES OF ANY KIND ARE
EXCLUDED FROM COVERAGE UNDER THIS WARRANTY INCLUDING, BUT NOT LIMITED TO: expense for gasoline, expense for transporting Product to and from Distributor / Dealer, removal of Product
from a boat and reinstallation, mechanic's travel time, in-and-out of water charges, slip or dock fees, trailering or towing, storage, telephone, cell phone, fax or telegram charges, rental of a like or replacement
Product or boat during warranty services or down time, taxi, travel, lodging, loss of or damage to personal
property, inconvenience, cost of insurance coverage, loan payments, loss of time, loss of income, revenue
or profits, or loss of enjoyment or use of Product.
SOME STATES/PROVINCES DO NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH MAY
VARY FROM STATE TO STATE, OR PROVINCE TO PROVINCE.
Neither the Distributor / Dealer, any BRP dealer nor any other person is authorized to make any affirmation, representation or warranty regarding Product other than those contained in this limited warranty and,
if made, shall not be enforceable against BRP.
BRP reserves the right to modify this warranty at any time, being understood that such modification will
not alter the warranty conditions applicable to the Products sold while this warranty is in effect.
4. WARRANTY COVERAGE PERIOD
This limited warranty will be in effect from the date of purchase by the first retail consumer or the date the
Product is first put to use, whichever occurs first, for a period of:
36 CONSECUTIVE MONTHS OR 750 HOURS OF OPERATION as determined by Product's Engine
Management Module (EMM), whichever occurs first, for private, recreational use; or
12 CONSECUTIVE MONTHS OR 750 HOURS OF OPERATION as determined by Product's Engine
Management Module (EMM), whichever occurs first, for commercial use. The Product is used commercially when it is used in connection with any work or employment that generates income, during any part
of the warranty period. The Product is also used commercially when, at any point during the warranty period, it is installed on a boat that has commercial tags or is licensed for commercial use.
The repair or replacement of parts or the performance of service to Product under this warranty does not
extend the life of this limited warranty beyond its original expiration date.
5. CONDITIONS TO HAVE WARRANTY COVERAGE
This warranty coverage is available only if each of the following conditions has been fulfilled:
a. The Evinrude outboard engines must be purchased as new and unused by its first owner from a BRP
distributor / dealer authorized to distribute Evinrude products in the country in which the sale occurred
("Distributor /Dealer"),
b. The BRP specified pre delivery inspection process must be completed and documented by the purchaser and Distributor / Dealer.
c. The product must have undergone proper registration by an authorized BRP distributor/dealer.
d. The Evinrude outboard engines must be purchased in the country or union of countries in which the
purchaser resides.
e. Product routine maintenance outlined in the Operator's Guide must be timely performed in order to
maintain warranty coverage. BRP reserves the right to make warranty coverage contingent upon proof of
proper maintenance.
BRP will not honour this limited warranty to any private owner use owner or commercial use owner if the
preceding conditions have not been met. Such limitations are necessary in order to allow BRP to protect
the safety of its products, its consumers, and the general public.
6. WHAT TO DO TO OBTAIN WARRANTY COVERAGE
Registered owner ("Owner") must notify a servicing BRP authorized Distributor / Dealer within two (2) days
of the appearance of a defect. Owner must bring Product, including any defective part therein, to the authorized BRP Distributor / Dealer promptly after the appearance of the defect, and in any event, within the
80
Page 83
PRODUCT WARRANTY INFORMATION
warranty period, and must provide BRP Distributor / Dealer with reasonable opportunity to repair the defect. The expenses of transporting Product to and from Distributor/ Dealer for warranty service are to be
borne by the Owner.
The Owner must also present proof of purchase to the authorized BRP Distributor / Dealer for warranty
repairs and must sign the repair/work order prior to the start of the repair in order to validate the warranty
repair.
All parts replaced under this warranty become the property of BRP.
7. WHAT BRP WILL DO
BRP's obligations under this warranty are limited to, at its sole discretion, repairing or replacing parts of
Product found to be defective in material or workmanship, in the reasonable judgment of BRP. Such repair
or replacement of parts will be done without charge for parts and labour, at any authorized Distributor /
Dealer. BRP's responsibility is limited to making the required repairs or replacements of parts. No claim
of breach of warranty shall be cause for cancellation or rescission of the sale of Product to Owner.
In the event that warranty service is required outside of country of original sale, Owner will bear responsibility for any additional charges due to local practices and conditions, such as, but not limited to, freight,
insurance, taxes, license fees, import duties, and any and all other financial charges, including those levied by governments, states, territories and their respective agencies.
BRP reserves the right to improve, modify or change Products from time to time without assuming any
obligation to modify Products previously manufactured.
8. TRANSFER
If the ownership of Product is transferred during the warranty coverage period, this warranty shall also be
transferred and be valid for the remaining coverage period provided that the former or new Owner promptly contacts BRP or Distributor / Dealer and gives the name and address of the new Owner.
9. CONSUMER ASSISTANCE
• In the event of a controversy or dispute in connection with this BRP limited warranty, BRP recommends
that you first try to resolve the issue at the authorized BRP distributorship / dealership level by discussing the issue with Distributor's / Dealer's service manager or owner;
• You can also locate A BRP office or distributor through our website at www.brp.com.
• If further assistance is required, please contact the Customer Support Services of a BRP affiliate at one
of the following numbers, depending on your location:
Asia - Telephone (65) 622-767-55, Fax (65) 622-629-32
Africa, Middle East, Albania, Former Yugoslavian Republic of Macedonia, Serbia and Montenegro, Bosnia
and Herzegovina and Commonwealth of Independent States (former Soviet Union)
-Telephone (41) 21 318 78 00, Fax (41) 21 318 78 61
Latin America (excluding Brazil) - Telephone 954-846-1442, Fax 954-846-1478
Brazil - Telephone 55 (19) 3246-2100, Fax 55 (19) 3246-3800
Pacific Islands - Telephone 612-9794-6600, Fax 612-9794-6697
Limited Warranty Revision Asia/Latin Am March 2011
81
Page 84
Product Information
Readiness Test
The Operator’s Readiness Test....
1. Did you read this Guide from front cover to rear cover?
2. Are you ready to take responsibility for the safe operation of your boat and outboard?
3. Do you understand all the safety precautions and instructions contained in this Guide?
4. Do you understand that this Guide contains essential information to help prevent personal
injury and damage to equipment?
5. Are you ready to follow the recommendations in this Guide and take a boating safety
course before you operate your boat and outboard?
6. Do you know who to ask if you have any questions about your boat and outboard?
7. Do you know your local marine traffic laws?
8. Do you understand that human error can be caused by carelessness, fatigue, overload,
preoccupation, unfamiliarity of operator with the product, drugs and alcohol, just to name
a few?
A WARNING
It is impossible for this Guide to cover every hazardous situation you may encounter; however, your understanding of and adherence to essential information contained in this Guide will build good judgment when boating. Always be alert and
careful: a good foundation for safety.
82
Page 85
FREQUENTLY ASKED QUESTIONS
No dealer-scheduled maintenance for the first three years of normal recreational use? Really?
• Yes! BRP knows you want to spend your time out on the water, not servicing your Evinrude
E-TEC outboard. There are no valves to adjust, belts to service, chains to replace, or oil to
change. We do recommend pre-launch inspections of your outboard at each use and at regular intervals. Salt water applications require minimal additional inspections and lubrication.
What fuel octane is recommended for my Evinrude E-TEC outboard?
• Evinrude E-TEC outboards require a minimum octane of 87 (U.S.). Use of higher octane fuels is not harmful, but also not necessary.
What kind of oil does my Evinrude E-TEC outboard require?
• Any TC-W3RL oil may be used. The outboard can be programmed by your Dealer to run on
Evinrude/Johnson XD100 oil for lower oil consumption and reduced operating cost. Refer to
Filling the Oil Tank on page 20; see also Oil Requirements on page 19.
Do I need to mix oil into my fuel?
•No. Evinrude E-TEC outboards do not require any mixing of oil and fuel.
Where should I take my Evinrude E-TEC outboard for service?
• For repairs covered under warranty, you must take your Evinrude E-TEC outboard to an authorized dealer. BRP-approved dealers and distributors have received the necessary training to properly service your outboard. Contact BRP for an authorized Evinrude E-TEC dealer
near you.
Can I order replacement parts and accessories for my Evinrude E-TEC outboard?
• Yes. When replacement parts are required, use Evinrude/Johnson Genuine Parts or parts
with equivalent characteristics, including type, strength, and material. Using substandard
parts could result in injury or product malfunction. Your dealer can order the parts and accessories you desire.
Do I need to complete any paperwork when I move or sell my Evinrude E-TEC outboard?
• Yes. In order to maintain contact with you or the new Evinrude E-TEC owner, BRP requests
you complete the form outlining Change of Address / Change of Ownership on page 85.
This will ensure you or the new owner is made aware of any product announcements and
keep the warranty coverage up-to-date.
What do I need to do before storing my Evinrude E-TEC outboard for the winter?
• Winterization is minimal. Refer to Storage on page 57 for step-by-step instructions to store
your Evinrude E-TEC outboard for the off-season.
Page 86
Page 87
CHANGE OF ADDRESS / CHANGE OF OWNERSHIP
Change of Address Change of Ownership
Model number
Serial Number
Old Address / Previous Owner
Last name
First name M.I.
Address
City State
Zip code Country
Phone number
Signature Date
New Address / New Owner
Type of Use Recreational Commercial Government
Last name
First name M.I.
Address
City State
Zip code Country
Phone number
Signature Date
Dealer Information
Dealer name
Dealer number
Phone number
Contact name
In the U.S. or Canada, mail completed form to: BRP US Inc. / Outboard Engines Division
After Sales Support
P.O Box 597
Sturtevant, WI 53177
If your address has changed or if there has been a change of ownership, be sure to fill out and
mail the form provided on this page.
This notification is necessary for your own safety even after expiration of the original warranty,
since BRP will be in a position to contact you if correction to your outboard is required. Outside
the U.S. and Canada, this card should be sent to the Bombardier Recreational Products division where the outboard was registered. Please contact your Dealer or Distributor.
Page 88
Page 89
CONFIRMATION OF RECEIPT
Your Dealer
Name:
Address:
Upon delivery of your new Evinrude/Johnson outboard, complete and sign the form below.
Your Dealer will take receipt of the form for their records.
Receipt
Name:
Address:
Owner of Model No:
Serial No:
(To be completed by customer or selling Dealer)
The Dealer named on this document has instructed me on the operation, maintenance, safety
features and warranty policy, all of which I understand and agree to be bound with. I am also satisfied
with the predelivery set-up and inspection of my Evinrude/Johnson outboard. I have also received a
copy of the Operator’s Guide.
Signature:
Date:
Page 90
