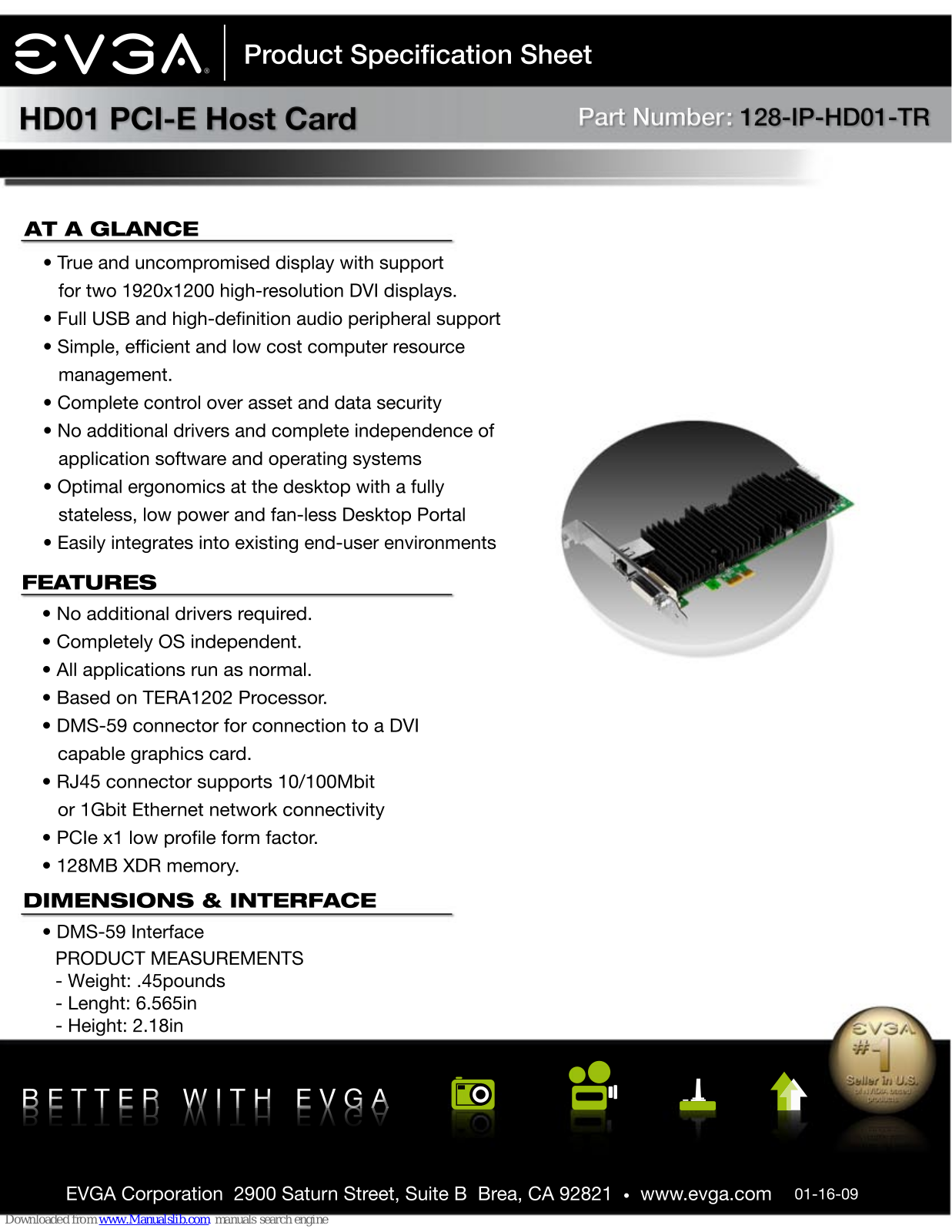

Product Specification Sheet
HD01 PCI-E Host Card
AT A GLANCE
• True and uncompromised display with support
for two 1920x1200 high-resolution DVI displays.
• Full USB and high-definition audio peripheral support
• Simple, efficient and low cost computer resource
management.
• Complete control over asset and data security
• No additional drivers and complete independence of• No additional drivers and complete independence of
application software and operating systems
• Optimal ergonomics at the desktop with a fully
stateless, low power and fan-less Desktop Portal
• Easily integrates into existing end-user environments
Part Number: 128-IP-HD01-TR
FEATURES
• No additional drivers required.
• Completely OS independent.
• All applications run as normal.
• Based on TERA1202 Processor.
• DMS-59 connector for connection to a DVI
capable graphics card.
• RJ45 connector supports 10/100Mbit• RJ45 connector supports 10/100Mbit
or 1Gbit Ethernet network connectivity
• PCIe x1 low profile form factor.
• 128MB XDR memory.
DIM ENSIONS & INTERFACE
• DMS-59 Interface
PRODUCT MEASUREMENTS
- Weight: .45pounds
- Lenght: 6.565in
- Height: 2.18in
BETTER W ITH EVGA
BETTER W ITH EVGA
BETTER W ITH EVGA
EVGA Corporation 2900 Saturn Street, Suite B Brea, CA 92821 • www.evga.com
01-16-09
