User's Guide Before You Begin
Chapter 1 Before You Begin
Please read this section before you start using your computer.
1.1 Checking What You Received
Your notebook package should contain the following items:
• The Notebook.
• AC Adapter.
• AC Power Cord.
• CD Disc (includes drivers and
User’s Guide).
• Battery Pack.
• Wireless LAN Mini-PCI Module
(optional).
• TV Tuner Mini-PCI Module
(optional).
• External TV Antenna (optional).
• Remote Control (optional).
Note: You should keep the original factory carton and packing materials in case you
need to ship the unit back for servicing.
If you want to know more on how this notebook computer operates as a media
center, please read the other user’s guide.
Page 1-1
Before You Begin User's Guide
r
(Sy
1.2 Examining Your Computer
Before you start using your computer, you need to get acquainted with your notebook's
main features and interfaces:
Cover Latch
LCD Screen
Three System LEDs
Keyboard
Touch Pad
Speake
FIR Sensor
Seven Media Buttons
Speaker
Panoramic View
Five Status
LEDs
Two System
Buttons
Power Button
stem Button)
Kensington Lock
Optical Drive
Two Click Buttons
Page 1-2
User's Guide Before You Begin
A
Seven Media Buttons
Cover Latch
Speaker
Three Audio-Out Ports
SPDIF-Out Port
FIR Sensor
udio-In Port
Video-In Port
TV-In Port
Mini Media
Display
Front View
Printer Port
Rear View
VGA Port
S-Video Port
USB Port
Ventilation Holes
Speaker
DC-In
Page 1-3
Before You Begin User's Guide
RJ45 (LAN) Connector
IEEE1394 Connector
HDD Drive
PCMCIA Slot
RJ11 (Fax/Modem)
Connector
USB Ports
Headphone Jack
Volume Dial
PCMCIA Eject Handle
Microphone Jack
USB Port
Right View
Left View
Optical Drive
6-In-1 Slot
Eject Button
Kensington Lock
Emergency Hole
Page 1-4
User's Guide Before You Begin
r
r
Mini-PCI Door
(For TV Tuner)
Ventilation Holes
Memory Door
Mini-PCI Door
(For Wireless LAN)
Battery Pack
Battery Latch
Battery Lock
Stereo Connector
Your headphone and
microphone jets should
have this type of connecto
as shown here.
Bottom View
Two Types Of Audio Jet
Ventilation Holes
HDD Drive Latch
Mono Connecto
Your microphone jet
should not
have this type
of connector as shown
Woofer
here.
Page 1-5
Before You Begin User's Guide
fSy
y
•
f
1.3 The Three System LEDs
The Power On LED
Below is how the LED would behave in different situations:
Of
Green
Green Blinking System is in Standby mode.
Yellow
Yellow Blinking
Amber
Amber Blinking
The Wireless LED
This LED would be lit when the wireless function and/or bluetooth function is
activated.
The Battery Pack LED
Below is how the LED would behave in different situations:
On
Blinking
Of
Note: The Three System LEDs are located at bottom center of the LCD display screen
between the left/right hinges of the LCD display panel. For exact location, please
refer to the Panoramic View diagram in Chapter 1.2. The Three System LEDs
are also visible on the rear side of the LCD panel.
For more details on Standby and Hibernate, please refer to Power Options in
the Control Panel of your Microsoft Windows operating system.
stem is powered off, or in Hibernate mode.
System is in full operation.
Battery pack is consuming down to 10% level, and system
is in full operation.
Battery pack is consuming down to 10% level, and system
is in Standby mode.
Battery pack is consuming down to 3% level, and system
is in full operation.
Battery pack is consuming down to 3% level, and system
is in Standby mode.
pack is being recharged: fast-charge or pre-charge.
Batter
• Battery pack is in low power capacity; or
Battery pack error.
Battery pack is not under recharge.
Page 1-6
User's Guide Before You Begin
1.4 The Five Status LEDs
The HDD/ODD LED
The LED would be lit when the system is accessing the hard disk drive, or the
ODD (optical disk drive) drive.
Media Card Access LED
The LED would be lit when the system is accessing the media card. Media card
can be inserted into the 5-in-1 slot located on the left side of the system unit.
The Caps Lock LED
The LED would be lit when the keyboard is in Caps Lock mode. In this mode,
all characters you type are in uppercase.
The Num Lock LED
The LED would be lit when the keyboard is in Num Lock mode. In this mode,
the embedded numeric keypads can be used.
The Scroll Lock LED
The LED would be lit when the keyboard is in Scroll Lock mode. In this mode,
you can lock the cursor position while scrolling through a document with the
arrow-scroll keys.
Note: The Five Status LEDs are located near the Three System Buttons. For exact
location, please refer to the Panoramic View diagram in Chapter 1.2.
Page 1-7
Before You Begin User's Guide
1.5 The Three System Buttons
Power Button
This Power Button is programmable by user. For detail on how to program this
button, please refer to the Power Options of Control Panel in Windows
System.
Internet Button
Press this button to activate the internet function.
Email Button
Press this button to activate the email function.
Note: The Three System Buttons are located near the top right of keyboard. For exact
location, please refer to the Panoramic View diagram in Chapter 1.2.
Page 1-8
User's Guide Before You Begin
1.6 The Seven Media Buttons And Mini Media Display
Music Button
Press this button to run the Music Program.
Video Button
Press this button to run the Movie Program.
Photo Button
Press this button to run the Photo Program.
Mini Media
Display
Rewind/Previous Track Button
Forward/Next Track Button
Play/Pause Button
Stop/Eject Button
This mini-display is for displaying information on the media being played
back.
Note: The Seven Media Buttons are located between the two speakers. For exact
location, please refer to the Panoramic View diagram in Chapter 1.2.
Behaviors of these buttons and the Mini-Media Display vary a lot depending on
which media programs you are running. For details on these buttons and the
Mini Media Display, please refer to the other user’s guide.
Page 1-9
Before You Begin User's Guide
1.7 Attention On PCMCIA And 5-In-1 Sockets
The PCMCIA eject handle is now
retracted into the system unit.
The PCMCIA eject handle is now
protruded outside the system unit.
5-In-1 socket door is now covering
the socket.
5-In-1 socket door is now taken out.
Please observe below safety measures:
• Make sure the PCMCIA eject handle does not protrude out at all times, unless you are
using the handle to eject PCMCIA card. A protruded handle is prone to external
interference; such as ramming by an inkjet printer or external keyboard.
• When no card (SD card/ SD-IO card/ MS card/ MS Pro card/ MMC card) is not
inserted into the 5-in-1 socket, make sure this socket is covered by the “5-in-1 socket
door” as supplied together with this notebook. The purpose of this “5-in-1 socket
door” is to prevent foreign matters from entering into the system unit through this
socket, when no card is inserted.
Page 1-10
User's Guide Before You Begin

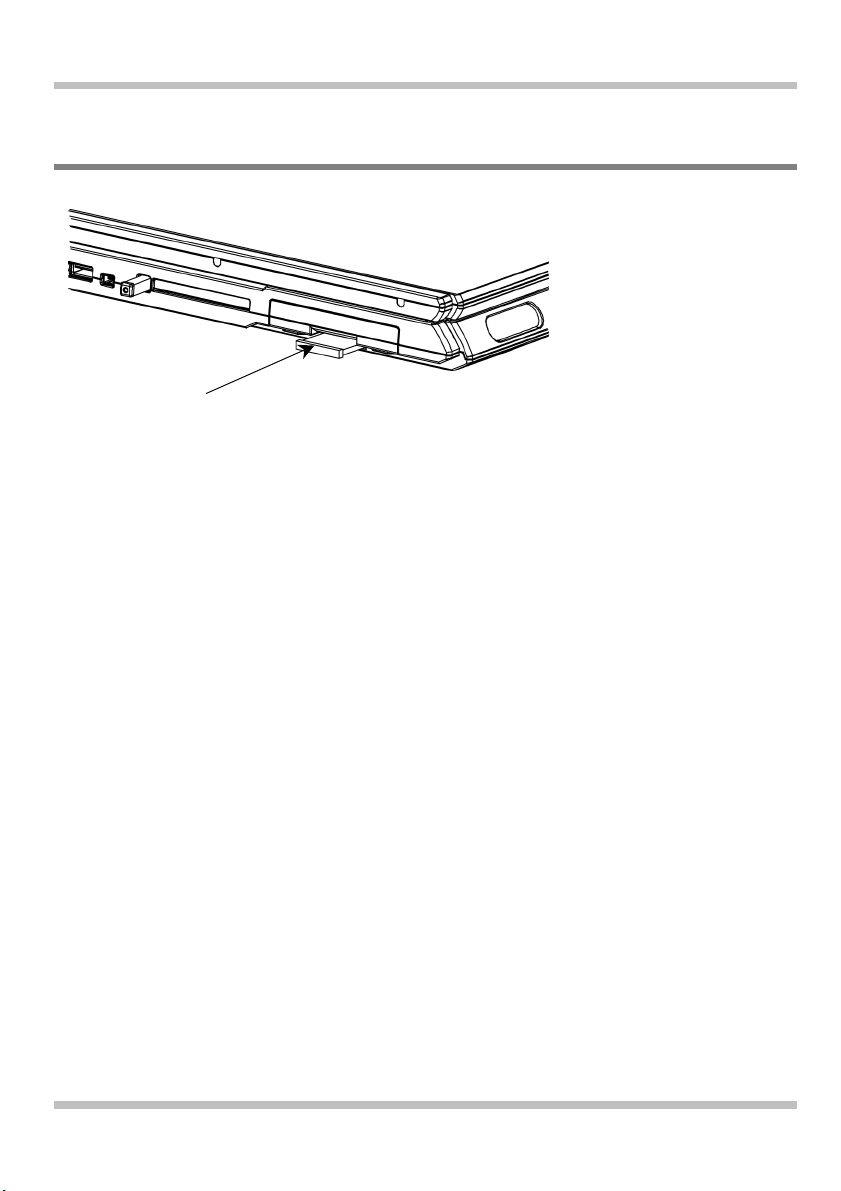

1.8 Attention When Inserting Media Card
Please observe below measure:
• When you insert media card (SD card/ SD-IO card/ MS card/ MS Pro card/ MMC
Media Card
card) into the socket as shown, make sure the topside (the label side) of the media card
is facing downward.
Page 1-11
Before You Begin User's Guide
1.9 The <Fn> Key
The <Fn> Function Key is located at the bottom-left corner of the keyboard. This key is
used together with other keys to activate certain pre-defined functions. To activate these
functions, press and hold down <Fn> together with the keys described below:
Bluetooth
Press this key combination (Fn+F1) to activate the Bluetooth function.
Wireless LAN
Press this key combination (Fn+F2) to activate the wireless LAN function.
LCD/CRT Switch
Press this key combination (Fn+F3) to switch between LCD only, CRT only,
and LCD/CRT simultaneously.
Warning Switch
Press this key combination (Fn+F6) to switch off and to switch on the warning
beep.
Page 1-12
User's Guide Battery
Chapter 2 Battery
2.1 Battery Pack
Your notebook is equipped with a high-energy rechargeable Lithium Ion (Li-Ion) battery
pack. In general, the battery life of a fully charged battery pack may vary from different
configurations (CPU, HDD, Memory etc.) and system utilization (especially I/O activities).
2.2 Recharging The Battery Pack
Your notebook supports both on-line and off-line recharge. Follow the procedure below to
recharge battery:
• Make sure the battery pack is installed in the notebook.
• Connect the AC adapter to the notebook and to an electrical outlet.
When a battery pack is being recharged, its battery LED (located near the bottom center of
display panel) would be lit up. For details on the LEDs, please refer to Chapter 1.3. When
the notebook is OFF, a depleted Li-Ion battery will take three hours to recharge.
Page 2-1
Battery User's Guide
2.3 Questions and Answers:
Q: I can feel the heat next to the Touch Pad during recharge. Is it normal?
A: The battery will generate heat during recharging and discharging. There is a
protection circuit inside the notebook to prevent overheating. User needs not to
worry.
Q: My battery operation time is not as long as it should be. Why?
A: The battery is heat sensitive and can only be charged to its maximum if the battery
and its environmental temperature remain within 15-25°C (59-77°F). The more the
temperature deviates from this range during recharging, the less chance there is for
the battery to be fully charged. In order to recharge the pack to its full capacity,
users are requested to cool down the unit by unplugging the AC Adapter. Wait until
it is cooled down. Then plug in the AC Adapter to start recharging again.
Q: I did not use my spare battery for a few days. Even though it was fully recharged,
there wasn't as much power left as a newly charged one. Why?
A: The batteries will self-discharge (1% per day for Li-Ion) when they are not being
recharged. To make sure a battery pack is fully charged, recharge before use.
Always keep the battery inside the notebook and have the AC adapter connected
whenever possible.
Q: I did not use my spare battery for months. I have problem in recharging it.
A: If you happen to leave your battery pack to go through an extended period of self-
discharge, say more than three months, the battery voltage level will become too
low and needs to be Pre-Charged (to bring the battery voltage level high enough)
before it automatically (for Li-Ion only) resumes its normal Fast Charge. Pre-
Charge may take 30 minutes. Fast Charge usually takes 2~3 hours.
Page 2-2
User's Guide Battery
2.4 Battery Maintenance
To maintain the battery pack's maximum capacity, you should occasionally let the
notebook deplete its battery power completely before recharging.
To carry out a complete depletion of the battery, disconnect the AC adapter and let your
notebook consume the remaining battery power. To speed up the depletion, use the HDD
as much as possible, and the LCD should be set as bright as possible. When the battery is
empty, wait for the notebook to cool down (especially the battery). The temperature should
be within 15-25°C (59-77°F). Then insert the AC adapter to recharge the battery.
2.5 Power Consumption
The Windows® XP, the latest Windows operating systems, has incorporated the latest
state-of-the-art ACPI (A
methodology. In order to fully utilize the power of your battery packs, it would be a good
idea for you to spend sometime to acquire a basic understanding of the power management
concept from your operating system.
In Windows® Operating Systems, you can go through Power Options of the Control
Panel according to the version of Windows® Operating System the notebook applies.
We shall not describe them in details. The Power Options in Windows® XP are further
divided into as below:
• Power Schemes
• Alarms
• Power Meter
• Advanced
• Hibernate
dvanced Configuration Power Interface) power management
Page 2-3
Battery User's Guide
2.6 Reducing Power Consumption
Although your notebook (together with the operating system) is capable of power
conservation, there are measures you can take to reduce the power consumption:
• Use the AC power whenever possible.
• Lower the intensity of the LCD backlight. A very bright screen translates to higher
power usage.
• Try to use the HDD or the PCMCIA drive to read and write files, instead of using
the external USB FDD.
Note: The battery pack should be locked in the battery compartment all the time.

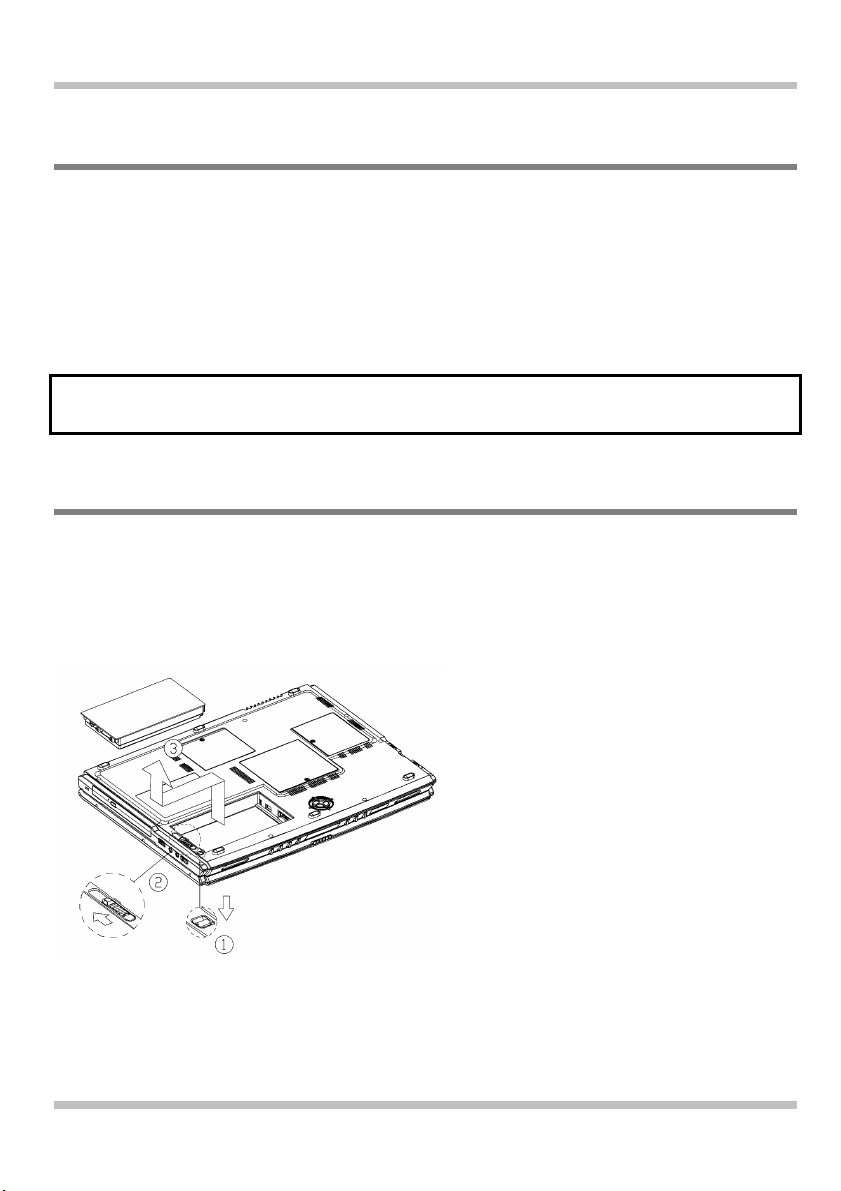

2.7 Removing The Battery Pack
This battery pack can easily be removed and replaced. Make sure that the computer is
properly shutdown before changing the battery pack. If you would like to change the
battery pack while power is on, make sure this battery pack is not the only electrical source
to the system unit. Follow the steps below to remove the battery pack.
To insert the battery pack, reverse the steps above.
Page 2-4
• Have the system properly shutdown.
• Flip the system upside down as
shown.
• Press the handle to release battery
latch as shown by #1.
• Maintain the handle in released
position.
• Push the battery latch to unlock as
shown by #2. The battery pack would
pop up a little bit.
• Remove the battery pack as shown by
#3.
User's Guide Memory
Chapter 3 Memory

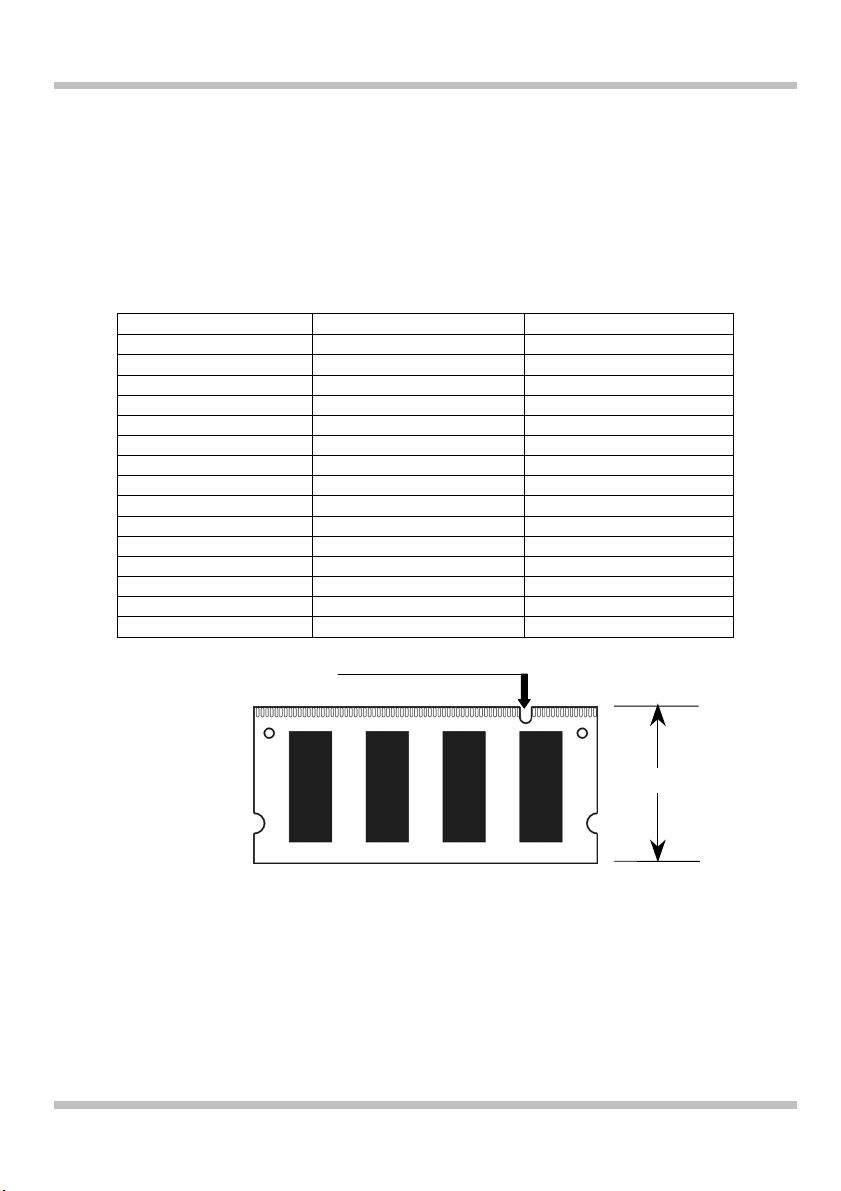

Your notebook is equipped with a configurable memory unit. The industry standard
JEDEC DDR S.O.DIMM memory module sockets are available for memory upgrade to
2048MB. The table below illustrates all the possible ways system memory can be
configured.
Total Memory Socket#1 Socket#2
256MB 0MB 256MB
256MB 256MB 0MB
512MB 0MB 512MB
512MB 256MB 256MB
512MB 512MB 0MB
768MB 256MB 512MB
768MB 512MB 256MB
1024MB 0MB 1024MB
1024MB 512MB 512MB
1024MB 1024MB 0MB
1280MB 256MB 1024MB
1280MB 1024MB 256MB
1536MB 512MB 1024MB
1536MB 1024MB 512MB
2048MB 1024MB 1024MB
Groove for indicating the
orientation of the module
DDR S.O. DIMM Memory Module
1.25” max
Page 3-1
Memory User's Guide
3.1 Removing Memory Module
Below is the procedure on how to remove the memory module.
• Make sure the system is properly
shutdown.
• Flip the system upside down as shown.
• Remove the battery pack as shown in
Chapter 2.
• Remove the screw as shown by #1.
• Slide and remove the memory door as
shown by #2.
Grooves
• Press the spring-locks sideways as
shown by #1.
• The memory modules would pop up as
shown by #2.
• Remove the memory modules.
To insert the memory module, reverse the steps above.
Page 3-2
User's Guide Mini-PCI Modules
Chapter 4 Mini-PCI Modules
Your notebook is equipped with two sets of optional mini-PCI socket. One mini-PCI
socket is for TV tuner only. And another mini-PCI socket is for the wireless LAN only.
4.1 Removing Mini-PCI Wireless LAN Module
Below is the procedure on how to remove the mini-PCI wireless LAN module.
• Make sure the system is properly
shutdown.
• Flip the system upside down as shown.
• Remove the battery pack as shown in
Chapter 2.
• Remove the screw as shown by #1.
• Slide and remove the compartment door
as shown by #2.
The Groove
• Press the spring-locks sideways as
shown by #1.
• The Mini-PCI Wireless LAN module
would pop up as shown by #2.
• Remove the Mini-PCI Wireless LAN
module.
• Disconnect the two cables as shown by
#3. Note, there are two types of mini-
PCI module. Externally, they look
slightly different; especially on the
locations of the cable connections.
To insert the mini-PCI wireless LAN module, reverse the steps above.
Page 4-1
Mini-PCI Modules User's Guide
4.2 Removing Mini-PCI TV Tuner Module
Below is the procedure on how to remove the mini-PCI TV tuner module.
• Make sure the system is properly
shutdown.
• Flip the system upside down as shown.
• Remove the battery pack as shown in
Chapter 2.
• Remove the screw as shown by #1.
• Slide and remove the compartment door
as shown by #2.
Groove
• Press the spring-locks sideways as
shown by #1.
• The Mini-PCI TV Tuner module would
pop up as shown by #2.
• Remove the Mini-PCI TV tuner module.
• Disconnect the cable as shown by #3.
Note, different types of Mini-PCI TV
tuner module would have slight
difference; especially on the locations of
the cable connections.
To insert the mini-PCI TV tuner module, reverse the steps above.
Note: This notebook supports three types of TV tuner: the analog type, the digital
type, and the satellite (both analog/digital) type. The TV tuner modules for
analog type and digital type have one cable connection as shown above in the
second diagram. The satellite type of TV tuner module has two connectors.
Page 4-2
User's Guide The HDD Drive
Chapter 5 The HDD Drive
Your notebook is equipped with an industry standard 2.5”/9.5mm hard disk drive.
5.1 Removing The Hard Disk Drive
Below is the procedure on how to remove the hard disk drive.
• Make sure the system is properly
shutdown.
• Flip the system upside down as
shown.
• Remove the battery pack as shown
in Chapter 2.
• Remove the two screws as shown
by #1.
• Remove the HDD drive as shown by
#2.
To insert the HDD drive, reverse the steps above.
Page 5-1
The HDD Drive User's Guide
This page is left blank intentionally.
Page 5-2
User’s Guide Appendix A
Appendix A - Agency Regulatory Notices
A.1 Safety Instructions
CAUTION: Please read these safety instructions carefully.
CAUTION: Please keep this User's Manual for future reference.
CAUTION: Please disconnect this equipment from AC outlet before
cleaning. DO NOT use liquid or sprayed detergent for cleaning. Use a clean
moistened cloth.
CAUTION: The wall socket used should be positioned near the equipment
and should be easily accessible.
CAUTION: Please keep this equipment free from humidity.
CAUTION: Place the equipment on a reliable surface at all times. A drop or
fall can cause severe damage.
WARNING: The openings of the enclosure are for air ventilation and are
meant to protect the equipment from overheating. DO NOT COVER THE
VENTILATION OPENINGS.
Page A-1
Appendix A User's Guide
CAUTION: Verify the voltage of the power source before connecting the
unit to any power outlet.
WARNING: DO NOT step on or place anything over the power cord.
CAUTION: All cautions and warnings on the equipment should be noted.
WARNING: If the equipment is not used for a long period of time,
disconnect the equipment from the power source to avoid damage from power
spikes.
WARNING: NEVER pour any liquid into any openings; a fire or electrical
shock is possible.
WARNING: For safety reasons, other than pre-designated ports, doors, and
the equipment should be opened only through qualified service personnel.
CAUTION: If one of the following situations should arise, the equipment
should be checked by an authorized technician:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to excessive moisture.
d. The equipment does not work well, or you fail to get it to work
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
Page A-2
according to user's manual.
User’s Guide Appendix A
CAUTION: DO NOT LEAVE THE EQUIPMENT IN TEMPERATURES
BELOW -20ºC(-4ºF) OR ABOVE 60ºC(140ºF). IT MAY CAUSE
DAMAGE TO THE EQUIPMENT.
WARNING: Never install modem/telephone wiring during a lightning
storm.
WARNING: Never install modem/telephone jacks in wet locations unless
the jack is specially designed for wet locations.
WARNING: Never touch un-insulated modem/telephone wires or terminals
unless the modem/telephone line has been disconnected at the network
interface.
CAUTION: Use caution when installing or modifying modem/telephone
lines.
WARNING: Avoid using a modem/telephone (other than a cordless type)
during an electrical storm. There may be a remote risk of electric shock from
lightning.
WARNING: This computer contains an internal lithium battery-powered
real-time circuit. There is a risk of explosion and injury if the battery is
incorrectly replaced or handled. Do not attempt to recharge, disassembled,
immerse in water, or dispose of it in fire. Replacement should be done through
your notebook dealer.
Page A-3
Appendix A User's Guide
WARNING: THE CD-ROM/DVD-ROM IN THIS NOTEBOOK
EMPLOYS A LASER SYSTEM.
a. To ensure proper use of this product, please read the relevant
instructions carefully and retain for future reference.
b. Should the unit ever require maintenance, contact your local dealer.
c. Use of controls, adjustments or the performance of procedures other
than those specified may result in hazardous radiation exposure.
d. To prevent direct exposure to Laser Beam, do no try to open the
enclosure.
CAUTION: The internal CD-ROM/DVD-ROM drive is classified as a
CLASS 1 LASER PRODUCT. Label is located on the outside of the CD-
ROM/DVD-ROM drive with the following wordings:
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
WARNING: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
WARNING: Your notebook contains a Ni-MH or Li-Ion battery pack.
There is a risk of fire and chemical burn if the battery pack is handled
improperly. Do not disassemble, crush, puncture, short external contact, dispose
of in water or fire, or expose it to temperature higher than 60ºC.
Page A-4
User’s Guide Appendix A
WARNING: Handle the battery pack very carefully. Avoid touching the
metal leads on the connector of the battery case.
CAUTION: Use only approved AC Adapter with your notebook. Using the
wrong type of AC Adapter may cause serious damage to your notebook.
CAUTION: The AC Adapter can accept a line voltage ranging from 100V to
240V and is compatible with most international power sources. If you are
unsure whether your power source is compatible, please contact the local dealer
for assistance.
CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger
telecommunication line cord.
CAUTION: For Continued Protection Against Risk of Fire, Replace Only
with same Type and Rating of Fuse.
CAUTION: If the computer is not sold to German area, please use only the
local recognized power supply cords that are recommended by the
manufacturer.
WARNING: Don't expose your notebook to excessive heat or coldness
(frost). Don't drop, spill fluids or open the exterior of the case. This can damage
the notebook and void the warranty.
CAUTION: This notebook computer contains a certified optical module that
is equivalent as a CLASS 1 LASER PRODUCT.
Page A-5
Appendix A User's Guide
A.2 Agency Notice
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by the manufacturer responsible for compliance may
void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI
connector hoods to maintain compliance with FCC Rules and Regulations.
FCC RF Radiation Exposure Statement
• This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
• This equipment complies FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
Page A-6
User’s Guide Appendix A
USA And Canada Safety Requirements And Notices
The FCC with its action in ET Docket 93-62 has adopted a safety standard for human
exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified
equipment. The Intel PRO/Wireless LAN MiniPCI Adapter products meet the Human
Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992. Proper
operation of this radio according to the instructions found in this manual will result in
exposure substantially below the FCC’s recommended limits.
The following safety precautions should be observed:
• Do not touch or move antenna while the unit is transmitting or receiving.
• Do not hold any component containing the radio such that the antenna is very close or
touching any exposed parts of the body, especially the face or eyes, while transmitting.
• Do not operate the radio or attempt to transmit data unless the antenna is connected; if
not, the radio may be damaged.
Use in specific environments:
• The use of wireless devices in hazardous locations is limited by the constraints posed
by the safety directors of such environments.
• The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
• The use of wireless devices in hospitals is restricted to the limits set forth by each
hospital.
Antenna use:
• In order to comply with FCC RF exposure limits, low gain integrated antennas should
be located at a minimum distance of 20 cm (8 inches) or more from the body of all
persons.
• High-gain, wall-mount, or mast-mount antennas are designed to be professionally
installed and should be located at a minimum distance of 30 cm (12 inches) or more
from body of all persons. Please contact your professional installer, VAR, or antenna
manufacturer for proper installation requirements.
Explosive Device Proximity Warning
Warning: Do not operate a portable transmitter (such as a wireless network device) near
unshielded blasting caps or in an explosive environment unless the device has been
modified to be qualified for such use.
Use On Aircraft Caution
Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency
wireless devices because their signals could interfere with critical aircraft instruments.
Page A-7
Appendix A User's Guide
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis Canadien
Cet appareil numerque de la classe B respecte toutes les exigences du Reglement sur le
materiel brouilleur du Canada.
Canada Radio Frequency Interference Requirements
This Class B digital apparatus complies with Canadian ICES-003, Issue 2, and RSS-210,
Issue 4 (Dec. 2000).
“To prevent radio interference to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.”
Cet appareil numérique de la classe B est conforme à la norme NMB-003, No. 2, et CNR210, No. 4 (Dec. 2000).
“Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une
licence, il doit être utilizé à l’intérieur et devrait être placé loin des fenêtres afin de fournir
un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installé à
l’extérieur, il doit faire l’objet d’une licence.”
European Union
Product with the CE Marking comply with the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community and
if this product has telecommunication functionality, the R&TTE Directive (1999/5/EC).
Compliance with these directives implies conformity to the following European Norms (in
parentheses are the equivalent international standards and regulations):
• EN55022 (CISPR 22)⎯ Electromagnetic Interference
• EN55024 (IEC61000-4-2,3,4,5,6,8,11)⎯ Electromagnetic Immunity
• EN61000-3-2⎯ (IEC61000-3-2)-Power Line Harmonics
• EN61000-3-3⎯ (IEC61000-3-3)-Power Line Flicker
• EN60950 (IEC60950) ⎯ Product Safety
Page A-8
Notice
User’s Guide Appendix A
For devices with built-in wireless equipment, the following additional standards apply:
• ETSI301489-17: General Emissions for Radio Equipment
• EN60950: Safety
• ETSI300328-2: Technical Requirements for Radio Equipment
CE Caution: Due to the fact that the frequencies used by 802.11b wireless LAN
devices may not yet be harmonized in all countries, 802.11b products are designed for use
only in specific countries or regions, and are not allowed to be operated in countries or
regions other than those of designated use. As a user of these products, you are responsible
for ensuring that the products are used only in the countries or regions for which they were
intended and for verifying that they are configured with the correct selection of frequency
and channel for the country or region of use. And deviation from permissible settings and
restrictions in the country or region of use could be an infringement of local law and may
be punished as such.
The wireless LAN device can currently be used indoors only in the following departments
of mainland France.
01 Ain 36 Indre 69 Rhône
02 Aisne 37 Indre et Loire 70 Haute Saône
03 Allier 39 Jura 71 Saône et Loire
05 Hautes Alpes 41 Loir et Cher 72 Sarthe
08 Ardennes 42 Loire 75 Paris
09 Ariège 45 Loiret 77 Seine et Marne
10 Aube 50 Manche 78 Yvelines
11 Aude 54 Meurthe et Moselle 79 Deux Sèvres
12 Aveyron 55 Meuse 82 Tarn et Garonne
16 Charente 57 Moselle 84 Vaucluse
19 Corrèze 58 Nièvre 86 Vienne
2A Corse Sud 59 Nord 88 Vosges
2B Haute Corse 60 Oise 89 Yonne
21 Côte d’Or 61 Orne 90 Territoire de Belfort
24 Dordogne 63 Puy du Dôme 91 Essonne
25 Doubs 64 Pyrénées Atlantique 92 Hauts de Seine
26 Drôme 65 Haute Pyrénées 93 Seine St Denis
27 Eure 66 Pyrénées Orientales 94 Val de Marne
32 Gers 67 Bas Rhin
35 Ille et Vilaine 68 Haut Rhin
The wireless LAN device cannot currently be used in any departments of mainland France
other than those listed above.
Page A-9
Appendix A User's Guide
Maximum allowable EIRP 802.11b wireless LAN cards in the mainland departments of
France not shown in the table above are as follows: (See the ART website at www.arttelecom.fr for information on the French overseas territories.)
Frequency Ranges (MHz) Indoors Outdoors
2400 – 2446.5 10 mW Not permitted
2446.5 – 2483.5 100 mW 100 mW on private property
with Ministry of Defense
approval
Japanese Notice
DGT Statement
Page A-10
User’s Guide Appendix A
U.S. Regulations Governing the Use of Modems
This equipment complies with Part 68 of the FCC Rules. On this equipment is a label that
contains, among other information, the FCC registration number and R
N
umber (REN) for this equipment. You must, upon request, provide this information to
your telephone company.
If your telephone equipment harms the telephone network, the Telephone Company may
discontinue your service temporarily. If possible, they will notify in advance. But, if
advance notice is not practical, you will be notified as soon as possible. You will be
informed of your right to file a compliant with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or
procedures that could affect proper operation of your equipment. If they do, you will be
notified in advance to give you an opportunity to maintain uninterrupted telephone service.
The FCC prohibits this equipment to be connected to party lines or coin-telephone service.
In the event that this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is with the
equipment, discontinue use and contact your dealer or vendor.
The FCC also requires the transmitter of a FAX transmission be properly identified (per
FCC Rules Part 68, Sec 68.381 (C) (3)).
inger Equivalence
Japanese Modem Notice
U.K. Modem Compliance Information
This modem is approved by the secretary of state at the Department of Trade and Industry
for connection to a single exchange line of the public switched telephone network run by
certain licensed public telecommunication operators or system connected there to (Direct
exchange lines only, not shared service or 1-1 carrier systems).
Page A-11
Appendix A User's Guide
This
modem is also suitable for connection to Private Automatic Branch Exchange (PABX),
which return secondary proceeding indication.
If this modem is to be used with a PBX which has extension wiring owned by BT,
connection of the modem the PBX can only be carried out by BT; or by the authorized
maintainer of the PBX unless the authorized maintainer has been given 14 days written
notice that the connection is to be made by another person; and that period of notification
has expired.
This modem is suitable for use only on telephone lines proved with Loop Disconnect or
Multi-Frequency Dialing Facilities.
Users of this modem are advised that the approval is for connection to the PSTN via the
telephone line interface supplied with it. Connection of a modem to the PSTN by any other
means will invalidate the approval.
There is no guarantee of correct working in all circumstances. Any difficulties should be
referred to your supplier.
Some network operators require that intended users of their network request permission to
connect and for the installation of an appropriate socket.
inger Equivalence Number (REN) of this modem is 1. REN is guide to the
The R
maximum number of apparatus that can simultaneously be connected to one telephone line.
The REN value of each apparatus is added together, and should not exceed 4. Unless
otherwise marked, a telephone is assumed to have a REN of 1.
This modem is only approved for use of the following facilities:
• Storage of telephone numbers for retrieval by a predator mined code.
• Initial proceed indication detection.
• Automatic calling / automatic answering.
• Tone detection.
• Loud-speaking facility.
This modem is not approved for connection to U.K./private speech-band services. This
modem does not support an automatic re-dial function. Any other usage will invalidate the
approval of your modem, if as a result, it then ceases to confirm to the standards against
which approval was granted. The approval of this modem is invalidated if the apparatus is
subject to modification in any material way not authorized by the BABT or if it is used
with, or connected to external software that have not been formally accepted by BABT.
Page A-12
Loading...
