Page 1
Pebble Mini
User Manual
Page 2
Hand dryer User Manual

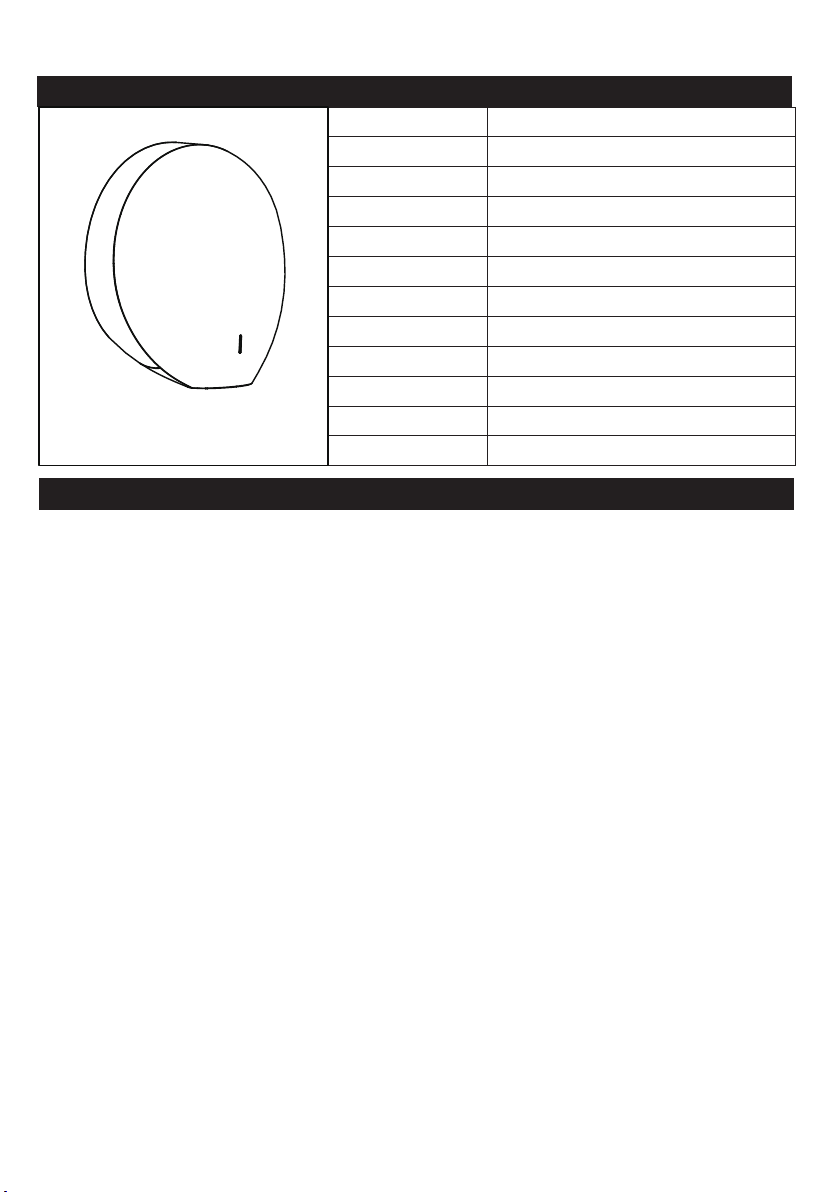

TECHNICAL SPECIFICATIONS
Item Category Performance Data
Operating Voltage
Standby Power
Air Speed Output
Motor Type
Sensor Type
Sensor Range
Timing Protection
Drying Time
Drip Proof
Isolation
Unit Size
IMPORTANT SAFETY INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
⚠
• Use this unit only in the manner intended by the manufacturer. The manufacturer is not
•
•
•
•
•
•
•
•
PERSONS OBSERVE THE FOLLOWING:
responsible for any damages caused by misuse or defective installation.
The instructions contained within the installation Template must be followed carefully when
installing this unit. Failure to accurately follow the instructions may result in the incorrect
operation of this unit, damage to property and/or personal injury.
Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards, including fire-rated construction.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
This unit must be powered by a dedicated circuit branch protected by a circuit breaker
with the appropriate rating. The correct circuit cable must be used to meet the current
consumption for this unit.
This unit has been designed for indoor use only, protect from water, sun and extreme
temperatures, do not install it outdoors or close to moisture and heat generators.
This unit cannot be modified. Qualified person(s) must be used for maintenance, any repair
work or unit removal. If the units stops or works incorrectly, contact your regional dealer or
contractor.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Do not allow children to play with the appliance
or carry out cleaning and/or user maintenance on this hand dryer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
AC 220~240 V, 50/60 Hz, 800 W
≤0.7 W
96 m/s
Brushed Motor, 30,000 RPM
Auto Infrared touch free operation
45° 10~20cm
50 seconds auto shut off
10 ~ 12 sec
IPX3
CLASS II
H 229.9mm x W 263.4mm x D 133.4mm
Page 3

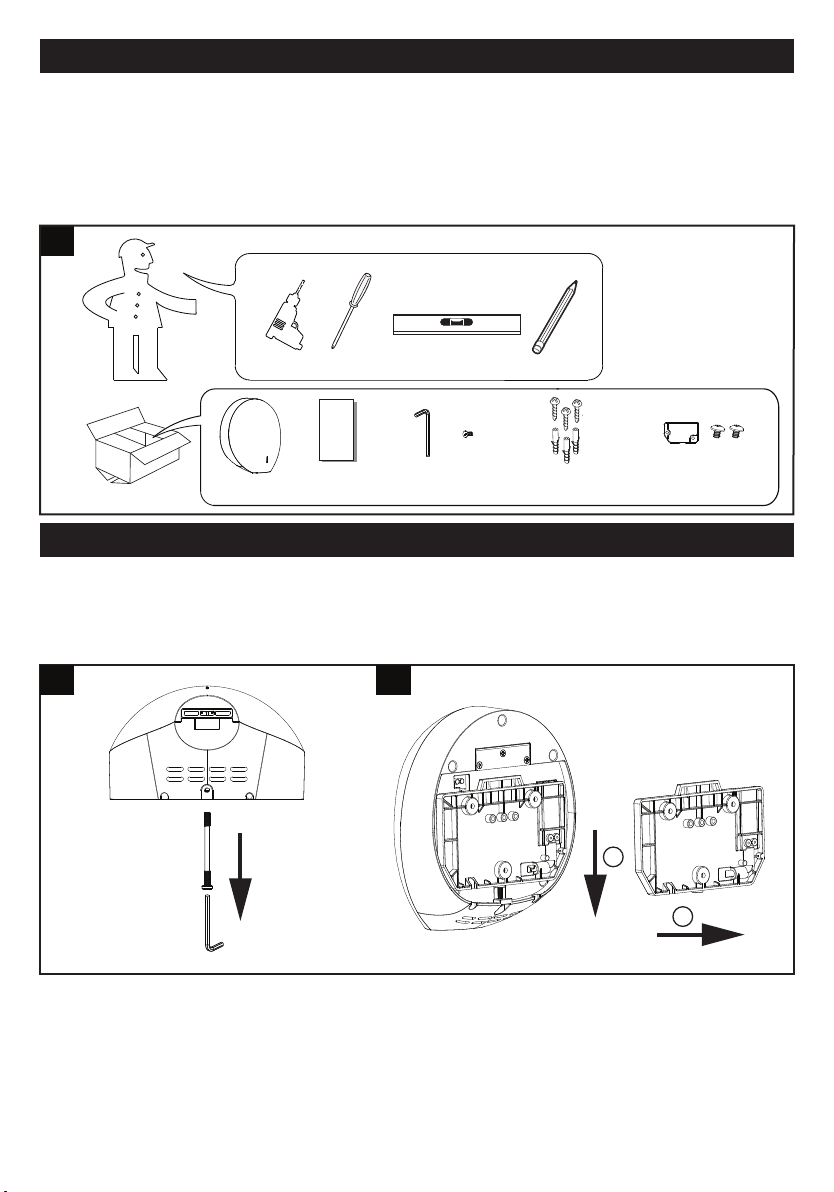

UNPACKING
1. Remove all packing material. Recycling is recommended.
2. Carefully remove the hand dryer from the shipping carton, using care not to drop the appliance.
3.
Inspect carefully for any damage that may have occurred during transit. Check for any loose, missing
or damaged parts. If the hand dryer is damaged, promptly inform the shipper or dealer where you
purchased it.
Standard items with the hand dryer are shown in Fig.1 together with tools need by the installer.
1
Unit
Installation
template
Service Tool
& Spare Screw
Wall mounting
anchors with screws
Power cable cover
& Screw
INSTALLATION
1. Wall bracket removal
1.1 Place the appliance on a cloth to avoid marking its surface.
1.2
Remove the one security screw seated on the bottom surface of the unit, using the service tool (fig.2).
1.3 Pull down the wall mounting bracket and remove from the unit (fig.3).
2 3
1
2
CAUTION
•
Make sure power supply breaker is switched off.
•
Check that the electrical supply corresponds to that shown on the rating plate. If the unit is
connected to any electrical supply other than stated on the rating plate of the unit, permanent
damage or unsafe operation of the unit may result.
•
The unit must be mounted on a flat vertical wall capable of supporting the full weight of the unit.
Page 4

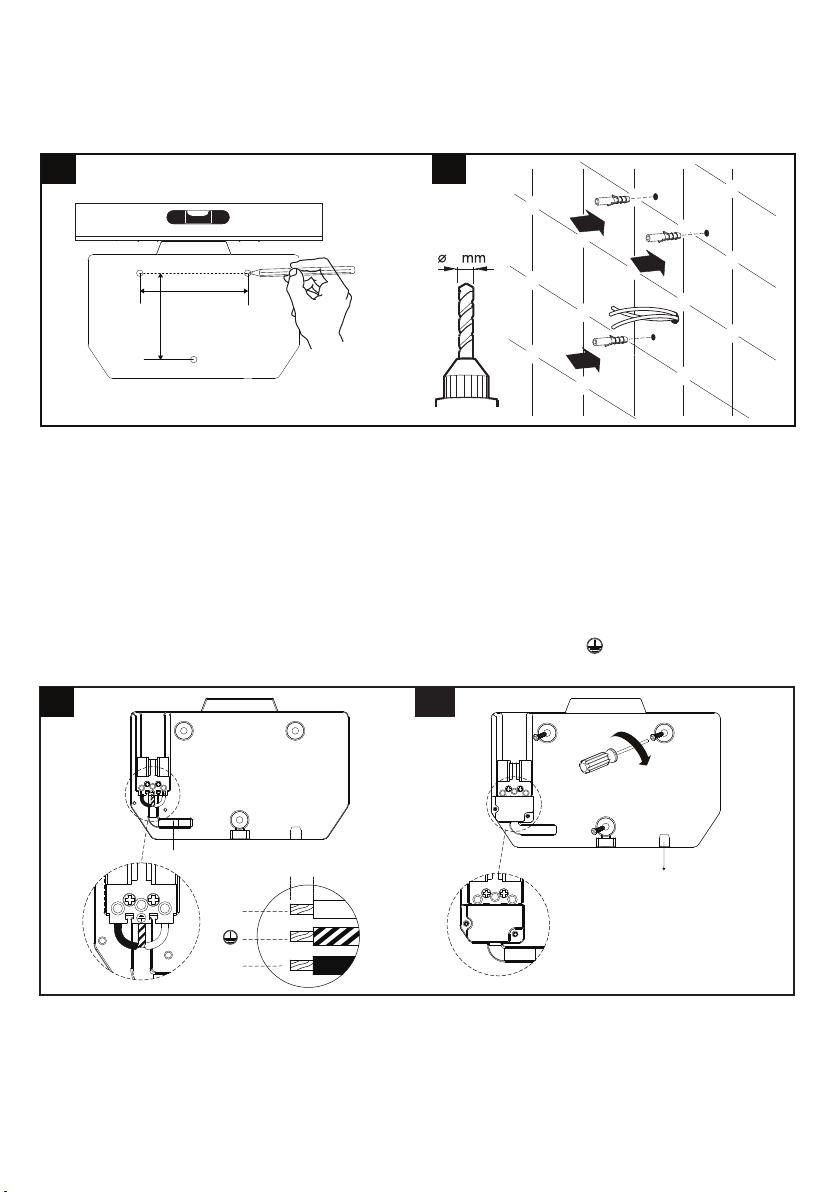

2. Positioning
2.1 Mark the location on the wall with a pencil. Use the Installation Template to mark the locations
for the three fixing points (fig. 4).
2.2 Pre-drill the wall in the marked locations using 5/16” (8mm) drill, insert the plastic anchors and
tap flush to the wall. If the cable entry is to be done from the wall provide a proper cable exit (fig. 5)
4
5
8
100mm
80mm
3. Installing Power cable & Connection terminal block
WARNING: ENSURE POWER NOT CONNECTED
3.1 Pull the cable through the hole in the wall mounting bracket. Ensure the cable is long enough
to route correctly through the wall mounting bracket to the terminal block (fig. 6).
3.2 The cable must sit in the dedicated channel.
3.3 As shown, connect cable to terminal block.
3.4 Screw in terminal block.
3.5 Fix the wall mounting bracket to the wall. Screw to the wall using the appropriate fitting (fig
6A). 3.6 Fix the cable cover with the screw to the wall mounting bracket.
CAUTION: Connect the ground wire to the terminal block marked “ ”
Do not over-tighten and crush the power cable.
6
Power Cable Entry
L N
6mm
N
6A
Power Cable Exit
(in case with power cord cable)
L

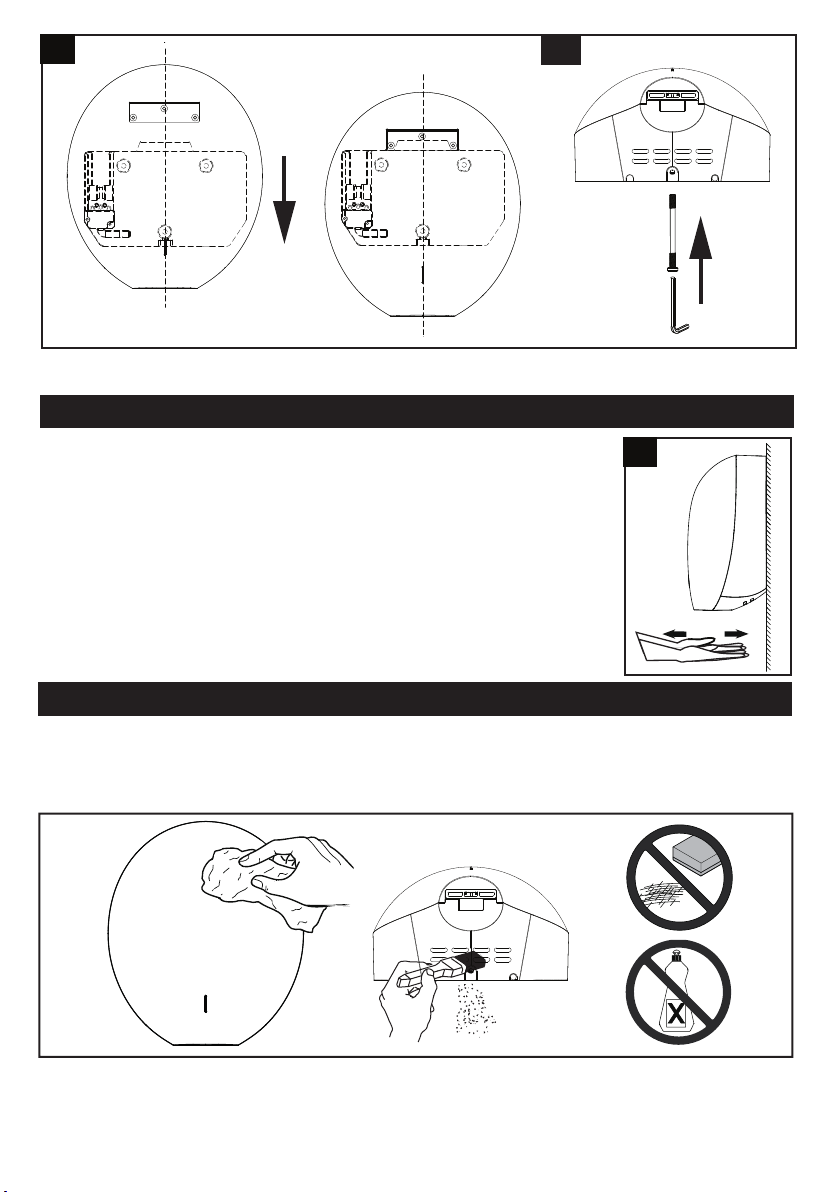

4. Fix the Main unit to Wall mounting bracket
4.1 Position the unit centrally above the wall mounting bracket so the metal bracket on the rear is
positioned over the mating part of the wall bracket moulding. Keeping the dryer firmly against the
wall, slowly slide the dryer down until there is no further travel. The dryer should then be electrically
connected (fig 7).
4.2 Insert and tighten the security screw seated on the bottom surface (fig 7A).
Page 5
7
5. Turn power on and test the unit for correct operation.
Use
7A
1. No touch operation.
2. Shake excess water from hands.
3. Place hands under the outlet to start operation (fig. 8).
4.
Slowly move hands back and forth under the outlet at the bottom of
dryer.
the
5. A blue LED light situated at the bottom of the dryer starts with the
dryer operation. This assists the user in keeping the hands in the dryer’s
sensing range.
6. The dryer stops when hands are removed.
7. Hand dryer also auto shuts off after 50 seconds of uninterrupted use.
Maintenance and cleaning
⚠
Lift the Unit off the wall mounting bracket before maintenance or repair. Regularly
clean the outer casing use a soft, damp cloth to gently wipe away any dirt.
CAUTION: Never use abrasives or chemicals to clean the cover. Do not soak.
8
