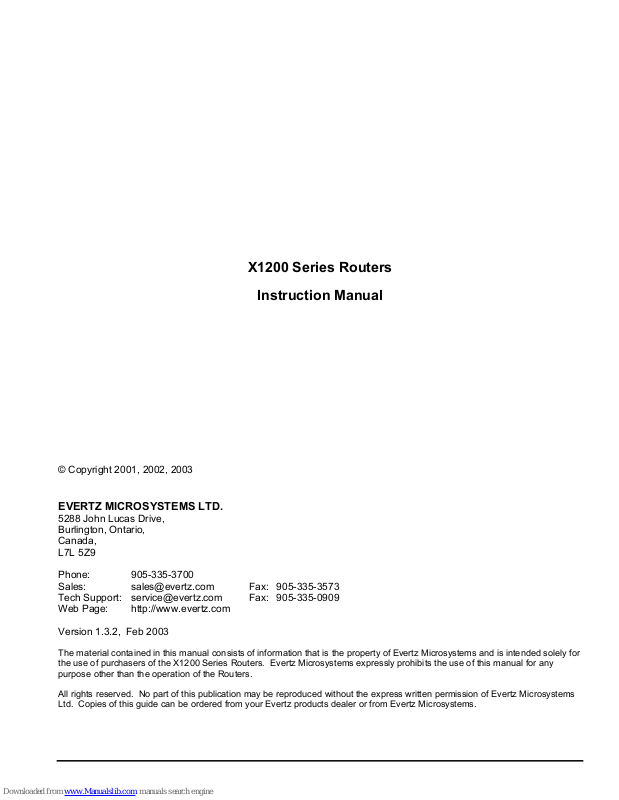

© Copyright 2001, 2002, 2003
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive,
Burlington, Ontario,
Canada,
L7L 5Z9
X1200 Series Routers
Instruction Manual
Phone: 905-335-3700
Sales: sales@evertz.com Fax: 905-335-3573
Tech Support: service@evertz.com Fax: 905-335-0909
Web Page: http://www.evertz.com
Version 1.3.2, Feb 2003
The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for
the use of purchasers of the X1200 Series Routers. Evertz Microsystems expressly prohibits the use of this manual for any
purpose other than the operation of the Routers.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz Microsystems
Ltd. Copies of this guide can be ordered from your Evertz products dealer or from Evertz Microsystems.
INFORMATION TO USERS IN EUROPE
NOTE
CISPR 22 CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to the European Union EMC directive. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
INFORMATION TO USERS IN THE U.S.A.
NOTE
FCC CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
WARNING
Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s
authority to operate the equipment.
Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables
with the shield connected to the chassis ground of the device must be used
X1200 Series Router Manual
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 Original Version Oct 01
1.1 Changes for X1201 routers and SoftSwitch routers Jan 02
1.2 More descriptions added re SoftSwitch timing set-ups, Chapter 7 added Jan 02
1.2.1 Corrections to table 2-2, 2-4 and 2-5, Table 2-6 Added Feb 02
1.2.2 Features current for firmware version 1.1 build 23 May 02
Added Input Label File menu item for uploading Label Text files
1.3 Added information about Embedded SoftSwitch Jan 03
Added information about SoftSwitch on HD routers
1.3.1 Added clarification of Video switch line for HD routers Feb 03
1.3.2 Changed Block diagrams, added diagrams for Embedded SoftSwitch Feb 03
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be effected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either express or implied. The only warranty offered
by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.
X1200 Series Router Manual
This page left intentionally blank
Revision 1.3.2
X1200 Series Router Manual
TABLE OF CONTENTS
1. OVERVIEW....................................................................................................................................... 1-1
1.1. HOW TO USE THIS MANUAL ................................................................................................ 1-6
1.2. GLOSSARY............................................................................................................................. 1-6
2. INSTALLATION................................................................................................................................ 2-1
2.1. REAR PANEL.......................................................................................................................... 2-1
2.1.1. Standard Definition Digital Video Connections (X1200S) ............................................ 2-1
2.1.2. High Definition Digital Video Connections (X1202H) ................................................... 2-1
2.1.3. AES Audio Connections ............................................................................................... 2-2
2.1.3.1. Audio Connections on Router Models with the AES Option Fitted. ............. 2-2
2.1.3.2. Audio Connections On Early Router Models With The AES Option Fitted.
(two breakout panels shipped)..................................................................... 2-2
2.1.3.3. Audio Connections on Router Models with the AES4 Option Fitted. ........... 2-3
2.1.4. Reference Connections................................................................................................ 2-3
2.1.5. Remote Control Connections ....................................................................................... 2-3
2.1.6. Power Connections ...................................................................................................... 2-5
2.2. MOUNTING ............................................................................................................................. 2-5
2.3. POWER REQUIREMENTS...................................................................................................... 2-5
2.3.1. Selecting the Correct Mains Voltage ............................................................................ 2-5
2.3.2. Changing the Fuses ..................................................................................................... 2-6
2.4. CONNECTING THE REMOTE CONTROL PANEL ................................................................ 2-6
2.4.1. Connecting The Primary Remote Control Panel (RCP Version) .................................. 2-6
2.4.2. Connecting A Second Remote Control Panel .............................................................. 2-7
2.5. CONNECTING THE GENERAL PURPOSE INPUTS AND OUTPUTS .................................. 2-7
2.5.1. Connecting the General Purpose Inputs ...................................................................... 2-8
2.5.2. Connecting the General Purpose Outputs ................................................................... 2-9
2.5.3. GPI/O Examples........................................................................................................... 2-9
2.6. CONTROLLING THE ROUTER USING THE EXTERNAL SERIAL PROTOCOL ................ 2-10
2.6.1. Connecting the Router to a Grass Valley Ten XL ASCII Control Device ................... 2-10
3. OPERATION..................................................................................................................................... 3-1
3.1. OVERVIEW OF THE FRONT PANEL DISPLAY AND CONTROLS ...................................... 3-1
3.1.1. Video Router Controls .................................................................................................. 3-1
3.1.2. Setup Key Group.......................................................................................................... 3-1
3.1.3. Front Panel Display Messages..................................................................................... 3-2
3.2. OVERVIEW OF FRONT PANEL OPERATION....................................................................... 3-2
3.2.1. Audio Follow Video Switching (AFV)............................................................................ 3-2
3.2.2. Breakaway Audio On An Audio Follow Video Group ................................................... 3-3
3.2.3. Independent Audio Bus Switching ............................................................................... 3-4
3.3. FRONT PANEL SETUP MENU ............................................................................................... 3-4
3.4. NAGIVATING THE SETUP MENU.......................................................................................... 3-5
3.5. FRONT PANEL SETUP MENU – MAIN MENU ...................................................................... 3-6
3.6. CONFIGURING THE ROUTER REFERENCES...................................................................... 3-6
3.6.1. Setting up the Video Reference ................................................................................... 3-7
CONTENTS
Revision 1.3.2
i
X1200 Series Router Manual
3.6.2. Setting up the Video Output Timing
(SoftSwitch and Embedded SoftSwitch routers only) ............................................ 3-7
3.6.3. Setting up the Video Line Synchronizer Timing
(SoftSwitch and Embedded SoftSwitch equipped routers only)............................. 3-8
3.6.4. Setting up the AES Audio Reference
(SoftSwitch and Embedded SoftSwitch equipped routers only)............................. 3-8
3.7. CONFIGURING THE VIDEO AND AUDIO TRANSITIONS .................................................... 3-9
3.7.1. Configuring The Switch Line ........................................................................................ 3-9
3.7.2. Enabling The Video Line Synchronizer On For Clean Video Switches
(SoftSwitch and Embedded SoftSwitch equipped routers only)........................... 3-10
3.7.3. Enabling The AES Audio SoftSwitch For Clean Audio Switches
(SoftSwitch and Embedded SoftSwitch equipped routers only)........................... 3-10
3.7.4. Enabling The Embedded Audio SoftSwitch For Clean Audio Switches
(Embedded SoftSwitch equipped routers only)....................................................... 3-11
3.8. CONFIGURING THE VIDEO AND AUDIO INPUTS.............................................................. 3-11
3.8.1. Setting the Configuration of the AES Router Section
(Early X1202H-AES Routers with 2 breakout panels only) ........................................ 3-12
3.8.2. Setting up the Audio Follow Video Groups................................................................. 3-12
3.8.3. Configuring Which Inputs Are Active.......................................................................... 3-13
3.8.4. Configuring What To Do When There Is No Video Input Present .............................. 3-13
3.8.5. Configuring The Router Video Standard
(HD SoftSwitch and Embedded SoftSwitch equipped routers only) ................... 3-14
3.9. LABELING THE VIDEO AND AUDIO INPUTS..................................................................... 3-14
3.9.1. Uploading/Downloading Input Labels from a Text File............................................... 3-14
3.9.2. Changing the Input Labels from the Front Panel........................................................ 3-15
3.10. CONFIGURING THE VIDEO OUTPUTS (HD ROUTERS ONLY) ......................................... 3-15
3.10.1. Selecting the Reclocking Mode of the HD Video Outputs (HD Routers only) ............ 3-15
3.11. MANUALLY ACTIVATING THE BYPASS RELAYS ............................................................ 3-15
3.11.1. Manually Activating All the Bypass Relays................................................................. 3-16
3.12. CONFIGURING THE GENERAL PURPOSE INPUTS (GPI) ................................................ 3-16
3.12.1. How to Override (Temporarily Disable) the GPI Functions ........................................ 3-16
3.12.2. How to turn off the GPI Override (Return the GPIs to their Programmed Functions) 3-16
3.12.3. Configuring the Encoding mode for the GPI Inputs.................................................... 3-17
3.12.3.1. Standard GPI Encoding ............................................................................. 3-17
3.12.3.2. HEX GPI Encoding..................................................................................... 3-17
3.12.3.3. AFV HEX GPI Encoding............................................................................. 3-18
3.12.4. Configuring Whether the GPI Inputs are Edge or Level Activated ............................. 3-19
3.12.5. Programming the GPI Inputs Functions ..................................................................... 3-20
3.13. CONFIGURING THE GENERAL PURPOSE OUTPUTS (GPO)........................................... 3-20
3.13.1. How to Override (Temporarily Disable) the GPO Functions ...................................... 3-21
3.13.2. How to turn off the GPO Override (Return the GPOs to their Programmed Functions)321
3.13.3. Configuring the Encoding mode for the GPO Outputs ............................................... 3-21
3.13.3.1. HEX GPO Encoding................................................................................... 3-21
3.13.4. Configuring Whether the GPO Outputs are Latched or Momentary........................... 3-22
3.13.5. Programming the GPO Output Functions .................................................................. 3-22
ii
Revision 1.3.2
CONTENTS
X1200 Series Router Manual
3.14. CONFIGURING THE REMOTE CONTROL PORT OPERATION......................................... 3-22
3.14.1. Selecting the Baud Rate for Remote Control Port...................................................... 3-23
3.14.2. Selecting the Serial Data Format for the Remote Control Port .................................. 3-23
3.14.3. Selecting the Serial Control Address.......................................................................... 3-24
3.14.4. Selecting the Serial Data Control Mode ..................................................................... 3-24
3.14.5. Selecting the External Remote Control Protocol ........................................................ 3-24
3.15. SAVING AND RECALLING CONFIGURATION PRESETS ................................................. 3-25
3.15.1. How to Restore the Factory Default Settings ............................................................. 3-25
3.15.2. How to Recall a Saved User Preset Configuration..................................................... 3-25
3.15.3. How to Save the Router Configuration to a User Preset............................................ 3-26
3.16. MANAGING THE ROUTER FIRMWARE .............................................................................. 3-26
3.16.1. Reading the Router Firmware Version ....................................................................... 3-26
3.16.2. How to Update the Router Firmware.......................................................................... 3-26
4. TECHNICAL DESCRIPTION............................................................................................................ 4-1
4.1. SPECIFICATIONS................................................................................................................... 4-1
4.1.1. Video Specifications (X1200S Series).......................................................................... 4-1
4.1.1.1. SD Video Inputs ........................................................................................... 4-1
4.1.1.2. SD Video Outputs ........................................................................................ 4-1
4.1.2. Video Specifications (X1200H Series) ......................................................................... 4-2
4.1.2.1. HD Video Inputs........................................................................................... 4-2
4.1.2.2. HD Video Outputs ........................................................................................ 4-2
4.1.3. Video Reference .......................................................................................................... 4-2
4.1.4. AES Audio Inputs ......................................................................................................... 4-3
4.1.5. AES Audio Outputs ...................................................................................................... 4-3
4.1.6. DARS Reference (SoftSwitch and Embedded SoftSwitch equipped routers only) 4-3
4.1.7. GPI Control Port ........................................................................................................... 4-3
4.1.8. Serial Remote Control .................................................................................................. 4-3
4.1.9. Electrical....................................................................................................................... 4-4
4.1.10. Physical ........................................................................................................................ 4-4
4.2. UPGRADING FIRMWARE ...................................................................................................... 4-4
4.2.1. Step 1 – Terminal Program Setup................................................................................ 4-4
4.2.1.1. Step 2 – Invoke Upload Mode Via The Front Panel..................................... 4-5
4.2.1.2. Step 3 – Invoke Upload Mode From The Terminal Program ....................... 4-5
4.2.2. Step 4 – Uploading the new firmware .......................................................................... 4-6
4.2.3. Step 5 – Completing the Upgrade ................................................................................ 4-6
4.3. UPLOADING ROUTER INPUT LABELS FROM A TEXT FILE .............................................. 4-6
4.3.1. Step 1 – Terminal Program Setup................................................................................ 4-7
4.3.2. Step 2 – Download the Current Labels from the Router .............................................. 4-7
4.3.3. Step 3 – Editing the Label Text File ............................................................................. 4-7
4.3.4. Step 4 – Upload the New Label file to the Router ........................................................ 4-8
4.3.5. Sample Label Text Files............................................................................................... 4-9
CONTENTS
Revision 1.3.2
iii
X1200 Series Router Manual
5. SERIAL CONTROL OF THE ROUTERS ......................................................................................... 5-1
5.1. GVG TEN-XL ASCII PROTOCOL ........................................................................................... 5-1
5.1.1. Serial Data Format ....................................................................................................... 5-1
5.1.2. Definitions..................................................................................................................... 5-2
5.1.3. Command Formats....................................................................................................... 5-3
5.1.3.1. Write or Take Command .............................................................................. 5-3
5.1.3.2. Read or Query Command ............................................................................ 5-3
5.1.3.3. Reply Command String ................................................................................ 5-3
5.1.4. Command Examples: ................................................................................................... 5-3
5.1.4.1. Input Selection – Audio Follow Mode........................................................... 5-4
5.1.4.2. Input Selection – Breakaway Mode.............................................................. 5-4
5.1.4.3. Router Status Request................................................................................. 5-4
6. VIDEO AND AUDIO OUTPUT CONFIGURATIONS........................................................................ 6-1
6.1. MODEL X1201 - 12 X 1 OUTPUT CONFIGURATIONS.......................................................... 6-1
6.2. MODEL X1202 - 12 X 2 OUTPUT CONFIGURATIONS.......................................................... 6-3
6.3. MODEL X1202 (EARLY VERSIONS WITH 2 BREAKOUT PANELS)
- 12 X 2 OUTPUT CONFIGURATIONS................................................................................... 6-7
7. VIDEO TIMING CONSIDERATIONS................................................................................................ 7-1
7.1. ALL INPUT SIGNALS ARE TIMED TO REFERENCE. .......................................................... 7-1
7.2. INPUT SIGNALS ARE WITHIN TIMED TO WITHIN +/- 1 LINE OF REFERENCE. ............... 7-2
7.3. ALL INPUT SIGNALS ARE TIMED TOGETHER BUT DELAYED 5 LINES FROM
REFERENCE........................................................................................................................... 7-3
7.4. ALL INPUT SIGNALS ARE TIMED WITHIN A RANGE OF +/- 1 LINE
FROM EACH OTHER BUT DELAYED 5 LINES FROM REFERENCE.................................. 7-4
7.5. ALL INPUT SIGNALS ARE TIMED WITHIN A RANGE OF +/- 1 LINE
FROM EACH OTHER BUT DELAYED 5 LINES FROM REFERENCE.................................. 7-5
Figures
Figure 1-1: X1201 Block Diagram ......................................................................................................... 1-3
Figure 1-2: X1201 SoftSwitch Block Diagram .................................................................................... 1-4
Figure 1-3: X1201 Embedded SoftSwitch Block Diagram.................................................................. 1-4
Figure 1-4: X1202 Block Diagram ......................................................................................................... 1-5
Figure 1-5: X1202 SoftSwitch Block Diagram .................................................................................... 1-5
Figure 1-6: X1202 Embedded SoftSwitch Block Diagram.................................................................. 1-6
Figure 2-1: X1202H-AES4 Rear Panel Layout...................................................................................... 2-1
Figure 2-2: X1202S-AES4 Rear Panel Layout ...................................................................................... 2-1
Figure 2-3: X1202ABO Audio Breakout Panel Layout .......................................................................... 2-2

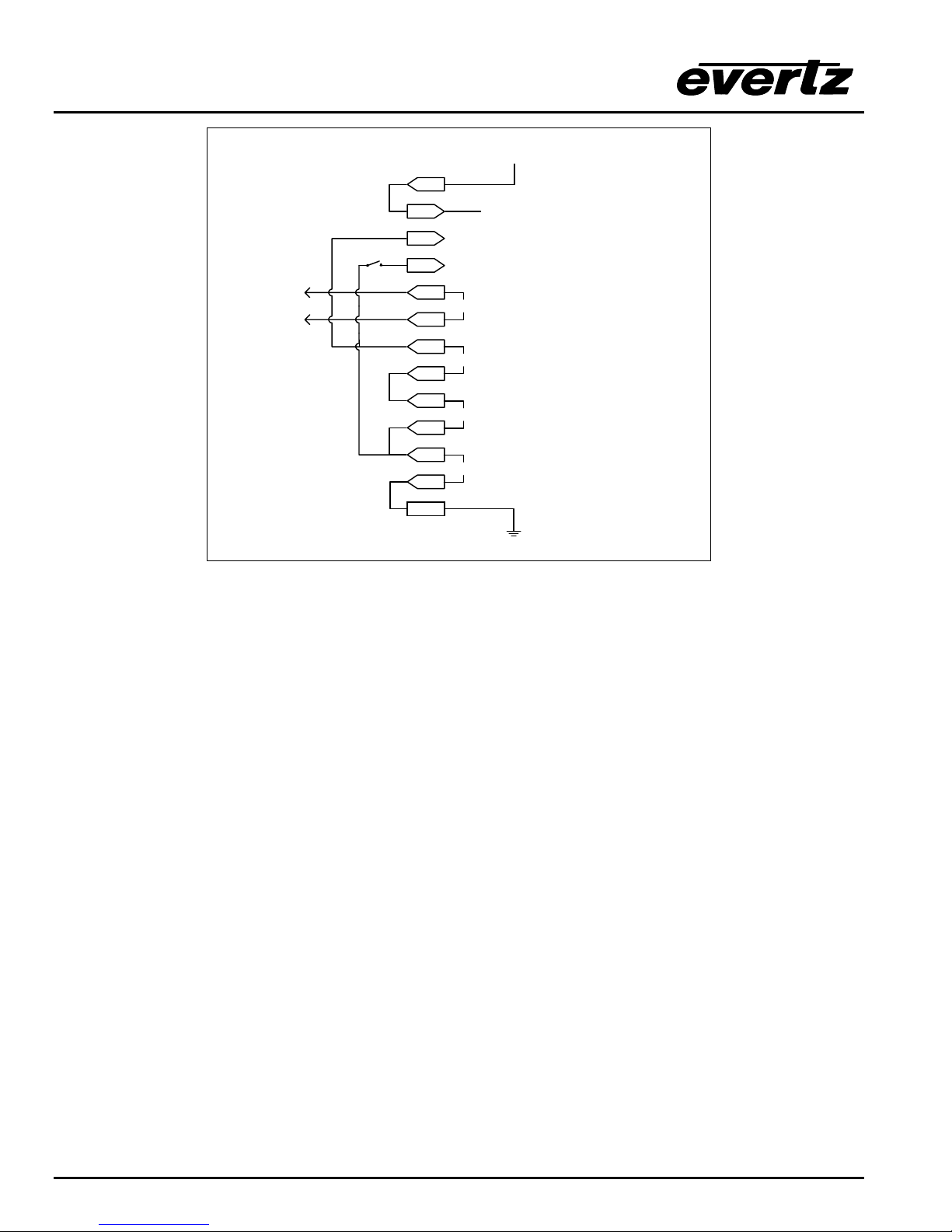

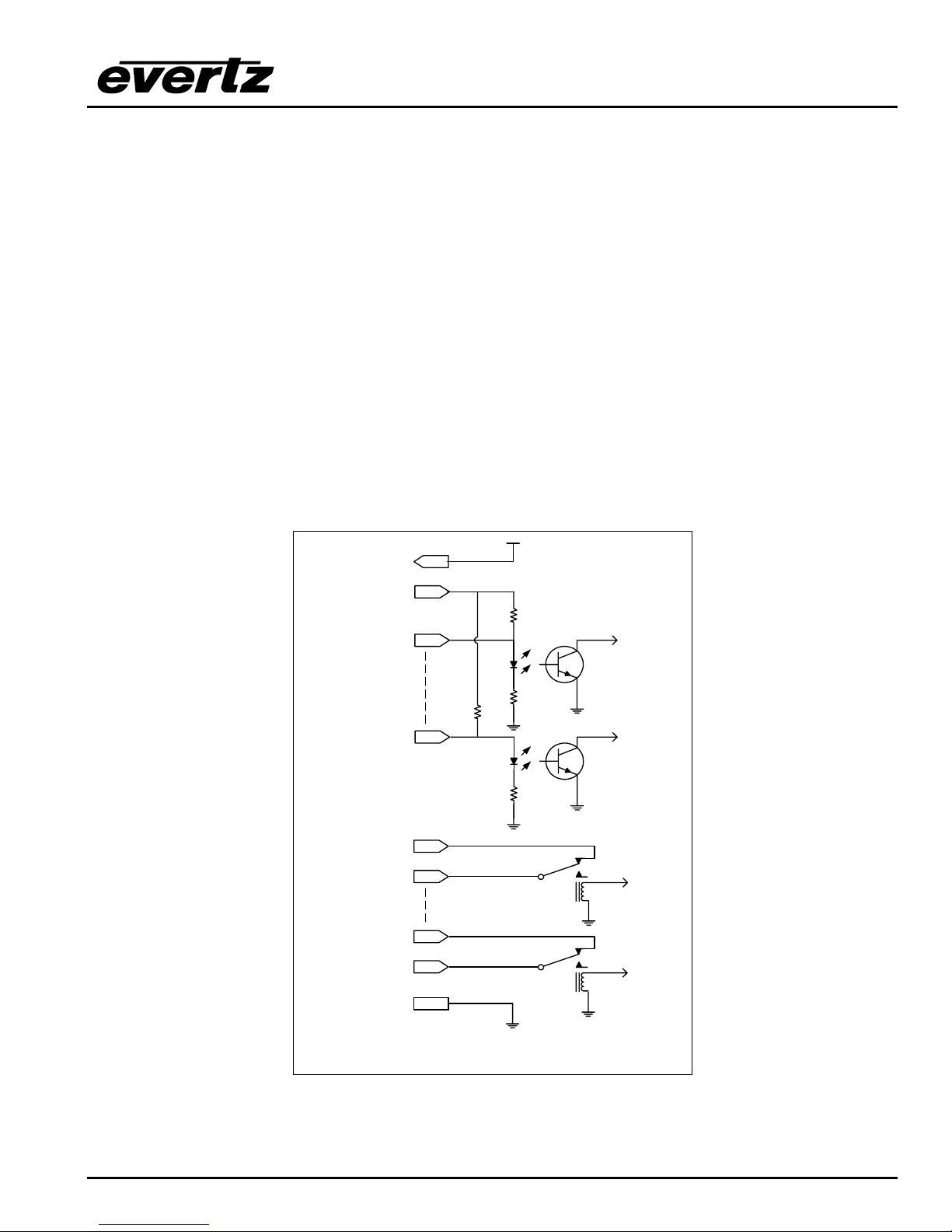

Figure 2-4: General Purpose I/O Schematic ......................................................................................... 2-7

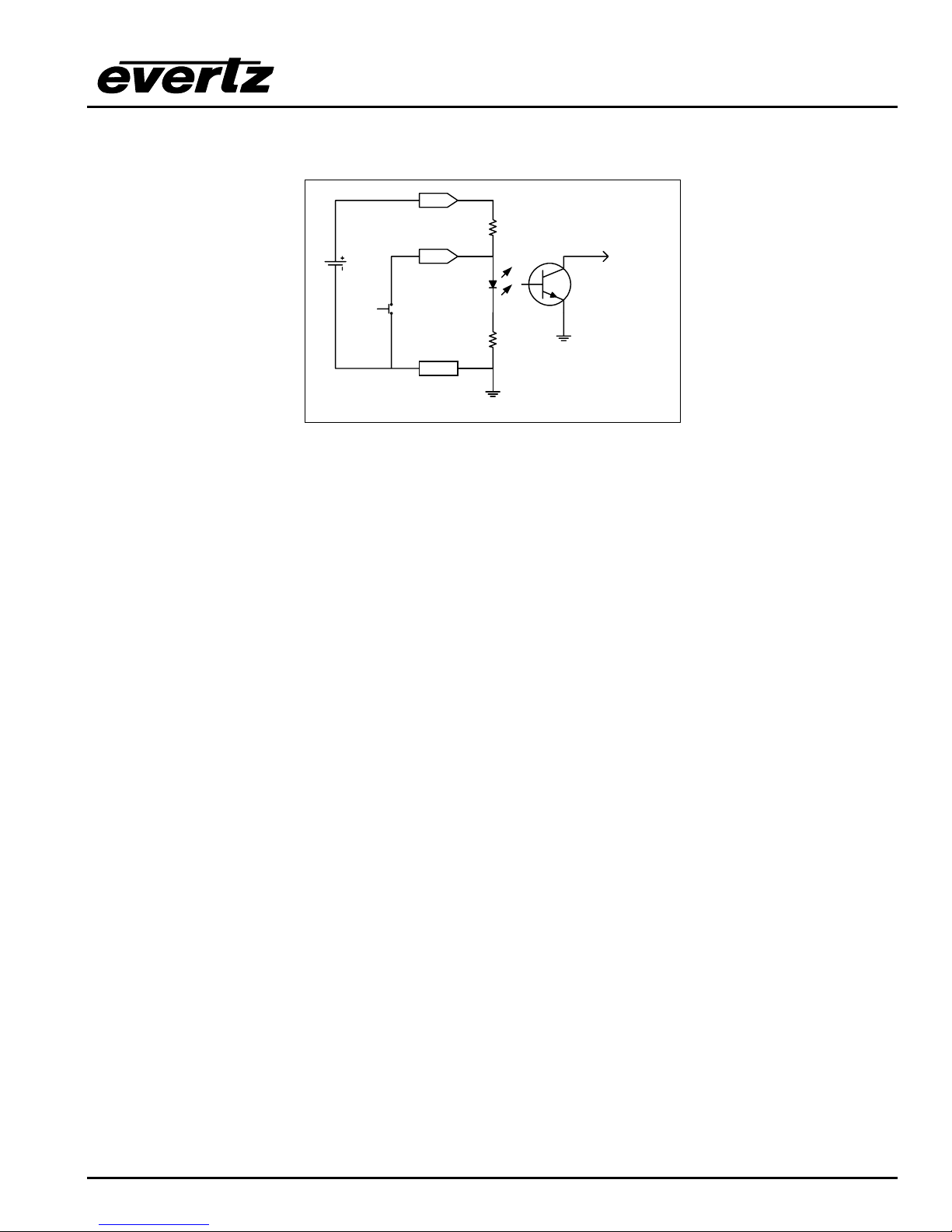

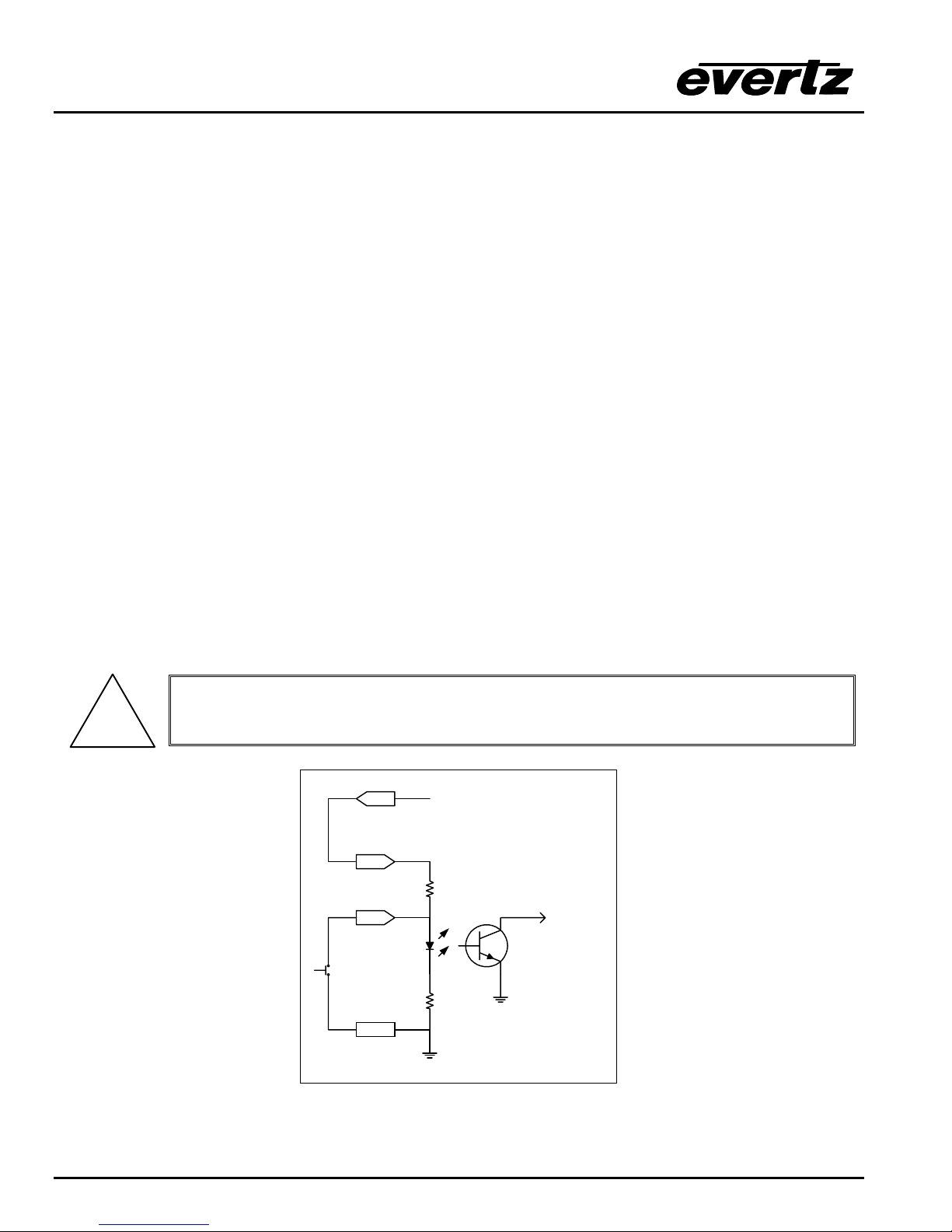

Figure 2-5: Powering the General Purpose Input Opto-Isolators from the Router ................................ 2-8
Figure 2-6: Powering the General Purpose Input Opto-Isolators from an External Power Supply........ 2-9
Figure 2-7: GPIO Example – Auto Changeover to Input 2 on Loss of Input 1 .................................... 2-10

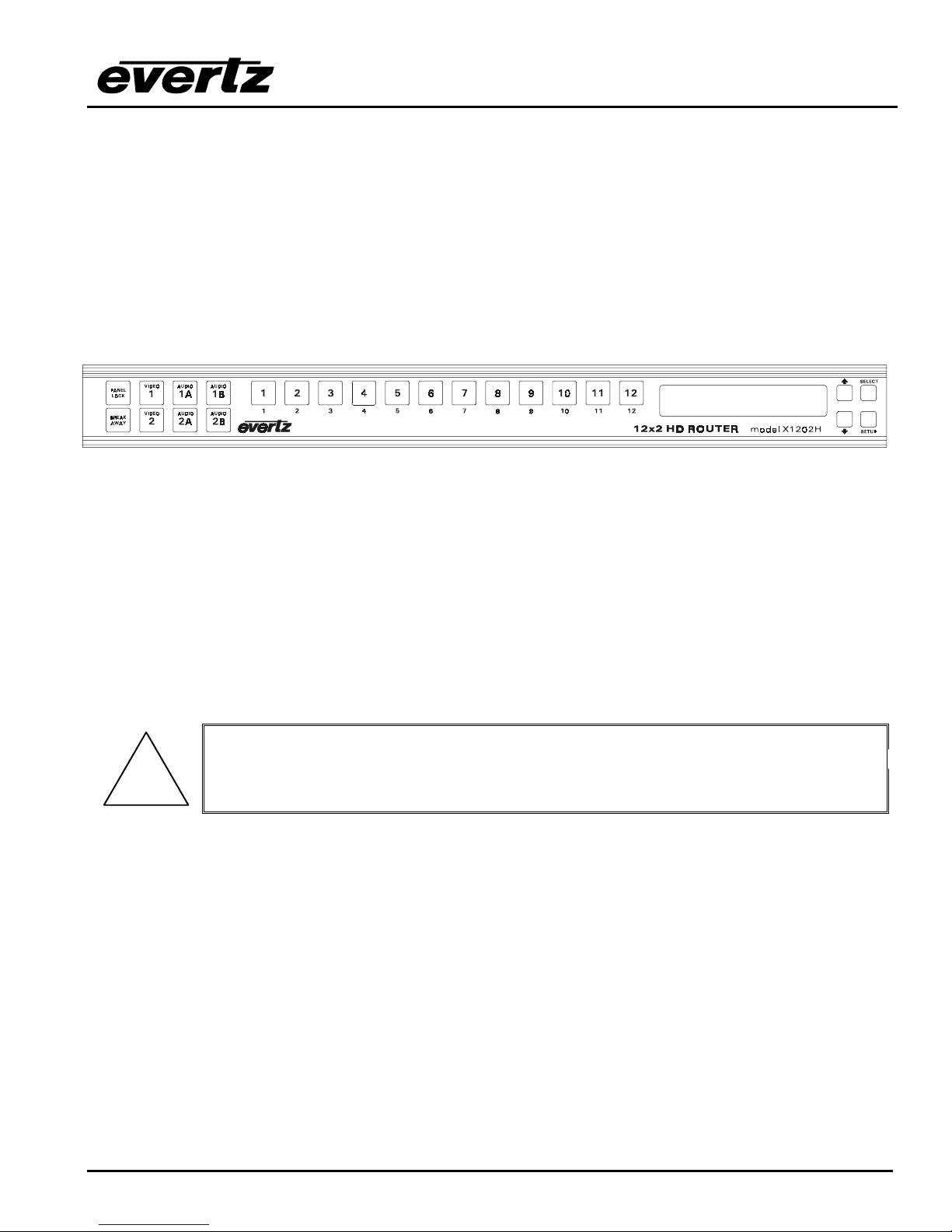

Figure 3-1: Front Panel Layout.............................................................................................................. 3-1
Figure 3-2: Overview of the Setup Menu............................................................................................... 3-4

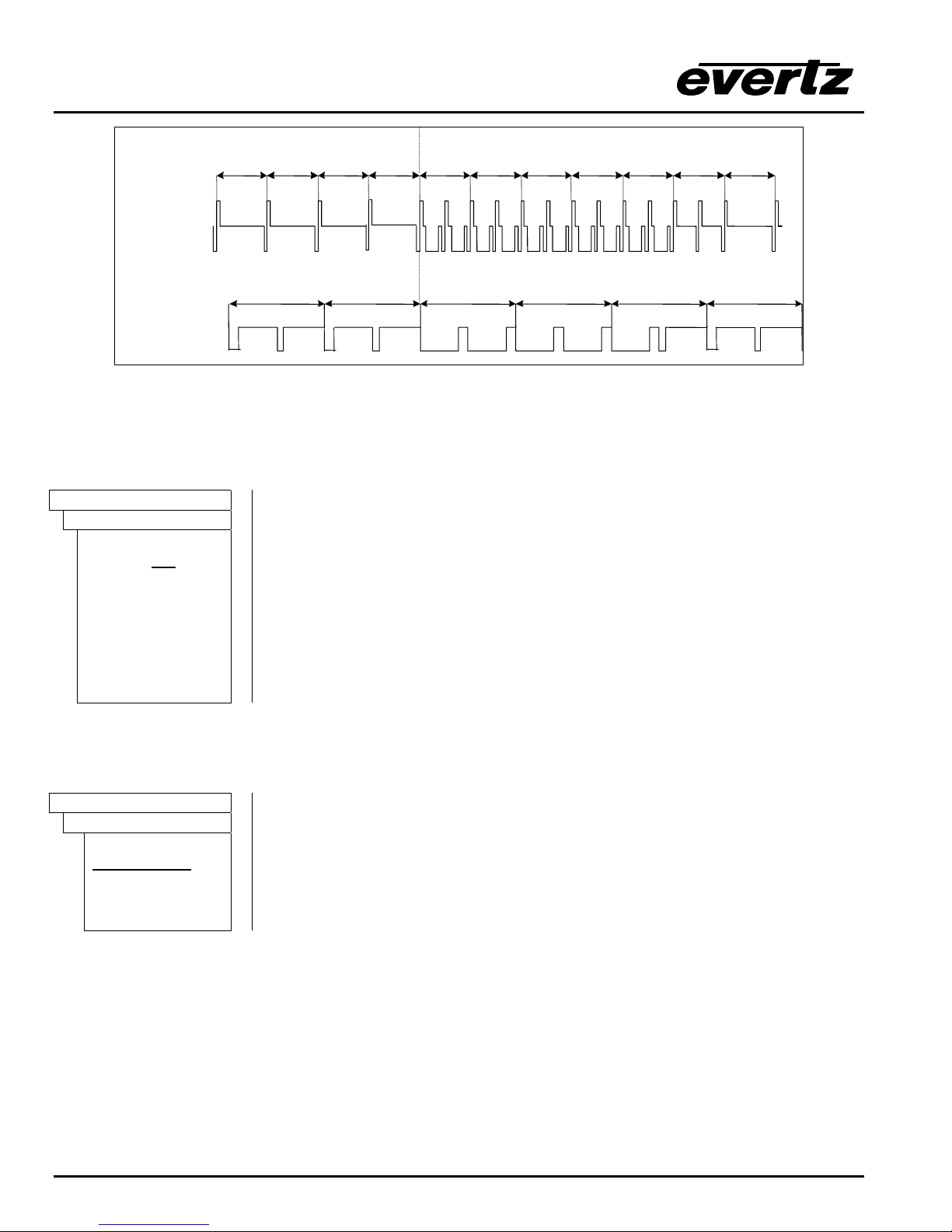

Figure 3-3: Switch Line Selection in 59.94 Hz Field Rate Systems ...................................................... 3-9
Figure 3-4: Switch Line Selection in 50 Hz Field Rate Systems ......................................................... 3-10
iv
Revision 1.3.2
CONTENTS
X1200 Series Router Manual

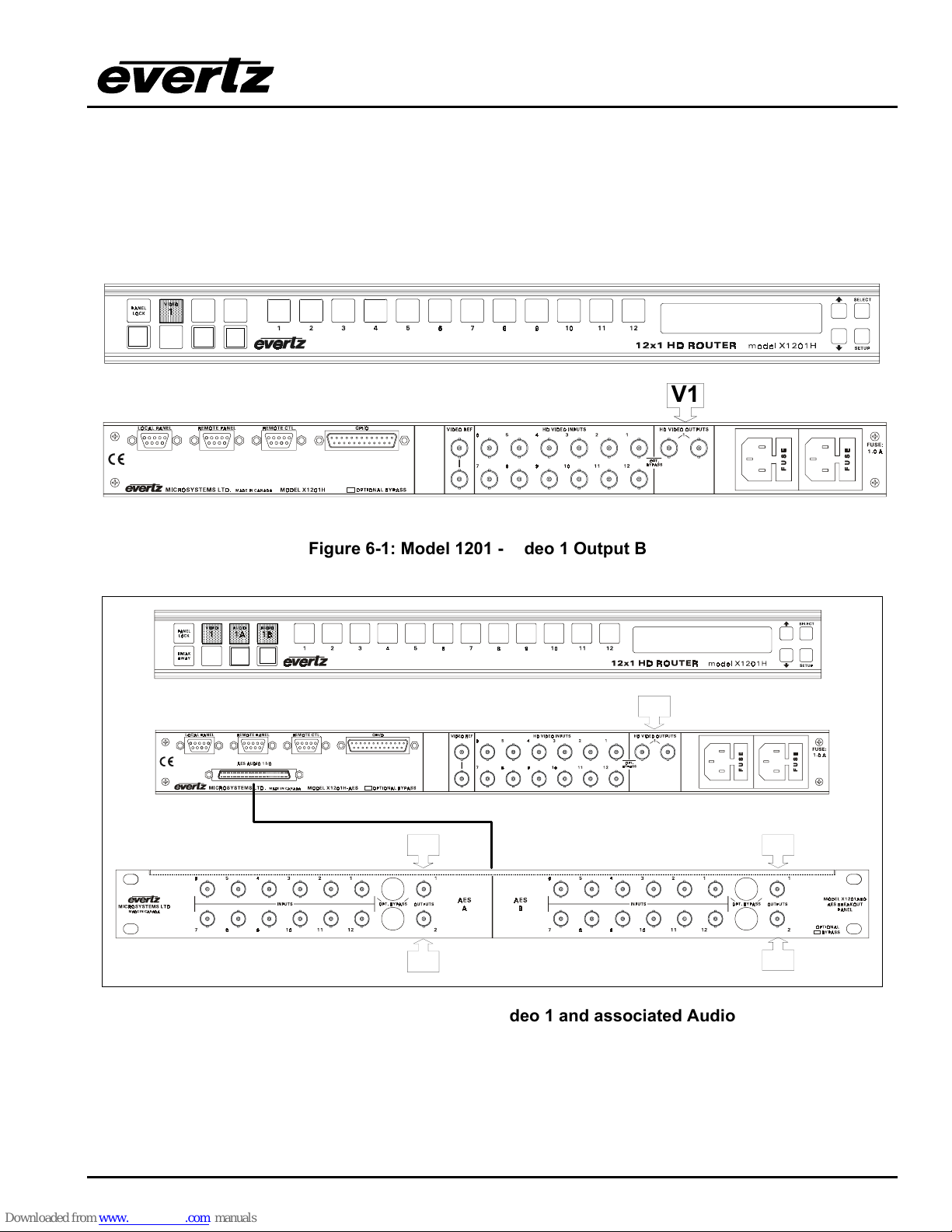

Figure 6-1: Model 1201 - Video 1 Output Buss..................................................................................... 6-1
Figure 6-2: Model 1201-AES – Video 1 and associated Audio ............................................................. 6-1

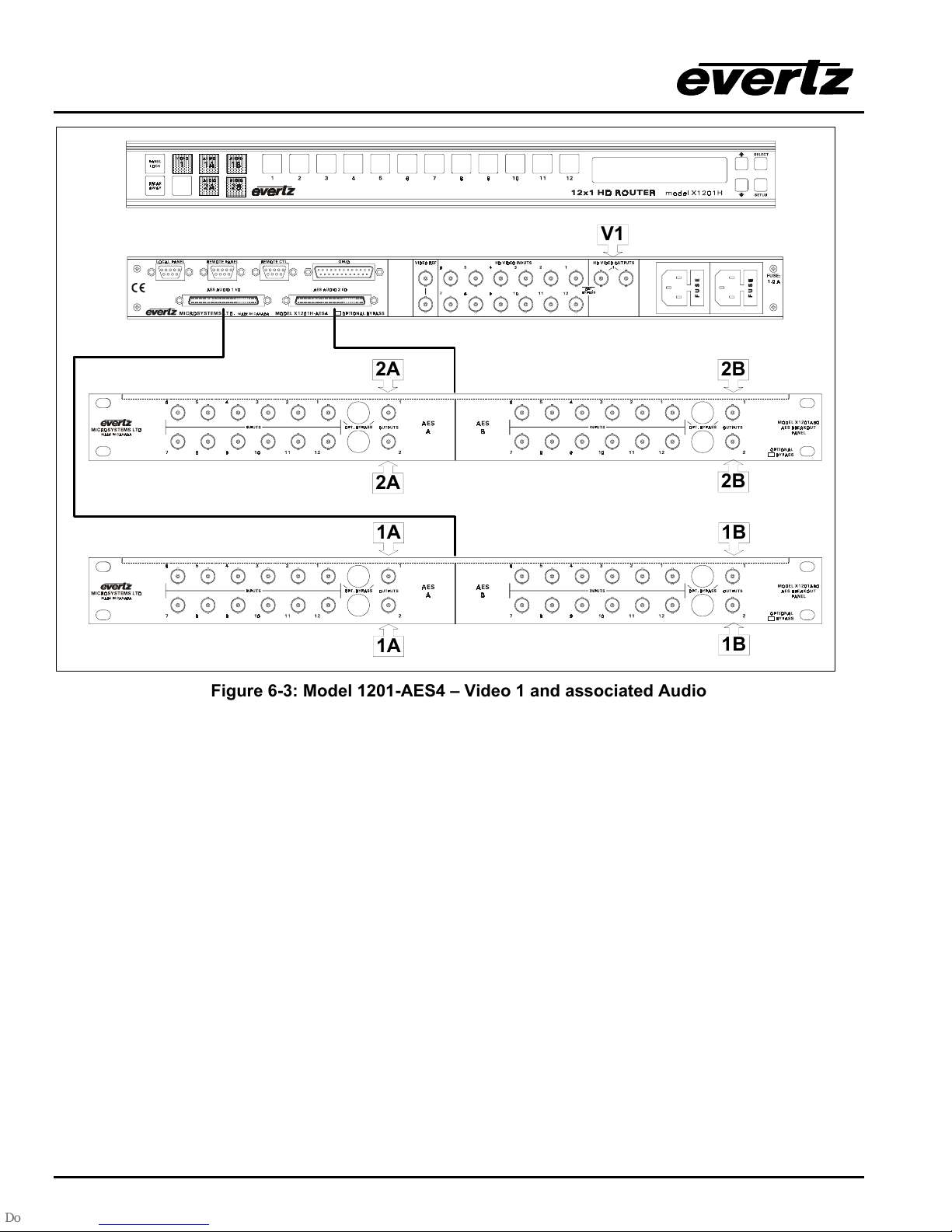

Figure 6-3: Model 1201-AES4 – Video 1 and associated Audio ........................................................... 6-2

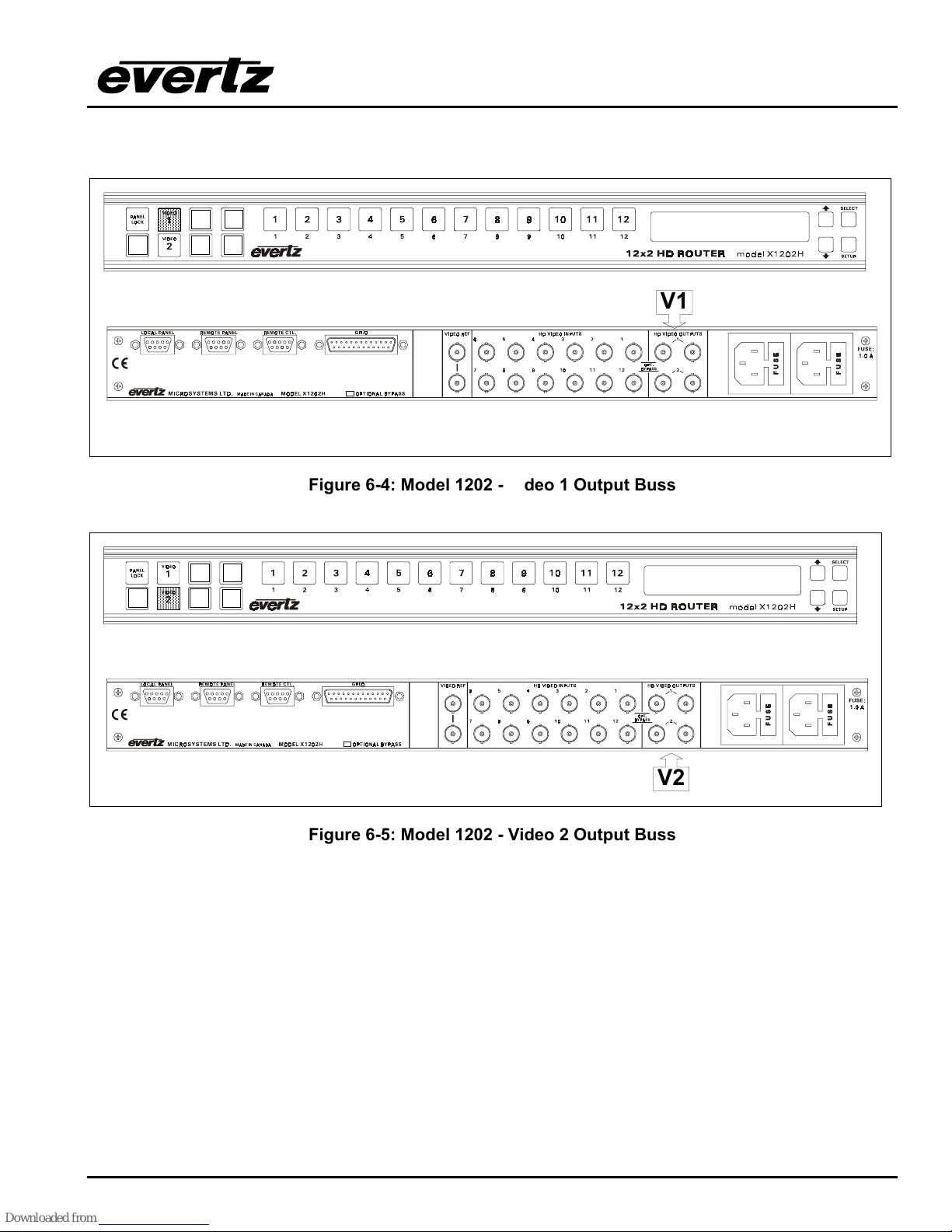

Figure 6-4: Model 1202 - Video 1 Output Buss..................................................................................... 6-3
Figure 6-5: Model 1202 - Video 2 Output Buss..................................................................................... 6-3

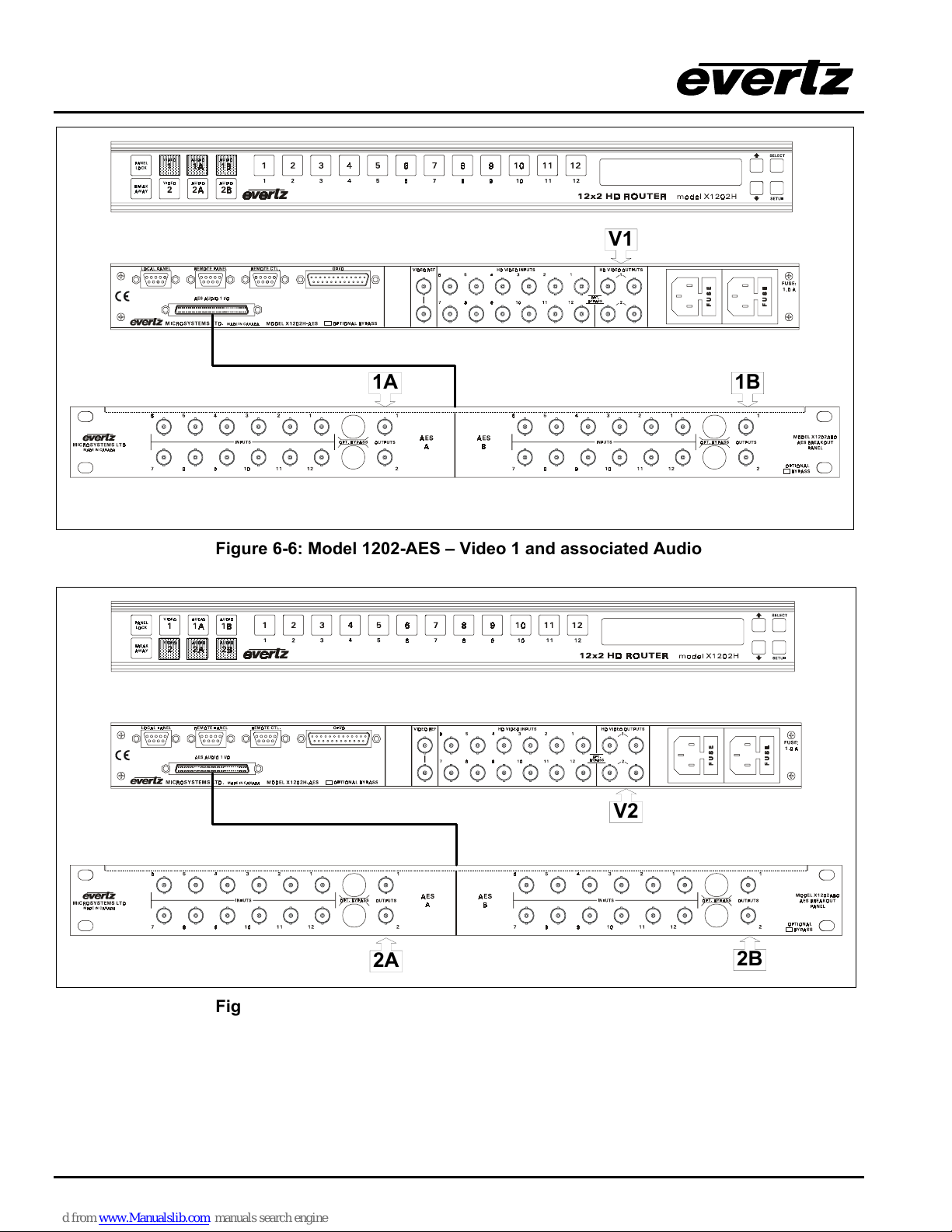

Figure 6-6: Model 1202-AES – Video 1 and associated Audio ............................................................. 6-4
Figure 6-7: Model 1202-AES – Video 2 and associated Audio ............................................................. 6-4

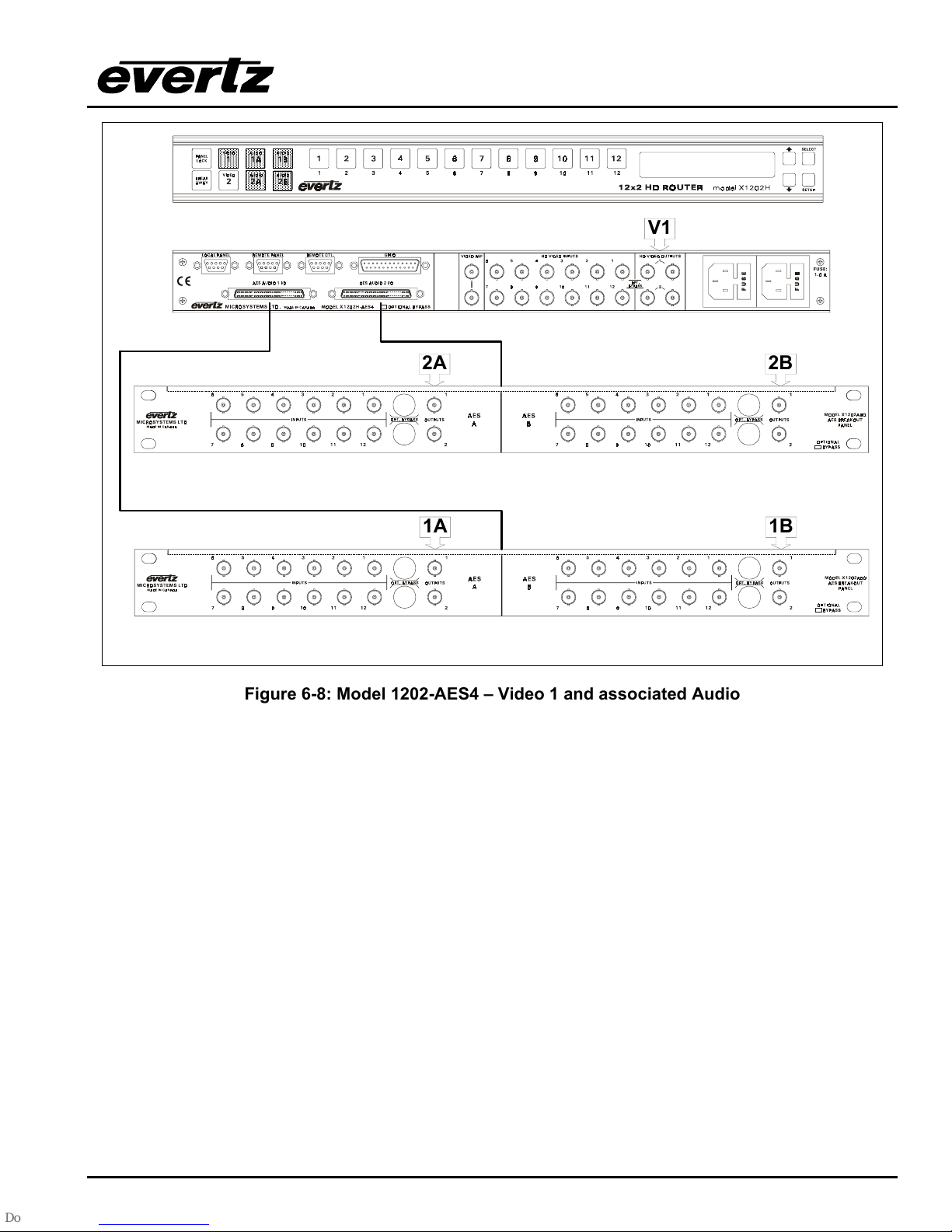

Figure 6-8: Model 1202-AES4 – Video 1 and associated Audio ........................................................... 6-5

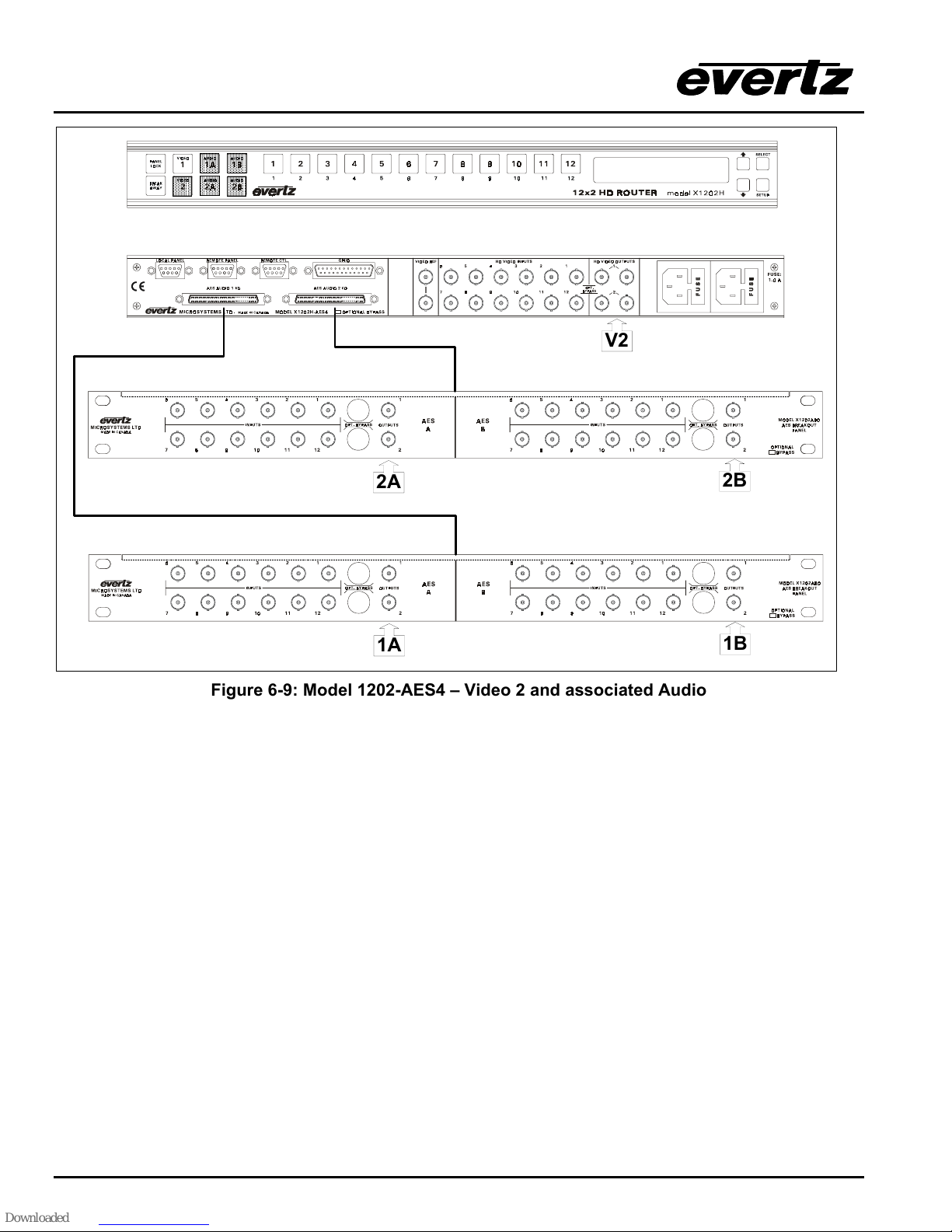

Figure 6-9: Model 1202-AES4 – Video 2 and associated Audio ........................................................... 6-6

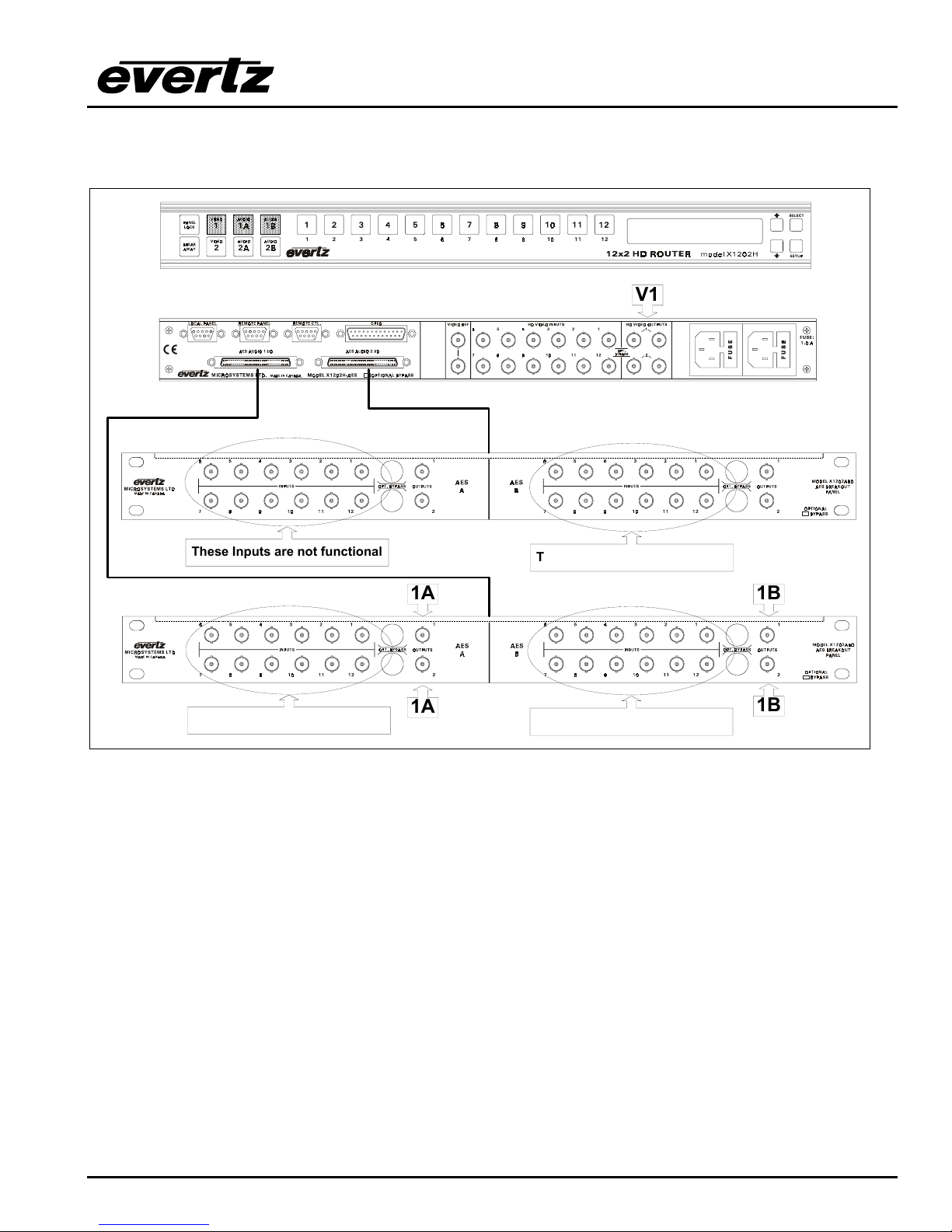

Figure 6-10: Model 1202-AES (Early version with AES Mode set to 2(12 x 2))
– Video 1 and associated Audio................................................................................... 6-7
Figure 6-11: Model 1202-AES (Early version with AES Mode set to 2(12 x 2))
– Video 2 and associated Audio.................................................................................. 6-8

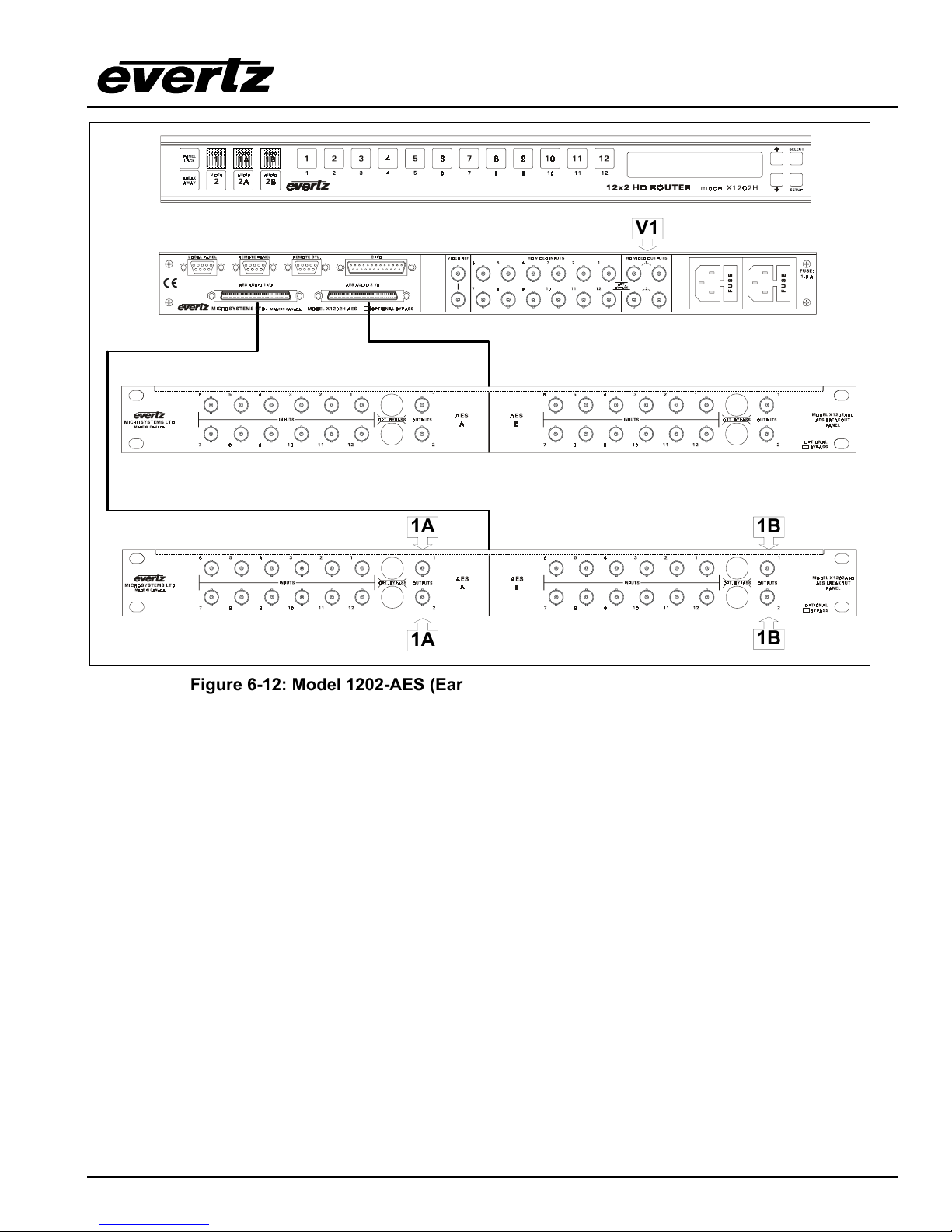

Figure 6-12: Model 1202-AES (Early version with AES Mode set to 4(12 x 1)
and default AFV grouping) – Video 1 and associated Audio........................................ 6-9
Figure 6-13: Model 1202-AES (Early version with AES Mode set to 4(12 x 1)
and default AFV grouping) – Video 2 and associated Audio...................................... 6-10

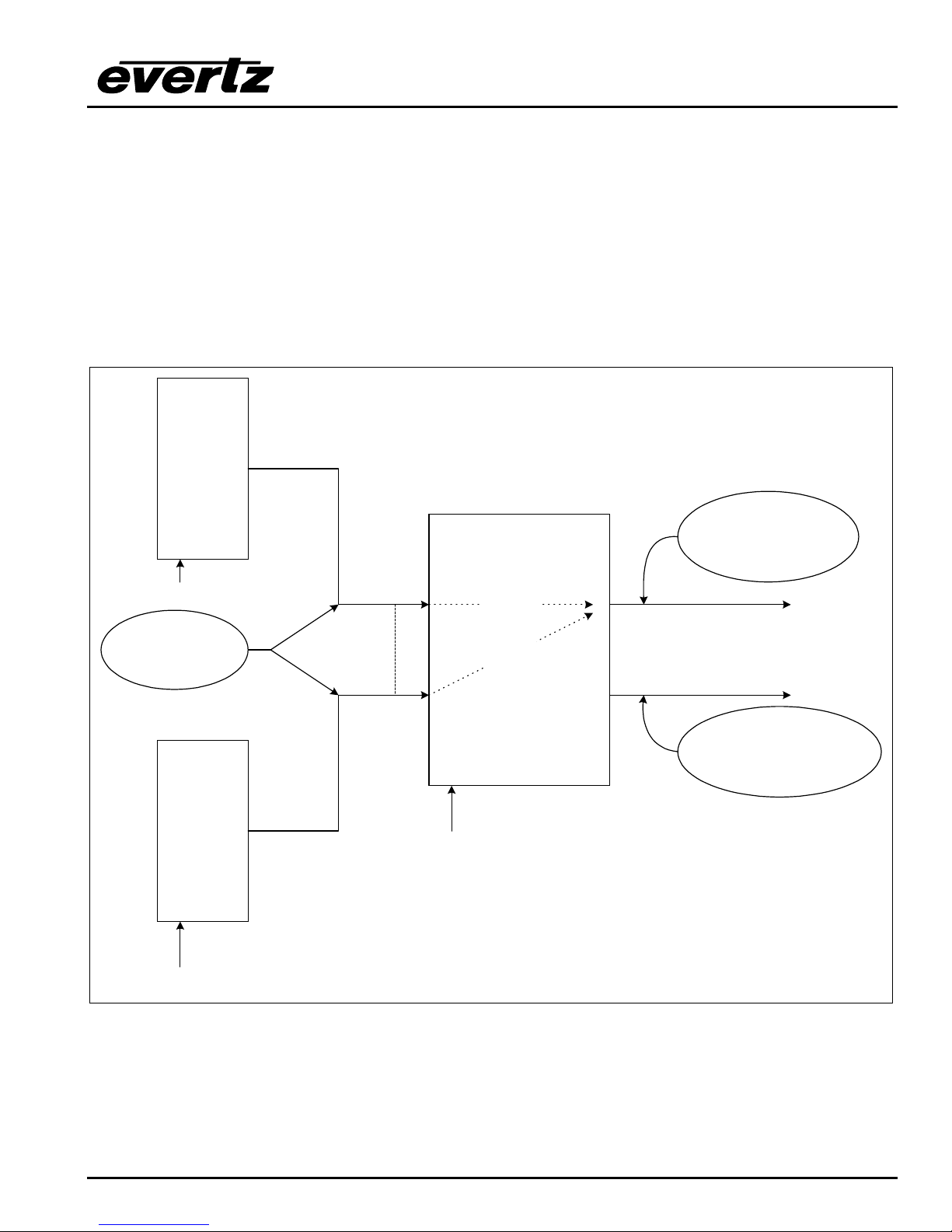

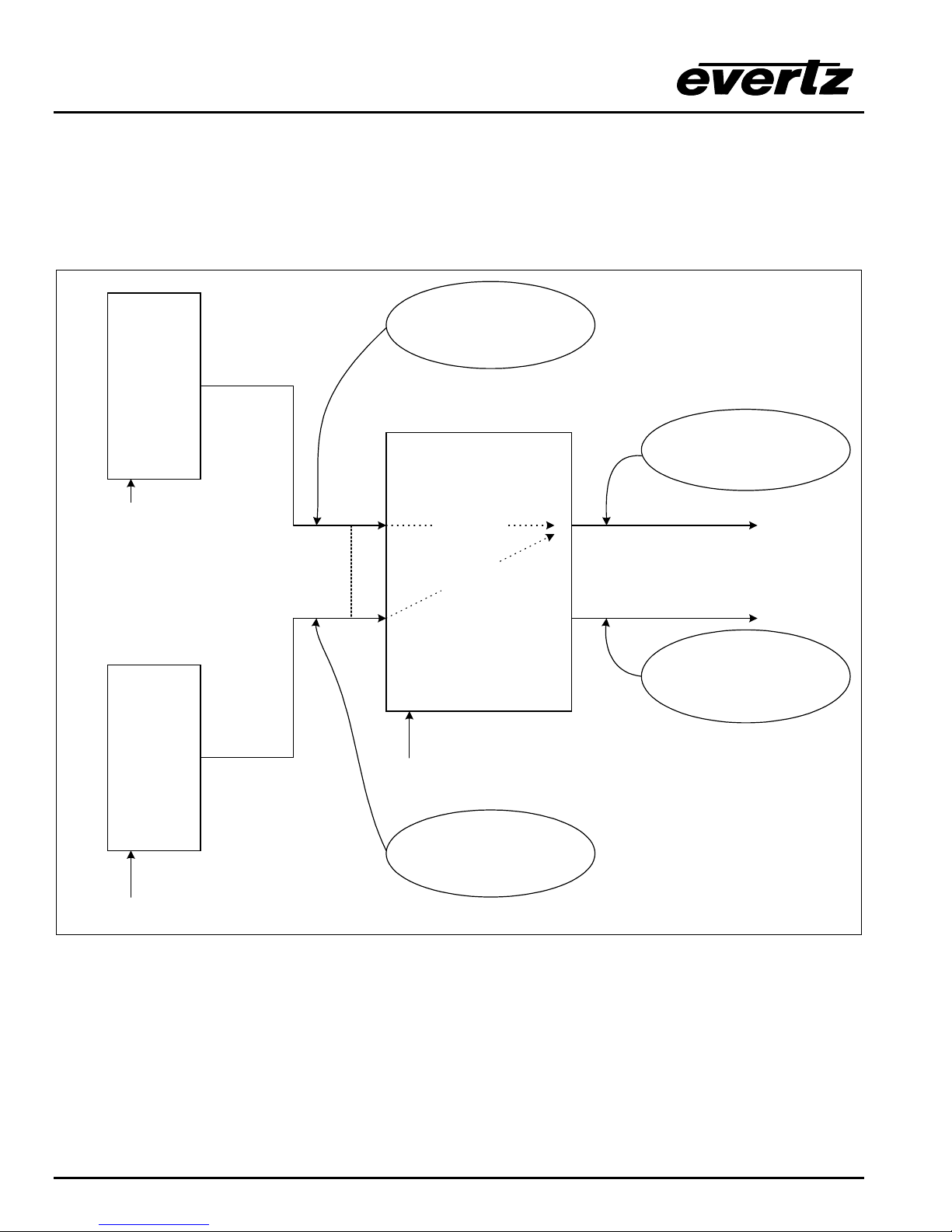

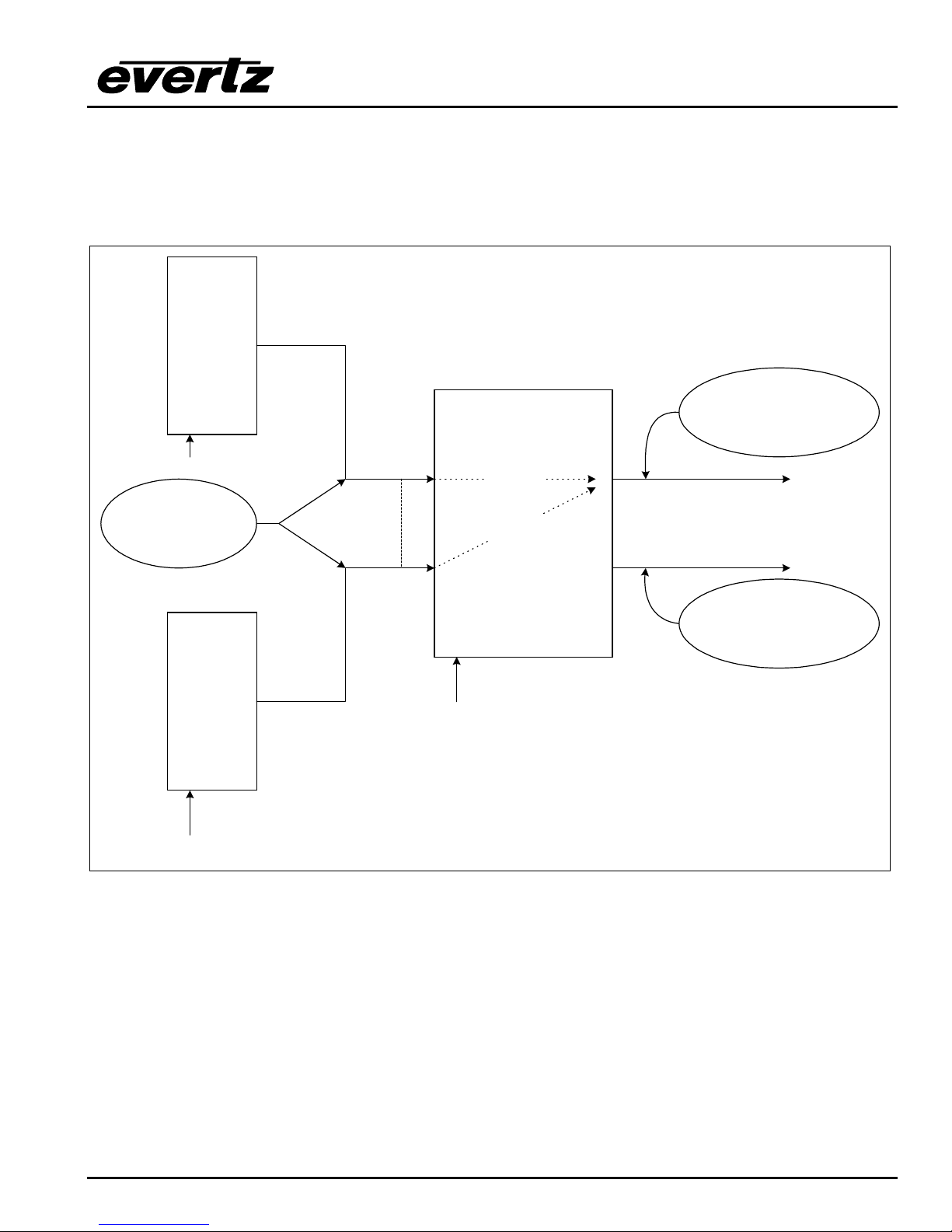

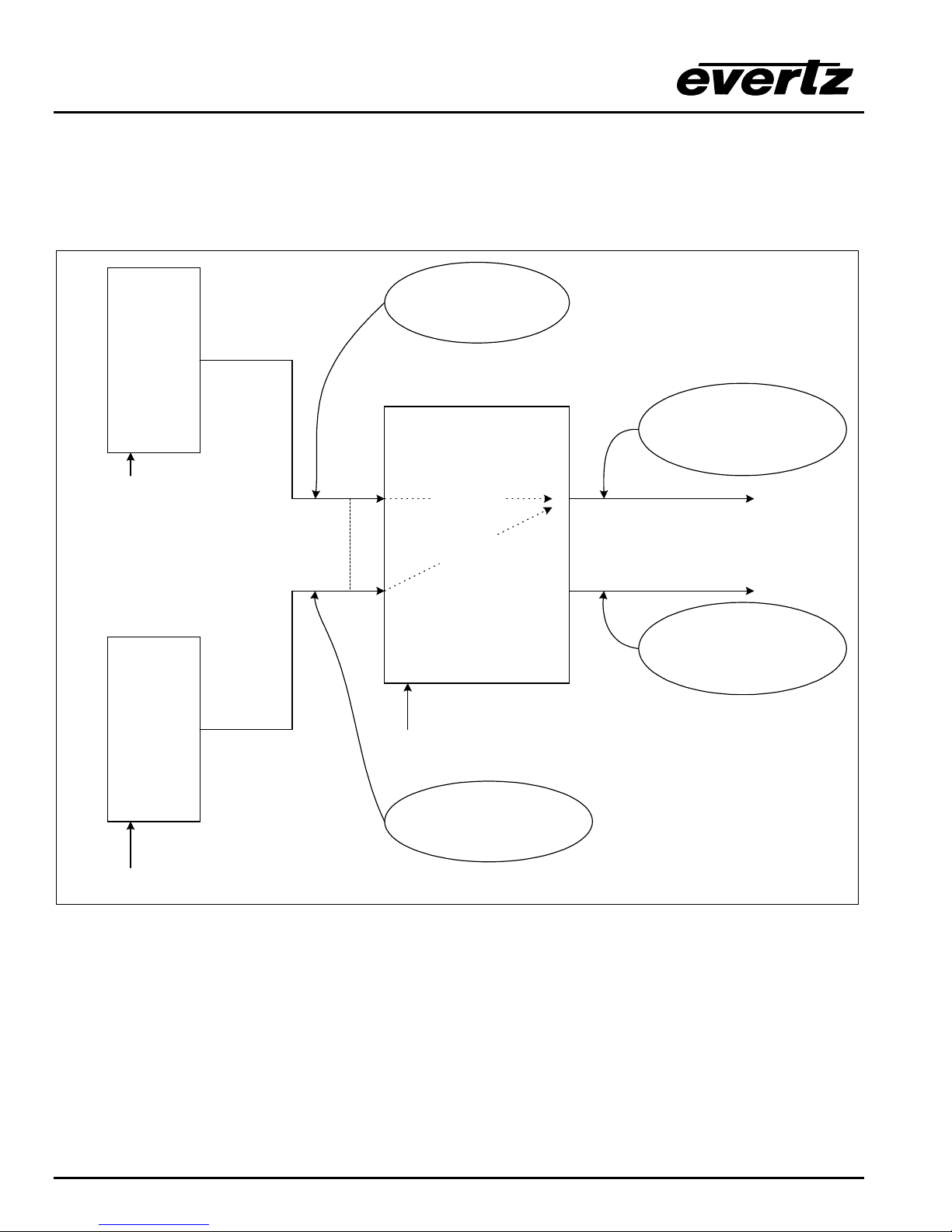

Figure 7-1: Timing Example 1 – Inputs in Time with Reference............................................................ 7-1
Figure 7-2: Timing Example 2 – Inputs in Time with Reference............................................................ 7-2
Figure 7-3: Timing Example 3 – Inputs in Time but Delayed 5 Lines from Reference .......................... 7-3
Figure 7-4: Timing Example 4 – Inputs Not in Time and Delayed from Reference ............................... 7-4
Figure 7-5: Timing Example 5 – Bypass Router for Production Switcher ............................................. 7-5
Tables
Table 1-1: Basic Router Models and Features...................................................................................... 1-1
Table 1-2: SoftSwitch Router Models................................................................................................. 1-2
Table 1-3: Embedded SoftSwitch Router Models .............................................................................. 1-2
Table 2-1: Router RS-232 Port Pin Definitions...................................................................................... 2-4
Table 2-2: Router RS-422 Port Pin Definitions...................................................................................... 2-4
Table 2-3: GPI/O Pin Definitions ........................................................................................................... 2-5
Table 2-4: Remote Control Panel Extender Cable ................................................................................ 2-6
Table 2-5: Master 1202 to Slave 1202 Cable – RS-232 Configuration ............................................... 2-11
Table 2-6: Master 1202 to Slave 1202 Cable – RS-422 Configuration ............................................... 2-11
Table 3-1: Standard GPI Encoding Functions..................................................................................... 3-17
Table 3-2: HEX GPI Encoding Functions............................................................................................ 3-18
Table 3-3: HEX Input Selection (HEX and AVF HEX Encoding)......................................................... 3-18
Table 3-4: AFV HEX GPI Encoding Functions.................................................................................... 3-19
Table 3-5: HEX Input Selection for AFV2 (AVF HEX Encoding) ......................................................... 3-19
Table 3-6: HEX Encoded Output Tallies ............................................................................................. 3-22
Table 5-1: Crosspoint numbers and their Internal Source Numbers ..................................................... 5-2
Table 5-2: ASCII Command Definitions ................................................................................................ 5-3
CONTENTS
Revision 1.3.2
v
X1200 Series Router Manual
This page left intentionally blank
vi
Revision 1.3.2
CONTENTS
X1200 Series Router Manual
CHAPTER 1: OVERVIEW
TABLE OF CONTENTS
1. OVERVIEW....................................................................................................................................... 1-1
1.1. HOW TO USE THIS MANUAL ................................................................................................ 1-6
1.2. GLOSSARY............................................................................................................................. 1-6
Figures
Figure 1-1: X1201 Block Diagram ......................................................................................................... 1-3
Figure 1-2: X1201 SoftSwitch Block Diagram.................................................................................... 1-4
Figure 1-3: X1201 Embedded SoftSwitch Block Diagram.................................................................. 1-4
Figure 1-4: X1202 Block Diagram ......................................................................................................... 1-5
Figure 1-5: X1202 SoftSwitch Block Diagram.................................................................................... 1-5
Figure 1-6: X1202 Embedded SoftSwitch Block Diagram.................................................................. 1-6
OVERVIEW
Revision 1.3.2
X1200 Series Router Manual
This page left intentionally blank
Revision 1.3.2
OVERVIEW
X1200 Series Router Manual
1. OVERVIEW
The X1200 series twelve input routing switchers provide a convenient, low cost way to route Standard and
High definition serial digital signals. The X1200S routers are used for 270, 360 & 540Mb/s standard
definition serial digital signals, while the X1200H routers are used for 1.5Gb/s HDTV serial digital signals.
The router is available in video only or video with AES configurations. The X1202S-AES and
X1202H-AES units come with 2 levels of AES audio routing for each of the two video busses. The
X1202S-AES4 and X1202H-AES4 units come with 4 levels of AES audio routing for each of the two video
busses. The X1201 routers have only one video bus and similar audio configurations. The AES output
busses can be used in an audio follow video mode, or can be broken away from their associated video
buss. Table 1-1 shows the model numbers of the basic routers and the capabilities of each.
Audio
Breakout
Model Video
X1201S SDI 12 x 1 None 0
X1201S-AES SDI 12 x 1 2 12 x 1 1
X1201S-AES4 SDI 12 x 1 4 12 x 1 2
X1202S SDI 12 x 2 None 0
X1202S-AES SDI 12 x 2 2 12 x 2 1
X1202S-AES4 SDI 12 x 2 4 12 x 2 2
X1201H HD 12 x 1 None 0
X1201H-AES HD 12 x 1 2 12 x 2 1
X1201H-AES4 HD 12 x 1 4 12 x 2 2
X1202H HD 12 x 2 None 0
X1202H-AES HD 12 x 2 2 12 x 2 1**
X1202H-AES4 HD 12 x 2 4 12 x 2 2
Configuration
Panels
Table 1-1: Basic Router Models and Features
**Some early versions of the X1202H-AES models were shipped with two audio breakout panels. On
these units, the AES audio router sections can also be configured as four 12 x 1 AES audio busses. (The
assignment of which mode the AES section of the router operates and which AES busses are associated
to the Video busses is programmable from the Setup menu.)
The router electronics is housed in a 1RU rack mount frame with breakout panels for the audio
connections. The standard router has built-in front panel controls, but can also be purchased with a rack
mount remote control panel that replaces the built-in control panel (RCP version). An additional remote
control panel (X1202S-REMOTE or X1202H-REMOTE) can also be ordered for any version. All units can
also be controlled by contact closures on the GPI control port or through the RS-232 serial remote control
port using industry standard switcher protocols.
The SoftSwitch versions (referred to as SS versions throughout this manual) of the router have the
following additional features. The Video 1 output has adjustable vertical timing with respect to the genlock
input, and line synchronizers on the video inputs can accommodate differences in timing up to
approximately +/- one half line for the V1 output. All the AES outputs will have a continuous AES carrier
locked to either the video genlock or DARS reference (when the DARS reference is used, Z bit alignment
of the AES outputs is also guaranteed). The audio outputs that follow the Video 1 buss use Evertz patent
pending SoftSwitch technology to eliminate audible pops when switches are performed. For the
SoftSwitch technology to function correctly, the audio sources must be synchronous with the chosen
OVERVIEW
Revision 1.3.2
Page 1-1
X1200 Series Router Manual
Audio Reference for the router (see section 3.6.4). Table 1-2 shows the model numbers of the
SoftSwitch equipped routers and the capabilities of each.
Audio
Breakout
Model Video Configuration
X1201S+SS SDI 12 x 1 None 0
X1201S-AES+SS SDI 12 x 1 2 12 x 1 1
X1201S-AES4+SS SDI 12 x 1 4 12 x 1 2
X1202S+SS SDI 12 x 2 None 0
X1202S-AES+SS SDI 12 x 2 2 12 x 2 1
X1202S-AES4+SS SDI 12 x 2 4 12 x 2 2
X1201H+HSS HD 12 x 1 None 0
X1201H-AES+HSS HD 12 x 1 2 12 x 2 1
X1201H-AES4+HSS HD 12 x 1 4 12 x 2 2
X1202H+HSS HD 12 x 2 None 0
X1202H-AES+HSS HD 12 x 2 2 12 x 2 1**
X1202H-AES4+HSS HD 12 x 2 4 12 x 2 2
Table 1-2: SoftSwitch Router Models
Panels
The Embedded SoftSwitch (referred to as ESS versions throughout this manual) versions of the router
have all the features of the SS versions as well as the following additional features. The embedded audio
on the Video 1 buss uses Evertz patent pending SoftSwitch technology to eliminate audible pops when
switches are performed. For the Embedded SoftSwitch technology to function correctly, the AES
sources must be synchronous with the Video reference and the Audio Reference for the router must be
set to video (see section 3.6.4). If Embedded SoftSwitch functionality is not required (e.g. Dolby E in the
embedded stream) then the DARS reference can be used with the AES portions of the router. Table 1-3
shows the model numbers of the Embedded SoftSwitch equipped routers and the capabilities of each.
Audio
Breakout
Model Video Configuration
Panels
X1201S+ES SDI 12 x 1 None 0
X1201S-AES+ES SDI 12 x 1 2 12 x 1 1
X1201S-AES4+ES SDI 12 x 1 4 12 x 1 2
X1202S+ES SDI 12 x 2 None 0
X1202S-AES+ES SDI 12 x 2 2 12 x 2 1
X1202S-AES4+ES SDI 12 x 2 4 12 x 2 2
X1201H+HES HD 12 x 1 None 0
X1201H-AES+HES HD 12 x 1 2 12 x 2 1
X1201H-AES4+HES HD 12 x 1 4 12 x 2 2
X1202H+HES HD 12 x 2 None 0
X1202H-AES+HES HD 12 x 2 2 12 x 2 1**
X1202H-AES4+HES HD 12 x 2 4 12 x 2 2
Table 1-3: Embedded SoftSwitch Router Models
Page 1-2
Revision 1.3.2
OVERVIEW
X1200 Series Router Manual
Features:
• Standard definition units support SMPTE 259M (270Mb/s,360Mb/s,540Mb/s) video signals
• High definition units support SMPTE 292M (1.5 Gb/s) video signals
• High definition units can be operated in a non-reclock mode to pass SMPTE 259M video signals
• Units can be genlocked to an external source so that a “clean switch” can be achieved.
• Autotiming of V1 buss inputs to perform a clean video switch when SoftSwitch or Embedded
SoftSwitch option is installed
• Optional SoftSwitch technology eliminates hot-switch audio pops on AES outputs following V1 buss
• Optional Embedded SoftSwitch technology eliminates hot-switch audio pops on embedded audio on
V1 buss
• Switch point is fully controllable from the front panel.
• Video input presence detection displayable on the front panel.
• Front panel or remote control panel versions available. Second control panel can be ordered for either
version
• Parallel GPI and RS-232 serial control.
• Programmable source input names available on the front panel.
• Optional video and audio input relay bypass for power failure bypass protection.
• Optional dual power supplies.
• Field upgradeable firmware as new features become available
AES 1
Audio Inputs
12
112
Relay Bypass available with bypass option
*
Bypass
Cable
Relay
*
Driver
Protected
Cable
Driver
Bypass
Cable
Relay
*
Driver
Protected
Cable
Driver
AES 1 connections on Breakout panel
1
Included only in AES and AES4 models
112
Video Inputs
EQ EQ
Video Connections on main unit
AES 1A
Outputs
AES 1B
Outputs
Video Ref
Loop
AES 2
Audio Inputs
12
112
Genlock
Reclocker
Reclocker bypass on
HD Routers
1
Control
Cable
Driver
*
Protected
Bypass
Relay
GPI/GPO
RS-422
RS-232
Video Output
Buss 1
AES 2 connections on Breakout panel
Included only in AES4 models
Bypass
Cable
Relay
*
Driver
Protected
Cable
Driver
Bypass
Cable
Relay
*
Driver
Protected
Cable
Driver
AES 2A
Outputs
AES 2B
Outputs
Figure 1-1: X1201 Block Diagram
OVERVIEW
Revision 1.3.2
Page 1-3
X1200 Series Router Manual
AES 1
Audio Inputs
12
112
Relay Bypass available with bypass option
*
Clean video switching and 'popless' AES switching
#
available with SoftSwitch
options
Audio Inputs
12
112
1
TM
and Embedded SoftSwitch
AES 1
1
Bypass
Cable
TM
TM
AES 1 connections on Breakout panel
Included only in AES and AES4 models
Relay
*
Driver
Protected
Cable
Driver
Bypass
Cable
Relay
*
Driver
Protected
Cable
Driver
112
Video Inputs
EQ EQ
Video Connections on main unit
AES 1A
Outputs
AES 1B
Outputs
Video Ref
Loop
AES 2
Audio Inputs
12
112
DARS Ref
Loop
1
Control
Genlock
Clean
#+
Switch
Reclocker
Reclocker bypass on
HD Routers
*
Protected
Cable
Driver
Bypass
Relay
TM
#
SoftSwitch
#
SoftSwitch
Figure 1-2: X1201 SoftSwitch Block Diagram
#+
#+
SoftSwitch
SoftSwitch
TM
TM
Bypass
Cable
Relay
*
Driver
Protected
Cable
Driver
Bypass
Cable
Relay
*
Driver
Protected
Cable
Driver
AES 1 connections on Breakout panel
Included only in AES and AES4 models
AES 1A
Outputs
AES 1B
Outputs
AES 2
Audio Inputs
12
112
1
#
#
GPI/GPO
RS-422
RS-232
Video Output
Buss 1
#+
#+
SoftSwitch
SoftSwitch
SoftSwitch
SoftSwitch
Driver
Cable
Driver
Cable
TM
Driver
Cable
Driver
AES 2 connections on Breakout panel
Included only in AES4 models
Cable
TM
Driver
Cable
Driver
Cable
TM
Driver
Cable
Driver
AES 2 connections on Breakout panel
Included only in AES4 models
Cable
TM
*
Protected
*
Protected
*
Protected
*
Protected
Bypass
Bypass
Bypass
Bypass
Relay
Relay
Relay
Relay
AES 2A
Outputs
AES 2B
Outputs
AES 2A
Outputs
AES 2B
Outputs
Relay Bypass available with bypass option
*
Clean video switching and 'popless' AES switching
#
available with SoftSwitch
options
Clean video switching and 'popless' AES and
+
embedded audio switching available with Embedded
TM
SoftSwitch
option
TM
and Embedded SoftSwitch
Figure 1-3: X1201 Embedded SoftSwitch Block Diagram
TM
Video Connections on main unit
112
Video Inputs
Video Ref
Loop
EQ EQ
Clean
#+
Switch
Embedded
+
SoftSwitch
Genlock
DARS Ref
Loop
Reclocker
Reclocker bypass on
HD Routers
Control
Cable
Driver
*
Protected
Bypass
GPI/GPO
RS-422
RS-232
Relay
Video Output
Buss 1
Page 1-4
Revision 1.3.2
OVERVIEW
X1200 Series Router Manual
AES 1
Audio Inputs
112
12
Relay Bypass available with bypass option
*
AES 1
Audio Inputs
112
12
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
AES 1 connections on Breakout panel
1
Included only in AES and AES4 models
112
Video Inputs
EQ EQ
AFV1
AES
Outputs
AFV2
AES
Outputs
Video Ref
Loop
AES 2
Audio Inputs
112
12
1
Control
Genlock
Bypass
*
Relay
Protected
Reclocker
Reclocker bypass on
HD Routers
Reclocker
Cable
Driver
Bypass
*
Relay
Protected
Cable
Driver
GPI/GPO
RS-422
RS-232
Video Output
Buss 1
Video Output
Buss 2
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
AES 2 connections on Breakout panel
Included only in AES4 models
AFV1
AES
Outputs
AFV2
AES
Outputs
Video Connections on main unit
Figure 1-4: X1202 Block Diagram
#
TM
SoftSwitch
#
TM
SoftSwitch
1
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
AES 1 connections on Breakout panel
Included only in AES and AES4 models
AFV1
AES
Outputs
AFV2
AES
Outputs
AES 2
Audio Inputs
112
12
1
#
SoftSwitch
#
SoftSwitch
TM
TM
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
AES 2 connections on Breakout panel
Included only in AES4 models
AFV1
AES
Outputs
AFV2
AES
Outputs
Relay Bypass available with bypass option
*
Clean video switching and 'popless' AES switching
#
available with SoftSwitch
options
TM
and Embedded SoftSwitch
Video Ref
112
Video Inputs
Loop
DARS Ref
Loop
Control
#
Genlock
Clean
Switch
Reclocker
Reclocker bypass on
HD Routers
Reclocker
Bypass
*
Relay
Protected
Cable
Driver
Bypass
*
Relay
Protected
Cable
Driver
TM
EQ EQ
Video Connections on main unit
Figure 1-5: X1202 SoftSwitch Block Diagram
GPI/GPO
RS-422
RS-232
Video Output
Buss 1
Video Output
Buss 2
OVERVIEW
Revision 1.3.2
Page 1-5
X1200 Series Router Manual
AES 1
Audio Inputs
112
12
Relay Bypass available with bypass option
*
Clean video switching and 'popless' AES switching
#
available with SoftSwitch
options
Clean video switching and 'popless' AES and
+
embedded audio switching available with Embedded
TM
SoftSwitch
option
1
TM
and Embedded SoftSwitch
#+
TM
Cable
SoftSwitch
Driver
#+
TM
Cable
SoftSwitch
Driver
Cable
Driver
Cable
Driver
AES 1 connections on Breakout panel
Included only in AES and AES4 models
112
TM
EQ EQ
Video Connections on main unit
Bypass
Relay
*
Protected
Bypass
Relay
*
Protected
Bypass
Relay
*
Protected
Bypass
Relay
*
Protected
Video Inputs
AFV1
AES
Outputs
AFV2
AES
Outputs
#+
TM
SoftSwitch
#+
TM
SoftSwitch
AES 2
Audio Inputs
112
12
Video Ref
DARS Ref
Loop
Loop
Genlock
#+
Embedded
Clean
Switch
+
SoftSwitch
Reclocker
Reclocker bypass on
HD Routers
Reclocker
1
Control
Cable
Driver
Cable
Driver
*
Protected
*
Protected
Bypass
Bypass
GPI/GPO
RS-422
RS-232
Relay
Video Output
Buss 1
Relay
Video Output
Buss 2
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
Bypass
Cable
Relay
*
Driver
Protected
AES 2 connections on Breakout panel
Included only in AES4 models
AFV1
AES
Outputs
AFV2
AES
Outputs
Figure 1-6: X1202 Embedded SoftSwitch Block Diagram
1.1. HOW TO USE THIS MANUAL
This manual is organised into 5 chapters: Overview, Installation, Operation, Technical Description, Serial
Protocol, Output Configurations, and System Timing. This chapter contains a quick summary of the router
features and a glossary to define concepts and terms used throughout the remainder of the manual.
Chapter 2 gives a detailed description of the rear panel connectors, and how the router should be
connected into your system.
Chapter 3 gives a detailed description of the operation of the front panel controls, starting with an overview
of the pushbuttons and front panel indicators. The operation of the router using the optional remote
control panel is identical to the front panel.
Chapter 4 gives an overview of how to update the firmware in the unit and other technical issues.
Chapter 5 is a programmer’s reference to the serial control protocol.
Chapter 6 provides a pictorial representation of video and audio output configurations for each version of
the router.
Chapter 7 provides a few video timing examples to aid the system designer in properly timing the router.
Items of special note are indicated with a double box like this.
!
1.2. GLOSSARY
CCIR-601 (This document now known as ITU-R601). An international standard for component digital
television from which was derived SMPTE 125M and EBU 3246-E standards. CCIR-601
Page 1-6
Revision 1.3.2
OVERVIEW
X1200 Series Router Manual
defines the sampling systems, matrix values and filter characteristics for both Y, B-Y, R-Y and
RGB component digital television signals.
SERIAL DIGITAL Digital information that is transmitted in serial form. Often used informally to refer to
serial digital television signals.
4Fsc: Four times subcarrier sampling rate uses in composite digital systems. In NTSC this is 14.3 MHz.
In PAL this is 17.7 MHz.
4:2:2 A commonly used term for a component digital video format. The details of the format are
specified in the CCIR-601 standard. The numerals 4:2:2 denote the ratio of the sampling
frequencies of the luminance channel to the two colour difference channels. For every four
luminance samples, there are two samples of each colour difference channel.
SDI An abbreviation for serial digital interface, this acronym is most commonly used to refer to
Standard definition serial digital television video signals up to 540 Mb/s.
HDTV An abbreviation for high definition television, this acronym is most commonly used to refer to High
definition serial digital television video signals at 1.485 Gb/s.
AES: (Audio Engineering Society): A professional organisation that recommends standards for the
audio industries.
AES/EBU: Informal name for a digital audio standard established jointly by the Audio Engineering
Society and the European Broadcasting Union organisations.
ANALOG: An adjective describing any signal that varies continuously as opposed to a digital signal
that contains discrete levels representing digits 0 and 1.
A-TO-D CONVERTER (ANALOG-TO-DIGITAL): A circuit that uses digital sampling to convert an
analog signal into a digital representation of that signal.
BIT: A binary representation of 0 or 1. One of the quantized levels of a pixel.
BIT PARALLEL: Byte-wise transmission of digital video down a multi-conductor cable where each
pair of wires carries a single bit. This standard is covered under SMPTE 125M, EBU 3267-E
and CCIR 656.
BIT SERIAL: Bit-wise transmission of digital video down a single conductor such as coaxial cable. May
also be sent through fiber optics. This standard is covered under SMPTE 259M and CCIR 656.
BIT STREAM:A continuous series of bits transmitted on a line.
BYTE: A complete set of quantized levels containing all the bits. Bytes consisting of 8 to 10 bits per
sample are typical in digital video systems.
CABLE EQUALIZATION: The process of altering the frequency response of a video amplifier to
compensate for high frequency losses in coaxial cable.
CCIR (International Radio Consultative Committee): An international standards committee. (This
organisation is now known as ITU.)
OVERVIEW
Revision 1.3.2
Page 1-7
X1200 Series Router Manual
CCIR-601: (This document now known as ITU-R601). An international standard for component digital
television from which was derived SMPTE 125M and EBU 3246-E standards. CCIR-601
defines the sampling systems, matrix values and filter characteristics for both Y, B-Y, R-Y and
RGB component digital television signals.
CCIR-656: (This document now known as ITU-R656). The physical parallel and serial interconnect
scheme for CCIR-601. CCIR-656 defines the parallel connector pinouts as well as the
blanking, sync and multiplexing schemes used in both parallel and serial interfaces. It reflects
definitions found in EBU Tech 3267 (for 625 line systems) and SMPTE 125M (parallel 525 line
systems) and SMPTE 259M (serial 525 line systems).
CLIFF EFFECT: (also referred to as the ‘digital cliff’) This is a phenomenon found in digital video systems
that describes the sudden deterioration of picture quality due to excessive bit errors, often
caused by excessive cable lengths. The digital signal will be perfect even though one of its
signal parameters is approaching or passing the specified limits. At a given moment however,
the parameter will reach a point where the data can no longer be interpreted correctly, and the
picture will be totally unrecognisable.
COMPONENT ANALOG: The non-encoded output of a camera, video tape recorder, etc., consisting of
the three primary colour signals: red, green, and blue (RGB) that together convey all necessary
picture information. In some component video formats these three components have been
translated into a luminance signal and two colour difference signals, for example Y, B-Y, R-Y.
COMPONENT DIGITAL: A digital representation of a component analog signal set, most often Y, B-Y,
R-Y. The encoding parameters are specified by CCIR-601. The parallel interface is specified
by CCIR-656 and SMPTE 125M.
COMPOSITE ANALOG: An encoded video signal such as NTSC or PAL video that includes
horizontal and vertical synchronising information.
COMPOSITE DIGITAL: A digitally encoded video signal, such as NTSC or PAL video that includes
horizontal and vertical synchronising information.
D1: A component digital video recording format that uses data conforming to the CCIR-601 standard.
Records on 19 mm magnetic tape. (Often used incorrectly to refer to component digital video.)
D2: A composite digital video recording format that uses data conforming to SMPTE 244M. Records
on 19 mm magnetic tape. (Often used incorrectly to refer to composite digital video.)
D3: A composite digital video recording format that uses data conforming to SMPTE 244M. Records
on 1/2" magnetic tape.
EBU (European Broadcasting Union): An organisation of European broadcasters that among other
activities provides technical recommendations for the 625/50 line television systems.
EBU TECH 3267-E: The EBU recommendation for the parallel interface of 625 line digital video signal.
This is a revision of the earlier EBU Tech 3246-E standard that was in turn derived from CCIR-
601.
EDH: Error Detection and Handling (EDH) is defined in SMPTE RP-165 as a method of determining
when bit errors have occurred along the digital video path. According to RP-165, two error
detection checkwords are used, one for active picture samples, and the other on a full field of
samples. Three sets of flags are used to convey information regarding detected errors, to
Page 1-8
Revision 1.3.2
OVERVIEW
X1200 Series Router Manual
facilitate identification of faulty equipment or cabling. One set of flags is associated with each
checkword, and the third is used to evaluate ancillary data integrity. The checkwords and flags
are combined into a special error detection data packet that is included as ancillary data in the
serial digital signal.
EMBEDDED AUDIO: Digital audio is multiplexed onto a serial digital video data stream.
GVG TEN-XL: A 10 x 1 router made by the Grass Valley Group. The serial control protocol used for this
router has become an industry standard. The control protocol used to control the Evertz 95XX
series routers is an extension of this protocol.
ITU: The United Nations regulatory body governing all forms of communications. ITU-R (previously
CCIR) regulates the radio frequency spectrum, while ITU-T (previously CCITT) deals with the
telecommunications standards.
ITU-R601: See CCIR601
PIXEL:The smallest distinguishable and resolvable area in a video image. A single point on the screen.
In digital video, a single sample of the picture. Derived from the words picture element.
RESOLUTION: The number of bits (four, eight, ten, etc.) determines the resolution of the signal.
Eight bits is the minimum resolution for broadcast television signals.
4 bits = a resolution of 1 in 16.
8 bits = a resolution of 1 in 256.
10 bits = a resolution of 1 in 1024.
SERIAL DIGITAL: Digital information that is transmitted in serial form. Often used informally to refer to
serial digital television signals.
SMPTE (Society of Motion Picture and Television Engineers): A professional organisation that
recommends standards for the film and television industries.
SMPTE 125M: The SMPTE standard for bit parallel digital interface for component video signals.
SMPTE 125M defines the parameters required to generate and distribute component video
signals on a parallel interface.
SMPTE 244M: The SMPTE standard for bit parallel digital interface for composite video signals.
SMPTE 244M defines the parameters required to generate and distribute composite video
signals on a parallel interface.
SMPTE 259M: The SMPTE standard for 525 line serial digital component and composite interfaces.
SMPTE 292M: The SMPTE standard for 1125 line serial digital high definition video interfaces.
SMPTE 299M: The SMPTE standard for embedding AES audio into SMPTE 292M serial digital
high definition video.
SoftSwitch: An Evertz patent pending technology the eliminates audio pops and clicks due to
interruptions of the AES carrier. These interruptions are often caused by non-synchronous
switching of the inputs, or may be present from upstream devices. Embedded SoftSwitch
uses the same technologuy to remove pops and clicks from embedded audio.
OVERVIEW
Revision 1.3.2
Page 1-9
X1200 Series Router Manual
TRS-ID: Abbreviation for "Timing Reference Signal Identification". A reference signal used to
maintain timing in composite digital systems. (It is four words long.)
Page 1-10
Revision 1.3.2
OVERVIEW
X1200 Series Router Manual
CHAPTER 2: INSTALLATION
TABLE OF CONTENTS
2. INSTALLATION................................................................................................................................ 2-1
2.1. REAR PANEL.......................................................................................................................... 2-1
2.1.1. Standard Definition Digital Video Connections (X1200S) ............................................ 2-1
2.1.2. High Definition Digital Video Connections (X1202H) ................................................... 2-1
2.1.3. AES Audio Connections ............................................................................................... 2-2
2.1.3.1. Audio Connections on Router Models with the AES Option Fitted. ............. 2-2
2.1.3.2. Audio Connections On Early Router Models With The AES Option Fitted.
(two breakout panels shipped)..................................................................... 2-2
2.1.3.3. Audio Connections on Router Models with the AES4 Option Fitted. ........... 2-3
2.1.4. Reference Connections................................................................................................ 2-3
2.1.5. Remote Control Connections ....................................................................................... 2-3
2.1.6. Power Connections ...................................................................................................... 2-5
2.2. MOUNTING ............................................................................................................................. 2-5
2.3. POWER REQUIREMENTS...................................................................................................... 2-5
2.3.1. Selecting the Correct Mains Voltage ............................................................................ 2-5
2.3.2. Changing the Fuses ..................................................................................................... 2-6
2.4. CONNECTING THE REMOTE CONTROL PANEL ................................................................ 2-6
2.4.1. Connecting The Primary Remote Control Panel (RCP Version) .................................. 2-6
2.4.2. Connecting A Second Remote Control Panel .............................................................. 2-7
2.5. CONNECTING THE GENERAL PURPOSE INPUTS AND OUTPUTS .................................. 2-7
2.5.1. Connecting the General Purpose Inputs ...................................................................... 2-8
2.5.2. Connecting the General Purpose Outputs ................................................................... 2-9
2.5.3. GPI/O Examples........................................................................................................... 2-9
2.6. CONTROLLING THE ROUTER USING THE EXTERNAL SERIAL PROTOCOL ................ 2-10
2.6.1. Connecting the Router to a Grass Valley Ten XL ASCII Control Device ................... 2-10
Figures
Figure 2-1: X1202H-AES4 Rear Panel Layout...................................................................................... 2-1
Figure 2-2: X1202S-AES4 Rear Panel Layout ...................................................................................... 2-1
Figure 2-3: X1202ABO Audio Breakout Panel Layout .......................................................................... 2-2
Figure 2-4: General Purpose I/O Schematic ......................................................................................... 2-7
Figure 2-5: Powering the General Purpose Input Opto-Isolators from the Router ................................ 2-8
Figure 2-6: Powering the General Purpose Input Opto-Isolators from an External Power Supply........ 2-9
Figure 2-7: GPIO Example – Auto Changeover to Input 2 on Loss of Input 1 .................................... 2-10
INSTALLATION
Revision 1.3.2
X1200 Series Router Manual
Tables
Table 2-1: Router RS-232 Port Pin Definitions...................................................................................... 2-4
Table 2-2: Router RS-422 Port Pin Definitions...................................................................................... 2-4
Table 2-3: GPI/O Pin Definitions ........................................................................................................... 2-5
Table 2-4: Remote Control Panel Extender Cable ................................................................................ 2-6
Table 2-5: Master 1202 to Slave 1202 Cable – RS-232 Configuration ............................................... 2-11
Table 2-6: Master 1202 to Slave 1202 Cable – RS-422 Configuration ............................................... 2-11
Revision 1.3.2
INSTALLATION
X1200 Series Router Manual
2. INSTALLATION
2.1. REAR PANEL
Figure 2-1: X1202H-AES4 Rear Panel Layout
Figure 2-2: X1202S-AES4 Rear Panel Layout
Sections 2.1.1 to 2.1.6 describe the purpose of the rear panel connectors and the specific signals that
should be connected to the routers. Router versions that have SoftSwitch, Embedded SoftSwitch or
Bypass relay options installed will have the option checked (√) on the rear panel. Chapter 6 provides
pictorial representations of the video and audio output configurations for each version of the router.
2.1.1. Standard Definition Digital Video Connections (X1200S)
SDI VIDEO INPUTS 1 to 12 These BNC connectors are for connecting 10-bit serial digital video signals,
compatible with the SMPTE 259M standard to the respective video input buss.
SDI VIDEO OUTPUTS 1 and 2 There are two video output connectors for each of the two video
router busses on X1202S routers. The Video from the selected Video Input buss will be
available on two outputs for each bus. X1201S routers do not have the Second output bus.
When the bypass relay option is fitted, INPUT 1 is protected by a bypass relay to the adjacent
OUTPUT 1 BNC for both X1202S and X1201S routers. INPUT 12 is protected by a bypass
relay to the adjacent OUTPUT 2 BNC on the X1202S routers only. The bypass relays will
activate in the event of power loss to the router and can also be activated from the front panel
menu.
2.1.2. High Definition Digital Video Connections (X1202H)
HD VIDEO INPUTS 1 to 12 These BNC connectors are for connecting 10-bit serial digital video signals,
compatible with the SMPTE 292M standard to the respective video input buss.
HD VIDEO OUTPUTS 1 and 2 There are two video output connectors for each of the two video
router busses. The Video from the selected Video Input buss will be available on two outputs
for each bus.
When the bypass relay option is fitted, INPUT 1 is protected by a bypass relay to the adjacent
OUTPUT 1 BNC and INPUT 12 is protected by a bypass relay to the adjacent OUTPUT 2 BNC.
The bypass relays will activate in the event of power loss to the router and can also be
activated from the front panel menu.
INSTALLATION
Revision 1.3.2
Page 2-1
X1200 Series Router Manual
2.1.3. AES Audio Connections
There are two 68 pin connectors used to connect the AES Audio Breakout panels (X1202ABO or
X1201ABO) to the Router. These panels are connected using the cables provided. Each Audio Breakout
Panel has two identical sections consisting of 12 AES inputs and 2 outputs. Earlier versions of the router
may not have either or both audio connectors installed. See sections 2.1.3.1 to 2.1.3.3 for information
about connecting the audio for the version of the router that you have.
When connecting the Audio Breakout Panel cables, insert the cable carefully into
the connector on the router and the breakout panel, being careful not to bend the
!
INPUTS 1 to 12 These BNC connectors are for connecting unbalanced AES audio signals compatible
pins. Press it firmly in place and hand tighten the hold down screws firmly to
provide proper strain relief.
Figure 2-3: X1202ABO Audio Breakout Panel Layout
with the SMPTE 276M standard to the respective audio input buss.
OUTPUTS 1 and 2 These BNC connectors are for connecting unbalanced AES audio signals
compatible with the SMPTE 276M standard from the respective audio input buss.
On the X1202ABO used with the X1202 routers, when the bypass relay option is fitted, INPUT
1 is protected by a bypass relay to the adjacent OUTPUT 1 BNC and INPUT 12 is protected by
a bypass relay to the adjacent OUTPUT 2 BNC. On the X1201ABO used with the X1201
routers, INPUT 1 is protected by a bypass relay to the adjacent OUTPUT 1 BNC. The bypass
relays will activate in the event of power loss to the router and can also be activated from the
front panel menu.
2.1.3.1. Audio Connections on Router Models with the AES Option Fitted.
Routers fitted with the AES option are shipped with one breakout panel. This panel is connected to the
AES AUDIO 1 I/O connector using the cable provided. On the X1202ABO used with the X1202 routers,
inputs for the 1A and 2A busses are on the AES A section of the breakout panel. (See Figure 6-6 and
Figure 6-7) Outputs 1 and 2 of the AES A section are the outputs from the 1A and 2A busses
respectively. Inputs for the 1B and 2B busses are on the AES B section of the breakout panel. Outputs 1
and 2 of the AES B section are the outputs from the 1B and 2B busses respectively. On the X1201ABO
used with the X1201 routers, outputs 1 and 2 are identical. (See Figure 6-2)
2.1.3.2. Audio Connections On Early Router Models With The AES Option Fitted.
(two breakout panels shipped)
Some early versions of the routers with the AES option were shipped with two breakout panels. On these
routers, there are two distinct modes of operation. The AES MODE menu item on the INPUT SETUP
menu is used to select the desired mode.
In the 4(12x1) mode there are four separate 12 x 1-router sections that can be independently assigned to
follow one of the video busses. Routers fitted with the AES option are shipped with one breakout panel.
Page 2-2
Revision 1.3.2
INSTALLATION
X1200 Series Router Manual
Inputs for the 1A and 1B busses are on the panel connected to the AES AUDIO 1 I/O connector. Outputs
1 and 2 of the AES A and AES B sections are identical outputs from the 1A and 1B busses respectively.
Inputs for the 2A and 2B busses are on the panel connected to the AES AUDIO 2 I/O connector. Outputs
1 and 2 of the AES A and AES B sections are identical outputs from the 2A and 2B busses respectively.
(See Figure 6-12 and Figure 6-13)
In the 2(12x2) mode there are two 12 x 2 router sections. The inputs and outputs from the 1A and 1B
busses follow the V1 buss and are located on the on the breakout panel connected to the AES AUDIO 1
I/O connector. The inputs to 2A and 2B audio busses are internally connected to the inputs of the 1A and
1B audio busses respectively (The inputs on the breakout panel connected to the AES AUDIO 2 I/O
connector are not used in this mode). The outputs from the 2A and 2B busses follow the V2 buss and are
located on the on the breakout panel connected to the AES AUDIO 2 I/O connector. (See Figure 6-10 and
Figure 6-11)
2.1.3.3. Audio Connections on Router Models with the AES4 Option Fitted.
Routers fitted with the AES4 option are shipped with two breakout panels. The inputs and outputs from
the 1A and 1B busses and are located on the on the breakout panel connected to the AES AUDIO 1 I/O
connector. The Audio from the selected Audio Input buss associated with video buss 1 will be available
on output 1 of AES A and AES B sections of the breakout panel. On the X1202ABO used with the X1202
routers, audio from the selected Audio Input buss associated with video buss 2 will be available on output
2 of AES A and AES B sections of the breakout panel. (See Figure 6-8 and Figure 6-9) On the
X1201ABO used with the X1201 routers, outputs 1 and 2 are identical. (See Figure 6-3)
The inputs and outputs from the 2A and 2B busses and are located on the on the breakout panel
connected to the AES AUDIO 2 I/O connector. The Audio from the selected Audio Input buss associated
with video buss 1 will be available on output 1 of AES A and AES B sections of the breakout panel. Audio
from the selected Audio Input buss associated with video buss 2 will be available on output 2 of AES A
and AES B sections of the breakout panel. On the X1201ABO used with the X1201 routers, outputs 1 and
2 are identical.
2.1.4. Reference Connections
VIDEO REF is a high impedance loop through for connecting an analog video or tri-level sync (X1200H
series only) reference. The REFERENCE menu is used to select the correct type of video
reference being used.
DARS REF (X1202S-AES-SS and X1202S-AES4-SS only) is a high impedance loop through for a Digital
Audio Reference Signal. The REFERENCE menu is used to select the use of the DARS signal
when the Softswitch is enabled on Softswitch routers.
2.1.5. Remote Control Connections
REMOTE CTL This 9 pin female D connector provides an RS-232 serial interface used for updating the
firmware or external serial remote control. The Setup menu is used to configure the REMOTE
CTL port for external control or firmware updating. (See section 3.3.). This port is wired at the
factory as an RS232 DCE port as shown in Table 2-1.
The port can also be used to connect a remote control panel to the router. To connect to a
remote panel the port must be configured as a SMPTE 207M Tributary as shown in Table 2-2.
To reconfigure the port the user must remove the top cover and reposition jumper J26 so that it
is on pins 2 & 3 (toward header J23) and move the ribbon cable to header J23.
INSTALLATION
Revision 1.3.2
Page 2-3
X1200 Series Router Manual
Pin
Name Description
#
1 GND Chassis ground
2 TxD RS-232 Transmit Output
3 RxD RS-232 Receive Input
4
5 Sig Gnd RS-232 Signal Ground
6
7 RTS RS-232 RTS Input
8 CTS RS-232 CTS Output
9
Table 2-1: Router RS-232 Port Pin Definitions
REMOTE PANEL This 9 pin female D connector provides an RS-422 serial interface used if the local
panel is not attached to the main chassis. This port is wired as a SMPTE 207M Tributary as
shown in Table 2-2.
Pin
Name Description
#
1 GND Chassis ground
2 Tx- RS-422 Tx-(a) Output
3 Rx+ RS-422 Rx+(b) Input
4GND
5
6GND
7 Tx+ RS-422 Tx+(b) Output
8 Rx- RS-422 Rx-(a) Input
9GND
Table 2-2: Router RS-422 Port Pin Definitions
LOCAL PANEL This connector is currently not used.
GPI / O This female DB-25 pin connector provides 14 General Purpose Opto-isolated inputs (GPIs) and
4 General Purpose isolated relay outputs (GPOs). Vint provides +5Volts from the Router and
Vext is used to provide external power the opto isolators. Typically Vint and Vext are
connected together so that the isolators may be powered from the router. Table 2-3 shows the
pin definitions of the GPIO connector. Figure 2-4 shows a schematic of the GPIO circuitry.
See section 2.5 for more information on connecting the General Purpose inputs and outputs.
The functions of the GPIs and GPOs are assigned using the Setup menu, and can be used to
select crosspoints and receive tallies from the router. See section 3.12 and 3.13 for information
on setting up the GPIO operation.
Page 2-4
Revision 1.3.2
INSTALLATION
X1200 Series Router Manual
Pin
Name Description
#
1 GPI 01 General Purpose Input 01
2 GPI 02 General Purpose Input 02
3 GPI 03 General Purpose Input 03
4 GPI 04 General Purpose Input 04
5 GPI 05 General Purpose Input 05
6 GPI 06 General Purpose Input 06
7 GPI 07 General Purpose Input 07
8 GPI 08 General Purpose Input 08
9 GPI 09 General Purpose Input 09
10 GPI 10 General Purpose Input 10
11 GPI 11 General Purpose Input 11
12 GPI 12 General Purpose Input 12
13 GPI 13 General Purpose Input 13
14 GPI 14 General Purpose Input 14
15 Vext External voltage input to power opto isolators
16 Vint Protected +5 volts output from router
17 GPO 01 C General Purpose Output 01 Common contact
18 GPO 01 NC General Purpose Output 01 Normally closed contact
19 GPO 02 C General Purpose Output 02 Common contact
20 GPO 02 NC General Purpose Output 02 Normally closed contact
21 GPO 03 C General Purpose Output 03 Common contact
22 GPO 03 NC General Purpose Output 03 Normally closed contact
23 GPO 04 C General Purpose Output 04 Common contact
24 GPO 04 NC General Purpose Output 04 Normally closed contact
25 GND Router Chassis ground
Table 2-3: GPI/O Pin Definitions
2.1.6. Power Connections
The router has one or two (redundant supply is optional) universal power supplies that operate on either
115 Volt / 60 Hz or 230 Volt / 50 Hz AC.
2.2. MOUNTING
The Router is equipped with rack mounting angles and fits into a standard 19 inch by 1.75 inch by 17.75
inch (483 mm x 45 mm x 451mm) rack space. The mounting angles may be removed if rack mounting is
not desired.
2.3. POWER REQUIREMENTS
2.3.1. Selecting the Correct Mains Voltage
Power requirements are 115 or 230 volts AC at 50 or 60 Hz. The router has a universal power supply that
automatically senses the input voltage. Power should be applied by connecting a 3-wire grounding type
power supply cord to the power entry module on the rear panel. The power cord should be minimum 18
AWG wire size; type SVT marked VW-1, maximum 2.5 m in length. If the router is fitted with the
redundant power supply there will be an additional IEC-320 connector on the rear panel.
INSTALLATION
Revision 1.3.2
Page 2-5
X1200 Series Router Manual
If the router is fitted with dual power supplies, make sure that power is removed
!
The IEC 320 power entry module combines a standard power inlet connector, two 5 x 20 mm fuse holders
and an EMI line filter.
2.3.2. Changing the Fuses
The fuse holder is located inside the power entry module. To change the fuses, pull out the fuse holder
from the power entry module using a small screwdriver. The fuse holder contains two fuses, one for the
line and one for the neutral side of the mains connection. Pull out the blown fuse and place a fuse of the
correct value in its place. Use slo blo (time delay) 5 x 20 mm fuses rated for 250 Volts with a current
rating of 1 amp. Carefully reinsert the fuse holder into the power entry module.
from both supplies before performing any work on the unit.
Never replace with a fuse of greater value.
!
2.4. CONNECTING THE REMOTE CONTROL PANEL
The X1200 series routers can be sold with integrated front panel control, or with a rack mountable remote
control panel (RCP version). On the RCP version, the front panel of the main unit has only the PSU
Status indicators. A second control panel (model X1202-REMOTE) can be added to either version.
2.4.1. Connecting The Primary Remote Control Panel (RCP Version)
On the RCP version of the router, the primary control panel is connected to the REMOTE PANEL
connector using a straight through cable provided. For longer distances, simply make your own cable of
the required length according to the diagram in Table 2-4. Communications to the remote panel is through
a standard straight through RS-422 connection, so the panel can be located up to 1000 feet from the main
electronics unit. A plug in 12 VDC adapter supplies power for the remote control panel.
Router End Remote Panel End
9 pin D
Male
Tx- 2 -------1a------ Rx- 2
Rx+ 3 -------2b------ Tx+ 3
Rx Gnd 4 ---drain 2---- Rx Gnd 4
Tx Gnd 6 ---drain 1---- Tx Gnd 6
Tx+ 7 -------1b----- Rx+ 7
Rx- 8 -------2a------ Tx- 8
Frame Gnd Shield ---drain 1---- Frame Gnd Shield
Pin Belden
9729
11
5
99
9 pin D
Female
Pin
Table 2-4: Remote Control Panel Extender Cable
Page 2-6
Revision 1.3.2
INSTALLATION
X1200 Series Router Manual
2.4.2. Connecting A Second Remote Control Panel
On either the Front Panel Control or Remote Control version of the router a second control panel can be
connected to the REMOTE CONTROL connector using a straight through cable provided. For longer
distances, simply make your own cable of the required length according to the diagram in Table 2-4. The
default configuration of the REMOTE CONTROL port on the router is RS-232. Before connecting the
remote panel the port must be configured as a SMPTE 207M Tributary as shown in Table 2-2. To
reconfigure the port the user must remove the top cover and reposition jumper J26 so that it is on pins 2 &
3 (toward header J23) and move the ribbon. Communications to the remote panel is through a standard
straight through RS-422 connection, so the panel can be located up to 1000 feet from the main electronics
unit. A plug in 12 VDC adapter supplies power for the remote control panel.
2.5. CONNECTING THE GENERAL PURPOSE INPUTS AND OUTPUTS
The 25 pin GPI/O connector has 14 programmable general purpose inputs (GPI) and 4 programmable
general purpose outputs (GPO) as shown in Table 2-3. The schematic representation is in Figure 2-4.
The GPIs are opto-isolated inputs that can be powered from an external source or from the frame. The
GPOs are relay contacts that are normally closed when the power to the router is off.
Vext
GPI 1
GPI 14
GPO1 NC*
GPO1 Common
GPO4 NC*
GPO4 Common
GND
Vint
16
15
1
14
18
17
24
23
25
+ 5 VDC
4.7 K
to
internal
circuit
220 Ohm
4.7 K
to
internal
circuit
220 Ohm
from
internal
circuit
from
internal
circuit
Figure 2-4: General Purpose I/O Schematic
INSTALLATION
*NC Normally Closed with power Off
Revision 1.3.2
Page 2-7
X1200 Series Router Manual
2.5.1. Connecting the General Purpose Inputs
The GPI’s are used to activate video and audio bus crosspoints and are programmable in a number of
configurations. The GPIs can be configured to operate in one of 3 encoded modes. In these modes,
many of the GPI inputs are pre-assigned to a function. The unused inputs are still available for the user to
assign to a particular function using the Program Gpi’s menu item. When the GPI Encoding is set to none,
all 14 inputs are available for the user to assign to particular functions. Sections 3.12.3.1 to 3.12.3.3
describe how each of the GPI encoding modes works and which inputs are available for user assignment.
When the GPI inputs are independently programmed, they can be set to activate on rising or falling edges,
or high or low levels. The factory default is for low level activation, which means a ground level on the
input will trigger the GPI function when the Opto isolator is normally powered. See Figure 2.2 and 2.3
The high level activation can be used when you need to trigger the GPI function by providing a positive
voltage to a GPI input. This mode is not generally used and should not be considered a first choice.
The falling edge activation is used to trigger a GPI function by removing a provided voltage to a GPI or by
making a closure to ground when the Opto isolator is already powered. The falling edge GPI will respond
the same as a low level activation when the opto isolator is normally powered.
The rising edge activation is used to trigger a GPI function when power is provided to the Opto isolator, or
when the GPI closure to ground is released. This function can be used to trigger a GPI function when a
GPO error tally is released.
The user can connect GP+5V supplied from the frame (Vint pin) into the Vext pin to provide power to the
GPIO opto-isolator circuitry. In this configuration the user can activate GPIs simply by connecting the GPI
input pins to Ground (see Figure 2-5). This can be done with a button, switch, relay or an open collector
transistor.
Warning: Do not connect GP+5V from one frame to another frames GP+5V.
!
16
15
Vext
GPI
GPI
Command
25
GND
+ 5 VDC
4.7 K
to
internal
circuit
220 Ohm
Figure 2-5: Powering the General Purpose Input Opto-Isolators from the Router
Page 2-8
Revision 1.3.2
INSTALLATION
X1200 Series Router Manual
Alternately, an external voltage source may be applied as shown in Figure 2-6. The Vext voltage must be
greater than the voltage supplied to the GPI by at least 5v.
15
Vext
5-50 VDC
GPI
GPI
Command
25
GND
Figure 2-6: Powering the General Purpose Input Opto-Isolators from an External Power Supply
2.5.2. Connecting the General Purpose Outputs
The Programmable GPOs are used to trigger alarms or to provide a limited tally capability. The GPOs will
be in the de-energised state when the power is off so all contacts will be closed. When the router is
powered up the GPO Relay contacts will open. An alarm or tally will cause a contact closure. The 4 GPO
contact sets can be operated in one of two encoded modes. The GPOs can be configured to operate in
one of 2 encoded modes. In these modes, many of the GPO contacts are pre-assigned to a function.
When the GPO Encoding is set to none, all 4 contact sets are available for the user to assign to particular
functions. Section 3.13.3 describes how each of the GPO encoding modes works and how to configure
the GPOs using the GPO SETUP menu.
4.7 K
to
internal
circuit
220 Ohm
2.5.3. GPI/O Examples
By careful use of the GPI’s and GPOs one can create some unique control scenarios for controlling the
Router, Figure 2-7 shows one such application. By setting up jumpers for the GPI/O connector and setting
the GPI/O configurations in the router Setup menu, one can create an auto changeover for a program
feed. In this configuration when input 1 fails and that input is currently selected on the output of bus V1,
The router will automatically select input 2.
INSTALLATION
Revision 1.3.2
Page 2-9
X1200 Series Router Manual
External Alarm
to indicate
changeover
CH 1 Return
15
11
12
16
17
18
Vint
Vext
GPI 11
GPI 12
GPO 1
+5 VDC
Take Input 2 on AFV1 (low level)
Take Input 1 on AFV1 (rising edge)
Input 2 Tally on V1
25
19
GPO 2
20
21
GPO 3
22
23
GPO 4
24
GND
V1 Output Failure
Input 1 Tally on V1
Input 1 Failure
Figure 2-7: GPIO Example – Auto Changeover to Input 2 on Loss of Input 1
If the “CH 1 Return “ switch is closed input 1 will be automatically selected when it is present again. This
has a down side that if the Input 1 signal failure is sporadic the router will chatter between input 1 and 2.
The purpose here is to show the use of a rising edge GPI trigger.
Also interesting to note that this functionality can co-exist with the HEX and AFV HEX GPI encoding as
GPI 11 and 12 are both available for user functions in these encoded GPI modes.
2.6. CONTROLLING THE ROUTER USING THE EXTERNAL SERIAL PROTOCOL
The X1200 series routers can be controlled from router control devices or it can control other devices
employing industry standard router control protocols. Currently the only control protocol supported is the
Grass Valley Ten-XL ASCII protocol. The control device is connected to the router using the
REMOTE CTL connector on the rear panel. The REMOTE CTL menu is used to configure the
REMOTE CTL port for external control using the Baud Rate, Serial Format, Serial Address and Serial
Control menu items. See section 3.14 for information about configuring the REMOTE CTL port
parameters. See chapter 5 for detailed information about controlling the router
2.6.1. Connecting the Router to a Grass Valley Ten XL ASCII Control Device
Use the External control item on the Setup Menu and select Gvg ten xl ASCII protocol. The Baud
Rate, Serial Address, and Serial Format menu settings must be set to match those required by the GVG
control device. If the Router is being controlled by another device set the Serial Control menu setting to
slave. If the router is controlling another device using its remote control port then set the Serial Control
menu setting to master. The REMOTE CTL port is shipped from the factory configured for RS232
operation. If you require RS-422 operation then you will have to change the port wiring as described in
section 2.4.2.
Page 2-10
Revision 1.3.2
INSTALLATION
X1200 Series Router Manual
When connecting two X1200 series routers together in a master/slave relationship make sure that the
REMOTE CTL port is configured the same at both ends (including the RS232 or RS422 wiring). Use the
cable shown in Table 2-5 for RS-232 wiring and the cable shown in Table 2-6 for RS-422 wiring. For other
applications consult the manual for the equipment your are connecting, configure the port accordingly and
use the information in Table 2-1 and Table 2-2 to make an appropriate cable.
Master 1202 End Slave 1202 End
9 pin D
Male
TxD 2 -------2b------ RxD 3
RxD 3 -------1a------ TxD 2
Gnd 5 ---drain 2---- Gnd 5
RTS 7 -------1b----- CTS 8
CTS 8 -------2a------ RTS 7
Frame Gnd Shield ---drain 1---- Frame Gnd Shield
Pin Belden
9729
9 pin D
Male
Pin
11
44
66
99
Table 2-5: Master 1202 to Slave 1202 Cable – RS-232 Configuration
Master 1202 End Slave 1202 End
9 pin D
Male
Pin Belden
9729
9 pin D
Male
Pin
Gnd 1 ---drain 2---- Gnd 1
Tx-/TxD 2 -------2b------ Rx-/RxD 8
Rx+/RxD 3 -------1a------ Tx+/TxD 7
RxGnd 4 RxGnd 4
55
TxGnd 6 TxGnd 6
Tx+/RTS 7 -------1b----- Rx+/CTS 3
Rx-/CTS 8 -------2a------ Tx-/RTS 2
99
Frame Gnd Shield ---drain 1---- Frame Gnd Shield
Table 2-6: Master 1202 to Slave 1202 Cable – RS-422 Configuration
INSTALLATION
Revision 1.3.2
Page 2-11
X1200 Series Router Manual
This page left intentionally blank
Page 2-12
Revision 1.3.2
INSTALLATION
X1200 Series Router Manual
CHAPTER 3: OPERATION
TABLE OF CONTENTS
3. OPERATION..................................................................................................................................... 3-1
3.1. OVERVIEW OF THE FRONT PANEL DISPLAY AND CONTROLS ...................................... 3-1
3.1.1. Video Router Controls .................................................................................................. 3-1
3.1.2. Setup Key Group.......................................................................................................... 3-1
3.1.3. Front Panel Display Messages..................................................................................... 3-2
3.2. OVERVIEW OF FRONT PANEL OPERATION....................................................................... 3-2
3.2.1. Audio Follow Video Switching (AFV)............................................................................ 3-2
3.2.2. Breakaway Audio On An Audio Follow Video Group ................................................... 3-3
3.2.3. Independent Audio Bus Switching ............................................................................... 3-4
3.3. FRONT PANEL SETUP MENU ............................................................................................... 3-4
3.4. NAGIVATING THE SETUP MENU.......................................................................................... 3-5
3.5. FRONT PANEL SETUP MENU – MAIN MENU ...................................................................... 3-6
3.6. CONFIGURING THE ROUTER REFERENCES...................................................................... 3-6
3.6.1. Setting up the Video Reference ................................................................................... 3-7
3.6.2. Setting up the Video Output Timing
(SoftSwitch and Embedded SoftSwitch routers only) ............................................ 3-7
3.6.3. Setting up the Video Line Synchronizer Timing
(SoftSwitch and Embedded SoftSwitch equipped routers only)............................. 3-8
3.6.4. Setting up the AES Audio Reference
(SoftSwitch and Embedded SoftSwitch equipped routers only)............................. 3-8
3.7. CONFIGURING THE VIDEO AND AUDIO TRANSITIONS .................................................... 3-9
3.7.1. Configuring The Switch Line ........................................................................................ 3-9
3.7.2. Enabling The Video Line Synchronizer On For Clean Video Switches
(SoftSwitch and Embedded SoftSwitch equipped routers only)........................... 3-10
3.7.3. Enabling The AES Audio SoftSwitch For Clean Audio Switches
(SoftSwitch and Embedded SoftSwitch equipped routers only)........................... 3-10
3.7.4. Enabling The Embedded Audio SoftSwitch For Clean Audio Switches
(Embedded SoftSwitch equipped routers only)....................................................... 3-11
3.8. CONFIGURING THE VIDEO AND AUDIO INPUTS.............................................................. 3-11
3.8.1. Setting the Configuration of the AES Router Section
(Early X1202H-AES Routers with 2 breakout panels only) ........................................ 3-12
3.8.2. Setting up the Audio Follow Video Groups................................................................. 3-12
3.8.3. Configuring Which Inputs Are Active.......................................................................... 3-13
3.8.4. Configuring What To Do When There Is No Video Input Present .............................. 3-13
3.8.5. Configuring The Router Video Standard
(HD SoftSwitch and Embedded SoftSwitch equipped routers only) ................... 3-14
3.9. LABELING THE VIDEO AND AUDIO INPUTS..................................................................... 3-14
3.9.1. Uploading/Downloading Input Labels from a Text File............................................... 3-14
3.9.2. Changing the Input Labels from the Front Panel........................................................ 3-15
3.10. CONFIGURING THE VIDEO OUTPUTS (HD ROUTERS ONLY)......................................... 3-15
3.10.1. Selecting the Reclocking Mode of the HD Video Outputs (HD Routers only) ............ 3-15
OPERATION
Revision 1.3.2
X1200 Series Router Manual
3.11. MANUALLY ACTIVATING THE BYPASS RELAYS ............................................................ 3-15
3.11.1. Manually Activating All the Bypass Relays................................................................. 3-16
3.12. CONFIGURING THE GENERAL PURPOSE INPUTS (GPI) ................................................ 3-16
3.12.1. How to Override (Temporarily Disable) the GPI Functions ........................................ 3-16
3.12.2. How to turn off the GPI Override (Return the GPIs to their Programmed Functions) 3-16
3.12.3. Configuring the Encoding mode for the GPI Inputs.................................................... 3-17
3.12.3.1. Standard GPI Encoding ............................................................................. 3-17
3.12.3.2. HEX GPI Encoding..................................................................................... 3-17
3.12.3.3. AFV HEX GPI Encoding............................................................................. 3-18
3.12.4. Configuring Whether the GPI Inputs are Edge or Level Activated ............................. 3-19
3.12.5. Programming the GPI Inputs Functions ..................................................................... 3-20
3.13. CONFIGURING THE GENERAL PURPOSE OUTPUTS (GPO)........................................... 3-20
3.13.1. How to Override (Temporarily Disable) the GPO Functions ...................................... 3-21
3.13.2. How to turn off the GPO Override (Return the GPOs to their Programmed Functions)321
3.13.3. Configuring the Encoding mode for the GPO Outputs ............................................... 3-21
3.13.3.1. HEX GPO Encoding................................................................................... 3-21
3.13.4. Configuring Whether the GPO Outputs are Latched or Momentary........................... 3-22
3.13.5. Programming the GPO Output Functions .................................................................. 3-22
3.14. CONFIGURING THE REMOTE CONTROL PORT OPERATION ......................................... 3-22
3.14.1. Selecting the Baud Rate for Remote Control Port...................................................... 3-23
3.14.2. Selecting the Serial Data Format for the Remote Control Port .................................. 3-23
3.14.3. Selecting the Serial Control Address.......................................................................... 3-24
3.14.4. Selecting the Serial Data Control Mode ..................................................................... 3-24
3.14.5. Selecting the External Remote Control Protocol ........................................................ 3-24
3.15. SAVING AND RECALLING CONFIGURATION PRESETS ................................................. 3-25
3.15.1. How to Restore the Factory Default Settings ............................................................. 3-25
3.15.2. How to Recall a Saved User Preset Configuration..................................................... 3-25
3.15.3. How to Save the Router Configuration to a User Preset............................................ 3-26
3.16. MANAGING THE ROUTER FIRMWARE .............................................................................. 3-26
3.16.1. Reading the Router Firmware Version ....................................................................... 3-26
3.16.2. How to Update the Router Firmware .......................................................................... 3-26
Figures
Figure 3-1: Front Panel Layout.............................................................................................................. 3-1
Figure 3-2: Overview of the Setup Menu............................................................................................... 3-4
Figure 3-3: Switch Line Selection in 59.94 Hz Field Rate Systems ...................................................... 3-9
Figure 3-4: Switch Line Selection in 50 Hz Field Rate Systems ......................................................... 3-10
Tables
Table 3-1: Standard GPI Encoding Functions..................................................................................... 3-17
Table 3-2: HEX GPI Encoding Functions ............................................................................................ 3-18
Table 3-3: HEX Input Selection (HEX and AVF HEX Encoding)......................................................... 3-18
Table 3-4: AFV HEX GPI Encoding Functions .................................................................................... 3-19
Table 3-5: HEX Input Selection for AFV2 (AVF HEX Encoding) ......................................................... 3-19
Table 3-6: HEX Encoded Output Tallies ............................................................................................. 3-22
Revision 1.3.2
OPERATION
X1200 Series Router Manual
3. OPERATION
The router electronics is housed in a 1RU rack mount frame and is controlled from the built-in front panel
controls. Each model can also be purchased with an optional rack mount remote control panel that
replaces the built-in control panel. Operation of the Remote control panel is identical to the built in control
panel. A second control panel can also be purchased for the routers. This panel is connected to the
REMOTE CTL port and allows the user to access the all of the router functions except the Setup menu.
All units can also be controlled by contact closures on the GPI control port or through the REMOTE CTL
serial remote control port using Grass Valley switcher protocol.
3.1. OVERVIEW OF THE FRONT PANEL DISPLAY AND CONTROLS
Figure 3-1: Front Panel Layout
The front panel layout for the X1202S and X1202H routers are identical.
3.1.1. Video Router Controls
1 to 12 These twelve buttons allow the user to select between the 12 available video inputs for the two
video output busses, as well as selecting the 12 available audio inputs for the four AES busses.
The button caps can be removed to allow the user to provide his own legends for the buttons.
V1, V2, 1A, 1B, 2A, 2B These six buttons are used to select the Bus to be controlled by the buttons
1 to 12.
PANEL LOCKThis button locks out the use of the control panel.
The router may still be controlled from the GPI inputs or the serial remote control
!
BREAKAWAY This button initiates the breakaway selection. Pressing this button after the desired
3.1.2. Setup Key Group
SETUP This button is used to enter Setup menu which is used to control various setup options to
protocol when the front panel is Locked.
breakaway is selected performs the switch of the Video and its associated Audio breakaways.
configure the operating modes of the router. (See section 3.3 for a complete description of the
Setup menu.) When you are in the Setup menu, this button is also used to back out of menu
selections to the next higher menu level. When exiting the Setup menu, the SETUP button is
also used to discard menu choice settings and return to normal panel operation.
OPERATION
Revision 1.3.2
Page 3-1
X1200 Series Router Manual
SELECT This button is used to choose a submenu and navigate to the next level down in the menu
structure. It is also used to make a menu choice. When exiting the Setup menu, the SELECT
button is also used to save menu choice settings and return to normal panel operation.
↑ & ↓ The arrow keys are used to navigate through various menu choices at a menu level in the Setup
menu. When the router is in source labelling mode, the arrow keys are used to select various
characters in the source name.
3.1.3. Front Panel Display Messages
In addition to the normal operating mode displays that show the names of the inputs that have been
selected, the 1200 series routers show some diagnostic messages to help the user diagnose possible
system problems.
Video Ref. Fail This message will alternate with the current display message when the video
reference signal is not present.
DARS Ref. Fail This message will alternate with the current display message when the Audio
Reference menu item is set to DARS, and the DARS reference signal is not present. The
Audio reference will default to the Video Reference in this case.
Genlock Fail This message will alternate with the current display message when the Audio
Reference menu item is set to DARS, and neither the Video Reference or the DARS reference
signal are present.
3.2. OVERVIEW OF FRONT PANEL OPERATION
3.2.1. Audio Follow Video Switching (AFV)
The X1200 series routers have one or two video busses and up to four audio busses (1A, 1B, 2A and 2B)
depending on the model (see Table 1-1).
The X1201 routers fitted with the AES option have a dual 12 x 1 AES configuration and are shipped with
one breakout panel (X1201ABO). On these units audio busses 1A and 1B will follow the video V1 buss.
(See Figure 6-2) The X1201 routers fitted with the AES4 option have a quad 12 x 1 AES configuration
and are shipped with two breakout panels (X1201ABO). On these units audio busses 1A, 1B, 2A and 2B
will follow the video V1 buss. (See Figure 6-3)
The X1202 routers fitted with the AES option have a dual 12 x 2 AES configuration and are shipped with
one breakout panel (X1202ABO). On these units audio busses 1A and 1B will follow the video V1 buss
and audio busses 2A and 2B will follow the video V2 buss. (See Figure 6-6 and Figure 6-7)
The X1202 routers fitted with the AES4 option have a quad 12 x 2 AES configuration and are shipped with
two breakout panels (X1202ABO). On these units output 1 from audio busses 1A, 1B, 2A and 2B will
follow the video V1 buss and output 2 from audio busses 1A, 1B, 2A and 2B will follow the video V2 buss.
(See Figure 6-8 and Figure 6-9)
Page 3-2
Revision 1.3.2
OPERATION
X1200 Series Router Manual
Some early X1202 routers fitted with the AES option were shipped with two breakout panels. These units
can be used in either a dual 12 x 2 configuration or quad 12 x 1 configuration where the audio busses can
be associated with either video buss V1 or V2. When these units were shipped from the factory they were
configured in the quad 12 x 1 mode and audio busses 1A and 1B are assigned to video buss V1. Similarly
audio busses 2A and 2B are assigned to video buss V2. (See Figure 6-10 to Figure 6-13)
To select a crosspoint for buss V1, press the V1 button and then select the desired input by pressing one
of the buttons 1 to 12. Note that when buss V1 is selected the V1 button will light as well as the buttons
corresponding to the audio busses that are assigned to follow video buss V1. When the desired input is
selected the button for that bus will light and the video label for that input will be displayed on the front
panel display. The input labels for the associated audio busses may be displayed momentary by pressing
the respective audio buss keys.
When selecting an audio bus that has been assigned to a video bus, all the buttons for that AFV assigned
group will light and any input selection will effect the whole group.
On early versions of the X1202 routers with the AES option operating in the quad 12 x 1 configuration, the
Audio busses that follow the respective video busses can be changed using the Input Setup menu. Any
audio channel that has not been assigned to an AFV group will not be effected by V1 or V2 switch
selections and may be independently controlled by pressing the respective audio buss selector button.
The switch selection may be disallowed if there is no video present on the input chosen depending on the
setting of the No Video Action menu item in the Input Setup menu. A message No Video Present will
be temporally displayed. Similarly if the Video input has been turned off using the Video V1 and V2 menu
item in the Input Setup menu, the switch will be disallowed and the message Input turned off will be
displayed. Turning off Audio inputs in the Input Setup menu will cause the audio switch to be ignored by
any AFV switching.
3.2.2. Breakaway Audio On An Audio Follow Video Group
The occasion may arise were one wants to select a different audio input than what the video buss
normally dictates. This is a breakaway function and the router allows for this mode. To initiate a
breakaway function the first step is select the desired input for the Video buss as described in section
3.2.1. Then press the BREAKAWAY key to enter the breakaway selection mode. The BREAKAWAY
key will blink to indicate that breakaway mode has been entered. At the same time all of the audio buss
keys for that breakaway group will light along with the current selected input key. To break away audio
Bus 1B press that key. The Audio 1B key will blink to indicate the specific breakaway buss. Press the
key for the desired input selection for the audio 1B buss. The selected input key will also blink indicating
that it will be selected for audio buss 1B when the breakaway is completed. The other input key that is still
lit represents the buss selection for the V1 buss and the 1A audio buss that have not changed. The
breakaway is now set up. To complete the breakaway, press the BREAKAWAY key again. The panel
will now show the BREAKAWAY key lit and two input keys will also be lit.
To understand which inputs belong to which buss, press the button for the buss in question. Only the
input button and the button for that buss will light - all other keys will be temporally extinguished. During
that short interval the display will show the input label for that input key.
To cancel the breakaway simply press the next input selection. At this time all the busses in that AFV
group will track to that input selection.
It is also possible when in breakaway mode to select breakaways for all the Audio busses that are
assigned to follow the video. It is also possible for the breakaway to work on the video bus. This allows
for a salvo switch where all audio and video busses are switched to different inputs.
OPERATION
Revision 1.3.2
Page 3-3
X1200 Series Router Manual
Turning off Audio inputs in the Input Setup menu will cause the audio switch to be ignored by any AFV
Breakaway switching.
3.2.3. Independent Audio Bus Switching
On the early versions of the X1202 router that can be configured as a quad 12 x 1 AES, the audio busses
can be switched independent of the video buss. If one wishes to have an audio bus independent of an
AFV group switch, then that bus needs to be released from its AFV assignment using the Input Setup
menu. This shall be described later in the manual. If audio 1B has been released from its AFV
assignment it will switch as an independent bus.
When one selects the 1B key it will light up and all other bus selection keys will extinguish. One of the
twelve input keys will light and the display will show the audio input label for the selection. Pressing
another input key will cause that input to be selected on that bus only.
In independent Audio Bus switching, switch selection will be disallowed if the input has been turned off in
the Input Setup menu. A message “Input turned off” will be temporally displayed.
3.3. FRONT PANEL SETUP MENU
REFERENCE
−
Video Reference
−
Output Timing
−
Input Timing
−
Audio Reference
OUTPUT SETUP
−
Setup V1 Output
−
Setup V2 Output
REMOTE CTL
−
Baud Rate
−
Serial Format
−
Serial Address
−
Serial control
−
Protocols
TRANSITION
−
Switch Line
−
Video Line Sync
−
Audio SoftSwitch
−
EA SoftSwitch
BYPASS
−
Bypass All A & V
PRESETS
−
Load Factory
−
Load Preset 1
−
Load Preset 2
−
Save Preset 1
−
Save Preset 2
INPUT SETUP
−
AES Mode
−
Audio Follow V1
−
Audio Follow V2
−
Video V1 and V2
−
Audio 1A inputs
−
Audio 1B inputs
−
Audio 2A inputs
−
Audio 2B inputs
−
No Video Action
−
Input Standard
GPI SETUP
−
Disable All GPI’s
−
Enable All GPI’s
−
GPI Encoding
−
GPI Type
−
Program GPI’s
FIRMWARE
−
Firmware Version
−
Firmware Update
INPUT LABEL
−
Label Video
−
Label Audio 1A
−
Label Audio 1B
−
Label Audio 2A
−
Label Audio 2B
GPO SETUP
−
Disable All GPO’s
−
Enable All GPO’s
−
GPO Encoding
−
GPO Type
−
Program GPO’s
EXIT
−
Save and Exit
−
Exit no Save
−
Return to Menu
Figure 3-2: Overview of the Setup Menu
Page 3-4
Revision 1.3.2
OPERATION
X1200 Series Router Manual
The SETUP menu system uses the 16 digit alphanumeric display and provides a quick, intuitive method of
configuring the Router. The SETUP Menu contains items that pertain to the overall operation of the
router. These items are normally only required to be set up at installation time, and do not pertain to the
day to day operation of the unit.
3.4. NAGIVATING THE SETUP MENU
To enter the on-screen menu system, press the SETUP key. This will bring you to the main Setup menu
where you can use the ↑ & ↓ keys to move up and down the list of available sub menus. Top level menu
items are shown in UPPERCASE. Once you have chosen the desired sub menu, press the SELECT key
to select the next menu level.
Once in a sub menu, there may be another menu layer (shown in Title Case), or there may be a list of
parameters to adjust (shown in lower case). If there is another set of menu choices, use the ↑ & ↓ keys to
select the desired menu item and press the SELECT key. Continue this process until you get to the
bottom of the menu tree where the list of parameters to be adjusted is shown.
To adjust any parameter, use the ↑ & ↓ keys to move up or down to the desired parameter. To view the
possible values for that item, press the SELECT key. The current value for that parameter will be shown
blinking. Pressing the ↑
various menu values that are not currently selected will NOT be blinking. When you have stopped at the
desired value, press the SELECT key to save your selection. The value shown will begin blinking;
indicating that it is the current value. To move up one level in the menu press the SETUP key. The
parameter value that is blinking will become the current value when you exit the menu system by selecting
the Exit and Save menu choice.
& ↓ keys allows you to show the possible values for the selected menu item. The
You can select other parameters from that sub menu by using the ↑ & ↓ keys, followed by the SELECT
key. Alternately you can move up one menu item by pressing the SETUP key.
When you have made all the desired changes, press the SETUP key one or more times until you return to
the top of the Menu tree where you will be presented with an Exit menu. Using the ↑ & ↓ keys, choose one
of the three choices and then press the SELECT key. A description of the actions taken for each Exit
menu choice is shown below. You will be prompted to press the SELECT key one more time to confirm
your decision. Pressing the SETUP key at this time will return you to the Exit menu level.
SAVE AND EXIT
Selecting this choice will make all the changes you made while in the Setup
menu permanent. You will exit the Setup menu and return to normal front
panel operation.
EXIT NO SAVE
Selecting this choice will discard all the changes you made in the Setup menu
and restore the settings that were in use when you entered the Setup menu.
You will exit the Setup menu and return to normal front panel operation.
RETURN TO MENU
You will return to the top level of the Setup menu at the menu item you last
selected.
Each of the menu items is described in the following sections, with an explanation of what each choice
does.
OPERATION
Revision 1.3.2
Page 3-5
X1200 Series Router Manual
3.5. FRONT PANEL SETUP MENU – MAIN MENU
The Front panel Setup menu is arranged in a layered structure that groups similar configuration items
together. The following section gives a brief description of the first level of menus that appear when you
enter the menu. Selecting one of these items will take you to the next menu level. Sections 3.6 to 3.16
provide detailed descriptions of each of the sub menus. The tables in sections 3.6 to 3.16 are arranged in
an indented structure to indicate the path taken to reach the control. Menu items or parameters that are
underlined indicate the factory default values.
REFERENCE
TRANSITION
INPUT SETUP
INPUT LABEL
OUTPUT SETUP
BYPASS
GPI SETUP
GPO SETUP
REMOTE
CONTROL
PRESETS
FIRMWARE
This menu is used to set up the Genlock Reference.
This menu is used to set up the Transition type for audio and video.
This menu is used to assign which video and audio inputs are enabled and
which audio busses are assigned to follow each of the video busses.
This menu is used to change the default labels for the video and audio inputs.
This menu is only available on the X1202H HD Router. It is used to select
whether the video outputs will be reclocked on non-reclocked.
This menu is used to manually active the video and audio bypass relays.
This menu is used to configure the 14 General Purpose inputs.
This menu is used to configure the 4 General Purpose outputs.
This menu is used to configure the Serial Remote Control port.
This menu is used to save and recall user presets, and to restore the router to
its factory default condition.
This menu is used to view the current firmware version and to upload new
firmware into the router.
3.6. CONFIGURING THE ROUTER REFERENCES
The ROUTER menus are used to configure the reference timing for the router. The chart below shows the
items available in the REFERENCE menu. On most routers only the Reference video menu item is
available. The other menu items are used for configuring the SoftSwitch features of routers fitted with
the SoftSwitch option. Sections 3.8.1 and 3.8.3 give detailed information about each of the sub menus.
Video Reference
Output Timing
Input Timing
Audio Reference
Configures the video reference type.
Adjusts the timing of the video output V1 in relation to the Video Reference input
on SoftSwitch equipped routers
Adjusts the line synchronizer timing of the video output V1 in relation to the
Video Reference input on SoftSwitch equipped routers
Selects the Audio reference on SoftSwitch equipped routers.
Page 3-6
Revision 1.3.2
OPERATION
X1200 Series Router Manual
3.6.1. Setting up the Video Reference
The Video Reference menu is used to select the type of video reference being used for the router. The
Video reference is used to control the switching point in the video when cross points are changed.
REFERENCE
Video Reference
ref:ntsc/60
ref:ntsc/59.94
ref:pal/50
REFERENCE
Video Reference
ref:ntsc/60
ref:ntsc/59.94
ref:pal/50
ref:1080i/60
ref:1080i/59.94
ref:1080i/50
ref:1080p/30*
ref:1080p/29.97*
ref:1080p/25*
ref:1080p/24sF
ref:1080p/23.98sF
ref:720p/60
ref:720p/59.94
The standard definition X1200S series router can accept only NTSC or PAL
video references.
The high definition X1200H series router can accept NTSC or PAL, or Trilevel sync HD video references.
In general, the reference video should be chosen to match the standard of
the video program material passing through the router. For HD program
video, a standard definition reference video can be used as long as it is at
the same frame rate.
e.g. HDSDI PGM Video Analog Genlock Video
1080i/59.94 NTSC/59.94
1080i/59.94
1080i/50 PAL/50
1080i/50
720p/59.94 NTSC/59.94
720p/59.94
* These Video Reference formats are not available on the SS and ESS
versions of the X1200H
3.6.2. Setting up the Video Output Timing
(SoftSwitch and Embedded SoftSwitch routers only)
REFERENCE
Output timing
Course phase = 1
This menu item is used to set the vertical phase of the V1 output on the
SoftSwitch and Embedded SoftSwitch versions of the routers. The
course phase has valid values from 1 to the number of lines per frame and
adjusts V1 output phase delayed with respect to reference video. The
timing of the V2 output is not adjustable.
When the course phase is adjusted the “course phase” label will blink, when
the incoming signal that was selected when entering the set up menu, is
within the line synchronizer range.
OPERATION
Revision 1.3.2
Page 3-7
X1200 Series Router Manual
3.6.3. Setting up the Video Line Synchronizer Timing
(SoftSwitch and Embedded SoftSwitch equipped routers only)
REFERENCE
Input timing
line phase = 0
!
!
This menu item is used to set the line synchronizer acceptance range with
respect to the video reference for the V1 output on the SoftSwitch and
Embedded SoftSwitch routers.
Setting course phase to “1” and line phase to “0” are the standard settings. This
will allow any incoming video signal with a +/- one half line timing with respect to
the applied video reference, to switch cleanly on the V1 bus. The output on V1
will remain constant at 1 line delayed with respect to the applied video reference
signal. The timing of the V2 output is not adjustable.
The line phase has following valid values:
1202S 0 to +/-700 samples (approx. +/- 25 µsec)
1202H 0 to +/-940 samples (approx. +/- 12 µsec) for 1080 line standards
1202H 0 to +/-620 samples (approx. +/- 8 µsec) for 720 line standards
Line Phase is specific to a particular video standard. Therefore, if the Input
Standard is changed from a 1080 line standard to a 720 line standard, the Line
Phase will be reset to 0, and must be set up again for the new video standard.
The Course Phase and Line Phase adjustments are REAL TIME ADJUSTMENTS
and will effect router timing even without the menu EXIT AND SAVE menu
selection. The EXIT AND SAVE menu item will save the values while the EXIT
AND NO SAVE menu item will return the router to the original values. For difficult
timing situations the presets can be used for different timing setups.
3.6.4. Setting up the AES Audio Reference
(SoftSwitch and Embedded SoftSwitch equipped routers only)
REFERENCE
Audio Reference
lock to video
lock 48 kHz DARS
Page 3-8
This menu is used to select the type of audio reference being used for the
SoftSwitch and Embedded SoftSwitch routers. These routers can accept a
DARS reference signal to insure the Z bit alignment on the AES outputs. If
video is selected, the Z bit alignment of the AES outputs is random. If DARS is
selected and the DARS reference is absent, the router will revert to video lock.
On the SS routers, for the SoftSwitch technology to function correctly, the
audio sources must be synchronous with the chosen Audio Reference.
On the ESS routers, for the Embedded SoftSwitch technology to function
correctly, the AES sources must be synchronous with the Video reference and
the Audio Reference for the router should be set to video. (If you are using a
DARS reference with ESS, then the DARS reference must be locked to the
video reference.) If Embedded SoftSwitch functionality is not required (e.g.
Dolby E in the embedded stream) then the AE SoftSwitch can be disabled and
the router can function the same as a SoftSwitch equipped router.
Revision 1.3.2
OPERATION
3.7. CONFIGURING THE VIDEO AND AUDIO TRANSITIONS
3.7.1. Configuring The Switch Line
X1200 Series Router Manual
TRANSITION
Switch Line
Switch line = 10
TRANSITION
Switch Line
Switch line = 7
750/59.94/P Video signal
On the Standard Definition Routers this menu allows the user to select
which line of the video reference the switching will occur on. Valid values
are 1 to 64, with the default switch line set to 10.
On HD routers this menu allows the user to select which line of the video
reference the switching will occur on.
On routers that do not have SoftSwitch or Embedded SoftSwitch, the
switch line number will be the line number of the video reference.
On SoftSwitch and Embedded SoftSwitch equipped routers, when using
a bi-level sync reference, the switch line number will be the equivalent line
number in HD as shown in Figure 3-3 and Figure 3-4. When using a trilevel sync reference, the switch line number will be the line number of the
HD video reference. Valid values are 1 to 64, with the default switch line set
to 7 as per SMPTE RP168-2002. For proper timing operation the Input
Standard setting on the INPUT SETUP menu must be set to match the input
video format. (See section 3.8.5)
12345678750749748747746745
1125/59.94/I Video signal
525/59.94/I Video signal
Figure 3-3: Switch Line Selection in 59.94 Hz Field Rate Systems
1125 1 2 3112411231122 4 5
4
5
6 7
632
OPERATION
Revision 1.3.2
Page 3-9
X1200 Series Router Manual
1125/50/I Video signal
1125 1 2 3112411231122 4 5
625/50/I Video signal
1234625624
Figure 3-4: Switch Line Selection in 50 Hz Field Rate Systems
3.7.2. Enabling The Video Line Synchronizer On For Clean Video Switches
(SoftSwitch and Embedded SoftSwitch equipped routers only)
6 7
TRANSITION
Video Line Sync
line sync:off
This menu allows the user to control the video line synchronizer function on the
SoftSwitch and Embedded SoftSwitch equipped routers. The Line
Synchronizer control only affects the V1 video buss output.
line sync on
When the line synchronizer is set to Off, the router will provide a hard switch on
the V1 buss.
When the line synchronizer is set to On, the router will provide a clean switch on
the V1 buss when the input signals are within the line synchronizer range. If the
input signal is outside the line synchronizer range the router will attempt to
synchronize the signal but may cause timing shifts in the output picture.
3.7.3. Enabling The AES Audio SoftSwitch For Clean Audio Switches
(SoftSwitch and Embedded SoftSwitch equipped routers only)
TRANSITION
Audio SoftSwitch
softswitch:off
softswitch:on
This menu allows the user to enable the Audio SoftSwitch on the
SoftSwitch and Embedded SoftSwitch equipped routers. When Audio
SoftSwitch is On, the router will provide a clean AES switch on the AES audio
busses associated with the V1 buss.
This function can be turned On or Off and should be Off when switching nonlinear audio sources such as Dolby E.
Page 3-10
Revision 1.3.2
OPERATION
X1200 Series Router Manual
3.7.4. Enabling The Embedded Audio SoftSwitch For Clean Audio Switches
(Embedded SoftSwitch equipped routers only)
TRANSITION
EA SoftSwitch
embedded ss:off
embedded ss:on
This menu allows the user to enable the embedded audio SoftSwitch on the
Embedded SoftSwitch equipped routers. When Embedded Audio SoftSwitch
is On, the router will provide a clean audio switch on the audio embedded on
the V1 buss.
This function can be turned On or Off and should be Off when switching nonlinear embedded audio such as Dolby E.
3.8. CONFIGURING THE VIDEO AND AUDIO INPUTS
The INPUT SETUP menus are used to configure the input video standard for the router, to disable unused
video and audio inputs, and to configure which Audio busses are will follow video busses 1 and 2 in an
‘Audio follow video’ switch. The chart below shows the items available in the INPUT SETUP menu.
Sections 3.8.1 and 3.8.3 give detailed information about each of the sub menus.
AES Mode
Audio Follow V1
Audio Follow V2
Video V1 and V2
Configures whether the AES will be quad 12 x 1 or dual 12 x 2 configuration
Configures which audio busses will follow the Video 1 buss
Configures which audio busses will follow the Video 2 buss
Allows the user to disable unused video inputs
Audio 1A inputs
Audio 1B inputs
Audio 2A inputs
Audio 2B inputs
No Video Action
Input Standard
Allows the user to disable unused inputs on the Audio 1A buss
Allows the user to disable unused inputs on the Audio 1B buss
Allows the user to disable unused inputs on the Audio 2A buss
Allows the user to disable unused inputs on the Audio 2B buss
Allows the user to determine the operation when there is not video input
Allows the user to set the input video standard for the router
OPERATION
Revision 1.3.2
Page 3-11
X1200 Series Router Manual
3.8.1. Setting the Configuration of the AES Router Section
(Early X1202H-AES Routers with 2 breakout panels only)
INPUT SETUP
AES mode
Some early units fitted with the AES option were shipped with two breakout
panels.
4(12 x 1)
2(12 x 2)
In the 2(12 x 2) configuration audio busses 1A and 1B are associated with
video buss 1 and 2A and 2B are associated with video buss 2. The Audio
follow V1 and Audio follow V2 menu items are disabled.
In the 4(12 x 1) configuration the four audio busses can be associated with
either video buss V1 or V2 using the Audio follow V1 and Audio follow V2
menu items.
3.8.2. Setting up the Audio Follow Video Groups
On early units fitted with the AES option that were shipped with two breakout panels, when the AES Mode
is set to 4(12x1), the Audio Follow V1 and Audio Follow V2 menu items set up which audio busses are
assigned to follow video buss 1 and 2 respectively. For simplicity only the menu items for the V1 are
shown in the manual. These menu items are disabled when these routers are in the 2(12x2) mode, and
for later routers shipped with one breakout panel.
INPUT SETUP
A Follow V1 Setup
AFV sel buss
When you select this menu item the V1 button will be blinking. The buttons
for the Audio busses that are assigned to V1 will be On. If you make any
changes the V1 button will stop blinking
1A
2B
2A
2B
To remove an assigned audio buss press the one of the illuminated buttons
- the LED will go Off and a message (e.g. 1A available) will be shown
momentarily on the front panel.
To assign an available audio buss, press on of the non-illuminated buttons –
the LED will go On and a message (e.g. 1A assigned) will be shown
momentarily on the front panel.
To confirm your selection press the SELECT button. The V1 button will
start blinking again indicating that you have confirmed your changes.
Page 3-12
Revision 1.3.2
OPERATION
X1200 Series Router Manual
3.8.3. Configuring Which Inputs Are Active
The V1 and V2 Inputs, Audio 1A Inputs, and Audio 1B Inputs menu items allow the user to disable unused
inputs. When an input is disabled, the router will not perform a switch to that input even if the front panel
button is pressed. Also, disabled inputs will not cause the Input failure tally output to trigger. Disabling
inputs for each of the busses operate the same way but for simplicity only the V1 and V2 Inputs will be
shown in the manual.
INPUT SETUP
V1 and V2 Inputs
video i/p setup
When you select this menu item the V1 and V2 buttons will be blinking. The
buttons for the video inputs that are enabled will be On. If you make any
changes the V1 and V2 buttons will stop blinking
To disable an input press the corresponding button - the LED will go Off and
a message (e.g. Input xx disabled) will be shown momentarily on the
front panel.
To enable an input press the corresponding button - the LED will go On and
a message (e.g. Input xx enabled) will be shown momentarily on the
front panel.
To confirm your selection press the SELECT button. The V1 and V2
buttons will start blinking again indicating that you have confirmed your
changes.
On early units fitted with the AES option that were shipped with two breakout panels, when the AES Mode
is set to 4(12x1), the Audio 2A Inputs and Audio 2B Inputs menu items allow the user to disable unused
inputs on the Audio 2A and 2B busses. On these routers, when the AES Mode is set to 2(12x2), the inputs
for the 2A and 2B busses are taken from the 1A and 1B inputs, so these menu items are disabled.
3.8.4. Configuring What To Do When There Is No Video Input Present
INPUT SETUP
No video action
This menu item determines whether a selected switch will occur if there is
no video present on the selected input.
no video:take
no video:no take
When it is set to take the switch to the input will be made.
no video:black
When it is set to no take the switch will not be allowed.
On the HD SoftSwitch and SD or HD Embedded SoftSwitch routers
there is an additional mode. When it is set to black and the Line
synchronizer is turned on, the switch be allowed and the video output will be
black. When the Line synchronizer is turned off, the switch will be allowed
and the output video will contain whatever is present at the input.
OPERATION
Revision 1.3.2
Page 3-13
X1200 Series Router Manual
3.8.5. Configuring The Router Video Standard
(HD SoftSwitch and Embedded SoftSwitch equipped routers only)
INPUT SETUP
Input Standard
std:1080i/60
std:1080i/59.94
The high definition X1202H series routers equipped with SoftSwitch and
Embedded SoftSwitch have a line synchronizer to provide clean video
switches. This menu item must be used to set the video standard in use in
the router in order for the line synchronizer to work correctly.
std:1080i/50
std:1080p/24sF
std:1080p/23.98sF
std:720p/60
std:720p/59.94
3.9. LABELING THE VIDEO AND AUDIO INPUTS
The X1200 Series Routers provide a simple method of identifying each of the video sources with a 16
character label. The INPUT LABEL menu is used to change the default input labels for the video and
audio inputs. You can either input the label text from a text file (see section 3.9.1), or manually update the
individual input labels from the front panel (see section 3.9.2). The chart below shows the items available
in the INPUT LABEL menu.
On early units fitted with the AES option that were shipped with two breakout panels, when the AES Mode
is set to 4(12x1), the Label Audio 2a and Label Audio 2b menu items allow the user to label the inputs on
the Audio 2A and 2B busses. On these routers, when the AES Mode is set to 2(12x2), the inputs for the
2A and 2B busses are taken from the 1A and 1B inputs, so these menu items are disabled.
Input Label File
Label Video
Label Audio 1a
Label Audio 1b
Label Audio 2a
Label Audio 2b
Allows the user to upload and download input labels from a text file
Allows the user to label the Video inputs
Allows the user to label the Audio 1A inputs
Allows the user to label the Audio 1B inputs
Allows the user to label the Audio 2A inputs
Allows the user to label the Audio 2B inputs
3.9.1. Uploading/Downloading Input Labels from a Text File.
INPUT LABEL
Input Label File
This menu item is used to upload and download Input Label text files with a
terminal program
Receive File
Send File
Receive File allows you to upload new input labels from a text file
Send File allows you to download the current input labels to a text file
Page 3-14
Revision 1.3.2
OPERATION
X1200 Series Router Manual
It is important to make sure that the structure of the text file that contains the router labels is correct, or the
router will not accept any of the label definitions. The simplest way to create a file with the correct layout
is to download the current labels from the router using the Send File menu choice. You can then just edit
the label names, and then upload the new file back to the router using the Receive File menu choice.
Any serial protocol (remote panel or GVG) that is currently open on the remote port will be closed during
the Label updating procedure. The serial protocol will be reopened once the upload or download has
finished.
Use the procedure described in section 4.3 to upload label text files to the router.
3.9.2. Changing the Input Labels from the Front Panel.
From the Input Label menu use the ↑ & ↓ buttons and press the SELECT key to select the input buss you
wish to label. The method of labelling each of the inputs is the same. The button corresponding to the
buss you have chosen will blink. For simplicity the manual will describe how to label the video inputs.
Press the button corresponding to the input you wish to label. The label associated with the selected input
bus will be displayed on the front panel with the leftmost character blinking. Use the ↑ & ↓ buttons to
change the first character of the displayed label. When you change the blinking character, the buss LED
will stop blinking. When you have selected the desired character, press the SELECT button to save the
changes for the first character and advance to the next character. The buss LED will start blinking again
indicating you have confirmed the changes to the first character. Follow the same procedure until you
have finished entering the label. Make sure that you press the SELECT button after you change the
rightmost character. Press the SETUP button to return to the select input menu. To change the label on
another input press the desired input button and follow the same procedure. When you have changed all
the labels for the selected buss, press the SETUP button to return to the INPUT LABEL menu.
3.10. CONFIGURING THE VIDEO OUTPUTS (HD ROUTERS ONLY)
The OUTPUT SETUP menus are used to configure the Video Outputs on the High Definition routers. This
menu is not available on the Standard Definition routers. The chart below shows the items available in the
OUTPUT SETUP menu. Section 3.10.1 give detailed information about the sub menus.
Setup V1 Output
Setup V2 Output
Configures whether the outputs from Video Buss 1 will be reclocked or nonreclocked
Configures whether the outputs from Video Buss 2 will be reclocked or nonreclocked
3.10.1. Selecting the Reclocking Mode of the HD Video Outputs (HD Routers only)
OUTPUT SETUP
Setup V1 Output
reclocked
The Setup V1 Output and Setup V2 Output menu items determine if the
respective video outputs will be reclocked or not. For simplicity only the
menu items for V1 are shown in the manual.
non reclocked
3.11. MANUALLY ACTIVATING THE BYPASS RELAYS
The BYPASS menus are used to manually activate the Video and Audio bypass relays. (If the Bypass
Relay Option is not installed this menu will be disabled.) The chart below shows the items available in the
OPERATION
Revision 1.3.2
Page 3-15
X1200 Series Router Manual
BYPASS menu. The relays will not activate until you exit the menu system with the Exit and Save menu
choice. Sections 3.11.1 to Error! Reference source not found. give detailed information about each of
the sub menus.
Bypass All A & V
This menu allows the user to manually activate all video and audio bypass
relays.
3.11.1. Manually Activating All the Bypass Relays
BYPASS
Bypass All A & V
Manually activates all the bypass relays when set to On. Releases the
bypass relays when set to Off.
off
on
3.12. CONFIGURING THE GENERAL PURPOSE INPUTS (GPI)
The X1200 series routers can be controlled remotely by using 14 general purpose (GPI) inputs. The
functions of these inputs can be programmed to suit the specific requirements of the user. The GPI
SETUP menus are used to configure the functions of the GPI inputs. The GPIs can be configured to act
independently of each other or in one of three Encoded modes. In addition a global GPI disable function
allows the user to override the programmed functions of GPIs. See section 2.5 for information about
connecting the GPI inputs. The chart below shows the items available in the GPI SETUP menu. Sections
3.12.1 to 3.12.5 give detailed information about each of the sub menus.
Disable all Gpi’s
Enable all Gpi’s
Gpi Encoding
Gpi Type
Program Gpi’s
This menu allows the user to manually override the programmed functions
of all GPI inputs and disable them.
This menu allows the user to turn off the manual override of the GPI inputs
and return them to their programmed functions.
This menu allows the user to choose one of 4 pre-defined encoding modes
for the GPI inputs.
This menu allows the user to select whether the GPI input will be level or
edge triggered.
This menu allows the user to program different functions for the GPI inputs
that are not previously assigned using one of the encoding modes.
3.12.1. How to Override (Temporarily Disable) the GPI Functions
GPI SETUP
Disable all Gpi’s
Pressing the SELECT key when this menu item is shown will override the
programmed functions of all the GPI inputs. The GPI inputs will not respond
when they are disabled.
3.12.2. How to turn off the GPI Override (Return the GPIs to their Programmed Functions)
GPI SETUP
Enable all Gpi’s
Pressing the SELECT key when this menu item is shown will restore the
programmed functions of all the GPI inputs. Individual GPIs can be still be
disabled using the Program Gpi’s menu item (see section 3.12.5).
Page 3-16
Revision 1.3.2
OPERATION
3.12.3. Configuring the Encoding mode for the GPI Inputs
X1200 Series Router Manual
GPI SETUP
Gpi Encoding
gpi enc:none
gpi enc:standard
The GPIs can be configured to operate in one of 3 Encoded modes. In
these modes, many of the GPI inputs are pre-assigned to a function. The
unused inputs are still available for the user to assign to a particular function
using the Program Gpi’s menu item.
gpi enc:hex
gpi enc:afv hex
When the GPI Encoding is set to none, all 14 inputs are available for the
user to assign to particular functions using the Program GPI menu item for
the particular GPI. Section 3.12.5 describes how to program individual GPI
functions.
Sections 3.12.3.1 to 3.12.3.3 describe how each of the GPI encoding modes
works and which inputs are available for user assignment.
3.12.3.1. Standard GPI Encoding
Standard GPI encoding is designed to allow simple select an ‘Audio follow Video’ switch of one of the
input groups to one of the output busses. There are twelve GPIs to select each input and two GPIs to
perform the switch either the AFV1 or AFV2 output busses.
GPI # Action Function
1 Low Select Input 1
2 Low Select Input 2
3 Low Select Input 3
4 Low Select Input 4
5 Low Select Input 5
6 Low Select Input 6
7 Low Select Input 7
8 Low Select Input 8
9 Low Select Input 9
10 Low Select Input 10
11 Low Select Input 11
12 Low Select Input 12
13 Falling Edge Switch selected input to AFV1 Outputs
14 Falling Edge Switch selected input to AFV2 Outputs
Table 3-1: Standard GPI Encoding Functions
3.12.3.2. HEX GPI Encoding
HEX GPI encoding is designed to audio follow video or breakaway switch selection. Four inputs are
encoded to select one of the 12 inputs. Eight GPI inputs perform the switch to one of the video or audio
busses or one of the AFV groups. There are two GPI inputs available for user defined functions.
OPERATION
Revision 1.3.2
Page 3-17
X1200 Series Router Manual
GPI # Action Function
1
2
3
4
5 Falling Edge Switch selected input to V1 Output
6 Falling Edge Switch selected input to V2 Output
7 Falling Edge Switch selected input to 1A Output
8 Falling Edge Switch selected input to 1B Output
9 Falling Edge Switch selected input to 2A Output
10 Falling Edge Switch selected input to 2B Output
11
12 Set by GPI type menu Set by Program GPI Menu
13 Falling Edge Switch selected input to AFV1 Outputs
14 Falling Edge Switch selected input to AFV2 Outputs
High or low Level
High or low Level
(only applicable when
AES4 option installed)
Table 3-2: HEX GPI Encoding Functions
Four HEX encoded inputs select one of
the 12 input busses – see Table 3-3
High: GPI 7 to 10 control breakaway of
audio associated with V1 video buss
Low: GPI 7 to 10 control breakaway of
audio associated with V2 video buss
GPI 4 GPI 3 GPI 2 GPI 1 Input Select
Low Low Low Low Invalid selection
Low Low Low High 1
Low Low High Low 2
Low Low High High 3
Low High Low Low 4
Low High Low High 5
Low High High Low 6
Low High High High 7
High Low Low Low 8
High Low Low High 9
High Low High Low 10
High Low High High 11
High High Low Low 12
High High Low High Invalid selection
High High High Low Invalid selection
High High High High Invalid selection
Table 3-3: HEX Input Selection (HEX and AVF HEX Encoding)
3.12.3.3. AFV HEX GPI Encoding
AFV HEX GPI encoding is designed to permit separate audio follow video switch selection for both V1 and
V2 busses. Four inputs are encoded to select one of the 12 inputs for the AFV1 group. Four inputs are
encoded to select one of the 12 inputs for the AFV2 group. Two GPI inputs perform the switch to one of
the AFV groups. There are four GPI inputs available for user defined functions.
GPI # Action Function
1
High or low Level Four HEX encoded inputs select one of
2
Page 3-18
the 12 input busses – see Table 3-3
Revision 1.3.2
OPERATION
X1200 Series Router Manual
3
4
5
6
7
High or low Level
8
9 Set by GPI type menu Set by Program GPI Menu
10 Set by GPI type menu Set by Program GPI Menu
11 Set by GPI type menu Set by Program GPI Menu
12 Set by GPI type menu Set by Program GPI Menu
Four HEX encoded inputs select one of
the 12 input busses – see Table 3-5
13 Falling Edge
14 Falling Edge
Table 3-4: AFV HEX GPI Encoding Functions
GPI 8 GPI 7 GPI 6 GPI 5 Input Select
Low Low Low Low Invalid selection
Low Low Low High 1
Low Low High Low 2
Low Low High High 3
Low High Low Low 4
Low High Low High 5
Low High High Low 6
Low High High High 7
High Low Low Low 8
High Low Low High 9
High Low High Low 10
High Low High High 11
High High Low Low 12
High High Low High Invalid selection
High High High Low Invalid selection
High High High High Invalid selection
Switch input selected by GPI1-4 to
AFV1 Outputs
Switch input selected by GPI5-8 to
AFV2 Outputs
Table 3-5: HEX Input Selection for AFV2 (AVF HEX Encoding)
3.12.4. Configuring Whether the GPI Inputs are Edge or Level Activated
GPI SETUP
Gpi Type
This menu configures whether the GPI inputs that are available for user
functions will activate on rising or falling edges, or high or low levels.
Gpi 1 type
gpi type:fall
gpi type:rise
Individual menus for each GPI input allow each input to be independently
configured. For simplicity only the Gpi 1 type menu will be shown.
gpi type:high
gpi type:low
OPERATION
Revision 1.3.2
Page 3-19
X1200 Series Router Manual
3.12.5. Programming the GPI Inputs Functions
The GPI inputs can be configured to operate in one of 4 modes using the Gpi Encoding menu item. In
three of these modes, many of the GPI inputs have pre-assigned functions, and the unused inputs are
available for the user to program for a specific function. In the fourth mode (when the GPI Encoding is set
to none) all 14 GPI inputs are available for the user to program for specific functions.
The Program Gpi menu is used to program the functions of the GPI inputs that are available for user
functions. Individual menus for each GPI input allow each input to be independently configured. For
Simplicity only the Gpi 1 type menu will be shown.
GPI SETUP
Program Gpi’s
Program Gpi 1
disable gpi
afv1 sel. i/p
afv2 sel. i/p
v1 sel. i/p
v2 sel. i/p
1a(afv1) sel i/p
1b(afv1) sel i/p
2a(afv1) sel i/p
2b(afv1) sel i/p
1a(afv2) sel i/p
1b(afv2) sel i/p
2a(afv2) sel i/p
2b(afv2) sel i/p
10xl v1 redirect
10xl v2 redirect
If the GPI function is already determined by one of the encoding modes, the
front panel will display a message such as Gpi 1 Encoded
The afv1 and afv2 functions will cause the selected video and associated
audio inputs to switch to the indicated output busses.
The v1 and v2 functions will cause the selected video input to switch to the
indicated output video buss.
The 1a, 1b, 2a and 2b functions will cause the selected audio input to switch
to the output audio buss shown in brackets. (e.g. 1a(afv1) will cause the
selected audio input to switch to the 1a audio output associated with V1.)
The 10xl v1 and V2 redirect functions will cause the respective video buss to
respond to GVG 10XL serial commands issues to address 0, in spite of the
programmed Serial Address for that video buss. This feature allows
both/either video buss to be controlled by standard Single drop GVG
Protocol. See section 5.1 for further information about controlling the router
using GVG 10XL Serial Protocol commands.
When one of these modes is selected the button corresponding to the
selected input will blink. To select another input press the corresponding
button (the input button LED will turn On) and confirm your selection by
pressing the SELECT key (the input button LED will blink).
Disable GPI will turn off the GPI input
3.13. CONFIGURING THE GENERAL PURPOSE OUTPUTS (GPO)
The X1200 series routers have four general purpose (GPO) outputs that can be programmed to various
functions to suit the specific requirements of the user. The GPO SETUP menus are used to configure the
functions of the GPO outputs. See section 2.5 for information about connecting the GPO outputs. The
chart below shows the items available in the GPI SETUP menu. Sections 3.13.1 to 3.13.5 give detailed
information about each of the sub menus.
Page 3-20
Revision 1.3.2
OPERATION
X1200 Series Router Manual
Disable all Gpo’s
Enable all Gpo’s
Gpo Encoding
Gpo Type
Program Gpo’s
This menu allows the user to manually override the programmed functions
of all GPO outputs and disable them.
This menu allows the user to enable all GPO outputs and return them to
their programmed functions.
This menu allows the user to choose one of 3 pre-defined encoding modes
for the GPO outputs.
This menu allows the user to select whether the GPO output will be latched
or momentary.
This menu allows the user to program different functions for the GPO
outputs.
3.13.1. How to Override (Temporarily Disable) the GPO Functions
GPO SETUP
Disable all Gpo’s
Pressing the SELECT key when this menu item is shown will override the
programmed functions of all the GPO outputs. The GPO outputs will be Off
when they are disabled.
3.13.2. How to turn off the GPO Override (Return the GPOs to their Programmed Functions)
GPO SETUP
Enable all Gpo’s
Pressing the SELECT key when this menu item is shown will restore the
programmed functions of all the GPO outputs. Individual GPOs can be
disabled using the Program Gpo’s menu item (see section 3.13.5).
3.13.3. Configuring the Encoding mode for the GPO Outputs
GPO SETUP
Gpo Encoding
gpo enc:none
gpo enc:hex v1
The GPOs can be configured to operate in one of 2 Encoded modes. In
these modes, the GPO outputs are pre-assigned to provide encoded tallies
of the router input selections for the V1 or V2 busses. Section 3.13.3.1
describes how the GPO encoding modes work.
gpo enc:hex v2
When the GPO Encoding is set to none, all 4 outputs are available for the
user to assign to particular functions. Section 3.13.5 describes how to
program the individual GPO functions
3.13.3.1. HEX GPO Encoding
The HEX V1 and HEX V2 GPO encoding modes are designed to allow the four GPO outputs to give tallies
for either the V1 or V2 busses respectively. The four General purpose outputs are encoded to provide
tallies to indicate which one of the 12 inputs is currently routed to the video buss as shown in Table 3-6.
The encoded tally is held low while the respective video input is routed to the video output buss.
OPERATION
Revision 1.3.2
Page 3-21
X1200 Series Router Manual
GPO 4 GPO 3 GPO 2 GPO 1 Output Select
Low Low Low Low Power Off
Low Low Low High 1
Low Low High Low 2
Low Low High High 3
Low High Low Low 4
Low High Low High 5
Low High High Low 6
Low High High High 7
High Low Low Low 8
High Low Low High 9
High Low High Low 10
High Low High High 11
High High Low Low 12
Table 3-6: HEX Encoded Output Tallies
3.13.4. Configuring Whether the GPO Outputs are Latched or Momentary
GPO SETUP
Gpo Type
Gpo 1 type
This menu configures whether the GPO outputs that are available for user
functions will be latched or momentary (0.5 seconds in duration) when the
GPO encoding is set to none.
gpo type:latch
gpo type:1/2 sec
Individual menus for each GPO output allow each output to be
independently configured. For simplicity only the Gpo 1 type menu will be
shown.
3.13.5. Programming the GPO Output Functions
GPO SETUP
Program Gpo’s
Program Gpo 1
disable gpo
The Program Gpo menu is used to program the functions of the GPO
outputs that are available for user functions. Individual menus for
each GPO output allow each output to be independently configured.
For Simplicity only the Program Gpo 1 menu will be shown.
power failure
output v1 fail.
Disable GPO will turn off the GPO output
output v2 fail.
ref. video fail.
any v i/p fail.
The rest of the GPO functions will cause one of the outputs to activate
as a tally for various conditions as shown in the chart below.
sel. v i/p fail.
sel. v1 i/p tally
sel. v2 i/p tally
When one of the sel. xx i/p modes is selected the button
corresponding to the selected input will blink. To select another input
press the corresponding button (the input button LED will turn On) and
confirm your selection by pressing the SELECT key (the input button
Led will blink).
3.14. CONFIGURING THE REMOTE CONTROL PORT OPERATION
The X1200 series routers can be externally controlled using the REMOTE CONTROL port, or can operate
as a controller to another slave router. The REMOTE CTL menu is used to configure the parameters and
protocol for the Remote Control Port. The chart below shows the items available in the GPI SETUP menu.
Page 3-22
Revision 1.3.2
OPERATION
X1200 Series Router Manual
Sections 3.13.1 to 3.13.5 give detailed information about each of the sub menus. Also see section 2.6 and
chapter 5 for specific information about connecting the router to the external device.
Baud Rate
Serial Format
Serial Address
Serial Control
Protocol
This menu allows the user to set the baud rate.
This menu allows the user to set the serial data format (word length, parity
and stop bits)
This menu allows the user to select address of the router that is required for
multi-drop protocols.
This menu allows the user to select whether the router will be the master
(controller) or slave (controlled) device.
This menu allows the user to select which control protocol will be used.
3.14.1. Selecting the Baud Rate for Remote Control Port
REMOTE CTL
Baud Rate
baud:9600
baud:19200
This menu item is used to select the baud rate used by the Remote Control
port. The baud rate normally will vary depending on the routing switcher
control device. The Serial Format, Serial Address, Serial Control settings
must also be set to match the desired control protocol.
baud:38400
3.14.2. Selecting the Serial Data Format for the Remote Control Port
REMOTE CTL
Serial Format
format:8.n.1
format:8.e.1
format:8.o.1
format:7.n.1
format:7.e.1
format:7.o.1
This menu item is used to select the serial data format used by the Remote
Control port. The data format normally will vary depending on the routing
switcher control device. The Baud Rate, Serial Address, Serial Control
settings must also be set to match the desired control protocol.
OPERATION
Revision 1.3.2
Page 3-23
X1200 Series Router Manual
3.14.3. Selecting the Serial Control Address
REMOTE CTL
Serial Address
address = 1
valid address
values are
0 to 64
The GVG Ten XL protocol allows multiple devices to be addressed. The
Serial Address menu item is used to set a unique address for each router
that is connected. When the X1200 series router is operating in the master
mode, it will send out commands to the router that matches its serial
address. When the X1200 series router is operating in the slave mode, it
will only respond to commands that match its serial address. If two X1200
series routers are connected in a master/slave configuration, then the
address of both routers must be set the same. For more information about
addressing both video bus outputs using the GVG Ten XL protocol see
section 5.1
Use the ↑ and ↓ arrows to select the desired address and press the
SELECT key to confirm the new address.
The Baud Rate, Serial Format and Serial Control settings must also be set
to match the desired control protocol.
3.14.4. Selecting the Serial Data Control Mode
REMOTE CTL
Serial Control
This menu item is used to select the router will issue commands or respond
to commands on the Remote Control port.
control:slave
control:master
When set to master, the router will issue commands using the currently
selected protocol.
When set to slave, the router will respond to commands it receives on the
control port.
The Baud Rate, Serial Format, and Serial Address settings must also be set
to match the desired control protocol.
3.14.5. Selecting the External Remote Control Protocol
REMOTE CTL
Protocols
This menu item is used to select the protocol used for control by routing
switcher control devices.
gvg ten xl ascii
remote panel
The Baud Rate, Serial Format, Serial Address and Serial Control settings
must also be set to match the desired control protocol.
When the Protocol is set to Remote Panel the 1202-REMOTE remote
control panel can be connected to this port. In this mode, the Baud Rate
and Serial Format settings are forced to 9600 baud, 8.n.2. Also, the
physical port wiring must be changed to RS-422 as described in section
2.4.2.
Page 3-24
Revision 1.3.2
OPERATION
X1200 Series Router Manual
3.15. SAVING AND RECALLING CONFIGURATION PRESETS
The PRESETS menu allows the user to save specific configurations to one of two non-volatile presets.
Using this menu, these presets can be restored, or the user can restore the router to its factory preset
configuration. The chart below shows the items available in the PRESETS menu. Sections 3.13.1 to
3.13.5 give detailed information about each of the sub menus.
Load Factory
Load Preset 1
Load Preset 2
Save Preset 1
Save Preset 2
This allows the user to restore the router to the factory default configuration.
This allows the user to recall the router configuration in user preset 1.
This allows the user to recall the router configuration in user preset 2.
This allows the user to save the current router configuration to user preset 1.
This allows the user to save the current router configuration to user preset 2.
3.15.1. How to Restore the Factory Default Settings
PRESETS
Load Factory
This menu item is used to restore the factory default values of all the
programmable features in the router.
Pressing the SELECT key when this menu item is shown will prompt you to
confirm that you want to load the Factory Default configuration. Doing this
will override all of your current configuration items. To proceed press the
SELECT key one more time. The front panel display will briefly show a
message indicating that the Factory default configuration has been loaded.
The configuration will become active until you exit the menu system with the
Exit and Save menu choice.
3.15.2. How to Recall a Saved User Preset Configuration
PRESETS
Load Preset 1
This menu item is used to recall the values of all the programmable features
in the router saved in user preset 1. (A similar menu item allows you to
recall user preset 2).
Pressing the SELECT key when this menu item is shown will prompt you to
confirm that you want to load the user preset configuration. Doing this will
override all of your current configuration items. To proceed press the
SELECT key one more time. The front panel display will briefly show a
message indicating that the user preset configuration has been loaded. The
configuration will become active until you exit the menu system with the Exit
and Save menu choice.
OPERATION
Revision 1.3.2
Page 3-25
X1200 Series Router Manual
3.15.3. How to Save the Router Configuration to a User Preset
PRESETS
Save Preset 1
This menu item is used to save the values of all the programmable features
of the router in user preset 1. (A similar menu item allows you to save into
user preset 2).
Pressing the SELECT key when this menu item is shown will prompt you to
confirm that you want to save the current configuration to the user preset.
Doing this will overwrite the values currently saved in the user preset. To
proceed press the SELECT key one more time. The front panel display will
briefly show a message indicating that the user preset configuration has
been saved. The saved preset configuration will copied to the non-volatile
memory when you exit the menu system with the Exit and Save menu
choice. (It takes approximately 30 seconds to complete the copy to nonvolatile memory after you exit the menu.)
3.16. MANAGING THE ROUTER FIRMWARE
The FIRMWARE menu allows the user to view the Firmware version and to update the firmware to a new
version. The chart below shows the items available in the FIRMWARE menu. Sections 3.13.1 to 3.13.5
give detailed information about each of the sub menus.
Firmware Version
Firmware Update
This allows the user to view the current firmware version.
This allows the user to update the firmware in the router.
3.16.1. Reading the Router Firmware Version
FIRMWARE
This menu item is used to read the firmware version of the router.
Firmware Version
3.16.2. How to Update the Router Firmware
FIRMWARE
This menu item is used to initiate an upload of new firmware into the router.
Firmware Update
Sel to upgrade
Pressing the SELECT key when this menu item is shown will prompt you to
confirm that you want to update the firmware. Doing this will erase the
current firmware. To proceed press the SELECT key one more time. The
front panel display will show a message indicating that the router is waiting
for you to upload new firmware. See section 4.2 for more information on
updating the firmware.
Page 3-26
Revision 1.3.2
OPERATION
X1200 Series Router Manual
CHAPTER 4: TECHNICAL DESCRIPTION
TABLE OF CONTENTS
4. TECHNICAL DESCRIPTION............................................................................................................ 4-1
4.1. SPECIFICATIONS................................................................................................................... 4-1
4.1.1. Video Specifications (X1200S Series).......................................................................... 4-1
4.1.1.1. SD Video Inputs ........................................................................................... 4-1
4.1.1.2. SD Video Outputs ........................................................................................ 4-1
4.1.2. Video Specifications (X1200H Series) ......................................................................... 4-2
4.1.2.1. HD Video Inputs........................................................................................... 4-2
4.1.2.2. HD Video Outputs ........................................................................................ 4-2
4.1.3. Video Reference .......................................................................................................... 4-2
4.1.4. AES Audio Inputs ......................................................................................................... 4-3
4.1.5. AES Audio Outputs ...................................................................................................... 4-3
4.1.6. DARS Reference (SoftSwitch and Embedded SoftSwitch equipped routers only) 4-3
4.1.7. GPI Control Port ........................................................................................................... 4-3
4.1.8. Serial Remote Control .................................................................................................. 4-3
4.1.9. Electrical....................................................................................................................... 4-4
4.1.10. Physical ........................................................................................................................ 4-4
4.2. UPGRADING FIRMWARE ...................................................................................................... 4-4
4.2.1. Step 1 – Terminal Program Setup................................................................................ 4-4
4.2.1.1. Step 2 – Invoke Upload Mode Via The Front Panel..................................... 4-5
4.2.1.2. Step 3 – Invoke Upload Mode From The Terminal Program ....................... 4-5
4.2.2. Step 4 – Uploading the new firmware .......................................................................... 4-6
4.2.3. Step 5 – Completing the Upgrade ................................................................................ 4-6
4.3. UPLOADING ROUTER INPUT LABELS FROM A TEXT FILE .............................................. 4-6
4.3.1. Step 1 – Terminal Program Setup................................................................................ 4-7
4.3.2. Step 2 – Download the Current Labels from the Router .............................................. 4-7
4.3.3. Step 3 – Editing the Label Text File ............................................................................. 4-7
4.3.4. Step 4 – Upload the New Label file to the Router ........................................................ 4-8
4.3.5. Sample Label Text Files............................................................................................... 4-9
TECHNICAL DESCRIPTION
Revision 1.3.2
X1200 Series Router Manual
This page left intentionally blank
Revision 1.3.2
TECHNICAL DESCRIPTION
X1200 Series Router Manual
4. TECHNICAL DESCRIPTION
4.1. SPECIFICATIONS
4.1.1. Video Specifications (X1200S Series)
4.1.1.1. SDI Video Inputs
Standards: SMPTE 259M (270Mb/s, 360Mb/s, 540Mb/s)
Number of Inputs: 12
Connector: BNC per IEC 169-8
Equalisation: Automatic up to 250m @ 270 Mb/s
with Belden 8281 or equivalent cable
Return Loss: > 15 dB up to 540 Mb/s
Input Timing (V1 buss on SoftSwitch and Embedded SoftSwitch equipped models only)
Input Range: measured with respect to the Genlock reference
± one half line when Course phase = 1, Fine phase = 0
4.1.1.2. SDI Video Outputs
Standard: Same as Input
Number of Outputs:
X1201S 1 buss ,2 outputs, input 1 bypass protected when bypass relay option is installed
X1202S 2 busses, 2 outputs per buss, input 1 and 12 bypass protected when bypass relay
option is installed
Connector: BNC per IEC 169-8
Signal Level: 800mV nominal
DC Offset: 0V ±0.5V
Rise and Fall Time: 200ps nominal
Overshoot: <10% of amplitude
Return Loss: > 15 dB up to 540 Mb/s
Wide Band Jitter: < 0.2 UI
Output Timing (V1 buss on SoftSwitch and Embedded SoftSwitch equipped Models only)
Output phase: measured with respect to the Genlock reference
Adjustable 1 line to a full frame of delay - set by Coarse phase parameter
Note: While the output timing is adjustable, the active video content will align to the
nearest line. Output timing is measured with respect to the Genlock reference and
is associated to the V1 Buss Only
TECHNICAL DESCRIPTION
Revision 1.3.2
Page 4-1
X1200 Series Router Manual
4.1.2. Video Specifications (X1200H Series)
4.1.2.1. HD Video Inputs
Standards: SMPTE 292M (1.5 Gb/s)
Number of Inputs: 12
Connector: BNC per IEC 169-8
Equalisation: Automatic up to 100m
with Belden 1694 or equivalent cable
(50 m on Inputs 1 and 12 when the optional Bypass relays are installed)
Return Loss: > 15 dB up to 1.5 Gb/s
Input Timing (V1 buss on SoftSwitch and Embedded SoftSwitch equipped models only)
Input Range: measured with respect to the Genlock reference
± one half line when Course phase = 1, Fine phase = 0
4.1.2.2. HD Video Outputs
Standard: Same as Input
Number of Outputs:
X1201H 1 buss ,2 outputs, input 1 bypass protected when bypass relay option is installed
X1202H 2 busses, 2 outputs per buss, input 1 and 12 bypass protected when bypass relay
option is installed
Reclocking on outputs may be turned off on each buss independently.
Connector: BNC per IEC 169-8
Signal Level: 800mV nominal
DC Offset: 0V ±0.5V
Rise and Fall Time: 200ps nominal
Overshoot: <10% of amplitude
Wide Band Jitter: < 0.2 UI
Return Loss: > 15 dB up to 1 Gb/s, > 12 dB up to 1.5 Gb/s
Output Timing (V1 buss on SoftSwitch and Embedded SoftSwitch equipped Models only)
Output phase: measured with respect to the Genlock reference
Adjustable 1 line to a full frame of delay - set by Coarse phase parameter
Note: While the output timing is adjustable, the active video content will align to the
nearest line. Output timing is measured with respect to the Genlock reference and
is associated to the V1 Buss Only
4.1.3. Video Reference
Type: Menu selectable - depends on video format (See section 2.1.4)
NTSC or PAL Colour Black 1 V p-p
Composite bi-level sync (525i/59.94 or 625i/50) 300 mV
HD Tri-level Sync (X1202H versions only)
Connectors: BNC per IEC 169-8
Termination: High impedance loop through
Page 4-2
Revision 1.3.2
TECHNICAL DESCRIPTION
X1200 Series Router Manual
4.1.4. AES Audio Inputs
Standards: SMPTE 276M single ended AES
Number of Inputs:
X1201-AES 2 groups of 12 (on one 1201ABO AES Breakout panel provided with router)
X1201-AES4 4 Groups of 12 (on two 1201ABO AES Breakout panels provided with router)
X1202-AES 2 Groups of 12(on one 1202ABO AES Breakout panel provided with router)
X1202-AES4 4 Groups of 12(on two 1202ABO AES Breakout panels provided with router)
Connector: BNC per IEC 169-8
Signal Level: 1 V p-p ± 10%
4.1.5. AES Audio Outputs
Standards: SMPTE 276M single ended AES
Number of Outputs:
X1201-AES 2 busses, 2 outputs per bus
X1201-AES4 4 busses, 2 outputs per bus,
On X1201 routers, input 1 bypass protected when bypass relay option is installed
X1202-AES 4 busses, 1 output per bus
X1202-AES4 8 busses, 1 output per bus
On X1202 routers, inputs 1 and 12 bypass protected when bypass relay option is
installed
Connector: BNC per IEC 169-8 on breakout panels provided with router
Signal Level: 1 v p-p
Reference: From Video Reference.
On SoftSwitch equipped routers, menu selectable to Video or DARS.
On Embedded SoftSwitch equipped routers, menu selectable to Video or DARS
when Embedded SoftSwitch is disabled. When Embedded SoftSwitch is
enabled audio must be referenced from video reference.
4.1.6. DARS Reference (SoftSwitch and Embedded SoftSwitch equipped routers only)
Type: Digital Audio Signal with 48Khz sample rate.
Standard: SMPTE 276M-1995 single ended AES
Connectors: BNC per IEC 169-8
Termination: High impedance loop through
4.1.7. GPI Control Port
Number of Inputs: 14 opto-isolated, programmable functions
Number of Outputs: 4 sets of relay contacts, normally closed, programmable functions
Relay Max Ratings: 1 A at 30 V DC
4.1.8. Serial Remote Control
Standard: RS-232 or RS-422, programmable baud rate
Connector: 9 pin female “D”
Protocol: GVG Ten XL ASCII, master or slave or Remote Control Panel
TECHNICAL DESCRIPTION
Revision 1.3.2
Page 4-3
X1200 Series Router Manual
4.1.9. Electrical
Voltage: Auto ranging 100 - 240 Volts AC, 50/60 Hz
Power: 30 VA
Fuse Rating: 250 V, 1amp time delay
Safety: ETL Listed, complies with EU safety directives
EMI/RFI: Complies with FCC Part 15 Class A regulations
Complies with EU EMC directive
4.1.10. Physical
Dimensions: 19“ W x 1.75” H x 18.75” D.
(483mm W x 45mm H x 477mm D)
Weight: 8 lbs. (3.5Kg)
4.2. UPGRADING FIRMWARE
The X1200 series routers contain firmware that is contained in a FLASH EPROM device. From time to
time firmware updates will be provided to add additional features to the unit.
You will need the following equipment in order to update the X1200 Router Firmware
• PC with available communications port. The communication speed is 57600 baud, therefore a 486 PC
or better with a 16550 UART based communications port is recommended.
• “Straight-thru” serial extension cable (DB9 female to DB9 male) or (DB25 female to DB9 male).
• Terminal program that is capable of Xmodem file transfer protocol. (such as HyperTerminal)
• New firmware supplied by Evertz.
4.2.1. Step 1 – Terminal Program Setup.
1. Connect the serial cable to the SERIAL REMOTE DB9 connector on the rear panel
2. Connect the 9 pin connector on the end of the serial update cable to the PCs’ RS-232 communications
port
3. Start the terminal program.
4. Configure the port settings of the terminal program as follows:
Baud
Parity
Data bits
Stop bits
Flow Control
57600
no
8
2
None
5. Power up the X1200 series router unit.
Page 4-4
Revision 1.3.2
TECHNICAL DESCRIPTION
X1200 Series Router Manual
4.2.1.1. Step 2 – Invoke Upload Mode Via The Front Panel
If you cannot invoke the upload mode via the front panel outlined in Step 2 then follow the steps in Step 3.
6. You can invoke the Software upgrade mode using the front panel Setup Menu. (See section 3.2 for
information on how to operate the front panel menus.)
• Press the SETUP button once to enter the front panel menu.
• Press the ↑ & ↓ keys until the front panel display reads FIRMWARE.
• Press the SELECT button then press the ↑ & ↓ keys until the front panel display reads Firmware
Update..
• Press the SELECT button and the front panel display should now show the message
Sel to upgrade.
• Press the SELECT button to confirm the Upgrade operation, or press the SETUP button three
times to return to top of the menu tree where you will be presented with the exit menu. (see section
3.4)
• Proceed to Step 4 for instructions on uploading the firmware.
4.2.1.2. Step 3 – Invoke Upload Mode From The Terminal Program
In the event that you can not initiate upload mode from the front panel menu, you may send commands to
the Router to initiate upload mode using the terminal program.
7. Power up the X1200 Router. After the unit powers up, a banner with the boot code version information
should appear in the terminal window. The cursor to the right of the word BOOT> should be spinning for
about 5 seconds then the unit will continue to boot.
For example:
EVERTZ MCF5407 MONITOR 2.3 BUILD 8
COPYRIGHT 1997, 1998, 1999, 2000, 2001, 2002 EVERTZ MICROSYSTEMS LTD.
28F160C3B FLASH DETECTED
BRD=X1202
MODEL=X1202H-AES4-SS
PROD=X1202H-AES4-SS
FRAME=9000SFF
MCF5407 COLD BOOT> |
8. The following is a list of possible reasons for failed communications:
• Defective Serial Upgrade cable.
• Wrong communications port selected in the terminal program.
• Improper port settings in the terminal program. (Refer to step 7 for settings). Note that
HyperTerminal will not change port settings while connected. Click on HyperTerminal’s
“Disconnect” Button then click the “Reconnect” button to activate changes to the port settings.
9. While the cursor is spinning press the <CTRL> and <X> keys on your computer keyboard at the same
time, this should stop the cursor from spinning. The spinning prompt will only remain for about 5
seconds. You must press <CTRL-X> during this 5 second delay. If the unit continues to boot-up,
simply cycle the power and repeat this step.
10. Hit the <ENTER> key on your computer once.
TECHNICAL DESCRIPTION
Revision 1.3.2
Page 4-5
X1200 Series Router Manual
11. Type the word “upgrade”, without quotes, and hit the <ENTER> key once.
12. The boot code will ask for confirmation. Type "y", without quotes.
13. You should now see a prompt asking you to upload the file.
4.2.2. Step 4 – Uploading the new firmware
14. Upload the “*.bin” file supplied using the X-Modem transfer protocol of your terminal program. If you
do not start the upload within 10 minutes the unit’s Boot code will time out. You can restart the
upgrade process by power cycling the unit.
15. The boot code will indicate whether the operation was successful upon completion of the upload.
For Example:
UPLOAD OKAY
MCF5407 COLD BOOT> |
16. The following is a list of possible reasons for a failed upload:
• If you get the message "transfer cancelled by remote" you must restart the terminal program and
load the bin file, then remove and install the module again.
• The supplied “*.bin” file is corrupt.
• Wrong file specified to be uploaded.
• Wrong file transfer protocol used – make sure you specify Xmodem, not Xmodem 1K.
• The PCs’ RS-232 communications port can’t handle a port speed of 57600.
• Noise induced into the Serial Upgrade cable.
4.2.3. Step 5 – Completing the Upgrade
17. Type the word “boot”, without quotes, and hit the <ENTER> key once or power cycle the unit. The unit
should now reboot.
18. You can now close the terminal program and disconnect the RS-232 serial cable from the PC.
4.3. UPLOADING ROUTER INPUT LABELS FROM A TEXT FILE
The Input Label File menu item allows labels for the video and audio inputs to be input from the serial port
of the router using a simple terminal program such as HyperTerminal. It is important to make sure that the
structure of the text file that contains the router labels is correct, or the router will not accept any of the
label definitions. The simplest way to create a file with the correct layout is to download the current labels
from the router using the Send File menu choice. You can then just edit the label names, and then upload
the new file back to the router using the Receive File menu choice.
Any serial protocol (remote panel or GVG) that is currently open on the remote port will be closed during
the Label updating procedure. The serial protocol will be reopened once the upload or download has
finished.
The following procedure describes the process used to upload labels to the router:
Page 4-6
Revision 1.3.2
TECHNICAL DESCRIPTION
X1200 Series Router Manual
4.3.1. Step 1 – Terminal Program Setup.
1. Connect a ‘straight through’ serial cable to the SERIAL REMOTE DB9 connector on the rear panel
2. Connect the 9 pin connector on the end of the serial update cable to the PCs’ RS-232 communications
port
3. Start the terminal program.
4. Configure the port settings of the terminal program as follows:
Baud
Parity
Data bits
Stop bits
Flow Control
57600
no
8
2
None
If you are using HyperTerminal this is done using the File/Properties menu item. Note that
HyperTerminal will not change port settings while connected. Click on HyperTerminal’s “Disconnect”
Button then click the “Reconnect” button to activate changes to the port settings.
5. Configure the terminal program to capture text to a file. If you are using HyperTerminal this is done
using the Transfer/Capture Text menu item.
4.3.2. Step 2 – Download the Current Labels from the Router
6. Invoke the Label Send File mode using the front panel Setup Menu. (See section 3.4 for information on
how to operate the front panel menus.)
• Press the SETUP button once to enter the front panel menu.
• Press the ↑ & ↓ keys until the front panel display reads INPUT LABEL.
• Press the SELECT button
• Press the ↑ & ↓ keys until the front panel display reads Input Label File.
• Press the SELECT button.
• Press the ↑ & ↓ keys until the front panel display reads Send file?
• Press the SELECT button to send the file to the terminal program
7. When you have captured the file, you will need to close the capture file. If you are using HyperTerminal
this is done using the Transfer/Capture Text menu item again.
4.3.3. Step 3 – Editing the Label Text File
8. Using a text editor such as Notepad, edit the input labels in the file you have captured.
Note: It is not recommended that you use a word processor such as Microsoft
Word, as it may append hidden control codes into the text file, that will not allows
!
the edited file to be uploaded correctly to the router.
TECHNICAL DESCRIPTION
Revision 1.3.2
Page 4-7
X1200 Series Router Manual
The file structure is as follows:
[category_a]<CR><LF>
labelvar_a1=value 1<CR><LF>
labelvar_a3=value 2<CR><LF>
labelvar_a2=value 3<CR><LF>
[category_b]<CR><LF>
labelvar_b1=value<CR><LF>
labelvar_b2=value<CR><LF>
<CR><LF>
<CR><LF>
<CR><LF>
Note: <CR><LF> = Enter key
Each category is enclosed in square brackets [] and identifies the input category (e.g.[VIDEO],
[AUDIO1A]) for a group of associated label variables. The label variables must follow their associated
category in the file and represent the label names that can be changed in the router. The value that
follows the equals sign is a 16 character maximum length text string that is assigned to the variable.
Alphanumeric characters such as a-z, A-Z, 0-9 and punctuation (ISO Character values 32 to 126) are
valid. Label variables can be in any order as long as they occur in the correct category section of the
file. Physical inputs on the router that do not have an associated label variable will retain their original
value when the label file is uploaded to the router. If a label variable is specified more than once, the
last value in the file will be used.
4.3.4. Step 4 – Upload the New Label file to the Router
9. Invoke the Label Receive File mode using the front panel Setup Menu. (See section 3.2 for information
on how to operate the front panel menus.)
• Press the SETUP button once to enter the front panel menu.
• Press the ↑ & ↓ keys until the front panel display reads INPUT LABEL.
• Press the SELECT button
• Press the ↑ & ↓ keys until the front panel display reads Input Label File.
• Press the SELECT button.
• Press the ↑ & ↓ keys until the front panel display reads Receive file?
• Press the SELECT button. A text prompt Send file to router now will appear on the
terminal program screen.
10. Configure the terminal program to send the label text file. If you are using HyperTerminal this is done
using the Transfer/Send Text File menu item.
11. Exit the menu system by pressing the SETUP key one or more times until you return to the top of the
Menu tree where you will be presented with an Exit menu. Using the ↑ & ↓ keys, choose the SAVE
AND EXIT item and then press the SELECT key. You will be prompted to press the SELECT key one
more time to confirm your decision.
Page 4-8
Revision 1.3.2
TECHNICAL DESCRIPTION
X1200 Series Router Manual
4.3.5. Sample Label Text Files
Example 1
The category [AUDIO2B] is before the category [VIDEO] but will still be accepted. Variables
input4_audio2B to input12_audio2B for category [AUDIO2B] will not be modified. For category
[VIDEO], input1_video is specified more than once so the last occurrence is used.
[AUDIO2B]
input1_audio2B=INPUT # 1 (2B)
input2_audio2B=INPUT # 2 (2B)
input3_audio2B=INPUT # 3 (2B)
[VIDEO]
input1_video=Input # 1 Video
input2_video=Input # 2 Video
input1_video=Test # 1 Video
Example 2
All the variables for the category [VIDEO] are in alphabetic order. Variables input4_audio2B to
input7_audio2B for [AUDIO2B] are out of order but will still be accepted.
[VIDEO]
input1_video=Input # 1 Video
input2_video=Input # 2 Video
input3_video=Input # 3 Video
input4_video=Input # 4 Video
input5_video=Input # 5 Video
input6_video=Input # 6 Video
input7_video=Input # 7 Video
input8_video=Input # 8 Video
input9_video=Input # 9 Video
input10_video=Input # 10 Video
input11_video=Input # 11 Video
input12_video=Input # 12 Video
[AUDIO2B]
input1_audio2B=INPUT # 1 (2B)
input2_audio2B=INPUT # 2 (2B)
input3_audio2B=INPUT # 3 (2B)
input8_audio2B=INPUT # 8 (2B)
input9_audio2B=INPUT # 9 (2B)
input10_audio2B=INPUT # 10 (2B)
input11_audio2B=INPUT # 11 (2B)
input12_audio2B=INPUT # 12 (2B)
input4_audio2B=INPUT # 4 (2B)
input5_audio2B=INPUT # 5 (2B)
input6_audio2B=INPUT # 6 (2B)
input7_audio2B=INPUT # 7 (2B)
TECHNICAL DESCRIPTION
Revision 1.3.2
Page 4-9
X1200 Series Router Manual
Example 3
Category [AUDIO2B] has a variable that does not belong to it ( input1_video). An error message will be
displayed on HyperTerminal and on the router front panel indicating the reason.
[AUDIO2B]
input1_audio2B=INPUT # 1 (2B)
input2_audio2B=INPUT # 2 (2B)
input3_audio2B=INPUT # 3 (2B)
input1_video=Input # 1 Video
HyperTerminal output:
Warning: Unrecognized variable: input1_video
Error: Some labels or variables were not recognized
Front panel output:
Bad labels/vars
Page 4-10
Revision 1.3.2
TECHNICAL DESCRIPTION
X1200 Series Router Manual
CHAPTER 5: SERIAL CONTROL
TABLE OF CONTENTS
5. SERIAL CONTROL OF THE ROUTERS ......................................................................................... 5-1
5.1. GVG TEN-XL ASCII PROTOCOL ........................................................................................... 5-1
5.1.1. Serial Data Format ....................................................................................................... 5-1
5.1.2. Definitions .................................................................................................................... 5-2
5.1.3. Command Formats....................................................................................................... 5-3
5.1.3.1. Write or Take Command .............................................................................. 5-3
5.1.3.2. Read or Query Command ............................................................................ 5-3
5.1.3.3. Reply Command String ................................................................................ 5-3
5.1.4. Command Examples: ................................................................................................... 5-3
5.1.4.1. Input Selection – Audio Follow Mode........................................................... 5-4
5.1.4.2. Input Selection – Breakaway Mode.............................................................. 5-4
5.1.4.3. Router Status Request................................................................................. 5-4
Tables
Table 5-1: Crosspoint numbers and their Internal Source Numbers ..................................................... 5-2
Table 5-2: ASCII Command Definitions ................................................................................................ 5-3
SERIAL CONTROL
Revision 1.3.2
X1200 Series Router Manual
This page left intentionally blank
Revision 1.3.2
SERIAL CONTROL
X1200 Series Router Manual
5. SERIAL CONTROL OF THE ROUTERS
5.1. GVG TEN-XL ASCII PROTOCOL
The following sections are provided as a technical reference for programmers who want to write their own
software to control the Evertz X1200 series routers using the GVG TEN-XL ASCII command protocol.
There are some hardware differences between the X1200 series routers and the Grass Valley TEN-XL
routers which have required differences in implementation of the protocol for the X1200 series routers.
The GVG Ten XL protocol allows multiple devices to be addressed on a multi-drop serial connection. The
GVG TEN-XL protocol was originally designed to control 10 x 1 routers, therefore each video buss (with its
associated audio busses) in the X1200 routers has its own address. In the X1202 routers, these
addresses are the one set in the Serial Address menu item and the next high number. (i.e. if the Serial
Address menu item is set to 10, then address 10 will correspond to video buss 1 and its associated audio
busses, and address 11 will correspond video buss 2 and its associated audio busses. In the X1201
routers only the serial address set in the Serial Address menu is used.
Some implementations of the GVG Ten XL protocol only allow one device to be addressed on a singledrop serial connection. These implementations use address 0 only. When controlling X1201 routers from
single drop GVG protocol, set the Serial Address to 0. In the X1202 routers, special provisions have been
made to override the programmed Serial Address and re-direct the control to either video buss. Setting
one or two of the GPI Inputs to one of the 10XL Redirect GPI Input functions can accomplish this. When
one GPI is pulled to ground, all serial commands to address 0 will control the respective video buss,
regardless of the setting of the Serial Address menu item. To control the other video buss, ground the
other GPI input. If both GPIs are active at the same time the higher GPI number will have priority. If you
set the Serial Address to 0, and one GPI is programmed to the 10XL redirect V2 function, serial
commands will control V1 buss when the GPI is inactive, and the V2 buss when the GPI is active.
When the X1200 series router is operating in the master mode, it will send out commands to the router
that matches its serial addresses. When the X1200 series router is operating in the slave mode, it will only
respond to commands that match its serial addresses. If two X1200 series routers are connected in a
master/slave configuration, then the addresses of both routers must be set the same.
The Setup Menu in the router must be used to configure the REMOTE CTL port. See section 3.14 for
information about configuring the serial port.
5.1.1. Serial Data Format
In GVG’s TEN-XL ASCII protocol all words sent and received use the following format:
Standard: RS-232 (Can be set to RS-422 by changing internal Jumpers (See section 2.4.2)
Data Rate: Default 38400 Baud (Can be set using the Baud Rate menu item)
Data Format: Default 8 data bits, even parity, 1 stop bit (Can be set using the Serial Format menu item)
SERIAL CONTROL
Revision 1.3.2
Page 5-1
X1200 Series Router Manual
5.1.2. Definitions
1 GVG’s TEN-XL ASCII protocol uses standard ASCII hex codes for the transmission of commands.
Programmers must use the hex equivalent code in order to successfully convey commands from
their controlling software to the X1200 series router. Hexadecimal [hex] numbers are represented
with the prefix “0x.”
i.e. decimal “14” = “0x0E.”
2. There are two reserved words in GVG TEN-XL ASCII Protocol. They are illustrated in the table
below.
Reserved
Word
Hexadecimal
Equivalent
Control Character
STX 0x02 ^B
ENQ 0x05 ^E
3. Internal crosspoint numbers are ‘zero-based’, meaning that crosspoint number 1 is accessed as
source 0. Since GVG TEN-XL protocol is based on 10 internal crosspoints and the Evertz 12 x 1
router family contains 12 internal crosspoints it was necessary to extend the protocol to include
crosspoint #11 and #12. Valid sources range from 0 to 11 decimal or 0x00 to 0x0B as shown in
Table 5-1.
Data Byte
Hex Value ASCII Character
Corresponding
Source
0x30 0 1
0x31 1 2
0x32 2 3
0x33 3 4
0x34 4 5
0x35 5 6
0x36 6 7
0x37 7 8
0x38 8 9
0x39 9 10
0x41 A 11*
0x42 B 12*
*- Not found in regular GVG TEN-XL protocol.
Table 5-1: Crosspoint numbers and their Internal Source Numbers
Page 5-2
Revision 1.3.2
SERIAL CONTROL
X1200 Series Router Manual
5.1.3. Command Formats
Commands are issued by concatenating a sequence of hex codes or parameters as shown in Table 5-2.
All codes are adjacent to each other with no spaces in between bytes.
Parameter Definition
[STX] ASCII hex code for Start of Transmission
[ENQ] ASCII hex code for Inquiry
[HI ADDR] ASCII hex code for the High byte of the address
[LO ADDR] ASCII hex code for the Low byte of the address
[XPT(V)] ASCII hex code for Video crosspoint (i.e.0..9, A, B)
[XPT(A)] ASCII hex code for Audio crosspoint (i.e.0..9, A, B)
[PSUPP] ASCII hex code for the Power Supply Status
(i.e.0x31 = active, 0x30 = either inactive)
Table 5-2: ASCII Command Definitions
5.1.3.1. Write or Take Command
This command is used to switch the active crosspoint in the router.
[STX][HI ADDR][LO ADDR][XPT(V)][XPT(A)]
5.1.3.2. Read or Query Command
This command is used to read back the status of the router.
[STX][HI ADDR][LO ADDR][ENQ]
5.1.3.3. Reply Command String
This reply is sent back from the router in response to the Write or Read command. It indicates which
audio and video crosspoints are active, and the current status of the power supplies.
[XPT(V)][XPT(A)][PSUPP]
5.1.4. Command Examples:
The following are examples of the GVG’s TEN-XL ASCII protocol write and read commands controlling a
X1202S-AES model router. The Serial Address menu item is assumed to be set to 01 so video Buss 1 will
be addressed as 01 and video buss 2 will be addressed as 02.
SERIAL CONTROL
Revision 1.3.2
Page 5-3
X1200 Series Router Manual
5.1.4.1. Input Selection – Audio Follow Mode
Switch the video 1 buss and its associated audio busses to video input 4 (crosspoint # 3)
ASCII string: ^B0133 [^B = control+B which is the STX code]
Hex string: [0x02][0x30][0x31][0x33][0x33]
This will cause the router to switch the video to input 4 or video crosspoint #3, and both audio channels of
the audio to input 4 or audio crosspoint #3, and then reply with:
ASCII string: 331
Hex string: [0x33][0x33][0x31]
to indicate that the router has switched and that the power supply is active. Note-The router will always
respond to a valid request.
5.1.4.2. Input Selection – Breakaway Mode
Switch the video 2 buss to video input 2 (crosspoint # 1).
Switch the audio associated with the video 2 buss to audio input 4 (crosspoint # 3)
ASCII string: ^B0213 [^B = control+B which is the STX code]
Hex string: [0x02][0x30][0x32][0x31][0x33]
This will cause the router to switch the video 2 output to input 2 or video crosspoint #1, and the audio 2A
and 2B busses to input 4 or audio crosspoint #3, and then reply with:
ASCII string: 131
Hex string: [0x31][0x33][0x31]
to indicate that the router has switched and that the power supply is active.
5.1.4.3. Router Status Request
Request the crosspoint settings of the video 2 buss and its associated audio busses.
ASCII string: ^B02^E [^B = control+B which is the STX code]
[^E = control+E which is the ENQ code]
Hex string: [0x02][0x30][0x32][0x05]
This will cause the router to respond with the current crosspoint status:
ASCII string: 131
Hex string: [0x31][0x33][0x31]
to indicate that the router video 2 buss is set to video input 2 or crosspoint #1 and the associated audio
busses are set to audio input 4 or crosspoint #3. It also indicates that the power supply is active.
Page 5-4
Revision 1.3.2
SERIAL CONTROL
X1200 Series Router Manual
CHAPTER 6: VIDEO AND AUDIO OUTPUT CONFIGURATIONS
TABLE OF CONTENTS
6. VIDEO AND AUDIO OUTPUT CONFIGURATIONS........................................................................ 6-1
6.1. MODEL X1201 - 12 X 1 OUTPUT CONFIGURATIONS.......................................................... 6-1
6.2. MODEL X1202 - 12 X 2 OUTPUT CONFIGURATIONS.......................................................... 6-3
6.3. MODEL X1202 (EARLY VERSIONS WITH 2 BREAKOUT PANELS)
- 12 X 2 OUTPUT CONFIGURATIONS................................................................................... 6-7
Figures
Figure 6-1: Model 1201 - Video 1 Output Buss..................................................................................... 6-1
Figure 6-2: Model 1201-AES – Video 1 and associated Audio ............................................................. 6-1
Figure 6-3: Model 1201-AES4 – Video 1 and associated Audio ........................................................... 6-2
Figure 6-4: Model 1202 - Video 1 Output Buss..................................................................................... 6-3
Figure 6-5: Model 1202 - Video 2 Output Buss..................................................................................... 6-3
Figure 6-6: Model 1202-AES – Video 1 and associated Audio ............................................................. 6-4
Figure 6-7: Model 1202-AES – Video 2 and associated Audio ............................................................. 6-4
Figure 6-8: Model 1202-AES4 – Video 1 and associated Audio ........................................................... 6-5
Figure 6-9: Model 1202-AES4 – Video 2 and associated Audio ........................................................... 6-6
Figure 6-10: Model 1202-AES (Early version with AES Mode set to 2(12 x 2))
– Video 1 and associated Audio................................................................................... 6-7
Figure 6-11: Model 1202-AES (Early version with AES Mode set to 2(12 x 2))
– Video 2 and associated Audio.................................................................................. 6-8
Figure 6-12: Model 1202-AES (Early version with AES Mode set to 4(12 x 1)
and default AFV grouping) – Video 1 and associated Audio........................................ 6-9
Figure 6-13: Model 1202-AES (Early version with AES Mode set to 4(12 x 1)
and default AFV grouping) – Video 2 and associated Audio...................................... 6-10
OUTPUT CONFIGURATIONS
Revision 1.3.2
X1200 Series Router Manual
This page left intentionally blank
Revision 1.3.2
OUTPUT CONFIGURATIONS
X1200 Series Router Manual
6. VIDEO AND AUDIO OUTPUT CONFIGURATIONS
The following diagrams show the video bus outs and their associated audio buss outputs for each version
of the router. The shaded buttons indicate which buttons are illuminated on the front panel.
6.1. MODEL X1201 - 12 X 1 OUTPUT CONFIGURATIONS
V1
Figure 6-1: Model 1201 - Video 1 Output Buss
V1
1A 1B
1A
1B
Figure 6-2: Model 1201-AES – Video 1 and associated Audio
SERIAL CONTROL
Revision 1.3.2
Page 6-1
X1200 Series Router Manual
V1
2A 2B
2A
1A 1B
1A
Figure 6-3: Model 1201-AES4 – Video 1 and associated Audio
2B
1B
Page 6-2
Revision 1.3.2
SERIAL CONTROL
6.2. MODEL X1202 - 12 X 2 OUTPUT CONFIGURATIONS
Figure 6-4: Model 1202 - Video 1 Output Buss
X1200 Series Router Manual
V1
Figure 6-5: Model 1202 - Video 2 Output Buss
SERIAL CONTROL
Revision 1.3.2
V2
Page 6-3
X1200 Series Router Manual
V1
1A 1B
Figure 6-6: Model 1202-AES – Video 1 and associated Audio
V2
2A
2B
Figure 6-7: Model 1202-AES – Video 2 and associated Audio
Page 6-4
Revision 1.3.2
SERIAL CONTROL
X1200 Series Router Manual
V1
2A 2B
1A 1B
Figure 6-8: Model 1202-AES4 – Video 1 and associated Audio
SERIAL CONTROL
Revision 1.3.2
Page 6-5
X1200 Series Router Manual
V2
2A
1A
Figure 6-9: Model 1202-AES4 – Video 2 and associated Audio
2B
1B
Page 6-6
Revision 1.3.2
SERIAL CONTROL
X1200 Series Router Manual
6.3. MODEL X1202 (EARLY VERSIONS WITH 2 BREAKOUT PANELS)
- 12 X 2 OUTPUT CONFIGURATIONS
V1
These Inputs are not functional
These Inputs are not functional
1A 1B
Inputs for 1A and 2A
1A
Inputs for 1B and 2B
Figure 6-10: Model 1202-AES (Early version with AES Mode set to 2(12 x 2))
– Video 1 and associated Audio
1B
SERIAL CONTROL
Revision 1.3.2
Page 6-7
X1200 Series Router Manual
V2
2A 2B
These Inputs are not functional
Inputs for 1A and 2A
2A
These Inputs are not functional
Inputs for 1B and 2B
2B
Figure 6-11: Model 1202-AES (Early version with AES Mode set to 2(12 x 2))
– Video 2 and associated Audio
Page 6-8
Revision 1.3.2
SERIAL CONTROL
X1200 Series Router Manual
V1
1A 1B
1A
Figure 6-12: Model 1202-AES (Early version with AES Mode set to 4(12 x 1)
and default AFV grouping) – Video 1 and associated Audio
1B
SERIAL CONTROL
Revision 1.3.2
Page 6-9
X1200 Series Router Manual
V2
2A 2B
2A
Figure 6-13: Model 1202-AES (Early version with AES Mode set to 4(12 x 1)
and default AFV grouping) – Video 2 and associated Audio
2B
Page 6-10
Revision 1.3.2
SERIAL CONTROL
X1200 Series Router Manual
CHAPTER 7: VIDEO TIMING CONSIDERATIONS
TABLE OF CONTENTS
7. VIDEO TIMING CONSIDERATIONS................................................................................................ 7-1
7.1. ALL INPUT SIGNALS ARE TIMED TO REFERENCE. .......................................................... 7-1
7.2. INPUT SIGNALS ARE WITHIN TIMED TO WITHIN +/- 1 LINE OF REFERENCE. ............... 7-2
7.3. ALL INPUT SIGNALS ARE TIMED TOGETHER BUT DELAYED 5 LINES FROM
REFERENCE........................................................................................................................... 7-3
7.4. ALL INPUT SIGNALS ARE TIMED WITHIN A RANGE OF +/- 1 LINE
FROM EACH OTHER BUT DELAYED 5 LINES FROM REFERENCE.................................. 7-4
7.5. ALL INPUT SIGNALS ARE TIMED WITHIN A RANGE OF +/- 1 LINE
FROM EACH OTHER BUT DELAYED 5 LINES FROM REFERENCE.................................. 7-5
Figures
Figure 7-1: Timing Example 1 – Inputs in Time with Reference............................................................ 7-1
Figure 7-2: Timing Example 2 – Inputs in Time with Reference............................................................ 7-2
Figure 7-3: Timing Example 3 – Inputs in Time but Delayed 5 Lines from Reference .......................... 7-3
Figure 7-4: Timing Example 4 – Inputs Not in Time and Delayed from Reference ............................... 7-4
Figure 7-5: Timing Example 5 – Bypass Router for Production Switcher ............................................. 7-5
OUTPUT CONFIGURATIONS
Revision 1.3.2
X1200 Series Router Manual
This page left intentionally blank
Revision 1.3.2
OUTPUT CONFIGURATIONS
X1200 Series Router Manual
7. VIDEO TIMING CONSIDERATIONS
The following diagrams show how to set up the system timing under a number of different input signal
conditions so that SoftSwitch and Embedded SoftSwitch equipped routers can perform a clean switch
on the V1 buss.
7.1. ALL INPUT SIGNALS ARE TIMED TO REFERENCE.
This example shows the timing setup for a clean switch when all input signals are in time with the
reference. The V1 buss output will be delayed 1 line with respect to the reference. A clean switch is also
attainable on the V2 buss output.
SDI
SOURCE
01
X1202 SS Router
Fine Phase = 0
Course Phase = 1
Clean Switch = on
SDI signal Held at
1 Line Delayed W.R.T.
Ref. Black
REF. Black
SDI Signals Timed
to Ref. Black
SDI
Source
12
REF. Black
01
1 Line Delay -
1 Line Delay -
V1
V2
12
Input Dependant
CleanSwitch attainable
Switch Line = 10
REF. Black
Figure 7-1: Timing Example 1 – Inputs in Time with Reference
by setting
OUTPUT CONFIGURATIONS
Revision 1.3.2
Page 7-1
X1200 Series Router Manual
7.2. INPUT SIGNALS ARE WITHIN TIMED TO WITHIN +/- 1 LINE OF REFERENCE.
This example shows the input timing range requirements for a clean switch in the most basic
configuration. The V1 buss output will be delayed 1 line with respect to the reference. A clean switch is
not attainable on the V2 buss output.
SDI Signal 1/2 Line.
advanced W.R.T
Ref. Black
SDI
SOURCE
01
X1202 SS Router
Fine Phase = 0
Course Phase = 1
Clean Switch = on
SDI signal Held at
1 Line Delayed W.R.T.
Ref. Black
REF. Black
SDI
Source
12
REF. Black
01
1 1/2 Line Delay -
1/2 Line Delay -
V1
V2
12
Input Dependant
REF. Black
SDI Signal 1/2 Line
delayed W.R.T
Ref. Black
Figure 7-2: Timing Example 2 – Inputs in Time with Reference
CleanSwitch
"NOT"
attainable
Page 7-2
Revision 1.3.2
OUTPUT CONFIGURATIONS
X1200 Series Router Manual
7.3. ALL INPUT SIGNALS ARE TIMED TOGETHER BUT DELAYED 5 LINES FROM REFERENCE.
This example shows how to set up the router timing when the input signals are delayed by more than one
line. The V1 buss output will be delayed 6 lines with respect to the reference. A clean switch is also
attainable on the V2 buss output.
SDI
SOURCE
01
X1202 SS Router
Fine Phase = 0
Course Phase = 6
Clean Switch = on
SDI signal Held at
6 Line Delayed W.R.T.
Ref. Black
REF. Black
01
1 Line Delay -
V1
SDI Signals Timed
to 5 lines delayed
Ref. Black
1 Line Delay -
V2
12
Input Dependant
CleanSwitch attainable
Switch Line = 15
SDI
Source
12
REF. Black
REF. Black
Figure 7-3: Timing Example 3 – Inputs in Time but Delayed 5 Lines from Reference
by setting
OUTPUT CONFIGURATIONS
Revision 1.3.2
Page 7-3
X1200 Series Router Manual
7.4. ALL INPUT SIGNALS ARE TIMED WITHIN A RANGE OF +/- 1 LINE
FROM EACH OTHER BUT DELAYED 5 LINES FROM REFERENCE.
This example shows how the router can perform a clean switch on input signals that are delayed by more
than a one from the reference, and are mistimed with respect to each other. The V1 buss output will be
delayed 6 lines with respect to the reference. A clean switch is not attainable on the V2 buss output.
SDI Signal 4 1/2 lines.
Delayed W.R.T
Ref. Black
SDI
SOURCE
01
X1202 SS Router
Fine Phase = 0
Course Phase = 6
Clean Switch = on
SDI signal Held at
6 Lines Delayed W.R.T.
Ref. Black
REF. Black
SDI
Source
12
REF. Black
01
12
1 1/2 Line Delay -
V1
1/2 Line Delay -
V2
Input Dependant
CleanSwitch
"NOT"
attainable
REF. Black
SDI Signal 5 1/2 lines.
Delayed W.R.T
Ref. Black
Figure 7-4: Timing Example 4 – Inputs Not in Time and Delayed from Reference
Page 7-4
Revision 1.3.2
