云辰電子開發股份有限公司

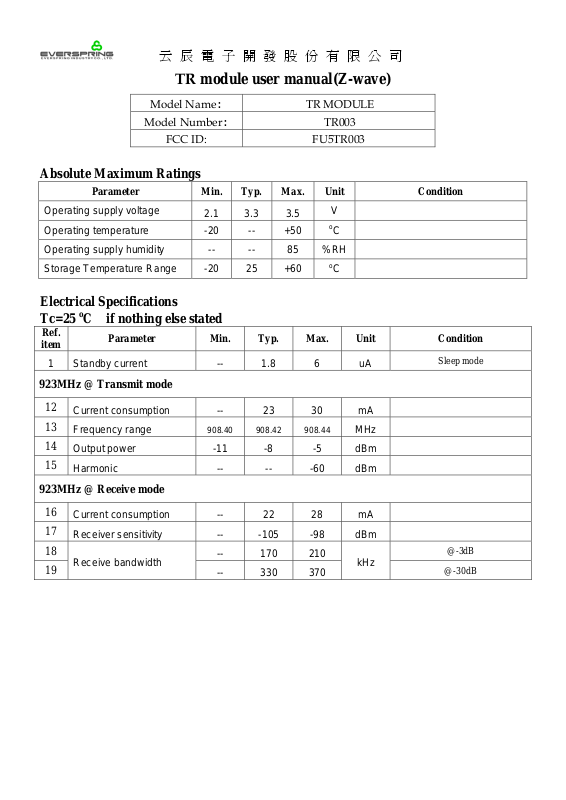

TR module user manual(Z-wave)
Model Name: TR MODULE
Model Number: TR003
FCC ID: FU5TR003
Absolute Maximum Ratings
Parameter Min. Typ. Max. Unit Condition
Operating supply voltage
Operating temperature -20 -- +50 oC
Operating supply humidity -- -- 85 %RH
Storage Temperature Range -20 25 +60
2.1 3.3 3.5
V
o
C
Electrical Specifications
o
Tc=25
Ref.
item
1 Standby current -- 1.8 6 uA
923MHz @ Transmit mode
12
13
14
15
C if nothing else stated
Parameter Min. Typ. Max. Unit Condition
Current consumption -- 23 30 mA
Frequency range
Output power -11 -8 -5 dBm
Harmonic -- -- -60 dBm
908.40 908.42 908.44
MHz
Sleep mode
923MHz @ Receive mode
16
Current consumption -- 22 28 mA
17
Receiver sensitivity -- -105 -98 dBm
18
Receive bandwidth
19
-- 170 210
-- 330 370
kHz
@-3dB
@-30dB
Page 2
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an OEM or integrator, but
should not be distributed to the end user.
This device is intended for OEM integrators only.
Please See the full Grant of Equipment document for other restrictions.
Label Information to the End User by the OEM or Integrator
The following regulatory and safety notices, the final end product must be labeled with "Contains FCC ID: FU5TR003
in a visible area.
