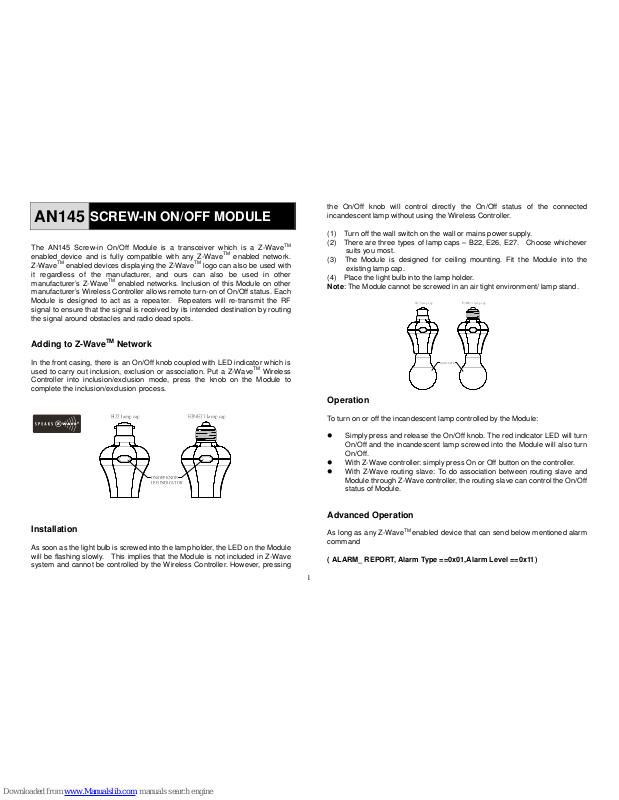

AN145
SCREW-IN ON/OFF MODULE
The AN145 Screw-in On/Off Module is a transceiver which is a Z-WaveTM
enabled device and is fully compatible with any Z-Wave
TM
enabled network.
Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with
it regardless of the manufacturer, and ours can also be used in other
manufacturer’s Z-WaveTM enabled networks. Inclusion of this Module on other
manufacturer’s Wireless Controller allows remote turn-on of On/Off status. Each
Module is designed to act as a repeater. Repeaters will re-transmit the RF
signal to ensure that the signal is received by its intended destination by routing
the signal around obstacles and radio dead spots.
Adding to Z-WaveTM Network
In the front casing, there is an On/Off knob coupled with LED indicator which is
used to carry out inclusion, exclusion or association. Put a Z-WaveTM Wireless
Controller into inclusion/exclusion mode, press the knob on the Module to
complete the inclusion/exclusion process.
Installation
As soon as the light bulb is screwed into the lamp holder, the LED on the Module
will be flashing slowly. This implies that the Module is not included in Z-Wave
system and cannot be controlled by the Wireless Controller. However, pressing
the On/Off knob will control directly the On/Off status of the connected
incandescent lamp without using the Wireless Controller.
(1) Turn off the wall switch on the wall or mains power supply.
(2) There are three types of lamp caps – B22, E26, E27. Choose whichever
suits you most.
(3) The Module is designed for ceiling mounting. Fit the Module into the
existing lamp cap.
(4) Place the light bulb into the lamp holder.
Note: The Module cannot be screwed in an air tight environment/ lamp stand.
Operation
To turn on or off the incandescent lamp controlled by the Module:
Simply press and release the On/Off knob. The red indicator LED will turn
On/Off and the incandescent lamp screwed into the Module will also turn
On/Off.
With Z-Wave controller: simply press On or Off button on the controller.
With Z-Wave routing slave: To do association between routing slave and
Module through Z-Wave controller, the routing slave can control the On/Off
status of Module.
Advanced Operation
As long as any Z-Wave
TM
enabled device that can send below mentioned alarm
command
( ALARM_ REPORT, Alarm Type ==0x01,Alarm Level ==0x11)

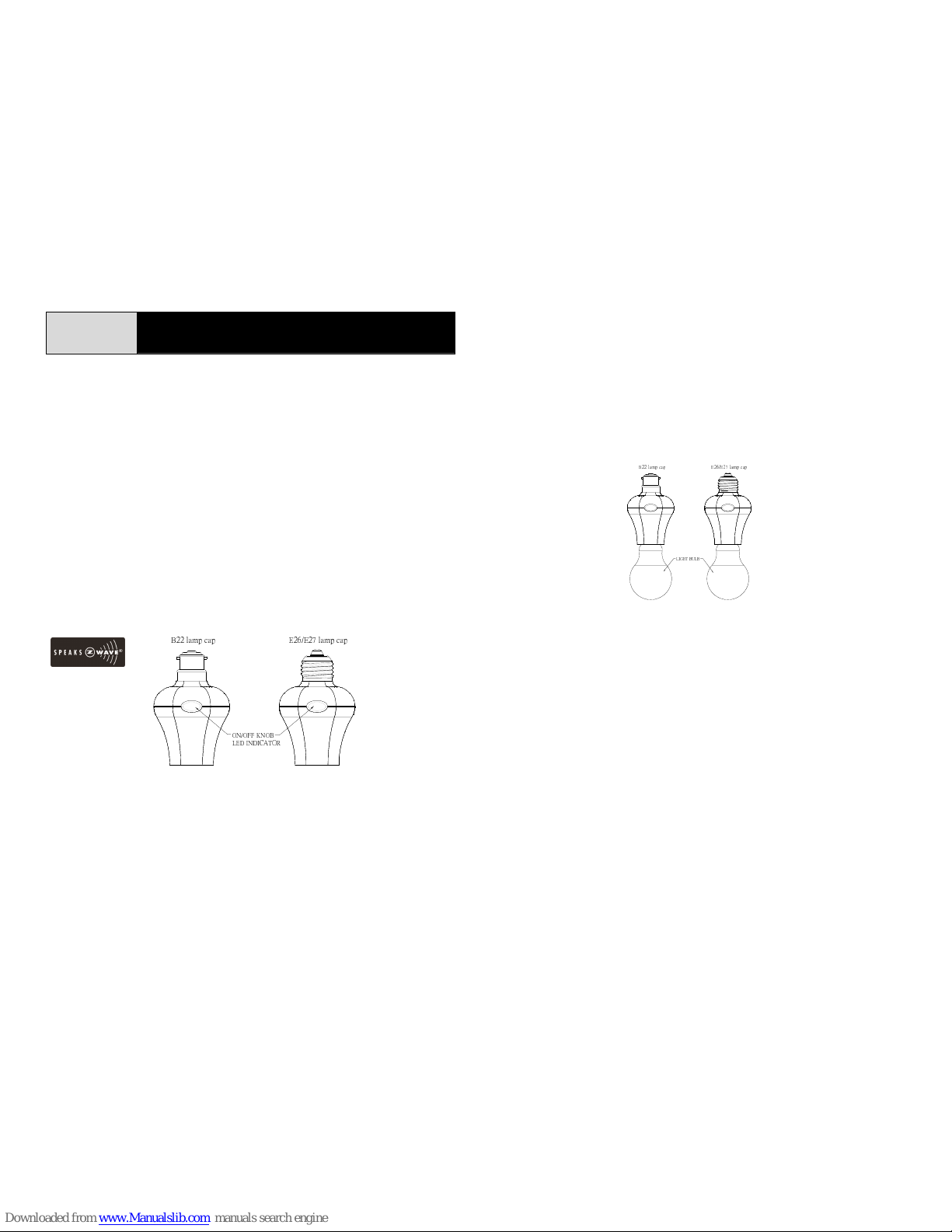

B22 lamp cap E26/E27 lamp cap
LIGHT BULB
B22 lamp cap E26/E27 lamp cap
ON/OFF KNOB
LED INDICATOR
Page 2
2
to the Screw-in On/Off Module will enable its red indicator LED and the load
plugged into the Module to be on and off intermittently for 10 times.
Programming
The On/Off knob allows the user
- Turn on or off the load attached
- Include or exclude the Module from the Z-WaveTM system
Troubleshooting
Symptom Cause of Failure Recommendation
The module not
working and LED
off
1. Poor connection
between lamp cap
of
mounted ceiling and
lamp cap of the lamp
holder
2. The module break
down
1. Check if the lamp cap of
mounted ceiling fits well
into the module
2. Don’t open up the module and
send it for repair
The module’s LED
working, but the
connected light bulb
not working
1. Light bulb has burnt
out
2. Poor connection or
improper assembly
between lamp cap of
the light bulb
and lamp
holder of the module
3. The module break
down
1. Replace a new bulb
2. The light bulb has screwed
tightly to the lamp holder of the
module
3. Don’t open up the module and
send it for repair
The LED on the
module working,
but the module
cannot control
Motion Detector
SP103 and
Door/Window
Detector SM103
1. Not carry out
association
2. Same frequency
interference
1. Carry out the association
2. Wait for a while to re-try
Specification
AN145-1 120VAC/60Hz E26
AN145-2 230VAC/50Hz E27
Operating Voltage /
Type of Lamp Cap
AN145-4 230VAC/50Hz B22
Maximum Load 100 Watts incandescent, 27 Watts energy saving bulb
Operating Temperature 0°C~40°C
Operating Humidity Range
85%RH
Receiving Range 30 meters min. line of sight
Frequency Range 908.42MHz or 868.42MHz
A501111195R
** Specifications are subject to change and improvement without notice.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
-
Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
Page 3
3
instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
WARNING:
