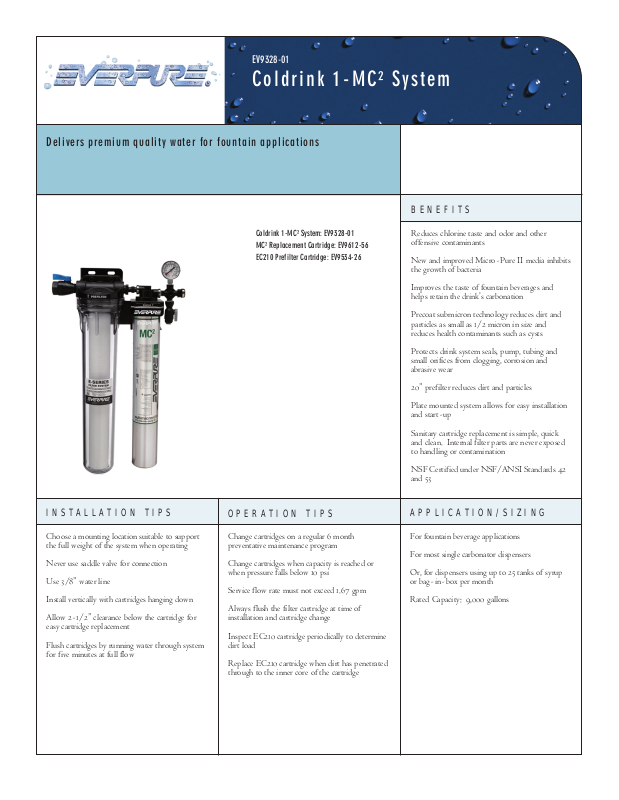

EV9328-01

Coldrink 1-MC² System

Delivers premium quality water for fountain applications

Coldrink 1-MC² System: EV9328-01

MC² Replacement Cartridge: EV9612-56

EC210 Prefilter Cartridge: EV9534-26

Reduces chlorine taste and odor and other offensive contaminants

New and improved Micro-Pure II media inhibits the growth of bacteria

Improves the taste of fountain beverages and helps retain the drink's carbonation

Precoat submicron technology reduces dirt and particles as small as 1/2 micron in size and reduces health contaminants such as cysts

Protects drink system seals, pump, tubing and small orifices from clogging, corrosion and abrasive wear

20" prefilter reduces dirt and particles

Plate mounted system allows for easy installation and start-up

Sanitary cartridge replacement is simple, quick and clean. Internal filter parts are never exposed to handling or contamination

NSF Certified under NSF/ANSI Standards 42 and 53

Choose a mounting location suitable to support the full weight of the system when operating

Never use saddle valve for connection

Use 3/8” water line

Install vertically with cartridges hanging down

Allow 2-1/2” clearance below the cartridge for easy cartridge replacement

Flush cartridges by running water through system for five minutes at full flow

Change cartridges on a regular 6 month preventative maintenance program

Change cartridges when capacity is reached or when pressure falls below 10 psi

Service flow rate must not exceed 1.67 gpm

Always flush the filter cartridge at time of installation and cartridge change

Inspect EC210 cartridge periodically to determine dirt load

Replace EC210 cartridge when dirt has penetrated through to the inner core of the cartridge

For fountain beverage applications

For most single carbonator dispensers

Or, for dispensers using up to 25 tanks of syrup or bag-in-box per month

Rated Capacity: 9,000 gallons

Overall Dimensions: 28”H x 20”W x 6”D

Inlet connection: 3/8”

Outlet connection: 3/8”

Service Flow Rate: Maximum 1.67 gpm (6.32 Lpm)

Rated Capacity: 9,000 gallons

Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar), non-shock

Coldrink 1-MC² System

MC² Precoat Replacement Catridge

Temperature: 35 - 100°F (2-38°C)

No electrical connection required

Shipping Weight: 18 lbs.

Operating Weight: 24 lbs.

The contaminants or other substances removed or reduced by this drinking water system are not necessarily in your water. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used with disinfected water that may contain filterable cysts.

Everpure water treatment systems (excluding replaceable elements) are covered by a limited warranty against defects in material and workmanship for a period of five years after date of purchase. Everpure replaceable elements (filter cartridges and water treatment cartridges) are covered by a limited warranty against defects in material and workmanship for a period of one year after date of purchase. See printed warranty for details. Everpure will provide a copy of the warranty upon request.
