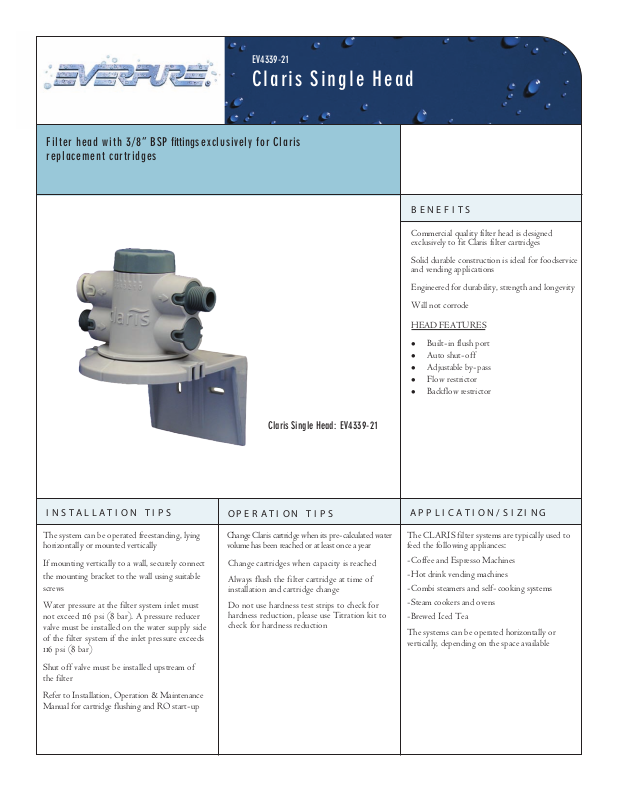

Everpure EV4339-21 General Manual

B E N E F I T S

A P P L I C A T I O N / S I Z I N G

I N S T A L L A T I O N T I P S

O P E R A T I O N T I P S

EV4339-21

Claris Single Head

Filter head with 3/8” BSP fittings exclusively for Claris
replacement cartridges

QL3 Single Head: EV9259-14

Commercial quality filter head is designed
exclusively to fit Claris filter cartridges

Solid durable construction is ideal for foodservice
and vending applications

Engineered for durability, strength and longevity

Will not corrode

HEAD FEATURES

 Built-in flush port
 Auto shut-off
 Adjustable by-pass
 Flow restrictor
 Backflow restrictor

The system can be operated freestanding, lying
horizontally or mounted vertically

If mounting vertically to a wall, securely connect
the mounting bracket to the wall using suitable
screws

Water pressure at the filter system inlet must
not exceed 116 psi (8 bar). A pressure reducer
valve must be installed on the water supply side
of the filter system if the inlet pressure exceeds
116 psi (8 bar)

Shut off valve must be installed upstream of
the filter

Refer to Installation, Operation & Maintenance
Manual for cartridge flushing and RO start-up

Claris Single Head: EV4339-21

Change Claris cartridge when its pre-calculated water
volume has been reached or at least once a year

Change cartridges when capacity is reached

Always flush the filter cartridge at time of
installation and cartridge change

Do not use hardness test strips to check for
hardness reduction, please use Titration kit to
check for hardness reduction

The CLARIS filter systems are typically used to
feed the following appliances:

-Coffee and Espresso Machines

-Hot drink vending machines

-Combi steamers and self-cooking systems

-Steam cookers and ovens

-Brewed Iced Tea

The systems can be operated horizontally or
vertically, depending on the space available

S P E C I F I C A T I O N S

WA R R A N T Y

Dimensions:

5.78”H x 3.31”W x 4.68”D

No electrical connection required

Claris Single Head

5.782

.963

3/8” BSP

THREAD (TYP)

2.750

1.572

3.310

Everpure Claris water treatment systems are covered by a limited
warranty against defects in material and workmanship for a
period of one year after date of purchase. Everpure replaceable
elements (filter cartridges and water are covered by a limited
warranty against defects treatment cartridges) in material
and workmanship for a period of one year after date of purchase.
See printed warranty for details. Everpure will provide a copy of the
warranty upon request.

4.675
