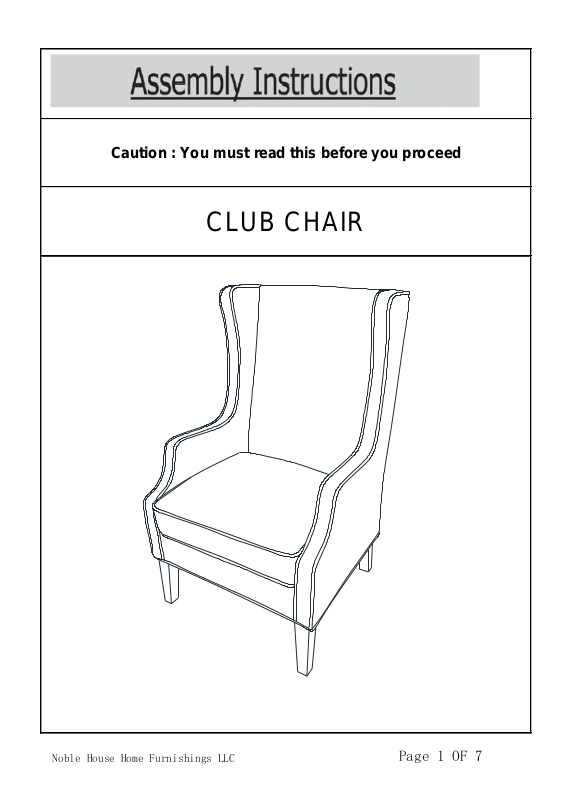

Caution : You must read this before you proceed
CLUB CHAIR
Noble House Home Furnishings LLC
Page 1 OF 7
Label Picture Description QTY
A Seat 1
B
Front Leg
(Labelled B)
2
C
Left Back Leg
(Labelled C)
1
D
Right Back Leg
(Labelled D)
1
Label Picture Description QTY
① Bolt (M8*55) 9
② Spring Washer 9
③ Washer 9
④ Allen Key 1
Noble House Home Furnishings LLC
Page 2 OF 7
Overview
Before
Beginning
Assembly:
Seat(A)
Right Back Leg(D)
Front Leg(B)
FRONT FACING
Noble House Home Furnishings LLC
Page 3 OF 7
Step 1
Step 2
This Club Chair has multiple parts and may require up to 30 minutes to
assemble. To give you an overview of the Club Chair parts, the above
picture is to help you put the various parts into perspective. Please read
through the instructions below to familiarise yourself with the parts and
steps before assembly.
Unpack and place all parts on a clean, non-marring surface.
Carefully remove the Dust Cover at the bottom, and take out the Legs
and Hardware.
B
A
D
C
Noble House Home Furnishings LLC
Page 4 OF 7
Step 3
Step 4
Note: There are two Front Legs(B), one Left Back Leg(C), and one
Right Back Leg(D). Be sure to check labels and install each leg in
the correct mounting position.
Insert Front Leg(B) into the front mounting position of Seat(A) and
attach using Bolts(①), Spring Washers(②) and Washers(③) with Allen
Key(④).
Do not fully tighten the Bolts.
Repeat the same process to attach the remaining three Legs.
Front Leg(B)
Right Back Leg(D)
Left Back Leg(C)
①
④
②
③
Test for Stability
Noble House Home Furnishings LLC
Page 5 OF 7
Step 5
Step 6
Your Club Chair is ready for use.
This Club Chair can only be used on a flat, level surface.
Finally, seal the Dust Cover back on to the underside of the Seat(A) and
smooth the edges by hand.
Stand the Club Chair up, and place it on a LEVEL SURFACE.
Inspect it and make sure all parts are adequately connected.
Gently and carefully, sit into to the Club Chair.
This would help to align all the parts at all joints.
Then get off the Club Chair, and place it facedown.
Proceed to tighten all Bolts in a sequential manner.
If there are still wobbles, loosen the Bolts and execute this same
process.
Right Back Leg(D)
Left Back Leg(C)
Front Leg(B)
Noble House Home Furnishings LLC
Page 6 OF 7
Noble House Home Furnishings LLC
Page 7 OF 7
