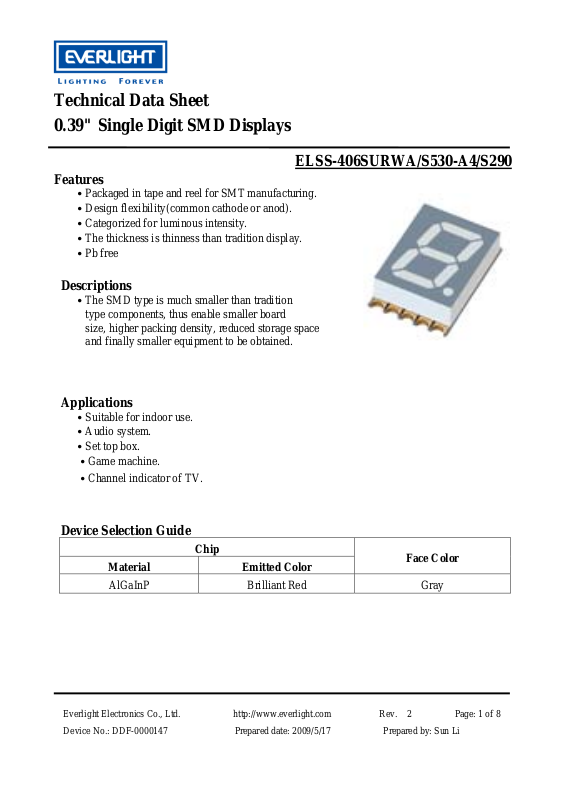

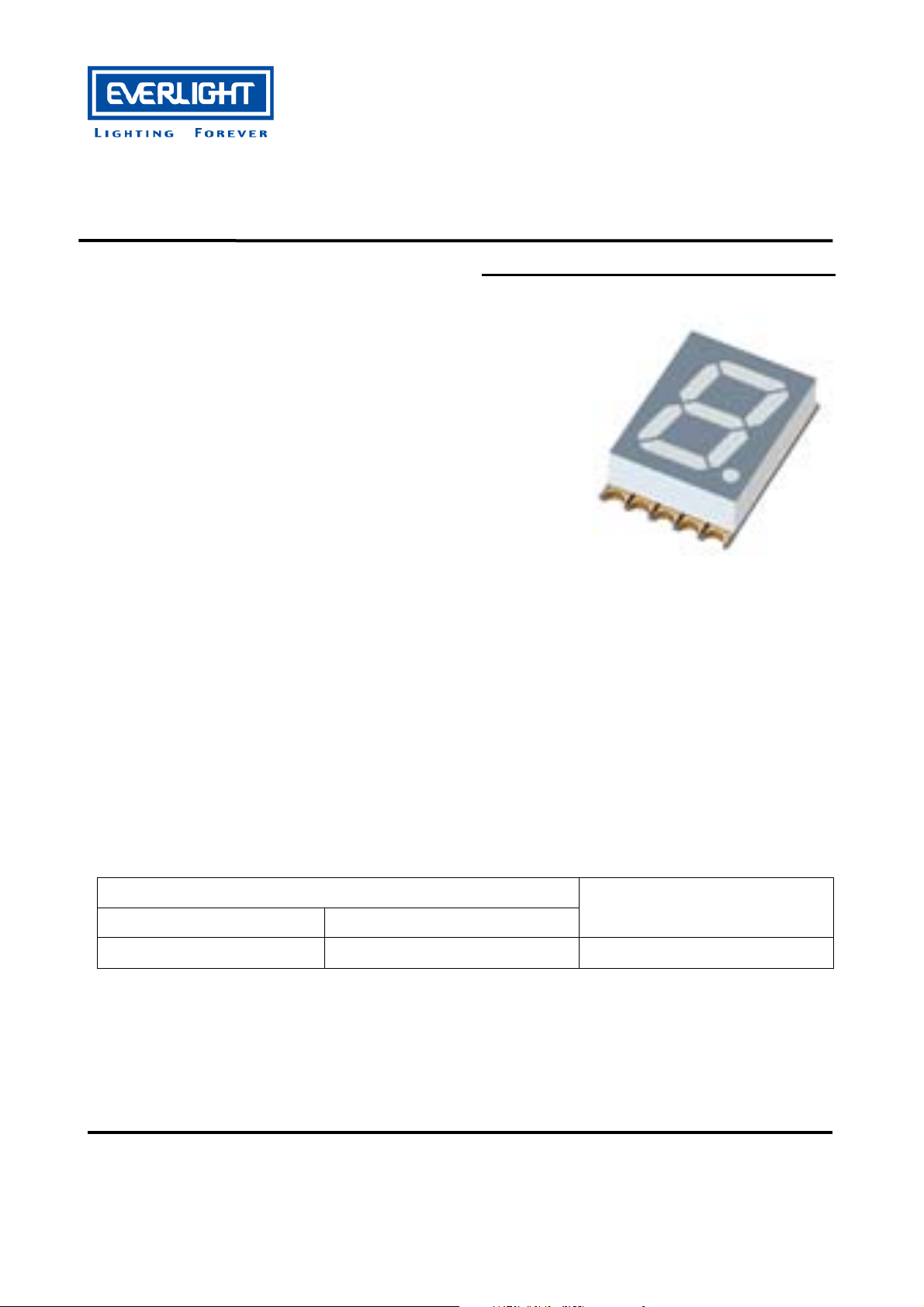

Technical Data Sheet
0.39" Single Digit SMD Displays
ELSS-406SURWA/S530-A4/S290
Features
․Packaged in tape and reel for SMT manufacturing.
․Design flexibility(common cathode or anod).
․Categorized for luminous intensity.
․The thickness is thinness than tradition display.
․Pb free
Descriptions
․The SMD type is much smaller than tradition
type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
Applications
․Suitable for indoor use.
․Audio system.
․Set top box.
․Game machine.
․Channel indicator of TV.
Device Selection Guide
Chip
Material Emitted Color
AlGaInP Brilliant Red Gray
Face Color
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 1 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
Page 2
ELSS-406SURWA/S530-A4/S290

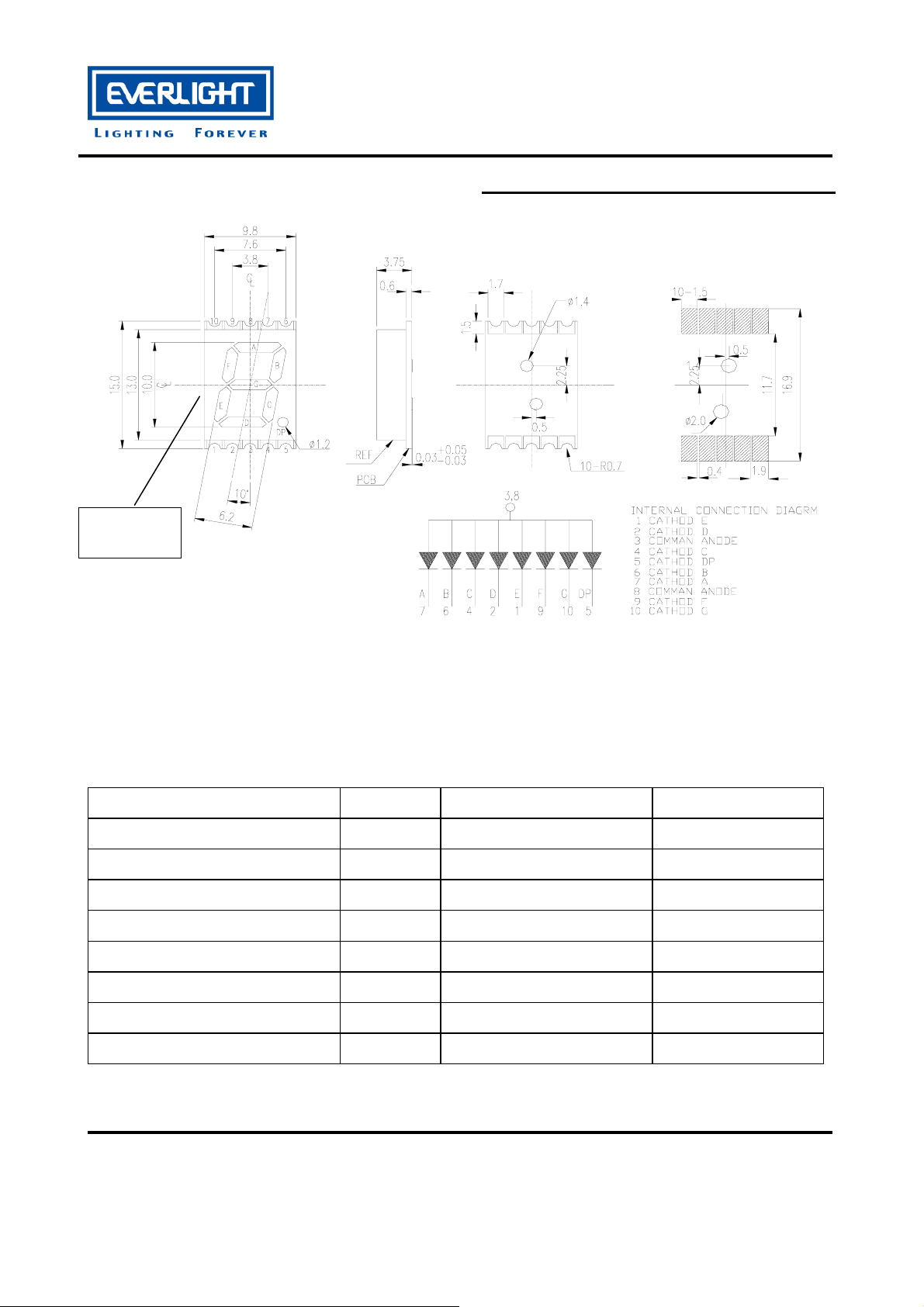

Package Dimensions Land Pattern(Recommend)
SS406SURWA
-A4 Date Bin
Notes:
․All dimensions are in millimeters, tolerance is 0.25mm unless otherwise noted.
․Above specification may be changed without notice. Supplier will reserve
authority on material change for above specification.
Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Rating Units
Forward Current IF 25 mA
Pulse Forward Current*1 I
Operating Temperature T
Storage Temperature T
Reflow Temperature*2 T
Electrostatic Discharge ESD 2000 V
Power Dissipation Pd 60 mW
Reverse Voltage VR 5 V
Notes: *1:IFP Conditions--Pulse Width≦10msec and Duty≦1/10.
*2:Soldering time≦5 seconds.
60 mA
FP
-40 ~ +105
opr
-40 ~ +105
stg
260
sol
℃
℃
℃
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 2 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
Page 3
p
ELSS-406SURWA/S530-A4/S290
Electro-Optical Characteristics (Ta=25℃)
Parameter Symbol Min. Typ. Max. Units Condition
Forward Voltage VF -- 2.0 2.4 V IF=20mA
Reverse Current IR -- -- 10
Luminous
Intensity
Peak Wavelenght
Dominant Wavelenght
Per segment
Per decimal
oint
IV
λp
λd
7.8 15.0 --- IF=10mA
--- 4.0 ---
--- 632 --- nm IF=20mA
--- 624 --- nm IF=20mA
μA
mcd
VR=5V
IF=10mA
Spectrum Radiation
Bandwidth
△λ
--- 20 --- nm IF=20mA
Bin Range of Luminous Intensity (Unit: mcd)
Rank Min. Max. Rank Min. Max.
Q 7.8 12.5 T 21 34
R 11.0 17.6 U 30 48
S 15.0 24.0 -- -- --
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 3 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
Page 4
ELSS-406SURWA/S530-A4/S290

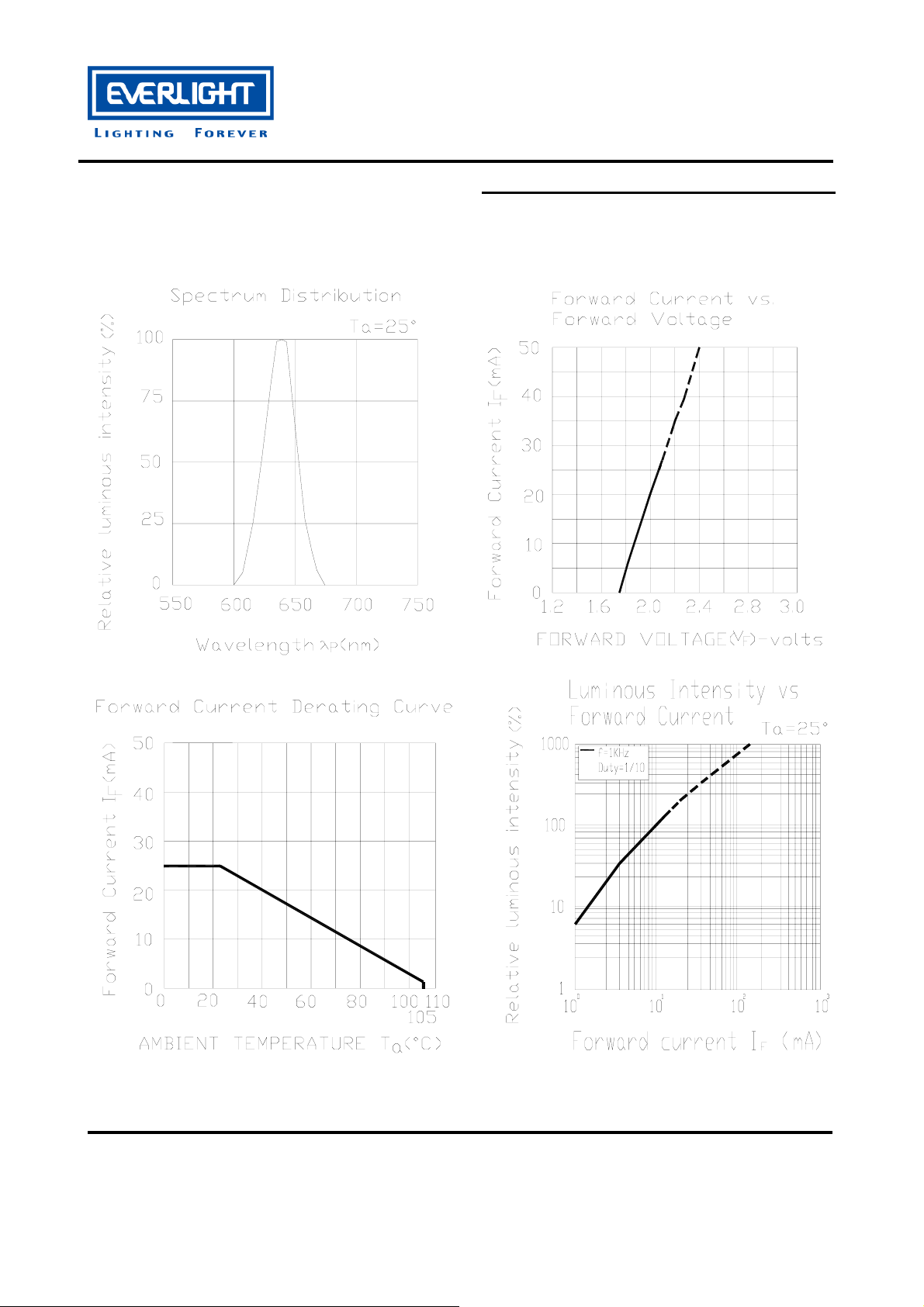

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 4 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
Page 5

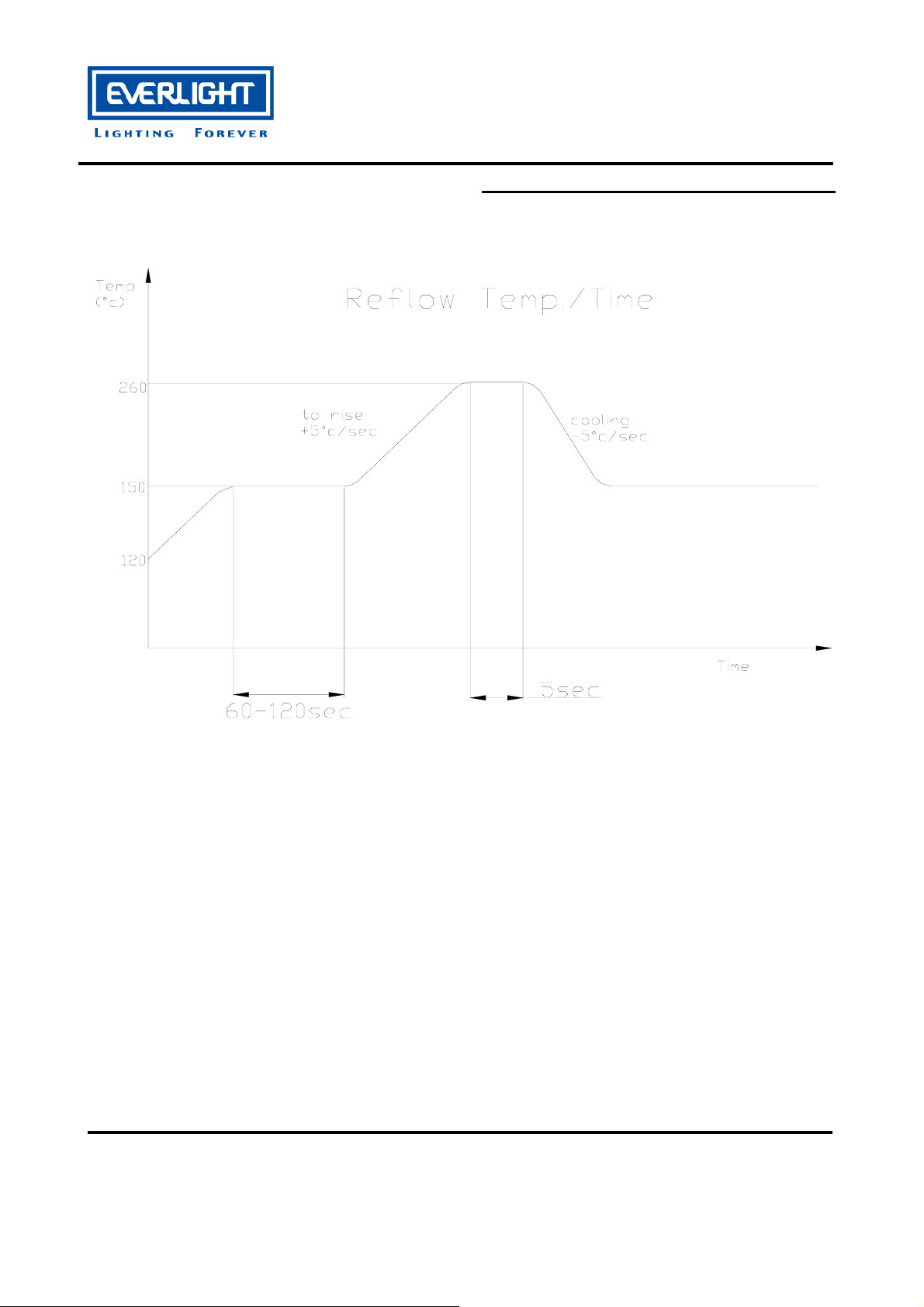

■ Reflow Temp. / Time :
ELSS-406SURWA/S530-A4/S290
■ Soldering Iron :
Basic spec is ≦5 sec when 260℃.If temperature is higher, time should be shorter (+10℃
→ -1sec). Power dissipation of iron should be smaller than 15 W , and temperature should
be controllable. Surface temperature of the device should be under 230 ℃.
■ Rework :
1. Customer must finish rework within 5 sec under 260℃.
2. The head of iron can not touch copper foil.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 5 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
Page 6

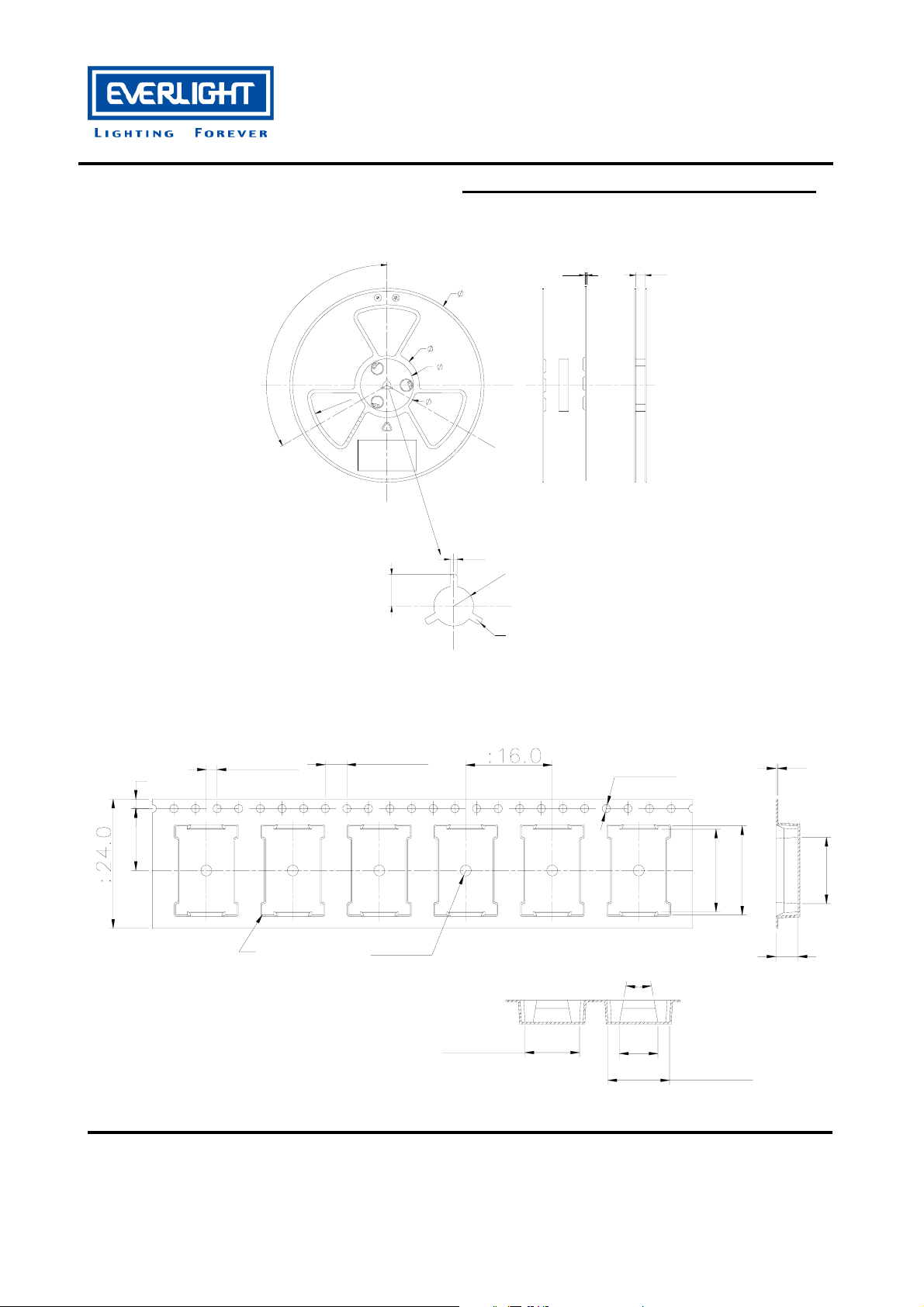

Package Dimensions
0
2
1
ELSS-406SURWA/S530-A4/S290
2.30
B"
3
0
2
3
4
0
3
1
5
2
0
3
3
1
6
3
0
0
1
1
7
3
3
0
0
0
1
3
3
8
0
0
9
330
°
110
90
2
0
2
R
1
2
3
4
5
6
P S
7
8
100
6
2.3
5
7
.
6
R
10.75
24.50
A"
Taping Dimensions
E:1.75
F11.5
W
P2:2.0
R0.3
P0:4.0
D1:2.0
R1
P
A1:10.2
D0:1.5
20°
7.1
B0:15.4
A0:11.4
T:0.35
16.57
K0:4.15
12.3
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 6 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
Page 7
ELSS-406SURWA/S530-A4/S290
■ Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：90%
LTPD：10%
NO
Item
1 Reflow Heat
2
Temperature
3
4
Temperature
5
Temperature
Cycle
Thermal
Shock
High
Storage
Low
Storage
Test
Conditions
TEMP:260°C±5°C
5-10 SEC
H：+105°C 15min
∫ 5min
L：-40°C 15min
H：+100°C 5min
∫ 10 sec
L：-10°C 5min
TEMP:100°C
TEMP:-40°C
Test
Hours/Cycle
6 Min 22 PCS 0/1
Sample
Size
Failure
Judgment
Criteria
300 CYCLES 22 PCS
300 CYCLES 22 PCS
1000 HRS
22 PCS
Iv≦Ivt*0.5
or
Vf≧U
1000 HRS
22 PCS
or
Vf≦L
Ac/Re
0/1
0/1
0/1
0/1
6
DC Operating
7
Temperature /
Life
High
High
TEMP:25°C
If＝10mA
85°C / 85% RH
1000 HRS
1000 HRS
22 PCS
22 PCS
0/1
0/1
Humidity
Note：Ivt：The test Iv value of the chip before the reliability test
Iv：The test value of the chip that has completed the reliability test
U：Upper Specification Limit
L： Lower Specification Limit
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 7 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
Page 8
ELSS-406SURWA/S530-A4/S290
Packing Quantity Specification
1000PCS/Roll，1Roll/Small box，7Small boxes/Box

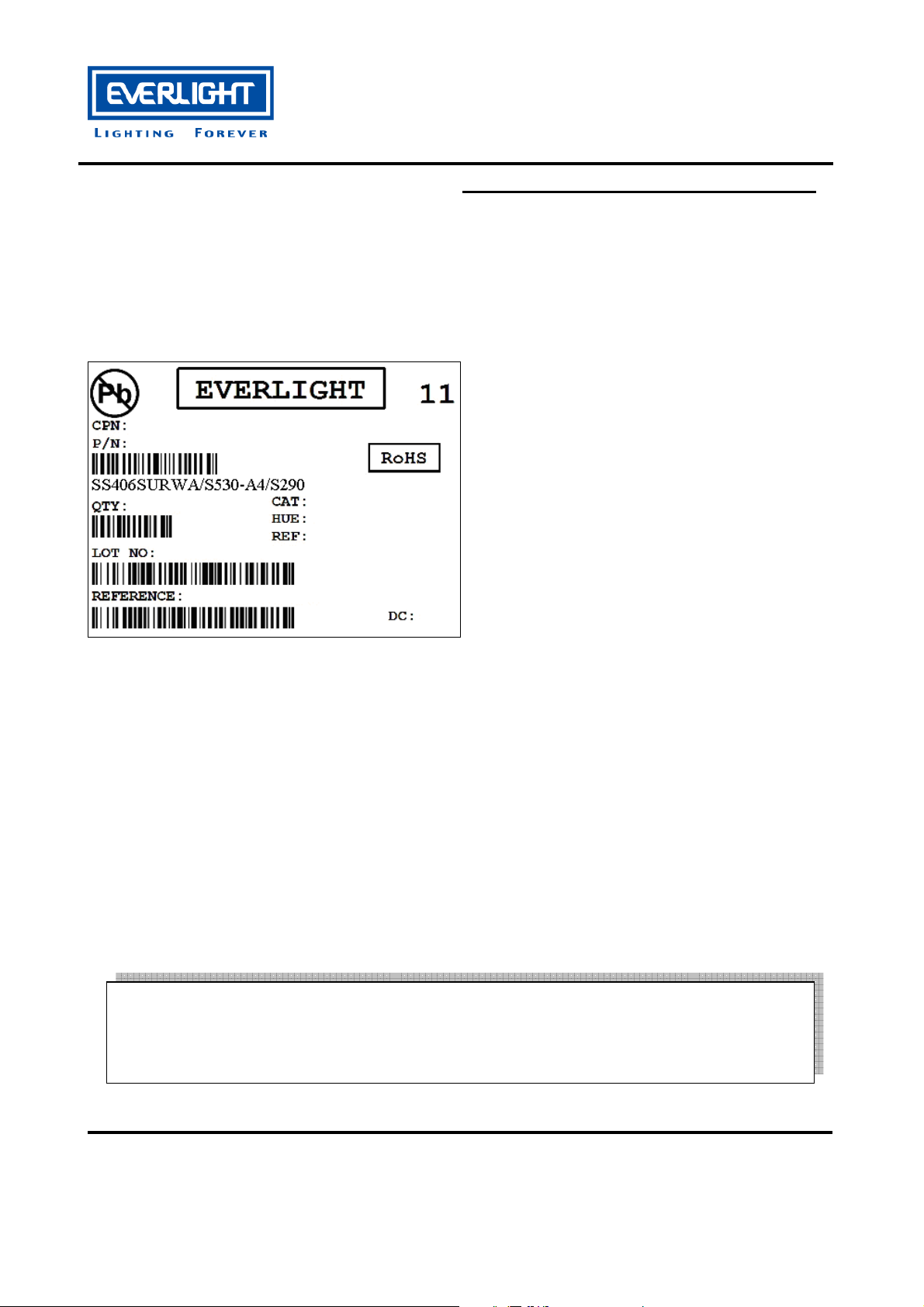

Label Form Specification
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Peak Wavelength
REF: Reference
LOT No: Lot Number
DC: Year and weekly
REFERENCE: Label identify code
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions for
using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any
damage resulting from use of the product which does not comply with the absolute maximum
ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without
EVERLIGHT’sconsent.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 8 of 8
Device No.: DDF-0000147 Prepared date: 2009/5/17 Prepared by: Sun Li
