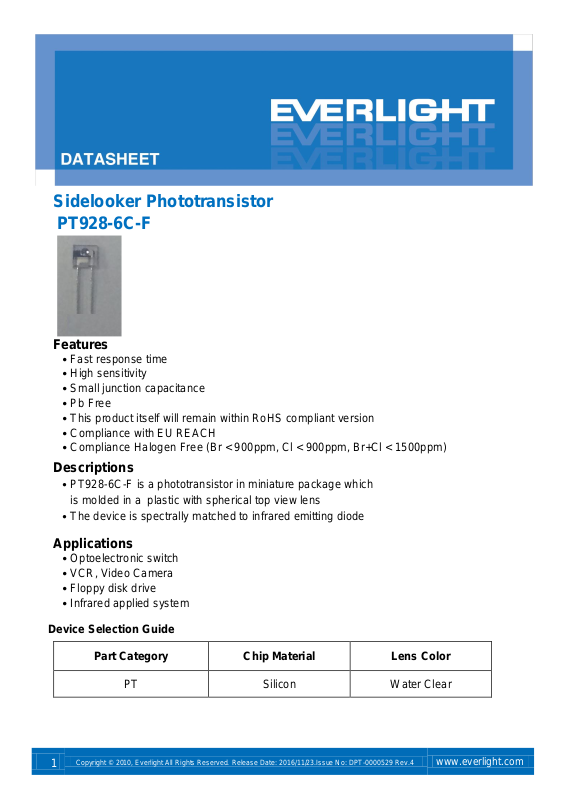

Sidelooker Phototransistor
PT928-6C-F
Features
Fast response time High sensitivity Small junction capacitance Pb Free This product itself will remain within RoHS compliant version Compliance with EU REACH Compliance Halogen Free (Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm)
Descriptions
PT928-6C-F is a phototransistor in miniature package which
is molded.in.a. plastic with spherical top view lens
The device is spectrally matched to infrared emitting diode
Applications
Optoelectronic switch VCR, Video Camera Floppy disk drive Infrared applied system
Device Selection Guide
Part Category
Chip Material
Lens Color
PT
Silicon
Water Clear
Page 2
Data Sheet
Sidelooker phototransistor
PT928-6C-F
2
Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/23. Issue No: DPT-0000529 Rev.4
www.everlight.com
Notes: 1. All dimensions are in millimeters
Notes: 2. Tolerances unless dimensions ±0.3mm
Parameter
Symbol
Rating
Units
Collector-Emitter Voltage
V
CEO
30
V
Emitter-Collector Voltage
V
ECO
5 V
Collector Current
IC
20
mA
Operating Temperature
T
opr
-25 ~ +85
˚C
Storage Temperature
T
stg
-40 ~ +85
˚C
Soldering Temperature *1
T
sol
260
˚C
Power Dissipation at (or below) 25 ˚C Free Air Temperature
Pd
75
mW
Collector
Emitter
Package Dimension
Absolute Maximum Ratings (Ta=25)
Notes: *1. Soldering time5 seconds.
Page 3
Data Sheet
Sidelooker phototransistor
PT928-6C-F
3
Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/23. Issue No: DPT-0000529 Rev.4
www.everlight.com
Parameter
Symbol
Condition
Min.
Typ.
Max.
Units
Rang of Spectral Bandwidth
λ
0.5
----
450
--
1100
nm
Wavelength of Peak Sensitivity
λp
----
--
940
--
nm
Collector-Emitter Breakdown Voltage
BV
CEO
IC=100μA
Ee=0mW/cm2
30
--
--
V
Emitter-Collector Breakdown Voltage
BV
ECO
IE=100μA
Ee=0mW/cm2
5
--
--
V
Collector Dark Current
CEO
VCE=20V
Ee=0mW/cm2
--
--
100
nA
Collector-Emitter Saturation Voltage
V
CE(sat)
IC=2mA
Ee=1mW/cm2
--
--
0.4
V
On State Collector Current
C(on)
VCE=5V
Ee=0.555mW/cm2
0.53
--
3.41
mA
Symbol
Condition
Ranks
Min.
Max.
Unit
C(ON)
VCE=5V
Ee=0.555mW/cm2
7-3
0.53
1.19
mA
7-2
0.88
1.70
7-1
1.24
2.21
6-2
1.59
2.98
6-1
1.77
3.41
Electro-Optical Characteristics (Ta=25℃)
Rank
Condition: VCE=5V, Ee=0.555mW/cm2
Notes: This bin table is only for reference, not for specific bin shipment. Test Method For I
C(ON)
:
Condition: VCE= 5V Ee=0.555mW/cm2
Page 4
Data Sheet
Sidelooker phototransistor
PT928-6C-F
4
Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/23. Issue No: DPT-0000529 Rev.4
www.everlight.com
Typical Electro-Optical Characteristics Curves
Fig.1 Spectral Sensitivity Fig.2 Collector Current vs.
Irradiance
Fig.3 Collector Current vs.
Collector-Emitter Voltage
Page 5
Data Sheet
Sidelooker phototransistor
PT928-6C-F
5
Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/23. Issue No: DPT-0000529 Rev.4
www.everlight.com
CPN: Customer Part Number P/N: Part Number QTY: Packing Quantity CAT: Ranks REF: Reference LOT No: Lot Number
Packing Quantity Specification
1000 pcs/bag, 10 bags/box 10 boxes/carton
Label Form Specification
Notes Lead Forming
1. During lead frame bending, the lead frame should be bent at a distance more than 3mm from bottom of the epoxy. Note: Must fix lead frame and do not touch epoxy before bending to avoid Phototransistors broken.
2. Lead forming should be done before soldering.
3. Avoid stressing the Phototransistor package during leads forming. The stress to the base may damage the Phototransistor’s characteristics or it may break the Phototransistors.
4. Cut the Phototransistor lead frame at room temperature. Cutting the lead frame at high temperatures may cause failure of the Phototransistors.
5. When mounting the Phototransistors onto a PCB, the PCB holes must be aligned exactly with the lead position of the Phototransistor. If the Phototransistors are mounted with stress at the leads, it causes deterioration of the epoxy resin and this will degrade the Phototransistors.
Storage
1. The Phototransistors should be stored at 10~30°C and 70%RH or less after being shipped from Everlight and the storage life limits are 3 months. If the Phototransistors are stored for 3 months or more, they can be stored at 10°C~25°C and 20%RH~60%RH for a year in a sealed container with a nitrogen atmosphere. After opening the package, the devices must be stored at 10°C~25°C and 20%RH~60%RH, and suggested to be used within 24 hours or as soon as possible. Besides, suggest that the remaining devices seal in the package bag as soon as possible please.
2. Please avoid rapid transitions in ambient temperature, especially in high humidity environments where condensation can occur.
Page 6
Data Sheet
Sidelooker phototransistor
PT928-6C-F
6
Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/23. Issue No: DPT-0000529 Rev.4
www.everlight.com
Prehead
laminar wave
Fluxing
Hand Soldering
DIP Soldering
Temp. at tip of iron
300°C Max. (30W Max.)
Preheat temp.
100°C Max. (60 sec Max.)
Soldering time
3 sec Max.
Bath temp. & time
260 Max., 5 sec Max
Distance
3mm Min.(From solder joint to epoxy bulb)
Distance
3mm Min. (From solder joint to epoxy bulb)
Soldering
1. Careful attention should be paid during soldering. When soldering, leave more than 3mm from solder joint to epoxy bulb, and soldering beyond the base of the tie bar is recommended.
2. Recommended soldering conditions:
3. Recommended soldering profile
4. Avoiding applying any stress to the lead frame while the Phototransistors are at high temperature particularly when soldering.
5. Dip and hand soldering should not be done more than one time
6. After soldering the Phototransistors, the epoxy bulb should be protected from mechanical shock or vibration until the Phototransistors return to room temperature.
7. A rapid-rate process is not recommended for cooling the Phototransistors down from the peak temperature.
8. Although the recommended soldering conditions are specified in the above table, dip or hand soldering at the lowest possible temperature is desirable for the Phototransistors.
9. Wave soldering parameter must be set and maintain according to recommended temperature and dwell time in the solder wave.
Cleaning
Do not clean the Phototransistors by the ultrasonic.
Heat Management
1. Heat management of Phototransistors must be taken into consideration during the design stage of Phototransistor application. The current should be de-rated appropriately by referring to the de-rating curve found in each product specification.
2. The temperature surrounding the Phototransistor in the application should be controlled.
Page 7
Data Sheet
Sidelooker phototransistor
PT928-6C-F
7
Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/23. Issue No: DPT-0000529 Rev.4
www.everlight.com
ESD (Electrostatic Discharge)
1. The products are sensitive to static electricity or surge voltage. ESD can damage a die and its reliability.
2. When handling the products, the following measures against electrostatic discharge are strongly recommended:
Eliminating the charge Grounded wrist strap, ESD footwear, clothes and floors Grounded workstation equipment and tools ESD table/shelf mat made of conductive materials
3. Proper grounding is required for all devices, equipment, and machinery used in product assembly. Surge protection should be considered when designing of commercial products.
4. If tools or equipment contain insulating materials such as glass or plastic, the following measures against electrostatic discharge are strongly recommended:
Dissipating static charge with conductive materials Preventing charge generation with moisture Neutralizing the charge with ionizers
DISCLAIMER
1. EVERLIGHT reserves the right(s) on the adjustment of product material mix for the specification.
2. The product meets EVERLIGHT published specification for a period of twelve (12) months from date of shipment.
3. The graphs shown in this datasheet are representing typical data only and do not show guaranteed values.
4. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from the use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets.
5. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in any form is prohibited without obtaining EVERLIGHT’s prior consent.
6. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life saving applications or any other application which can result in human injury or death. Please contact authorized Everlight sales agent for special application request.
