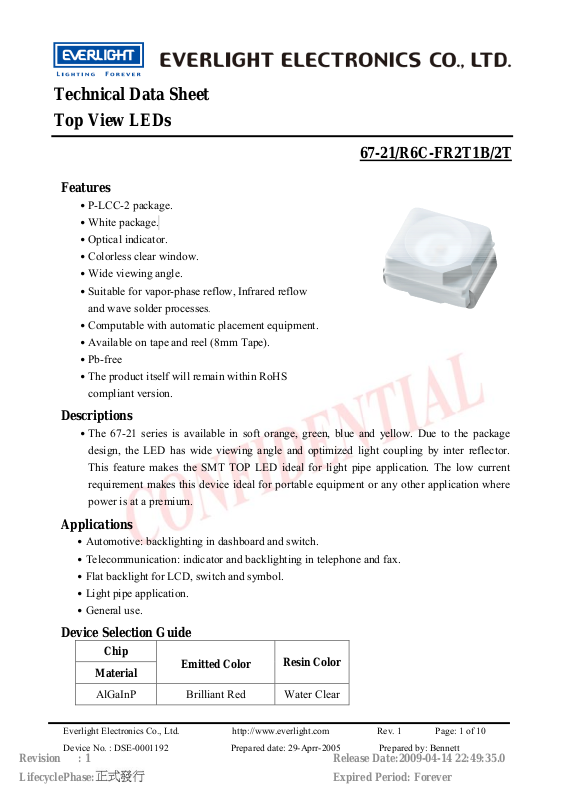

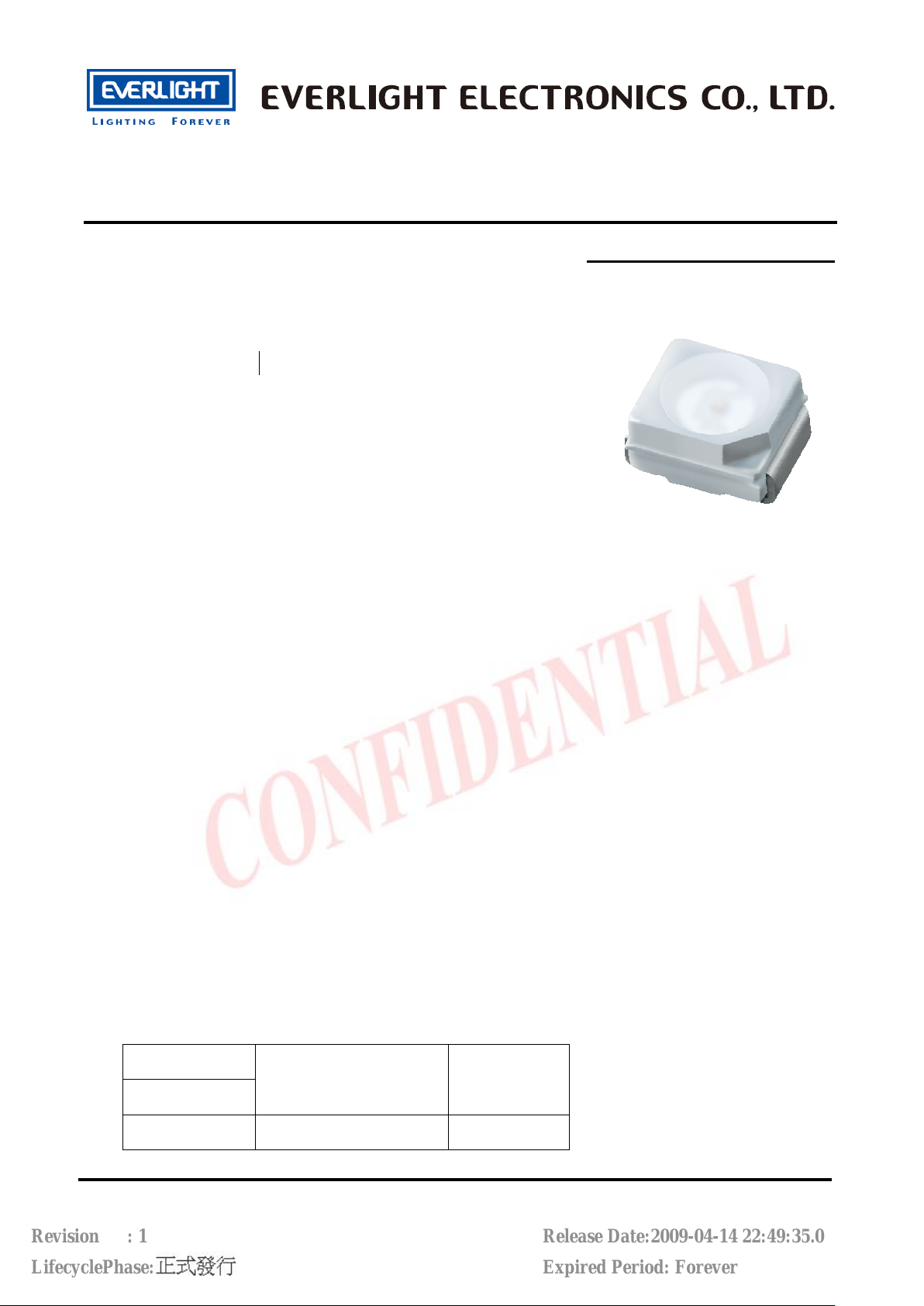

Page 1
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T
Features
․P-LCC-2 package.
․White package.
․Optical indicator.
․Colorless clear window.
․Wide viewing angle.
․Suitable for vapor-phase reflow, Infrared reflow
and wave solder processes.
․Computable with automatic placement equipment.
․Available on tape and reel (8mm Tape).
․Pb-free
․The product itself will remain within RoHS
compliant version.
Descriptions
․The 67-21 series is available in soft orange, green, blue and yellow. Due to the package
design, the LED has wide viewing angle and optimized light coupling by inter reflector.
This feature makes the SMT TOP LED ideal for light pipe application. The low current
requirement makes this device ideal for portable equipment or any other application where
power is at a premium.
Applications
․Automotive: backlighting in dashboard and switch.
․Telecommunication: indicator and backlighting in telephone and fax.
․Flat backlight for LCD, switch and symbol.
․Light pipe application.
․General use.
Device Selection Guide
Chip
Material
Emitted Color
Resin Color
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
AlGaInP Brilliant Red Water Clear
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 2
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T

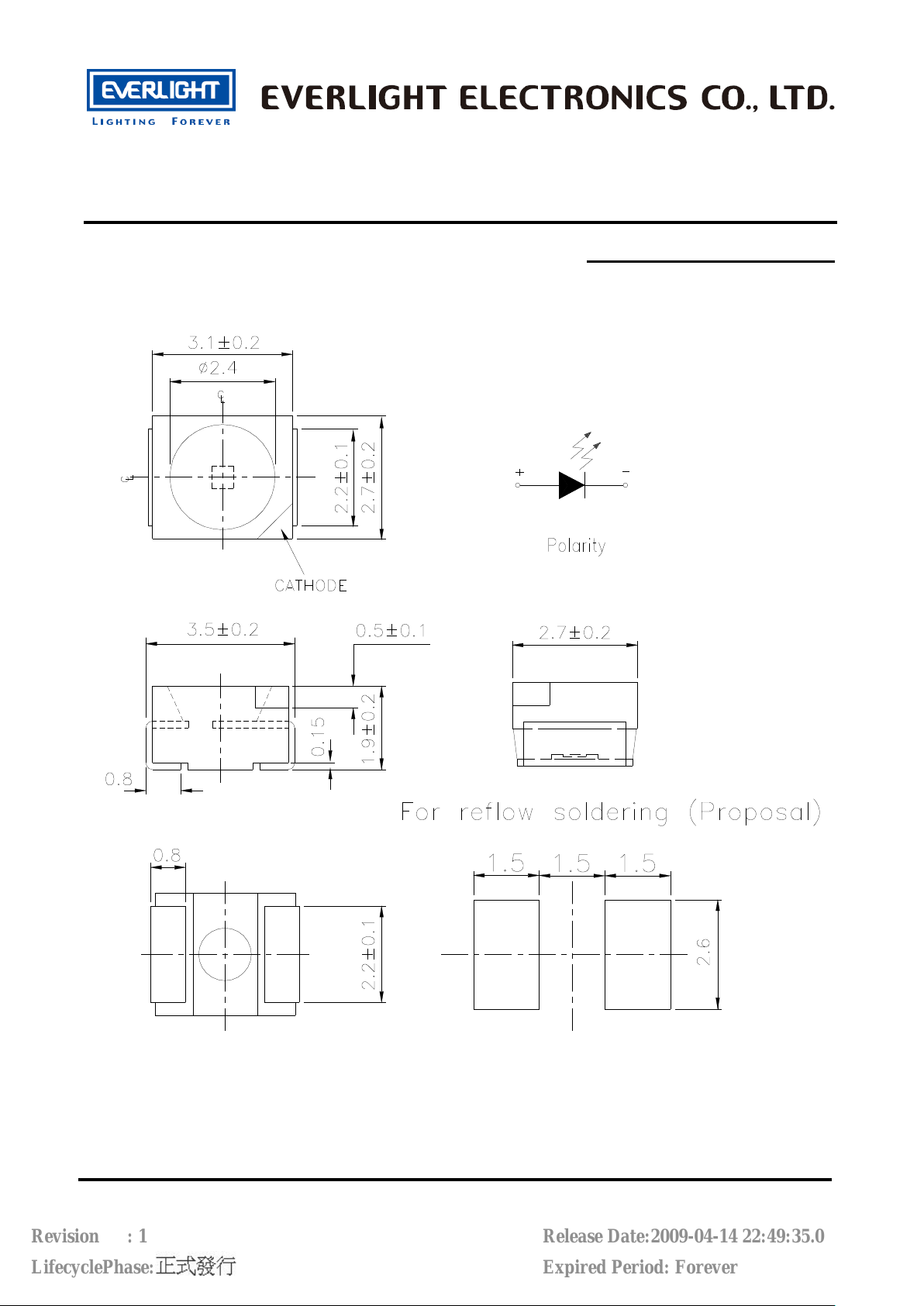

Package Dimensions
Note: The tolerances unless mentioned is ±0.1mm; Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 3
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T
Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Rating Unit
Reverse Voltage V
Forward Current I
Peak Forward Current (Duty 1/10 @1KHz) I
Power Dissipation Pd 100 mW
Electrostatic Discharge(HBM) ESD 2000 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Soldering Temperature Tsol
Electro-Optical Characteristics (Ta=25℃)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity Iv 140 ----- 360 mcd IF=20mA
θ
Viewing Angle
Peak Wavelength
2
λp
1/2
----- 120 ----- deg IF=20mA
----- 632 ----- nm IF=20mA
FP
R
F
5 V
25 mA
100 mA
℃
℃
Reflow Soldering : 260
℃ for 10 sec.
Hand Soldering : 350 ℃ for 3 sec.
Dominant Wavelength
Spectrum Radiation Bandwidth
Notes:
1. Tolerance of Luminous Intensity ±11%
2. Tolerance of Dominant Wavelength ±1nm
3. Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
Forward Voltage
Reverse Current
λd
△λ
V
F
I
R
621 ----- 631 nm IF=20mA
----- 20 ----- nm IF=20mA
1.75 ----- 2.35 V IF=20mA
----- ----- 10
μA
VR=5V
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 4
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T
Bin Rang of Luminous Intensity
Bin Min Max Unit Condition
R2 140 180
S1 180 225
mcd IF=20mA
S2 225 285
T1 285 360
Bin Range of Dominant Wavelength
Group Bin Code Min. Max. Unit Condition
FF1 621 626
F
FF2 626 631
nm IF=20mA
Bin Rang of Forward Voltage
Group Bin Min Max Unit Condition
0 1.75 1.95
B
Notes:
1. Tolerance of Luminous Intensity ±11%
2. Tolerance of Dominant Wavelength ±1nm
3. Tolerance of Forward Voltage ±0.1V
1 1.95 2.15
2 2.15 2.35
V IF=20mA
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 5
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T

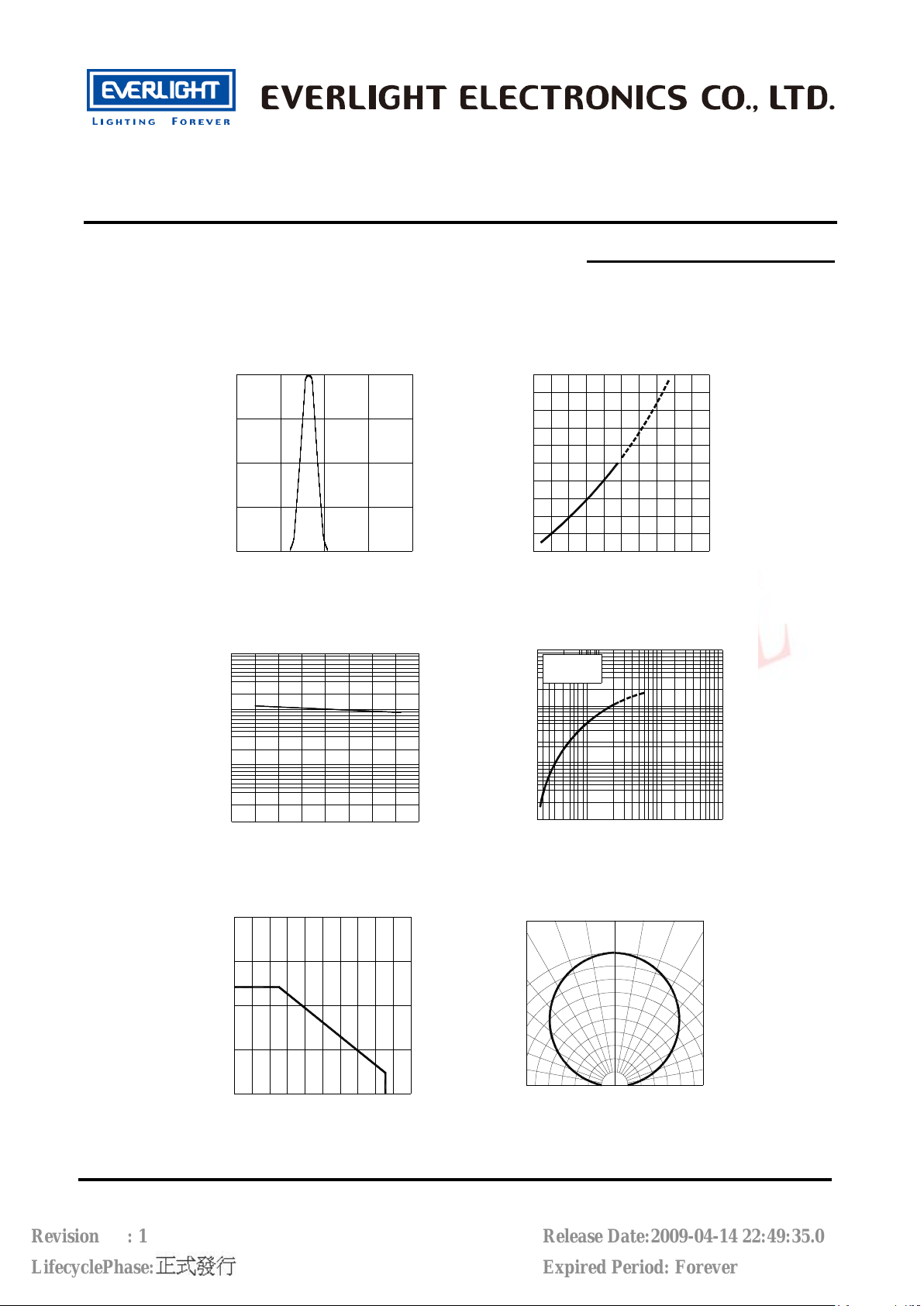

Typical Electro-Optical Characteristics Curves
Spectrum Distribution
100
75
50
25
0
1000
100
10
600 650 700 750
550
Wavelength λ (nm)
Relative Luminous Intensity vs.
Ambient Temperature
Ta=25°C
Forward Current vs.
Forward Voltage
50
40
F
30
20
Forward Current I (mA)
10
0
1.6
Forward Voltage V (V)
Relative Luminous Intensity vs.
Forward Current
1000
100
10
z
H
K
1
=
f
D
0
1
/
1
=
y
t
u
Ta=25°C
2.42.01.8 2.2 2.6
F
Ta=25°C
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
Relative Luminous Intensity(%) Relative Luminous Intensity (%)
1
-60
40
30
F
20
10
Forward Current I (mA)
0
-20-40 0 206040
Ambient Temperature T (°C)
Forward Current Derating Curve
0
402060 10080
Ambient Temperature T (°C)
Relative luminous intensity (%)
1
1.0
0.9
0.8
0.7
10
0
10080
a
a
1
10
Forward Current I (mA)
Radiation Diagram
0° 10° 20°
2
10
F
Ta=25°C
0.40.5 0.3 0.20.1 0.6
10
30°
40°
50°
60°
70°
80°
90°
3
Release Date:2009-04-14 22:49:35.0
LifecyclePhase:
Expired Period: Forever
Page 6
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T

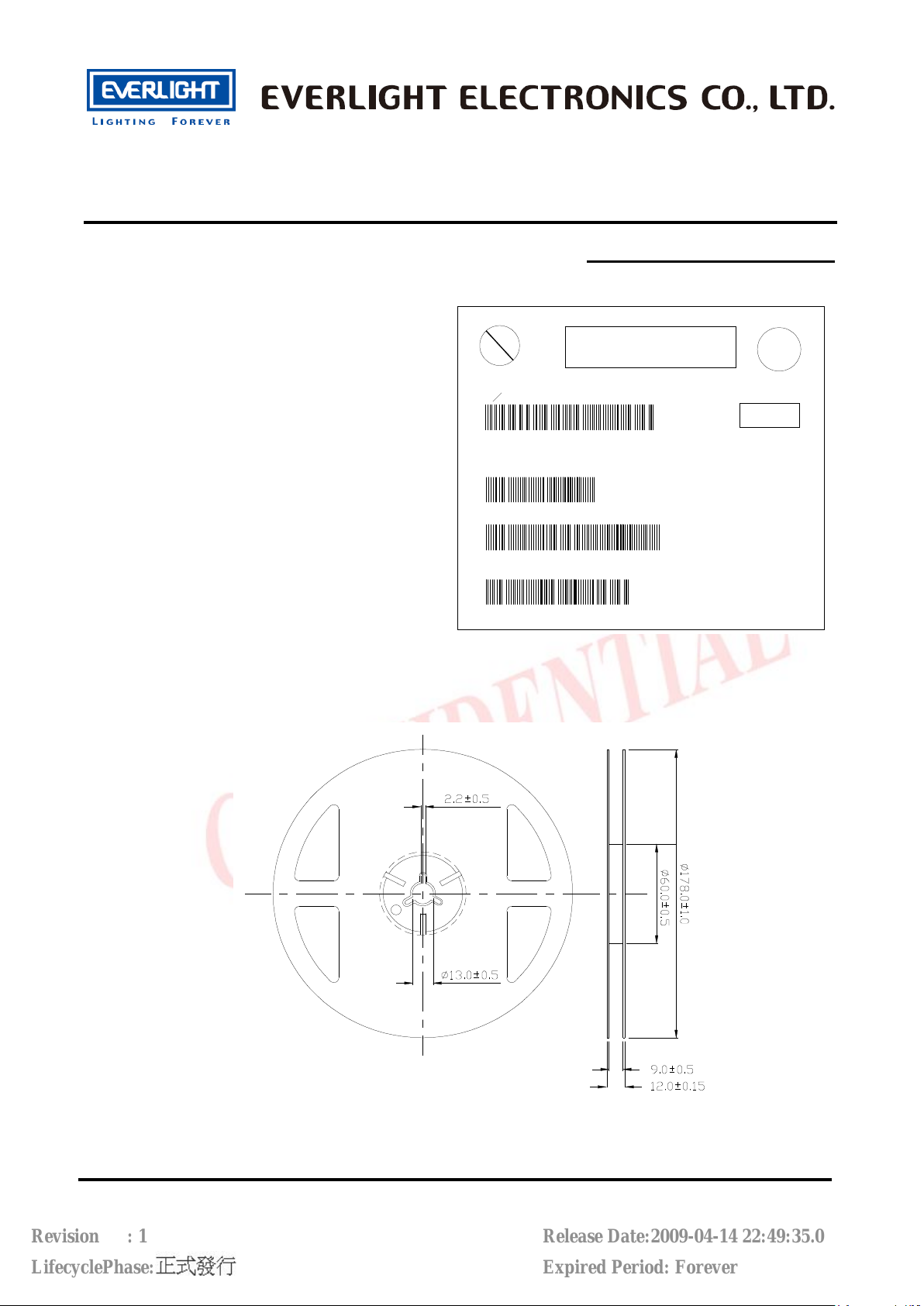

Label Explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank
Reel Dimensions
Pb
CPN :
P
N : XXXXXXXXXXXXX
XXXXXXXXXXXXX
QTY : XXX
LOT NO : XXXXXXXXXX
Reference : XXXXXXXX
EVERLIGHT
MADE IN TAIWAN
RoHS
CAT : XXX
HUE : XXX
REF : XXX
Note: The tolerances unless mentioned is ±0.1mm, Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 7
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T

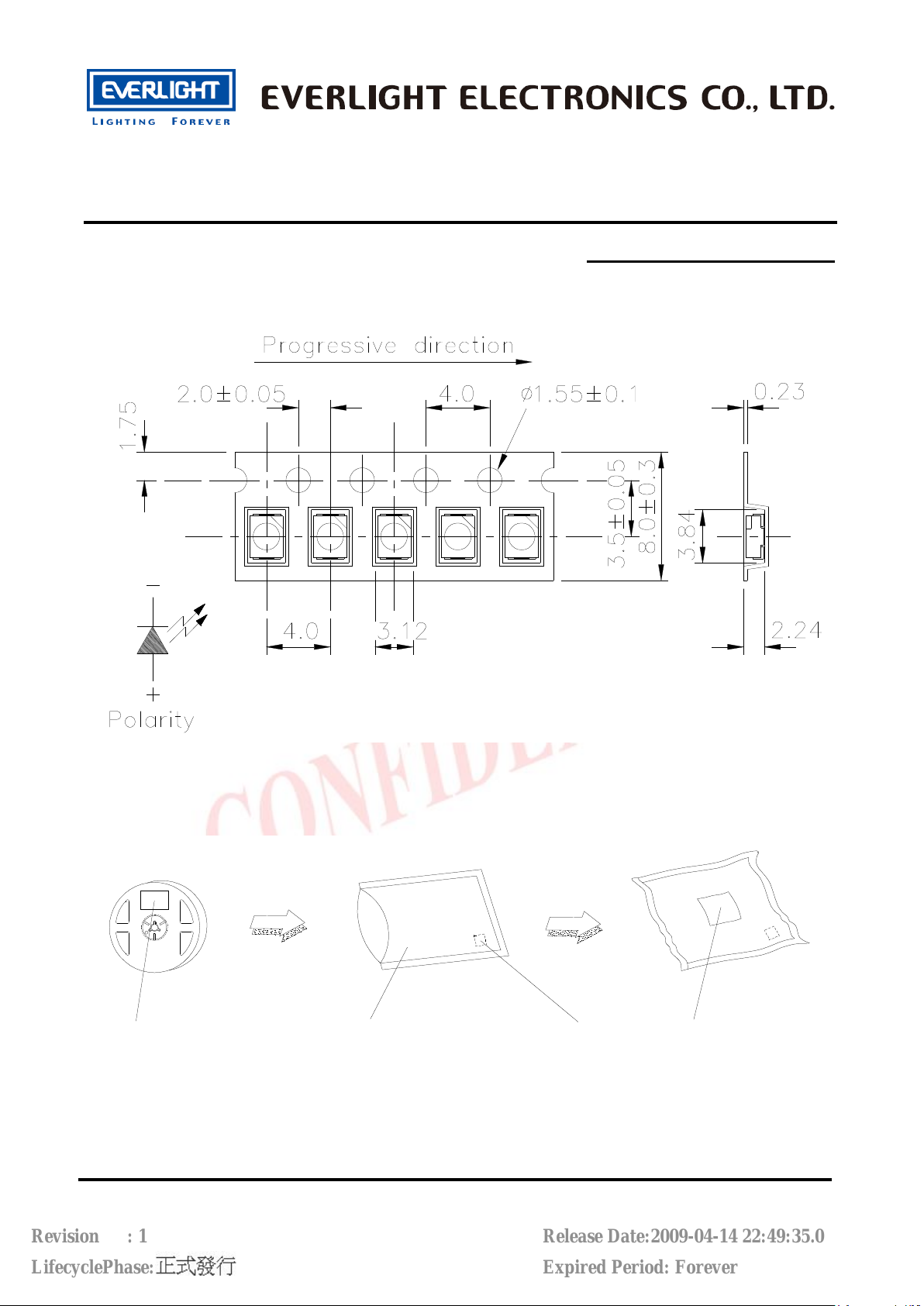

Carrier Tape Dimensions: Loaded Quantity 2000 pcs Per Reel
Note: The tolerances unless mentioned is ±0.1mm; Unit = mm
Moisture Resistant Packaging
Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 10
Aluminum moisture-proof bag
Desiccant Label
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 8
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T
Reliability Test Items and Conditions
The reliability of products shall be satisfied with items listed below.
Confidence level：90%
LTPD：10%
No. Items Test Condition
1 Reflow Soldering
2 Temperature Cycle
3 Thermal Shock
4 High Temperature Storage Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1
5 Low Temperature Storage Temp. : -40℃ 1000 Hrs. 22 PCS. 0/1
6 DC Operating Life IF = 20 mA 1000 Hrs. 22 PCS. 0/1
Temp. : 260 ±5
Min. 5sec.
H : +100 15min℃
L : -40 15min℃
H : +100 5min℃
L : -10 5min℃
℃ ℃
∫ 5 min
∫ 10 sec
Test
Hours/Cycles
6 min 22 PCS. 0/1
300 Cycles 22 PCS. 0/1
300 Cycles 22 PCS. 0/1
Sample
Size
Ac/Re
7
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
High Temperature / High
Humidity
85 / 85%RH℃ 1000 Hrs. 22 PCS. 0/1
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 9
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T
Precautions for Use
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big
current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 After opening the package: The LED's floor life are 168 hours under 30 deg C or less and 60%
RH or less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

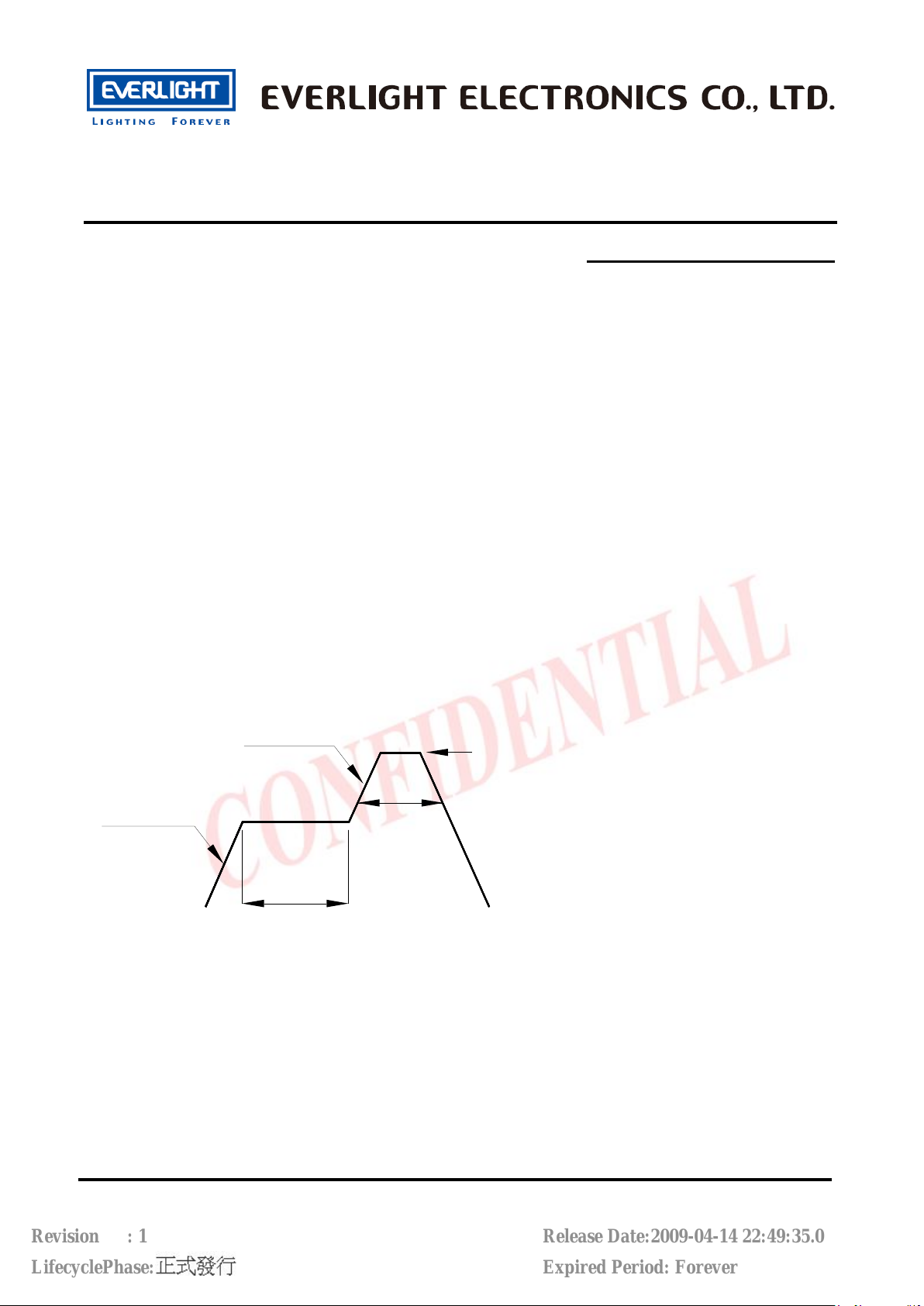

3.1 Pb-free solder temperature profile
1~5 °C / Sec.
260°C. Max.
10 Sec. Max.
1~5 °C / Sec.
Pre-heating
180~200°C
120 Sec. Max.
60 Sec. Max.
Above 220°C
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals,
and do soldering of each terminal. Be careful because the damage of the product is often started at
the time of the hand solder.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
Page 10
Technical Data Sheet
Top View LEDs
67-21/R6C-FR2T1B/2T

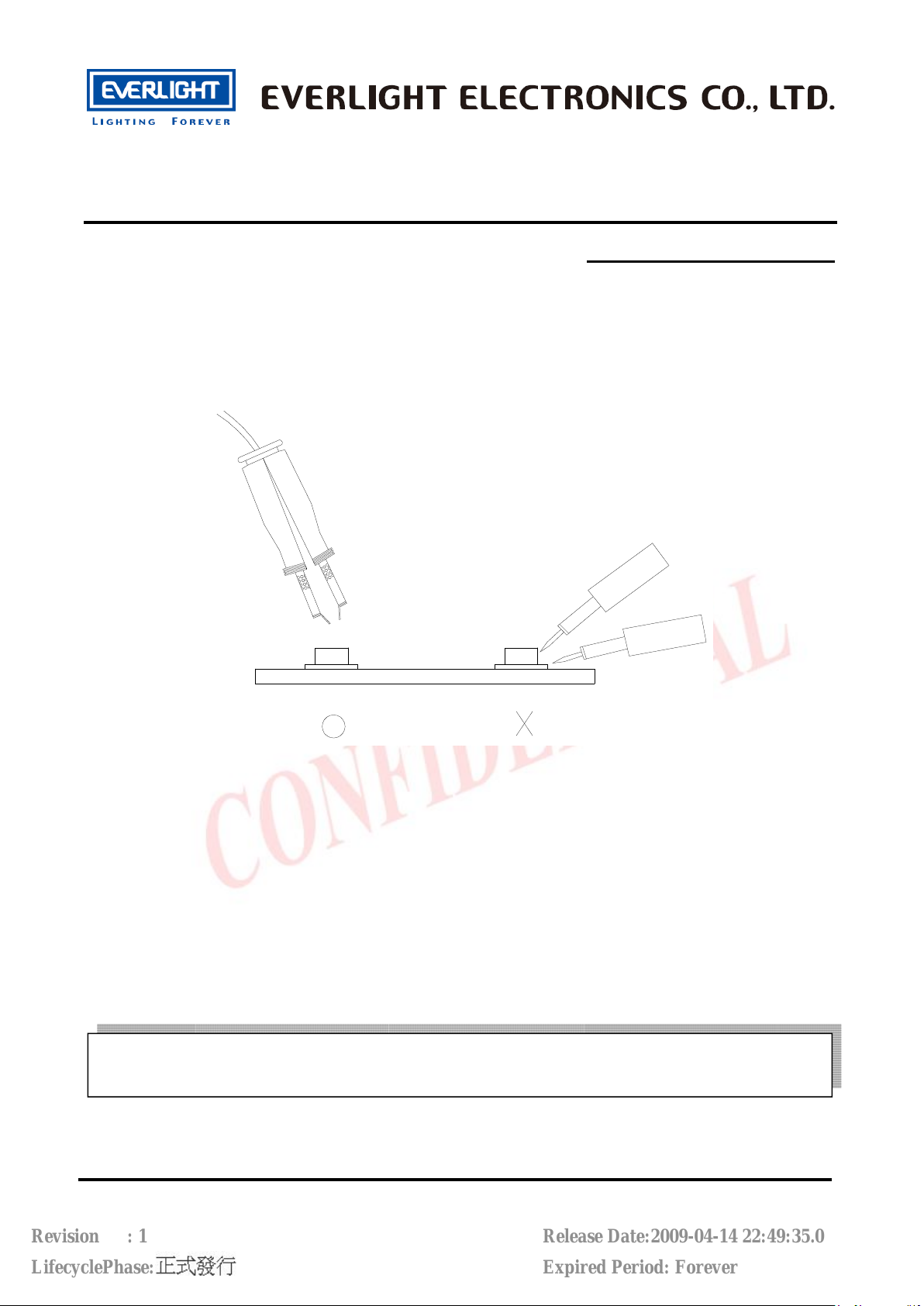

5. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand
whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 10
Device No. : DSE-0001192 Prepared date: 29-Aprr-2005 Prepared by: Bennett
Revision : 1
LifecyclePhase:
Release Date:2009-04-14 22:49:35.0
Expired Period: Forever
