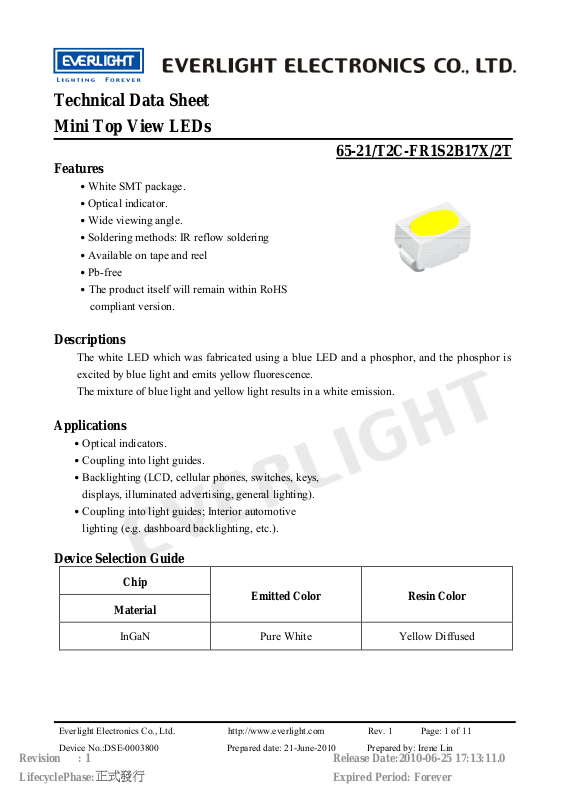

Page 1

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Features
․White SMT package.
․Optical indicator.
․Wide viewing angle.
․Soldering methods: IR reflow soldering
․Available on tape and reel
․Pb-free
․The product itself will remain within RoHS
compliant version.
Descriptions
The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is
excited by blue light and emits yellow fluorescence.
The mixture of blue light and yellow light results in a white emission.
Applications
․Optical indicators.
․Coupling into light guides.
․Backlighting (LCD, cellular phones, switches, keys,
displays, illuminated advertising, general lighting).
․Coupling into light guides; Interior automotive
lighting (e.g. dashboard backlighting, etc.).
Device Selection Guide
Chip
Emitted Color Resin Color
Material
InGaN Pure White Yellow Diffused
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 2

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Package Outline Dimensions
Note: Tolerance unless mentioned is ±0.1mm; Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 3

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Rating Unit
Reverse Voltage V
Forward Current I
R
F
5 V
30 mA
Power Dissipation Pd 100 mW
Peak Forward Current
(Duty 1/10 @1KHz)
I
FP
110 mA
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Reflow Soldering : 260 ℃ for 10 sec.
Soldering Temperature Tsol
Hand Soldering : 350 ℃ for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity Iv 112 ----- 285 mcd IF=2mA
℃
℃
Viewing Angle
Forward Voltage V
Reverse Current I
Notes:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Forward Voltage: ±0.1V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
θ1/2
2
----- 120 ----- deg I
F
R
2.5 ----- 3.5
----- ----- 50
V I
μA
=2mA
F
=2mA
F
VR=5V
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 4

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Bin Range of Luminous Intensity
Bin Code Min. Max. Unit Condition
R1 112 140
R2 140 180
mcd IF=2mA
S1 180 225
S2 225 285
Bin Range of Forward Voltage
Group Bin Min. Max. Unit Condition
9 2.5 2.7
10 2.7 2.9
B17
Notes:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Forward Voltage: ±0.1V
11 2.9 3.1
12 3.1 3.3
13 3.3 3.5
V IF=2mA
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 5

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Bin Range of Chromaticity Coordinates IF=20mA
Group Bin Code CIE_x CIE_y Bin Code CIE_x CIE_y
0.2870 0.2950 0.2960 0.2760
0.2830 0.3050 0.2870 0.2950
B3
0.3040 0.3300 0.3070 0.3150
B5
0.3070 0.3150
F
0.3070 0.3150 0.3110 0.2940
0.3040 0.3300 0.3070 0.3150
B4
0.3300 0.3600 0.3300 0.3390
0.3300 0.3390
Notes: Tolerance of Chromaticity Coordinates:±0.01
The C.I.E. 1931 Chromaticity Diagram
0.38
0.36
0.34
0.3110 0.2940
B6
0.3300 0.3180
B4
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
0.32
CIE_y
0.30
0.28
0.26
0.28 0.29 0.30 0.31 0.32 0.33
B3
B5
CIE_x
B6
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 6

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Typical Electro-Optical Characteristics Curves
Spectrum Distribution
Relative luminous intensity (%)
Wavelength λ(nm)
Relative Luminous Intensity vs.
Ambient Temperature
1000
100
10
Ta=25°C
Forward Current vs.
Forward Voltage
50
40
F
I (mA)
30
20
10
Forward Current
0
2.8
2.6
Forward Voltage V -(Volts)
Relative Luminous Intensity vs.
Forward Current
1000
=
f
1
K
z
H
u
D
y
=
t
1
1
/
0
100
10
Ta=25°C
3.83.0
3.4 4.2
F
Ta=25°C
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
1
Relative luminous intensity (%)
-60
50
F
I (mA)
40
30
20
Forward Current
10
0
-20-40 0 206040
Ambient Temperature T (°C
Forward Current Derating Curve
0
Ambient Temperature T (°C
10080
)
a
80402060 100
)
a
Relative luminous intensity (%)
1.0
0.9
0.8
0.7
1
0
10
Forward Current
Radiation Diagram
1
10
0° 10°
0.10.30.5 0.2 0.4
10
2
I (mA)
F
20°
Ta=25°C
30°
40°
50°
60°
70°
80°
90°
0.6
10
3
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 7

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Label Explanation
CAT: Luminous Intensity Rank
HUE: Chromaticity Coordinates
REF: Forward Voltage Rank
Reel Dimensions
Pb
CPN :
P
N : XXXXXXXXXXXXX
XXXXXXXXXXXXX
QTY : XXX
LOT NO : XXXXXXXXXX
Reference : XXXXXXXX
EVERLIGHT
MADE IN TAIWAN
RoHS
CAT : XXX
HUE : XXX
REF : XXX
Note: Tolerance unless mentioned is ±0.1mm; Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
Release Date:2010-06-25 17:13:11.0
LifecyclePhase:
Expired Period: Forever
Page 8

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Carrier Tape Dimensions: Loaded Quantity 2000 pcs Per Reel.
Note: Tolerance unless mentioned is ±0.1mm; Unit = mm
Moisture Resistant Packaging
Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 11
Aluminum moisture-proof bag
Desiccant Label
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 9

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Reliability Test Items and Conditions
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD:10%
No. Items Test Condition
Temp. : 260℃±5℃
1 Reflow Soldering
2 Temperature Cycle
3 Thermal Shock
4 High Temperature Storage
5 Low Temperature Storage
6 DC Operating Life IF = 20 mA
High Temperature / High
7
Humidity
Max. 10 sec.
H : +100℃ 15min
∫ 5 min
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
L : -10℃ 5min
Temp. : 100℃
Temp. : -40℃
85℃/ 85%RH
Test
Hours/Cycles
6 min
300 Cycles
300 Cycles
1000 Hrs.
1000 Hrs.
1000 Hrs.
1000 Hrs. 22 PCS. 0/1
Sample
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
Ac/Re
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 10

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
Precautions for Use
1. Over-current-proof
Customer must apply resistors for protection; otherwise slight voltage shift will cause big current
change (Burn out will happen).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or
less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment: 60±5℃ for 24 hours.
3. Soldering Condition
3.1 Pb-free solder temperature profile
1~5 °C / Sec.
260°C. Max.
10 Sec. Max.
1~5 °C / Sec.
Pre-heating
180~200°C
120 Sec. Max.
60 Sec. Max.
Above 220°C
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 11
Device No.:DSE-0003800 Prepared date: 21-June-2010 Prepared by: Irene Lin
Revision : 1
LifecyclePhase:
Release Date:2010-06-25 17:13:11.0
Expired Period: Forever
Page 11

Technical Data Sheet
Mini Top View LEDs
65-21/T2C-FR1S2B17X/2T
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals,
and do soldering of each terminal. Be careful because the damage of the product is often started
at the time of the hand solder.
5. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand
whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
