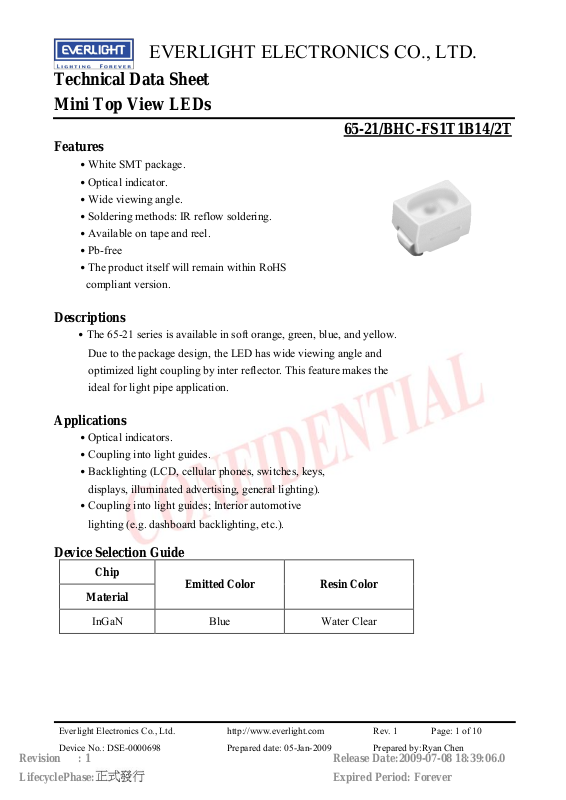

Page 1
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Features
․White SMT package.
․Optical indicator.
․Wide viewing angle.
․Soldering methods: IR reflow soldering.
․Available on tape and reel.
․Pb-free
․The product itself will remain within RoHS
compliant version.
Descriptions
․The 65-21 series is available in soft orange, green, blue, and yellow.
Due to the package design, the LED has wide viewing angle and
optimized light coupling by inter reflector. This feature makes the
ideal for light pipe application.
Applications
․Optical indicators.
․Coupling into light guides.
․Backlighting (LCD, cellular phones, switches, keys,
displays, illuminated advertising, general lighting).
․Coupling into light guides; Interior automotive
lighting (e.g. dashboard backlighting, etc.).
Device Selection Guide
Chip
Emitted Color Resin Color
Material
InGaN Blue Water Clear
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1 LifecyclePhase:
Release Date:2009-07-08 18:39:06.0 Expired Period: Forever
Page 2
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Package Outline Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1
Recommended solding pad design
Release Date:2009-07-08 18:39:06.0
LifecyclePhase:
Expired Period: Forever
Page 3
EVERLIGHT ELECTRONICS CO., LTD.
Spectrum Radiation
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Absolute Maximum Ratings (Ta=25 )℃
Parameter Symbol Rating Unit
Reverse Voltage V
Forward Current I
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation Pd 110 mW
Electrostatic Discharge(HBM) ESD 1000 V
Operating Temperature Topr -40 ~ +85 ℃
Storage Temperature Tstg -40 ~ +90 ℃
Soldering Temperature Tsol
R
F
I
FP
Reflow Soldering : 260 for 10 sec.℃
Hand Soldering : 350 for 3 sec.℃
5 V
30 mA
100 mA
Electro-Optical Characteristics (Ta=25 )℃
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity Iv 180 ----- 360 mcd IF =20mA
Viewing Angle 2θ1/2 ----- 120 ----- deg IF =20mA
Peak Wavelength λp ----- 468 ----- nm IF =20mA
Dominant Wavelength λd 464 ----- 472 nm IF =20mA
Notes:
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1
Bandwidth
Forward Voltage V
Reverse Current I
1.Tolerance of Luminous Intensity: ±11%
2.Tolerance of dominant wavelength: ±1nm.
3.Tolerance of Forward Voltage: ±0.05V
Δλ ----- 20 ----- nm IF =20mA
F 2.7 ----- 3.5
R
----- ----- 50 μA VR=5V
V IF =20mA
Release Date:2009-07-08 18:39:06.0
LifecyclePhase:
Expired Period: Forever
Page 4
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Bin Range of Luminous Intensity
Bin Min Max Unit Condition
S1 180 225
S2 225 285
T1 285 360
mcd IF=20mA
Bin Range of Dominant Wavelength
Group Bin Min Max Unit Condition
AA1 464.0 466.0
AA2 466.0 468.0
F
AA3 468.0 470.0
AA4 470.0 472.0
nm IF=20mA
Bin Range of Forward Voltage
Group Bin Min Max Unit Condition
34 2.70 2.80
35 2.80 2.90
36 2.90 3.00
Notes:
1.Tolerance of Luminous Intensity: ±11%
2.Tolerance of dominant wavelength: ±1nm.
3.Tolerance of Forward Voltage: ±0.05V
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1
B14
37 3.00 3.10
V IF=20mA
38 3.10 3.20
39 3.20 3.30
40 3.30 3.40
41 3.40 3.50
Release Date:2009-07-08 18:39:06.0
LifecyclePhase:
Expired Period: Forever
Page 5
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Typical Electro-Optical Characteristics Curves
Spectrum Distribution
100
75
50
25
Relative luminous intensity (%)
0
450 500
400
Wavelength λ (nm)
Relative Luminous Intensity vs.
Ambient Temperature
1000
100
10
Ta=25°C
550
600
Forward Current vs.
Forward Voltage
50
F
40
30
20
Forward Current I (mA)
10
0
2.6
Forward Voltage V (V)
Relative Luminous Intensity vs. Forward Current
1000
f=1KHz
Duty=1/10
100
10
Ta=25°C
3.22.8 3.6
F
Ta=25°C
4.0
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1
Relative luminous intensity (%)
1
-40
Ambient temperature Ta (°c)
50
F
I (mA)
40
30
20
Forward Current
10
0
0
402060 10080
Ambient Temperature T (°C)
8020-20 0 40 60 100
a
Relative luminous intensity (%)
1
1.0
0.9
0.8
0.7
10
0
1
10
Forward current I (mA)
Radiation Diagram
10
0° 10°
2
F
0.40.5 0.3 0.20.1 0.6
10
Ta=25°C 20°
3
30°
40°
50°
60°
70°
80° 90°
Release Date:2009-07-08 18:39:06.0
LifecyclePhase:
Expired Period: Forever
Page 6
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Label Explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank
Pb
CPN : P
N : XXXXXXXXX XXXX
XXXXXXXXXXXXX
QTY : XXX
LOT N O : XXXX XXXX XX
Reference : XXX XXXX X
EVERLIGHT
MADE IN TAIWAN
RoHS
CAT : XXX HUE : XXX REF : XXX
Reel Dimensions
13.0 0.5
2.2 0.5
178.0 1.0
60.0 1.0
9.0 1.0
12.0 1.0
Note: The tolerances unless mentioned is ±0.1mm , Unit = mm
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1 LifecyclePhase:
Release Date:2009-07-08 18:39:06.0 Expired Period: Forever
Page 7
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Carrier Tape Dimensions: Loaded Quantity 2000 pcs Per Reel.
Note: The tolerances unless mentioned is ±0.1mm , Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1 LifecyclePhase:
Release Date:2009-07-08 18:39:06.0 Expired Period: Forever
Page 8
EVERLIGHT ELECTRONICS CO., LTD.
Temp. : 260 ±5 Min.℃ ℃
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Reliability Test Items and Conditions
The reliability of products shall be satisfied with items listed below. Confidence level
LTPD
：10%
：90%
No. Items Test Condition
1 Reflow Soldering
H : +100 15min
2 Temperature Cycle
3 Thermal Shock
4 High Temperature Storage Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1
5 Low Temperature Storage Temp. : -40℃ 1000 Hrs. 22 PCS. 0/1
6 DC Operating Life IF = 20 mA 1000 Hrs. 22 PCS. 0/1
5sec.
℃
∫ 5 min
L : -40 15min℃
H : +100 5min℃
∫ 10 sec
L : -10 5min℃
Test
Hours/Cycles
6 Min. 22 PCS.
300 Cycles
300 Cycles
Sample
Size
22 PCS.
22 PCS. 0/1
Ac/Re
0/1
0/1
7
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1
High Temperature/
High Humidity
85 / 85%RH℃
1000 Hrs.
Release Date:2009-07-08 18:39:06.0
22 PCS. 0/1
LifecyclePhase:
Expired Period: Forever
Page 9
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
Precautions for Use
1.Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big
current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30 or less and 90%RH or less.℃
2.3 After opening the package: The LED's floor life is 1 year under 30 or less and 60% RH or less.℃
If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5 for 24 hours.
℃
3. Soldering Condition
3.1 Pb-free solder temperature profile
1~5 °C / Sec.
260°C. Max.
10 Sec. Max.
1~5 °C / Sec.
Pre-heating
180~200°C
120 Sec. Max.
60 Sec. Max. Above 220°C
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1 LifecyclePhase:
Release Date:2009-07-08 18:39:06.0 Expired Period: Forever
Page 10
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Mini Top View LEDs
65-21/BHC-FS1T1B14/2T
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for℃ 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals,
and do soldering of each terminal. Be careful because the damage of the product is often started at
the time of the hand solder.
5. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand
whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 10
Device No.: DSE-0000698 Prepared date: 05-Jan-2009 Prepared by:Ryan Chen
Revision : 1 LifecyclePhase:
Release Date:2009-07-08 18:39:06.0 Expired Period: Forever
