EVERLIGHT LED SIDE3020 RT Datasheet

Page 1

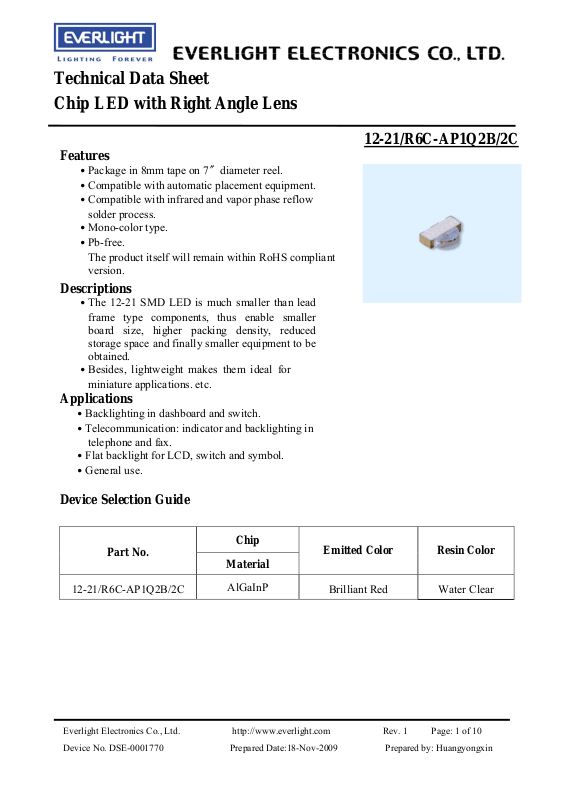

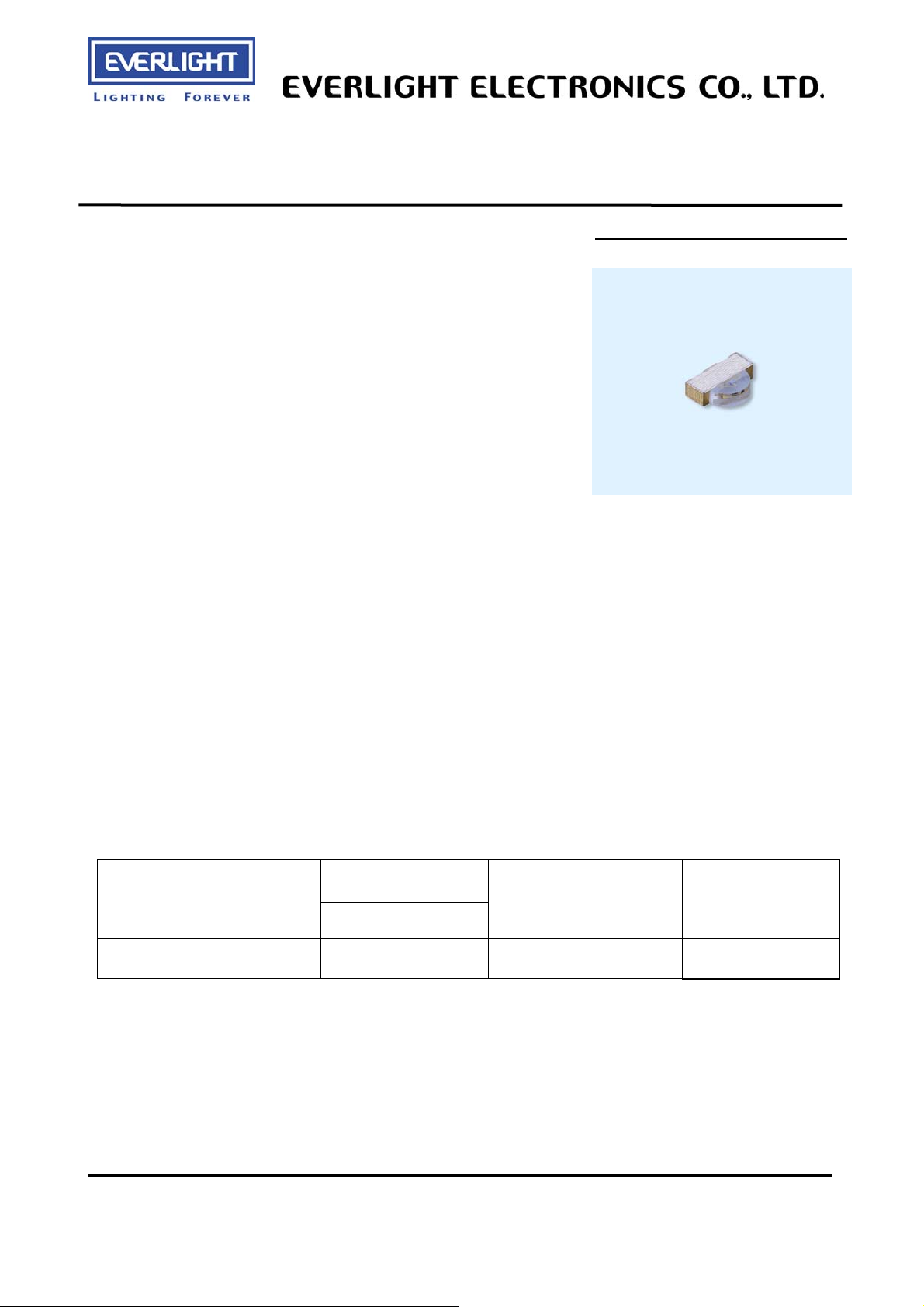

Technical Data Sheet Chip LED with Right Angle Lens
12-21/R6C-AP1Q2B/2C
Features
Compatible with infrared and vapor phase reflow
solder process.
Mono-color type. Pb-free.
The product itself will remain within RoHS compliant
version.
Descriptions
The 12-21 SMD LED is much smaller than lead
frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use.
Device Selection Guide
Chip
Part No.
12-21/R6C-AP1Q2B/2C
Material
AlGaInP
Emitted Color
Brilliant Red Water Clear
Resin Color
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 10
Device No. DSE-0001770 Prepared Date:18-Nov-2009 Prepared by: Huangyongxin
Page 2
12-21/R6C-AP1Q2B/2C

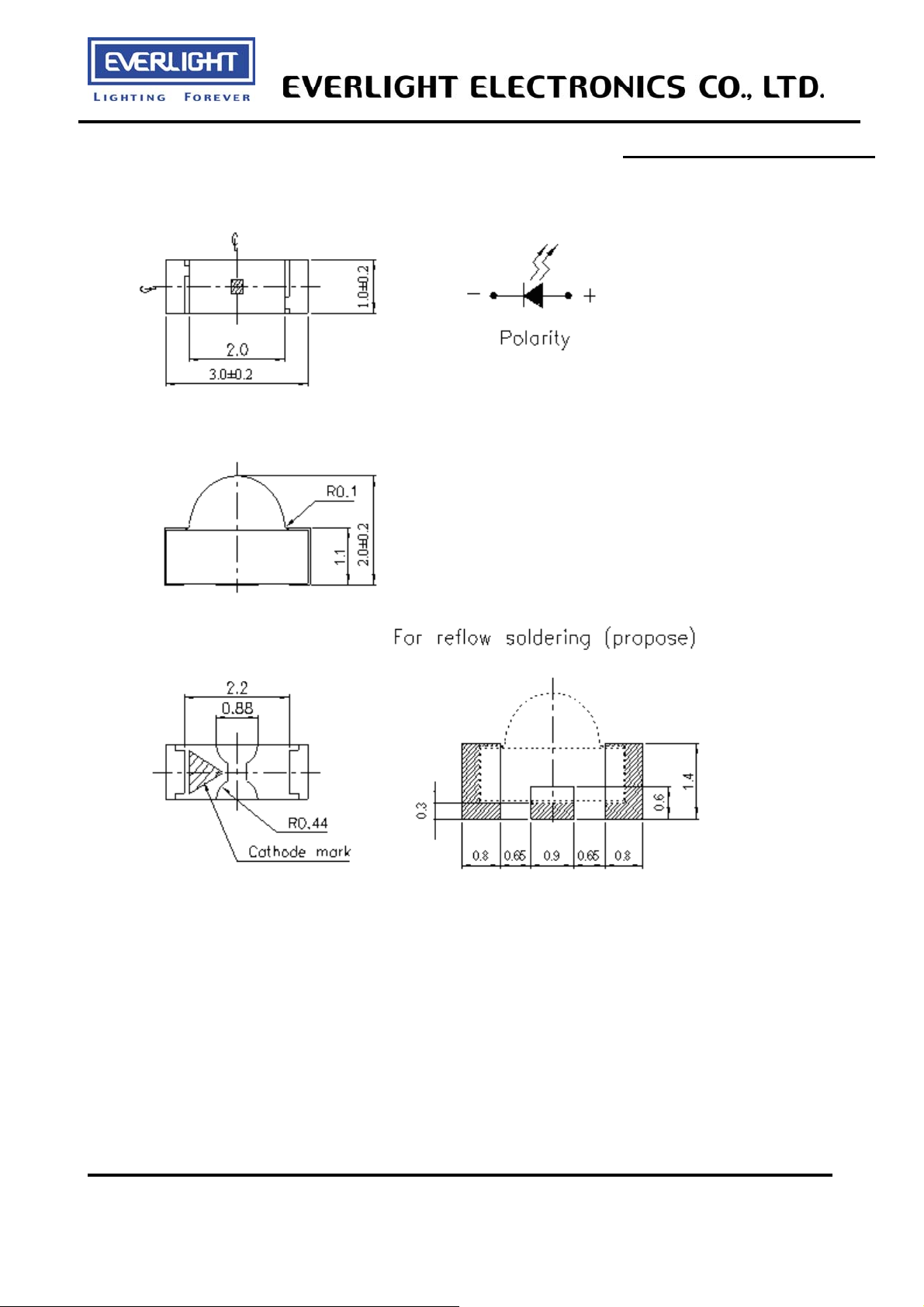

Package Outline Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 3
Absolute Maximum Ratings (Ta=25)
Parameter Symbol Rating Unit
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Soldering Temperature Tsol
VR
IF
IFP
P
d
ESD 2000 V
12-21/R6C-AP1Q2B/2C
5 V
25 mA
60 mA
Reflow Soldering :260 for 10 sec.
Hand Soldering : 350 for 3 sec.
60 mW
Electro-Optical Characteristics (Ta=25)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity
Peak Wavelength λp ---- 632 ---- nm
Dominant Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle 2θ1/2 ---- 120 ---- deg
Forward Voltage VF
Reverse Current IR ---- ---- 10 µA
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage ±0.1V
Iv
λd
λ
45 ----- 112
617.5 ---- 633.5
---- 20 ----
1.75 ---- 2.35
mcd
nm
nm
V
=20mA
I
F
VR=5V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 4
12-21/R6C-AP1Q2B/2C
Bin Range Of Dom. Wavelength
Group Bin Min Max Unit Condition
E4
E5
A
E6 625.5 629.5
E7 629.5 633.5
Bin Range Of Luminous Intensity
Bin Min Max
P1 45 57
P2
Q1
Q2 90 112
57 72
72 90
617.5 621.5
621.5
625.5
nm IF=20mA
Unit
mcd IF=20mA
Condition
Bin Range Of Forward Voltage
Group Bin Min Max Unit Condition
0 1.75 1.95
I
B
1 1.95 2.15
2 2.15 2.35
V
F=20mA
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 5

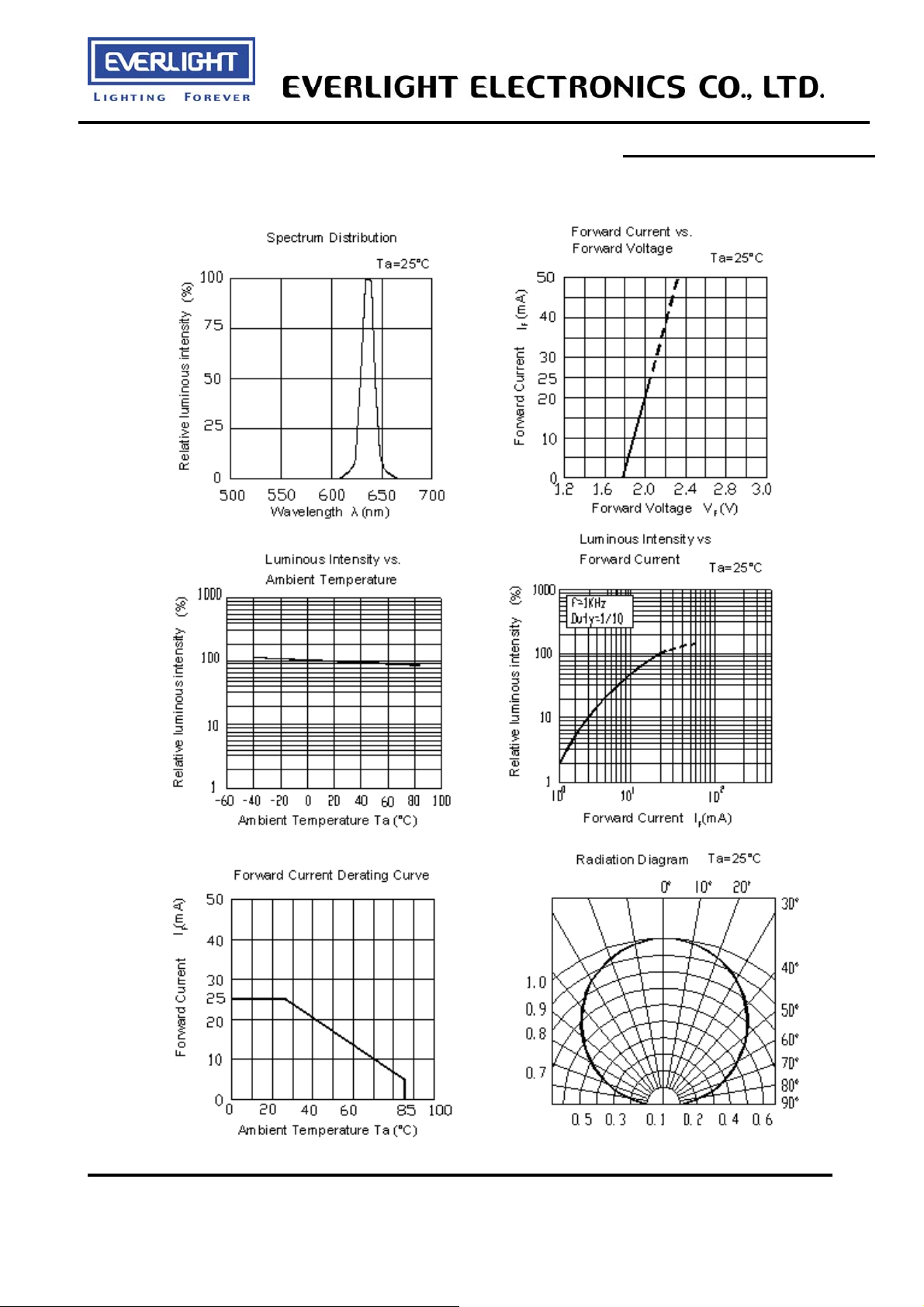

Typical Electro-Optical Characteristics Curves
12-21/R6C-AP1Q2B/2C
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 6
Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank

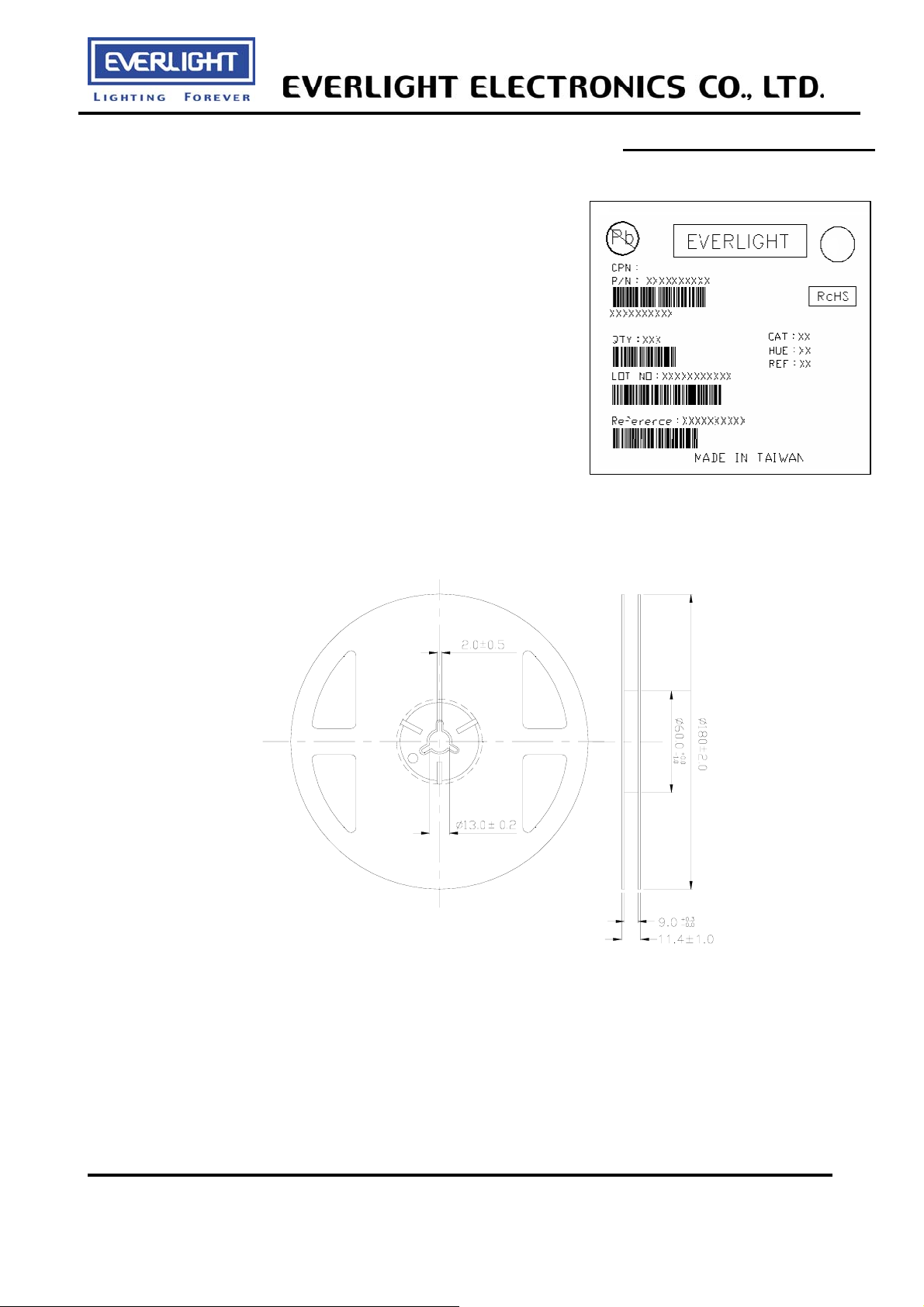

Reel Dimensions
12-21/R6C-AP1Q2B/2C
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 7
12-21/R6C-AP1Q2B/2C

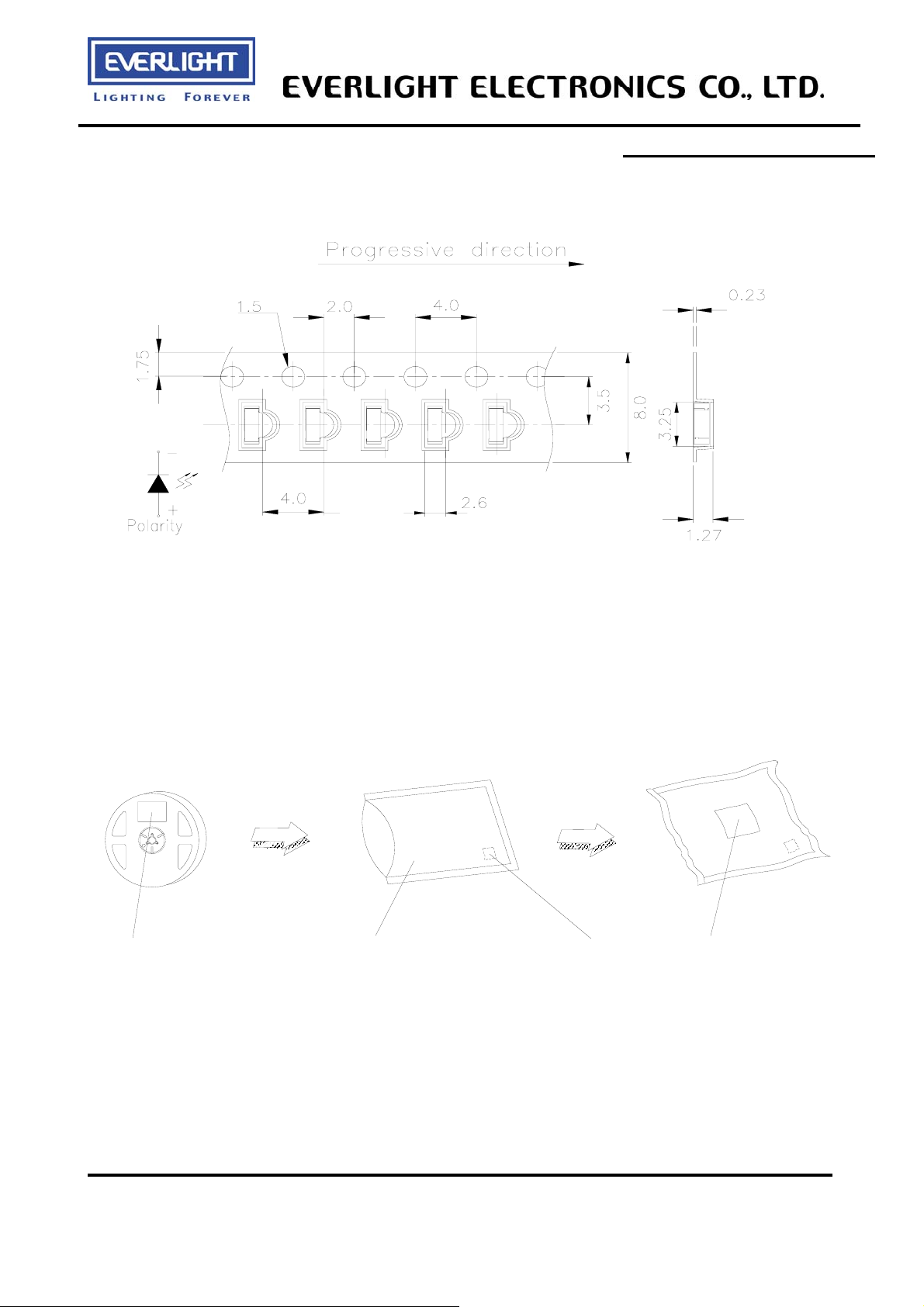

Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 8
12-21/R6C-AP1Q2B/2C
Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below.
Confidence level : 90 % LTPD : 10 %
No. Items Test Condition
Test
Hours/Cycles
Temp. : 260℃±5
1 Reflow Soldering
Min5sec.
6 Min.
H : +100 15min
2 Temperature Cycle
5 min
300 Cycles
L : -40 15min
H : +100 5min
3 Thermal Shock
10 sec
300 Cycles
L : -10 5min
4
High Temperature
Temp. : 100
1000 Hrs.
Storage
5
Low Temperature
Temp. : -40
1000 Hrs.
Storage
6 DC Operating Life IF = 20 mA
1000 Hrs.
Sample
Ac/Rc
Size
22 PCS. 0/1
22 PCS.
22 PCS.
22 PCS.
22 PCS.
22 PCS.
0/1
0/1
0/1
0/1
0/1
7
High Temperature /
85/ 85% RH
1000 Hrs.
22 PCS.
0/1
High Humidity
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 9
12-21/R6C-AP1Q2B/2C
Precautions For Use
1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift will cause big
current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30 or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30 or less and 60% RH or less.
If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

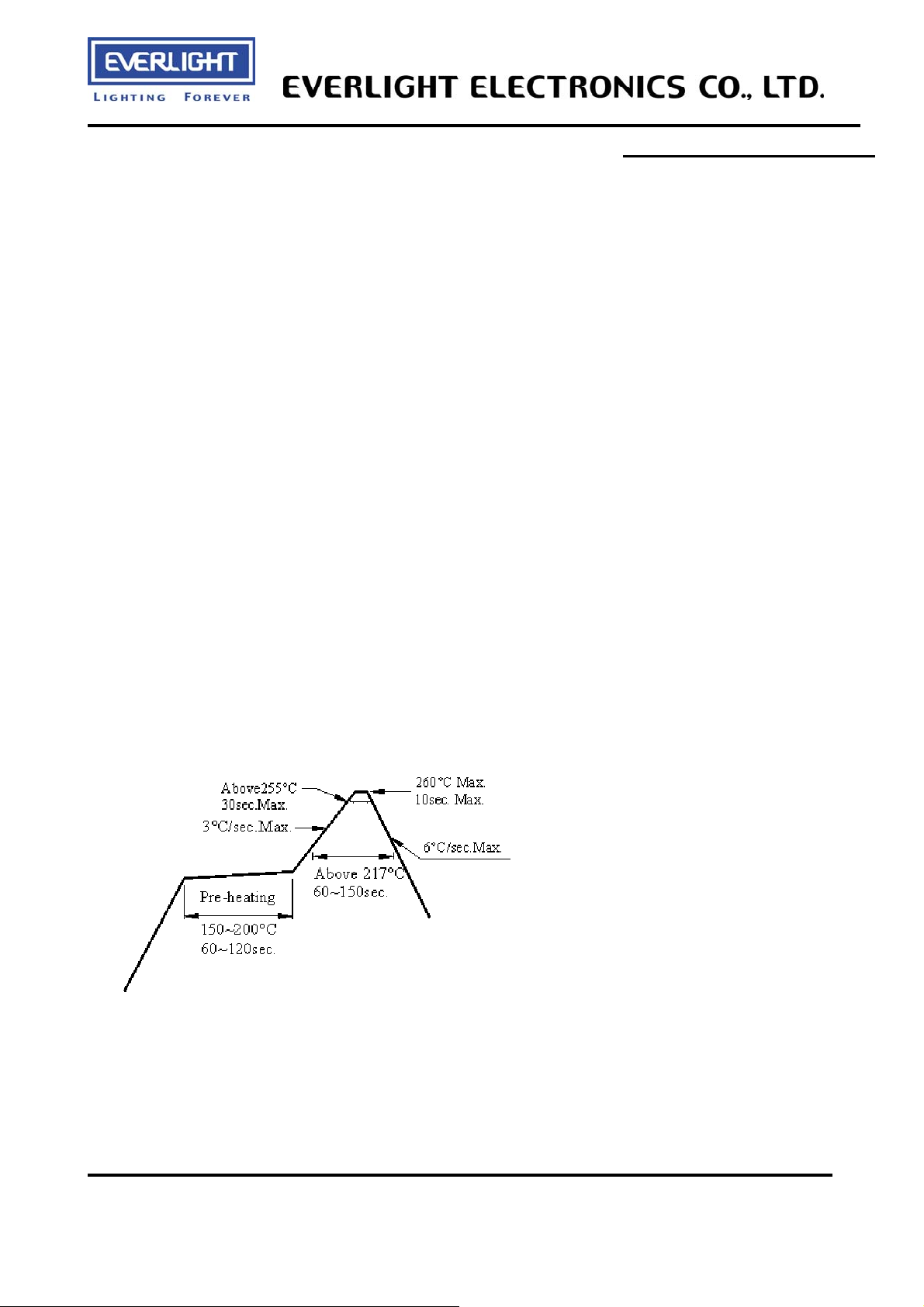

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
Page 10
12-21/R6C-AP1Q2B/2C
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

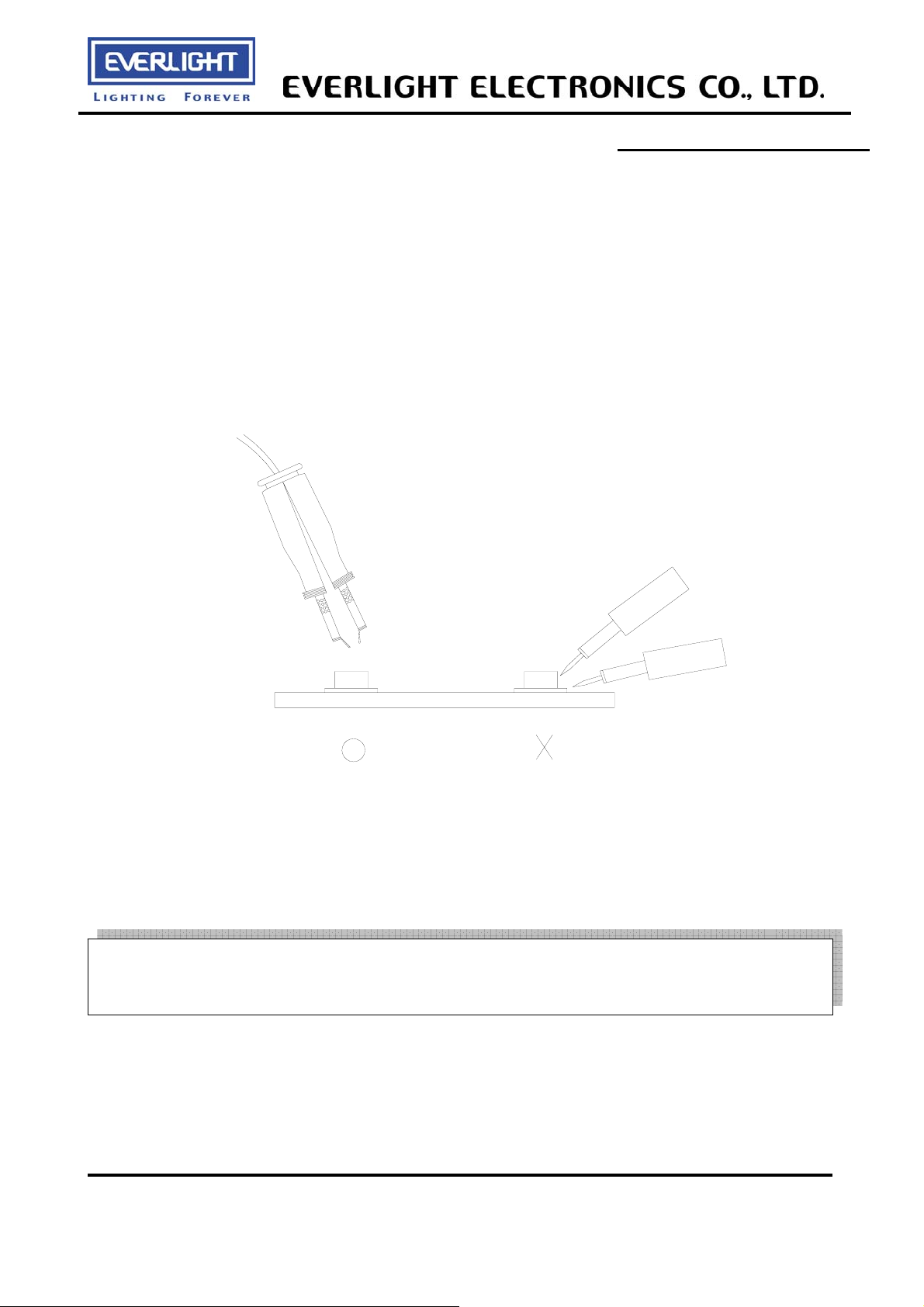

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 10
Device No. : DSE-0001770 Prepared date:18-Nov-2009 Prepared by: Huangyongxin
