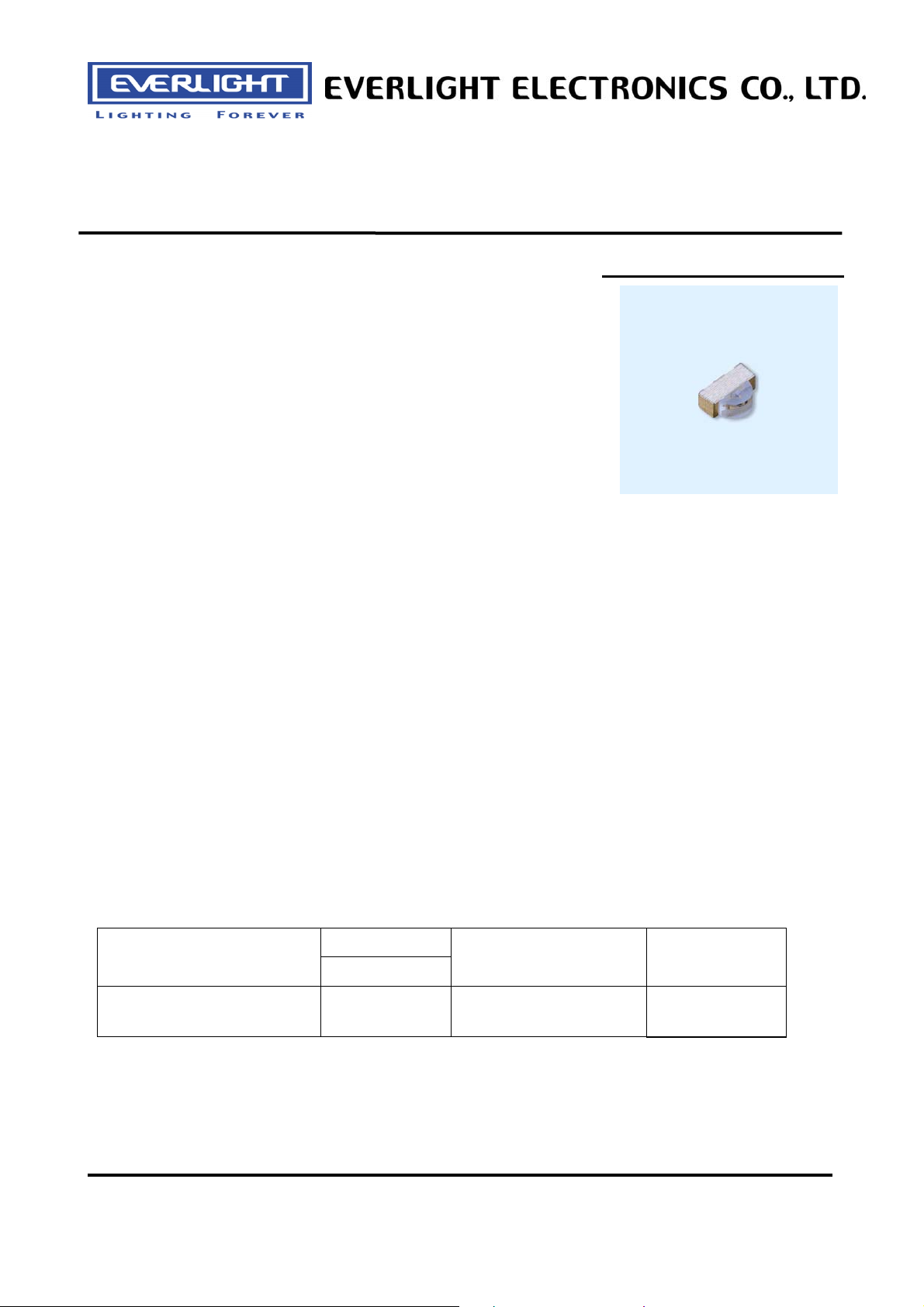

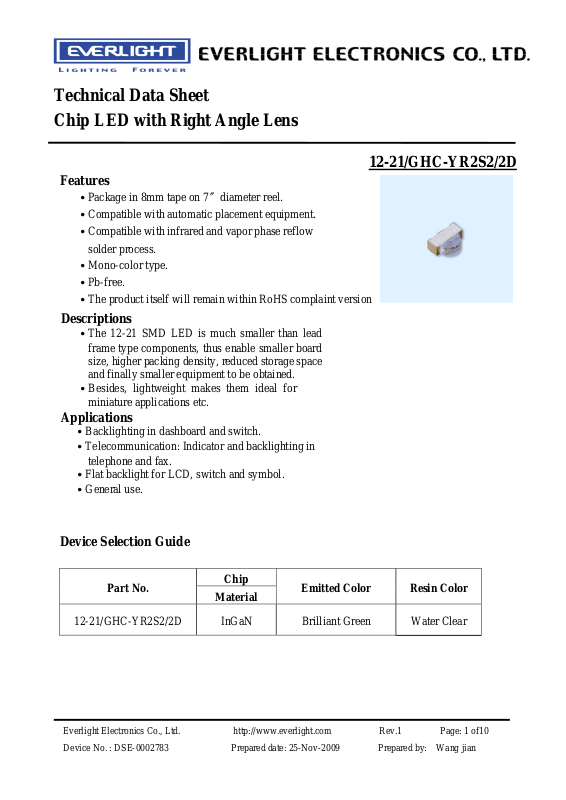

Technical Data Sheet
Chip LED with Right Angle Lens
Features
․Package in 8mm tape on 7 〞diameter reel.
․Compatible with automatic placement equipment.
․Compatible with infrared and vapor phase reflow
solder process.
․Mono-color type.
․Pb-free.
․The product itself will remain within RoHS complaint version
Descriptions
․ The 12-21 SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․ Besides, lightweight makes them ideal for
miniature applications etc.
Applications
․Backlighting in dashboard and switch.
․Telecommunication: Indicator and backlighting in
telephone and fax.
․Flat backlight for LCD, switch and symbol.
․General use.
12-21/GHC-YR2S2/2D
Device Selection Guide
Part No.
12-21/GHC-YR2S2/2D InGaN Brilliant Green Water Clear
Chip
Emitted Color Resin Color
Material
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 1 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 2

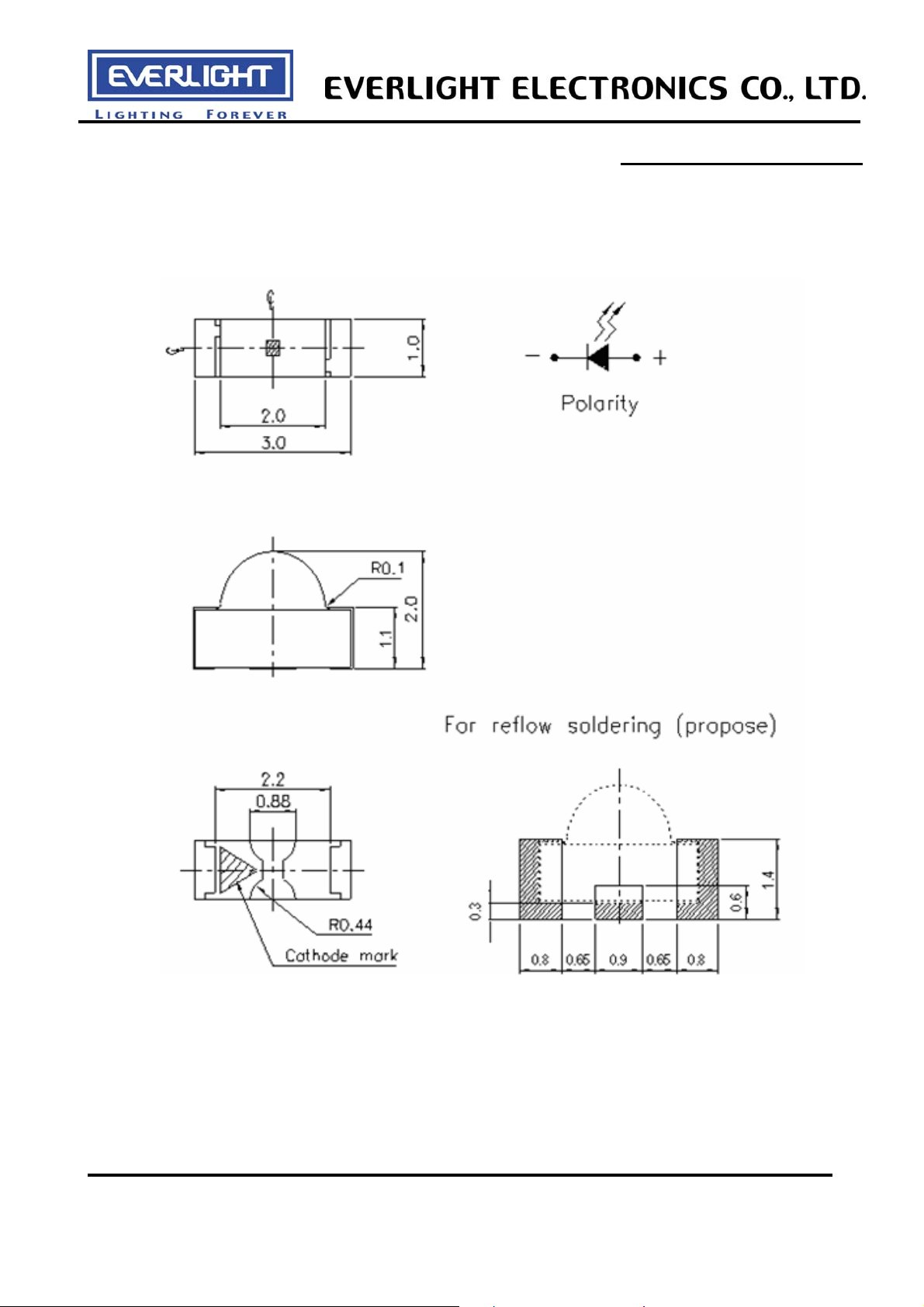

Package Outline Dimensions
12-21/GHC-YR2S2/2D
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 2 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 3
Absolute Maximum Ratings (Ta=25℃ )
Parameter Symbol Rating Unit
12-21/GHC-YR2S2/2D
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Soldering Temperature Tsol
VR
IF
IFP
Pd
ESD 150 V
Reflow Soldering : 260 ℃ for 10 sec.
Hand Soldering : 350 ℃ for 3 sec.
5 V
25 mA
100 mA
95 mW
Electro-Optical Characteristics (Ta=25℃ )
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity
IV 140 ----- 285
mcd
℃
℃
Viewing Angle 2θ 1/2 ---- 120 ---- deg
Peak Wavelength λ p ---- 518 ---- nm
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage VF
Reverse Current IR ---- ---- 50 μA
λd
△λ
520.0 ----- 535.0
---- 35 ----
2.7 3.3 3.7
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Dominant Wavelength ± 1nm
IF=20mA
nm
nm
V
VR=5V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 3 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 4
12-21/GHC-YR2S2/2D
Bin Range Of Dom. Wavelength
Groups Bin Min Max Unit Condition
X 520 525
Y
Y 525 530
Z 530 535
Bin Range Of Luminous Intensity
Bin Min Max Unit Condition
R2
S1
S2
140 180
180 225
225 285
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Dominant Wavelength ± 1nm
nm IF=20mA
mcd IF=20mA
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 4 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 5

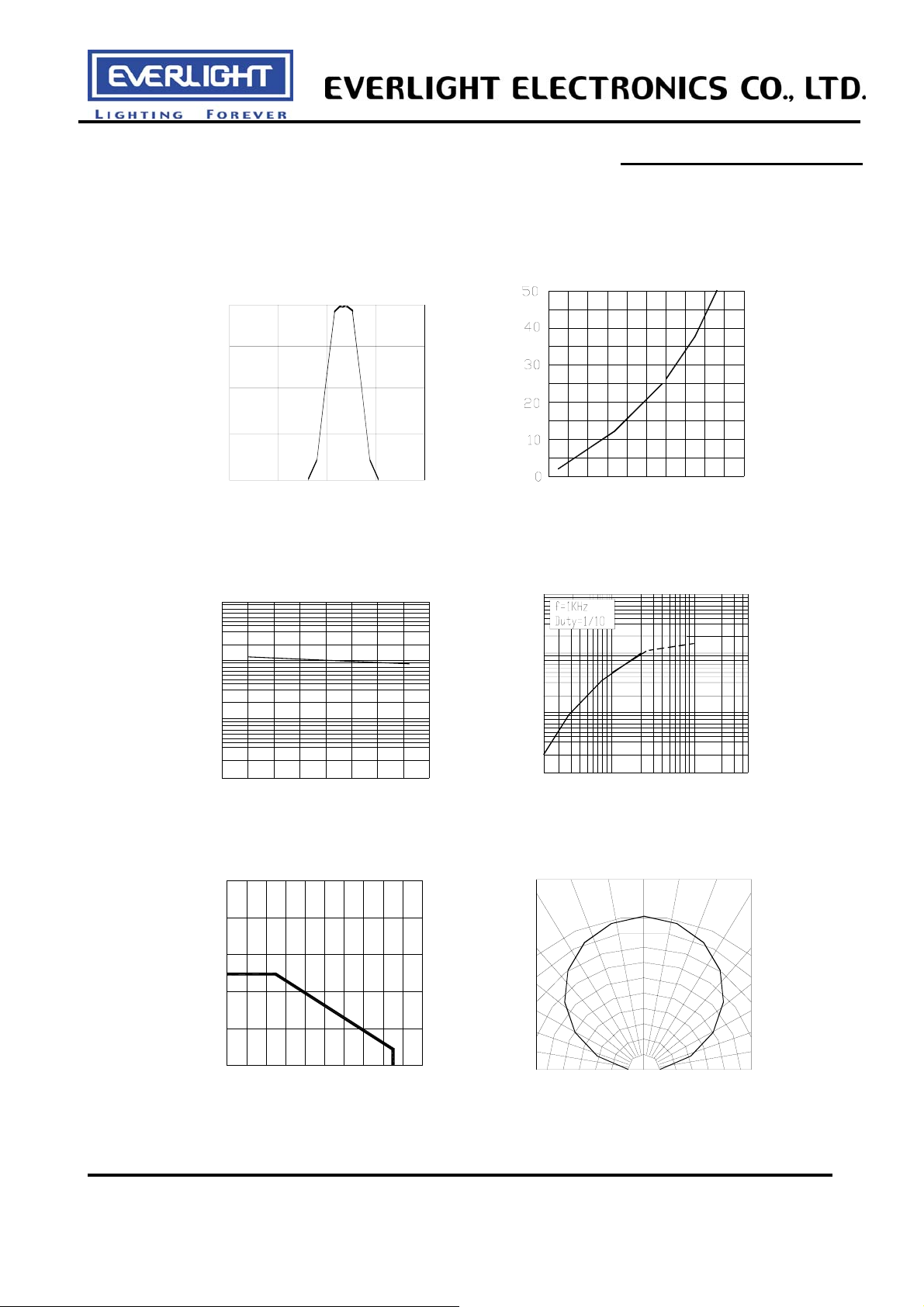

Typical Electro-Optical Characteristics Curves
12-21/GHC-YR2S2/2D
)
%
(
Relative Luminous Intensity
)
%
(
Spectrum Distribution
100
75 50
25
0
400
450 500
Wavelength λ (nm)
Relative Luminous Intensity vs.
1000
100
Ambient Temperature
Ta=25°
550
600
Forward Current vs.
Forward Voltage
F
I (mA)
Forward Current
2.6
24
Forward Voltage( )-volts
Relative Luminous Intensity vs
)
%
(
1000
Forward Current
100
v
F
Ta=25°
4.2 3.4 3.0 3.8
Ta=25°
10
R Relative Luminous Intensity
1
-60
50
F
40
I (mA)
30
20
Forward Current
10
0
-20 -40 0 206040
Ambient Temperature T (°C
Forward Current Derating Curve
0
Ambient Temperature T (°C
402060
100 80
)
a
100 85
)
a
10
Relative luminous intensity
1
0
10
0.7 0.9 0.8 1.0
1
10
Forward Current
Radiation Diagram
0° 10°
2
10
I (mA)
F
20°
0.4 0.3 0.5 0.1 0.2
Ta=25°
30°
40°
50°
60°
70°
80°
90°
0.6
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 5 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 6
Label explanation
12-21/GHC-YR2S2/2D
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

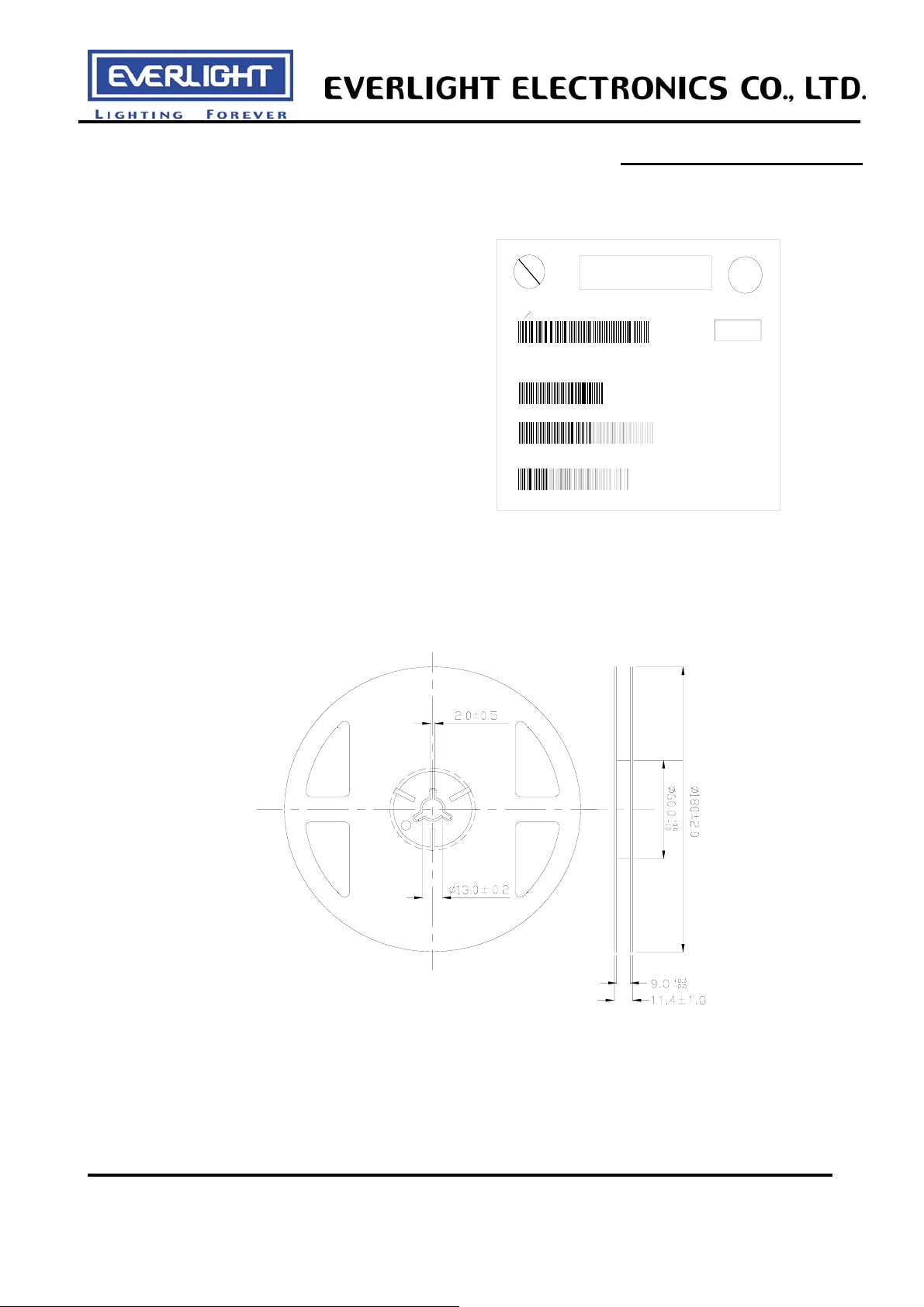

Reel Dimensions
Pb
CPN :
P
N : XXXXXXXXXXXXX
XXXXXXXXXXXXX
QTY : XXX
LOT NO : XXXXXXXXXX
Reference : XXXXXXXX
EVERLIGHT
MADE IN TAIWAN
RoHS
CAT : XXX
HUE : XXX
REF : XXX
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 6 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 7
12-21/GHC-YR2S2/2D

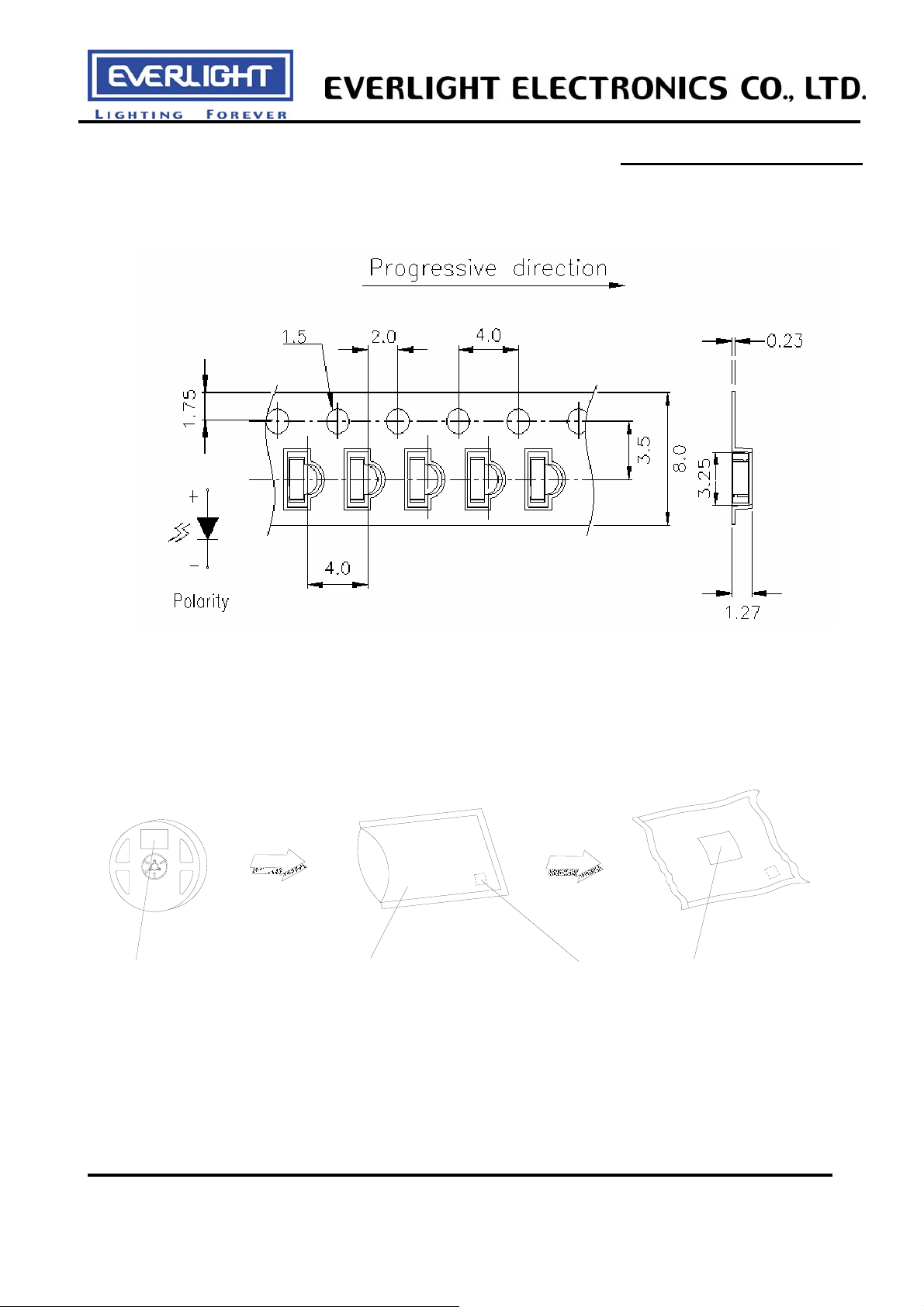

Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 7 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 8
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD: 10%
12-21/GHC-YR2S2/2D
No. Items Test Condition
Test
Hours/Cycles
Temp. : 260℃±5℃
1 Reflow Soldering
Min. 5sec.
6 Min.
H : +100℃ 15min
2 Temperature Cycle
∫ 5 min
300 Cycles
L : -40℃ 15min
H : +100℃ 5min
3 Thermal Shock
∫ 10 sec
300 Cycles
L : -10℃ 5min
4
High Temperature
Temp. : 100℃
1000 Hrs.
Storage
5
Low Temperature
Temp. : -40℃
1000 Hrs.
Storage
6 DC Operating Life IF = 20 mA
1000 Hrs.
Sample
Ac/Re
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
7
High Temperature /
85℃ / 85%RH
1000 Hrs.
22 PCS. 0/1
High Humidity
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 8 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 9
12-21/GHC-YR2S2/2D
Precautions For Use
1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift will cause big
current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.
If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

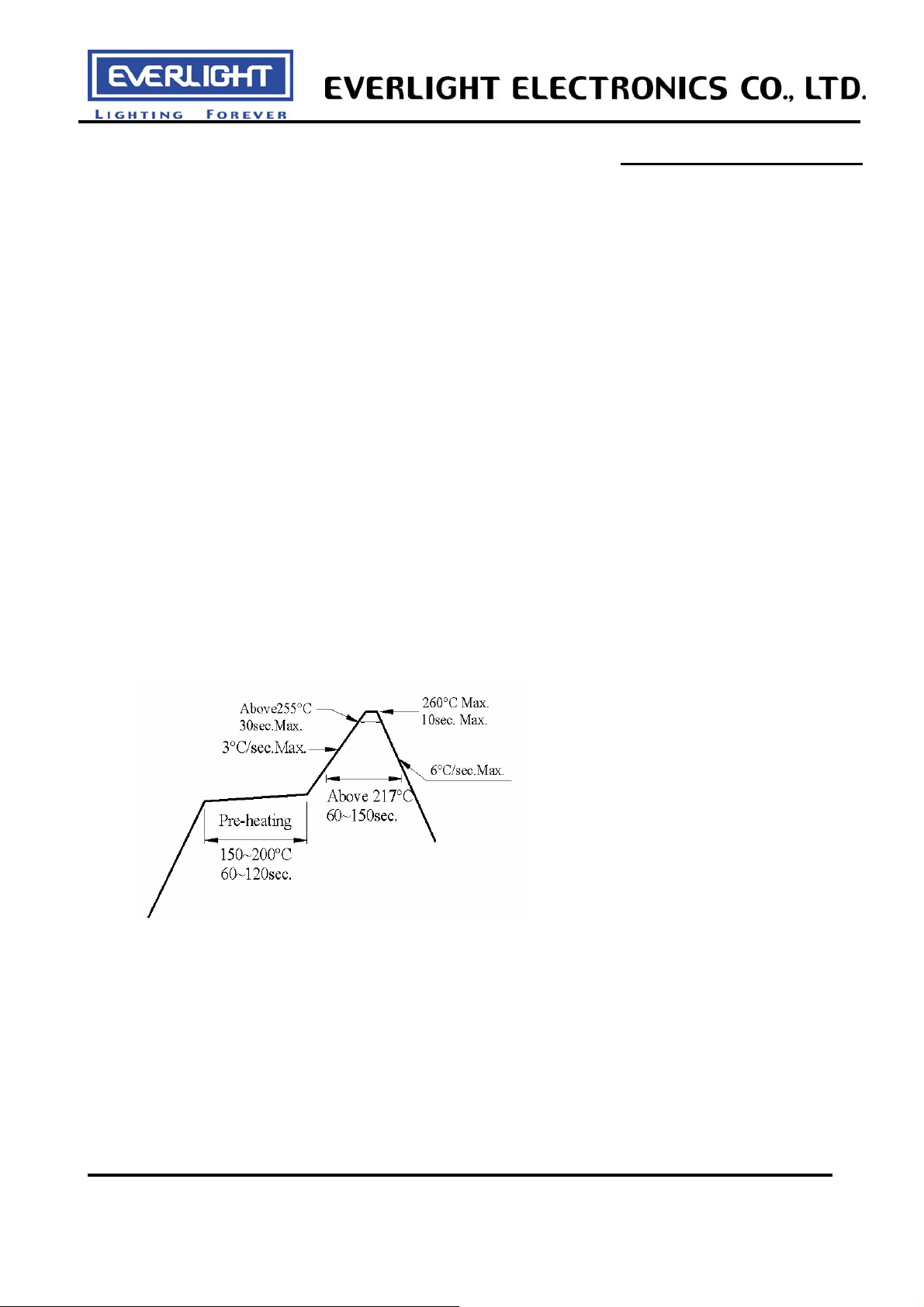

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 9 of10
Device No. : DSE-0002783 Prepared date: 25-Nov-2009 Prepared by: Wang jian
Page 10
12-21/GHC-YR2S2/2D
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do
soldering of each terminal. Be careful because the damage of the product is often started at the time of
the hand solder.
5.Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether
the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 10 of10
