EVERLIGHT LED EL SF 14RT Datasheet

notice.

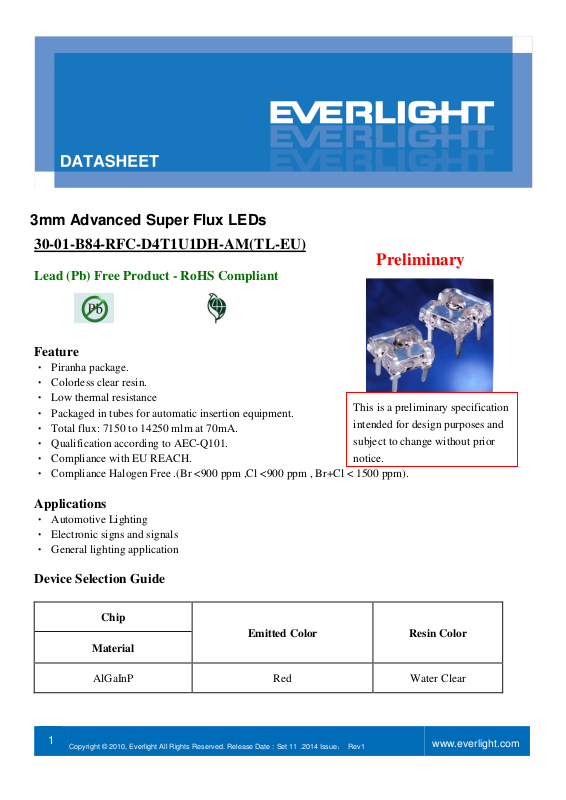

3mm Advanced Super Flux LEDs

30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

Preliminary

Lead (Pb) Free Product - RoHS Compliant

Feature

‧ Piranha package. ‧ Colorless clear resin. ‧ Low thermal resistance ‧ Packaged in tubes for automatic insertion equipment. ‧ Total flux: 7150 to 14250 mlm at 70mA. ‧ Qualification according to AEC-Q101. ‧ Compliance with EU REACH. ‧ Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

‧ Automotive Lighting ‧ Electronic signs and signals ‧ General lighting application

Device Selection Guide

This is a preliminary specification

Preliminary

intended for design purposes and

subject to change without prior

Chip

Emitted Color Resin Color

Material

AlGaInP Red Water Clear

1

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

Absolute Maximum Ratings (Ta=25 )℃℃℃℃

Parameter Symbol Rating Unit

Reverse Voltage VR 12 V

Forward Current IF 70 mA

Power Dissipation Pd

Junction Temperature Tj 120 ℃

Operating Temperature T

Storage Temperature Tstg -40 ~ +110 ℃

Thermal Resistance Rth

ESD

(Classification acc. AEC Q101)

Soldering Temperature T

-40 ~ +100 ℃

opr

150 K/W

J-A

ESD

ESDMM 200 V

2000 V

HBM

sol

210 mW

Wave Soldering : 260 ℃ for 5 sec.

Hand Soldering : 350 for 3 sec.℃

2

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

Electro-Optical Characteristics (Ta=25 )℃℃℃℃

Parameter Symbol

Min. Typ. Max. Unit Condition

Total Flux Φv 7150 --- 14250 mlm IF =70mA

Viewing Angle 2θ

--- 85 --- deg IF =70mA

1/2

Peak Wavelength λp --- 631 --- nm IF =70mA

Dominant Wavelength λd 620 --- 632 nm IF =70mA

Spectrum Radiation Bandwidth ∆λ --- 20 --- nm IF =70mA

Forward Voltage

VF

1.9 --- 2.9 V IF =70mA

Reverse Current IR --- --- 10 µA VR =5V

Note:

1. Tolerance of Total Flux：±11%

2. Tolerance of Dominant Wavelength：±1nm

3. Tolerance of Forward Voltage：±0.1V

3

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

Bin Range of Forward Voltage (Ta=25 )℃℃℃℃

Bin Code Min. Max. Unit Condition

1 1.9 2.1

2 2.1 2.3

3 2.3 2.5

4 2.5 2.7

5 2.7 2.9

Bin Range of Dominant Wavelength (Ta=25 )℃℃℃℃

Bin Code Min. Max. Unit Condition

2 620 624

3 624 628

4 628 632

Note: Tolerance of Dominant Wavelength: ±1nm

Bin Range of Total Flux (Ta=25 )℃℃℃℃

V

nm IF =70mA

IF =70mA

Bin Code Min. Max. Unit Condition

T1 7150 9000

U1 11250 14250

Note: Tolerance of Total Flux: ±11%

4

mlm IF =70mA T2 9000 11250

www.everlight.com

DATASHEET

0

P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

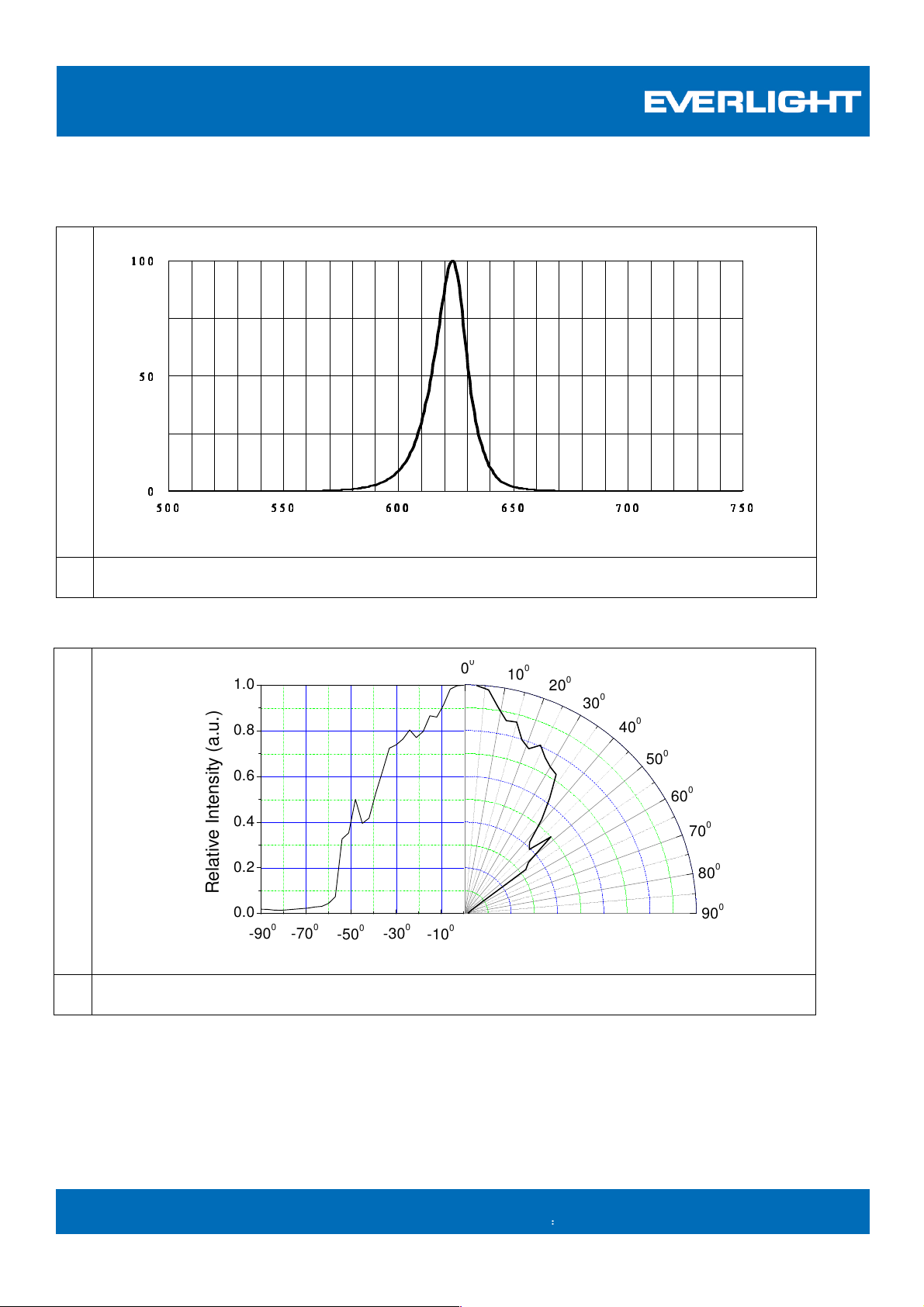

Typical Electro-Optical Characteristics Curves

Typical Curve of Spectral Distribution

1 0 0

1 0 01 0 0

5 0

5 05 0

Relative Intensity(％)

0000

5 0 0

5 0 0 5 5 0

5 0 05 0 0

5 5 0 6 0 0

5 5 05 5 0

6 0 0 6 5 0

6 0 06 0 0

6 5 0 7 0 0

6 5 06 5 0

7 0 0 7 5 0

7 0 07 0 0

7 5 0

7 5 07 5 0

Wavelength(nm)

Diagram Characteristics of Radiation

1.0

0.8

0.6

0.4

0.2

Relative Intensity(a.u)

Relative Intensity (a.u.)

0.0

-90

0

-70

-50

0

-30

View Angle(degree)

0

-10

10

0

20

30

0

40

0

50

0

60

0

70

0

80

0

90

5

www.everlight.com

DATASHEET

1.7

1.9

2.1

2.3

2.5

2.7

P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

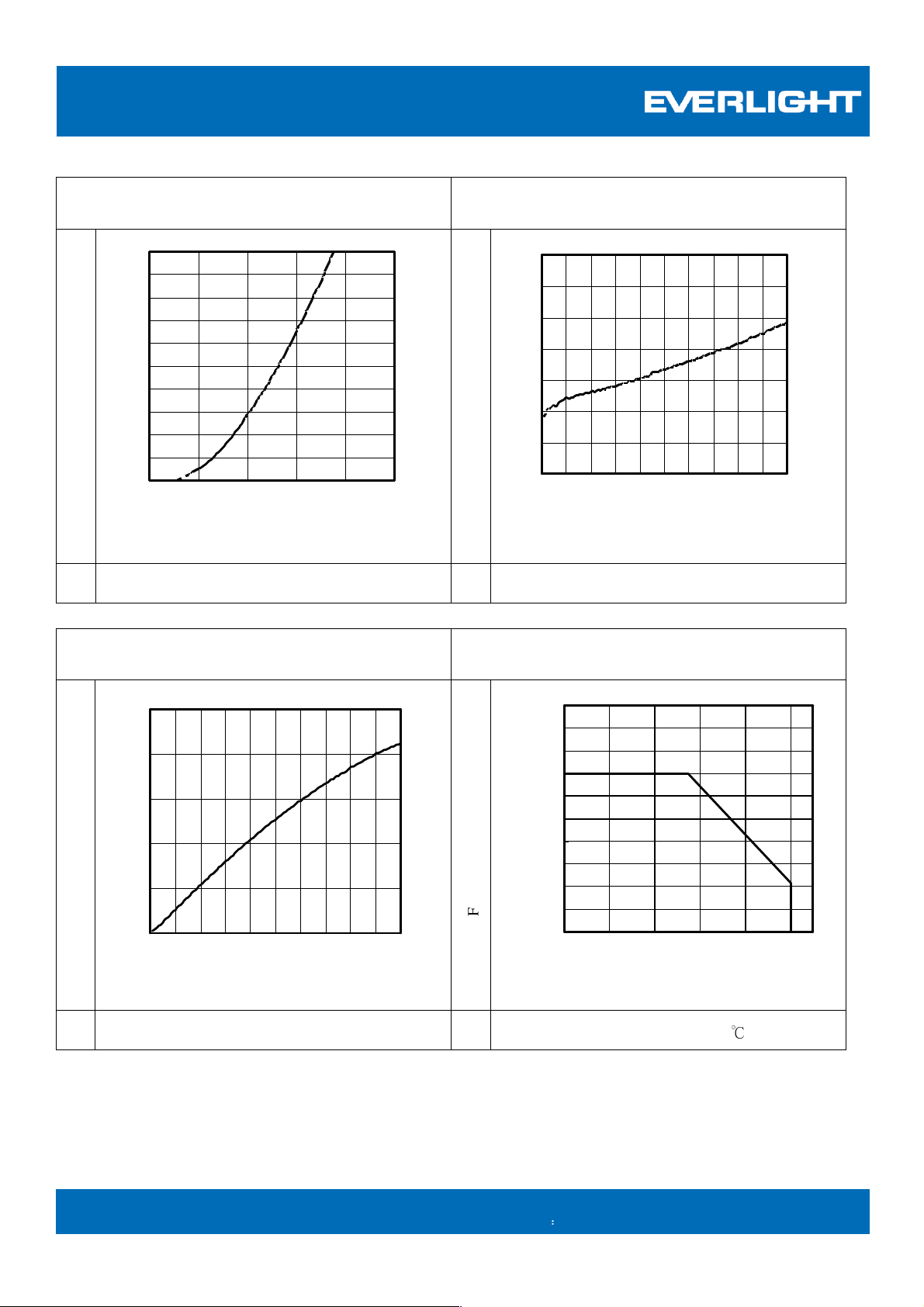

Forward Current vs. Forward Voltage (Ta=25 )℃℃℃℃

100

90

80

70

60

50

40

30

20

10

Forward Current (mA)

0

Forward Voltage (V) Forward Current (mA)

Dominant Wavelength vs. Forward Current (Ta=25 )℃℃℃℃

625

624

623

622

621

620

619

618

Dominant Wavelength (nm)

Relative Luminous Intensity vs. Forward Current (Ta=25 )℃℃℃℃

Max. Permissible Forward Current vs. Ambient Temperature

1.5

1.2

0.9

0.6

0.3

Relative Luminous Intensity

0.0

0 10 20 30 40 50 60 70 80 90 100

Forward Current (mA) Ambient Temperature ( )℃

100.0

90.0

80.0

70.0

60.0

50.0

40.0

30.0

20.0

10.0

Forward Current (mA)

0.0

0.0 20.0 40.0 60.0 80.0 100.0

6

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

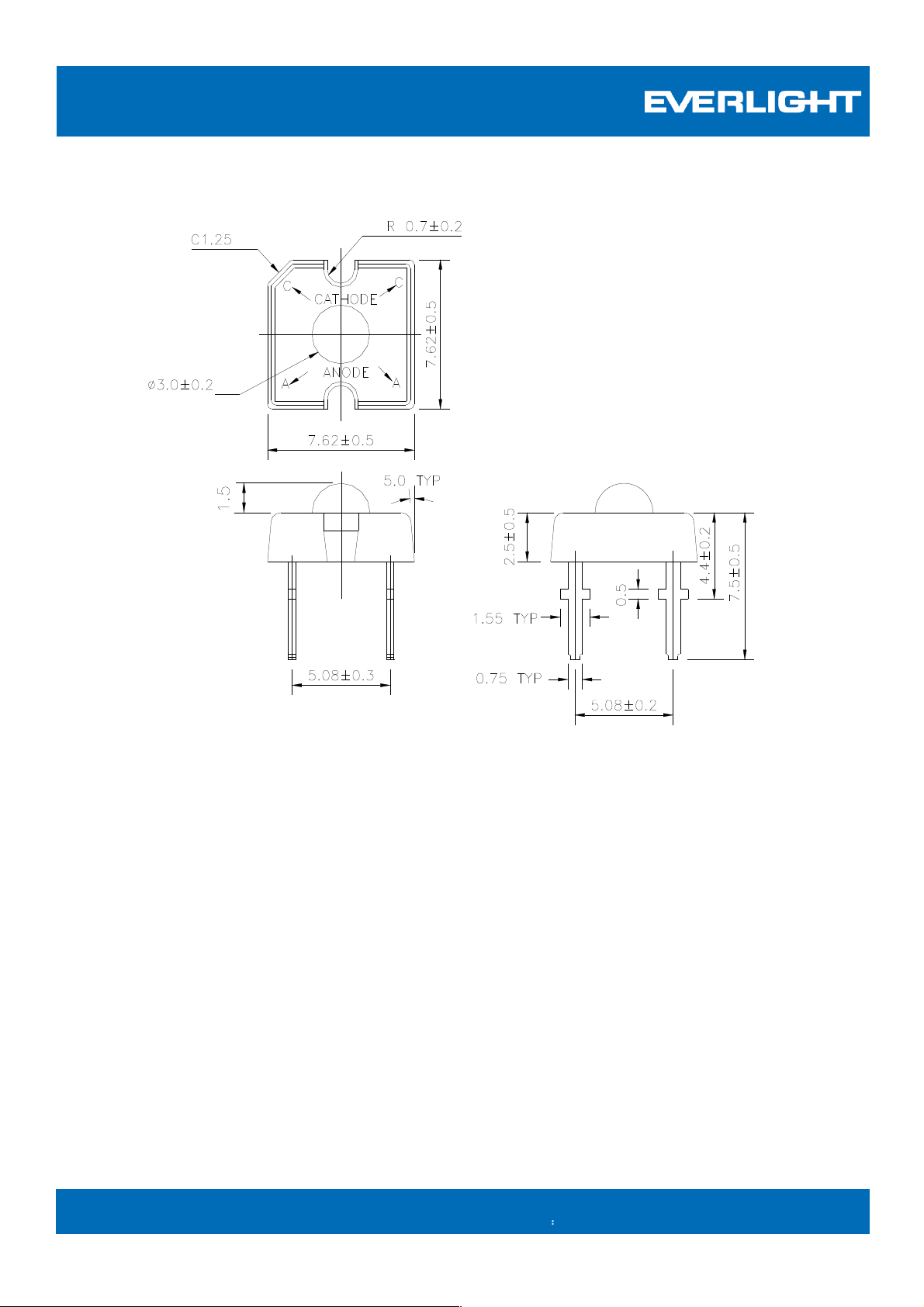

Package Dimension

Notes: 1. An epoxy meniscus may extend about 1.5mm(0.059") down the leads

2. Tolerances unless dimensions ±0.25mm

3. All dimensions are in millimeters

7

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

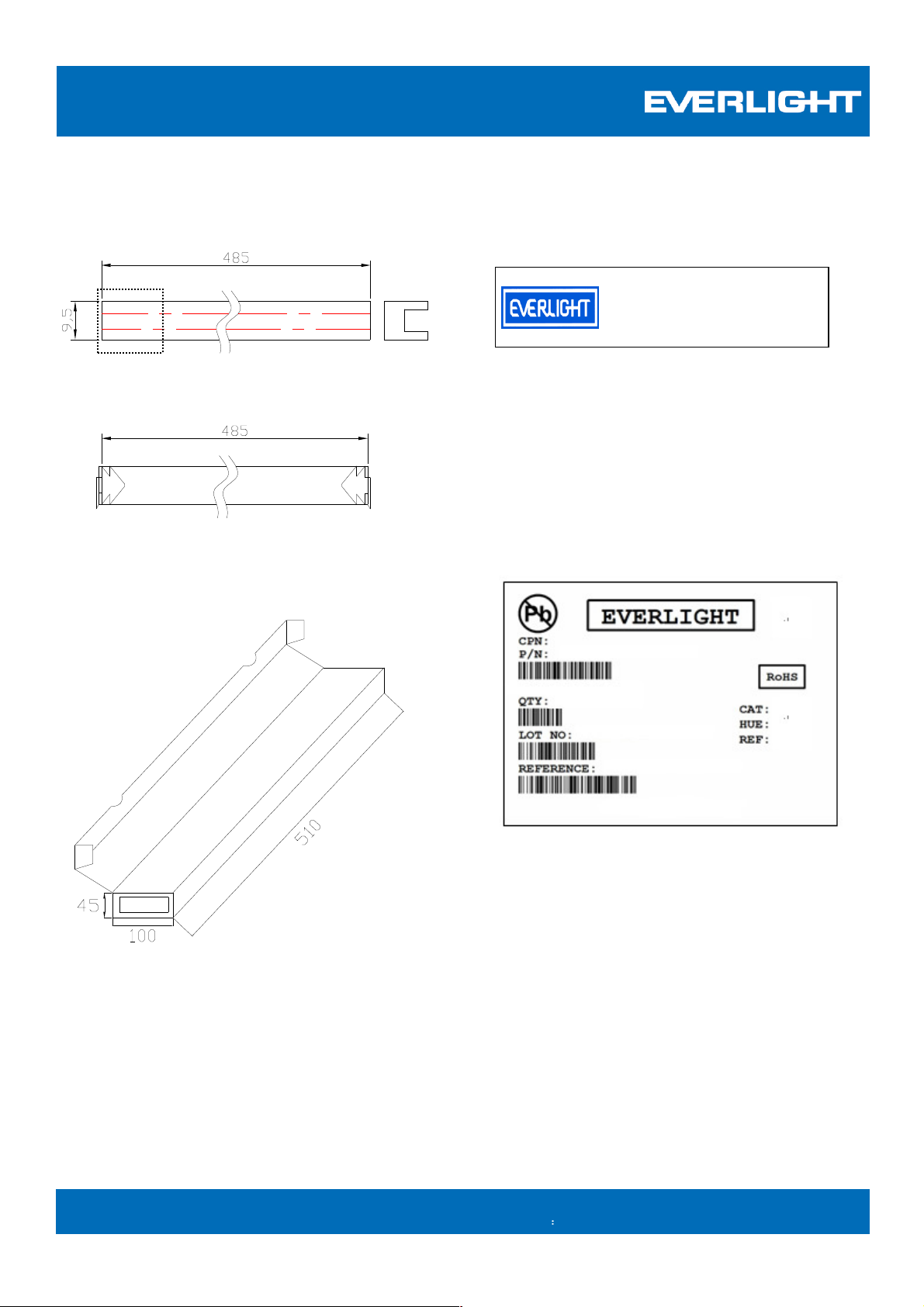

Antistic Packing Materials

Tube

Label area

Note: Tolerances unless mentioned ±2.0mm. Unit = mm

Standard Box

Note: Tolerances unless mentioned ±3.0mm. Unit = mm

PART NO: CAT:

LOT NO: QTY:

Tube Label Explanation

‧ QTY: Packing Quantity ‧ LOT No: Lot Number ‧ CAT: Rank of (VF)(Note*)(ΦV)

Note: λd/CIE/Color temperature

Tube Label Explanation

‧ CPN: Customer’s Product Number ‧ P/N: Product Number ‧ QTY: Packing Quantity ‧ CAT: Rank of (VF)(Note*)(ΦV) ‧ Note: λd/CIE/Color temperature ‧ HUE/REF: Reference ‧ LOT No: Lot Number

8

www.everlight.com

DATASHEET

LED Quantity (Pcs)

P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

Packing Quantity

Packing material Length × Width × height (mm) Tube Quantity (Pcs)

Tube 485 x 9.5 x12 1 60

Standard box 510 x 100 x 45 30 1800

Large box 510 x 150 x 90 90 5400

Note:

1. Normal packing specification is use standard box, unless already defined initially.

2. Vacuum packing with anti-static bag after packing in standard box.

3. Specifications are subject to change without prior notice.

9

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

Notes

1. Lead Forming

 During lead formation, the leads should be bent at a point at least 3mm from the base of the epoxy

bulb.

 Lead forming should be done before soldering.

 Avoid stressing the LED package during leads forming. The stress to the base may damage the

LED’s characteristics or it may break the LEDs.



Cut the LED leadframes at room temperature. Cutting the leadframes at high temperatures may

cause failure of the LEDs.



When mounting the LEDs onto a PCB, the PCB holes must be aligned exactly with the lead

position of the LED. If the LEDs are mounted with stress at the leads, it causes deterioration of the

epoxy resin and this will degrade the LEDs.

2. Storage

 The LEDs should be stored at 30°C or less and 60%RH or less after being shipped from Everlight

and the storage life limits are 3 months. If the LEDs are stored for 3 months or more, they can be

stored for a year in a sealed container with a nitrogen atmosphere and moisture absorbent material.

 Please avoid rapid transitions in ambient temperature, especially, in high humidity environments

where condensation can occur.

3. Soldering

 Careful attention should be paid during soldering. Solder the LED no lower than 1.6mm from the

base of stopper is recommended.

 Avoiding applying any stress to the lead frame while the LEDs are at high temperature particularly

when soldering.

Hand Soldering DIP Soldering

Temp. at tip of iron 300 Max.℃ (30W Max.) Preheat temp. 100 Max.℃ (60 sec Max.)

Soldering time 3 sec Max. Bath temp. 260 Max.

Distance No lower than 1.6mm from

the base of stopper

Distance No lower than 1.6mm from the

Bath time. 5 sec Max.

base of stopper

 Recommended soldering conditions:

 Dip and hand soldering should not be done more than one time.

 After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration

until the LEDs return to room temperature.

 A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.

10

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

 Although the recommended soldering conditions are specified in the above table, dip or

handsoldering at the lowest possible temperature is desirable for the LEDs.

 Wave soldering parameter must be set and maintain according to recommended temperature and

dwell time in the solder wave.

4. Cleaning

 When necessary, cleaning should occur only with isopropyl alcohol at room temperature for a

duration of no more than one minute. Dry at room temperature before use.

 Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of

ultrasonic cleaning on the LEDs depends on factors such as ultrasonic power and the assembled

condition. Ultrasonic cleaning shall be pre-qualified to ensure this will not cause damage to the

LED

5. Heat Management

 Heat management of LEDs must be taken into consideration during the design stage of LED

application. The current should be de-rated appropriately by referring to the de-rating curve found

in each product specification.

 The temperature surrounding the LED in the application should be controlled. Please refer

to the data sheet de-rating curve.

6. ESD (Electrostatic Discharge)

 Electrostatic discharge (ESD) or surge current (EOS) can damage LEDs.

 An ESD wrist strap, ESD shoe strap or antistatic gloves must be worn whenever handling LEDs.

 All devices, equipment and machinery must be properly grounded.



Use ion

plastic le

blower to neutralize the static charge which might have built up on surface of the LEDs

ns as a result of friction between LEDs during storage and handing.

7. Other

 Above specification may be changed without notice. EVERLIGHT will reserve authority on

material change for above specification.

 When using this product, please observe the absolute maximum ratings and the instructions for

using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any

damage resulting from use of the product which does not comply with the absolute maximum

ratings and the instructions included in these specification sheets.

 These specification sheets include materials protected under copyright of EVERLIGHT

corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s

consent.

11

www.everlight.com

DATASHEET P-LED 30-01-B84-RFC-D4T1U1DH-AM(TL-EU)

Revision History

Rev. Modified date File modified contents

1 2014/9/11 New develop
