EVERLIGHT LED EL 5-9000KW Datasheet

Features

Description

Applications

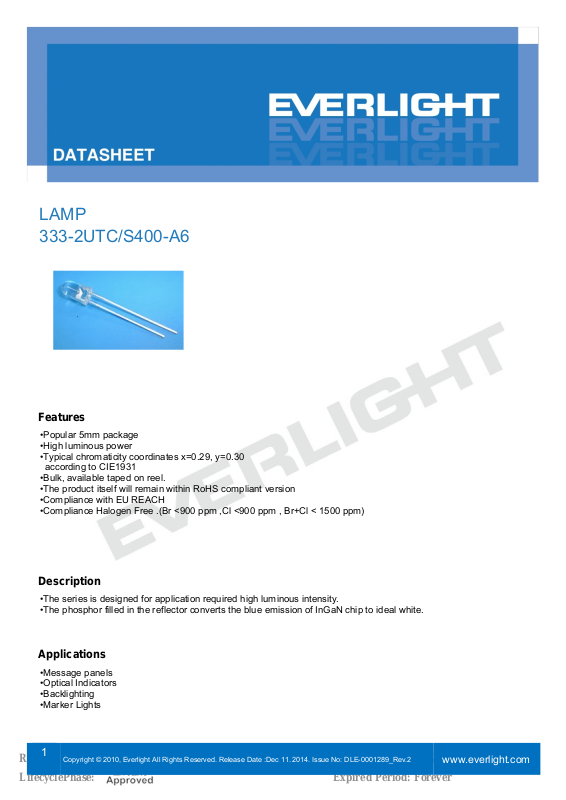

LAMP 333-2UTC/S400-A6

•Popular 5mm package

•High luminous power

•Typical chromaticity coordinates x=0.29, y=0.30 according to CIE1931

•Bulk, available taped on reel.

•The product itself will remain within RoHS compliant version

•Compliance with EU REACH

•Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

•The series is designed for application required high luminous intensity.

•The phosphor filled in the reflector converts the blue emission of InGaN chip to ideal white.

•Message panels

•Optical Indicators

•Backlighting

•Marker Lights

1

Revision : 2 LifecyclePhase:

Release Date:2014-12-16 11:00:53.0 Expired Period: Forever

www.everlight.com

DATASHEET

Device Selection Guide

Absolute Maximum Ratings (Ta=25 )℃

LAMP 333-2UTC/S400-A6

Chip

Materials

InGaN White White clear

Parameter Symbol Rating Unit

Continuous Forward Current IF

Peak Forward Current (Duty 1/10 @ 1KHZ) IFP

Reverse Voltage VR

Power Dissipation Pd

Operating Temperature T

Storage Temperature Tstg

Zener Reverse Current I

Soldering Temperature

Emitted Color Resin Color

opr

T

sol

30

100

5

100

-40 ~ +85

-40 ~ +100

z

100 mA

260 ℃ for 5 sec.

mA

V

mW

℃ ℃

2

Revision : 2

LifecyclePhase:

Release Date:2014-12-16 11:00:53.0

www.everlight.com

Expired Period: Forever

DATASHEET

Electro

Bin Range of Luminous Intensity

Forward Voltage Combination

LAMP 333-2UTC/S400-A6

-Optical Characteristics (Ta=25 )℃

Parameter Symbol Min. Typ. Max. Unit Condition

θ1/2

2

VF

IR

VZ

IV

x y

2.8 ----- 3.6

----- ----- 50

5.3 ----- 7.1

3600 ---- 9000

---- 15 ----

---- 0.29 ----

---- 0.30 ----

Forward Voltage

Reverse Current

Zener Reverse Voltage

Luminous Intensity

Viewing Angle

Chromaticity Coordinates

Measurement Uncertainty of Luminous Intensity: ±10%

Bin Code Min. Max. Unit Condition

Q R

3600 4500

4500 5650 S 5650 7150 T 7150 9000

Note: Tolerance of Luminous Intensity: ±10%

V I

uA VR=5V

V Iz=5mA

mcd I

deg IF=20mA

----

mcd IF=20mA

=20mA

F

=20mA

F

IF=20mA

Bin Code Min. Max. Unit Condition

0 2.8 3.0 1 3.0 3.2 2 3.2 3.4 3 3.4 3.6

Note:

Measurement Uncertainty of Forward Voltage：±0.1V

3

Revision : 2

LifecyclePhase:

V I

Release Date:2014-12-16 11:00:53.0

www.everlight.com

=20mA

F

Expired Period: Forever

DATASHEET

CIE Chromaticity Diagram

LAMP 333-2UTC/S400-A6

Note:

1. Measurement uncertainty of the color coordinates：±0.01

4

Revision : 2

LifecyclePhase:

Release Date:2014-12-16 11:00:53.0

www.everlight.com

Expired Period: Forever

DATASHEET

Typical Electro

LAMP 333-2UTC/S400-A6

-Optical Characteristcs Curves

Relative Intensity vs. Wavelength (Ta=25 )℃ Directivity (Ta=25 )℃

1.0

0.8

0.6

0.4

0.2

Radiation Angle

Relative Intensity (a.u.)

0.0 350 400 450 500 550 600 650 700 750 800

Wavelength (nm) Relative Intensity (a.u.)

Forward Current vs. Forward Voltage (Ta=25 )℃ Relative Intensity vs. Forward Current (Ta=25 )℃

25

20

15

10

5

Forward Current (mA)

0

2.0 2.5 3.0 3.5 4.0 4.5

1.5

1.0

0.5

Relative Intensity(a.u.)

0.0 0 5 10 15 20 25

Chromaticity Coordinate vs. Forward Current(Ta=25 )℃

Chromaticity Coordinate

5

Revision : 2

LifecyclePhase:

Forward Voltage (V) Forward Current (mA)

Forward Current vs. Ambient Temp.

Forward Current (mA)

Release Date:2014-12-16 11:00:53.0

www.everlight.com

Expired Period: Forever

DATASHEET

Package Dimension

LAMP 333-2UTC/S400-A6

Forward Current (mA)

Ambient Temperature Ta(

℃)

Note: Note:

1.All dimensions are in millimeters, and tolerance is

2.Lead spacing is measured where the lead emerges from the package.

3.Protruded resin under flange is 1.5mm Max. LED.

6

Revision : 2

LifecyclePhase:

±0.25mm except being specified.

Release Date:2014-12-16 11:00:53.0 Expired Period: Forever

www.everlight.com

DATASHEET

Moisture Resistant Packing Materials

Label Explanation

Packing Specification

LAMP 333-2UTC/S400-A6

Pb

EVERLIGHT

RoHS

‧CPN: Customer’s Production Number ‧P/N : Production Number

X

‧QTY: Packing Quantity ‧CAT: Ranks of Luminous Intensity ‧HUE: Color Rank ‧ Forward Voltage

REF: LOT No: Lot Number

‧

■ Anti-electrostatic bag ■ Inner Carton ■ Outside Carton

Pb

EL ECTROSTATIC ELECTRONAGNETIC MAGNETIC OR RADIOACTIVE RELDS

anti-static for 750

■ Packing Quantity

1. Min200-Max500 PCS/1 Bag, 5Bags/1 Inner Carton

2. 10 Inner Cartons/1 Outside Carton

7

Revision : 2

LifecyclePhase:

Release Date:2014-12-16 11:00:53.0

www.everlight.com

Expired Period: Forever

DATASHEET

Notes

LAMP 333-2UTC/S400-A6

1. Lead Forming  During lead formation, the leads should be bent at a point at least 3mm from the base of the

epoxy bulb.

 Lead forming should be done before soldering.

 Avoid stressing the LED package during leads forming. The stress to the base may damage

the LED’s characteristics or it may break the LEDs.

 Cut the LED leadframes at room temperature. Cutting the leadframes at high temperatures

may cause failure of the LEDs.

 When mounting the LEDs onto a PCB, the PCB holes must be aligned exactly with the lead

position of the LED. If the LEDs are mounted with stress at the leads, it causes deterioration

of the epoxy resin and this will degrade the LEDs.

2. Storage  The LEDs should be stored at 30°C or less and 70%RH or less after being shipped from

Everlight and the storage life limits are 3 months. If the LEDs are stored for 3 months or more,

they can be stored for a year in a sealed container with a nitrogen atmosphere and moisture

absorbent material.

 Please avoid rapid transitions in ambient temperature, especially, in high humidity

environments where condensation can occur.

3. Soldering  Careful attention should be paid during soldering. When soldering, leave more then 3mm

from solder joint to epoxy bulb, and soldering beyond the base of the tie bar is

recommended.

 Recommended soldering conditions:

Hand Soldering DIP Soldering

Temp. at tip of iron

300 Max. (30W℃

Max.)

Preheat temp.

Soldering time 3 sec Max. Bath temp. & time

3mm Min.(From

Distance

solder joint to

Distance

epoxy bulb)

100 Max. (60 sec℃

Max.)

260 Max., 5 sec

Max

3mm Min. (From

solder joint to epoxy

bulb)

8

Revision : 2 LifecyclePhase:

Release Date:2014-12-16 11:00:53.0 Expired Period: Forever

www.everlight.com

DATASHEET LAMP 333-2UTC/S400-A6

 Recommended soldering profile

laminar wave

Fluxing

Prehead

 Avoiding applying any stress to the lead frame while the LEDs are at high temperature

particularly when soldering.

 Dip and hand soldering should not be done more than one time

 After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or

vibration until the LEDs return to room temperature.

 A rapid-rate process is not recommended for cooling the LEDs down from the peak

temperature.

 Although the recommended soldering conditions are specified in the above table, dip or

handsoldering at the lowest possible temperature is desirable for the LEDs.

 Wave soldering parameter must be set and maintain according to recommended

temperature and dwell time in the solder wave.

4. Cleaning  When necessary, cleaning should occur only with isopropyl alcohol at room temperature for

a duration of no more than one minute. Dry at room temperature before use.

 Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of

ultrasonic cleaning on the LEDs depends on factors such as ultrasonic power and the

assembled condition. Ultrasonic cleaning shall be pre-qualified to ensure this will not cause

damage to the LED

5. Heat Management  Heat management of LEDs must be taken into consideration during the design stage of

LED application. The current should be de-rated appropriately by referring to the de-rating

curve found in each product specification.

 The temperature surrounding the LED in the application should be controlled. Please refer

9

Revision : 2

LifecyclePhase:

Release Date:2014-12-16 11:00:53.0

www.everlight.com

Expired Period: Forever

DATASHEET LAMP 333-2UTC/S400-A6

to the data sheet de-rating curve.

6. Circuit Protection  Below the zener reference voltage Vz, all the current flows through LED and as the voltage

rises to Vz, the zener diode “breakdown." If the voltage tries to rise above Vz current flows

through the zener branch to keep the voltage at exactly Vz.

 When the LED is connected using serial circuit, if either piece of LED is no light up but

current can’t flow through causing others to light down. In new design, the LED is parallel

with zener diode. if either piece of LED is no light up but current can flow through causing

others to light up.

7. ESD (Electrostatic Discharge)  The products are sensitive to static electricity or surge voltage. ESD can damage a die and

its reliability.

When handling the products, the following measures against electrostatic discharge are

strongly recommended:

Eliminating the charge

Grounded wrist strap, ESD footwear, clothes, and floors

Grounded workstation equipment and tools

ESD table/shelf mat made of conductive materials

 Proper grounding is required for all devices, equipment, and machinery used in product

assembly.

10

Revision : 2

LifecyclePhase:

Release Date:2014-12-16 11:00:53.0

www.everlight.com

Expired Period: Forever

DATASHEET LAMP 333-2UTC/S400-A6

Surge protection should be considered when designing of commercial products.

 If tools or equipment contain insulating materials such as glass or plastic,

the following measures against electrostatic discharge are strongly recommended:

Dissipating static charge with conductive materials

Preventing charge generation with moisture

Neutralizing the charge with ionizers

8. Directions for use

The LEDs should be operated with forward bias. The driving circuit must be designed so

that the

LEDs are not subjected to forward or reverse voltage while it is off. If reverse voltage is

continuously

applied to the LEDs, it may cause migration resulting in LED damage.

9. Other  Above specification may be changed without notice. EVERLIGHT will reserve authority on

material change for above specification.

 When using this product, please observe the absolute maximum ratings and the

instructions for using outlined in these specification sheets. EVERLIGHT assumes no

responsibility for any damage resulting from use of the product which does not comply

with the absolute maximum ratings and the instructions included in these specification

sheets.

 These specification sheets include materials protected under copyright of EVERLIGHT

corporation. Please don’t reproduce or cause anyone to reproduce them without

EVERLIGHT’s consent.

11

Revision : 2

LifecyclePhase:

Release Date:2014-12-16 11:00:53.0

www.everlight.com

Expired Period: Forever
