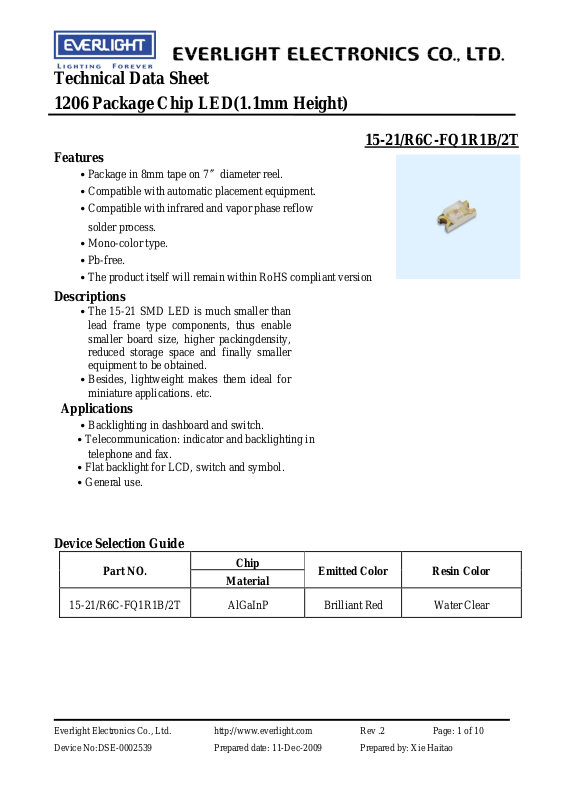

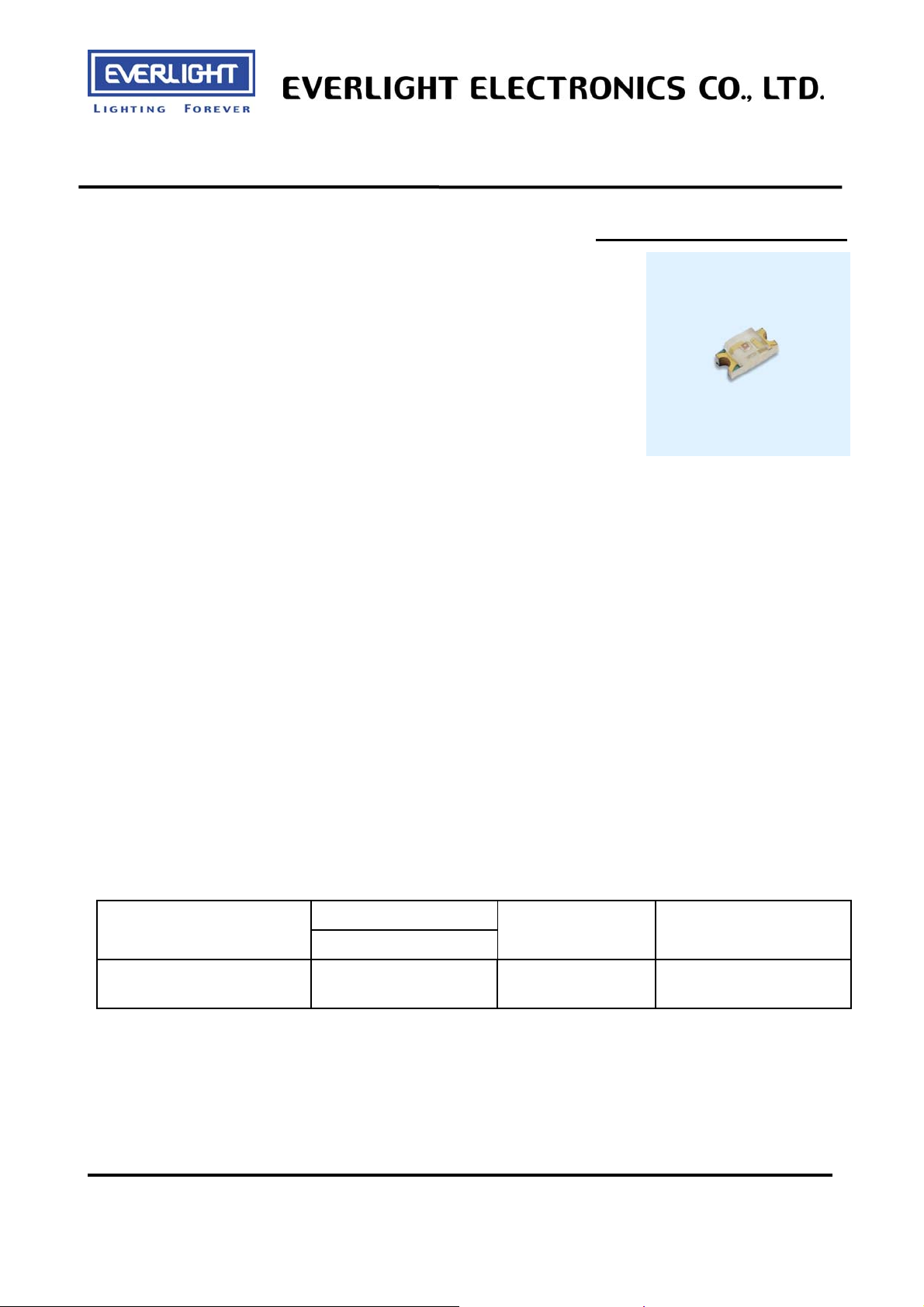

Technical Data Sheet
1206 Package Chip LED(1.1mm Height)

Features

․Package in 8mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.
․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type.
․Pb-free.
․The product itself will remain within RoHS compliant version

Descriptions

․The 15-21 SMD LED is much smaller than

lead frame type components, thus enable
smaller board size, higher packingdensity,
reduced storage space and finally smaller
equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting in dashboard and switch.

․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.
․General use.

15-21/R6C-FQ1R1B/2T

Device Selection Guide

Part NO.

15-21/R6C-FQ1R1B/2T AlGaInP Brilliant Red Water Clear

Chip

Emitted Color Resin Color

Material

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 1 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

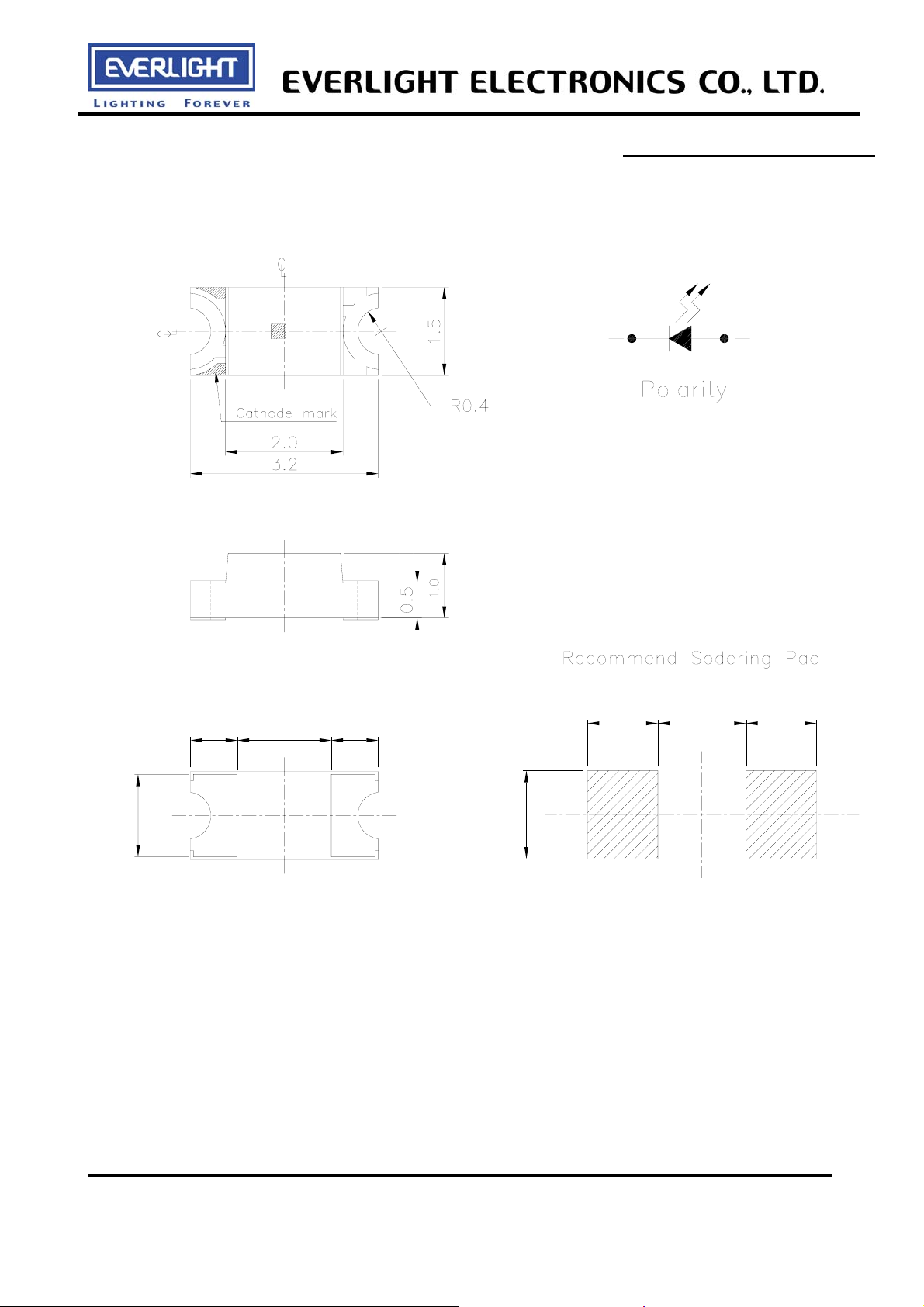

Package Outline Dimensions

0.8 1.6 0.8

1.4

Note: Tolerances Unless Dimension is ±0.1mm , Unit = mm

1.5

1.2 1.2

1.5

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 2 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit
Reverse Voltage VR 5 V
Forward Current IF 25 mA

Peak Forward Current

(Duty 1/10 @1KHz)

Power Dissipation Pd 60 mW

Electrostatic Discharge(HBM) ESD 2000 V

Operating Temperature Topr -40 ~ +85 ℃

Storage Temperature Tstg -40~ +90 ℃

Soldering Temperature Tsol

IFP 60 mA

Reflow Soldering:260 ℃ for 10 sec
Hand Soldering:350℃ for 3 sec

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity Iv 72.0 ----- 140 mcd

Viewing Angle 2θ1/2 ----- 130 ----- deg

Peak Wavelength λp ----- 632 ----- nm

IF=20mA

Dominant Wavelength

Spectrum Radiation

Bandwidth

Forward Voltage VF

Reverse Current IR ----- ----- 10 μA

λd

△λ

621 ----- 631

----- 20 -----

1.75 ----- 2.35

nm

nm

V

VR=5V

Notes:

1.Tolerance of Luminous Intensity ±11%

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 3 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

Bin Range Of Dom. Wavelength

Group Bin Min Max Unit Condition

F

FF1 621 626

nm IF=20mA

FF2 626 631

Bin Range Of Luminous Intensity

Bin Min Max Unit Condition

Q1 72.0 90.0
Q2 90.0 112
R1 112 140

mcd IF=20mA

Bin Range Of Luminous Voltage

Group Bin Min Max Unit Condition

0 1.75 1.95

B

1 1.95 2.15
2 2.15 2.35

V IF=20mA

Notes:

1.Tolerance of Luminous Intensity ±11%

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 4 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

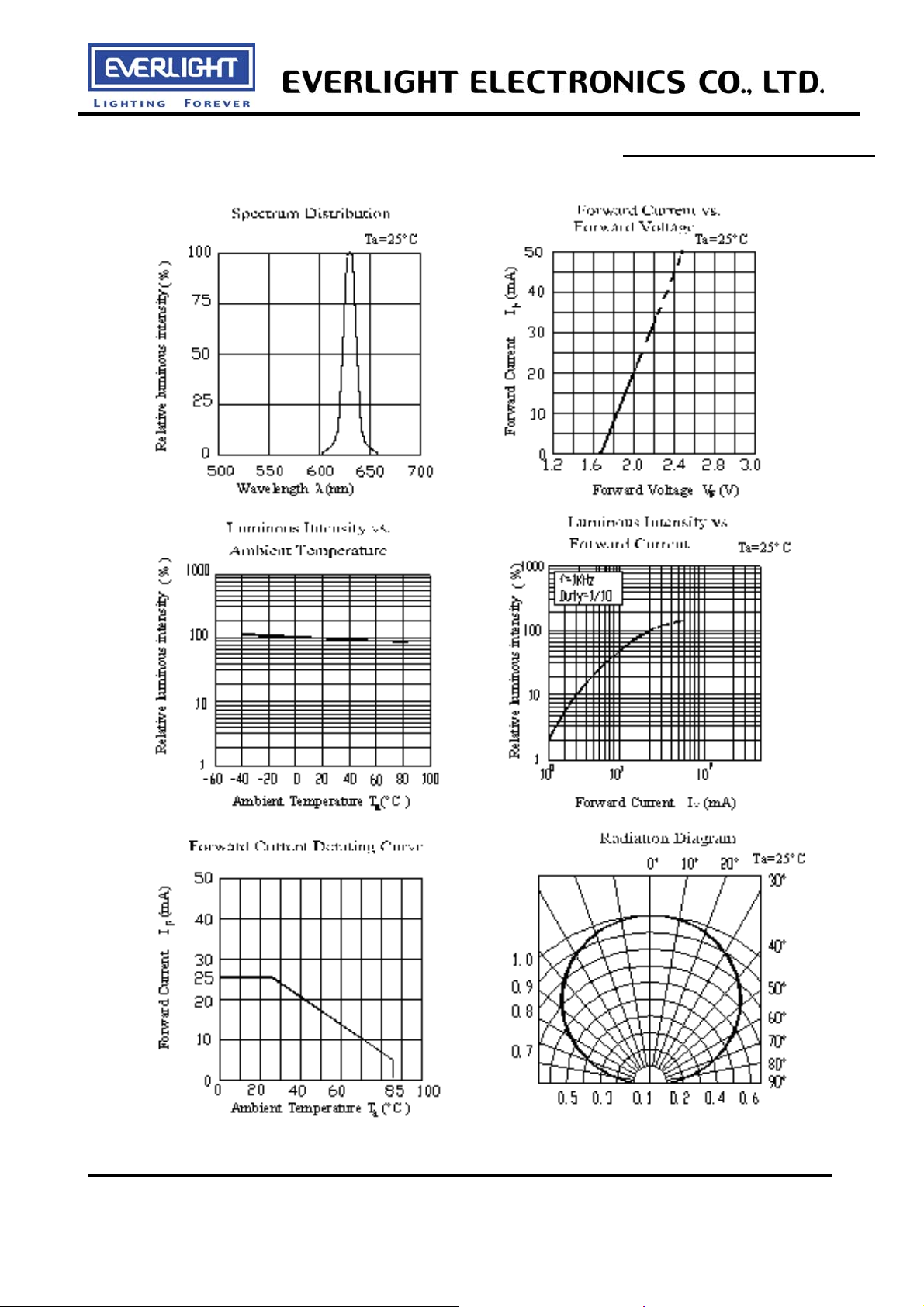

Typical Electro-Optical Characteristics

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 5 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

Label explanation

CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

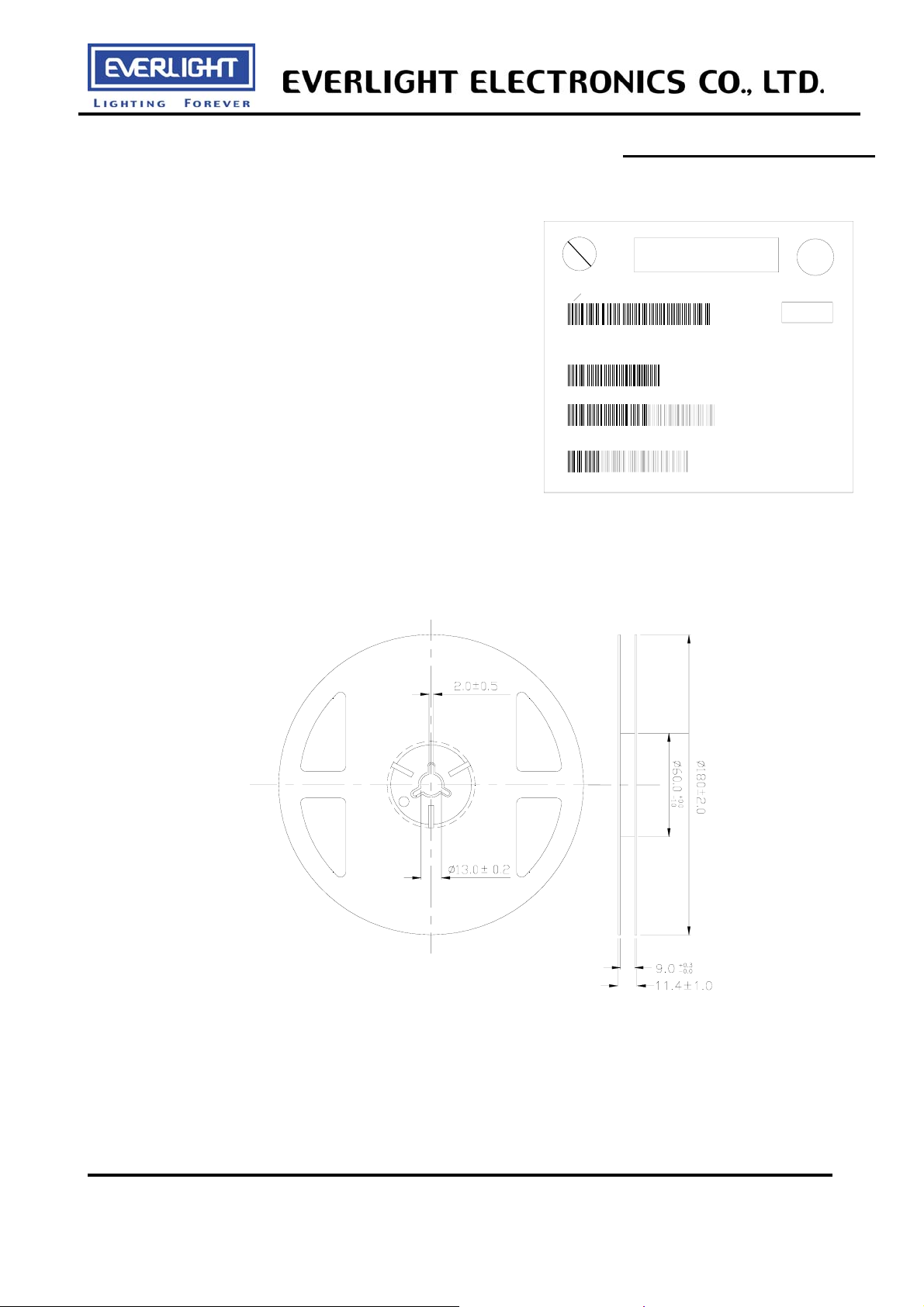

Reel Dimensions

Pb

CPN :
P

N : XXXXXXXXXXXXX

XXXXXXXXXXXXX

QTY : XXX

LOT NO : XXXXXXXXXX

Reference : XXXXXXXX

EVERLIGHT

MADE IN TAIWAN

RoHS

CAT : XXX
HUE : XXX
REF : XXX

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 6 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

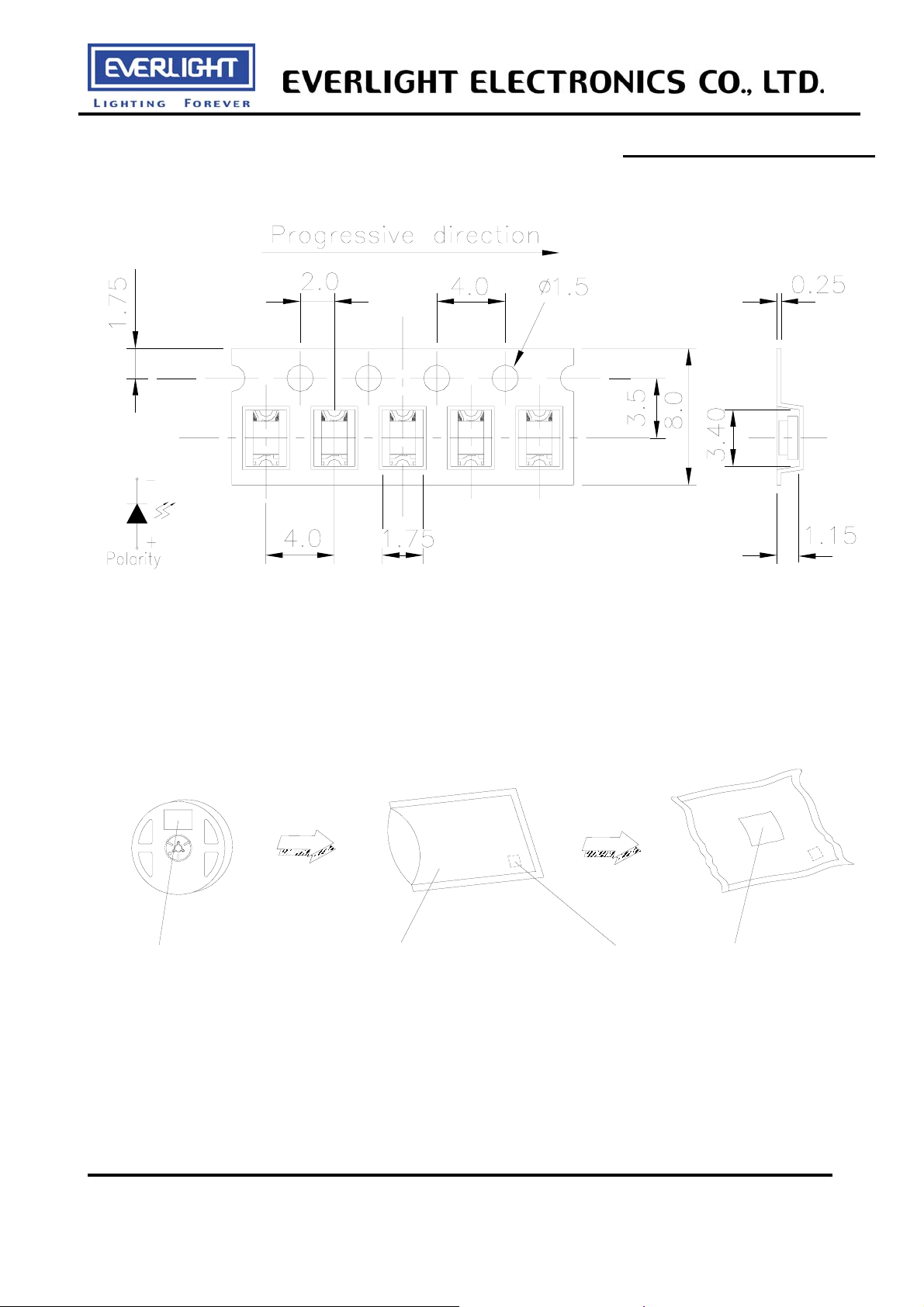

Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel

Note: Tolerances Unless Dimension is ±0.1mm , Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 7 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below.
Confidence level：90%

LTPD：10%

No. Items Test Condition

Test

Hours/Cycles

Temp. : 260℃±5℃

1 Reflow Soldering

Min.5 sec.

6 Min.

H : +100℃ 15min

2 Temperature Cycle

∫ 5 min

300 Cycles

L : -40℃ 15min

H : +100℃ 5min

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10℃ 5min

4

High Temperature

Temp. : 100℃

1000 Hrs.

Storage

5

Low Temperature

Storage

6 DC Operating Life IF = 20 mA

Temp. : -40℃

1000 Hrs.

1000 Hrs.

Sample

Ac/Re

Size

22 Pcs. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

7

High Temperature /

85℃/85%RH

1000 Hrs.

22 PCS. 0/1

High Humidity

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 8 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

Precautions For Use

1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift will cause big
current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.
If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

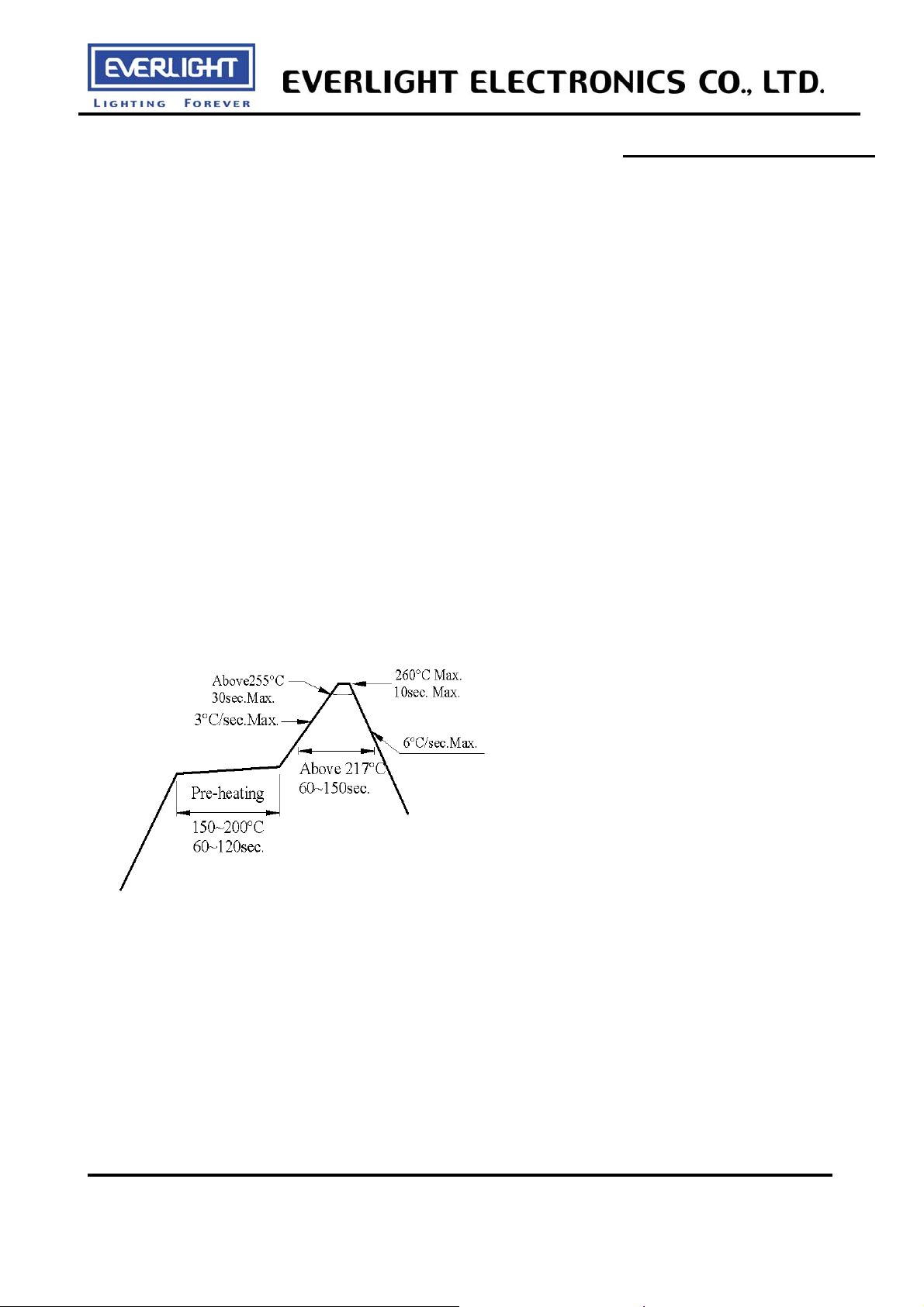

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev .2 Page: 9 of 10
Device No:DSE-0002539 Prepared date: 11-Dec-2009 Prepared by: Xie Haitao

15-21/R6C-FQ1R1B/2T

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do
soldering of each terminal. Be careful because the damage of the product is often started at the time of
the hand solder.

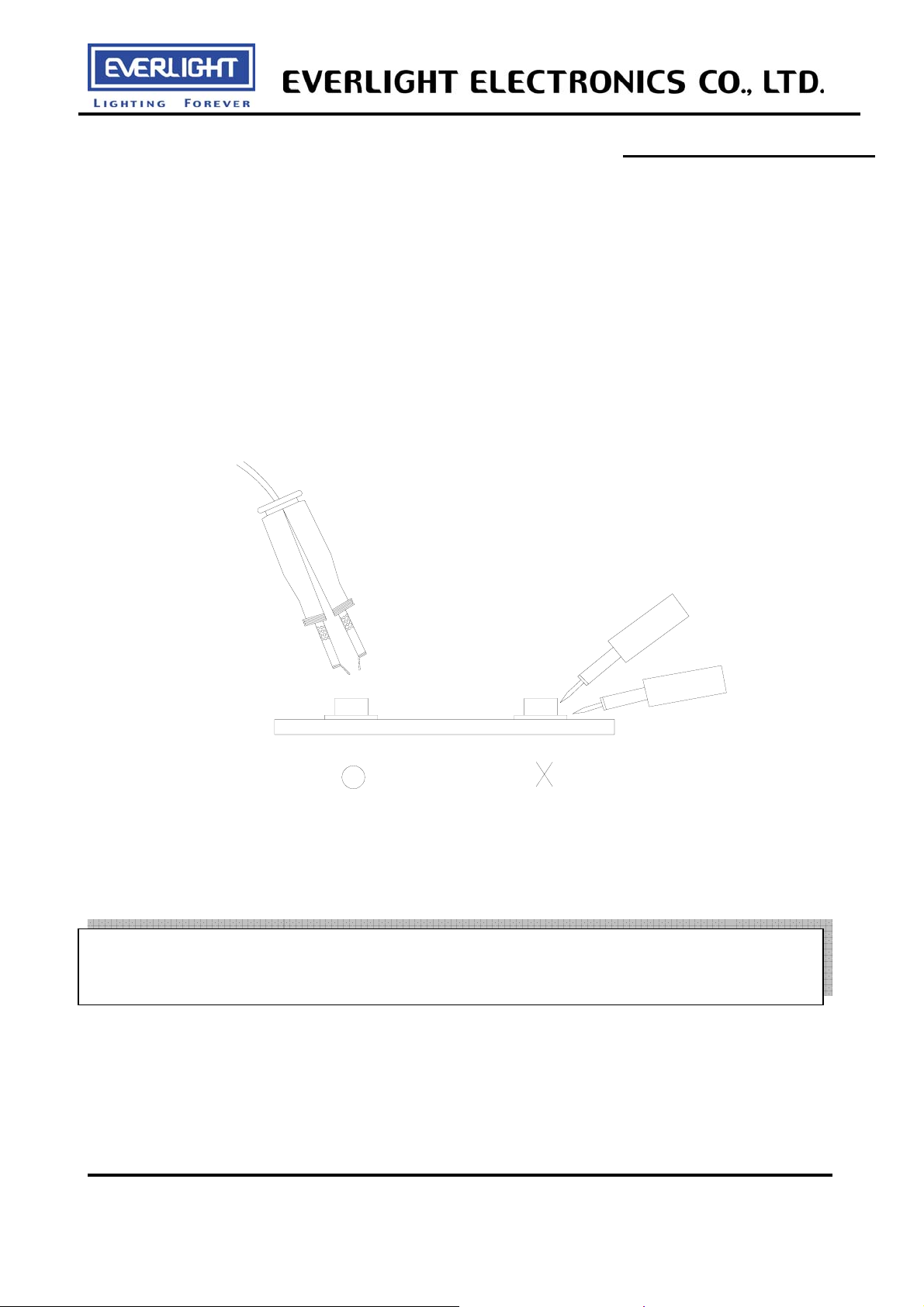

5.Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether
the characteristics of the LEDs will or will not be damaged by repairing.

EVERLIGHT ELECTRONICS CO., LTD. Tel: [phone]
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: [phone]
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
