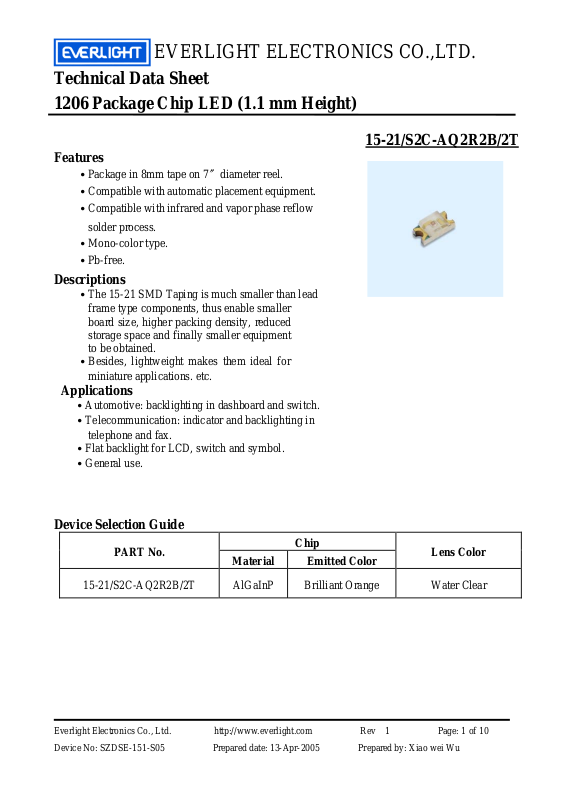

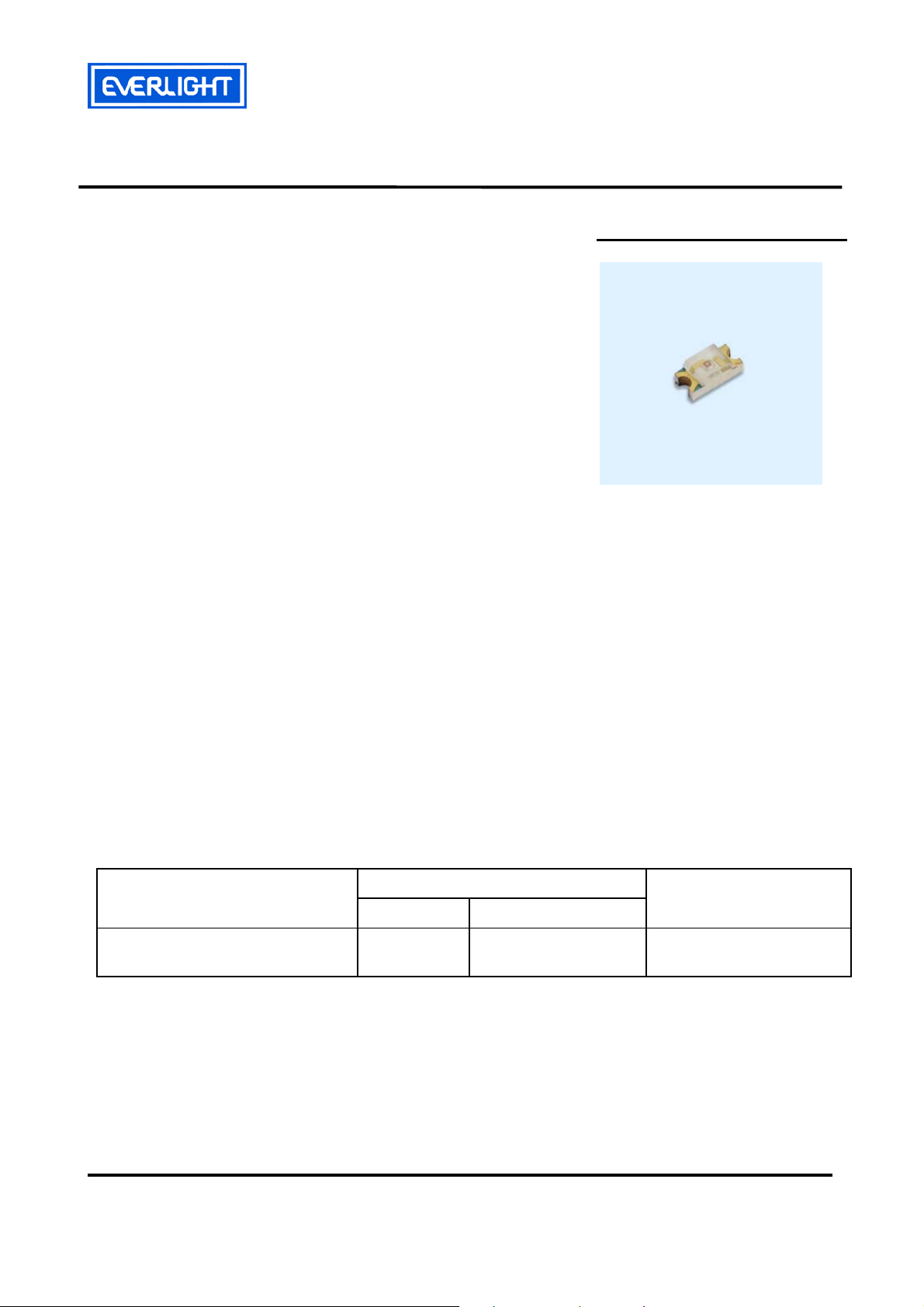

EVERLIGHT LED EL 1206 OR Datasheet

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet 1206 Package Chip LED (1.1 mm Height)

Features

․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type. ․Pb-free.

Descriptions

․The 15-21 SMD Taping is much smaller than lead

frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Automotive: backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol. ․General use.

15-21/S2C-AQ2R2B/2T

Device Selection Guide

PART No.

Material Emitted Color

15-21/S2C-AQ2R2B/2T AlGaInP Brilliant Orange Water Clear

Chip

Lens Color

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 1 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

Package Outline Dimensions

Note: The tolerances unless mentioned is ±0.1mm, Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 2 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA

Operating Temperature Topr -40 ~ +85

Storage Temperature Tstg -40 ~ +90

Electrostatic Discharge ESD 2000 V

Power Dissipation Pd 60 mW

Peak Forward Current

FP 60 mA

I

(Duty 1/10 @1KHz)

Reflow Soldering : 260 ℃ for 10 sec.

Soldering Temperature Tsol

Hand Soldering : 350 ℃ for 3 sec.

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity I

V

Viewing Angle 2θ1/2 ----- 140 ----- deg

90.0 ----- 180 mcd

℃ ℃

Peak Wavelength λp ----- 611 ----- nm

=20mA

I

F

Dominant Wavelength

λd

600.5 ---- 612.5

nm

Spectrum Radiation

Bandwidth

△λ

Forward Voltage V

XC Reverse Current I

F 1.75 ----- 2.35

R

----- 17 -----

nm

V

----- ----- 10 μA

V

=5V

R

Notes:

1.Tolerance of Luminous Intensity ±10%

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 3 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

Bin Range Of Dom. Wavelength

Group Bin Min Max Unit Condition

D8 600.5 603.5

A

D9 603.5 606.5 D10 606.5 609.5 D11 609.5 612.5

nm I

Bin Range Of Luminous Intensity

Bin Min Max Unit Condition

Q2 90.0 112

R1 112 140 R2 140 180

mcd I

Bin Range Of Luminous Voltage

Group Bin Min Max Unit Condition

0 1.75 1.95

B

1 1.95 2.15 2 2.15 2.35

V IF =20mA

=20mA

F

=20mA

F

Notes:

1.Tolerance of Luminous Intensity ±10%

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 4 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

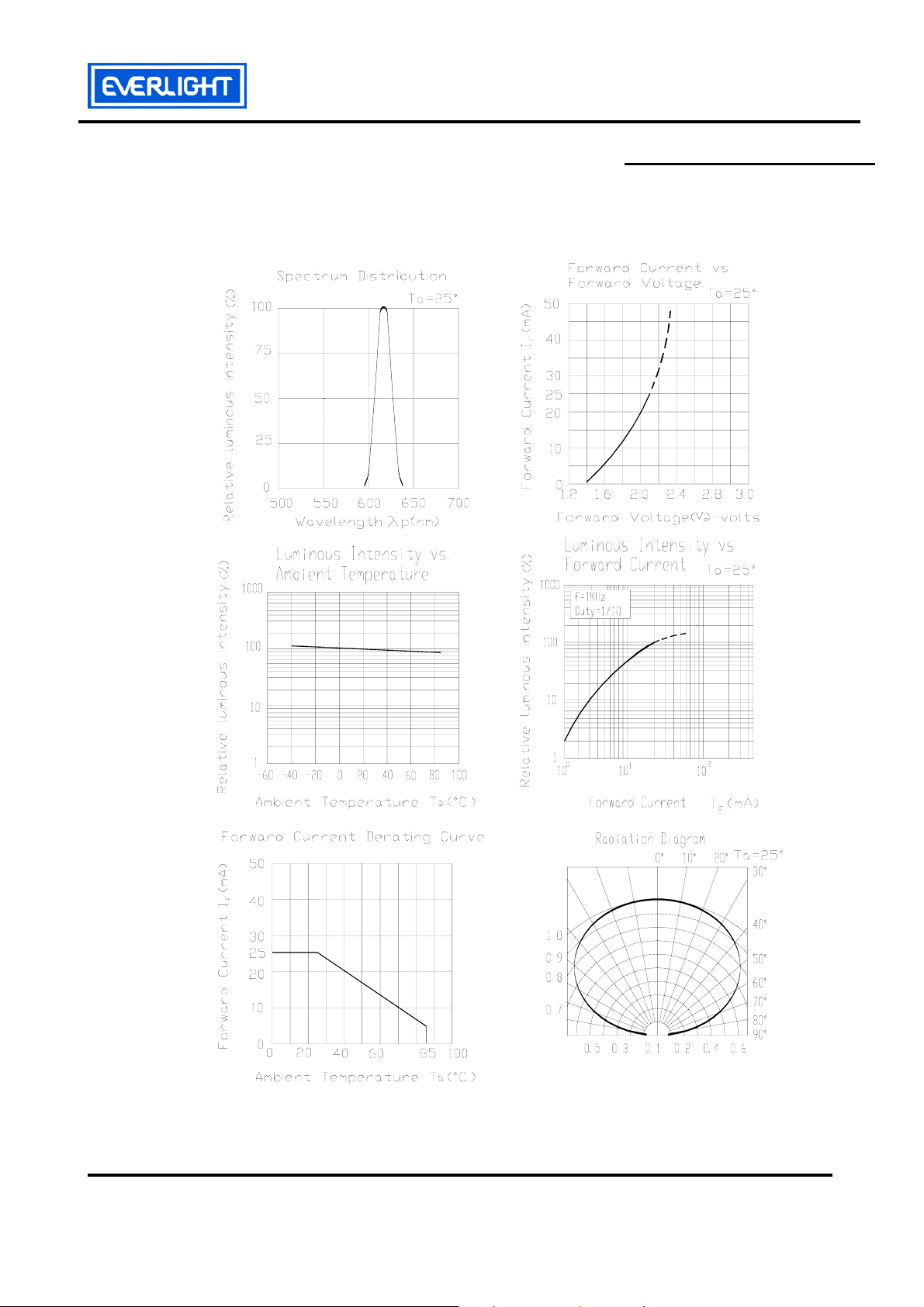

Electro-Optical Characteristics (Ta=25℃)

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 5 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

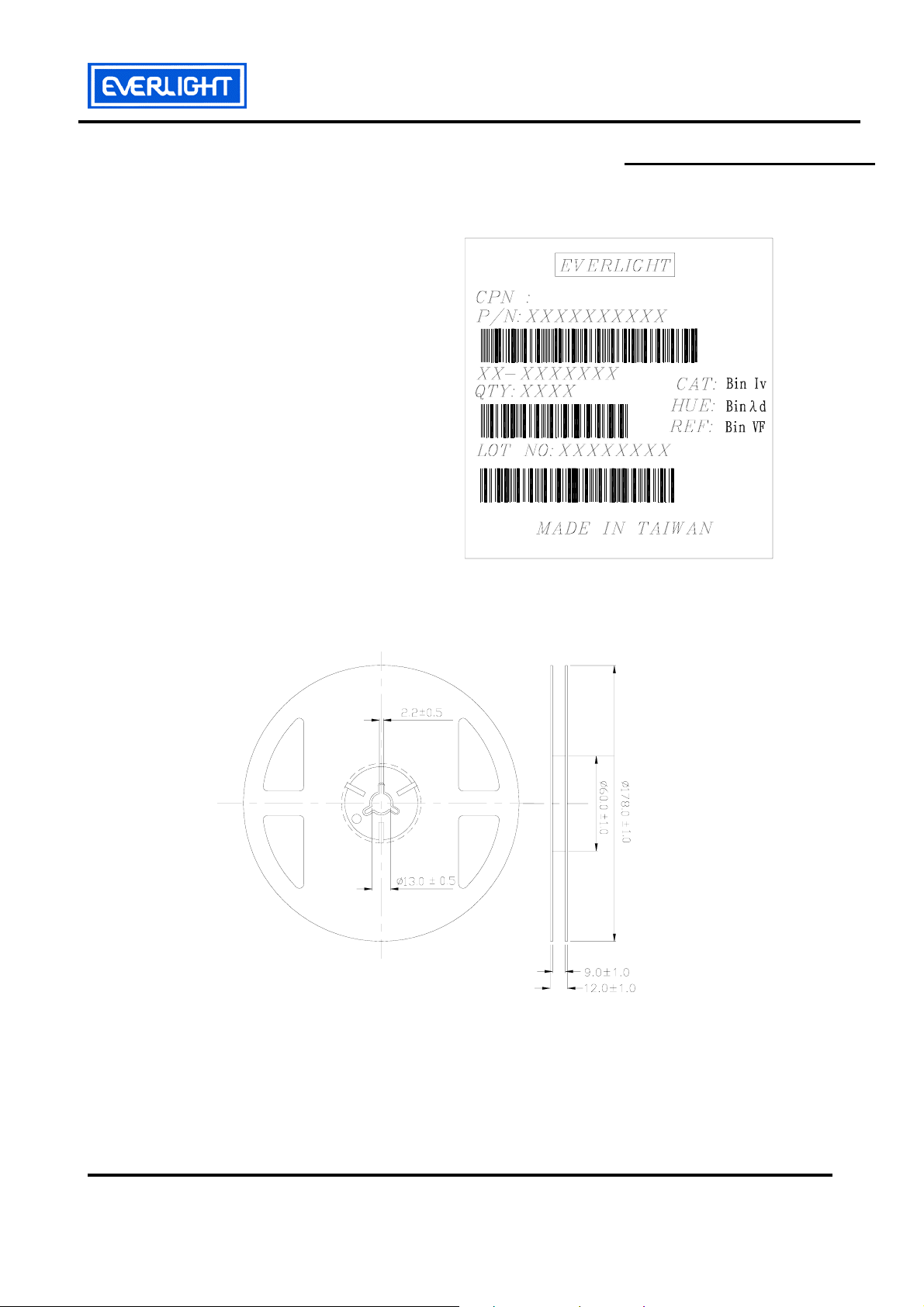

Label explanation

CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank

Reel Dimensions

Note: The tolerances unless mentioned is ±0.1mm, Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 6 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

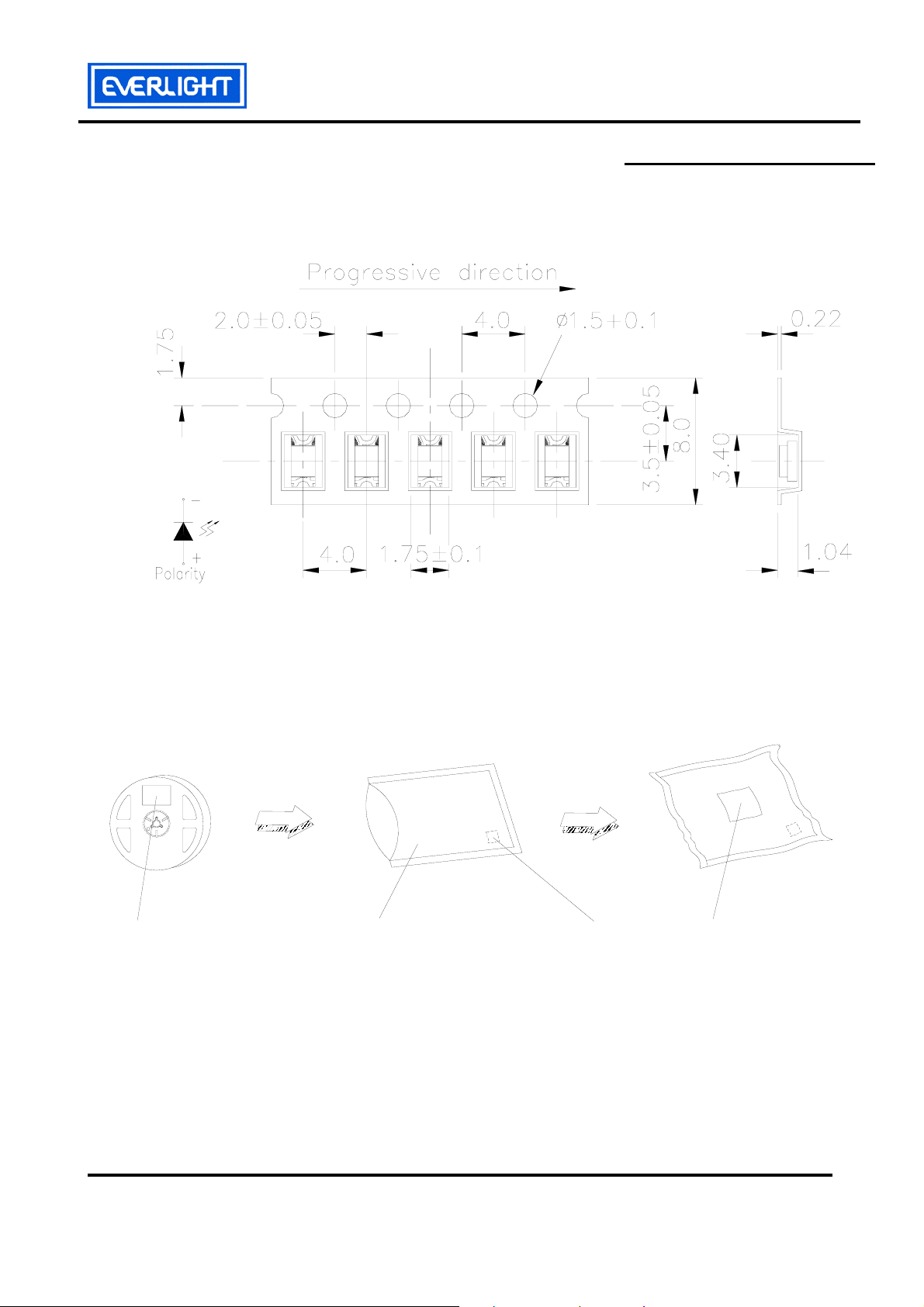

Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm, Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 7 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below. Confidence level：90%

LTPD：10%

No. Items Test Condition

Test

Hours/Cycles

Temp. : 260℃±5℃

1 Reflow Soldering

Min.5 sec.

6 Min.

H : +100℃ 15min

2 Temperature Cycle

∫ 5 min

300 Cycles

L : -40℃ 15min

H : +100℃ 5min

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10℃ 5min

4

High Temperature

Temp. : 100℃

1000 Hrs.

Storage

5

Low Temperature

Storage

6 DC Operating Life I F = 20 mA

Temp. : -40℃

1000 Hrs.

Sample

Ac/Re

Size

22 Pcs. 0/1

22 PCS. 0/1

7

High Temperature /

85℃/85%RH

1000 Hrs.

22 PCS. 0/1

High Humidity

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 8 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

15-21/S2C-AQ2R2B/2T

Precautions For Use

1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less(Floor life). However,it’s recommended that The LEDs should be used within 168 hours (7 days) after opening

the package.If unused LED remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

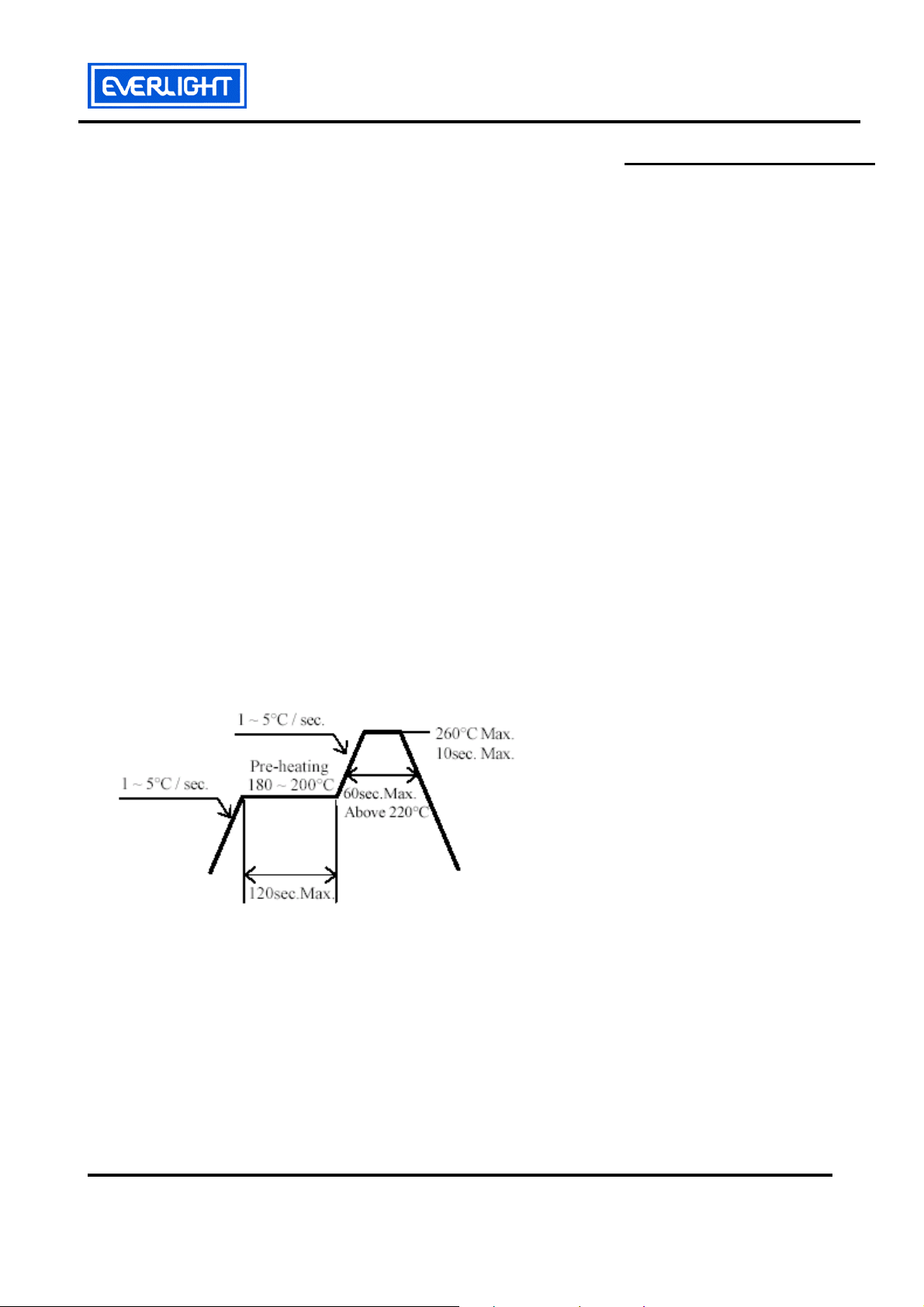

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 9 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu

EVERLIGHT ELECTRONICS CO.,LTD.

E

15-21/S2C-AQ2R2B/2T

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5.Repairing

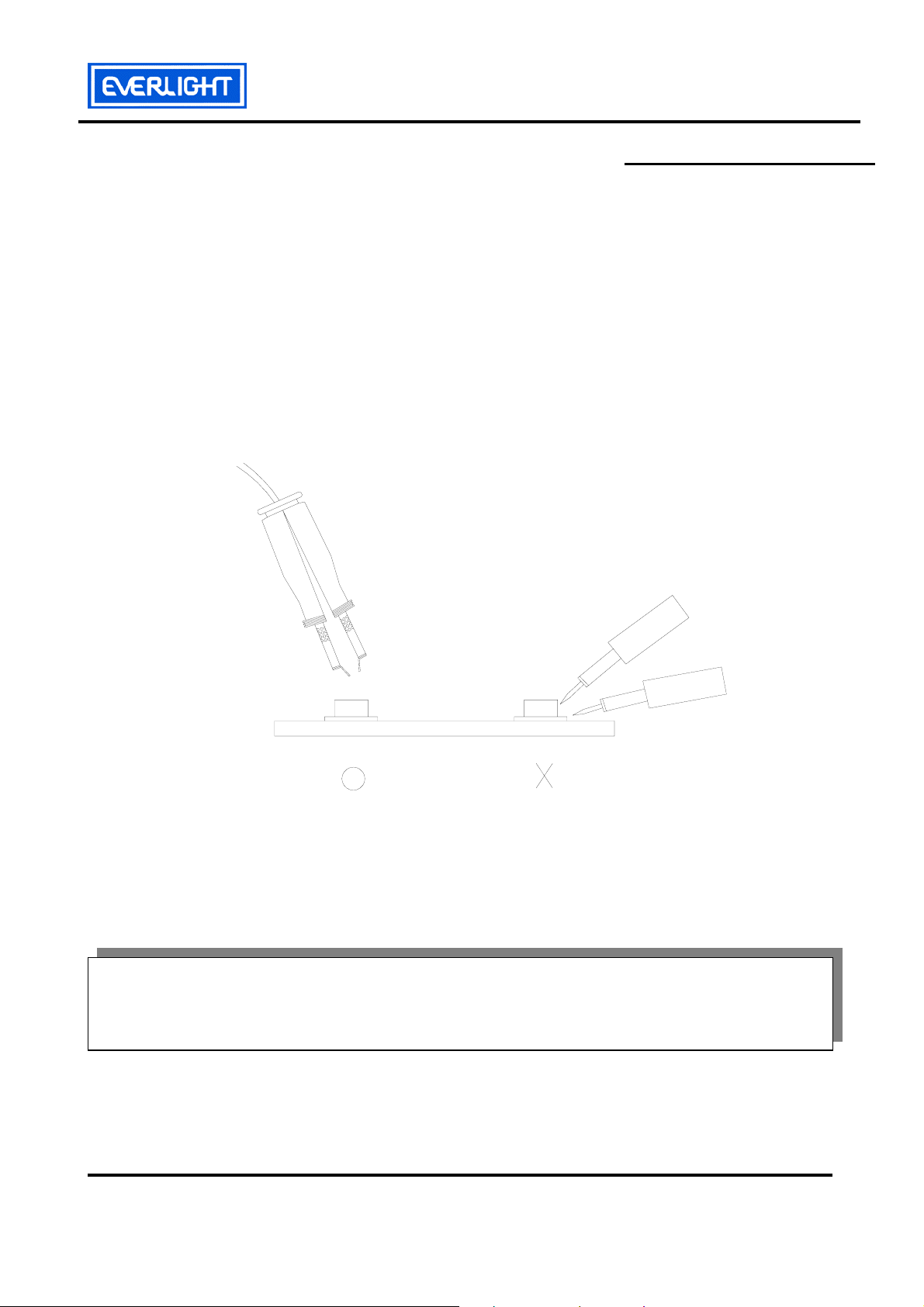

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

VERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936

Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 10 of 10 Device No: SZDSE-151-S05 Prepared date: 13-Apr-2005 Prepared by: Xiao wei Wu
