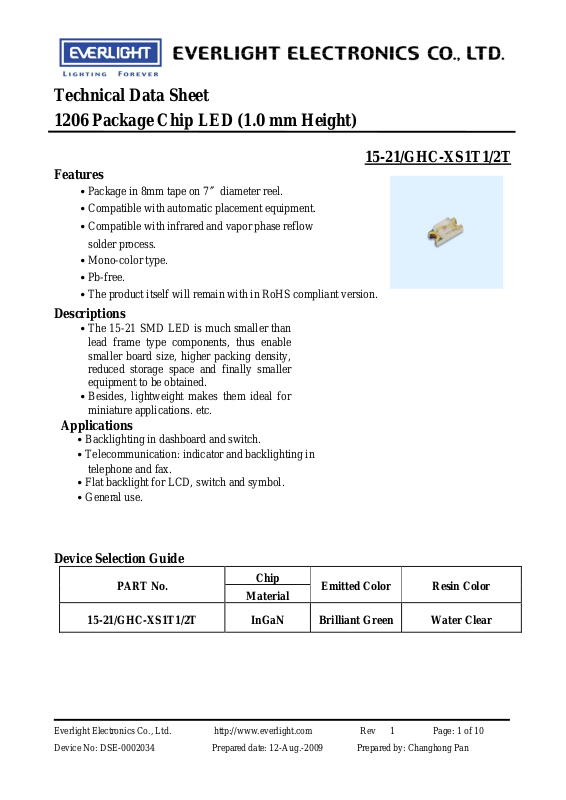

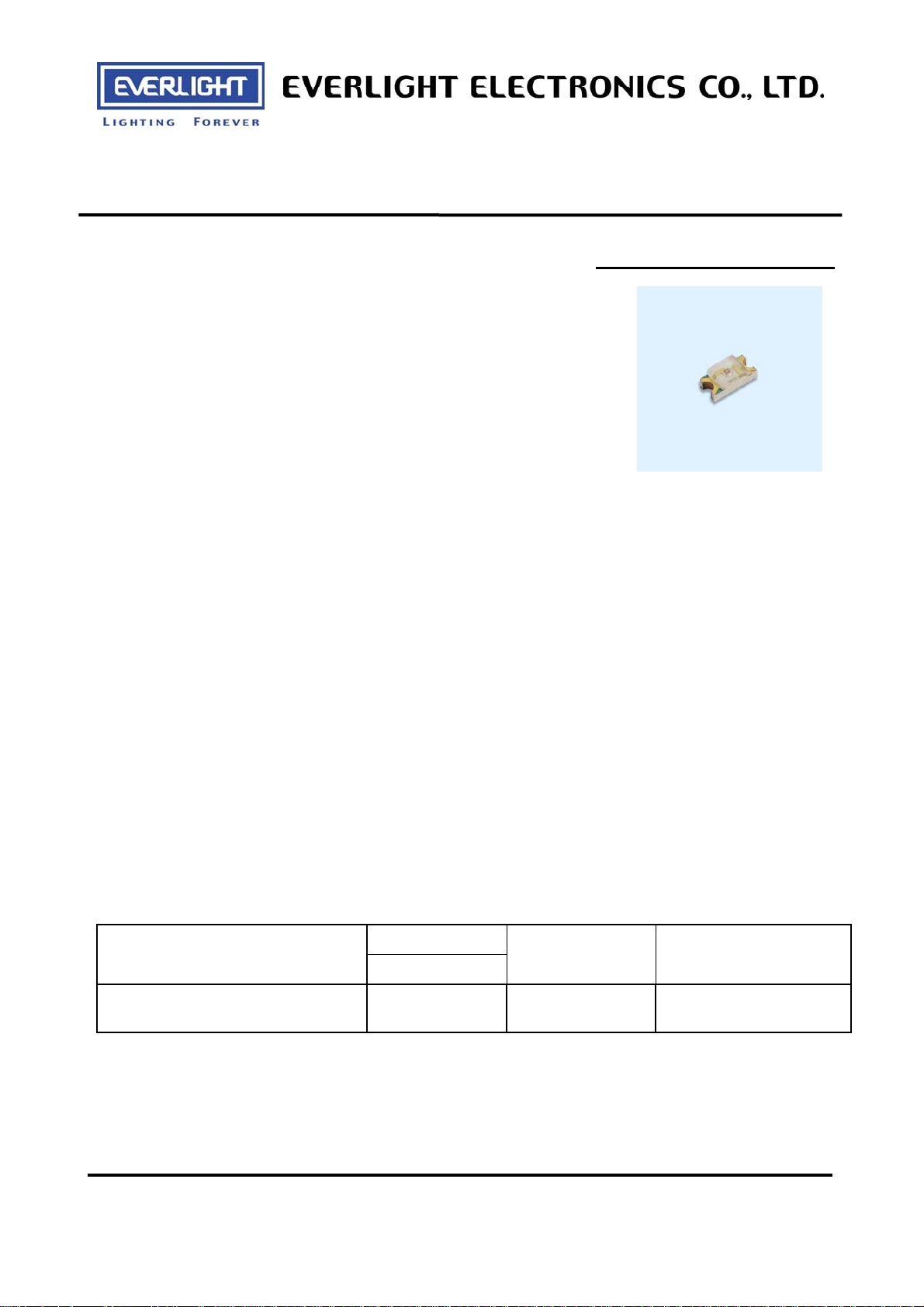

Technical Data Sheet 1206 Package Chip LED (1.0 mm Height)
Features
Package in 8mm tape on 7diameter reel. Compatible with automatic placement equipment. Compatible with infrared and vapor phase reflow
solder process.
Mono-color type. Pb-free. The product itself will remain with in RoHS compliant version.
Descriptions
The 15-21 SMD LED is much smaller than
lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use.
Device Selection Guide
PART No.
15-21/GHC-XS1T1/2T InGaN Brilliant Green Water Clear
Chip
Emitted Color Resin Color
Material
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 1 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 2
15-21/GHC-XS1T1/2T

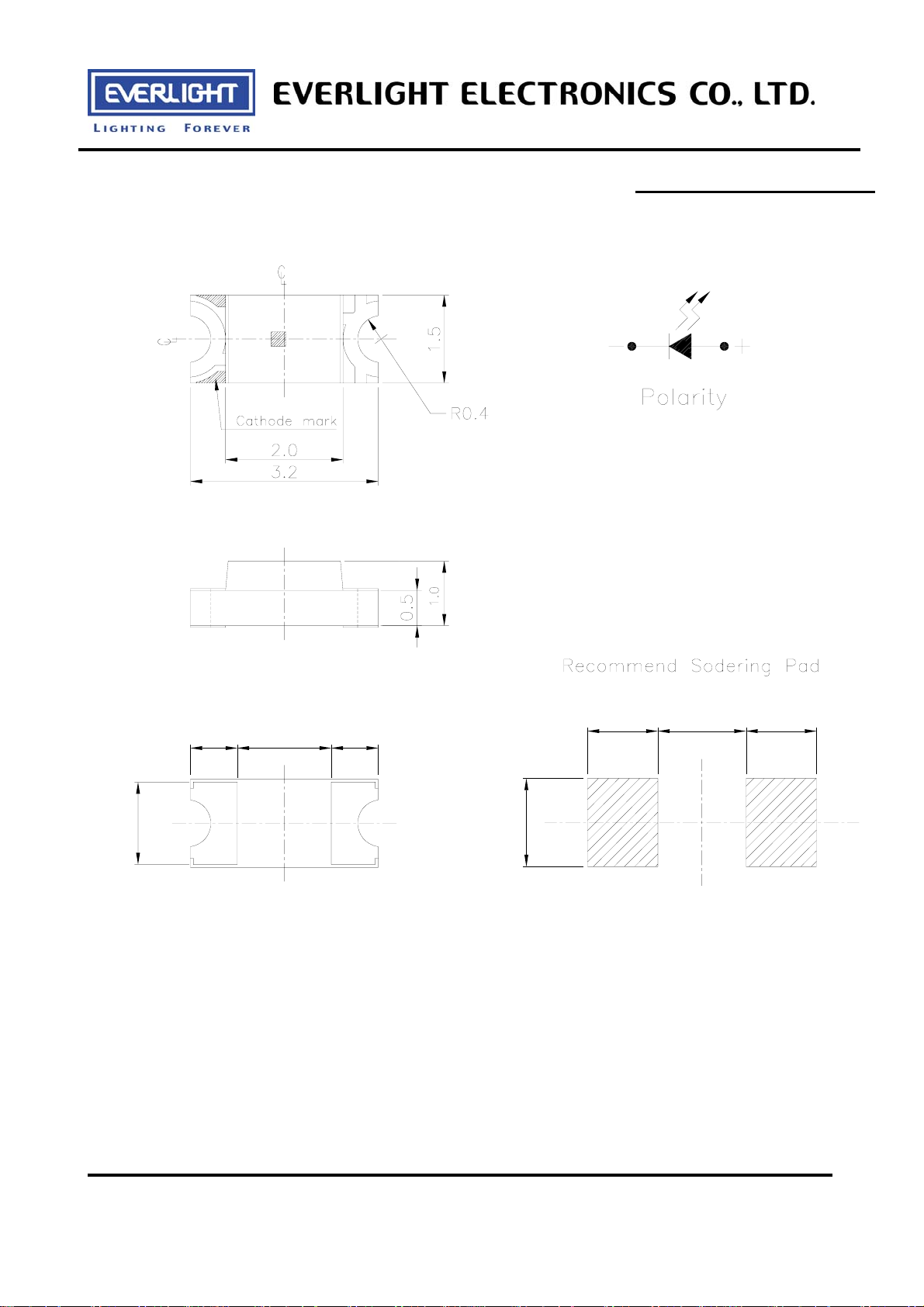

Package Outline Dimensions
0.8 1.6 0.8
1.4
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
1.5
1.2 1.2
1.5
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 2 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 3
15-21/GHC-XS1T1/2T
Absolute Maximum Ratings (Ta=25)
Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation Pd 95 mW
Electrostatic Discharge(HBM) ESD 150 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40~ +90
Soldering Temperature Tsol
IFP 100 mA
Reflow Soldering : 260 for 10 sec. Hand Soldering : 350 for 3 sec.
Electro-Optical Characteristics (Ta=25)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity I
Viewing Angle 2θ1/2 ----- 130 ----- deg
Peak Wavelength λ
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage V
Reverse Current I
180 ----- 360 mcd
v
----- 518 ----- nm
p
λ
d
△λ
2.7 3.3 3.7 V
F
----- ----- 50 μA
R
515 ----- 530
----- 35 -----
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Dominant Wavelength ±1nm
nm
IF=20mA
nm
VR=5V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 3 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 4
15-21/GHC-XS1T1/2T
Bin Range Of Dom. Wavelength
Group Bin Min. Max. Unit Condition
W 515 520
X
X 520 525 Y 525 530
Bin Range Of Luminous Intensity
Bin Min. Max. Unit Condition
S1 180 225 S2 225 285
nm IF=20mA
mcd IF =20mA
T1 285 360
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Dominant Wavelength ±1nm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 4 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 5
15-21/GHC-XS1T1/2T

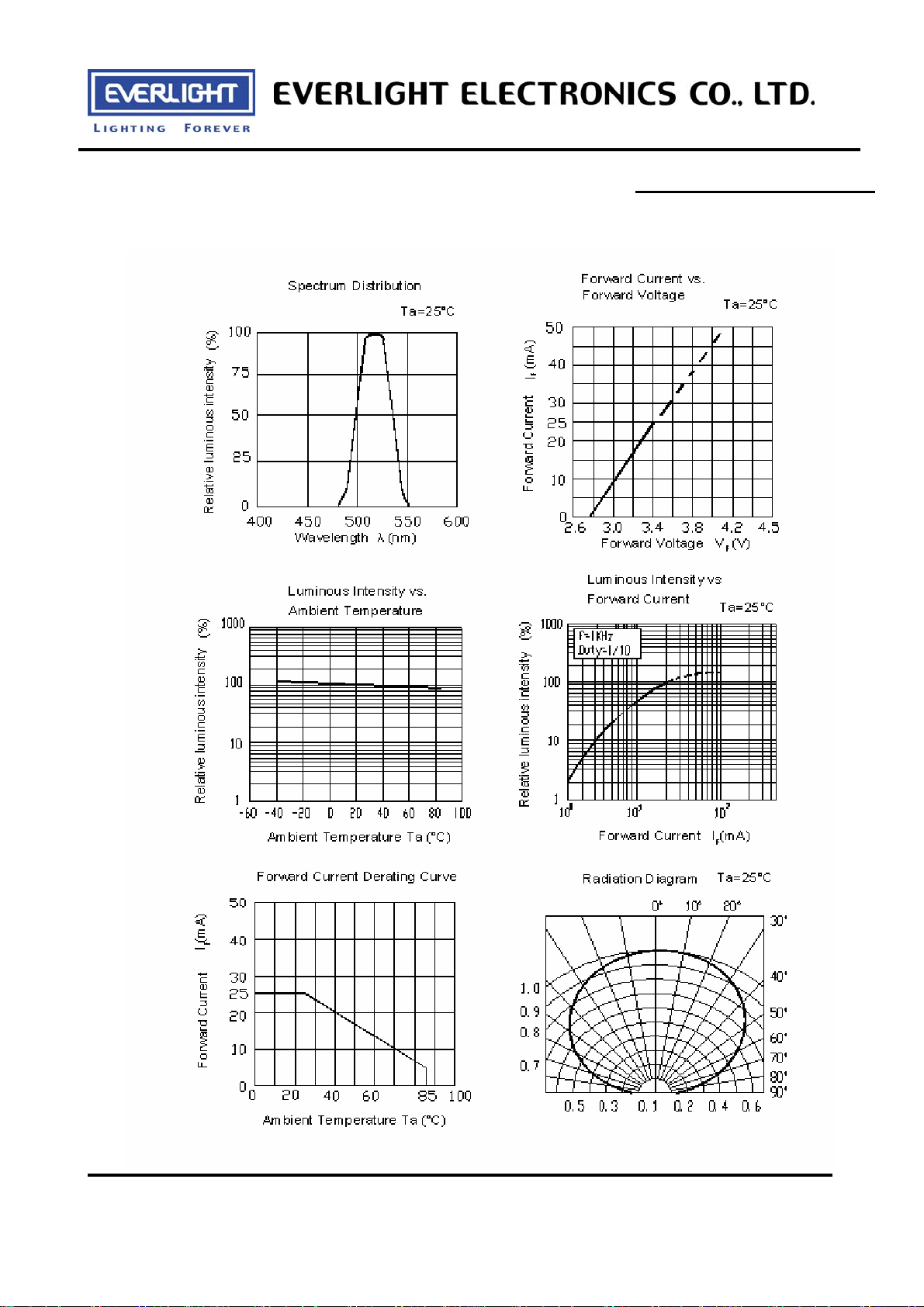

Typical Electro-Optical Characteristics
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 5 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 6
15-21/GHC-XS1T1/2T

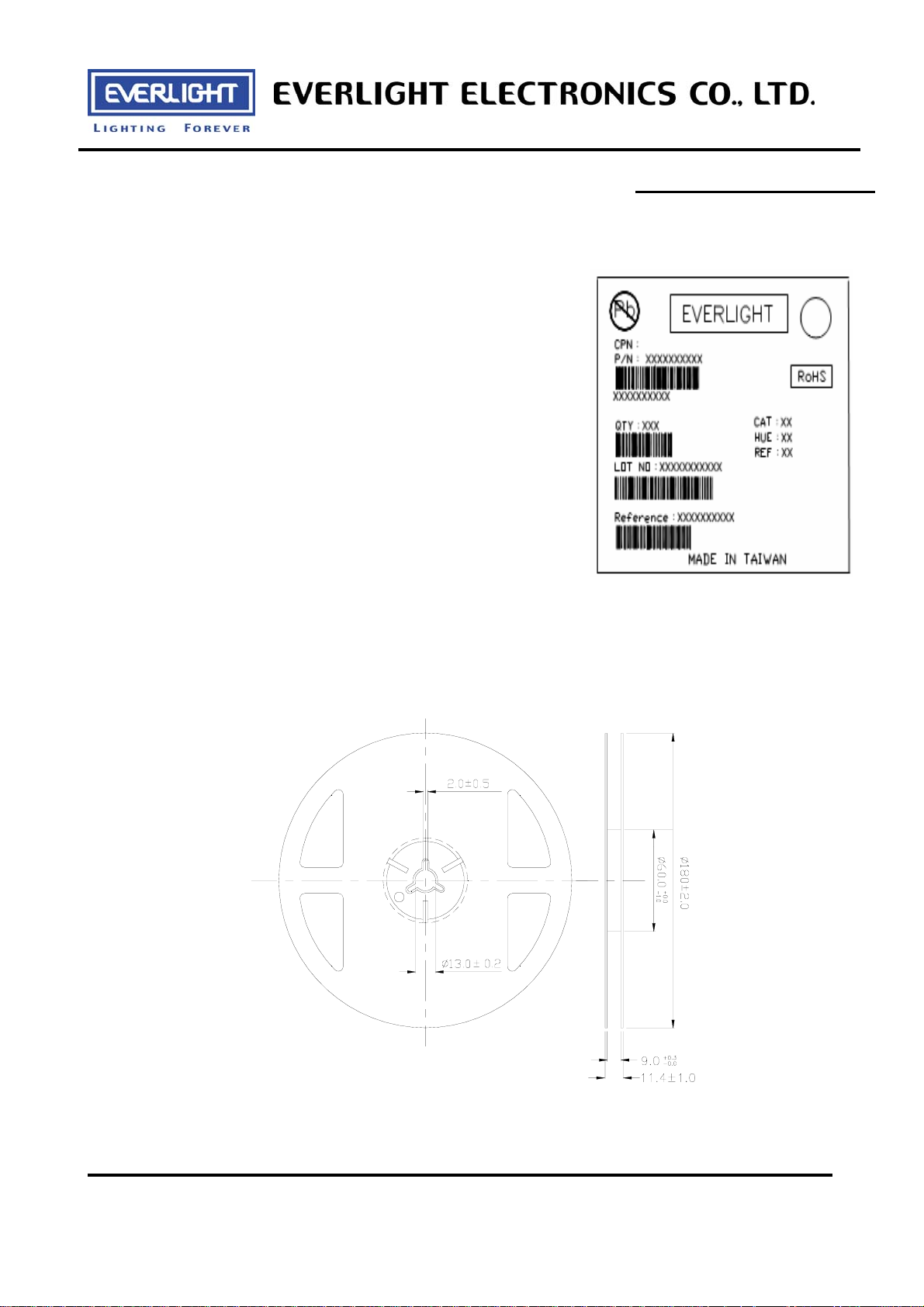

Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank
Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 6 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 7
15-21/GHC-XS1T1/2T

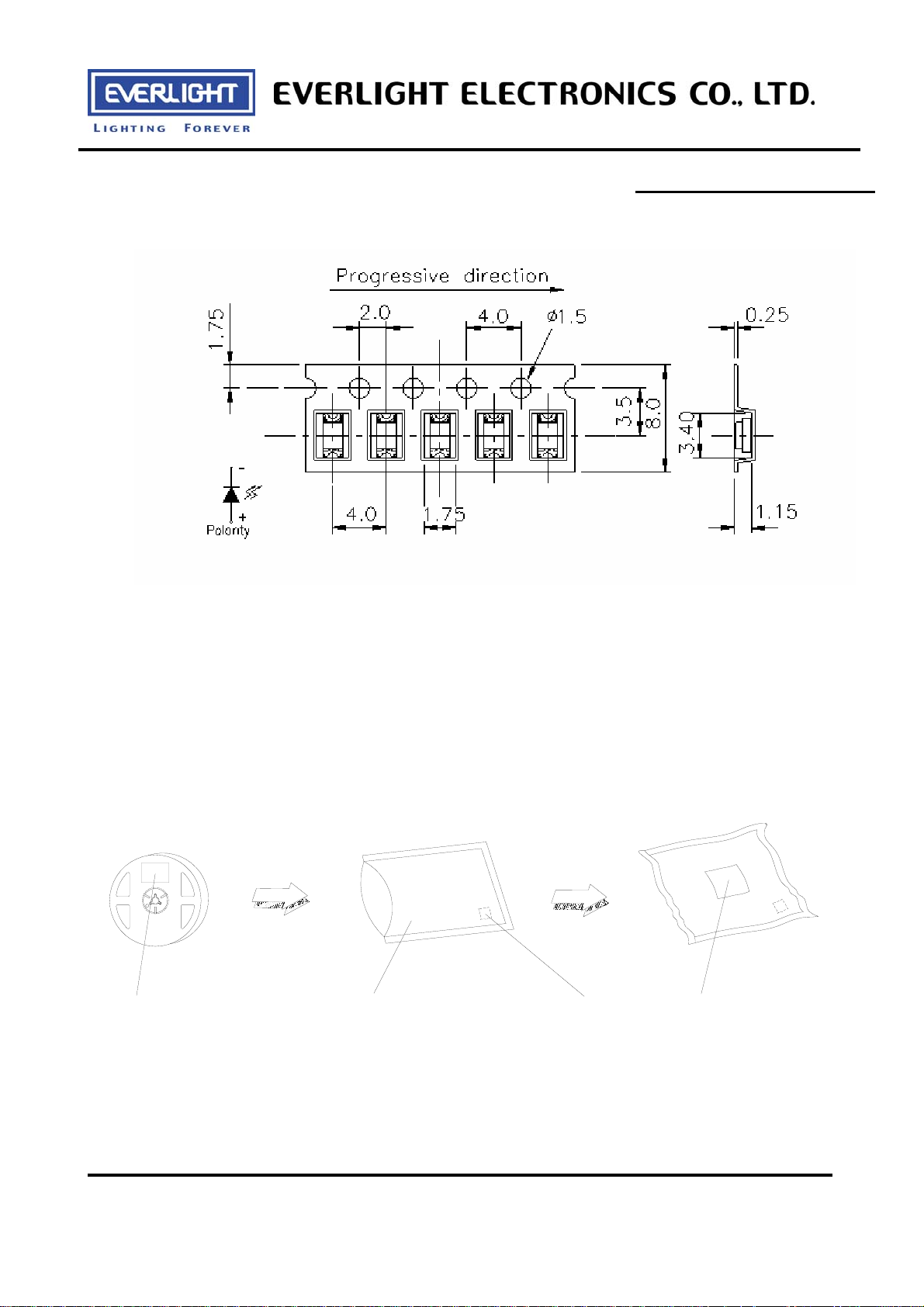

Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 7 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 8
15-21/GHC-XS1T1/2T
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level
LTPD
10%
No. Items Test Condition
1 Reflow Soldering
2 Temperature Cycle
90%
Temp. : 260℃±5
Min 5 sec.
H : +100 15min
5 min
L : -40 15min
Test
Hours/Cycles
6 Min.
300 Cycles
Sample
Ac/Re
Size
22 Pcs. 0/1
22 PCS. 0/1
H : +100 5min
3 Thermal Shock
10 sec
L : -10 5min
4
High Temperature
Temp. : 100
Storage
5
Low Temperature
Temp. : -40
Storage
6 DC Operating Life IF = 20 mA
7
High Temperature /
85/85% RH
High Humidity
300 Cycles
1000 Hrs.
1000 Hrs.
1000 Hrs.
1000 Hrs.
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 8 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 9
15-21/GHC-XS1T1/2T
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30
2.3 After opening the package: The LED's floor life is 1 year under 30
If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
or less and 90%RH or less.
or less and 60% RH or less.
storage time, baking treatment should be performed using the following conditions. Baking treatment : 60
3. Soldering Condition

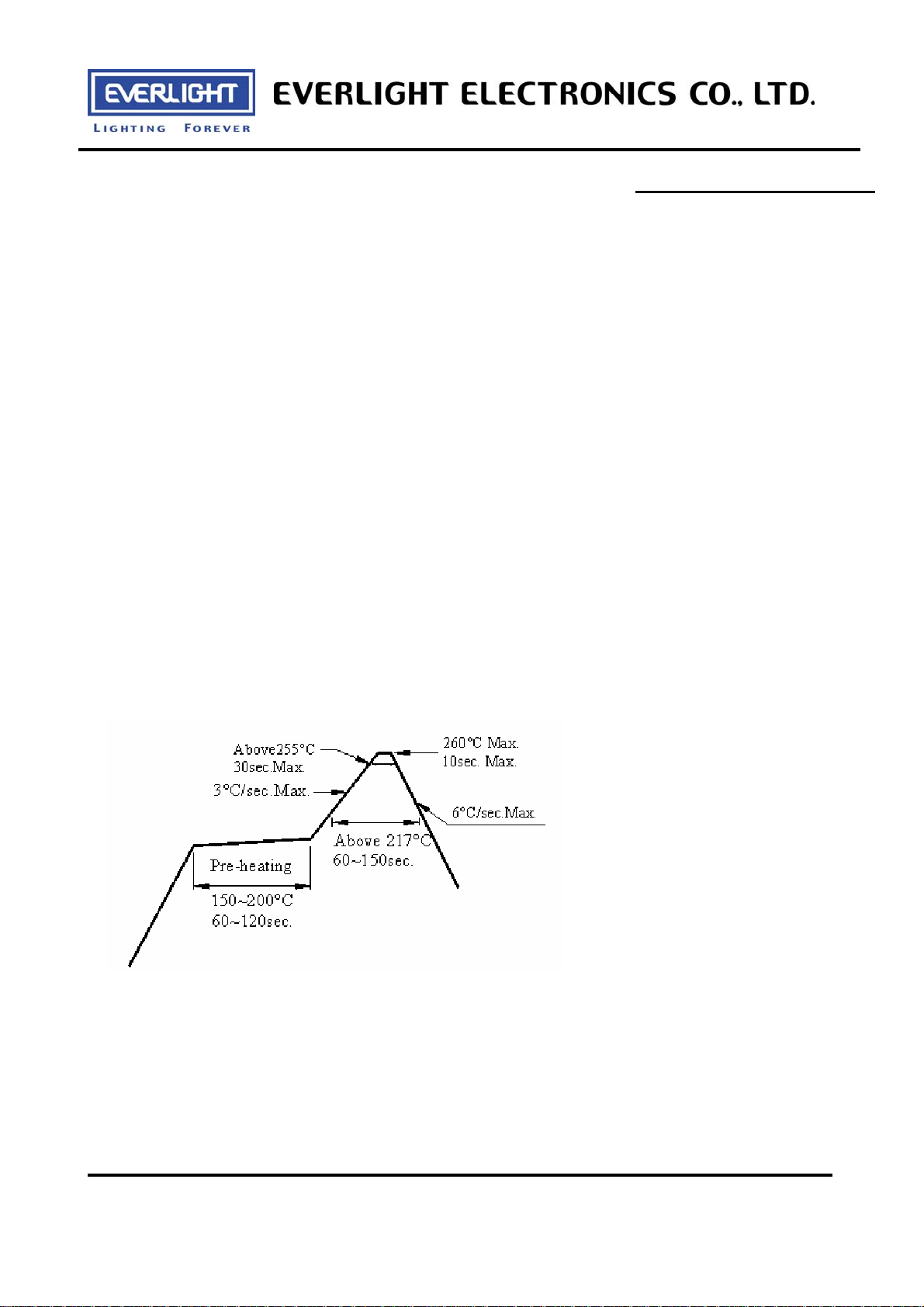

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
±5 for 24 hours.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 9 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
Page 10
15-21/GHC-XS1T1/2T
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.
5.Repairing

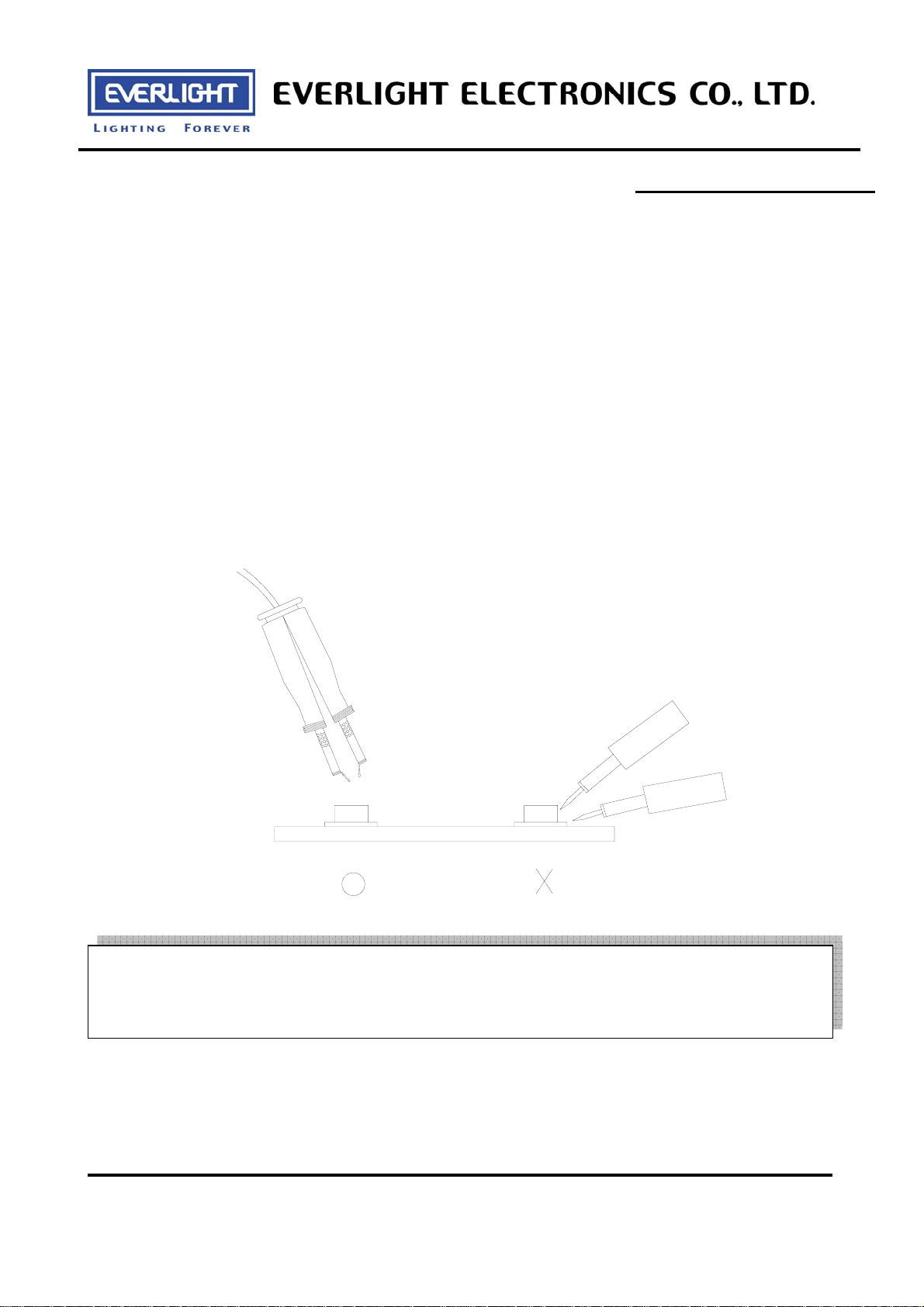

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 10 of 10 Device No: DSE-0002034 Prepared date: 12-Aug.-2009 Prepared by: Changhong Pan
