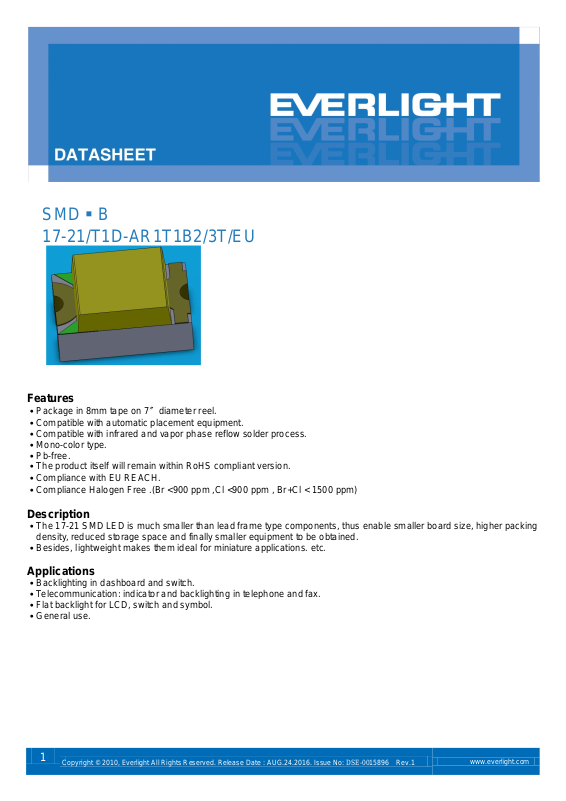

EVERLIGHT LED EL 0805 KW Datasheet

1

www.everlight.com

SMD  B 17-21/T1D-AR1T1B2/3T/EU

Features

․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment.

․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version. ․Compliance with EU REACH.

․Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Description

․The 17-21 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing

density, reduced storage space and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for miniature applications. etc.

Applications

․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use.

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

2

www.everlight.com

Chip Materials

Emitted Color

Resin Color

InGaN

Pure White

Yellow Diffused

Parameter

Symbol

Rating

Unit

Reverse Voltage

VR 5 V

Forward Current

IF

20

mA

Peak Forward Current (Duty 1/10 @1KHz)

IFP

100

mA

Power Dissipation

Pd

75

mW

Electrostatic Discharge

ESD

HBM

150

V

Operating Temperature

T

opr

-40 ~ +85

℃

Storage Temperature

Tstg

-40 ~ +90

℃

Soldering Temperature

Tsol

Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec.

Device Selection Guide

Absolute Maximum Ratings (Ta=25℃)

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

3

www.everlight.com

Parameter

Symbol

Min.

Typ.

Max.

Unit

Condition

Luminous Intensity

Iv

112

-----

360

mcd

IF=20mA

Viewing Angle

2θ

1/2

-----

150

-----

deg

Forward Voltage

V

F

2.90

----

3.60

V

Reverse Current

IR

-----

50

μA

VR=5V

Electro-Optical Characteristics (Ta=25℃)

Note:

1.Tolerance of Luminous Intensity: ±11%

2. Tolerance of Forward Voltage: ±0.05V

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

4

www.everlight.com

Bin Code

Min.

Max.

Unit

Condition

R1

112.0

140.0

mcd IF =20mA

R2

140.0

180.0

S1

180.0

225.0

S2

225.0

285.0

T1

285.0

360.0

Bin Code

Min.

Max.

Unit

Condition

36

2.90

3.00

V IF =20mA

37

3.00

3.10

38

3.10

3.20

39

3.20

3.30

40

3.30

3.40

41

3.40

3.50

42

3.50

3.60

Bin Range of Luminous Intensity

Bin Range Of Forward Voltage

Note:

1.Tolerance of Luminous Intensity: ±11%

2. Tolerance of Forward Voltage: ±0.05V

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

5

www.everlight.com

Bin Code

CIE_x

CIE_y

Condition

1

0.274

0.226

IF =20mA

0.274

0.258

0.294

0.286

0.294

0.254

2

0.274

0.258

0.274

0.291

0.294

0.319

0.294

0.286

3

0.294

0.254

0.294

0.286

0.314

0.315

0.314

0.282

4

0.294

0.286

0.294

0.319

0.314

0.347

0.314

0.315

5

0.314

0.282

0.314

0.315

0.334

0.343

0.334

0.311

6

0.314

0.315

0.314

0.347

0.334

0.376

0.334

0.343

Chromaticity Coordinates Specifications for Bin Grading

Notes:

1.The C.I.E. 1931 chromaticity diagram ( Tolerance ±0.01 ).

2.The products are sensitive to static electricity and care must be fully taken when handling products.

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

6

www.everlight.com

CIE Chromaticity Diagram

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

7

www.everlight.com

Typical Electro-Optical Characteristics Curves

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

8

www.everlight.com

Cathode mark

Package Dimension

Note: Tolerances unless mentioned ±0.1mm. Unit = mm

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

9

www.everlight.com

‧CPN: Customer’s Product Number ‧P/N: Product Number ‧QTY: Packing Quantity ‧CAT: Luminous Intensity Rank ‧HUE: Chromaticity Coordinates & Dom. Wavelength Rank ‧REF: Forward Voltage Rank ‧LOT No: Lot Number

Moisture Resistant Packing Materials Label Explanation

Reel Dimensions

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

10

www.everlight.com

Label

Desiccant Label

Aluminum moisture-proof bag

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Moisture Resistant Packaging

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

11

www.everlight.com

Precautions For Use

1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less . If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less

than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

DATASHEET SMD  B 17-21/T1D-AR1T1B2/3T/EU

12

www.everlight.com

Application Restrictions

High reliability applications such as military/aerospace, automotive safety/security systems, and medical equipment may require different product. If you have any concerns, please contact Everlight before using this product in your application. This specification guarantees the quality and performance of the product as an individual component. Do not use this product beyond the specification described in this document.
