EVERLIGHT LED EL 0603 WS Datasheet

Page 1

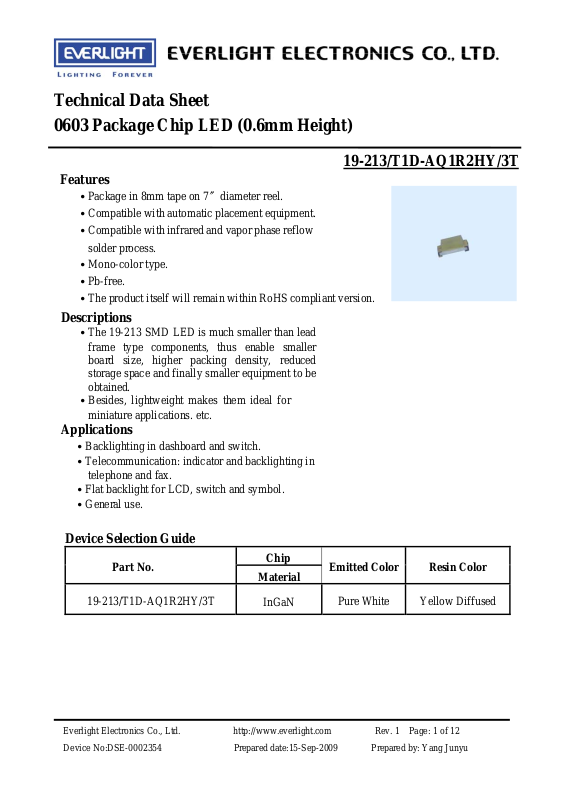

Technical Data Sheet 0603 Package Chip LED (0.6mm Height)
19-213/T1D-AQ1R2HY/3T
Package in 8mm tape on 7diameter reel.Compatible with automatic placement equipment.Compatible with infrared and vapor phase reflow
solder process.
Mono-color type. Pb-free. The product itself will remain within RoHS compliant version.
Descriptions
The 19-213 SMD LED is much smaller than lead
frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use.
Device Selection Guide
Part No.
19-213/T1D-AQ1R2HY/3T
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Chip
Material
InGaN
Emitted Color Resin Color
Pure White Yellow Diffused
Page 2

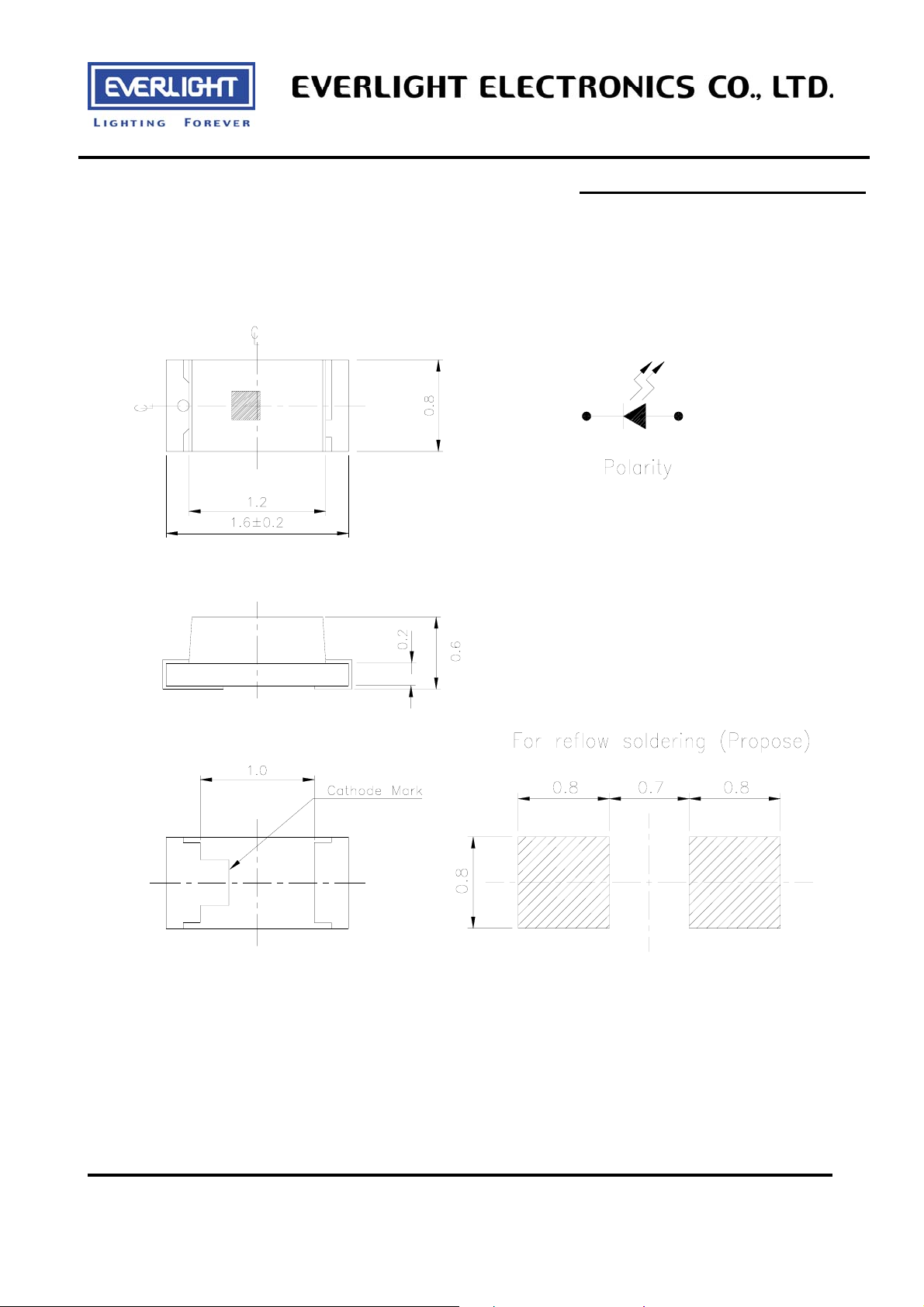

Package Outline Dimensions
19-213/T1D-AQ1R2HY/3T
-
+
Note: The tolerances unless mentioned is ±0.1mm, Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 3
19-213/T1D-AQ1R2HY/3T
Absolute Maximum Ratings (Ta=25)
Parameter Symbol Rating Unit
Reverse Voltage VR 5 V Forward Current IF 25 mA
Peak Forward Current
IFP 100 mA
(Duty 1/10 @1KHz)
Power Dissipation Pd 95 mW
Electrostatic Discharge(HBM) ESD 150 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Reflow Soldering : 260 for 10 sec.
Soldering Temperature Tsol
Hand Soldering : 350 for 3 sec.
Electro-Optical Characteristics (Ta=25)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity
Viewing Angle
Forward Voltage
Reverse Current IR ----- ----- 50
IV 72.0 ----- 180 mcd
2θ1/2
VF
----- 130 ----- deg
2.70 ----- 3.15
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Forward Voltage ±0.1V
V
μA
=5mA
I
F
VR=5V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 4
19-213/T1D-AQ1R2HY/3T
Bin Range Of Luminous Intensity
Bin Min. Max. Unit Condition
Q1 72.0 90.0 Q2 90.0 112 R1 112 140 R2 140 180
mcd IF=5mA
Bin Range Of Luminous Voltage
Group Bin Min Max
15 2.70 2.85
H
16 2.85 3.00 17 3.00 3.15
V IF =5mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 5
19-213/T1D-AQ1R2HY/3T
Chromaticity Coordinates Specifications for Bin Grading
Groups Bin Code CIE_x CIE_y
0.274 0.226
0.274 0.258
1
0.294 0.286
0.294 0.254
0.274 0.258
0.274 0.291
2
0.294 0.319
0.294 0.286
0.294 0.254
0.294 0.286
3
0.314 0.315
Condition
A
0.314 0.282
0.294 0.286
0.294 0.319
4
0.314 0.347
0.314 0.315
0.314 0.282
0.314 0.315
5
0.334 0.343
0.334 0.311
0.314 0.315
0.314 0.347
6
0.334 0.376
0.334 0.343
Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance ±0.01).
2.The products are sensitive to static electricity and care must be fully taken when
I
= 5mA
F
handling products.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 6

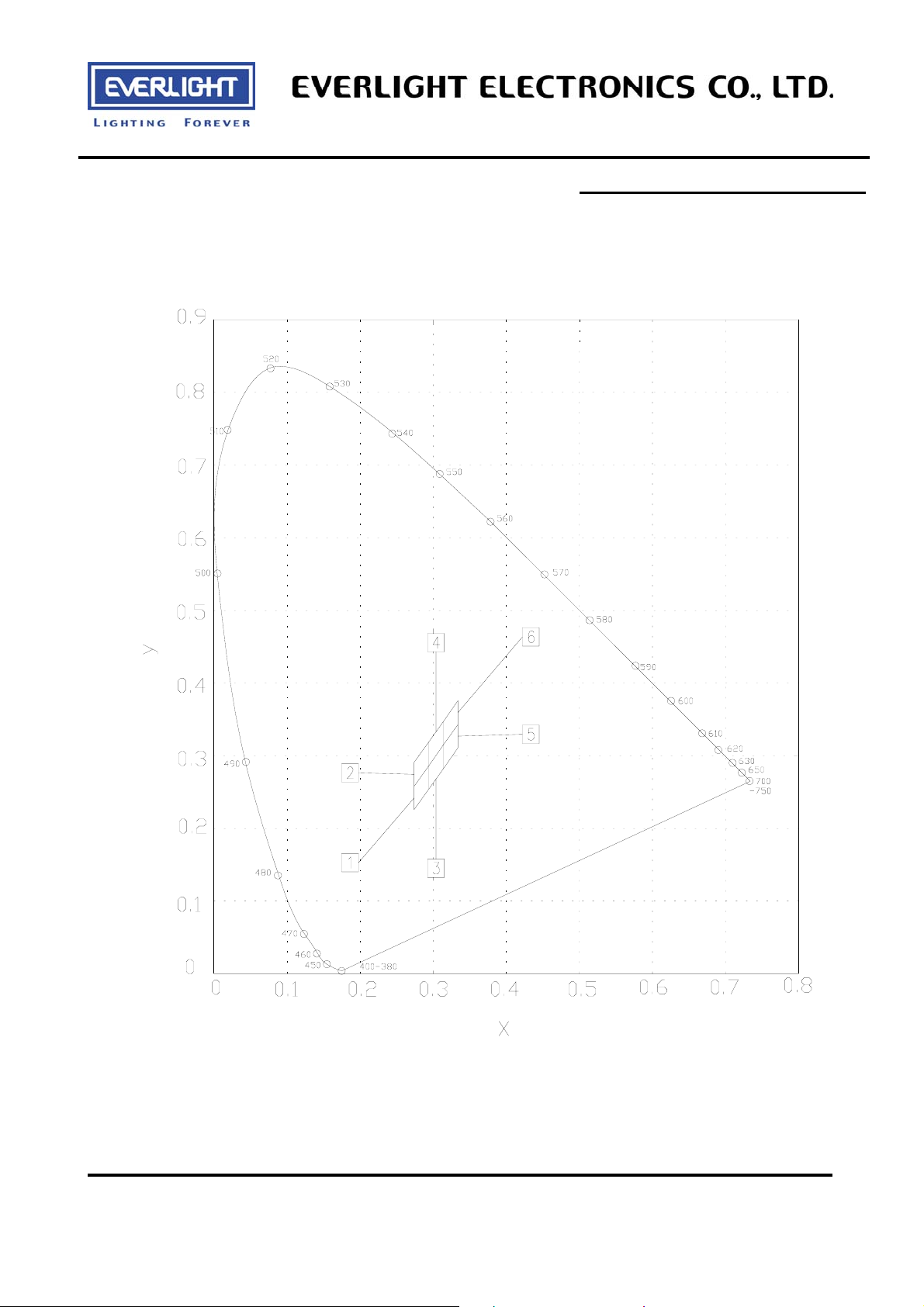

CIE Chromaticity Diagram
19-213/T1D-AQ1R2HY/3T
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 7

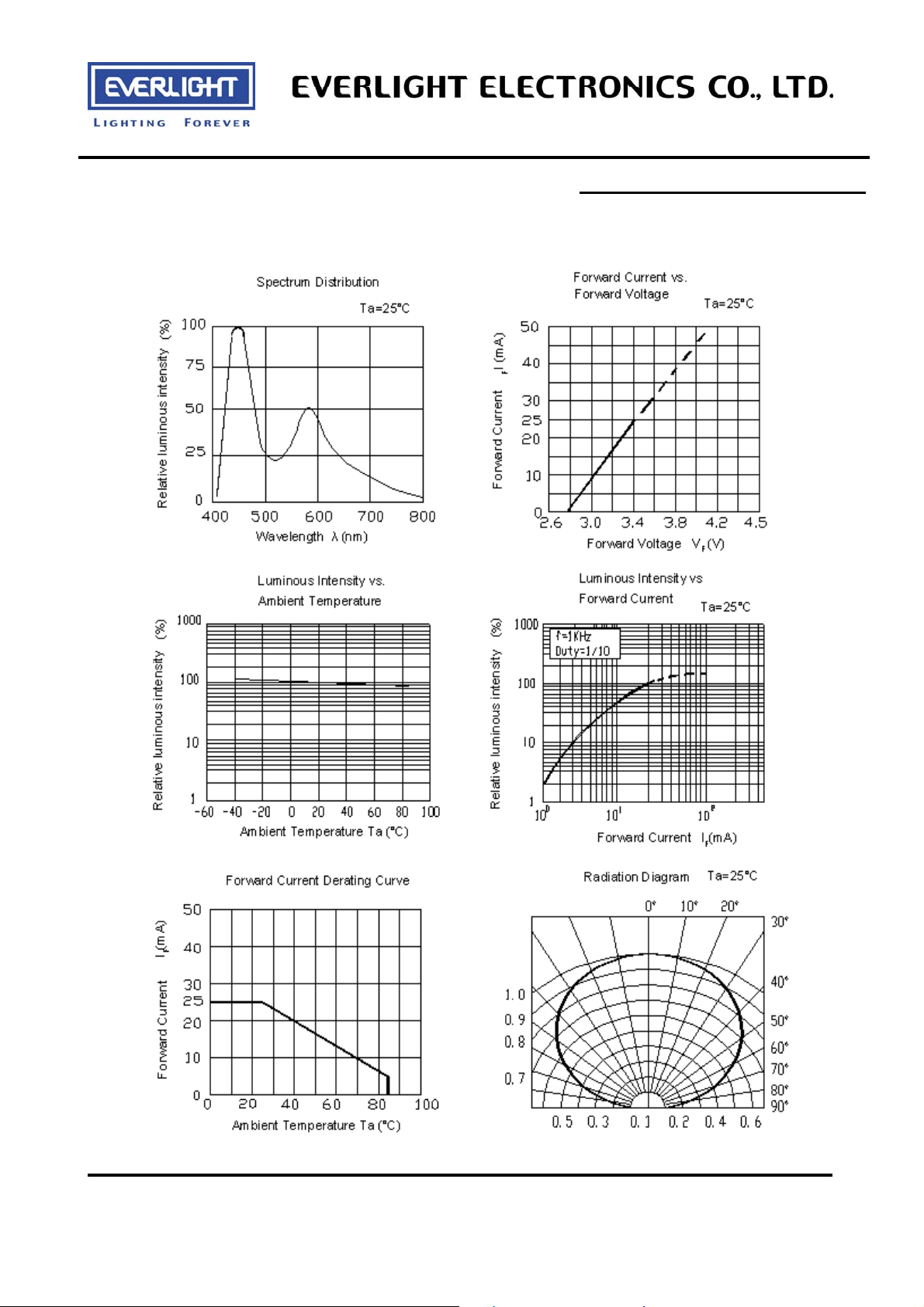

Typical Electro-Optical Characteristics Curves
19-213/T1D-AQ1R2HY/3T
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 8
Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank

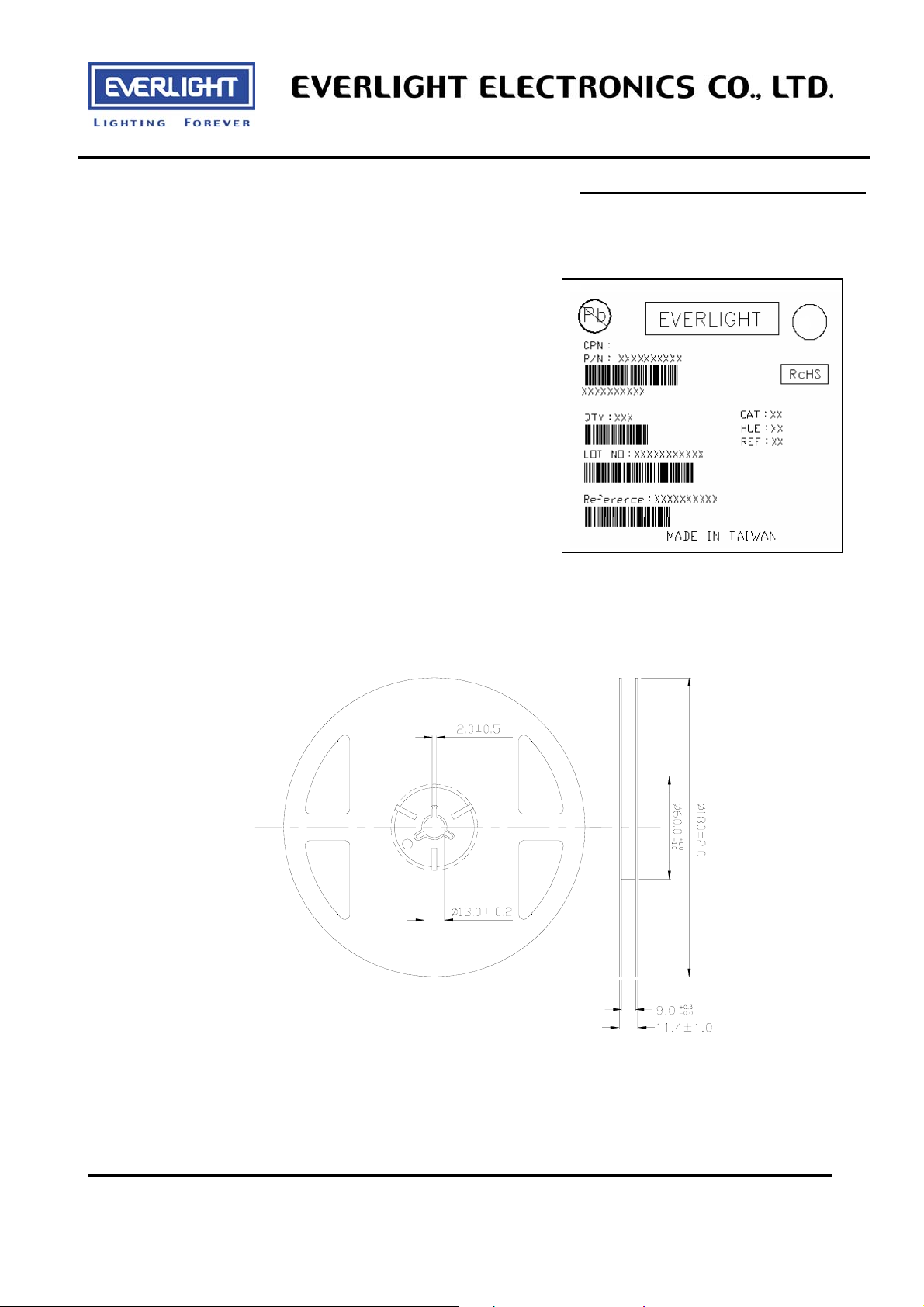

Reel Dimensions
19-213/T1D-AQ1R2HY/3T
Note: The tolerances unless mentioned is ±0.1mm, Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 9
19-213/T1D-AQ1R2HY/3T

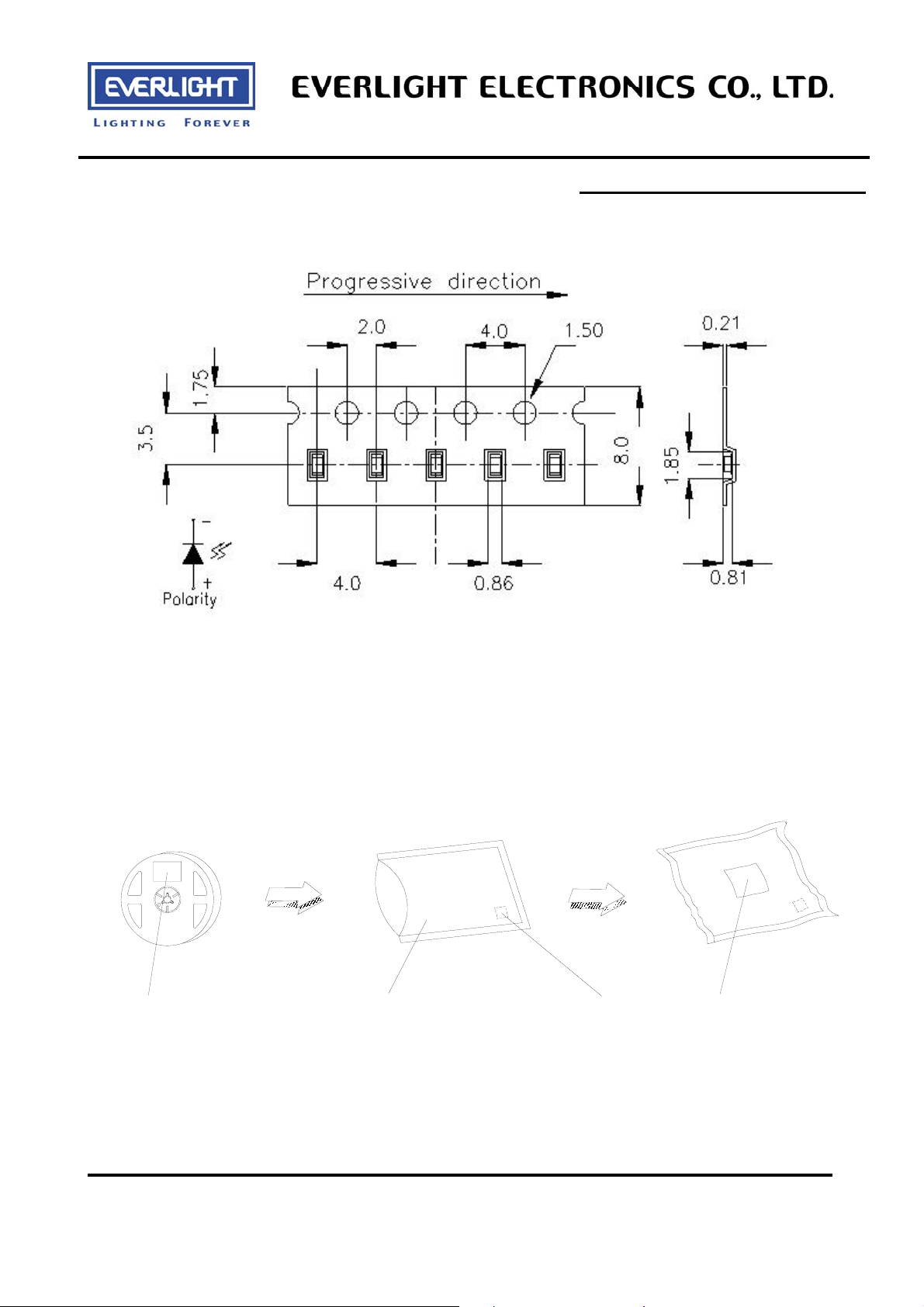

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm, Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 10
19-213/T1D-AQ1R2HY/3T
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level:90%
LTPD10%
No. Items Test Condition
Temp. : 260℃±5
1 Reflow Soldering
Min. 5sec.
H : +100 15min
2 Temperature Cycle
5 min
L : -40 15min
H : +100 5min
3 Thermal Shock
10 sec
Hours/Cycles
6 Min.
300 Cycles
300 Cycles
Test
Sample
Ac/Re
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
L : -10 5min
4
High Temperature
Temp. : 100
Storage
5
Low Temperature
Temp. : -40
Storage
6 DC Operating Life IF = 20 mA
7
High Temperature /
85/ 85%RH
High Humidity
1000 Hrs.
1000 Hrs.
1000 Hrs. 1000 Hrs.
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 11
19-213/T1D-AQ1R2HY/3T
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30 or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30 or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

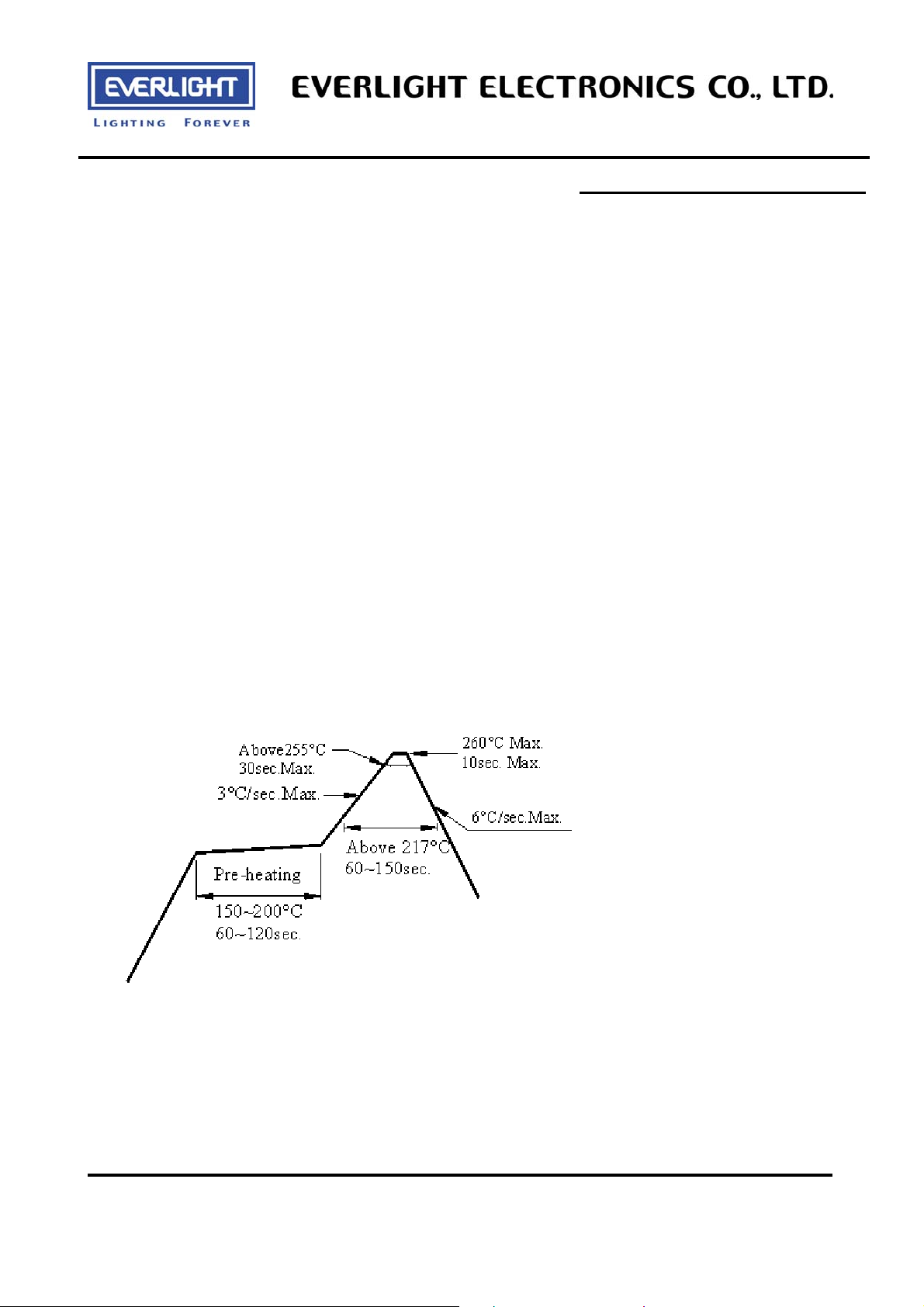

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 11 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
Page 12
19-213/T1D-AQ1R2HY/3T
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

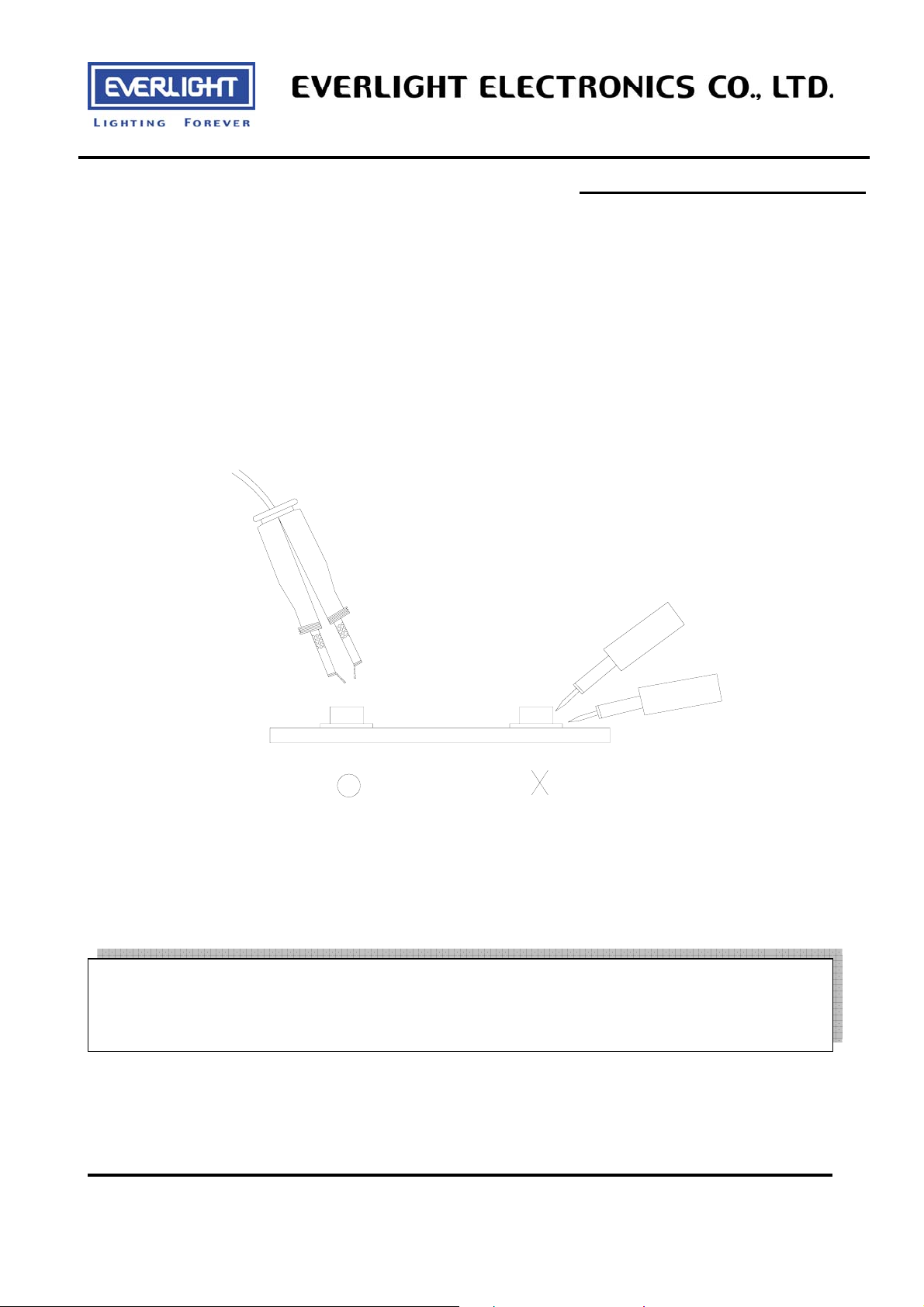

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 12 of 12 Device No:DSE-0002354 Prepared date:15-Sep-2009 Prepared by: Yang Junyu
