EVERLIGHT LED EL 0603 GE Datasheet

Page 1
EVERLIGHT ELECTRONICS CO.,LTD.

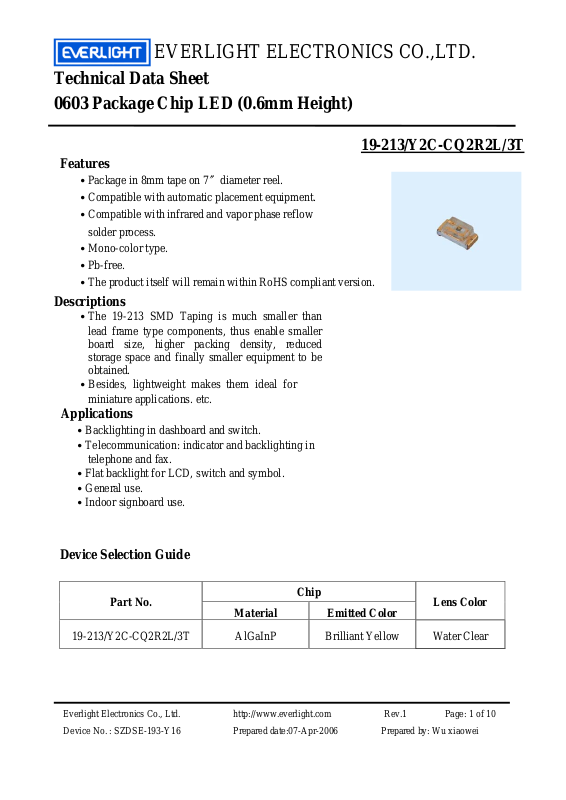

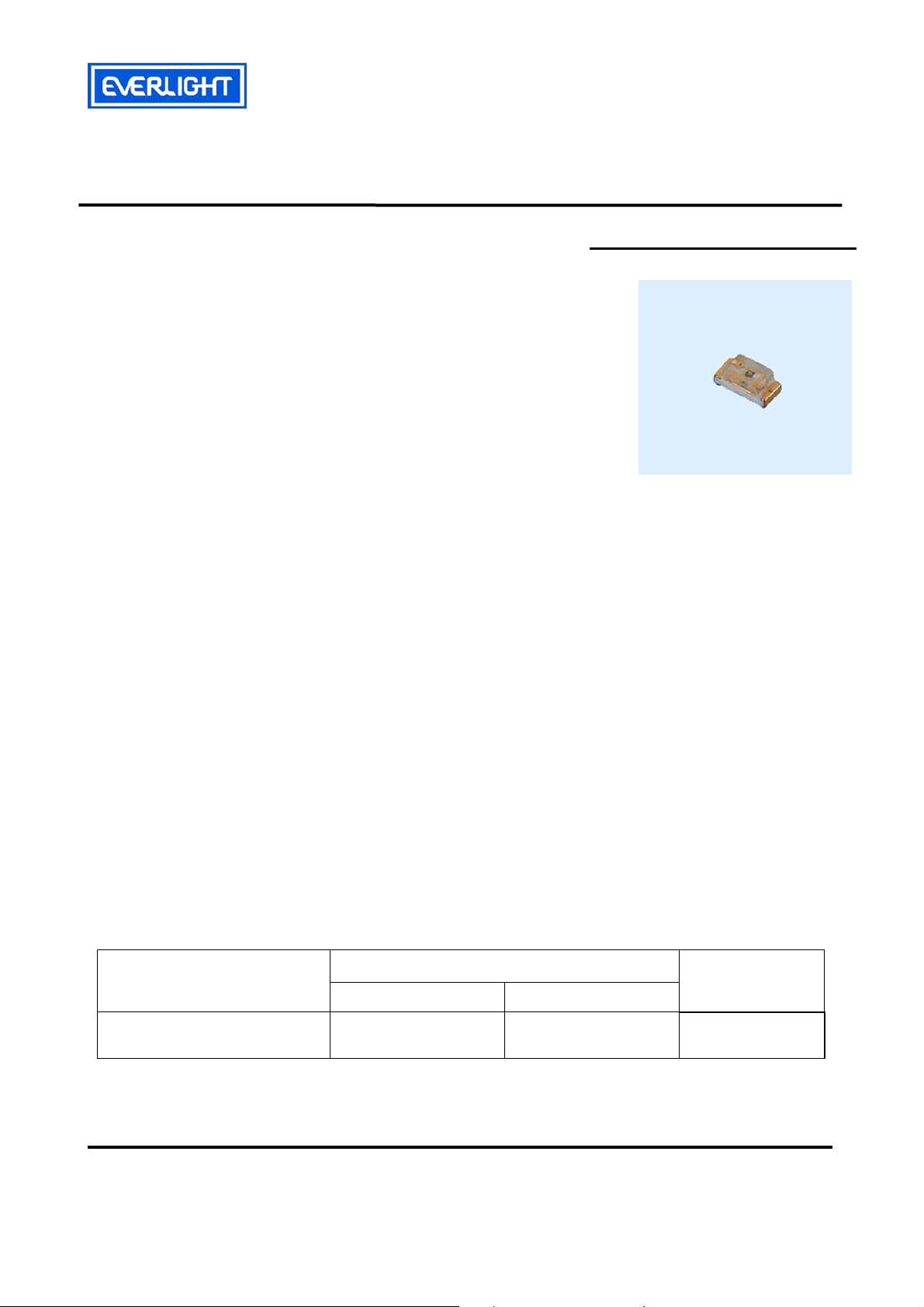

Technical Data Sheet 0603 Package Chip LED (0.6mm Height)
Features
Package in 8mm tape on 7diameter reel.Compatible with automatic placement equipment.Compatible with infrared and vapor phase reflow
solder process.
Mono-color type. Pb-free.The product itself will remain within RoHS compliant version.
Descriptions
The 19-213 SMD Taping is much smaller than
lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use. Indoor signboard use.
Device Selection Guide
Chip
Part No.
Material Emitted Color
19-213/Y2C-CQ2R2L/3T AlGaInP Brilliant Yellow Water Clear
Lens Color
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 1 of 10 Device No. : SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 2
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T

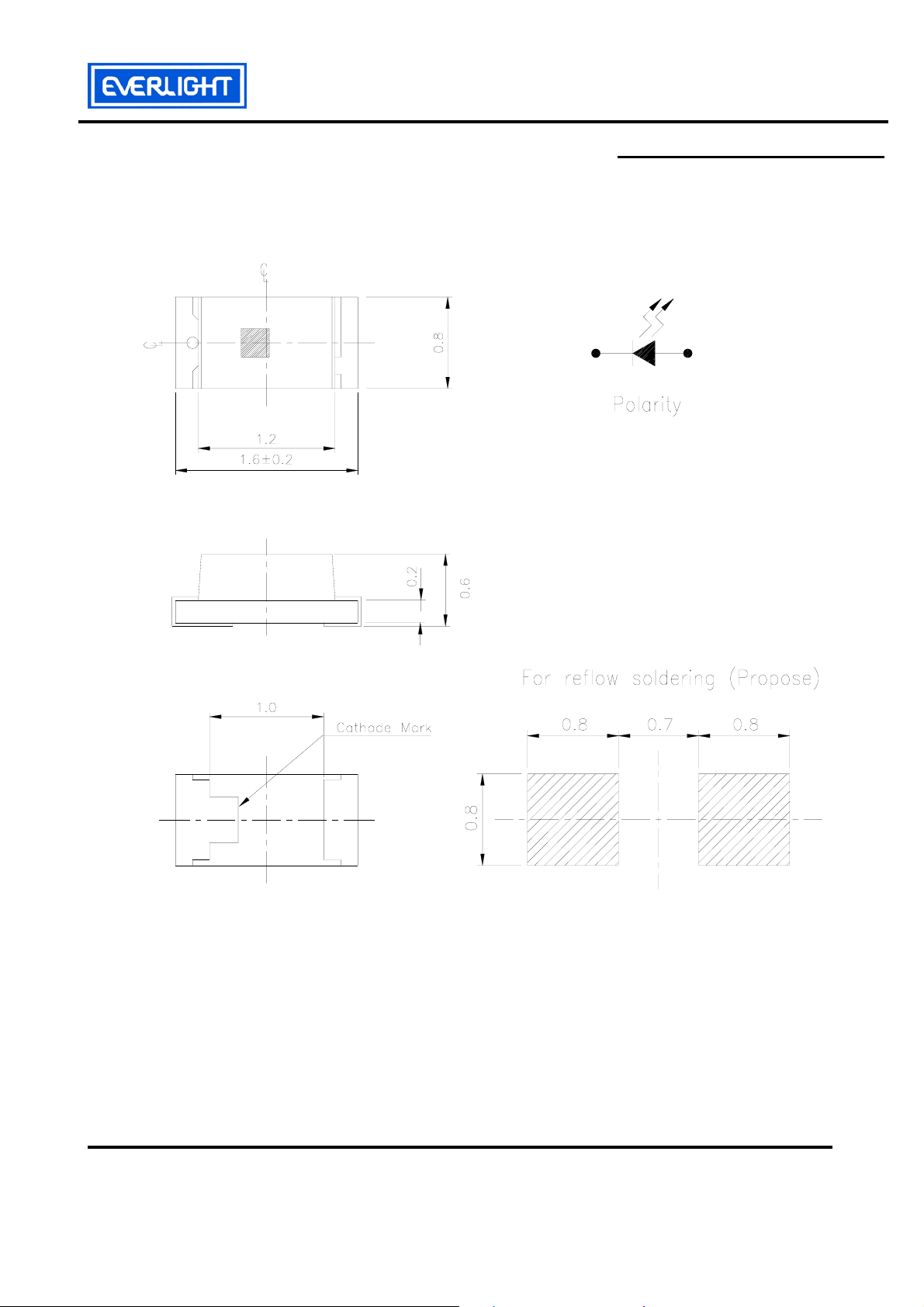

Package Outline Dimensions
-
+
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 2 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T
Absolute Maximum Ratings (Ta=25)
Parameter Symbol Rating Unit
Reverse Voltage VR 5 V Forward Current IF 25 mA
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Electrostatic Discharge(HBM) ESD 2000 V
Power Dissipation Pd 60 mW
Peak Forward Current
(Duty 1/10 @1KHz)
Soldering Temperature Tsol
IFP 60 mA
Reflow Soldering : 260 for 10 sec Hand Soldering : 350 for 3 sec.
Electro-Optical Characteristics (Ta=25)
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity
Peak Wavelength λp ---- 591 ---- nm
Dominant Wavelength
Spectrum Radiation
Bandwidth
Viewing Angle 2θ1/2 ---- 120 ---- deg
IV 90.0 ----- 180
λd
△λ
585.5 ---- 591.5
---- 15 ----
mcd
nm
nm
IF =20mA
Forward Voltage VF
Reverse Current IR ---- ---- 10 μA
1.70 ---- 2.30
V
VR=5V
Notes:
1.Tolerance of Luminous Intensity ±10%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage ±0.05V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 3 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T
Bin Range Of Dom. Wavelength
Group Bin Min Max Unit Condition
C
D3 585.5 588.5
nm IF =20mA
D4 588.5 591.5
Bin Range Of Luminous Intensity
Bin Min Max Unit Condition
Q2 90.0 112 R1 112 140 R2 140 180
mcd IF =20mA
Bin Range Of Forward Voltage
Group Bin Min Max Unit Condition
19 1.70 1.80 20 1.80 1.90
L
21 1.90 2.00
V IF =20mA
22 2.00 2.10 23 2.10 2.2.0 24 2.20 2.30
Notes:
1.Tolerance of Luminous Intensity ±10%
2.Tolerance of Dominant Wavelength ±1nm
3.Tolerance of Forward Voltage ±0.05V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 4 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 5
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T

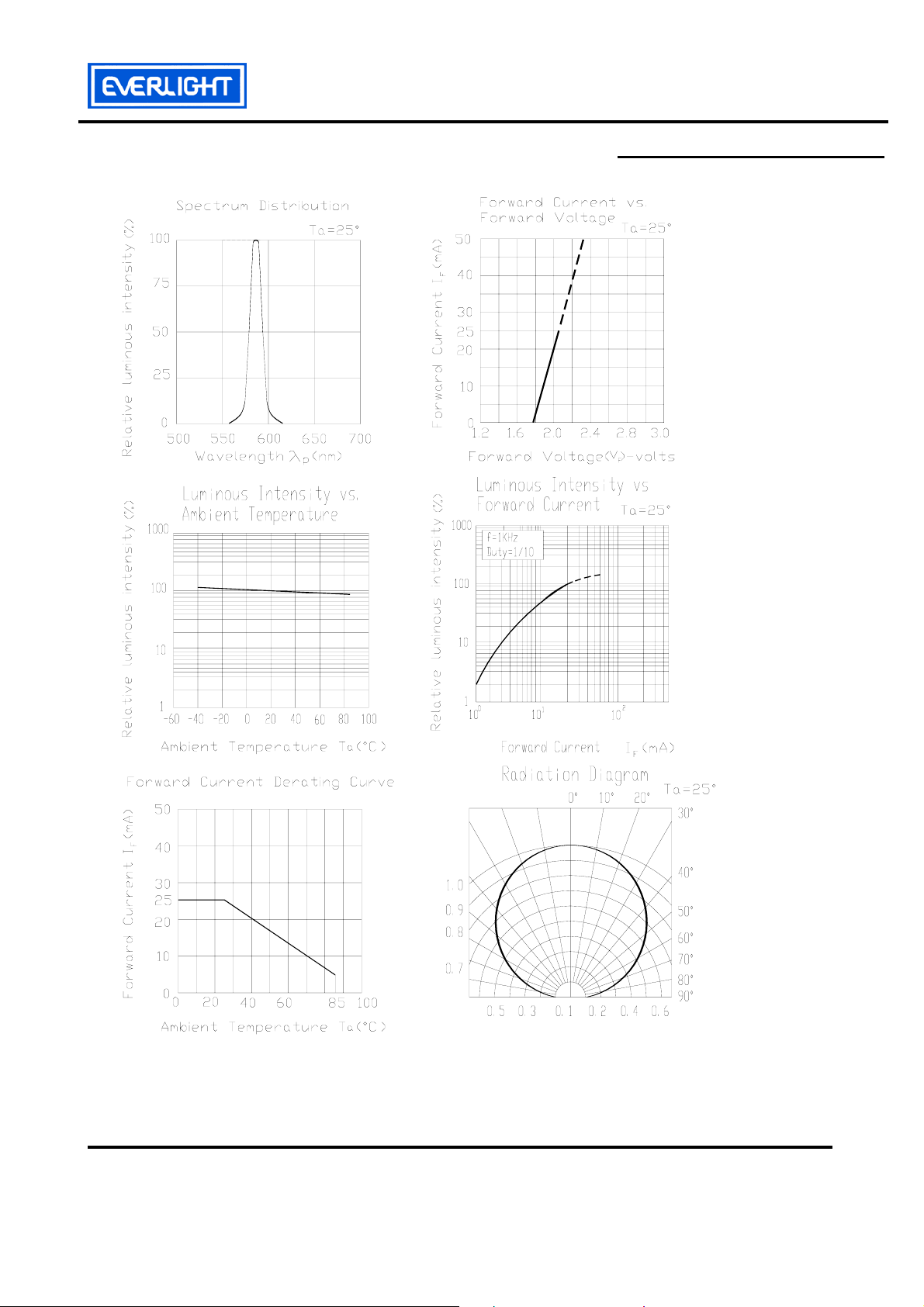

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 5 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 6
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T

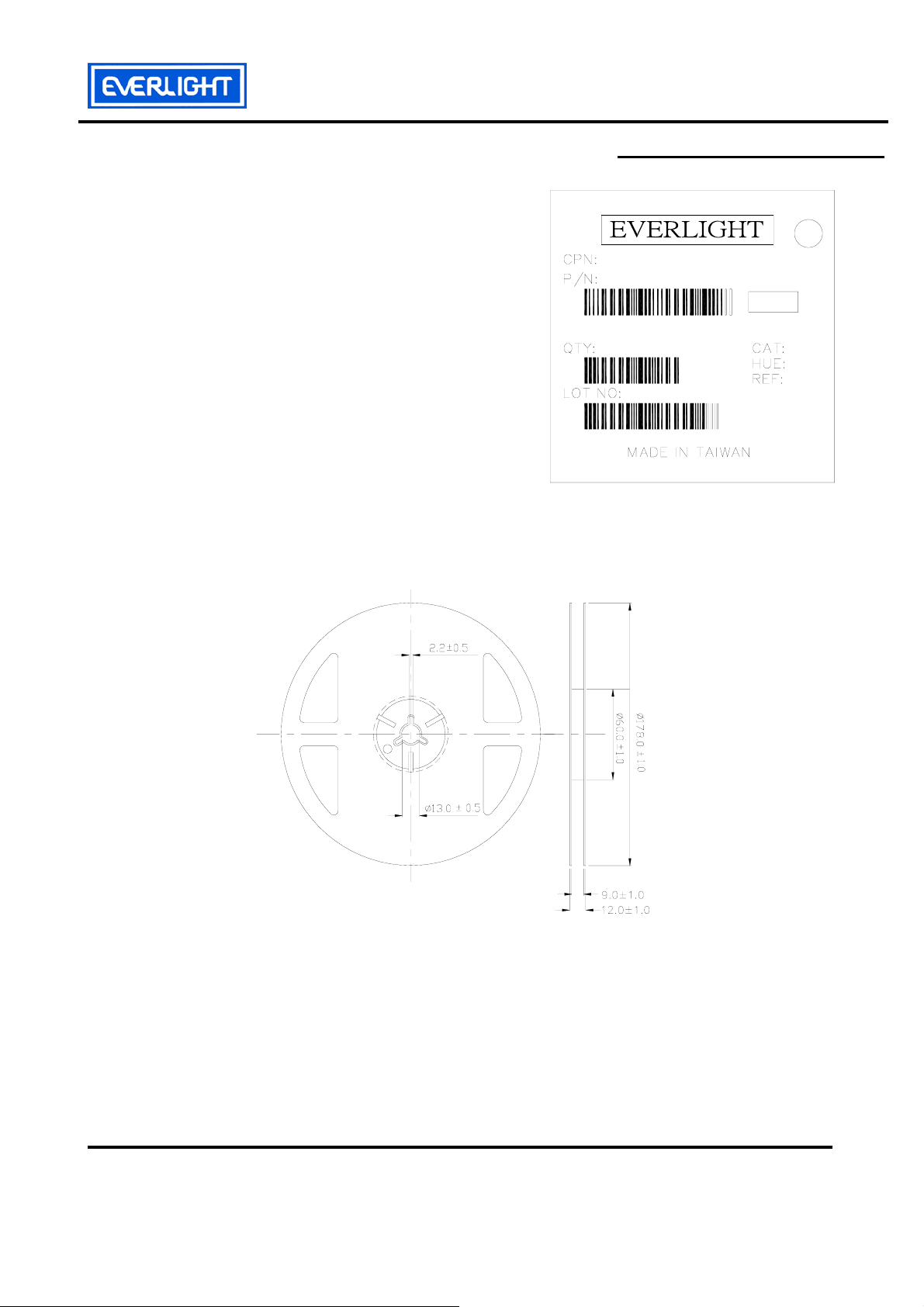

Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank
Reel Dimensions
xxxxxx xxxxxx
RoHS
xxxxxxxxxxxx
xxxx
xxxxxxxx
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 6 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 7
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T

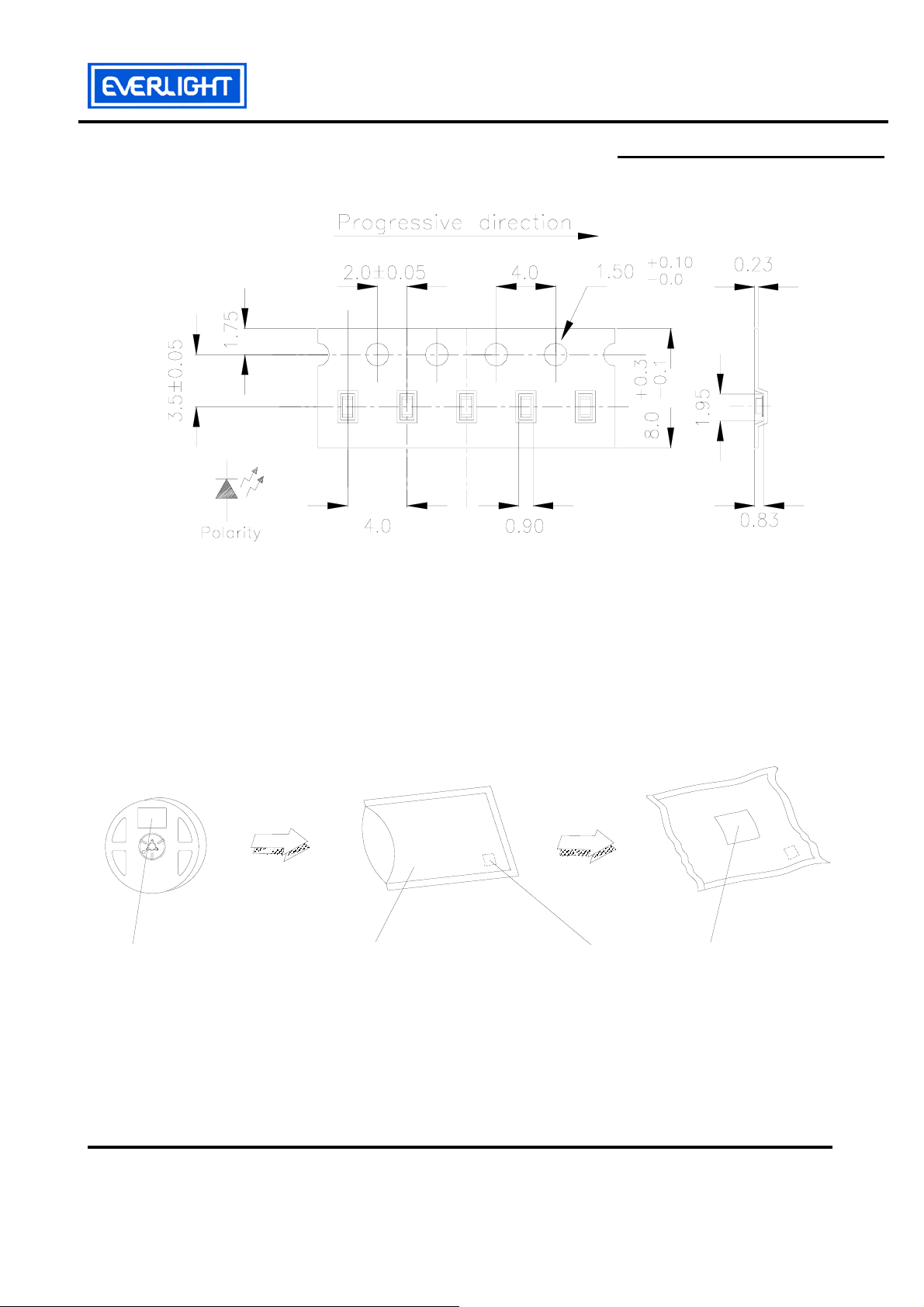

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 7 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 8
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level:90%
LTPD10%
No. Items Test Condition
Test
Hours/Cycles
Temp. : 260℃±5
1 Reflow Soldering
Min. 5sec.
6 Min.
H : +100 15min
2 Temperature Cycle
5 min
300 Cycles
L : -40 15min
H : +100 5min
3 Thermal Shock
10 sec
300 Cycles
L : -10 5min
4
High Temperature
Temp. : 100
1000 Hrs.
Storage
5
Low Temperature
Temp. : -40
1000 Hrs.
Storage
6 DC Operating Life IF = 20 mA
1000 Hrs.
Sample
Ac/Re
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
7
High Temperature /
85/ 85%RH
1000 Hrs.
22 PCS. 0/1
High Humidity
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 8 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 9
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package, the LEDs should be kept at 30 or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30 deg C or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

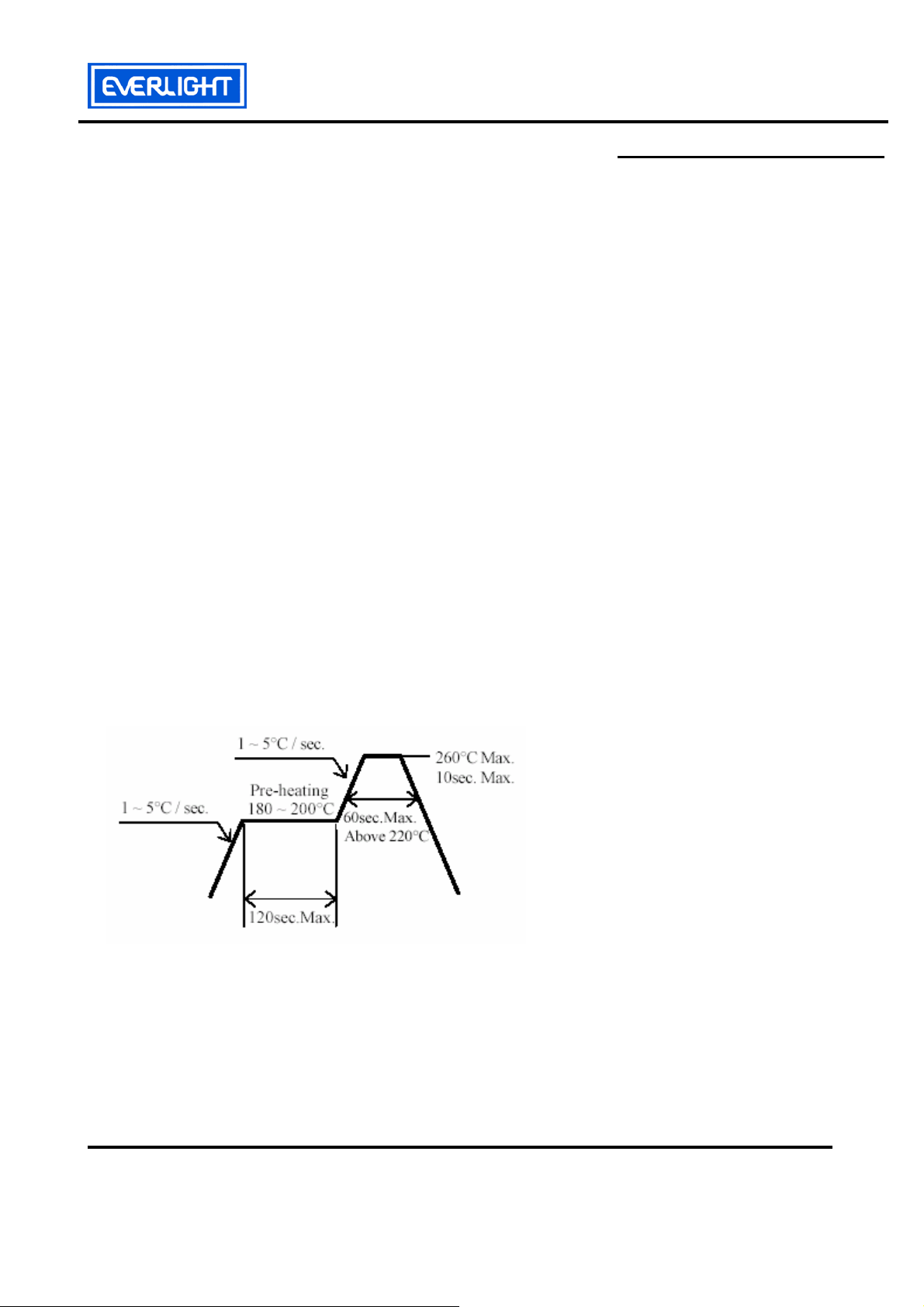

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 9 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
Page 10
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/Y2C-CQ2R2L/3T
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

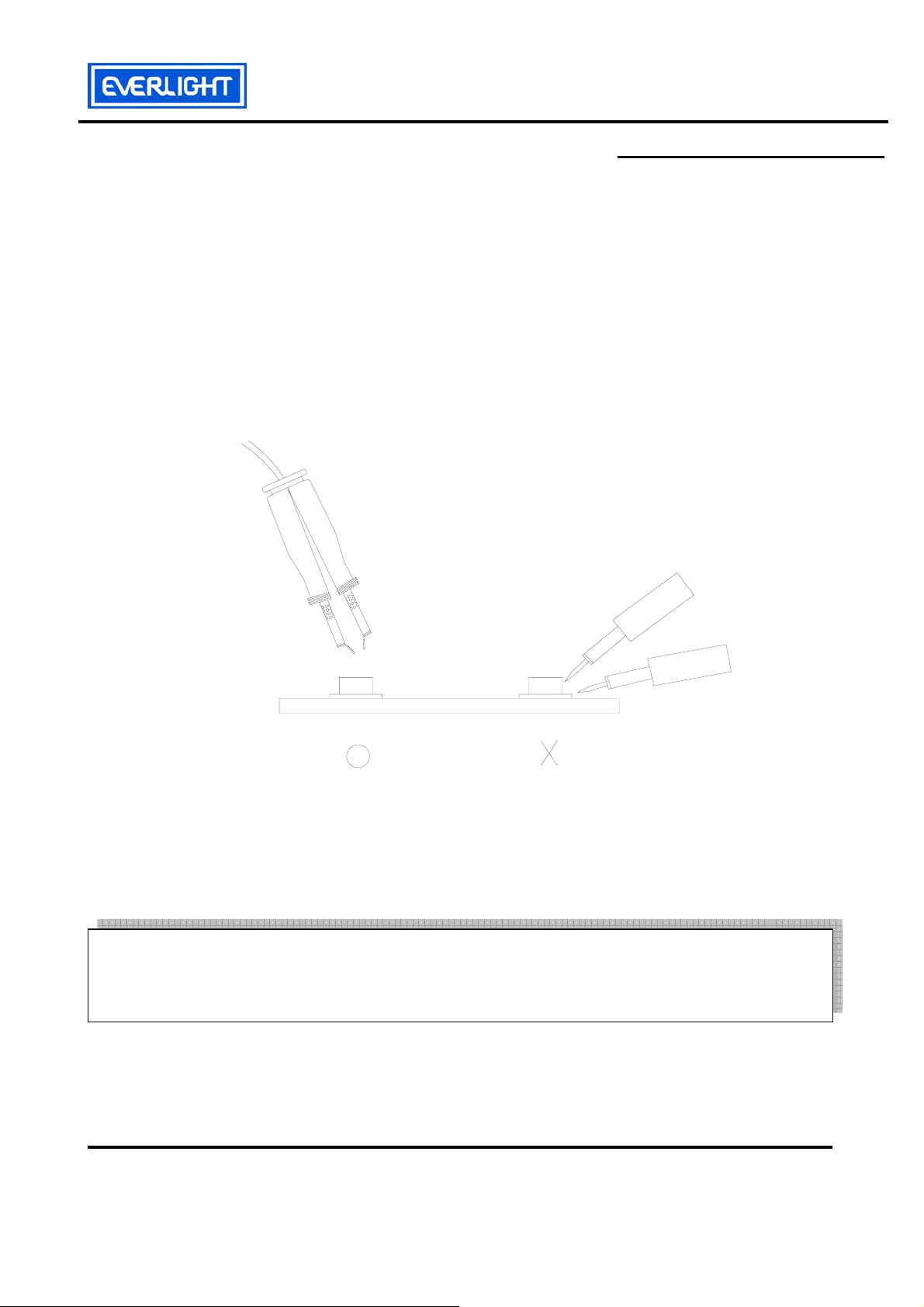

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev.1 Page: 10 of 10 Device No. :SZDSE-193-Y16 Prepared date:07-Apr-2006 Prepared by: Wu xiaowei
