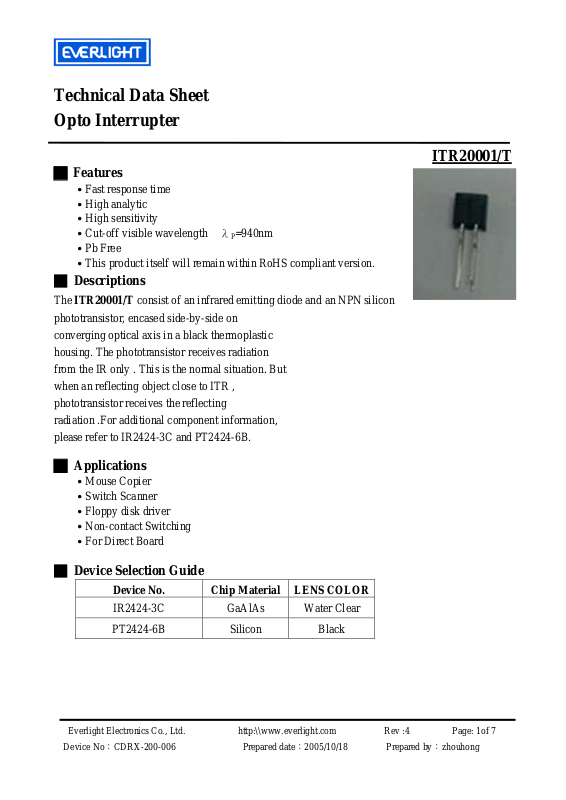

EVERLIGHT ITR 20001/T Datasheet

Technical Data Sheet
Opto Interrupter

ITR20001/T

█ Features

․Fast response time
․High analytic
․High sensitivity
․Cut-off visible wavelength λP=940nm
․Pb Free
․This product itself will remain within RoHS compliant version.

█ Descriptions

The ITR20001/T consist of an infrared emitting diode and an NPN silicon
phototransistor, encased side-by-side on
converging optical axis in a black thermoplastic
housing. The phototransistor receives radiation
from the IR only . This is the normal situation. But
when an reflecting object close to ITR ,
phototransistor receives the reflecting
radiation .For additional component information,
please refer to IR2424-3C and PT2424-6B.

█ Applications

․Mouse Copier
․Switch Scanner
․Floppy disk driver
․Non-contact Switching
․For Direct Board

█ Device Selection Guide

Device No. Chip Material LENS COLOR

IR2424-3C GaAlAs Water Clear
PT2424-6B Silicon Black

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev :4 Page: 1of 7
Device No：CDRX-200-006 Prepared date：2005/10/18 Prepared by：zhouhong

█ Package Dimensions

Internal connection diagram

ITR20001/T

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev :4 Page: 2of 7
Device No：CDRX-200-006 Prepared date：2005/10/18 Prepared by：zhouhong

ITR20001/T

█ Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Ratings Unit

Power Dissipation at(or below) 25℃ Free
Air Temperature

Reverse Voltage V

Input

Forward Current I

Peak Forward Current (*1)

Pulse width ≦100μs, Duty cycle=1%

Collector Power Dissipation PC 75 mW

Collector Current I

Output

Collector-Emitter Voltage B V
Emitter-Collector Voltage B V

Operating Temperature Topr -25~+85
Storage Temperature Tstg -40~+85
Lead Soldering Temperature (*2)
(1/16 inch form body for 5 seconds)

(＊1) tw=100 μsec. , T=10 msec. (＊2) t=5 Sec

Pd 75 mW

5 V

R

50 mA

F

I

1 A

FP

20 mA

C

30 V

CEO

5 V

ECO

Tsol 260

℃
℃

℃

█ Electro-Optical Characteristics (Ta=25℃)

Input

Output

Collector Current(＊3)

Response

Time

Parameter Symbol Min. Typ. Max. Unit Condition

VF1 - 1.2 1.5 IF=20mA

Forward Voltage

VF2 - 1.4 1.8
VF3 - 2.6 4.0

Reverse Current

Peak Wavelength

View Angle

Dark Current I

IR - - 10

λ

P

2θ1/2

- - 100 nA VCE=5V,Ee=0mW/cm2

CEO

- 940 - nm IF=20mA

- 35 - Deg IF=20mA

C-E Saturation

Voltage

V

I

I

Rise Time

- - 0.4 V IC=0.04mA, IF=40mA

CE(sat)

200 - -

C(ON)

- - 2

C(OFF)

tR - 25 -

Fall Time tF - 25 -

V

μA

μA
μA

μs
μs

IF=100mA,tp=100μs,tp/T=0.01

IF=1A,tp=100μs,tp/T=0.01

VR=5V

VCE=5V,IF=20mA

V

=5V,IC=100μA

CE

,RL=100Ω

(＊3) IC(on) at the testing condition—-with reflector in 5mm away,

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev :4 Page: 3of 7
Device No：CDRX-200-006 Prepared date：2005/10/18 Prepared by：zhouhong

IC(off)at the testing condition—-without reflector and external light less than 10 Lux at the module surface.

ITR20001/T

█ Typical Electrical/Optical/Characteristics Curves for IR

10

4

10

3

10

2

10

1

0

1234

1000

-20

100

1.0

-10

02010

30

40

10

1

10

10 1010

10

43210

0.9

0.8

0.7

0.6

0.20.4 0 0.2 0.4 0.6

50
60
70

80

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev :4 Page: 4of 7
Device No：CDRX-200-006 Prepared date：2005/10/18 Prepared by：zhouhong

█ Typical Electrical/Optical/Characteristics Curves for PT

ITR20001/T

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev :4 Page: 5of 7
Device No：CDRX-200-006 Prepared date：2005/10/18 Prepared by：zhouhong

ITR20001/T

█ Reliability Test Item And Condition

The reliability of products shall be satisfied with items listed below.
Confidence level：90%

LTPD：10%

NO.

Item Test Condition

1 Solder Heat

2 Temperature Cycle

TEMP : 260℃ ± 5 ℃

H : +100℃ 15 mins

5 min

L : -40℃ 15 min

Test

Hours/

Cycle

10 sec 22 PCs 0/1

300

cycle

Sample

Size

22 PCs

Failure

Judgement

Criteria

Ic(on)≦L×0.8

Ac/Re

0/1

3 Thermal Shock

4 High Temperature

Storage

5 Low Temperature

Storage

6

DC Operating Life

7 High Temperature /

High Humidity

H : +100℃ 5 min

10 sec

L : -10℃ 5 min

TEMP. : +100℃

TEMP. : -40℃

VCE=5V
IF=20mA

85℃ / 85% R.H.

300

cycle

1000

hrs

1000

hrs

1000

hrs

1000

hrs

L :Lower

22 PCs

0/1

specification

limit

22 PCs 0/1

22 PCs 0/1

22 PCs 0/1

22 PCs

0/1

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev :4 Page: 6of 7
Device No：CDRX-200-006 Prepared date：2005/10/18 Prepared by：zhouhong

E

Packing Quantity Specification

1.200PCS/1Bag, 6Bag/1Box

2. 10Boxes/1Carton

Label Form Specification

ITR20001/T

Notes

1.All dimensions are in millimeters

ITR20001/T

CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Peak Wavelength
REF: Reference
LOT No: Lot Number

2.Tolerances unless dimensions ±0.2mm

3.Lead spacing is measured where the lead emerge from the package

4.Above specification may be changed without notice. EVERLIGHT will reserve authority
on material change for above specification

5.These specification sheets include materials protected under copyright of
EVERLIGHT corporation . Please don＇t reproduce or cause anyone to reproduce them

without EVERLIGHT＇s consent

6.When using this product , please observe the absolute maximum ratings and the
instructions for use outlined in these specification sheets. EVERIGHT assumes
no responsibility for any damage resulting from use of the product which does
not comply with the absolute maximum ratings and the instructions included
in these specification sheets.
