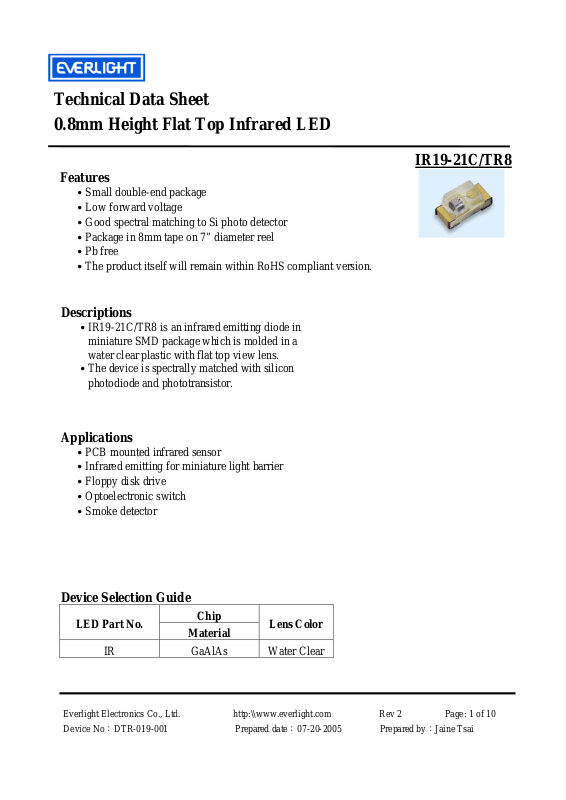

EVERLIGHT IR 19-21C EVL Datasheet

Technical Data Sheet

0.8mm Height Flat Top Infrared LED

IR19-21C/TR8

Features

․Small double-end package
․Low forward voltage
․Good spectral matching to Si photo detector
․Package in 8mm tape on 7” diameter reel
․Pb free
․The product itself will remain within RoHS compliant version.

Descriptions

․IR19-21C/TR8 is an infrared emitting diode in

miniature SMD package which is molded in a
water clear plastic with flat top view lens.
․The device is spectrally matched with silicon

photodiode and phototransistor.

Applications

․PCB mounted infrared sensor
․Infrared emitting for miniature light barrier
․Floppy disk drive
․Optoelectronic switch
․Smoke detector

Device Selection Guide

LED Part No.

IR GaAlAs Water Clear

Chip

Lens Color

Material

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 1 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

IR19-21C/TR8

Package Dimensions

1

2

1

Cathode

21

2

Anode

Notes: 1.All dimensions are in millimeters

2.Tolerances unless dimensions ±0.1mm

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Units

Continuous Forward Current IF 65
Peak Forward Current IFP 1.0
Reverse Voltage VR 5
Operating Temperature T
Storage Temperature T
Soldering Temperature T
Power Dissipation at(or below)

-25 ~ +85

opr

-40 ~ +85

stg

260

sol

Pd 130

25℃Free Air Temperature

Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%.

*2:Soldering time≦5 seconds.

mA

A
V

℃
℃
℃

mW

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 2 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Condition Min. Typ. Max. Units

IF=20mA

Radiant Intensity

Peak Wavelength
Spectral Bandwidth

Forward Voltage VF

Reverse Current IR
View Angle

Ee

λp

Δλ

2θ1/2

IF=100mA

Pulse Width≦100μs ,Duty≦1%

=20mA

I

F

I

=20mA

F

IF=20mA

IF=100mA

Pulse Width≦100μs ,Duty≦1%

IF=1A

VR=5V -- -- 10

IF=20mA -- 150 -- deg

IR19-21C/TR8

0.2 0.7

-- 4.0 --

-- 940

--

-- 1.2 1.5

-- 1.4 1.8

-- 2.6 4.0

45

-- nm

--

mW /sr

nm

V

μA

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 3 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

IR19-21C/TR8

Typical Electro-Optical Characteristics Curves

Fig.1 Forward Current vs. Fig.2 Spectral Distribution

Ambient Temperature

140

120

100

80

60

100

80

60

40

40

20

0

-25 0 4020 60 10080

20

0

Fig.3 Peak Emission Wavelength Fig.4 Forward Current
Ambient Temperature vs. Forward Voltage

980

4

10

IF=20mA
Ta=25° C

960

3

10

940

2

920

900

-25

0

25

50

75

100

10

10

1

0

1234

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 4 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

IR19-21C/TR8

Typical Electro-Optical Characteristics Curves

Fig.5 Relative Intensity vs. Fig.6 Relative Radiant Intensity vs.

Forward Current Angular Displacement

100

-20

-10

02010

30

10

1.0

0.9

1

0.8

0.7

Ie-Radiant Intensity(mW/sr)

0

0

10

Fig.7 Relative Intensity vs. Fig.8 Forward Voltage vs.

Ambient Temperature(°C) Ambient Temperature(°C)

10

IF-Forward Current (mA)

0.9

0.7

23104

10110

IF=20mA

1.3

1.2

0.6

0.20.4 0 0.2 0.4 0.6

IF=20mA

40

50
60
70

80

0.5

0.3

25

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 5 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

50 75

100

120

1.1

1

25

50 75

100

120

IR19-21C/TR8

Precautions For Use

1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift will cause big
current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 6 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

IR19-21C/TR8

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3

seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more
intervals, and do soldering of each terminal. Be careful because the damage of the product is often
started at the time of the hand solder.

5.Repairing
Repair should not be done after the LEDs have been soldered. When repairing is
unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed
beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 7 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.

Confidence level：90%

LTPD：10%

IR19-21C/TR8

NO. Item Test Conditions Test Hours/

Cycles

Sample
Sizes

Failure
Judgement

Ac/Re

Criteria

1 REFLOW Soldering

2 Temperature Cycle

3 Thermal Shock

4 High Temperature

Storage

5 Low Temperature

Storage

TEMP.：260℃±5℃
5secs

H : +100℃ 15mins
5mins

L : -40℃ 15mins
H :+100℃ 5mins

10secs
L :-10℃ 5mins

TEMP.：+100℃

TEMP.：-40℃

6Mins 22pcs 0/1

IR≧U×2

50Cycles 22pcs 0/1

Ee≦L×0.8
VF≧U×1.2

50Cycles 22pcs 0/1

U：Upper
Specification

Limit

1000hrs 22pcs 0/1

L：Lower
Specification

1000hrs 22pcs 0/1

Limit

6 DC Operating Life IF=20mA 1000hrs 22pcs 0/1
7 High Temperature/

85℃ / 85% R.H

1000hrs 22pcs

0/1

High Humidity

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 8 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

Package Dimensions

IR19-21C/TR8

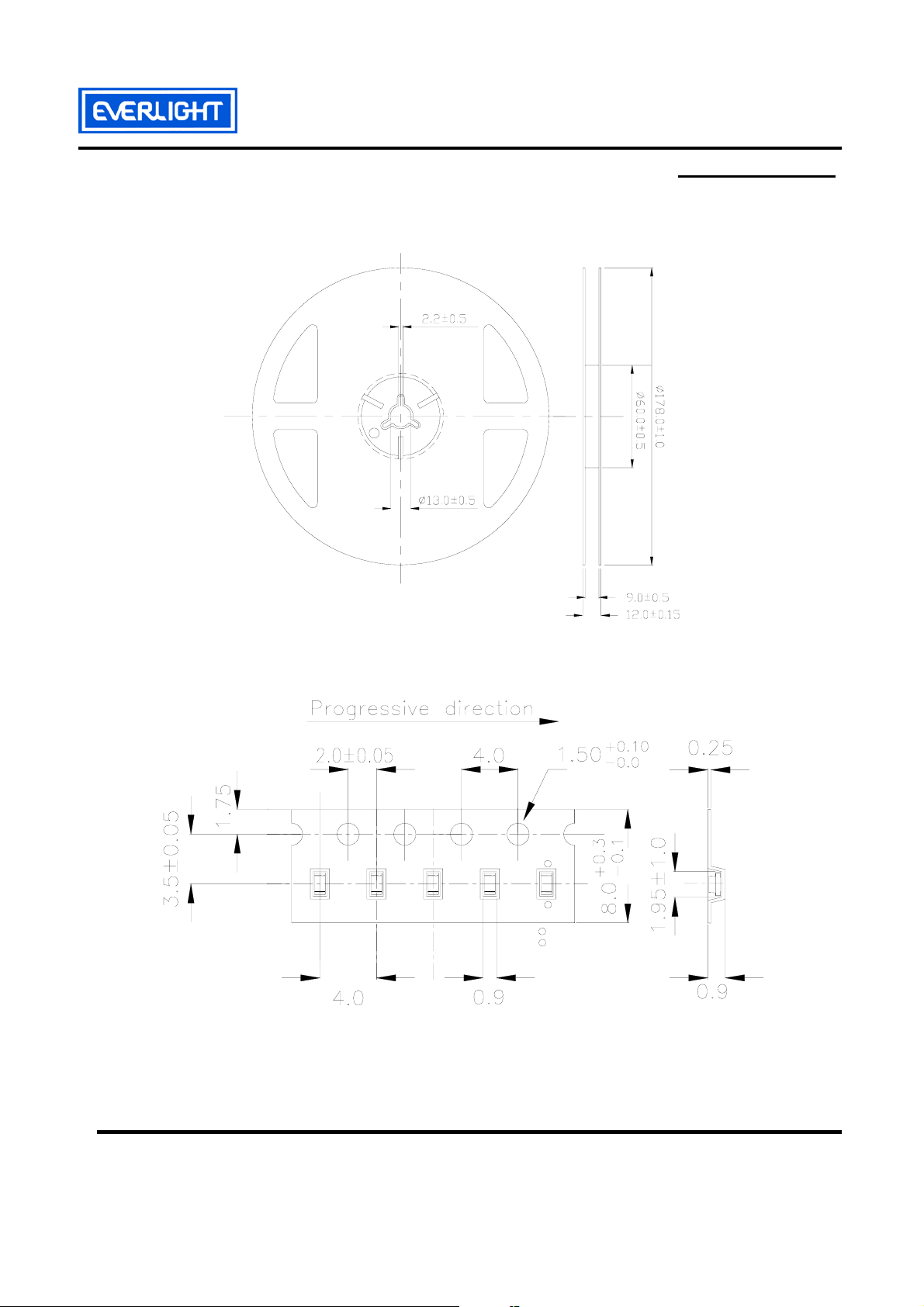

Taping Dimensions

Unit：mm

1
2

1

2

Cathode
Anode

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 9 of 10
Device No：DTR-019-001 Prepared date：07-20-2005 Prepared by：Jaine Tsai

Packing Quantity Specification

1.3000Pcs/1Volume，1Volume/1Bag

2.10Boxes/1Carton

Label Form Specification

IR19-21C/TR8

CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity

RoHS

IR19-21C/TR8

CAT: Ranks

HUE: Peak Wavelength

EF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place

Notes

1. Above specification may be changed without notice. EVERLIGHT will reserve authority on

material change for above specification.

2. When using this product, please observe the absolute maximum ratings and the instructions

for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.

3. These specification sheets include materials protected under copyright of EVERLIGHT

corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.

EVERLIGHT ELECTRONICS CO., LTD. Tel: [phone]
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: [phone]
Tucheng, Taipei 236, Taiwan, R.O.C http:\\www.everlight.com
