EVERLIGHT HIR 204/H0 Datasheet

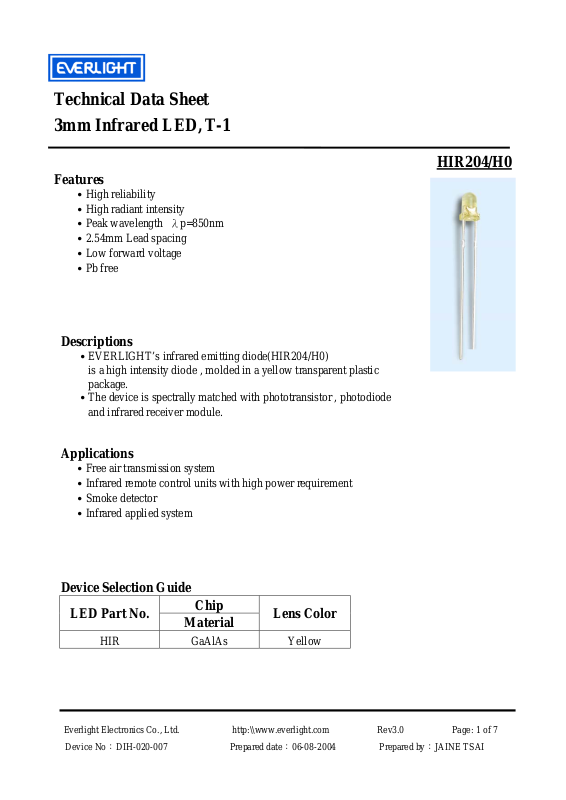

Technical Data Sheet

T-1

3mm Infrared LED,

Features

․High reliability
․High radiant intensity
․Peak wavelength λp=850nm
․2.54mm Lead spacing
․Low forward voltage
․Pb free

Descriptions

․EVERLIGHT’s infrared emitting diode(HIR204/H0)

is a high intensity diode , molded in a yellow transparent plastic
package.
․The device is spectrally matched with phototransistor , photodiode

and infrared receiver module.

Applications

․Free air transmission system
․Infrared remote control units with high power requirement
․Smoke detector
․Infrared applied system

HIR204/H0

Device Selection Guide

Chip

LED Part No.

Lens Color

Material

HIR GaAlAs Yellow

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev3.0 Page: 1 of 7

Device No：DIH-020-007 Prepared date：06-08-2004 Prepared by：JAINE TSAI

HIR204/H0

Package Dimensions

Notes: 1.All dimensions are in millimeters

2.Tolerances unless dimensions ± 0.25mm

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Units

Continuous Forward Current IF 100
Peak Forward Current IFP 1.0
Reverse Voltage VR 5
Operating Temperature T
Storage Temperature T
Soldering Temperature T
Power Dissipation at(or below)

25℃Free Air Temperature

Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%.

-40 ~ +85

opr

-40 ~ +85

stg

260

sol

Pd 150

mA

A
V

℃
℃
℃

mW

*2:Soldering time≦5 seconds.

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev3.0 Page: 2 of 7

Device No：DIH-020-007 Prepared date：06-08-2004 Prepared by：JAINE TSAI

HIR204/H0

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Condition Min. Typ. Max. Units

Radiant Intensity Ee

Peak Wavelength
Spectral
Bandwidth

Forward Voltage VF

Reverse Current IR
View Angle

λp

Δλ

2θ1/2

IF=20mA

IF=100mA

Pulse Width≦100μs ,Duty≦1%

IF=1A

Pulse Width≦100μs ,Duty≦1%.

IF=20mA
IF=20mA

IF=20mA

IF=100mA

Pulse Width≦100μs ,Duty≦1%

IF=1A

Pulse Width≦100μs ,Duty≦1%.

VR=5V -- -- 10

IF=20mA -- 40 -- deg

4.0 8.9 --

-- 30 --

-- 380 --

-- 850

--

--

--

45

1.45 1.65

1.80 2.40

4.10 5.25

mW/sr

-- nm

--

μA

nm

V

Rank

Condition：IF=20mA
Unit：mW/sr

Bin Number

Min

Max

K L M N

4.0 5.6 7.8 11.0

6.4 8.9 12.5 17.6

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev3.0 Page: 3 of 7

Device No：DIH-020-007 Prepared date：06-08-2004 Prepared by：JAINE TSAI

Typical Electro-Optical Characteristics Curves

HIR204/H0

Fig.1 Forward Current vs. Fig.2 Spectral Distributio

Ambient Temperature

n

140

120

100

80

60

40

20

0

-20 402006010080

-40

100

80

60

40

20

0

790

I

=20mA

F

Ta=25°C

890

870 930910 950

850810 830

Fig.3 Peak Emission Wavelength Fig.4 Forward Current

Ambient Temperature vs. Forward Voltage

900

875

850

825

800

-25

0

25

50

75

100

4

10

3

10

2

10

1

10

0

21345678

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev3.0 Page: 4 of 7

Device No：DIH-020-007 Prepared date：06-08-2004 Prepared by：JAINE TSAI

HIR204/H0

Typical Electro-Optical Characteristics Curves

Fig.5 Relative Intensity vs. Fig.6 Relative Radiant Intensity vs.

Forward Current Angular Displacement

1000

-20

-10

02010

30

100

10

Ie-Radiant Intensity(mW/sr)

0

10

0

10

IF-Forward Current (mA

1.0

0.9

0.8

0.7

1

2

10

10

3

4

10

)

0.6

0.20.4 0 0.2 0.4 0.6

40

50
60
70

80

Fig.7 Relative Intensity vs. Fig.8 Forward Current vs.

Ambient Temperature(° C) Ambient Temperature(° C)

15

10

IF=20mA

5

0

25

50 75

100

120

1.6

1.4

1.2

1

25

50 75

I

F

=20mA

100

120

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev3.0 Page: 5 of 7

Device No：DIH-020-007 Prepared date：06-08-2004 Prepared by：JAINE TSAI

HIR204/H0

Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.

Confidence level：90%

LTPD：10%
NO. Item Test Conditions Test Hours/

Cycles

Sample
Sizes

Failure
Judgement

Ac/Re

Criteria
1 Solder Heat
2 Temperature Cycle

3 Thermal Shock

4 High Temperature

Storage

5 Low Temperature

Storage

6 DC Operating Life IF=20mA 1000hrs 22pcs 0/1

TEMP.：260℃± 5℃
H : +100℃ 15mins
5mins

L : -40℃ 15mins
H :+100℃ 5mins
10secs

L :-10℃ 5mins
TEMP.：+100℃

TEMP.：-40℃

10secs 22pcs 0/1
50Cycles 22pcs 0/1

IR≧U× 2

Ee≦L× 0.8

VF≧U×1.2

50Cycles 22pcs 0/1

U：Upper

Specification

1000hrs 22pcs 0/1

Limit

L：Lower

1000hrs 22pcs 0/1

Specification

Limit

7 High Temperature/

85℃ / 85% R.H

1000hrs 22pcs

0/1

High Humidity

Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev3.0 Page: 6 of 7

Device No：DIH-020-007 Prepared date：06-08-2004 Prepared by：JAINE TSAI

HIR204/H0

Packing Quantity Specification

1.1000PCS/1Bag，4Bags/1Box

2.10Boxes/1Carton

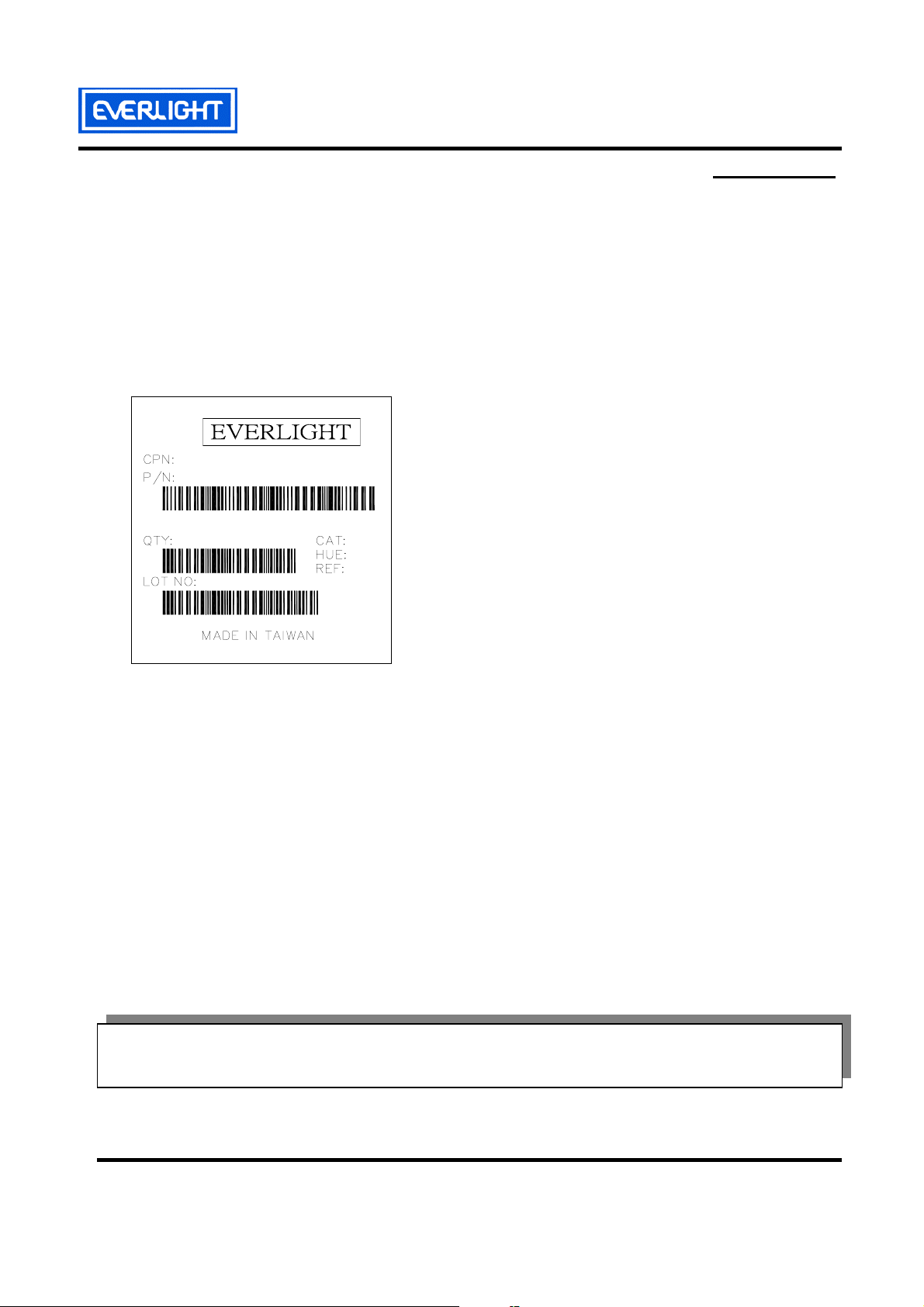

Label Form Specification

HIR204/H0

CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Peak Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place

Notes

1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.

2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.

3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.
