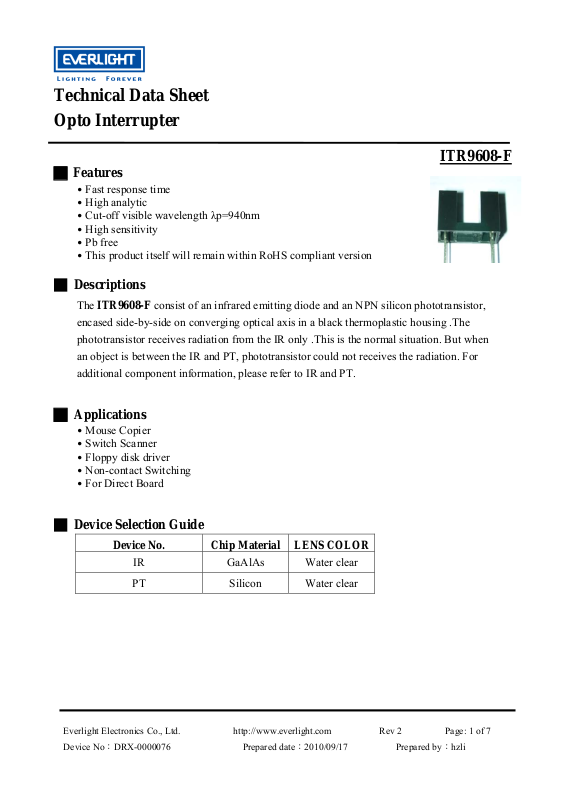

Page 1
Technical Data Sheet
Opto Interrupter
ITR9608-F
█ Features
․Fast response time
․High analytic
․Cut-off visible wavelength λp=940nm
․High sensitivity
․Pb free
․This product itself will remain within RoHS compliant version
█ Descriptions
The ITR9608-F consist of an infrared emitting diode and an NPN silicon phototransistor,
encased side-by-side on converging optical axis in a black thermoplastic housing .The
phototransistor receives radiation from the IR only .This is the normal situation. But when
an object is between the IR and PT, phototransistor could not receives the radiation. For
additional component information, please refer to IR and PT.
█ Applications
․Mouse Copier
․Switch Scanner
․Floppy disk driver
․Non-contact Switching
․For Direct Board
█ Device Selection Guide
Device No. Chip Material LENS COLOR
IR GaAlAs Water clear
PT Silicon Water clear
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 1 of 7
Device No：DRX-0000076 Prepared date：2010/09/17 Prepared by：hzli
Page 2
█ Package Dimensions
ITR9608-F
1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.25mm
3.Lead spacing is measured where the lead emerge from the package
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 2 of 7
Device No：DRX-0000076 Prepared date：2010/09/17 Prepared by：hzli
Page 3
ITR9608-F
█ Absolute Maximum Ratings (Ta=25°C)
Parameter Symbol Ratings Unit
Power Dissipation at(or below) 25℃ Free
Air Temperature
Reverse Voltage V
Input
Forward Current I
Peak Forward Current (*1)
Pulse width ≦100μs, Duty cycle=1%
Collector Power Dissipation PC 75 mW
Collector Current I
Output
Collector-Emitter Voltage B V
Emitter-Collector Voltage B V
Operating Temperature Topr -25~+85 °C
Storage Temperature Tstg -40~+100 °C
Lead Soldering Temperature (*2)
(1/16 inch form body for 5 seconds)
(＊1) tw=100 μsec. , T=10 msec. (＊2) t=5 Sec
Pd 75 mW
5 V
R
50 mA
F
I
1 A
FP
20 mA
C
30 V
CEO
5 V
ECO
Tsol 260 °C
█ Electro-Optical Characteristics (Ta=25°C)
Parameter Symbol Min.
Input
Output
Transfer
Characteristics
Forward Voltage VF --- 1.2 1.5 V IF=20mA
Reverse Current IR --- --- 10
λ
Peak Wavelength
P
View Angle 2θ1/2 --- 40 --- Deg I
Dark Current I
C-E Saturation
Voltage
V
--- --- 100 nA VCE=20V,Ee=0mW/cm
CEO
(sat)
CE
Collect Current IC(ON) 0.5
Rise time tr --- 15 ---
Fall time tf --- 15 ---
Typ.
--- 940 --- nm
---
Max. Unit Conditions
μA
---
--- ---
0.4 V
mA
μsec
μsec
=5V
V
R
I
=20mA
F
=20mA
F
IC=2mA
,Ee=1mW/cm2
V
=5V
CE
IF=20mA
VCE=5V
IC=1mA
RL=1KΩ
2
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 3 of 7
Device No：DRX-0000076 Prepared date：2010/09/17 Prepared by：hzli
Page 4
0
█ Typical Electrical-Optical Characteristics Curves for IR
Fig.1 Forward Current vs. Fig.2 Spectral Distribution
Ambient Temperature Wavelength
ITR9608-F
70
60
50
40
30
20
10
0
-40 -20 40200601
80
100
80
60
40
20
IF =20mA
Ta=25°C
0
Fig.3 Ie-Radiant Intensity vs. Fig.4 Relative Radiant Intensity vs.
IF- Forward Current Angular Displacement
1000
-20
Ie-Radiant Intensity(mW/sr)
100
10
0
0
10
10
IF-Forward Current (mA)
23104
10110
1.0
0.9
0.8
0.7
0.6
02010
-10
0.20.4 0 0.2 0.4 0.6
30
40
50
60
70
80
Fig.5 Ie-Radiant Intensity vs. Fig.6 Relative Forward Voltage vs.
Ambient Temperature(°C) Ambient Temperature(°C)
15
10
IF=20mA
5
Ie-Radiant Intensity (mW/sr)
0
25
50 75
100
120
1.3
1.2
1.1
IF=20mA
1
25
50 75
100
120
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 4 of 7
Device No：DRX-0000076 Prepared date：2010/09/17 Prepared by：hzli
Page 5
█ Typical Electrical-Optical Characteristics Curves for PT
ITR9608-F
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 5 of 7
Device No：DRX-0000076 Prepared date：2010/09/17 Prepared by：hzli
Page 6
ITR9608-F
█ Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.
Confidence level：90%
LTPD：10%
Test
NO.
Item Test Condition
Hours/
Cycle
1 Solder Heat TEMP : 260°C ± 5°C 10sec 22 PCs 0/1
H : +100°C 15 mins
300
2 Temperature Cycle
5 min
cycle
°C 15 mins
L : -40
H : +100°C 5 min
10 sec
300
3 Thermal Shock
L : -10°C 5 min
cycle
Sample
Size
22 PCs
22 PCs
Failure
Judgement
Criteria
Attenuation of
Light Current
value>20%
Ac/Re
0/1
0/1
4 High Temperature
Storage
5 Low Temperature
Storage
6
DC Operating Life
7 High Temperature /
High Humidity
TEMP. : +100°C 1000 hrs 22 PCs 0/1
TEMP. : -40°C 1000 hrs 22 PCs 0/1
V
=5V
CE
I
=20mA
F
85°C / 85% R.H. 1000 hrs 22 PCs
1000 hrs 22 PCs 0/1
0/1
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 6 of 7
Device No：DRX-0000076 Prepared date：2010/09/17 Prepared by：hzli
Page 7
Packing Quantity Specification
38Pcs/Tube,100Tubes/Box,4Boxes/Carton
Label Form Specification
Pb
EVERLIGHT
X
ITR9608-F
CPN: Customer’s Production Number
P/N : Production Number
RoHS
ITR9608-F
QTY: Packing Quantity
CAT: Ranks
HUE: Peak Wavelength
REF: Reference
LOT No: Lot Number
X: Month
Reference: Identify Label Number
Notes
1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.25mm
3.Lead spacing is measured where the lead emerge from the package
4.Above specification may be changed without notice. EVERLIGHT will reserve authority on
5.These specification sheets include materials protected under copyright of EVERLIGHT
material change for above specification
corporation . Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent
6.When using this product , please observe the absolute maximum ratings and the
instructions for use outlined in these specification sheets. EVERLIGHT assumes no
responsibility for any damage resulting from use of the product which does not comply
with the absolute maximum ratings and the instructions included in these specification
sheets.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev 2 Page: 7 of 7
Device No：DRX-0000076 Prepared date：2010/09/17 Prepared by：hzli
