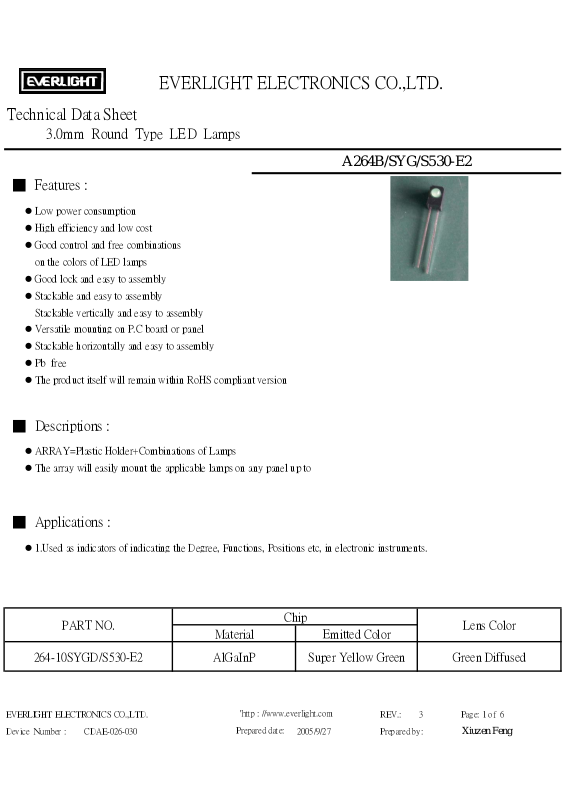

Page 1
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
3.0mm Round Type LED Lamps
█ Features :
●
Low power consumption
●
High efficiency and low cost
●
Good control and free combinations
on the colors of LED lamps
●
Good lock and easy to assembly
●
Stackable and easy to assembly
Stackable vertically and easy to assembly
●
Versatile mounting on P.C board or panel
●
Stackable horizontally and easy to assembly
●
Pb free
●
The product itself will remain within RoHS compliant version
A264B/SYG/S530-E2
█ Descriptions :
●
ARRAY=Plastic Holder+Combinations of Lamps
●
The array will easily mount the applicable lamps on any panel up to
█ Applications :
●
1.Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.
Chip
Lens ColorPART NO.
Material Emitted Color
264-10SYGD/S530-E2 AlGaInP Super Yellow Green Green Diffused
EVERLIGHT ELECTRONICS CO.,LTD. REV.: 3 Page: 1 of 6
Device Number : CDAE-026-030 2005/9/27 Prepared by:
'http : //www.everlight.com
Prepared date:
Xiuzen Feng
Page 2
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
3.0mm Round Type LED Lamps
Package Dimensions
A264B/SYG/S530-E2
Notes:
1.All dimensions are in millimeters, tolerance is 0.25mm except being specified
2.Lead spacing is measured where the lead emerge from the package
█ Absolute Maximum Ratings at Ta = 25℃
Parameter Symbol Rating Unit
Forward Current IF
Operating Temperature Topr -40 to +85 ℃
Storage Temperature Tstg -40 to +100 ℃
Soldering Temperature Tsol 260 ± 5 ℃
Electrostatic Discharge ESD 2000 V
Power Dissipation Pd 60 mW
Reverse Voltage VR 5V
Note: *1:Soldering time ≦ 5 seconds.
25
mA
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com REV.:
Device Number : CDAE-026-030 Prepared date: 2005/9/27
Prepared by: Xiuzen Feng
3
Page: 2 0f 6
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
3.0mm Round Type LED Lamps
Electro-Optical Characteristics(Ta=25℃)
A264B/SYG/S530-E2
Parameter Condition
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
V
F
IR
Iv
2θ1/2
λp
λd
△λ
Min. Typ. Max. Unit
=
I
20 mA ／ 2.0 2.4 V
F
VR=5V ／ ／ 10 μA
=
I
20 mA 25 50 ／ mcd
F
=
I
20 mA ／ 60 ／ deg
F
=
I
20 mA ／ 575 ／ nm
F
=
I
20 mA ／ 573 ／ nm
F
=
I
20 mA ／ 20 ／ nm
F
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com REV.:
Device Number : CDAE-026-030 Prepared date: Prepared by:
2005/9/27
3
Page:3 of 6
Xiuzen Feng
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
3.0mm Round Type LED Lamps
█
Typical Electro-Optical Characteristic Curves:
A264B/SYG/S530-E2
EVERLIGHT ELECTRONICS CO.,LTD. REV.: 3 Page: 4 of 6
http : //www.everlight.com
Device Number : CDAE-026-030 2005/9/27 Prepared by: Xiuzen Feng
Prepared date:
Page 5
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
3.0mm Round Type LED Lamps
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
A264B/SYG/S530-E2
NO Item Test Conditions
1 Solder Heat TEMP : 260℃ ± 5 ℃ 76 PCS
H : +100℃ 15min
2 Temperature Cycle ∫ 5 min 76 PCS
L : -40℃ 15min
H : +100℃ 5min
3 Thermal Shock ∫ 10 sec 76 PCS
L : -10℃ 5min
4 High Temperature Storage TEMP : 100℃ 76 PCS
5 Low Temperature Storage TEMP : -40℃ 76 PCS
TEMP : 25℃
6 DC Operating Life 1000 HRS
IF = 20mA
Test
Hours/Cycle
10 SEC
300 CYCLES
300 CYCLES 0/1
1000 HRS
1000 HRS 0/1
Sample
Size
76 PCS
Failure
Judgment
Criteria
Iv≦Ivt*0.5
or
Vf≧U
or
Vf≦L
Ac/Re
0/1
0/1
0/1
0/1
High Temperature / High
7
Note： Ivt：To test Iv value of the chip before the reliablility test
Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
Humidity
CDAE-026-030
http : //www.everlight.com
Prepared date:
85℃ / 85% RH 76 PCS
2005/9/27
1000 HRS 0/1
REV.:
Prepared by:
3
Page:5 of 6
Xiuzen Feng
Page 6
EVERLIGHT ELECTRONICS CO.,LTD.
E
Technical Data Sheet
3.0mm Round Type LED Lamps
Packing Quantity Specification
1500PCS/1Bag，4Bags/1Box
2. 10Boxes/1Carton
Label Form Specification
A264B/SYG/S530-E2
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
A264B/SYG/S530-E2
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
The product itself will remain within RoHS compliant version
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
CAT: Ranks
HUE:Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT corporation.
Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’sconsent.
VERLIGHT ELECTRONICS CO., LTD. Tel: (886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http:\\www.everlight.com
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com
Device Number :
CDAE-026-030 Prepared date: 2005/9/27
'REV.:
3 6 0f 6
Prepared by: Xiuzen Feng
