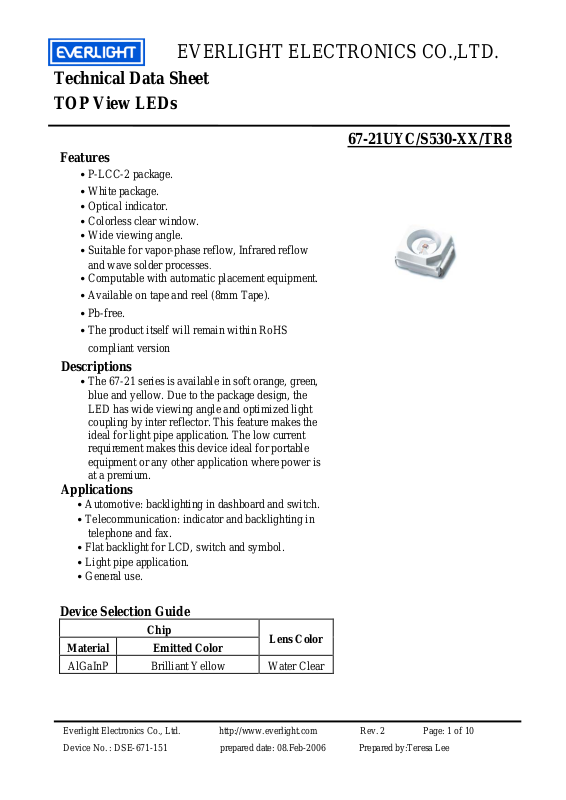

EVERLIGHT EVL 67-21UYC/S5 Datasheet

Page 1
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet TOP View LEDs
67-21UYC/S530-XX/TR8
P-LCC-2 package. White package.
Optical indicator.Colorless clear window. Wide viewing angle. Suitable for vapor-phase reflow, Infrared reflow
and wave solder processes.
Computable with automatic placement equipment.Available on tape and reel (8mm Tape). Pb-free. The product itself will remain within RoHS
compliant version
Descriptions
The 67-21 series is available in soft orange, green,
blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Applications
Automotive: backlighting in dashboard and switch. Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.Light pipe application.General use.
Device Selection Guide
Chip
Material Emitted Color
AlGaInP Brilliant Yellow Water Clear
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 1 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Lens Color
Page 2

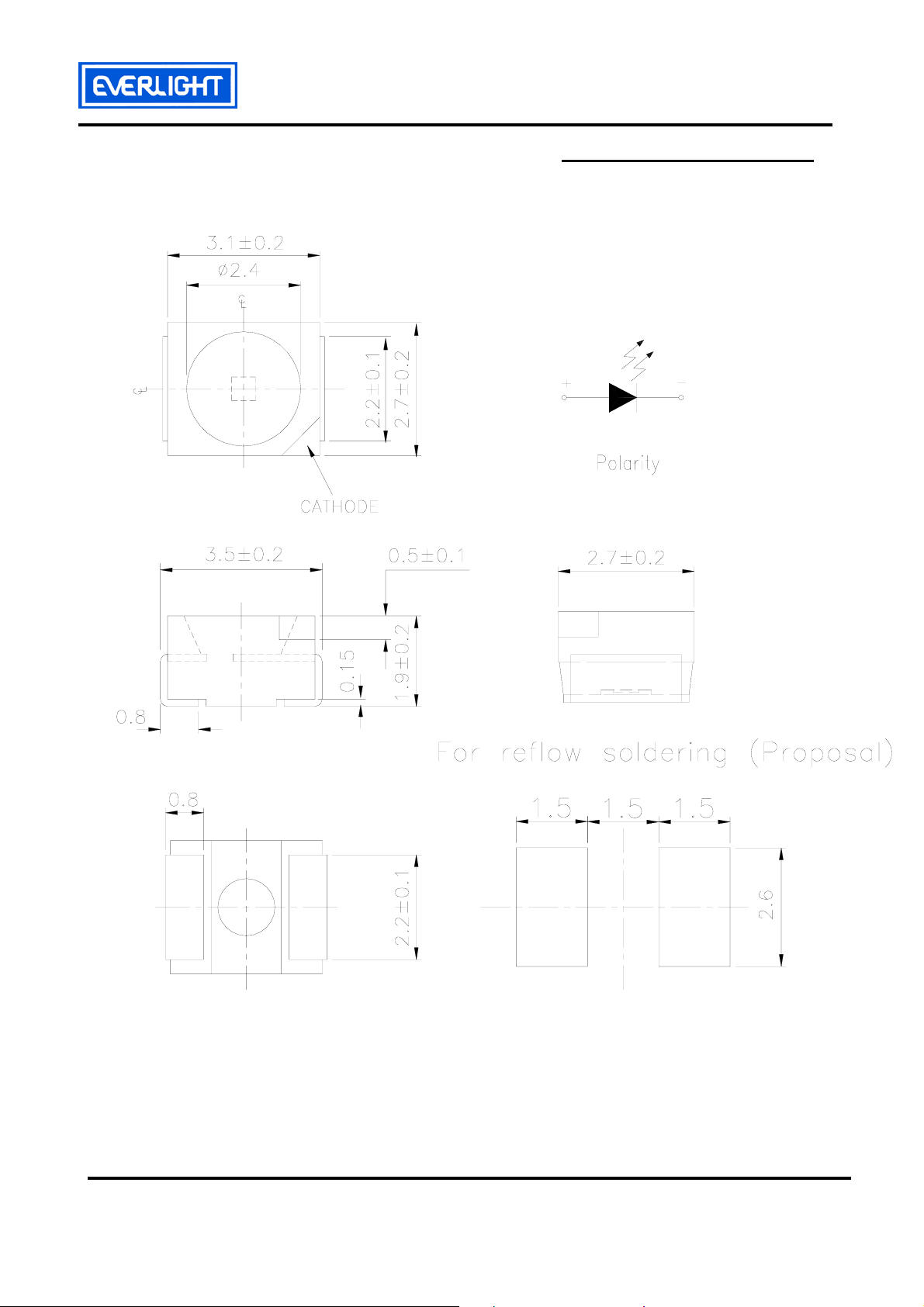

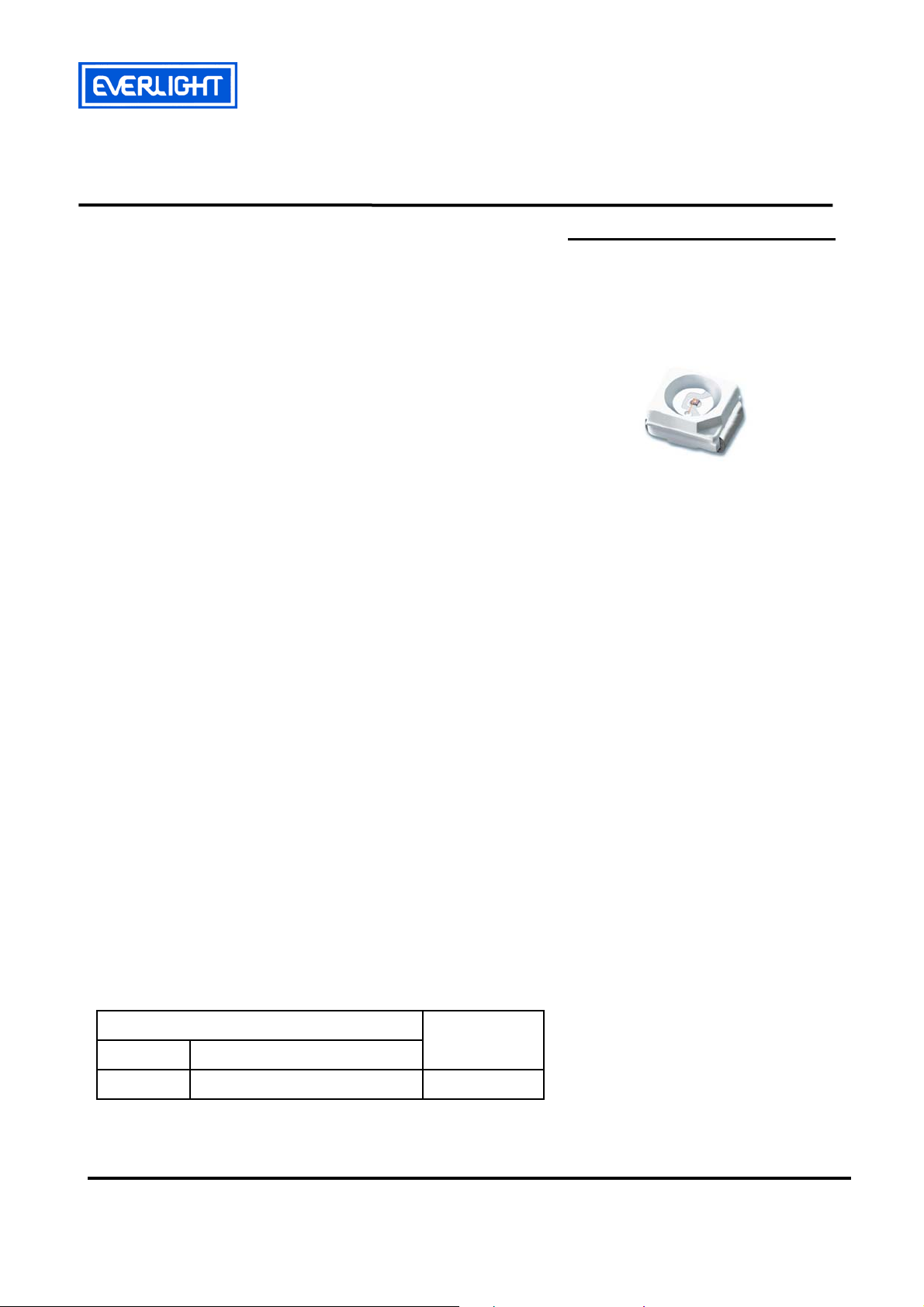

Package Dimensions
EVERLIGHT ELECTRONICS CO.,LTD.
67-21UYC/S530-XX/R8
Note: The tolerances unless mentioned is ±0.1mm ;Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 2 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
Absolute Maximum Ratings (Ta=25)
Parameter Symbol Rating Unit
Reverse Voltage VR 5 V
Forward Current IF 25 mA
67-21UYC/S530-XX/TR8
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +100
Electrostatic Discharge(HBM) ESD 2000 V
Power Dissipation Pd 60 mW
Peak Forward Current
IFP 60 mA
(Duty 1/10 @1KHz)
Reflow Soldering : 260 for 10 sec.
Soldering Temperature Tsol
Hand Soldering : 350 for 3 sec.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 3 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.
Electro-Optical Characteristics (Ta=25)
67-21 UYC/S530-XX/TR8
Parameter
Luminous intensity
Viewing Angle 2θ1/2 ----- ----- 120 ----- deg IF=20mA
Peak Wavelength λp ----- ----- 591 ----- nm IF=20mA
Dominant Wavelength
Symbol
Iv
λd
*Chip
Rank
A2 40 55
A3 50 83
A4 63 95
A5 80 123
A6 100 154
----- ----- 589 -----
Min. Typ. Max. Unit Condition
----- mcd IF=20mA
nm
IF=20mA
Spectrum Radiation
Bandwidth
Forward Voltage VF
Reverse Current IR
△λ
----- ----- 15 -----
-----
1.7 2.0 2.4
*67-21UYC/S530-XX/TR8
Chip Rank
nm
V IF=20mA
10
μA VR=5V
IF=20mA
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 4 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 5
EVERLIGHT ELECTRONICS CO.,LTD.

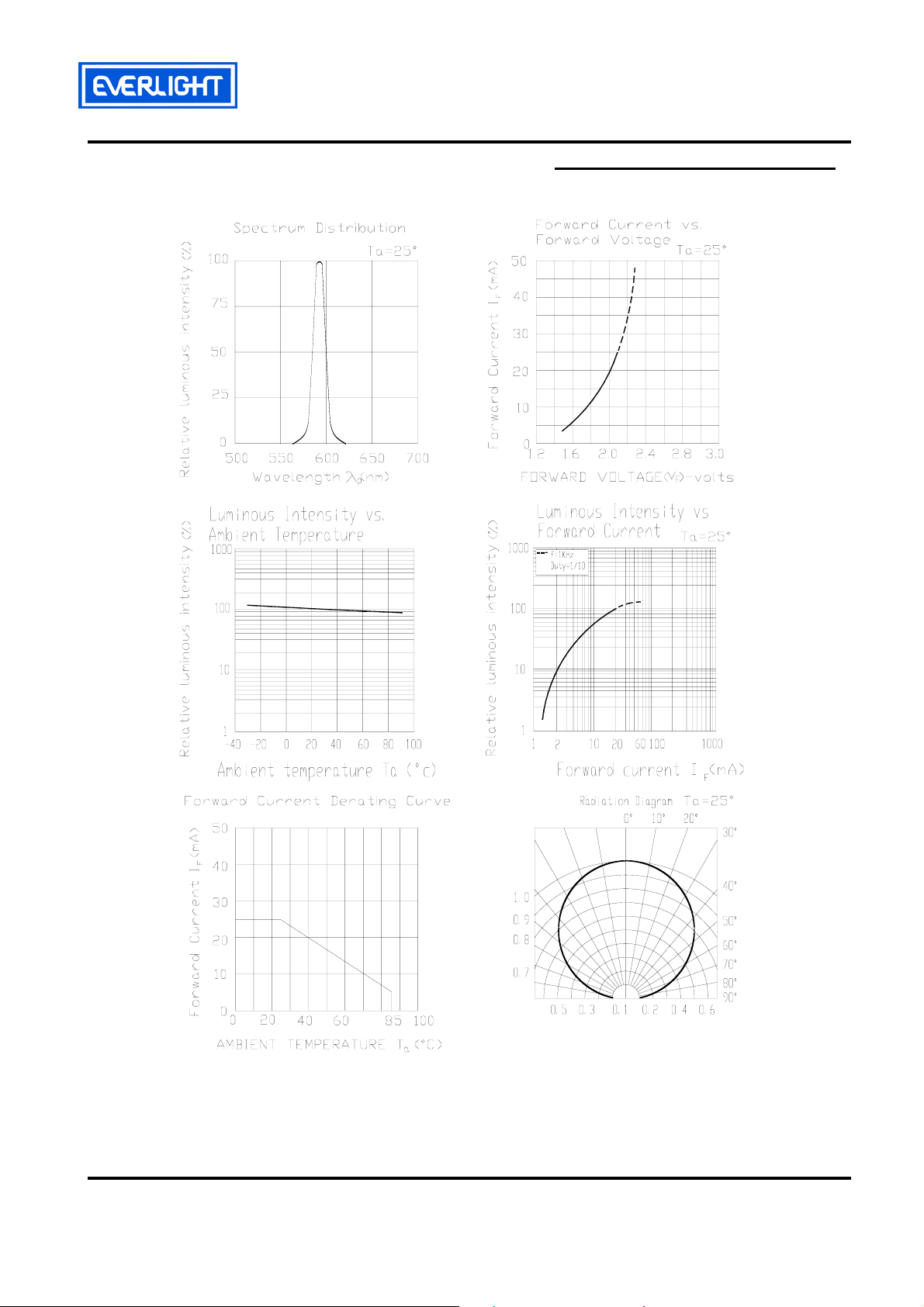

Typical Electro-Optical Characteristics Curves
67-21UYC/S530-XX/TR8
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 5 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 6
EVERLIGHT ELECTRONICS CO.,LTD.
67-21UYC/S530-XX/TR8
Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank

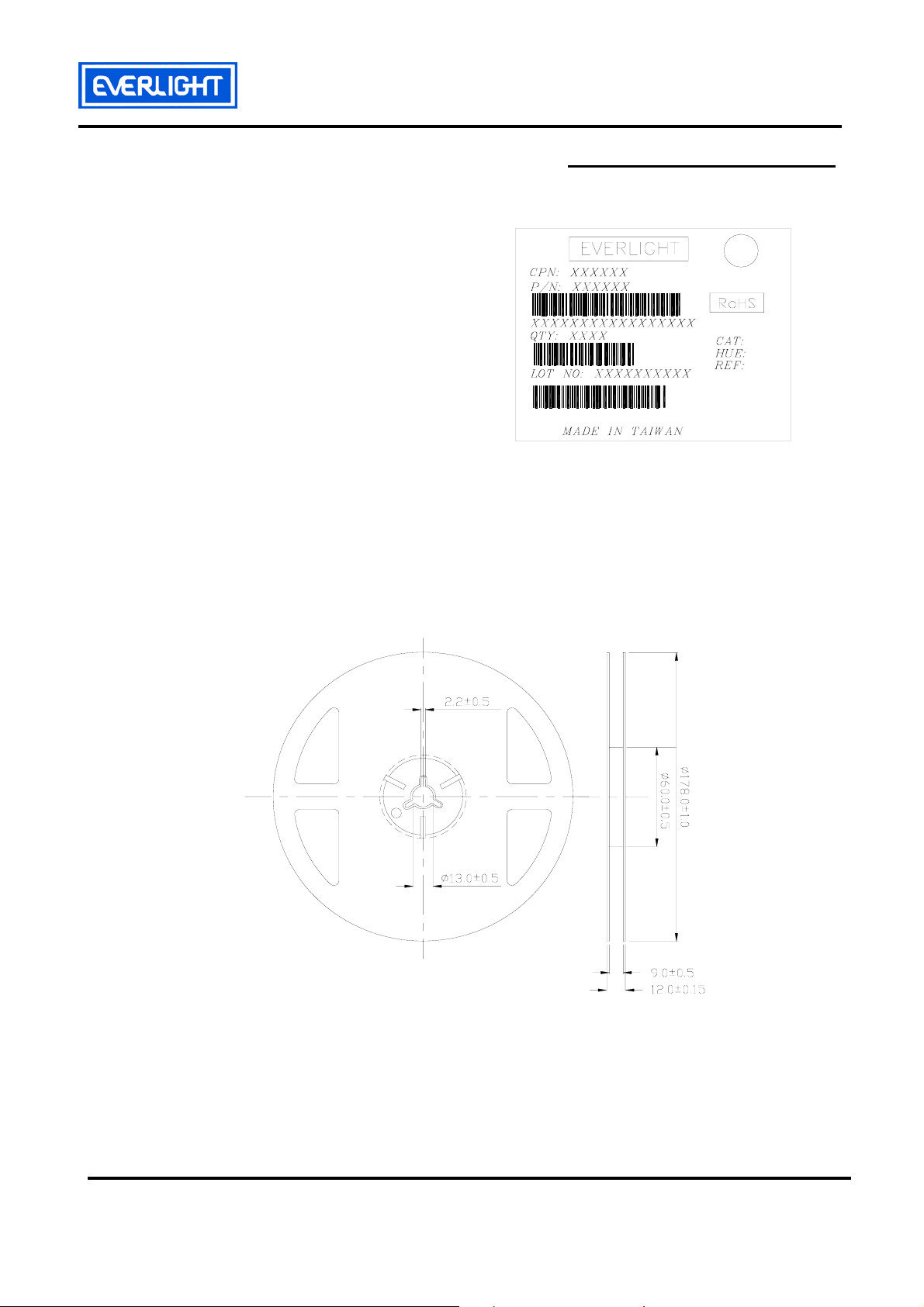

Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 6 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 7
EVERLIGHT ELECTRONICS CO.,LTD.
67-21UYC/S530-XX/TR8

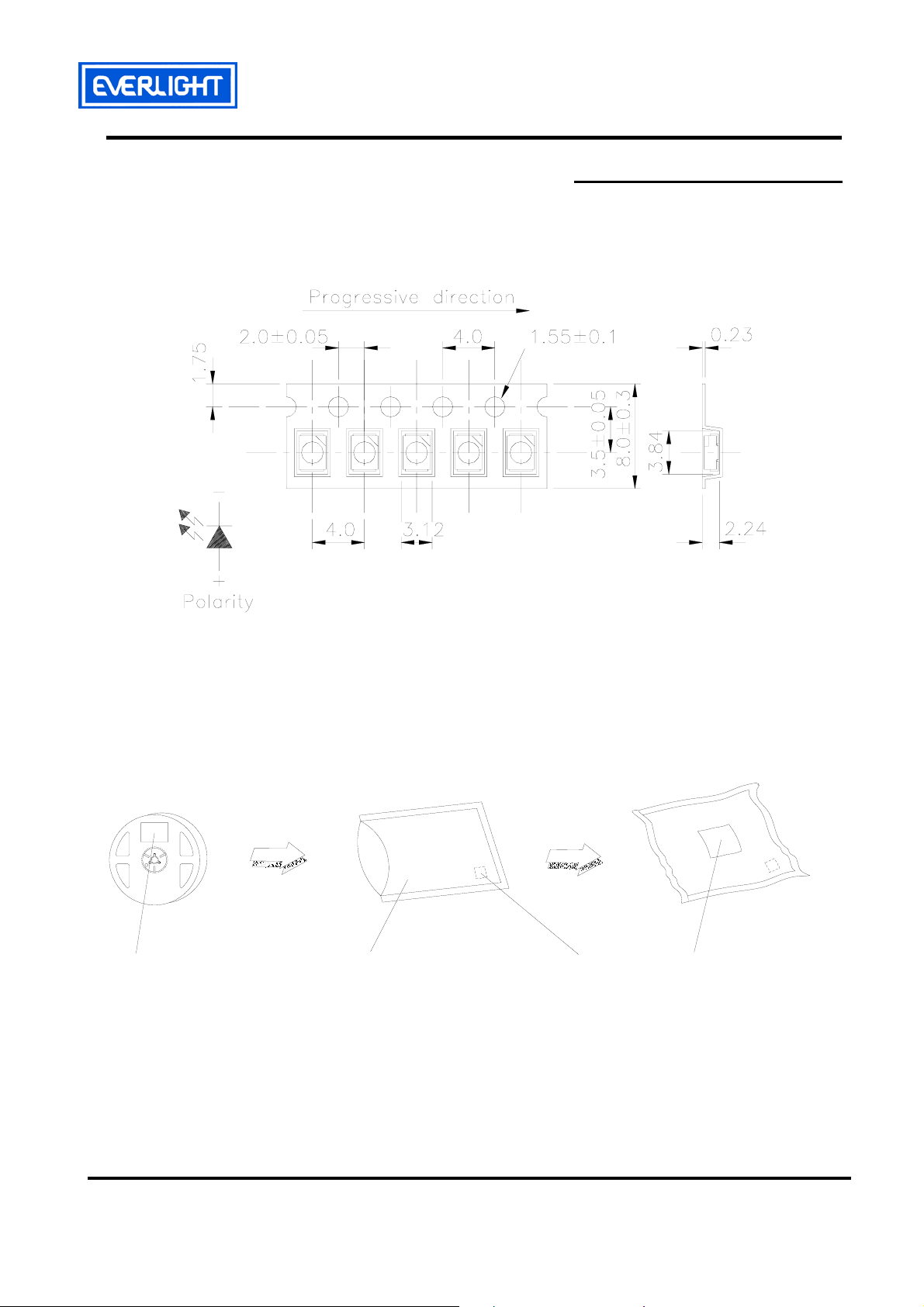

Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel.
Note: Tolerances Unless Dimension ±0.1mm Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 7 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 8
EVERLIGHT ELECTRONICS CO.,LTD.
67-21UYC/S530-XX/TR8
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level:90%
LTPD:10%
No. Items Test Condition
Test
Hours/Cycles
Temp. : 260℃±5
1 Reflow Soldering
6 min
Min. 5sec.
H : +100 15min
2 Temperature Cycle
5 min
300 Cycles
L : -40 15min
H : +100 5min
3 Thermal Shock
10 sec
300 Cycles
L : -10 5min
4
High Temperature
Temp. : 100
1000 Hrs.
Storage
5
Low Temperature
Temp. : -40
1000 Hrs.
Storage
6 DC Operating Life IF = 20 mA
1000 Hrs.
Sample
Ac/Re
Size
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS. 0/1
7
High Temperature /
85/ 85%RH
1000 Hrs.
22 PCS. 0/1
High Humidity
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 8 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 9
EVERLIGHT ELECTRONICS CO.,LTD.
67-21UYC/S530-XX/TR8
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30 or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30 deg C or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

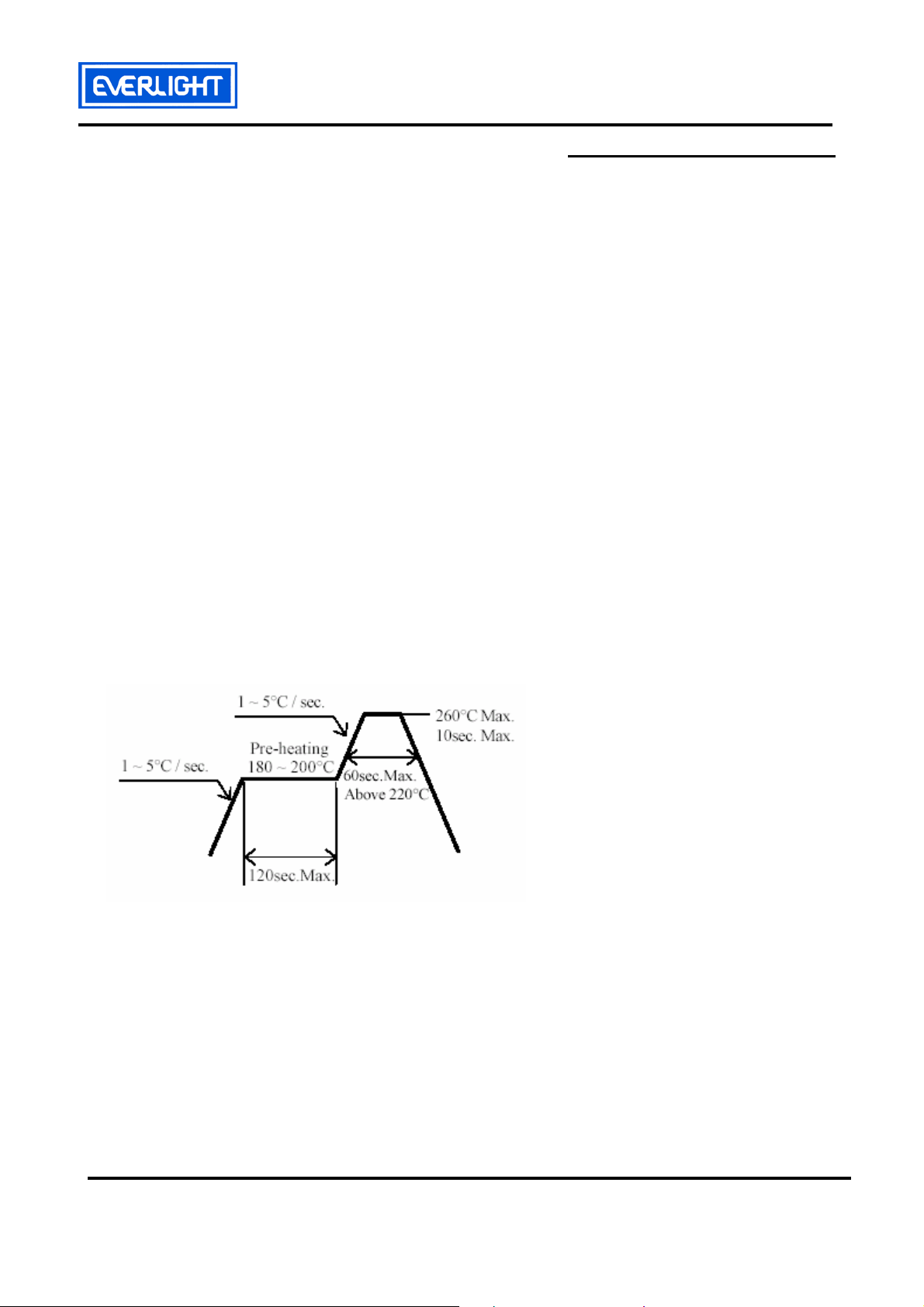

3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
r
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 9 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
Page 10
EVERLIGHT ELECTRONICS CO.,LTD.
67-21UYC/S530-XX/TR8
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3
seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

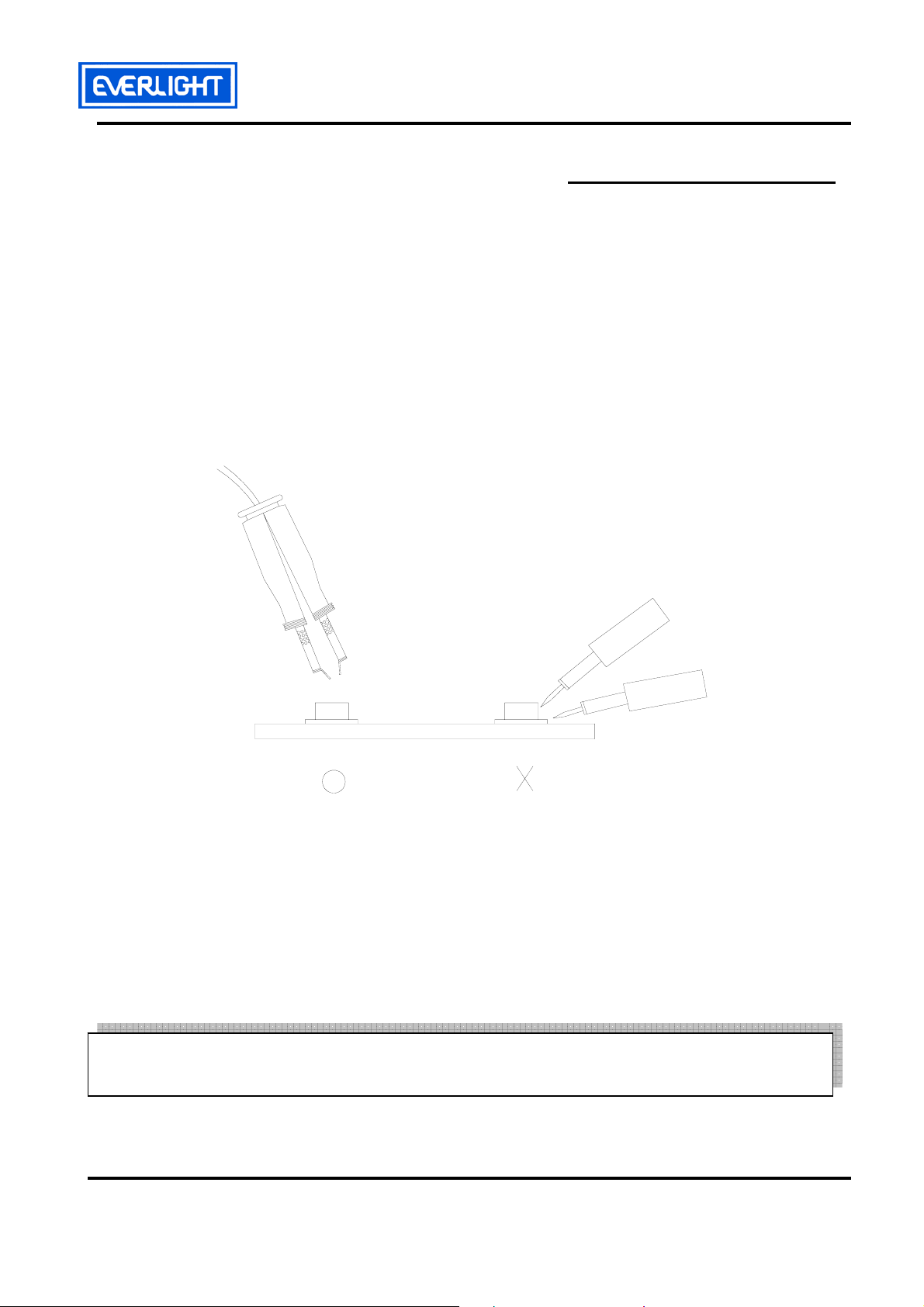

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 2 Page: 10 of 10 Device No. : DSE-671-151 prepared date: 08.Feb-2006 Prepared by:Teresa Lee
