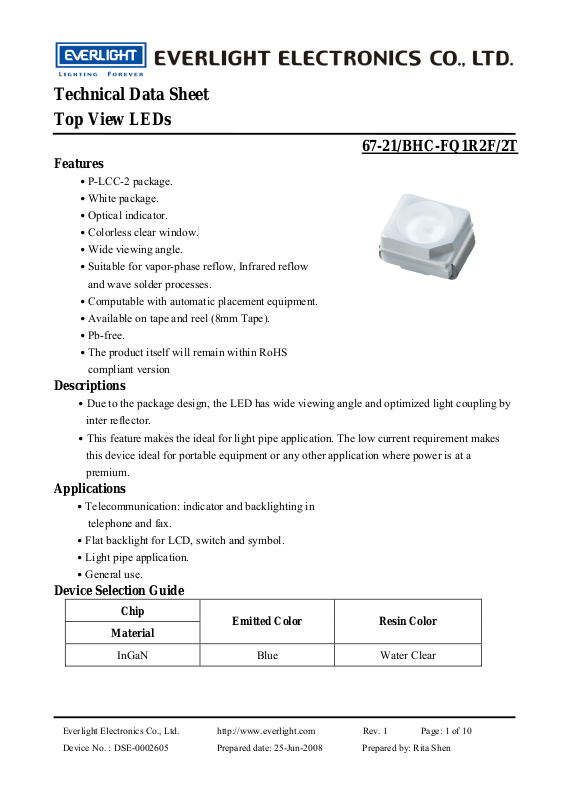

EVERLIGHT EVL 67-21/BHC-F Datasheet

Technical Data Sheet
Top View LEDs

Features

․P-LCC-2 package.

․White package.
․Optical indicator.

․Colorless clear window.
․Wide viewing angle.
․Suitable for vapor-phase reflow, Infrared reflow

and wave solder processes.

․Computable with automatic placement equipment.
․Available on tape and reel (8mm Tape).
․Pb-free.
․The product itself will remain within RoHS

compliant version

Descriptions

67-21/BHC-FQ1R2F/2T

․Due to the package design, the LED has wide viewing angle and optimized light coupling by

inter reflector.

․This feature makes the ideal for light pipe application. The low current requirement makes

this device ideal for portable equipment or any other application where power is at a

premium.

Applications

․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.

․Light pipe application.

․General use.

Device Selection Guide

Chip

Emitted Color Resin Color

Material

InGaN Blue Water Clear

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

67-21/BHC-FQ1R2F/2T

Package Dimensions

Note: Tolerance unless mentioned is ±0.1mm; Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

67-21/BHC-FQ1R2F/2T

Absolute Maximum Ratings (Ta=25 )℃

Parameter Symbol Rating Units

Reverse Voltage VR 5 V

Forward Current IF 25 mA

Peak Forward Current(Duty 1/10 @1KHz) IFP 100 mA

Power Dissipation Pd 60 mW

Electrostatic Discharge(HBM) ESD 150 V

Operating Temperature Topr -40 ~ +85

Storage Temperature Tstg -40 ~ +90

Soldering Temperature Tsol

Reflow Soldering : 260 ℃ for 10 sec.

Hand Soldering : 350 ℃ for 3 sec.

℃

℃

Electro-Optical Characteristics (Ta=25 )℃

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity Iv 72 ----- 180 mcd IF=20mA

Viewing Angle 2θ

Peak Wavelength λp ----- 468 ----- nm IF=20mA

Dominant Wavelength λd 464.0 ----- 472.0 nm IF=20mA

Spectrum Radiation Bandwidth λ△ ----- 20 ----- nm IF=20mA

Forward Voltage VF 2.70 -- 3.50 V IF=20mA

Reverse Current IR ----- ----- 10 μA VR=5V

Notes:

1. Tolerance of Luminous Intensity: ±11%

2. Tolerance of Dominant Wavelength: ±1nm

3. Tolerance of Forward Voltage: ±0.1V

----- 120 ----- deg IF=20mA

1/2

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

67-21/BHC-FQ1R2F/2T

Bin Range of Luminous Intensity

Bin Code Min. Max. Unit Condition

Q1 72 90

Q2 90 112

R1 112 140

R2 140 180

Bin Range of Dominant Wavelength

Group Bin Code Min. Max. Unit Condition

AA1 464.0 466.0

AA2 466.0 468.0

F

AA3 468.0 470.0

mcd IF=20mA

nm IF=20mA

AA4 470.0 472.0

Bin Range of Forward Voltage

Group Bin Code Min. Max. Unit Condition

10 2.70 2.90

11 2.90 3.10

F

12 3.10 3.30

13 3.30 3.50

Notes:

1. Tolerance of Luminous Intensity: ±11%

2. Tolerance of Dominant Wavelength: ±1nm

3. Tolerance of Forward Voltage: ±0.1V

V IF=20mA

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

Typical Electro-Optical Characteristics Curves

Spectrum Distribution

100

75

50

25

1000

0

500

450

500 550

Wavelength λ (nm)

Relative Luminous Intensity vs.

Ambient Temperature

Ta=25°C

600

F

Forward Current I (mA)

50

40

30

20

10

0

1000

1.2

67-21/BHC-FQ1R2F/2T

Forward Current vs.

Forward Voltage

Forward Voltage V (V)

Relative Luminous Intensity vs.
Forward Current

=

f

1

H

K

z

D

=

y

u

t

1

1

/

0

Ta=25°C

2.82.01.6 2.4 3.0

F

Ta=25°C

100

10

Relative luminous intensity (%) Relative luminous intensity (%)

1

Forward Current I (mA)

-60

30

25

20

F

15

10

5

0

-20-40 0 206040

Ambient Temperature T (°C)

Forward Current Derating Curve

0

Ambient Temperature T (°C)

402060 10080

10080

a

a

100

10

Relative luminous intensity (%)

1.0

0.9

0.8

0.7

1

10

0

1

10

Forward Current I (mA)

Radiation Diagram

0° 10°

10

F

2

0.40.30.5 0.1 0.2

10

Ta=25°C

20°

0.6

3

30°

40°

50°

60°

70°

80°
90°

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

Label Explanation

CAT: Luminous Intensity Rank

HUE: Dom. Wavelength Rank

REF: Forward Voltage Rank

Pb

CPN :
P

XXXXXXXXXXXXX

QTY : XXX

LOT NO : XXXXXXXXXX

Reference : XXXXXXXX

Reel Dimensions

67-21/BHC-FQ1R2F/2T

EVERLIGHT

N : XXXXXXXXXXXXX

RoHS

CAT : XXX
HUE : XXX
REF : XXX

MADE IN TAIWAN

Note: Tolerance unless mentioned is ±0.1mm; Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

67-21/BHC-FQ1R2F/2T

Carrier Tape Dimensions: Loaded Quantity 2000 pcs Per Reel.

Note: Tolerance unless mentioned is ±0.1mm; Unit = mm

Moisture Resistant Packaging

Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 10

Aluminum moistue-proof bag

LabelDesiccant

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

Reliability Test Items and Conditions

The reliability of products shall be satisfied with items listed below.
Confidence level：90%

LTPD：10%

No. Items Test Condition

1 Reflow Soldering

2 Temperature Cycle

3 Thermal Shock

Hours/Cycles

Temp. : 260℃±5℃

Max. 10 sec.

H : +100℃ 15min

∫ 5 min

L : -40℃ 15min

H : +100℃ 5min

∫ 10 sec

L : -10℃ 5min

300 Cycles 22 PCS. 0/1

300 Cycles 22 PCS. 0/1

67-21/BHC-FQ1R2F/2T

Test

6 Min. 22 PCS 0/1

Sample

Size

Ac/Re

4 High Temperature Storage

5 Low Temperature Storage

6 DC Operating Life

7

High Temperature / High

Humidity

Temp. : 100℃

Temp. : -40℃

IF = 20 mA / 25℃

85℃/85%RH

1000 Hrs. 22 PCS. 0/1

1000 Hrs. 22 PCS. 0/1

1000 Hrs. 22 PCS. 0/1

1000 Hrs. 22 PCS. 0/1

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

67-21/BHC-FQ1R2F/2T

Precautions for Use

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big

current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 After opening the package: The LED's floor life are 72 hours under 30℃ or less and 60% RH

or less. If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the

storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile

1~5 °C / Sec.

260°C. Max.

10 Sec. Max.

1~5 °C / Sec.

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Pre-heating
180~200°C

120 Sec. Max.

60 Sec. Max.

Above 220°C

.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 10

Device No. :

DSE-0002605 Prepared date: 25-Jun-2008 Prepared by: Rita Shen

Technical Data Sheet
Top View LEDs

67-21/BHC-FQ1R2F/2T

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within

once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do

soldering of each terminal. Be careful because the damage of the product is often started at the

time of the hand solder.

5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a

double-head soldering iron should be used (as below figure). It should be confirmed beforehand

whether the characteristics of the LEDs will or will not be damaged by repairing.

EVERLIGHT ELECTRONICS CO., LTD. Tel: [phone]
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: [phone]
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
