EVERLIGHT EVL 48-213/T2D Datasheet

Page 1

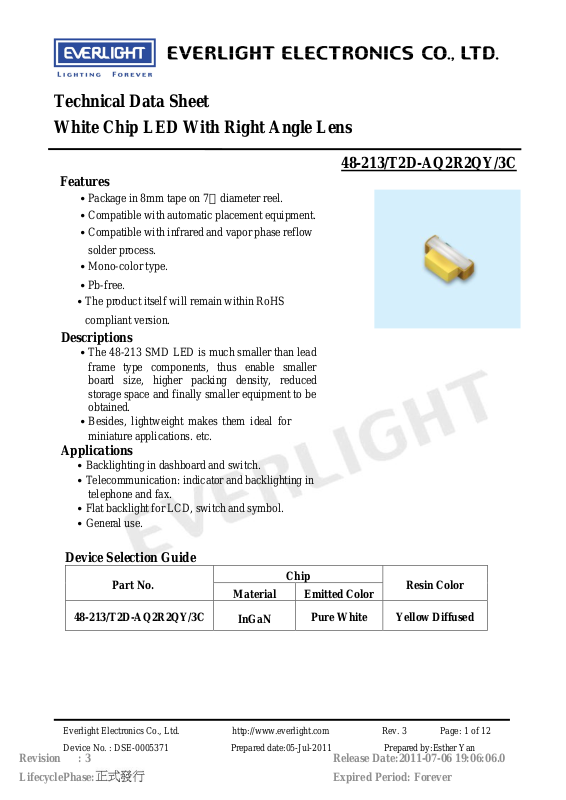

Technical Data Sheet White Chip LED With Right Angle Lens
Features
Package in 8mm tape on 7diameter reel.Compatible with automatic placement equipment.Compatible with infrared and vapor phase reflow
solder process.
Mono-color type.Pb-free.
The product itself will remain within RoHS
compliant version.
Descriptions
The 48-213 SMD LED is much smaller than lead
frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
Backlighting in dashboard and switch.Telecommunication: indicator and backlighting in
telephone and fax.
Flat backlight for LCD, switch and symbol.General use.
Device Selection Guide
48-213/T2D-AQ2R2QY/3C
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 1 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Part No.
Chip
Material Emitted Color
InGaN
Pure White Yellow Diffused
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Resin Color
Page 2

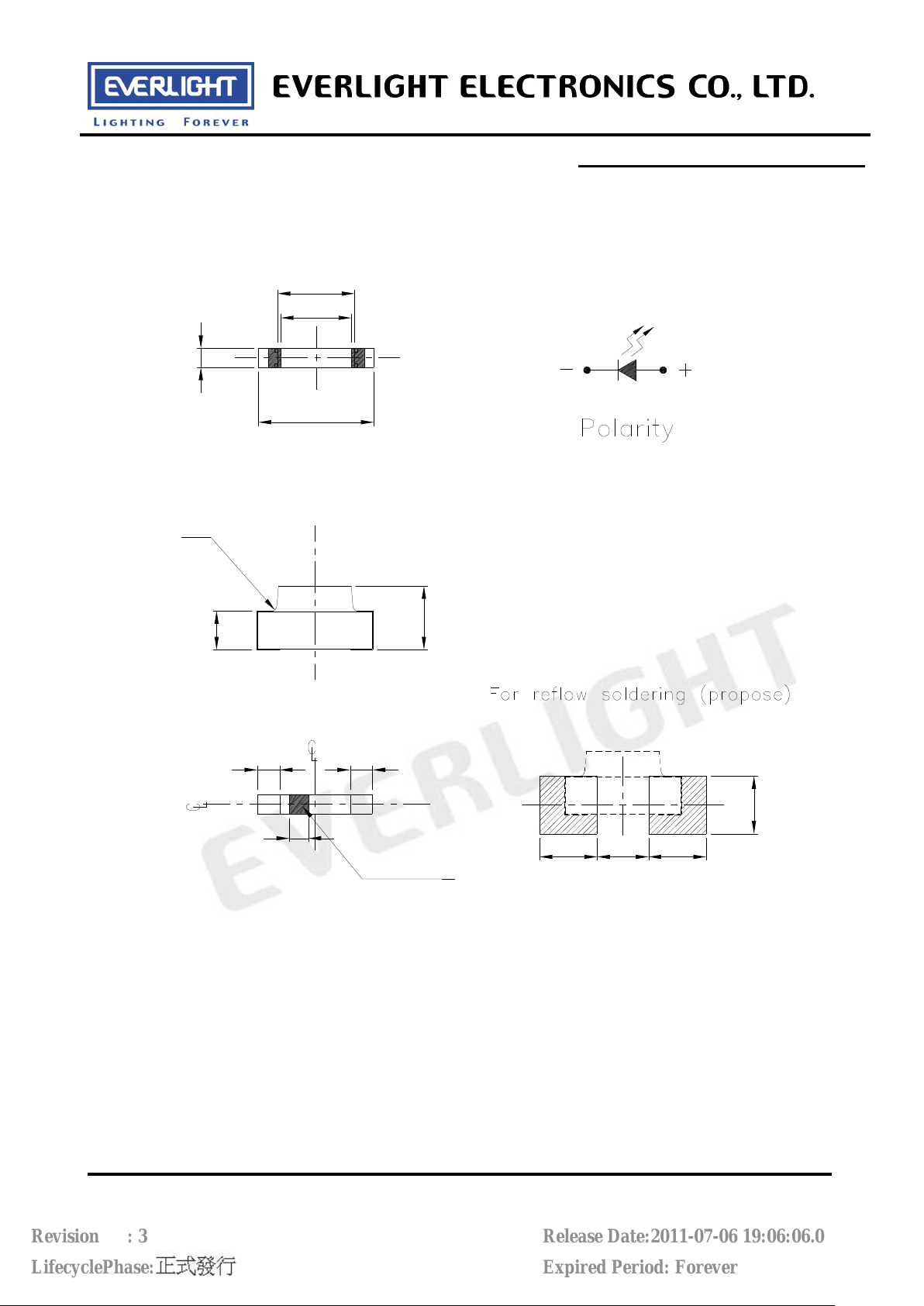

Package Outline Dimensions
1.20
1.10
0.30±0.05
1.80
R0.10
48-213/T2D-AQ2R2QY/3C
0.6
0.350.35
0.30 Green Mark
1.0
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
0.9
0.8 0.90.9
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 2 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 3
Absolute Maximum Ratings (Ta=25)
48-213/T2D-AQ2R2QY/3C
Parameter
Symbol
Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA
Peak Forward Current
IFP 100 mA
(Duty 1/10 @1KHz)
Power Dissipation Pd 95 mW
Electrostatic Discharge(HBM) ESD 150 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Reflow Soldering : 260 for 10 sec.
Soldering Temperature Tsol
Hand Soldering : 350 for 3 sec.
Electro-Optical Characteristics (Ta=25)
℃ ℃
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity
Viewing Angle
Forward Voltage
Iv 90.0 ----- 180 mcd
2θ1/2
VF
----- 130 ----- deg
2.7 ----- 3.2
Reverse Current IR ----- ----- 50
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Forward Voltage ±0.05V
V
μA
IF=5mA
R=5V
V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 3 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 4
48-213/T2D-AQ2R2QY/3C
Bin Range Of Luminous Intensity & Forward Voltage
Symbol Bin Code Min. Max. Unit Condition
Q2 90 112
IV
VF
R1 112 140 R2 140 180
29 2.7 2.8 30 2.8 2.9 31 2.9 3.0 32 3.0 3.1 33 3.1 3.2
Notes:
1.Tolerance of Luminous Intensity ±11%
2.Tolerance of Forward Voltage ±0.05V
mcd IF=5mA
V I
F=5mA
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 4 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 5
48-213/T2D-AQ2R2QY/3C
Chromaticity Coordinates Specifications for Bin Grading
Group Bin Code CIE_x CIE_y
0.274 0.226
0.274 0.258
1
0.294 0.286
0.294 0.254
0.274 0.258
0.274 0.291
2
0.294 0.319
0.294 0.286
0.294 0.254
0.294 0.286
3
0.314 0.315
0.314 0.282
A
0.294 0.286
0.294 0.319
4
0.314 0.347
Condition
IF= 5mA
0.314 0.315
0.314 0.282
0.314 0.315
5
0.334 0.343
0.334 0.311
0.314 0.315
0.314 0.347
6
0.334 0.376
0.334 0.343
Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance ±0.01).
2.The products are sensitive to static electricity and care must be fully taken when handling products.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 5 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 6

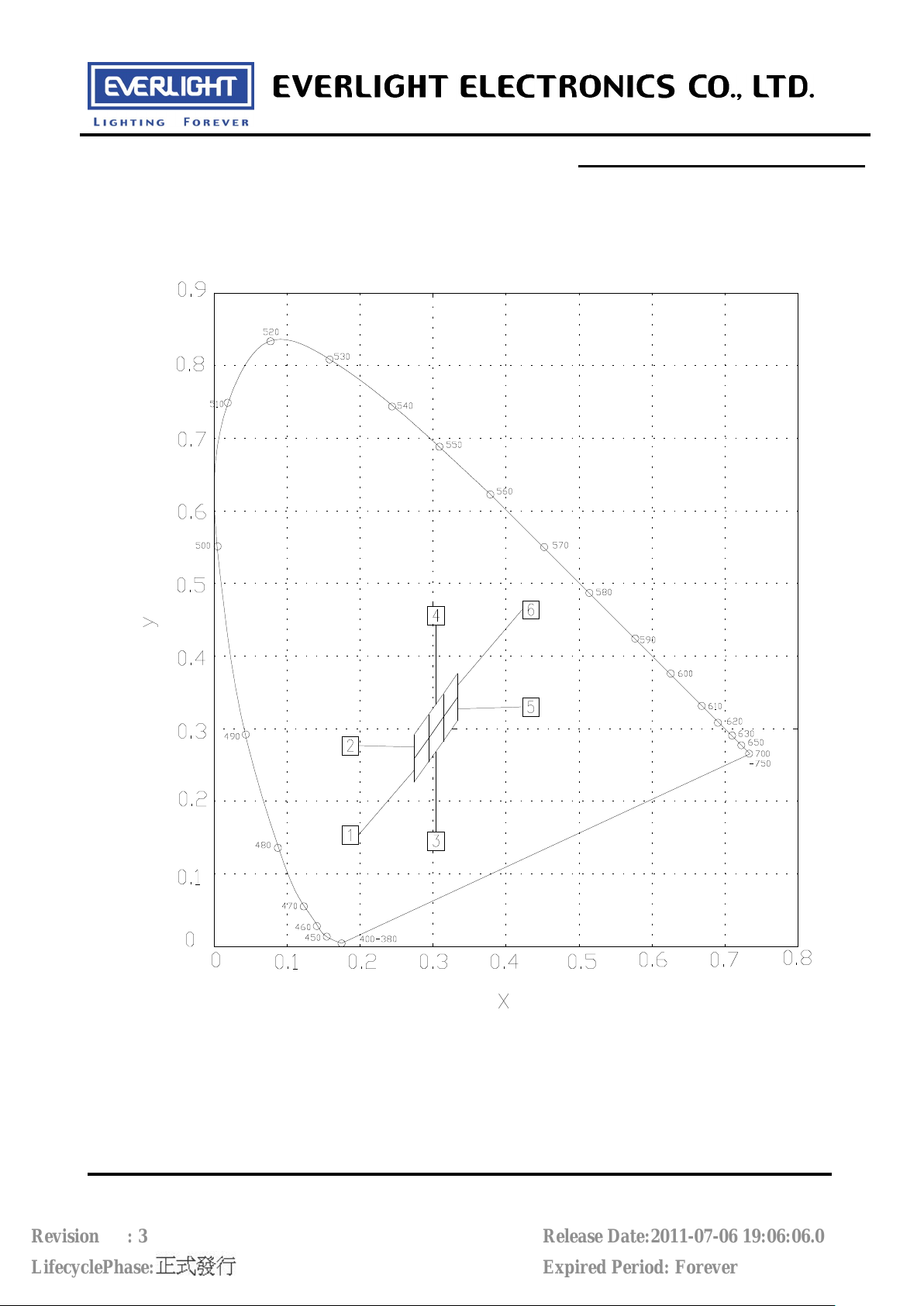

CIE Chromaticity Diagram
48-213/T2D-AQ2R2QY/3C
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 6 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 7

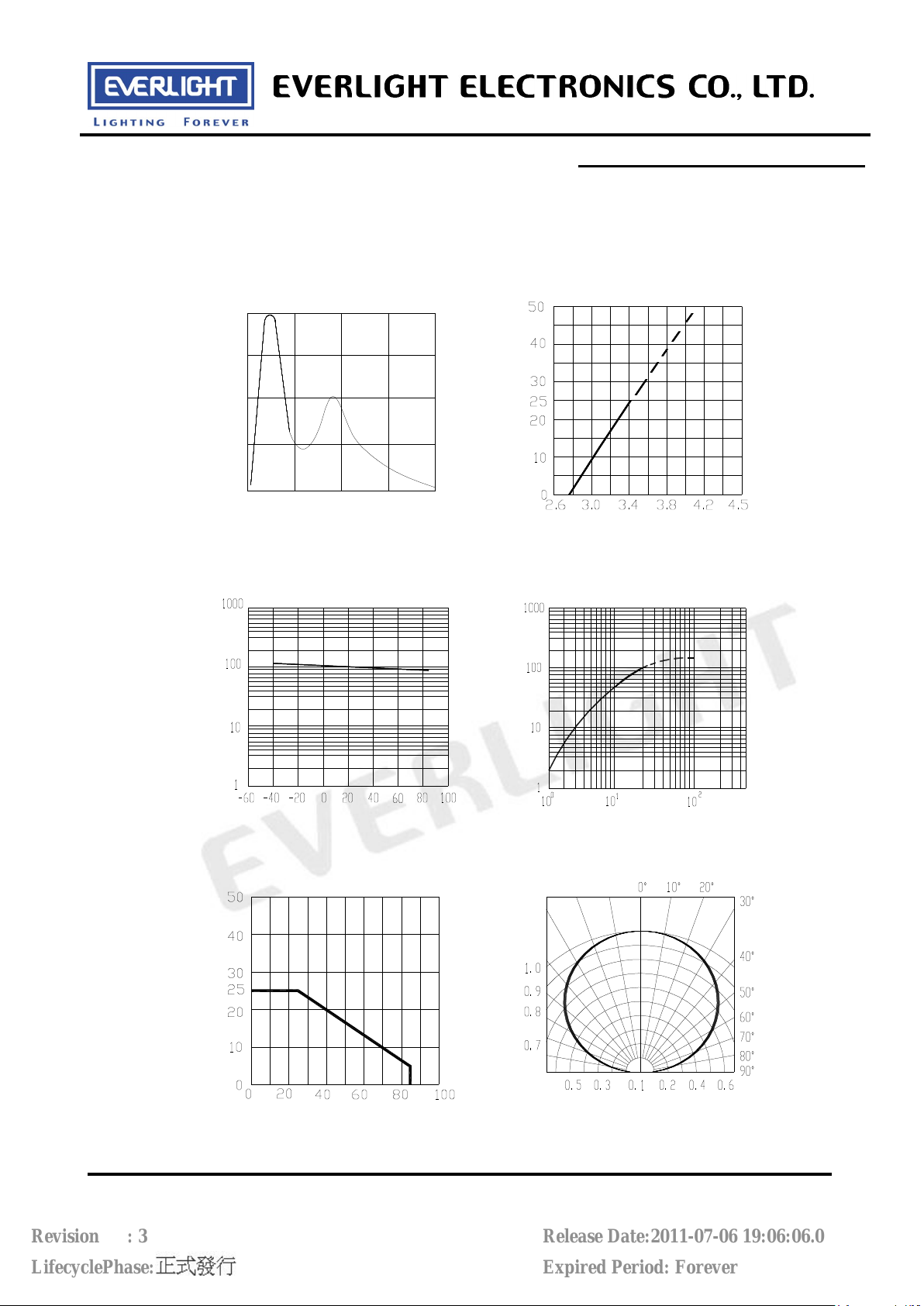

Typical Electro-Optical Characteristics Curves
48-213/T2D-AQ2R2QY/3C
Spectrum Distribution
100
75
50
25
0
Relative luminous intensity (%)
400
500 600
Wavelength λ (nm)
Luminous Intensity vs.
Ambient Temperature
% )
(
Ta=25°C
700 800
F
Forward Current I (mA)
) %
(
Forward Current vs. Forward Voltage
Forward Voltage V (V)
Luminous Intensity vs. Forward Current
Ta=25°C
F
Ta=25°C
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 7 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3
Relative luminous intensity
Ambient Temperature Ta (°C)
Forward Current Derating Curve
F
Forward Current I (mA)
Ambient Temperature Ta (°C)
Relative luminous intensity
Forward Current I (mA)
Radiation Diagram
F
Ta=25°C
Release Date:2011-07-06 19:06:06.0
LifecyclePhase:
Expired Period: Forever
Page 8

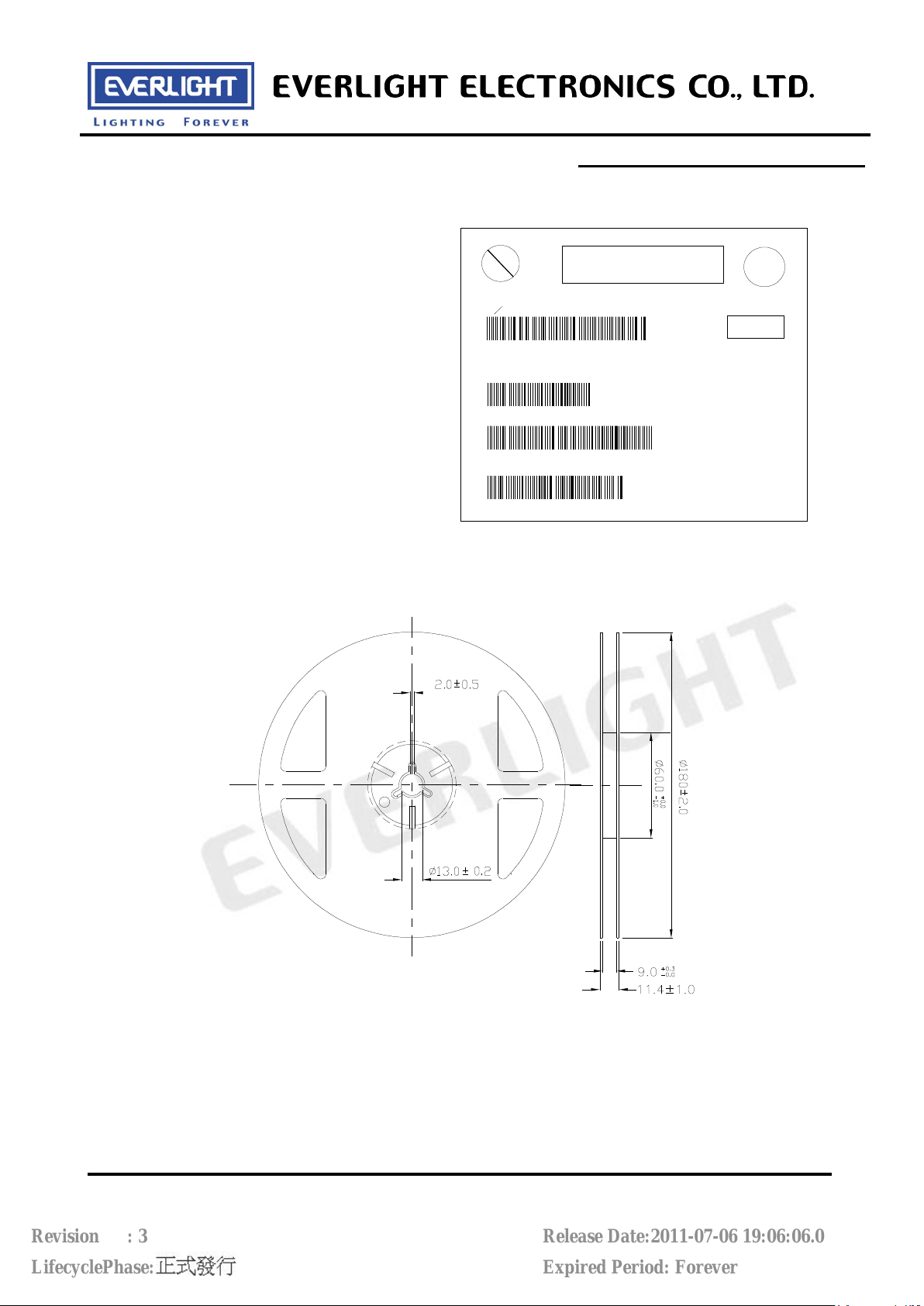

Label Explanation
48-213/T2D-AQ2R2QY/3C
CAT: Luminous Intensity Rank HUE: Chromaticity Coordinates REF: Forward Voltage Rank
Reel Dimensions
Pb
CPN :
N : XXXXXXXXXXXXX
P
XXXXX XXXXXXXX
QTY : XXX
LOT NO : XXXXXXXXXX
Reference : XXXXXXXX
EVERLIGHT
MADE IN TAIWAN
RoHS
CAT : XXX HUE : XXX REF : XXX
Note: The tolerances unless mentioned is ±0.1mm , Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 8 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 9
48-213/T2D-AQ2R2QY/3C

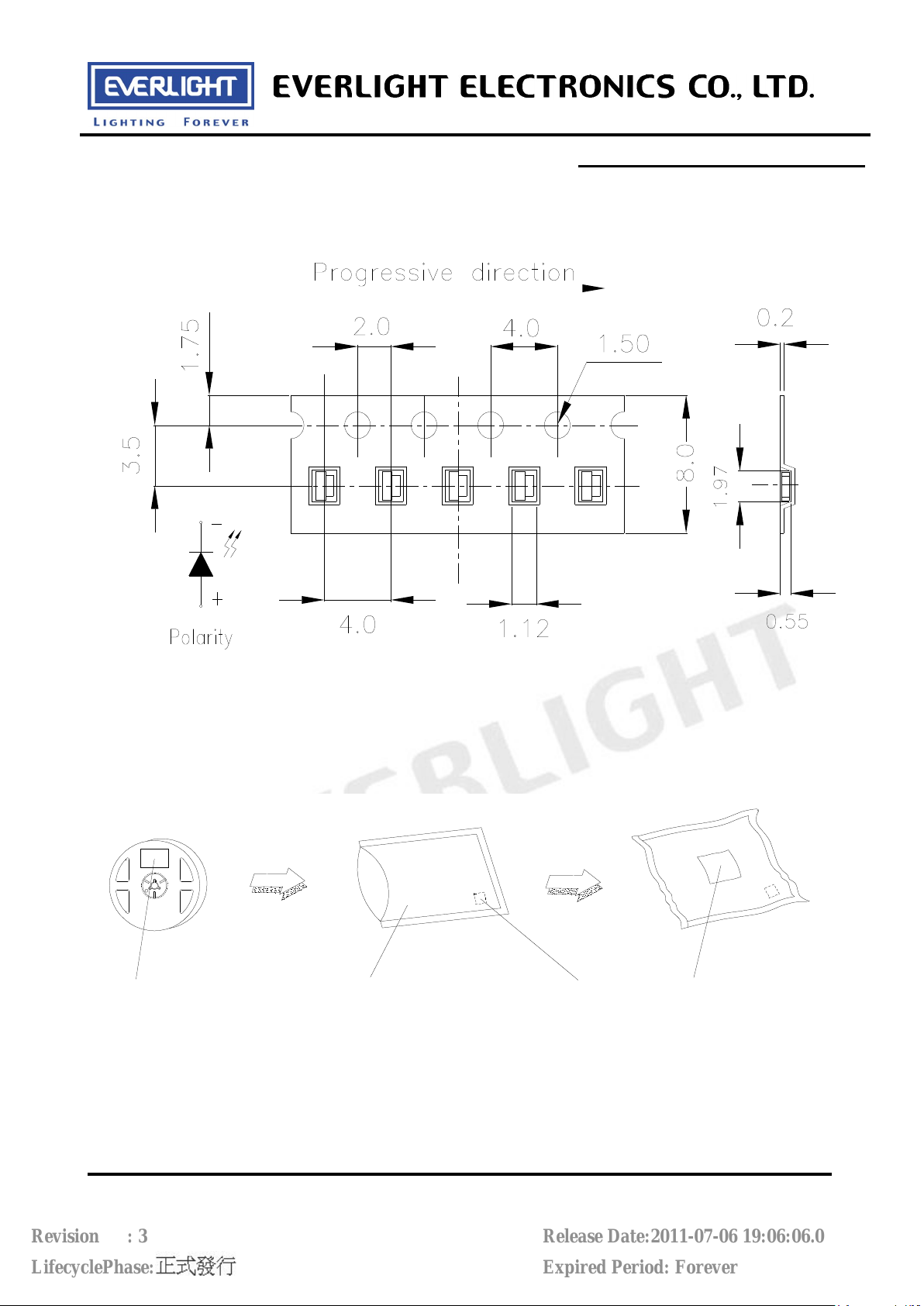

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 9 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 10
48-213/T2D-AQ2R2QY/3C
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level90%
LTPD10%
No. Items Test Condition
Temp. : 260
℃±5
1 Reflow Soldering
Max. 10sec.
15min
5 min
15min
5min
10 sec
5min
2 Temperature Cycle
3 Thermal Shock
High Temperature
4
H : +100
L : -40
H : +100
L : -10
Temp. : 100
Storage
5
Low Temperature
Temp. : -40
Storage
6 DC Operating Life IF = 20 mA
Test
Hours/Cycles
6 Min.
300 Cycles
300 Cycles
1000 Hrs.
1000 Hrs.
1000 Hrs.
Sample
Ac/Re
Size
22 PCS.
0/1
22 PCS. 0/1
22 PCS. 0/1
22 PCS.
0/1
22 PCS. 0/1
22 PCS. 0/1
7
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 10 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3
High Temperature /
High Humidity
85
/ 85%RH
1000 Hrs.
Release Date:2011-07-06 19:06:06.0
22 PCS.
0/1
LifecyclePhase:
Expired Period: Forever
Page 11
48-213/T2D-AQ2R2QY/3C
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30 or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 1 year under 30 If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60
3. Soldering Condition

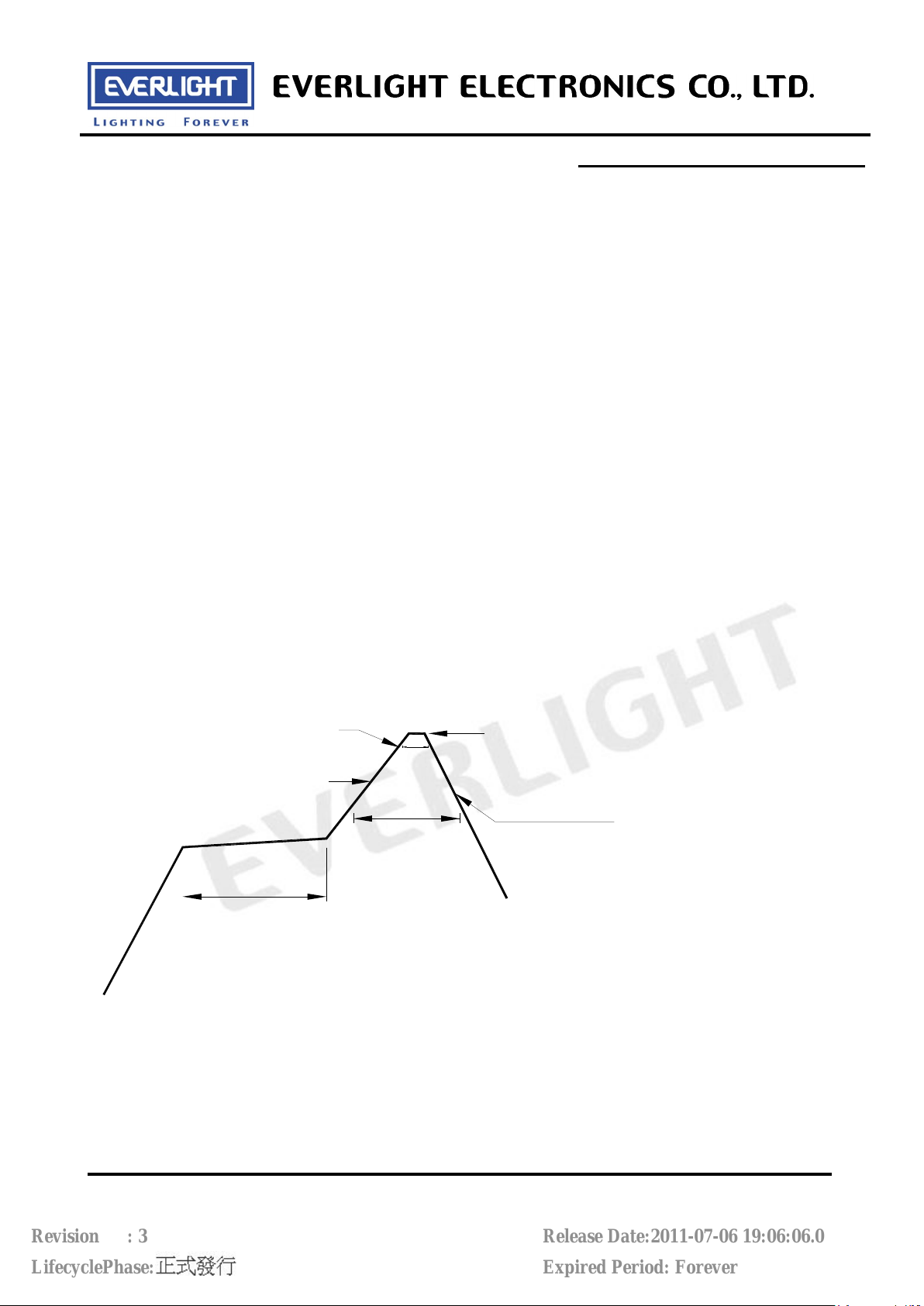

3.1 Pb-free solder temperature profile
Above255°C 30sec.Max.
±5 for 24 hours.
260°C Max.
10sec. Max.
or less and 60% RH or less.
3°C/sec.Max.
6°C/sec.Max.
Above 217°C
Pre-heating
60~150sec.
150~200°C
60~120sec.
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 11 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
Page 12
48-213/T2D-AQ2R2QY/3C
4.Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350 for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

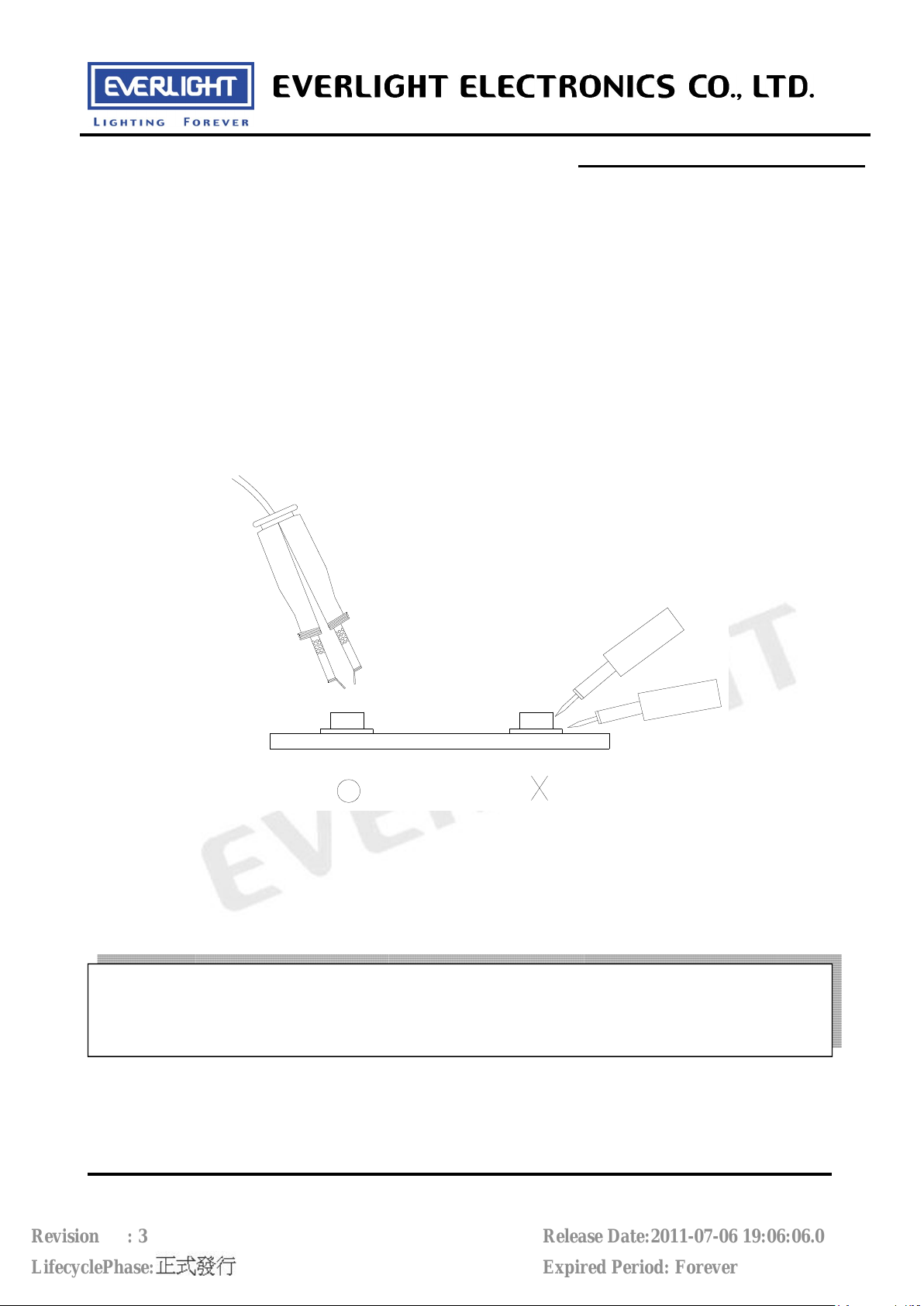

5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 3 Page: 12 of 12 Device No. : DSE-0005371 Prepared date:05-Jul-2011 Prepared by:Esther Yan
Revision : 3 LifecyclePhase:
Release Date:2011-07-06 19:06:06.0 Expired Period: Forever
