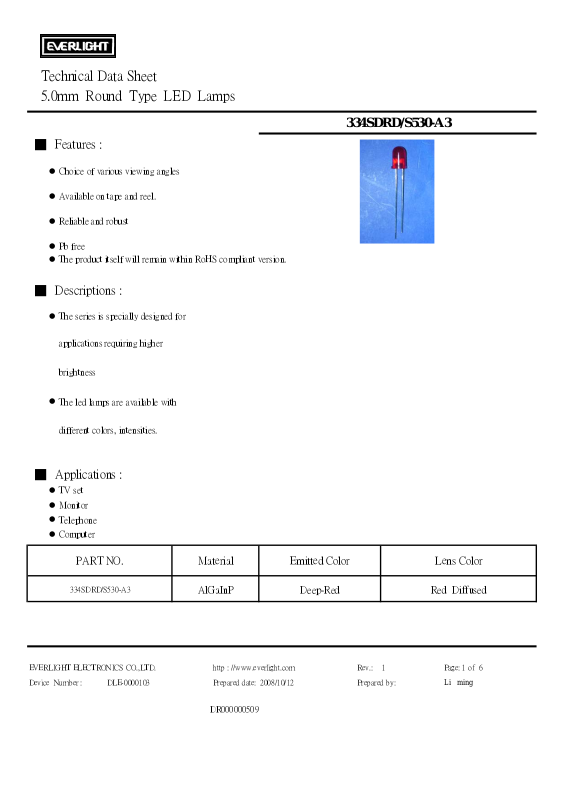

Technical Data Sheet
5.0mm Round Type LED Lamps
█
Features :
●
Choice of various viewing angles
●
Available on tape and reel.
●
Reliable and robust
●
Pb free
●
The product itself will remain within RoHS compliant version.
█
Descriptions :
●
The series is specially designed for
applications requiring higher
334SDRD/S530-A3
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
TV set
●
Monitor
●
Telephone
●
Computer
334SDRD/S530-A3
Lens ColorPART NO. Material Emitted Color
AlGaInP Deep-Red Red Diffused
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 1 Page: 1 of 6
Device Number : DLE-0000103 Prepared date: 2008/10/12 Prepared by:
DR000000509
Li ming
Page 2
Technical Data Sheet
5.0mm Round Type LED Lamps
Package Dimensions
334SDRD/S530-A3
Notes:
1. All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is ±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter Symbol Rating Unit
Forward Current I
Operating Temperature Topr -40 to +85 ℃
Storage Temperature Tstg -40 to +100 ℃
Soldering Temperature
Electrostatic Discharge ESD 2000 V
Power Dissipation Pd 60 mW
Peak Forward Current I
Reverse Voltage V
Note: *1:Soldering time ≦ 5 seconds.
F 25 mA
Tsol
F(Peak) 60 mA
260 ± 5 ℃
R 5V
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 1
Device Number : DLE-0000103 Prepared date: Prepared by: Li ming
2008/10/12
Page: 2 of 6
Page 3
Technical Data Sheet
5.0mm Round Type LED Lamps
Electro-Optical Characteristics (Ta=25℃)
334SDRD/S530-A3
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol Min. Typ. Max. Unit
VF
IR
Iv
2θ1/2
λp
λd
△λ
ConditionParameter
I
=
20 mA ／ 2.0 2.4 V
F
V
=
5 V ／ ／ 10 μA
R
I
=
20 mA 63 125 ／ mcd
F
I
=
20 mA ／ 60 ／ deg
F
I
=
20 mA ／ 650 ／ nm
F
I
=
20 mA ／ 639 ／ nm
F
I
=
20 mA ／ 20 ／ nm
F
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 1 Page: 3 of 6
Device Number : DLE-0000103 Prepared date: Prepared by: Li ming
2008/10/12
Page 4
Technical Data Sheet
5.0mm Round Type LED Lamps
█
Typical Electro-Optical Characteristic Curves:
334SDRD/S530-A3
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.:
Device Number : DLE-0000103 Prepared date: 2008/10/12 Prepared by: Li ming
1
Page: 4 of 6
Page 5
Technical Data Sheet
pp
5.0mm Round Type LED Lamps
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
334SDRD/S530-A3
NO Item Test Conditions Sample Size
1 Solder Heat
2 Temperature Cycle ∫ 5 min 76 PCS
3 Thermal Shock ∫ 10 sec 76 PCS
4
5
6 DC Operating Life
High Temperature
Storage
Low Temperature
Storage
TEMP : 260℃ ± 5 ℃
H : +100℃ 15min
L : -40℃ 15min
H : +100℃ 5min
L : -10℃ 5min
TEMP : 100℃ 76 PCS
TEMP : -40℃ 76 PCS
TEMP : 25℃
F
= 20mA
I
Test
Hours/Cycle
10 SEC
300 CYCLES
300 CYCLES
1000 HRS
1000 HRS
1000 HRS
76 PCS
76 PCS
Failure
Judgment
Criteria
Iv≦Ivt*0.5 or
Vf≧U or
Vf≦L
Ac/Re
0/1
0/1
0/1
0/1
0/1
0/1
High Temperature /
7
Note：Ivt：To test Iv value of the chip before the reliablility test
EVERLIGHT ELECTRONICS CO.,L http : //www.everlight.com Rev.: 1 Page: 5 of 6
Device Number : DLE-0000103 Prepared by:
High Humidity
Iv：The test value of the chip that has completed the reliablility test
U：U
L： Lower Specification Limit
er Specification Limit
85℃ / 85% RH 76 PCS
1000 HRS
Li ming Prepared date: 2008/10/12
0/1
Page 6
Technical Data Sheet
E
5.0mm Round Type LED Lamps
Packing Quantity Specification
1.500PCS/1Bag，5Bags/1Box
2.10Boxes/1Carton
Label Form Specification
334SDRD/S530-A3
334SDRD/S530-A3
CPN: Customer's Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN CHINA:
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT corporatio
Please don＇t reproduce or cause anyone to reproduce them without EVERLIGHT＇sconsent.
VERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C
http://www.everlight.com
MADE IN CHINA: Production Place
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 1
Device Number : DLE-0000103 Prepared date: 2008/10/12 Prepared by:
Page: 6 of 6
Li ming
