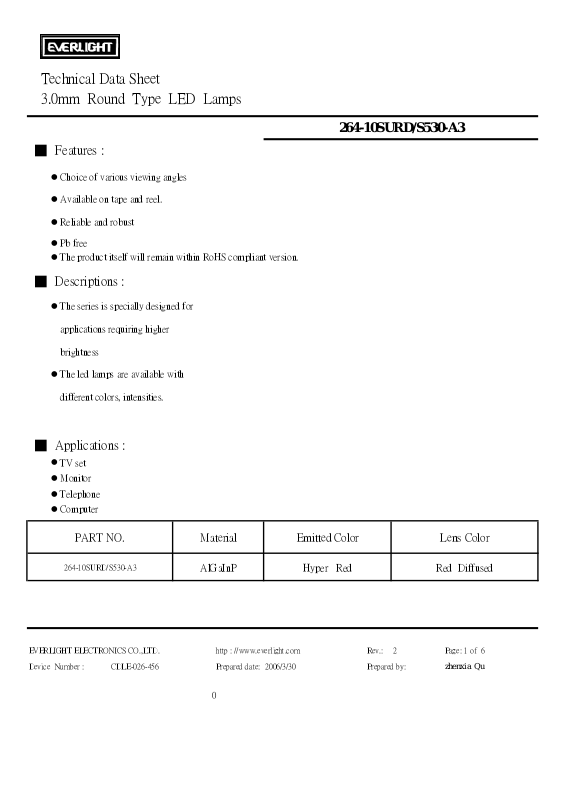

Technical Data Sheet

3.0mm Round Type LED Lamps

█ Features :

●

Choice of various viewing angles

●

Available on tape and reel.

●

Reliable and robust

●

Pb free

●

The product itself will remain within RoHS compliant version.

█ Descriptions :

●

The series is specially designed for

applications requiring higher

brightness

264-10SURD/S530-A3

●

The led lamps are available with

different colors, intensities.

█ Applications :

●

TV set

●

Monitor

●

Telephone

●

Computer

264-10SURD/S530-A3

Lens ColorPART NO. Material Emitted Color

AlGaInP Hyper Red Red Diffused

EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 2 Page: 1 of 6

Device Number : CDLE-026-456 Prepared date: 2006/3/30 Prepared by:

0

zhenxia Qu

Technical Data Sheet

3.0mm Round Type LED Lamps

Package Dimensions

1. All dimensions are in millimetres

Notes:

2. The height of flange must be less than 1.5mm(0.059").

3. Without special declared,the tolerance is ±0.25mm.

█ Absolute Maximum Ratings at Ta = 25℃

Parameter Symbol Rating Unit

264-10SURD/S530-A3

Forward Current I

Operating Temperature Topr -40 to +85 ℃

Storage Temperature Tstg -40 to +100 ℃

Electrostatic Discharge

Soldering Temperature Tsol 260 ± 5 ℃

Power Dissipation Pd 60 mW

Reverse Voltage V

Note: *1:Soldering time ≦ 5 seconds.

EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 2

Device Number : CDLE-026-456 Prepared date: Prepared by: zhenxia Qu

F 25 mA

ESD 2000 V

R 5V

Page: 2 of 6

2006/3/30

Technical Data Sheet

3.0mm Round Type LED Lamps

Electro-Optical Characteristics (Ta=25℃)

264-10SURD/S530-A3

Forward Voltage

Reverse Current

Luminous Intensity

Viewing Angle

Peak Wavelength

Dominant Wavelength

Spectrum Radiation

Bandwidth

Symbol Min. Typ. Max. Unit

VF

IR

Iv

2θ1/2

λp

λd

△λ

ConditionParameter

=

I

20 mA ／ 2.0 2.4 V

F

=

V

5 V ／ ／ 10 μA

R

=

I

20 mA 63 125 ／ mcd

F

=

I

20 mA ／ 60 ／ deg

F

=

I

20 mA ／ 632 ／ nm

F

=

I

20 mA ／ 624 ／ nm

F

=

I

20 mA ／ 20 ／ nm

F

EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 2 Page: 3 of 6

Device Number : CDLE-026-456 Prepared date: Prepared by: zhenxia Qu

2006/3/30

Technical Data Sheet

3.0mm Round Type LED Lamps

█

Typical Electro-Optical Characteristic Curves:

264-10SURD/S530-A3

EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.:

Device Number : CDLE-026-456 Prepared date: 2006/3/30 Prepared by: zhenxia Qu

2

Page: 4 of 6

Technical Data Sheet

N

3.0mm Round Type LED Lamps

█

Reliability test items and conditions:

The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%

264-10SURD/S530-A3

NO Item Test Conditions Sample Size

1 Solder Heat

2 Temperature Cycle ∫ 5 min 76 PCS

3 Thermal Shock ∫ 10 sec 76 PCS

4

5

6 DC Operating Life

High Temperature

Storage

Low Temperature

Storage

TEMP : 260℃ ± 5 ℃

H : +100℃ 15min

L : -40℃ 15min

H : +100℃ 5min

L : -10℃ 5min

TEMP : 100℃ 76 PCS

TEMP : -40℃ 76 PCS

TEMP : 25℃

F = 20mA

I

Test

Hours/Cycle

10 SEC

300 CYCLES

300 CYCLES

1000 HRS

1000 HRS

1000 HRS

76 PCS

76 PCS

Failure Judgment

Criteria

Iv≦Ivt*0.5 or
Vf≧U or

Vf≦L

Ac/Re

0/1

0/1

0/1

0/1

0/1

0/1

High Temperature /

7

ote：Ivt：To test Iv value of the chip before the reliablility test

EVERLIGHT ELECTRONICS CO., http : //www.everlight.com Rev.: 2 Page: 5 of 6

Device Number : CDLE-026-456 Prepared by:

High Humidity

Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit

85℃ / 85% RH 76 PCS

1000 HRS

0/1

zhenxia Qu Prepared date: 2006/3/30

Technical Data Sheet

n

E

3

3.0mm Round Type LED Lamps

Packing Quantity Specification

1.1000PCS/1Bag，4Bags/1Box

2.10Boxes/1Carton

Label Form Specification

264-10SURD/S530-A

264-10SURD/S530-A3

CPN: Customer's Production Number

P/N : Production Number

QTY: Packing Quantity

CAT: Ranks

HUE: Dominant Wavelength

REF: Reference

LOT No: Lot Number

MADE IN TAIWAN: Production Place

Notes

1. Above specification may be changed without notice. EVERLIGHT will reserve authority on

material change for above specification.

2. When using this product, please observe the absolute maximum ratings and the instructions

for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for

any damage resulting from use of the product which does not comply with the absolute

maximum ratings and the instructions included in these specification sheets.

3. These specification sheets include materials protected under copyright of EVERLIGHT corporatio

Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’sconsent.
