EVERLIGHT EVL 204-15/T2C3 Datasheet

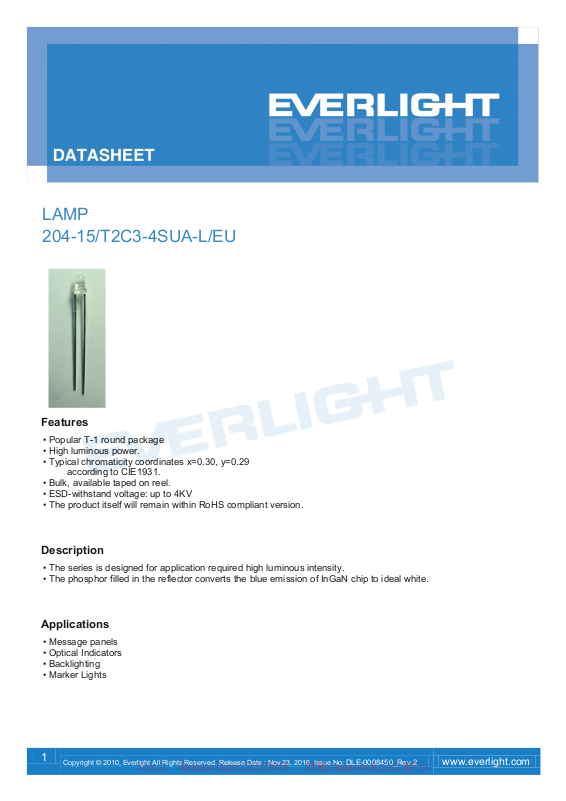

Page 1
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
LAMP 204-15/T2C3-4SUA-L/EU
Features
Popular T-1 round package
High luminous power.
Typical chromaticity coordinates x=0.30, y=0.29
according to CIE1931.
Bulk, available taped on reel.
ESD-withstand voltage: up to 4KV
The product itself will remain within RoHS compliant version.
Description
The series is designed for application required high luminous intensity.
The phosphor filled in the reflector converts the blue emission of InGaN chip to ideal white.
Applications
Message panels
Optical Indicators
Backlighting
Marker Lights
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 2
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
Device Selection Guide
Chip
Materials
Emitted Color
Resin Color
InGaN
White
Water Clear
Absolute Maximum Ratings (Ta=25)
Parameter
Symbol
Rating
Unit
Continuous Forward Current
IF
30
mA
Peak Forward Current (Duty 1/10 @ 1KHZ)
IFP
100
mA
Reverse Voltage
VR
5
V
Power Dissipation
P
d
110
mW
Operating Temperature
T
opr
-40 ~ +85
Storage Temperature
T
stg
-40 ~ +100
ESD
ESD
HBM
4K
V
Soldering Temperature
T
sol
260 for 5 sec.
Electro-Optical Characteristics (Ta=25)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Condition
Forward Voltage
VF
2.8
-----
3.6
V
IF=20mA
Zener Reverse Voltage
Vz
5.2
-----
-----
V
Iz=5mA
Reverse Current
IR
-----
-----
50
μA
VR=5V
Luminous Intensity
IV
5650
----
11250
mcd
IF=20mA
Viewing Angle
1/2
----
35
----
deg
IF=20mA
Chromaticity Coordinates
x
----
0.30
----
----
IF=20mA
y
----
0.29
----
----
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 3
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
Bin Range of Luminous Intensity
Bin Code
Min.
Max.
Unit
Condition
S
5650
7150
mcd
IF =20mA
T
7150
9000
U
9000
11250
Note: Tolerance of Luminous Intensity: ±10%
Forward Voltage Combination
Bin Code
Min.
Max.
Unit
Condition
0
2.8
3.0
V
IF =20mA
1
3.0
3.2 2 3.2
3.4 3 3.4
3.6
Note: Measurement Uncertainty of Forward Voltage±0.1V
Color Combination ( at 20mA)
Group
Bins
4
A0+B5+B6
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 4
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
CIE Chromaticity Diagram
Color Ranks (IF=20mATa=25)
Color Ranks
CIE
A0
X
0.264
0.283
0.296
0.28
Y
0.267
0.305
0.267
0.248
B5
X
0.287
0.307
0.311
0.296
Y
0.295
0.315
0.294
0.276
B6
X
0.307
0.33
0.33
0.311
Y
0.315
0.339
0.318
0.294
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7
0.0
0.2
0.4
0.6
0.8
5600K
7000K
9000K
14000K
B5
AO
B6
CIE-Y
CIE-X
Note:
Measurement uncertainty of the color coordinates±0.01
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 5
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
1.5 2.0 2.5 3.0 3.5 4.0 4.5
0
5
10
15
20
25
30
0 5 10 15 20 25
0.0
0.5
1.0
1.5
0 20 40 60 80 100
0
10
20
30
40
0 10 20 30 40 50
0.260
0.270
0.280
0.290
0.300
0.310
0.320
0.330
x
y
Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength (Ta=25)
Directivity (Ta=25)
Relative Intensity (a.u.)
Radiation Angle
Forward Current vs. Forward Voltage (Ta=25)
Relative Intensity vs. Forward Current (Ta=25)
Forward Current (mA)
Relative Intensity(a.u.)
Forward Voltage (V)
Forward Current (mA)
Chromaticity Coordinate vs. Forward Current(Ta=25)
Forward Current vs. Ambient Temp.
Chromaticity Coordinate
Forward Current (mA)
Forward Current (mA)
Ambient Temperature Ta()
350 400 450 500 550 600 650 700 750 800
0.0
0.2
0.4
0.6
0.8
1.0
0
10
20
30
40
50
60
70
80
90
O
O
O
O
O
O
O
O
O
O
0
1.0
1.0
0.5
30
O
60
O
90
O
0
0.5
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 6
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
6
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
Package Dimension
Note: Note:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 7
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
7
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
Pb
EL ECTROSTATIC ELECTRONAGNETIC
MAGNETIC OR RADIOACTIVE RELDS
anti-static for 750
Moisture Resistant Packing Materials
Label Explanation
CPN: Customers Production Number
P/N : Production Number QTY: Packing Quantity CAT: Ranks of Luminous Intensity and Forward Voltage HUE: Color Rank REF: Reference LOT No: Lot Number
Packing Specification
Packing Quantity
1. Min 200 to Max 1000 PCS/1 Bag, 5 Bags/1 Inner Carton
2. 10 Inner Cartons/1 Outside Carton
Anti-electrostatic bag Inner Carton Outside Carton
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 8
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
8
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
Notes
Hand Soldering
DIP Soldering
Temp. at tip of iron
300 Max. (30W Max.)
Preheat temp.
100 Max. (60 sec Max.)
Soldering time
3 sec Max.
Bath temp. & time
260 Max., 5 sec Max
Distance
3mm Min.(From solder joint to epoxy bulb)
Distance
3mm Min. (From solder joint to epoxy bulb)
Color Group
Luminous Intensity Bins
Voltage Group
204-15/T2C3-
1. Lead Forming
During lead formation, the leads should be bent at a point at least 3mm from the base of the epoxy bulb.
Lead forming should be done before soldering.
Avoid stressing the LED package during leads forming. The stress to the base may damage the LED’s
characteristics or it may break the LEDs.
Cut the LED leadframes at room temperature. Cutting the leadframes at high temperatures may cause failure of
the LEDs.
When mounting the LEDs onto a PCB, the PCB holes must be aligned exactly with the lead position of the LED.
If the LEDs are mounted with stress at the leads, it causes deterioration of the epoxy resin and this will degrade
the LEDs.
2. Storage
The LEDs should be stored at 3C or less and 70%RH or less after being shipped from Everlight and the
storage life limits are 3 months. If the LEDs are stored for 3 months or more, they can be stored for a year in a
sealed container with a nitrogen atmosphere and moisture absorbent material.
Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where
condensation can occur.
3. Soldering
Careful attention should be paid during soldering. When soldering, leave more then 3mm from solder joint to
epoxy bulb, and soldering beyond the base of the tie bar is recommended.
Recommended soldering conditions:
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 9
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
9
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
Prehead
laminar wave
Fluxing
Recommended soldering profile
Avoiding applying any stress to the lead frame while the LEDs are at high temperature particularly when
soldering.
Dip and hand soldering should not be done more than one time
After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration until the
LEDs return to room temperature.
A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.
Although the recommended soldering conditions are specified in the above table, dip or handsoldering at the
lowest possible temperature is desirable for the LEDs.
Wave soldering parameter must be set and maintain according to recommended temperature and dwell time
in the solder wave.
4. Cleaning
When necessary, cleaning should occur only with isopropyl alcohol at room temperature for a duration of no
more than one minute. Dry at room temperature before use.
Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic cleaning
on the LEDs depends on factors such as ultrasonic power and the assembled condition. Ultrasonic cleaning
shall be pre-qualified to ensure this will not cause damage to the LED
5. Circuit Protection
Below the zener reference voltage Vz, all the current flows through LED and as the voltage rises to Vz, the
zener diode breakdown." If the voltage tries to rise above Vz current flows through the zener branch to keep
the voltage at exactly Vz.
When the LED is connected using serial circuit, if either piece of LED is no light up but current can’t flow through
causing others to light down. In new design, the LED is parallel with zener diode. if either piece of LED is no
light up but current can flow through causing others to light up.
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 10
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
10
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
6. Heat Management
Heat management of LEDs must be taken into consideration during the design stage of LED application. The
current should be de-rated appropriately by referring to the de-rating curve found in each product
specification.
The temperature surrounding the LED in the application should be controlled. Please refer to the data sheet
de-rating curve.
7. ESD (Electrostatic Discharge)
The products are sensitive to static electricity or surge voltage. ESD can damage a die and its reliability.
When handling the products, the following measures against electrostatic discharge are strongly
recommended:
Eliminating the charge
Grounded wrist strap, ESD footwear, clothes, and floors
Grounded workstation equipment and tools
ESD table/shelf mat made of conductive materials
Proper grounding is required for all devices, equipment, and machinery used in product assembly.
Surge protection should be considered when designing of commercial products.
If tools or equipment contain insulating materials such as glass or plastic,
the following measures against electrostatic discharge are strongly recommended:
Dissipating static charge with conductive materials
Preventing charge generation with moisture
Neutralizing the charge with ionizers
8. Directions for use
The LEDs should be operated with forward bias. The driving circuit must be designed so that the LEDs are
not subjected to forward or reverse voltage while it is off. If reverse voltage is continuously applied to the
LEDs, it may cause migration resulting in LED damage.
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Page 11
DATASHEET LAMP 204-15/T2C3-4SUA-L/EU
11
Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov.23, 2016. Issue No: DLE-0008450_Rev.2
www.everlight.com
DISCLAIMER
1. EVERLIGHT reserves the right(s) on the adjustment of product material mix for the specification.
2. The product meets EVERLIGHT published specification for a period of twelve (12) months from date of
shipment.
3. The graphs shown in this datasheet are representing typical data only and do not show guaranteed values.
4. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in
these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from the use of the
product which does not comply with the absolute maximum ratings and the instructions included in these
specification sheets.
5. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in any
form is prohibited without obtaining EVERLIGHTs prior consent.
6. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life saving
applications or any other application which can result in human injury or death. Please contact authorized
Everlight sales agent for special application request.
Ver.:2 Release Date:12/21/2016 狀態:Approved(正式發行)
Loading...
