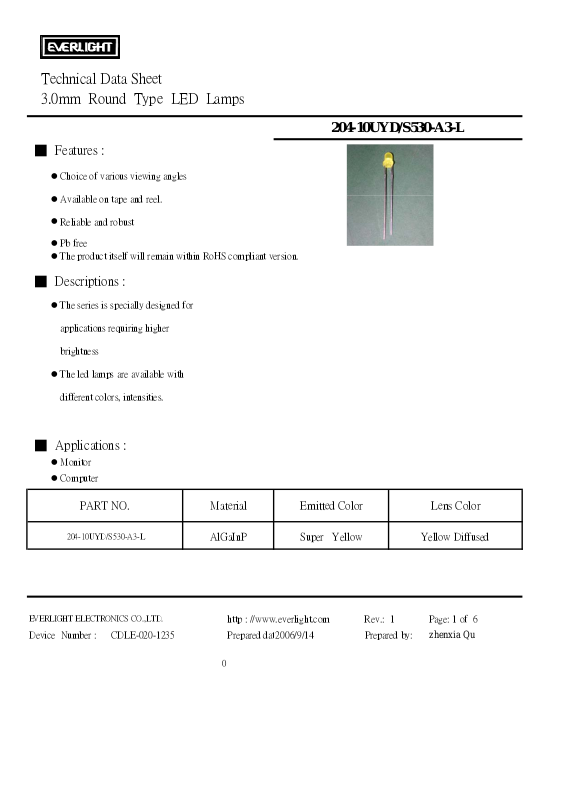

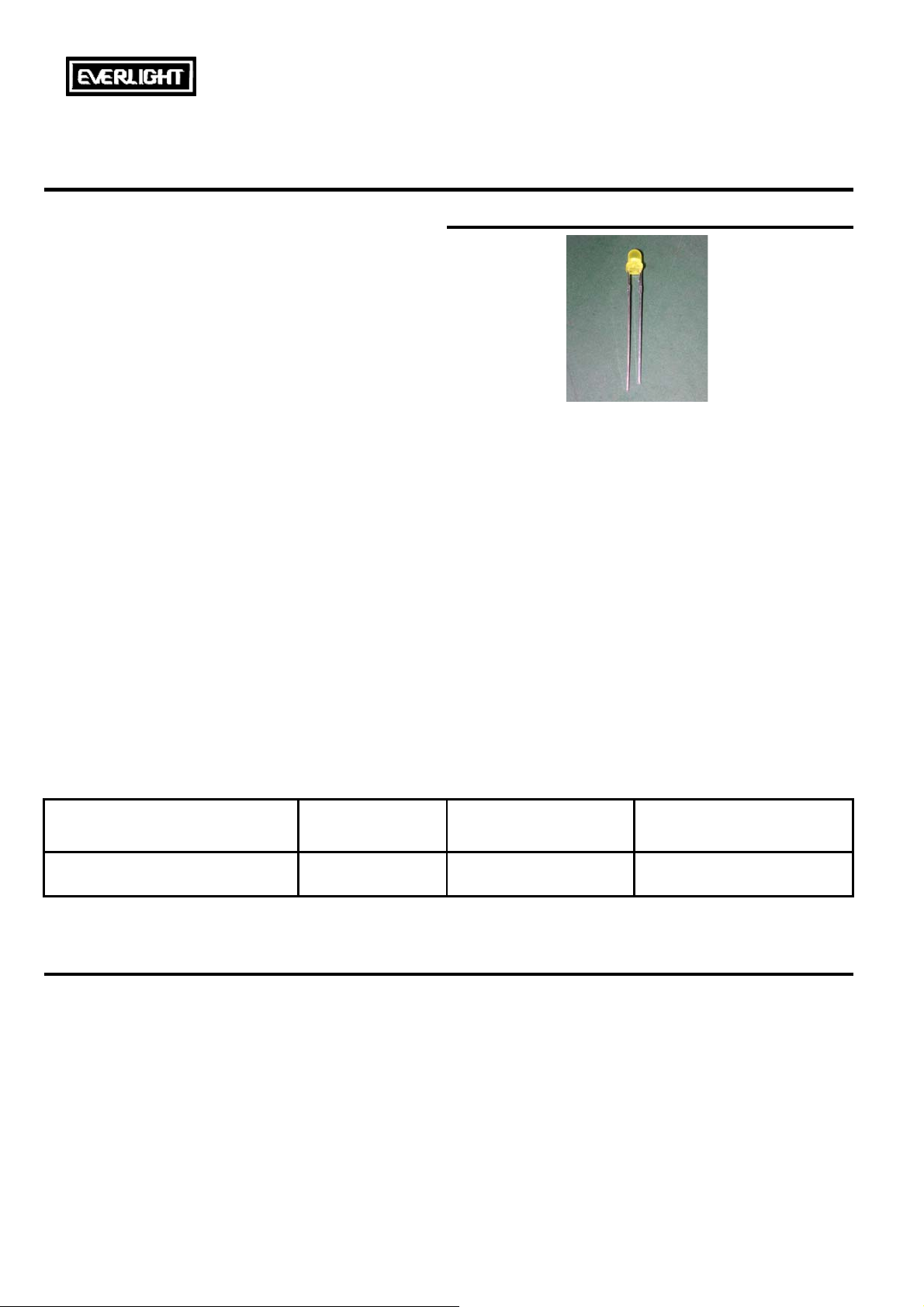

Technical Data Sheet
3.0mm Round Type LED Lamps
█ Features :
●
Choice of various viewing angles
●
Available on tape and reel.
●
Reliable and robust
●
Pb free
●
The product itself will remain within RoHS compliant version.
█ Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
204-10UYD/S530-A3-L
●
The led lamps are available with
different colors, intensities.
█ Applications :
●
Monitor
●
Computer
204-10UYD/S530-A3-L
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-020-1235
AlGaInP Super Yellow Yellow Diffused
http : //www.everlight.com Rev.: 1 Page: 1 of 6
Prepared dat2006/9/14 Prepared by:
zhenxia Qu
Lens ColorPART NO. Material Emitted Color
0
Page 2
Technical Data Sheet
3.0mm Round Type LED Lamps

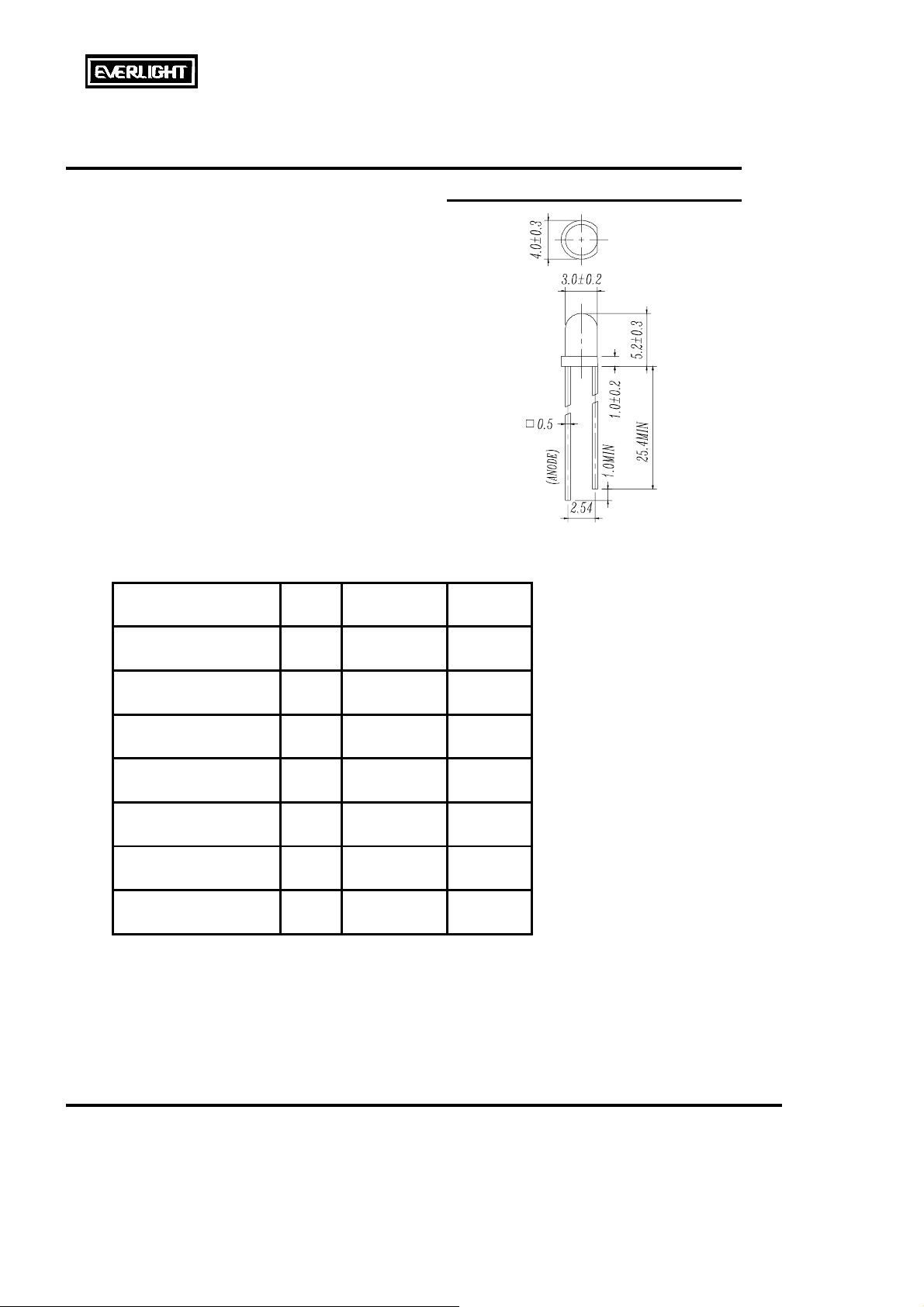

Package Dimensions
1. All dimensions are in millimetres
Notes:
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is ±0.25mm.
204-10UYD/S530-A3-L
█ Absolute Maximum Ratings at Ta = 25℃
Parameter Symbol Rating Unit
Forward Current I
Operating Temperature Topr -40 to +85 ℃
Storage Temperature Tstg -40 to +100 ℃
Electrostatic Discharge
Soldering Temperature Tsol 260 ± 5 ℃
Power Dissipation Pd 60 mW
Reverse Voltage V
Note: *1:Soldering time ≦ 5 seconds.
*2:I
FP Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10.
F 25 mA
ESD 2000 V
R 5V
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 1
Device Number :
CDLE-020-1235
Prepared date: Prepared by: zhenxia Qu
2006/9/14
Page: 2 of 6
Page 3
Technical Data Sheet
,
3.0mm Round Type LED Lamps
Electro-Optical Characteristics (Ta=25℃)
204-10UYD/S530-A3-L
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Symbol Min. Typ. Max. Unit
V
F IF= 20 mA ／ 2.0 2.4 V
I
R VR=5V ／ ／ 10 μA
Iv IF= 20 mA 100 200 ／ mcd
2θ1/2 IF= 20 mA ／ 60 ／ deg
λp IF= 20 mA ／ 591 ／ nm
λd IF= 20 mA ／ 589 ／ nm
ConditionParameter
Spectrum Radiation Bandwidth
EVERLIGHT ELECTRONICS CO.
Device Numbe CDLE-020-1235 Prepared date: 2006/9/14 Prepared by: zhenxia Qu
△λ IF= 20 mA ／ 15 ／ nm
http : //www.everlight.com Rev.: 1
Page: 3 of 6
Page 4
Technical Data Sheet
3.0mm Round Type LED Lamps
█

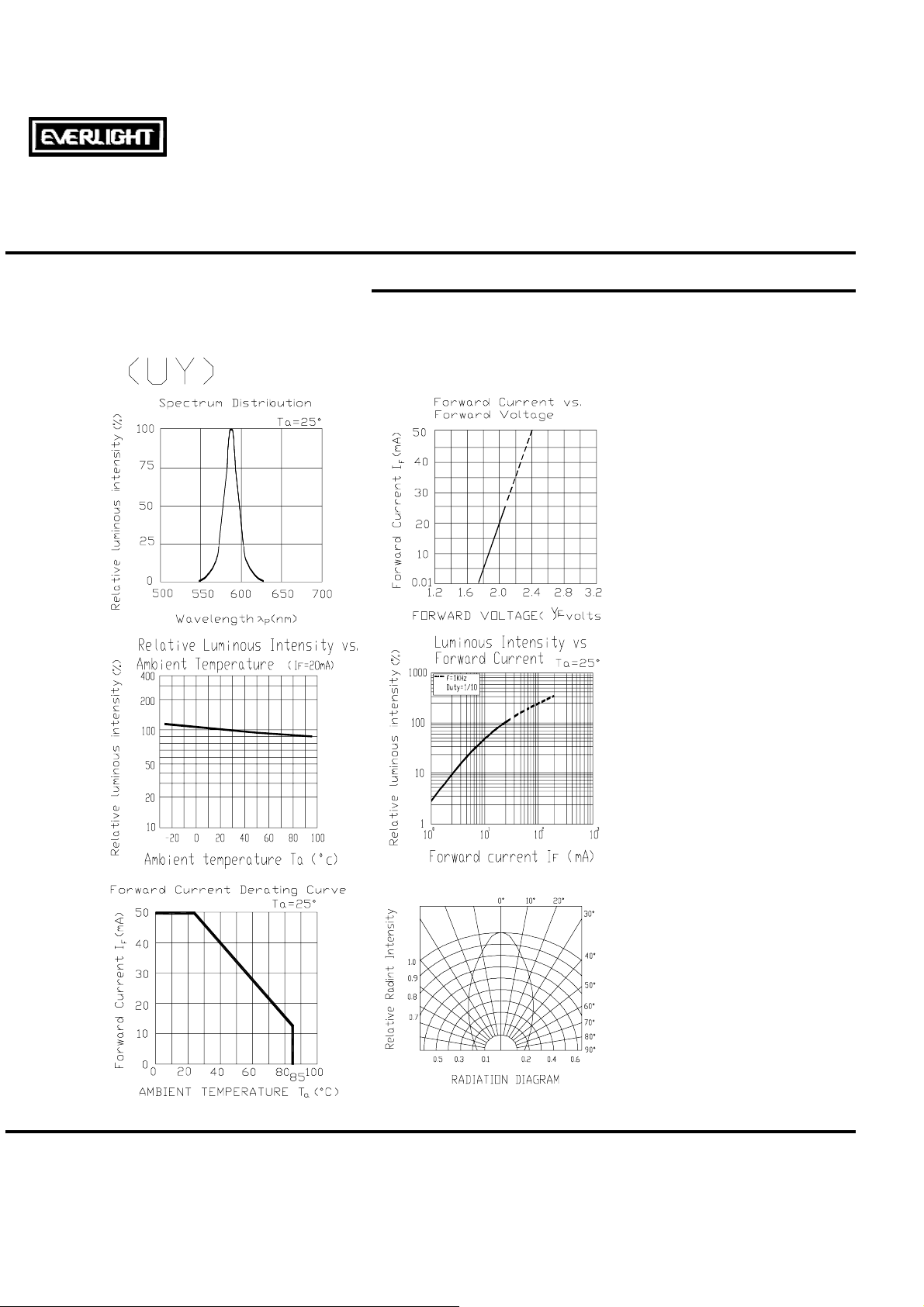

Typical Electro-Optical Characteristic Curves:
204-10UYD/S530-A3-L
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.:
Device Number :
CDLE-020-1235 Prepared date: 2006/9/14 Prepared by:
1
Page: 4 of 6
zhenxia Qu
Page 5
Technical Data Sheet
3.0mm Round Type LED Lamps
204-10UYD/S530-A3-L
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
NO Item Test Conditions Sample Size
Test
Hours/Cycle
Failure
Judgment
Criteria
Ac/Re
1 Solder Heat TEMP : 260℃ ± 5 ℃ 76 PCS
H : +100℃ 15min
2 Temperature Cycle ∫ 5 min 76 PCS
L : -40℃ 15min
H : +100℃ 5min
3 Thermal Shock ∫ 10 sec 76 PCS
L : -10℃ 5min
4 High Temperature Storage TEMP : 100℃ 76 PCS
5 Low Temperature Storage TEMP : -40℃ 76 PCS
TEMP : 25℃
F = 20mA
I
High Temperature / High
7
Humidity
85℃ / 85% RH 76 PCS
10 SEC
300 CYCLES
300 CYCLES
1000 HRS
1000 HRS
1000 HRS6 DC Operating Life
1000 HRS
76 PCS
Iv≦
Ivt*0.5 or
Vf≧U
or
Vf≦L
0/1
0/1
0/1
0/1
0/1
0/1
0/1
Note：Ivt：To test Iv value of the chip before the reliablility test
Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 1 Page: 5 of 6
Device Number :
CDLE-020-1235 Prepared date: 2006/9/14 Prepared by: zhenxia Qu
Page 6
Technical Data Sheet
p
p
E
L
3.0mm Round Type LED Lamps
Packing Quantity Specification
1.1000PCS/1Bag，4Bags/1Box
2.10Boxes/1Carton

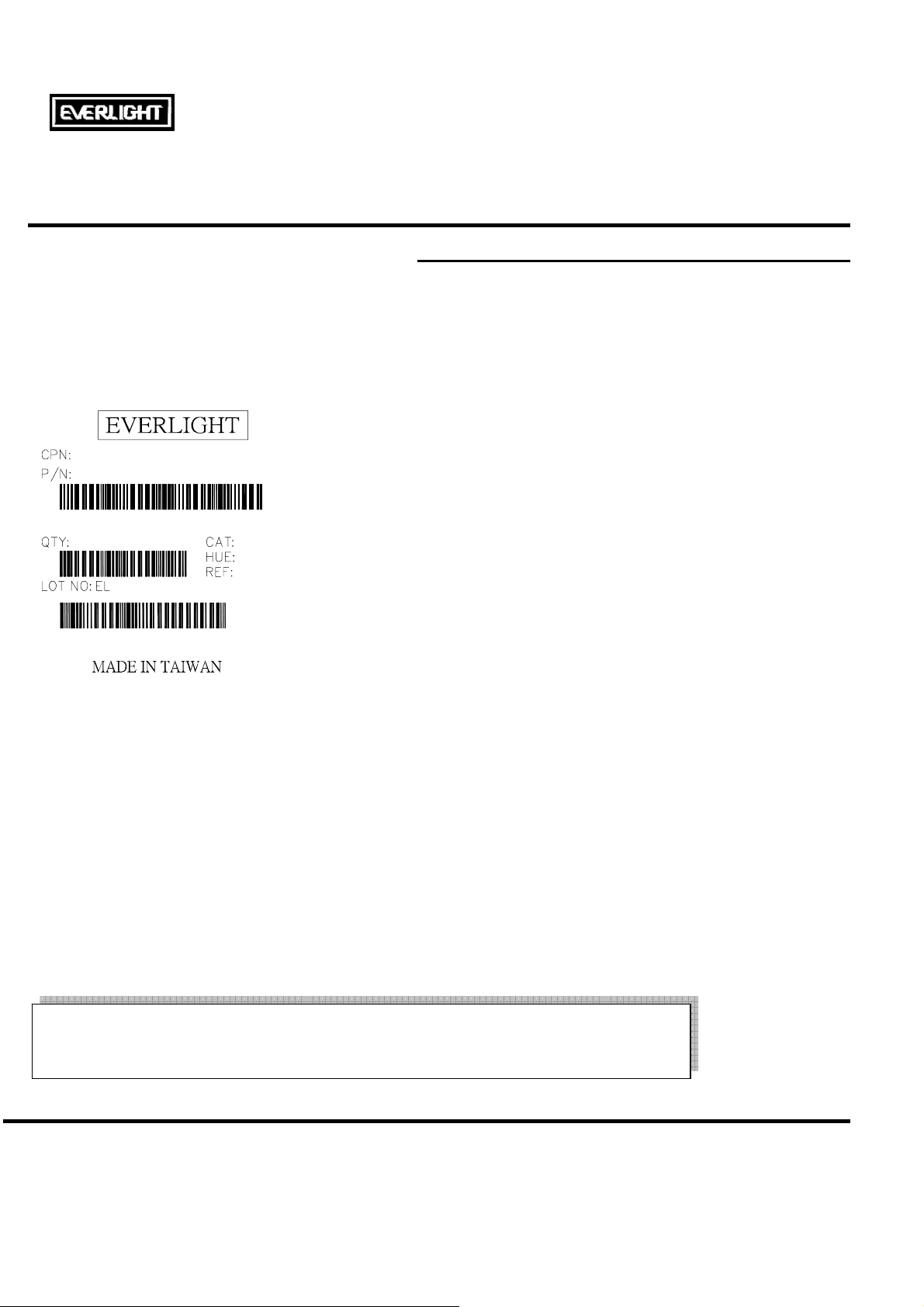

Label Form Specification
204-10UYD/S530-A3-
204-10UYD/S530-A3-L
CPN: Customer's Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These s
Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’sconsent.
VERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http:\\www.everlight.com
ecification sheets include materials protected under copyright of EVERLIG
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: 1
Device Number : Prepared by:
CDLE-020-1235 Pre
ared dat2006/9/14 zhenxia Qu
Page: 6 of 6
