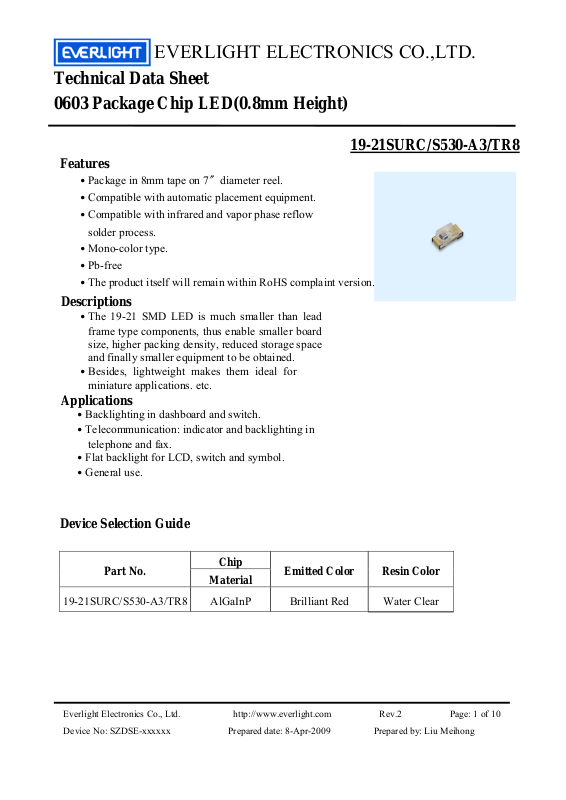

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet
0603 Package Chip LED(0.8mm Height)

Features

․Package in 8mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.

․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type.
․Pb-free

․The product itself will remain within RoHS complaint version.

Descriptions

․The 19-21 SMD LED is much smaller than lead

frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting in dashboard and switch.
․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.

․General use.

19-21SURC/S530-A3/TR8

Device Selection Guide

Part No.

19-21SURC/S530-A3/TR8 AlGaInP Brilliant Red Water Clear

Chip

Emitted Color Resin Color

Material

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 1 of 10

Device No: SZDSE-xxxxxx Prepared date: 8-Apr-2009 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

Package Outline Dimensions

-

+

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 2 of 10

Device No:SZDSE-XXXX Prepared date:9-01-2008 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit

Reverse Voltage VR 5 V

Forward Current IF 25 mA

Peak Forward Current

(Duty 1/10 @1KHz)

Power Dissipation Pd 60 mW

Electrostatic Discharge(HBM) ESD 2000 V

Operating Temperature Topr -40 ~ +85 ℃

Storage Temperature Tstg -40 ~ +90 ℃

Soldering Temperature Tsol

IFP 60 mA

Reflow Soldering : 260 ℃ for 10 sec

Hand Soldering : 350 ℃ for 3 sec.

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity

Viewing Angle 2θ1/2 ---- 100 ---- deg

Iv 37.0 56.0 ----

mcd

Peak Wavelength λp ---- 632 ---- nm

Dominant Wavelength

Spectrum Radiation

Bandwidth

Forward Voltage VF

Reverse Current IR ---- ---- 10 μA

λd

△λ

---- 624 ----

---- 20 ----

1.70 2.0 2.40

nm

nm

V

IF=20mA

VR=5V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 3 of 10

Device No:SZDSE-XXXX Prepared date:9-01-2008 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

Typical Electro-Optical Characteristics Curves

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 4 of 10

Device No:SZDSE-XXXX Prepared date:9-01-2008 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

Label explanation

CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

Reel Dimensions

Pb

CPN :

N : XXXXXXXXXXXXX

P

XXXXXXXXXXXXX

QTY : XXX

LOT NO : XXXXXXXXXX

Reference : XXXXXXXX

EVERLIGHT

MADE IN TAIWAN

RoHS

CAT : XXX
HUE : XXX
REF : XXX

Note: The tolerances unless mentioned is ±0.1mm, Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 5 of 10

Device No:SZDSE-XXXX Prepared date:9-01-2008 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm, Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 6 of 10

Device No:SZDSE-XXXX Prepared date:9-01-2008 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below.
Confidence level

：90%

LTPD

：10%

No. Items Test Condition

Temp. : 260

1 Reflow Soldering

H : +100

2 Temperature Cycle

L : -40

H : +100

3 Thermal Shock

L : -10

4 High Temperature Storage

5 Low Temperature Storage

6 DC Operating Life IF = 20 mA

Temp. : 100

Temp. : -40

℃±5℃ Min.

5sec.

℃ 15min

∫ 5 min

℃ 15min

℃ 5min

∫ 10 sec

℃ 5min

℃

℃

Test

Hours/Cycles

6 Min.

300 Cycles

300 Cycles

1000 Hrs.

1000 Hrs.

1000 Hrs.

Sample Size Ac/Re

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

High Temperature / High

7

Humidity

℃/ 85%RH

85

1000 Hrs.

22 PCS. 0/1

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 7 of 10

Device No:SZDSE-XXXX Prepared date:9-01-2008 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

Precautions For Use

1. Over-current-proof

Customer must apply resistors for protection , otherwise slight voltage shift will cause big

current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30

2.3 After opening the package: The LED's floor life is 1 year under 30

℃ or less and 90%RH or less.

℃ or less and 60% RH or less.

If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the

storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60

±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 8 of 10

Device No:SZDSE-XXXX Prepared date:9-01-2008 Prepared by: Liu Meihong

EVERLIGHT ELECTRONICS CO.,LTD.

19-21SURC/S530-A3/TR8

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than350℃ for 3 seconds

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do

soldering of each terminal. Be careful because the damage of the product is often started at the time of

the hand solder.

5.Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a

double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether

the characteristics of the LEDs will or will not be damaged by repairing.

EVERLIGHT ELECTRONICS CO., LTD. Tel: [phone]
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: [phone]
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
