EVERLIGHT EVL 19-213/BHC-A Datasheet

Technical Data Sheet

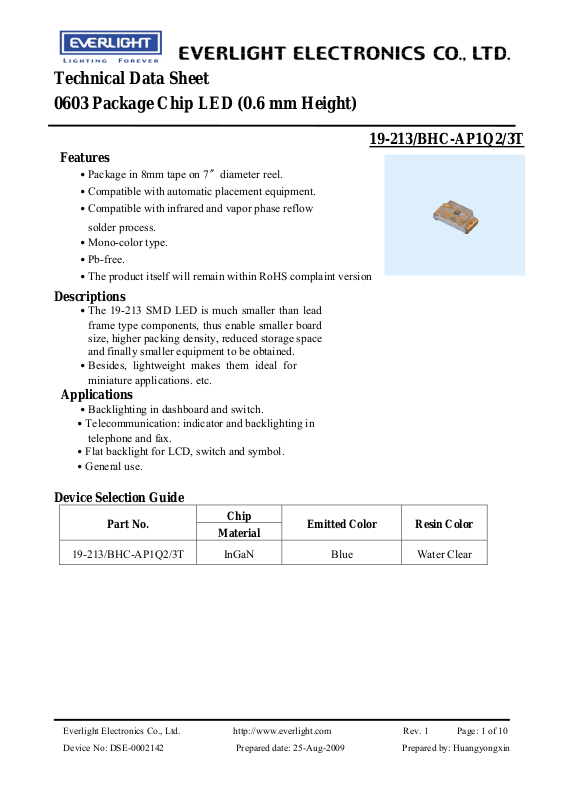

0603 Package Chip LED (0.6 mm Height)

19-213/BHC-AP1Q2/3T

Features

․Package in 8mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.

․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type.
․Pb-free.
․The product itself will remain within RoHS complaint version

Descriptions

․The 19-213 SMD LED is much smaller than lead

frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting in dashboard and switch.

․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.

․General use.

Device Selection Guide

Part No.

19-213/BHC-AP1Q2/3T InGaN Blue Water Clear

Chip

Emitted Color Resin Color

Material

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

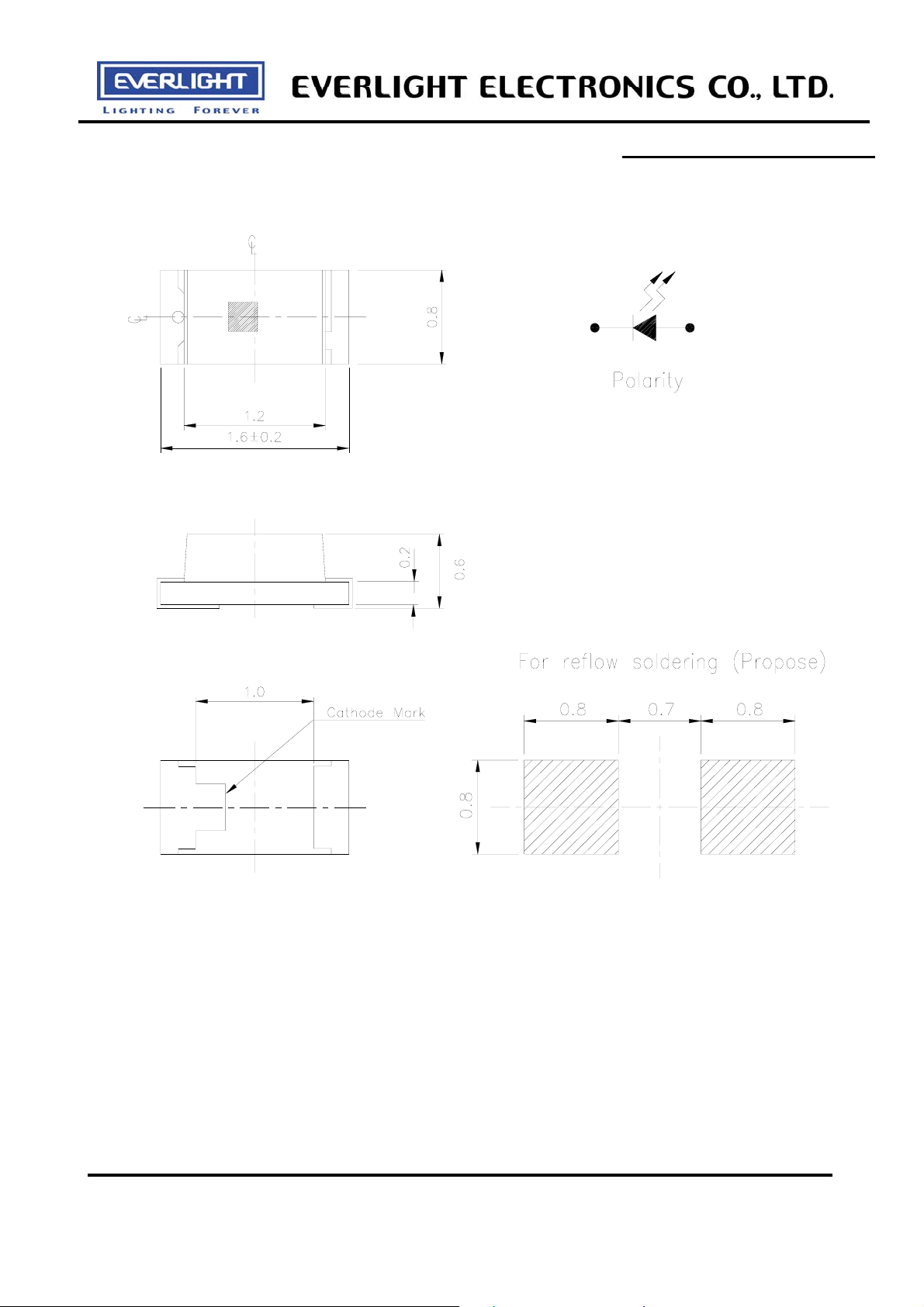

Package Outline Dimensions

19-213/BHC-AP1Q2/3T

-

+

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

19-213/BHC-AP1Q2/3T

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit

Reverse Voltage VR 5 V

Forward Current IF 25 mA

Peak Forward Current

IFP 100 mA

(Duty 1/10 @1KHz)

Power Dissipation Pd 95 mW

Electrostatic Discharge(HBM) ESD 150 V

Operating Temperature Topr -40 ~ +85

Storage Temperature Tstg -40 ~ +90

Reflow Soldering : 260 ℃ for 10 sec.

Soldering Temperature Tsol

Hand Soldering : 350 ℃ for 3 sec.

℃

℃

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity Iv 45 ----- 112 mcd

Viewing Angle 2θ1/2 ----- 120 ----- deg

Peak Wavelength λp ----- 468 ----- nm

Dominant Wavelength

λd

Spectrum Radiation

Bandwidth

Forward Voltage VF

Reverse Current IR ----- ----- 50 μA

△λ ----- 25 ----- nm

464.5 ----- 476.5

2.70 3.30 3.70

nm

V

Notes:

1.Tolerance of Luminous Intensity ±11%

2.Tolerance of Dominant Wavelength ±1nm

IF=20mA

VR=5V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

19-213/BHC-AP1Q2/3T

Bin Range Of Dom. Wavelength

Group Bin Min Max Unit Condition

A9 464.5 467.5

A

A10 467.5 470.5

A11 470.5 473.5

A12 473.5 476.5

Bin Range Of Luminous Intensity

Bin Min Max Unit Condition

P1 45.0 57.0

P2 57.0 72.0

Q1 72.0 90.0

Q2 90.0 112.0

nm IF=20mA

mcd IF=20mA

Notes:

1. Tolerance of Luminous Intensity ±11%

2. Tolerance of Dominant Wavelength ±1nm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

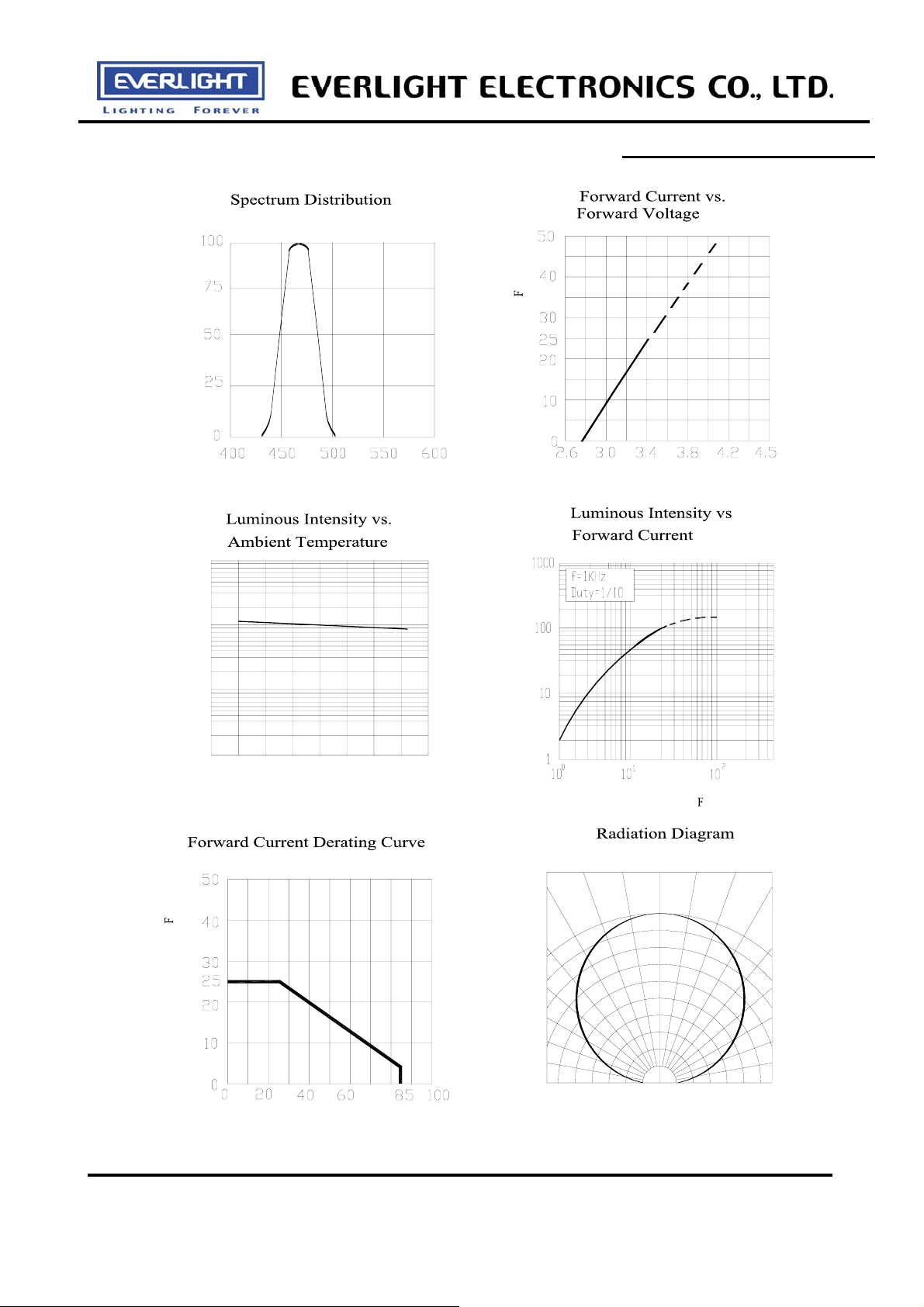

Typical Electro-Optical Characteristics Curves

Ta=25°C

)
%

(

Forward Current I (mA)

Relative luminous intensity

Wavelength λ(nm)

1000
%)
(

)
%

(

19-213/BHC-AP1Q2/3T

Ta=25°C

Forward Voltage V (V)

F

Ta=25°C

100

10

Relative luminous intensity

I (mA)

Forward Current

1

-60

-20-40 0 206040

Ambient Temperature T (°C

Ambient Temperature T (°C

10080

)

a

)

a

Relative luminous intensity

1.0

0.9

0.8

0.7

Forward Current I (mA)

10° 20°

0°

0.5 0.3 0.1

Ta=25°C

30°

40°

50°
60°

70°
80°

90°

0.60.2 0.4

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

Label explanation

CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

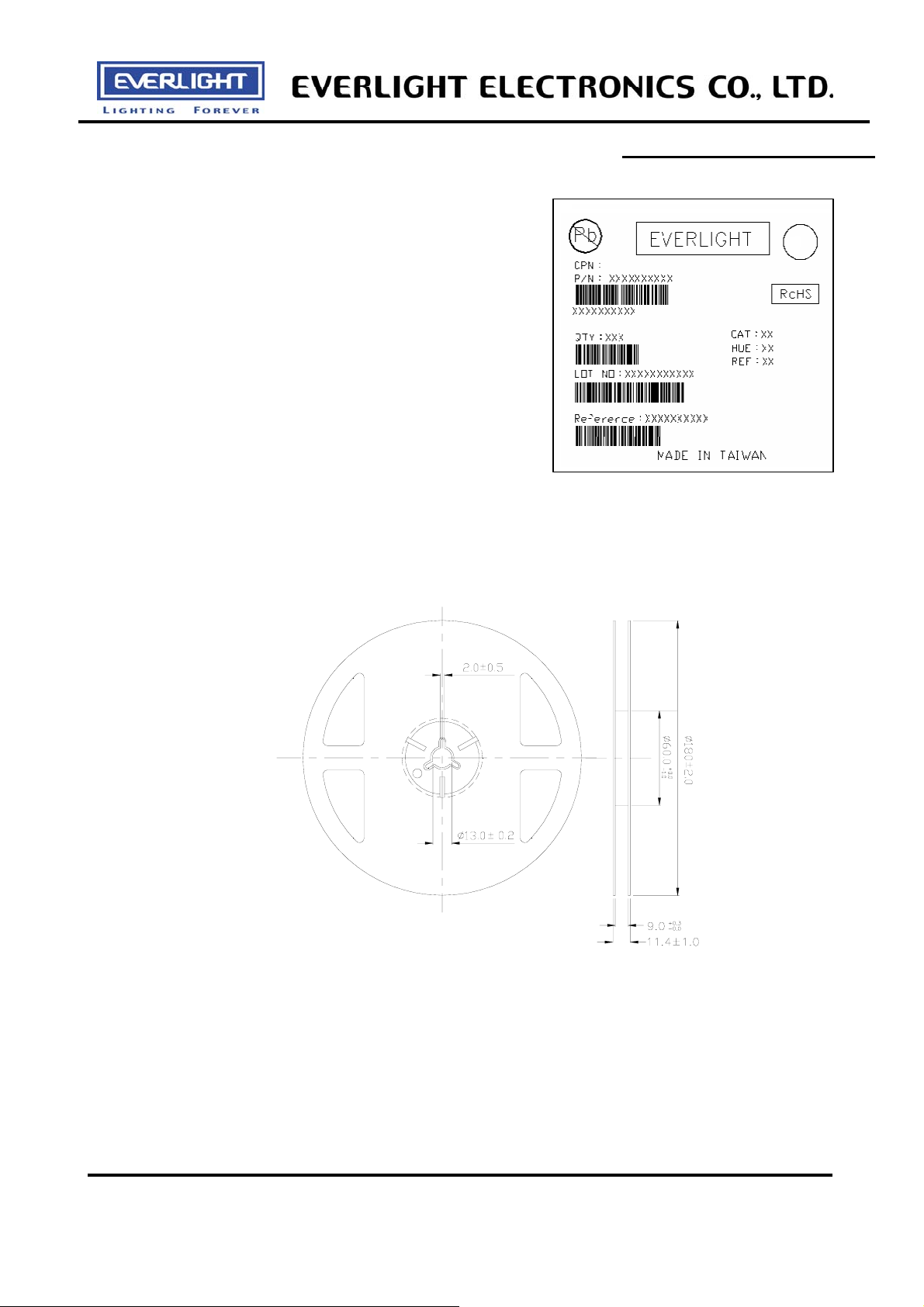

Reel Dimensions

19-213/BHC-AP1Q2/3T

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

19-213/BHC-AP1Q2/3T

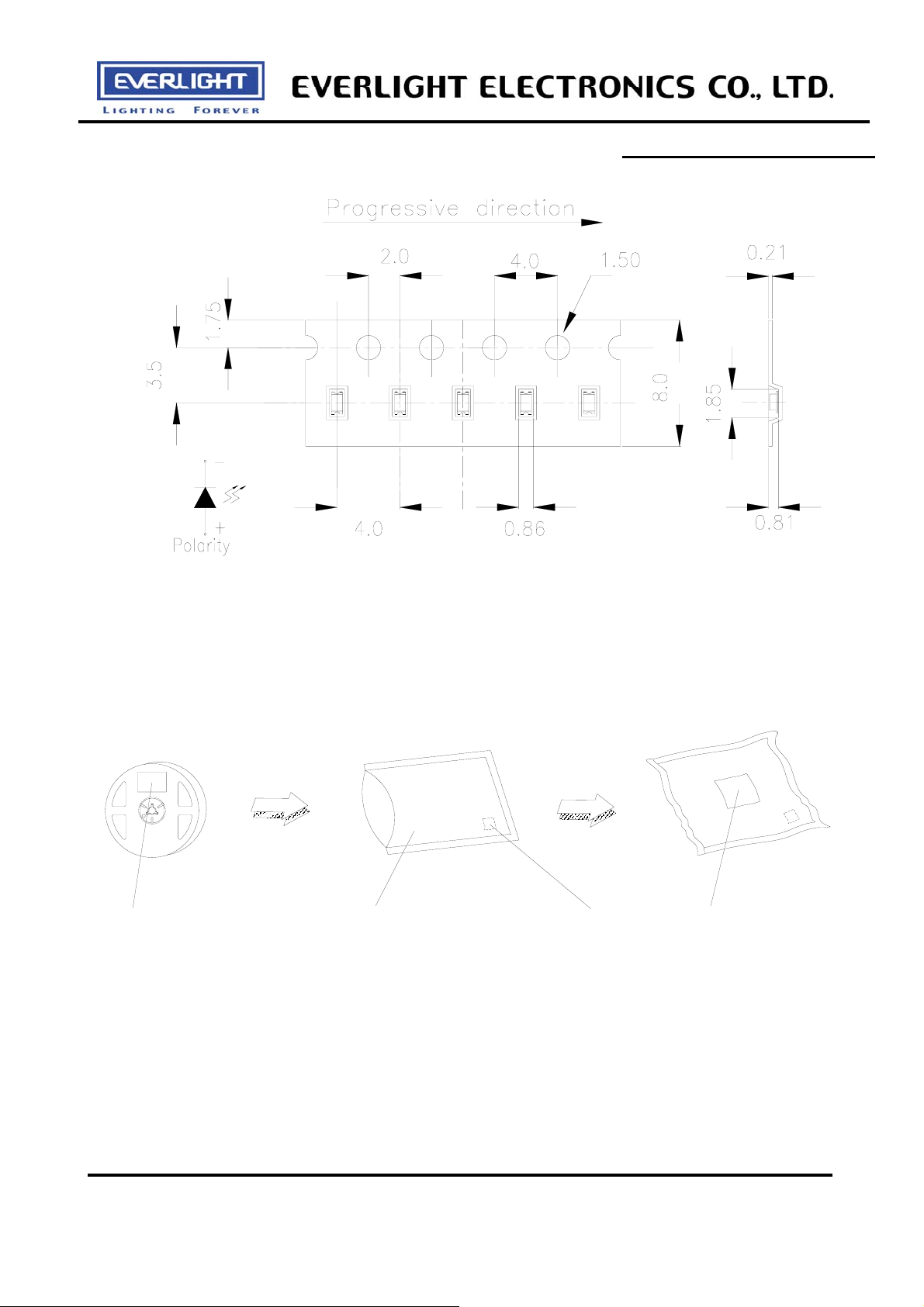

Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below.
Confidence level：90%

LTPD：10%

No. Items Test Condition

Hours/Cycles

Temp. : 260℃±5℃

1 Reflow Soldering

Min. 5sec.

6 Min.

H : +100℃ 15min

2 Temperature Cycle

∫ 5 min

300 Cycles

L : -40℃ 15min

H : +100℃ 5min

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10℃ 5min

19-213/BHC-AP1Q2/3T

Test

Sample

Ac/Re

Size

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

4

High Temperature

Temp. : 100℃

Storage

5

Low Temperature

Temp. : -40℃

Storage

6 DC Operating Life IF = 20 mA

7

High Temperature /

85℃/ 85%RH

High Humidity

1000 Hrs.

1000 Hrs.

1000 Hrs.
1000 Hrs.

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

19-213/BHC-AP1Q2/3T

Precautions For Use

1. Over-current-proof

Customer must apply resistors for protection , otherwise slight voltage shift will cause big

current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.

If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the

storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

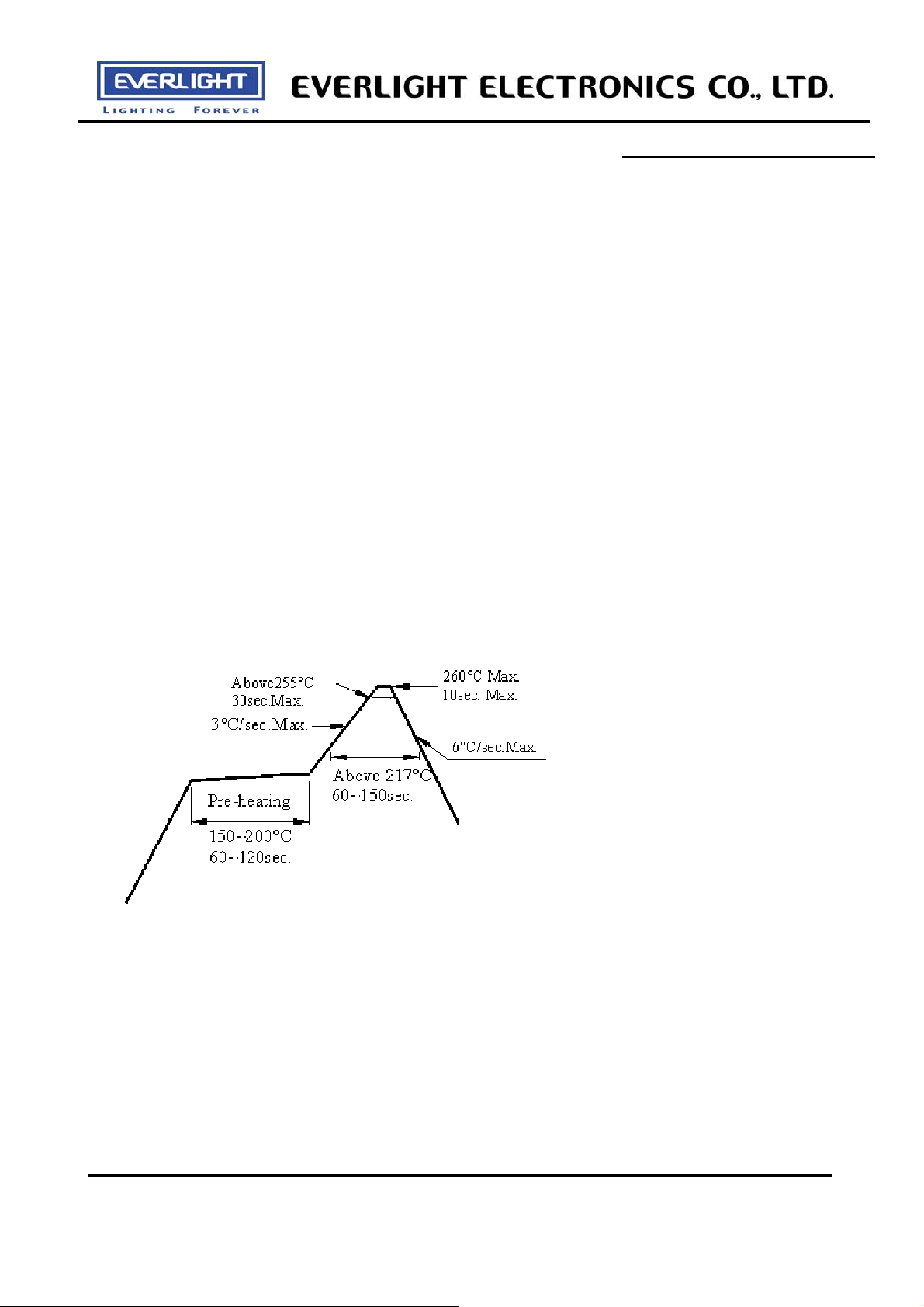

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 10

Device No: DSE-0002142 Prepared date: 25-Aug-2009 Prepared by: Huangyongxin

19-213/BHC-AP1Q2/3T

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do

soldering of each terminal. Be careful because the damage of the product is often started at the time of

the hand solder.

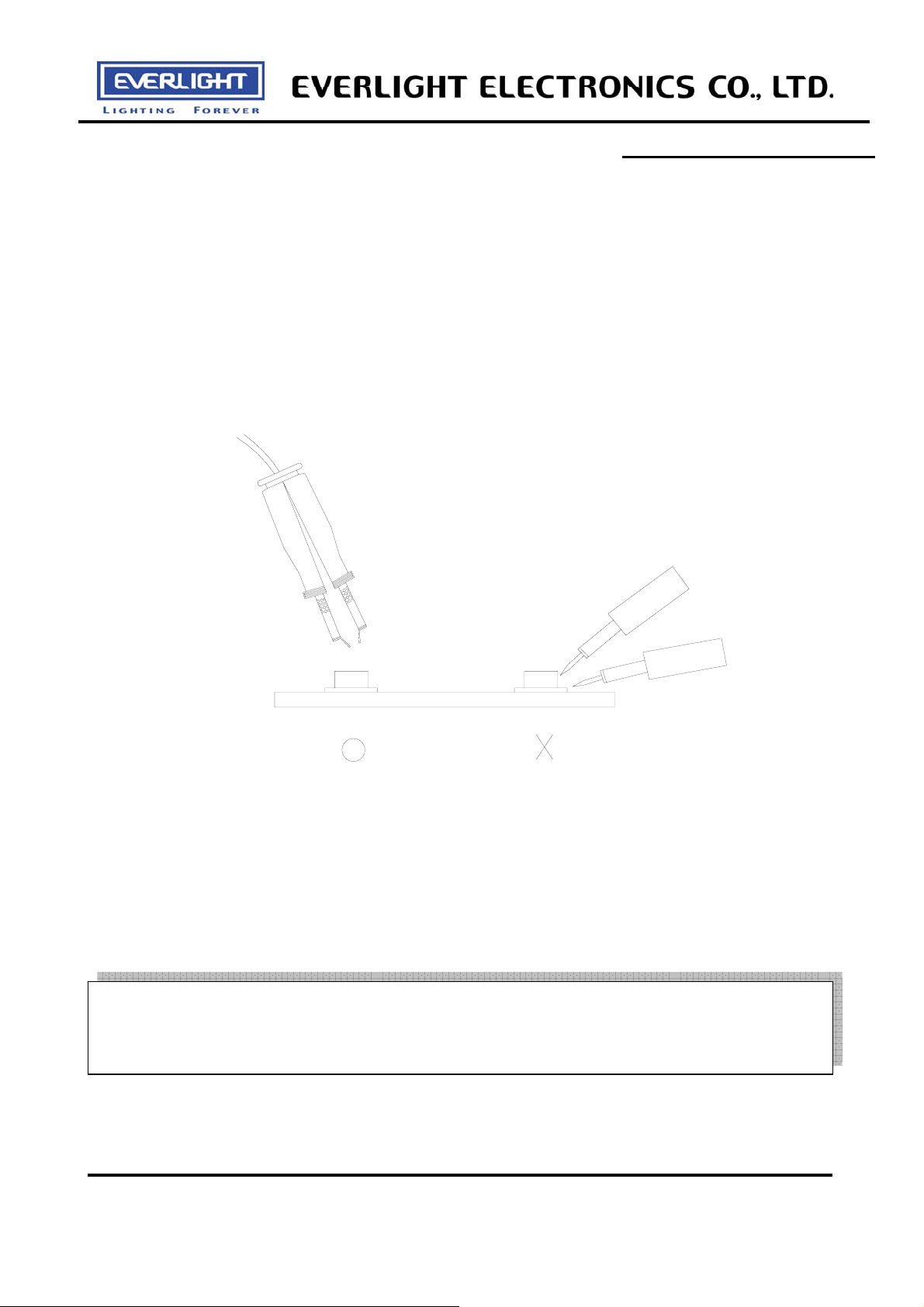

5.Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a

double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether
the characteristics of the LEDs will or will not be damaged by repairing.
