EVERLIGHT EVL 17-21SURC Datasheet

Page 1
EVERLIGHT ELECTRONICS CO.,LTD.

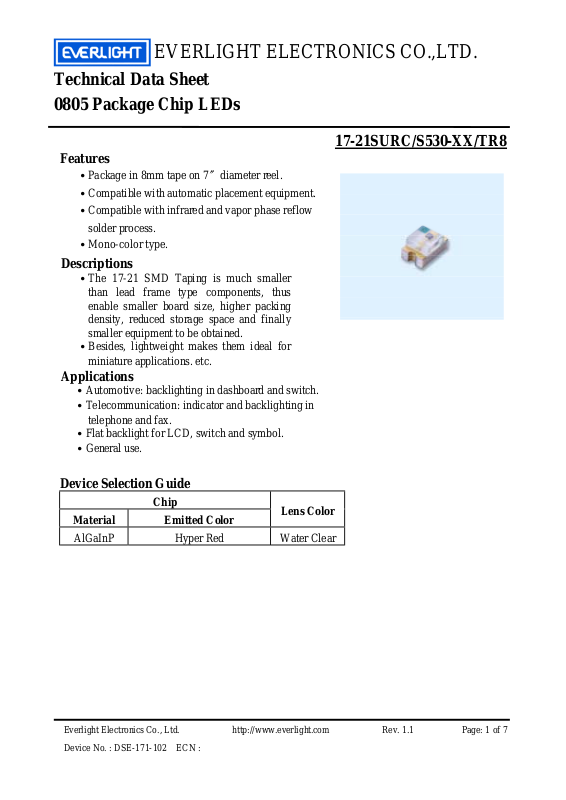

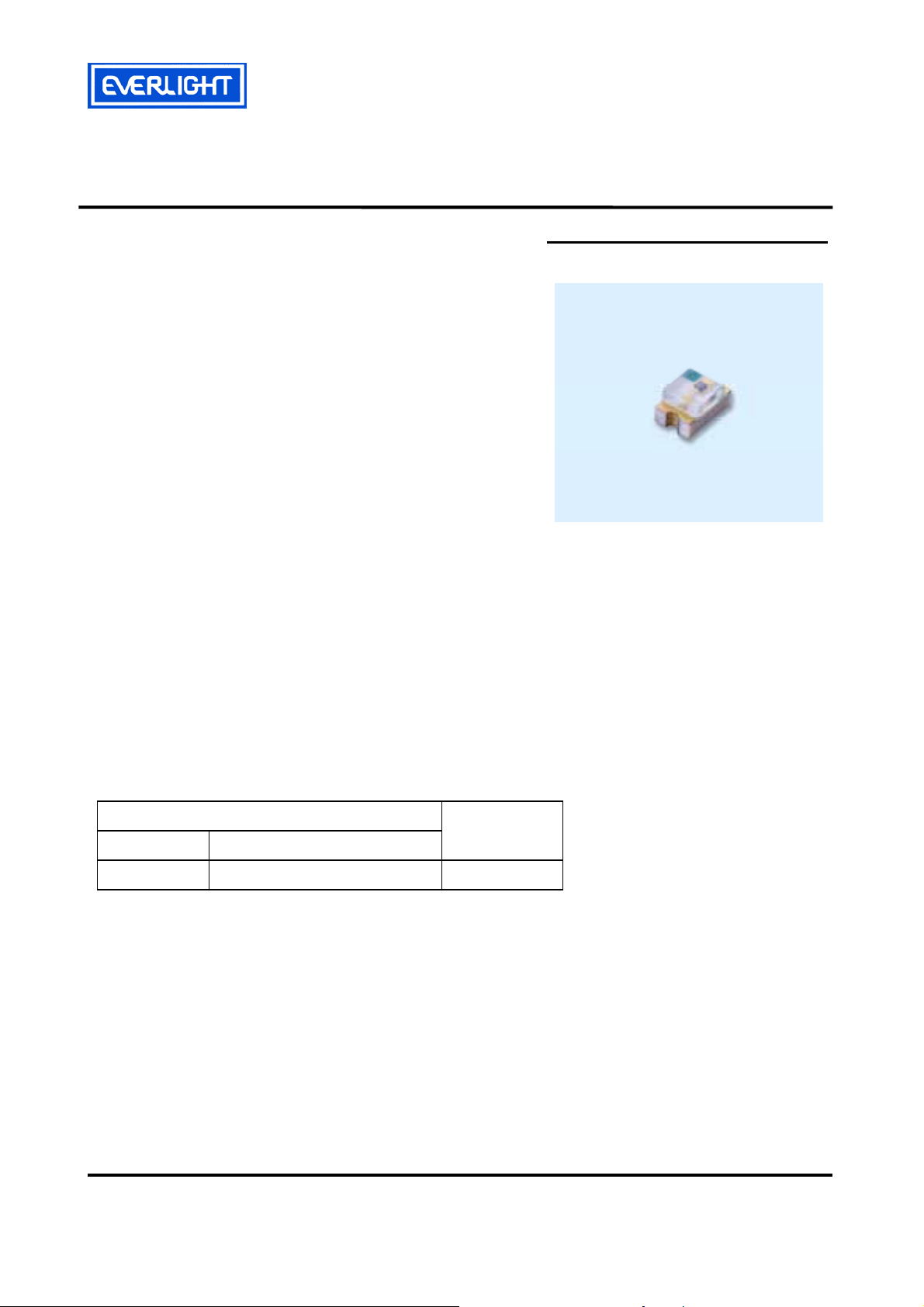

Technical Data Sheet 0805 Package Chip LEDs
17-21SURC/S530-XX/TR8
˙Package in 8mm tape on 7diameter reel. ˙Compatible with automatic placement equipment. ˙Compatible with infrared and vapor phase reflow
solder process.
˙Mono-color type.
Descriptions
˙The 17-21 SMD Taping is much smaller
than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
˙Besides, lightweight makes them ideal for
miniature applications. etc.
Applications
˙Automotive: backlighting in dashboard and switch. ˙Telecommunication: indicator and backlighting in
telephone and fax.
˙Flat backlight for LCD, switch and symbol. ˙General use.
Device Selection Guide
Chip
Material Emitted Color
AlGaInP Hyper Red Water Clear
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.1 Page: 1 of 7 Device No. : DSE-171-102 ECN :
Lens Color
Page 2
EVERLIGHT ELECTRONICS CO.,LTD.

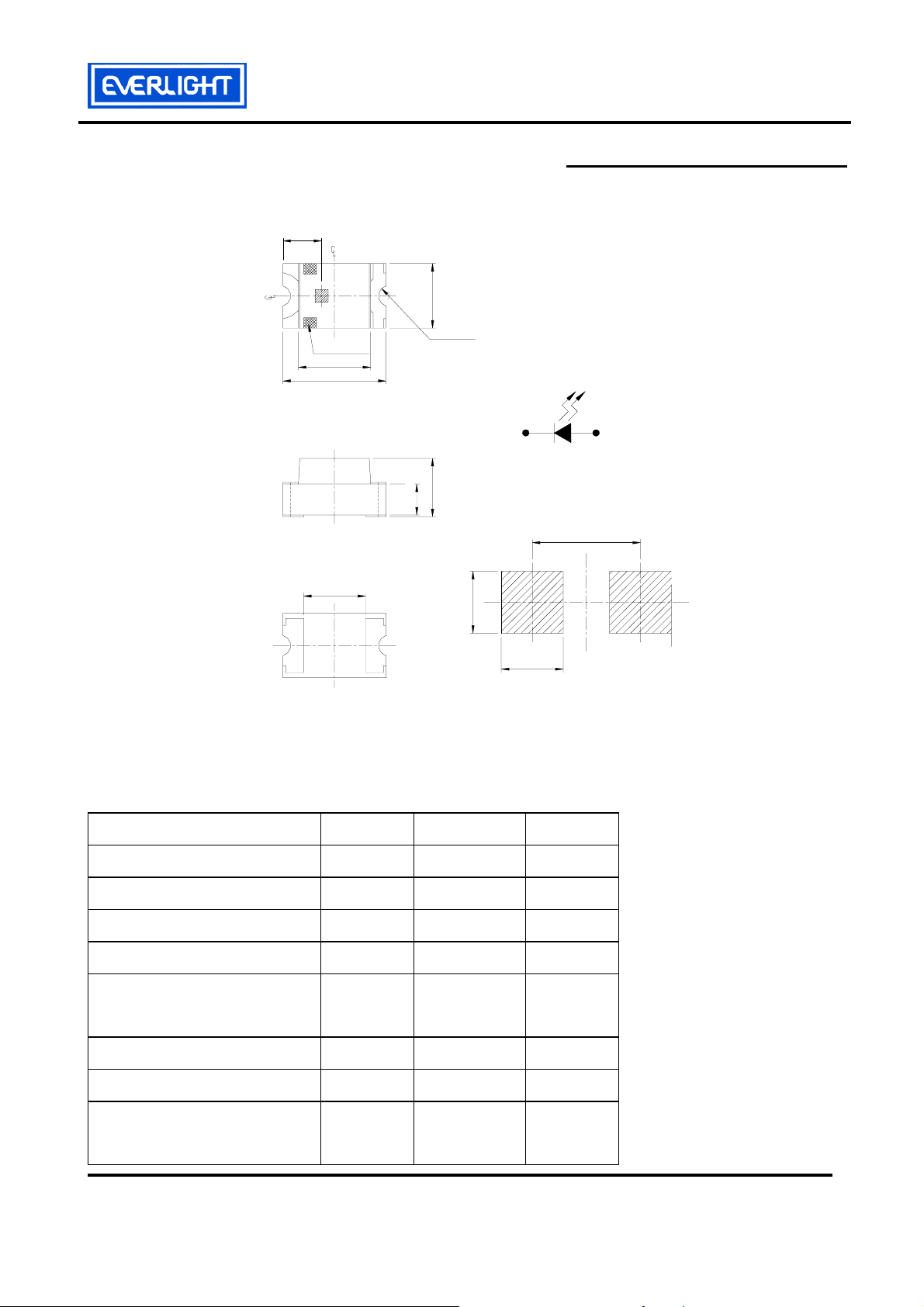

Package Outline Dimensions
0.75±0.15
Cathode mark
1.4±0.1
2.0±0.1
0.1
±
1.25
R0.2±0.1
17-21SURC/S530-XX/TR8
1.2±0.1
-
Polarity
0.2
0.1
±
±
1.1
0.6
For reflow soldering (propose)
0.1
±
1.2
1.2±0.1
+
2.1±0.1
Notes: Tolerances Unless Dimension ± 0.1mm , Angle± 0.5° ,Unit = mm
Absolute Maximum Ratings (Ta=25℃℃)
Parameter Symbol Rating Unit
Reverse Voltage VR 5 V
Forward Current IF 25 mA
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40~ +90
260
Soldering Temperature Tsol
(for 5 second)
Electrostatic Discharge ESD
2000
V
Power Dissipation Pd 60 mW
Peak Forward Current
IF 160 mA
(Duty 1/10 @1KHz)
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.1 Page: 2 of 7 Device No. : DSE-171-102 ECN :
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
Electro-Optical Characteristics (Ta=25℃℃)
Parameter
Symbol
*Chip
Min. Typ. Max. Unit Condition
Rank
A2 15 38 ----­A3 40 60 -----
Luminous Intensity Iv
A4 50 75 ----­A5 60 90 ----­A6 85 123 -----
Viewing Angle
Peak Wavelength
Dominant Wavele ngt h
Spectrum Radiation
Bandwidth
Forward Voltage
2θ1/2
----- ----- 140 -----
λp
----- ----- 632 ----- nm
λd
△λ
F
V
----- ----- 624 -----
----- -----
----- ----- 2.0 2.4
17-21SURC/S530-XX/TR8
mcd IF=20 mA
deg IF=20mA
IF=20mA IF=20mA
IF=20mA
IF=20mA
20 -----
nm
nm
V
Reverse Current I
R
----- ----- -----
10
μA
VR=5V
*17-21SURC/S530-XX/TR8

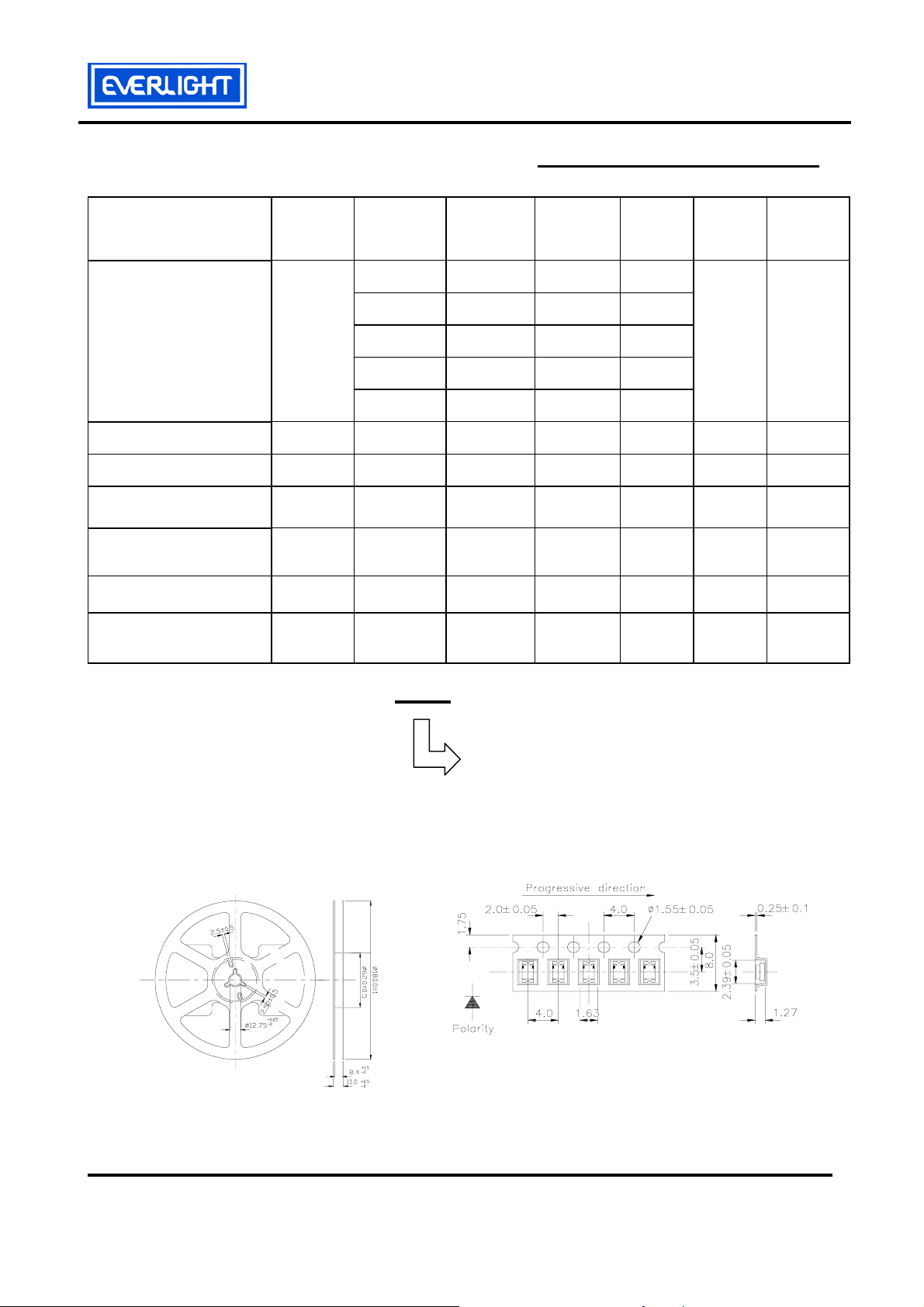

Reel & Carrier Tape Dimensions Loaded quantity per reel 3000 PCS/reel
Notes: Tolerances Unless Dimension ± 0.1mm , Angle± 0.5° ,Unit = mm
Chip Rank
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.1 Page: 3 of 7 Device No. : DSE-171-102 ECN :
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.

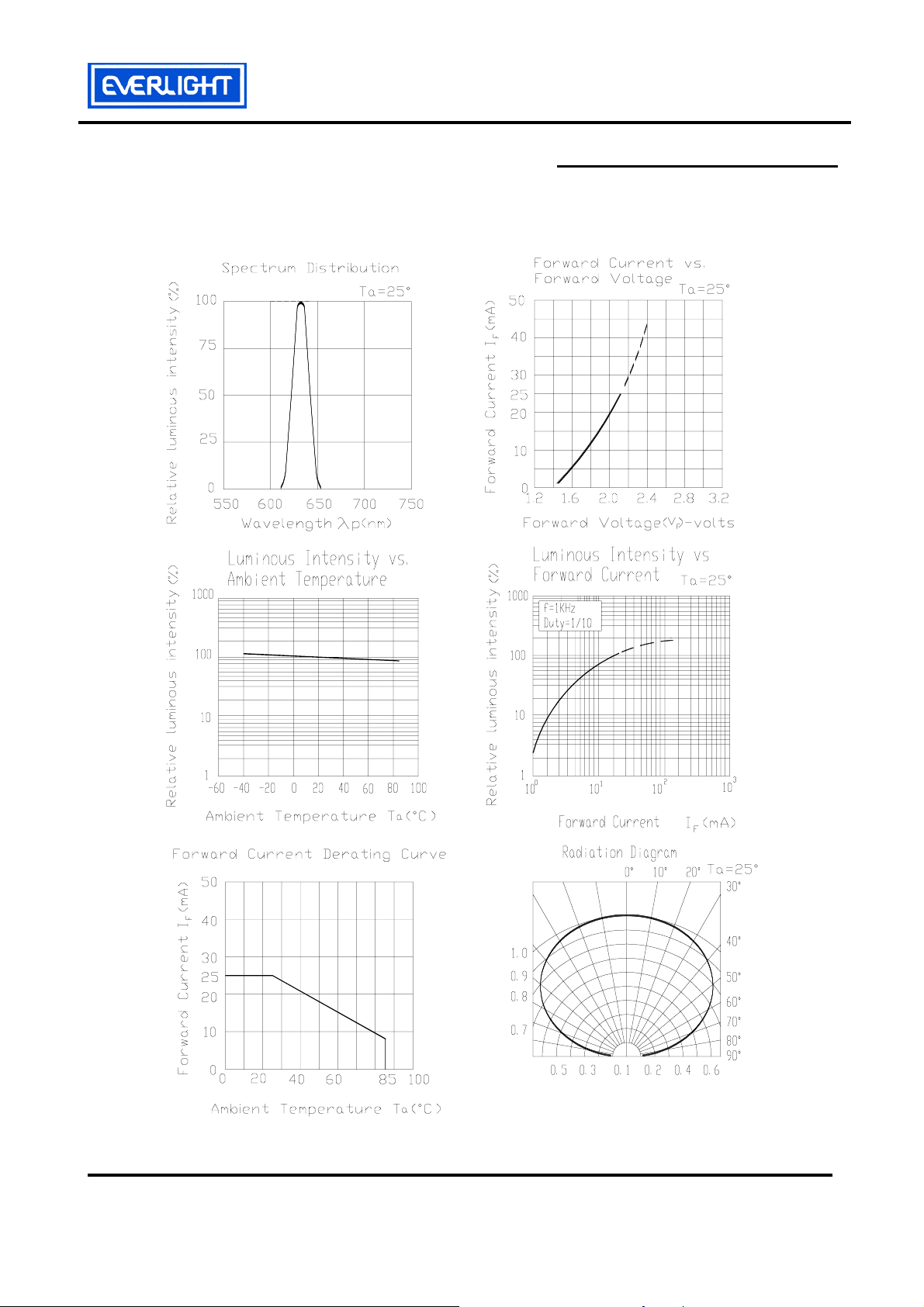

Typical Electro-Optical Characteristics Curves
17-21SURC/S530-XX/TR8
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.1 Page: 4 of 7 Device No. : DSE-171-102 ECN :
Page 5
EVERLIGHT ELECTRONICS CO.,LTD.
17-21SURC/S530-XX/TR8
Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below.
Confidence level : 90 % LTPD : 10 %
No. Items Test Condition
Temp. : 240
1 Reflow
H : +85
2 Temperature Cycle
L : -55
H : +100
3 Thermal Shock
L : -10
4
High Temperature
Storage
Temp. : 100
Min. 5 sec.
℃±5℃
30min.
5 min.
30min.
5min.
10 sec.
5min.
Test
Hours/Cycles
6 min.
50 Cycles
50 Cycles
1000 Hrs.
Sample
Size
22 Pcs. 0/1
22 Pcs. 0/1
22 Pcs. 0/1
22 Pcs. 0/1
Ac/Rc
5
Low Temperature
Storage
6 DC Operating Life IF = 20 mA
High Temperature
7
/ High Humidity
Temp. : -55
85℃/R.H85%
1000 Hrs.
1000 Hrs. 1000 Hrs.
22 Pcs. 0/1
22 Pcs. 0/1
22 Pcs. 0/1
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.1 Page: 5 of 7 Device No. : DSE-171-102 ECN :
Page 6
EVERLIGHT ELECTRONICS CO.,LTD.
17-21SURC/S530-XX/TR8
Precautions For Use
1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift
will cause big current change ( Burn out will happen ).
2. Storage time
2.1 The operation of Temperature and RH are : 5℃~35℃, RH60%.
2.2 Once the package is opened, the products should be used within a week. Otherwise, they should be kept in a damp proof box with descanting agent. Considering the tape life , we suggest our customers to use our products within a year(from production date).
2.3 If opened more than one week in an atmosphere 5℃~35℃, RH 60%, they should be treated at 60℃± 5℃for 15hrs.
2.4 When you discover that the desiccant in the package has a pink color (Normal = blue) , you should treat them in the same conditions as 2.3.

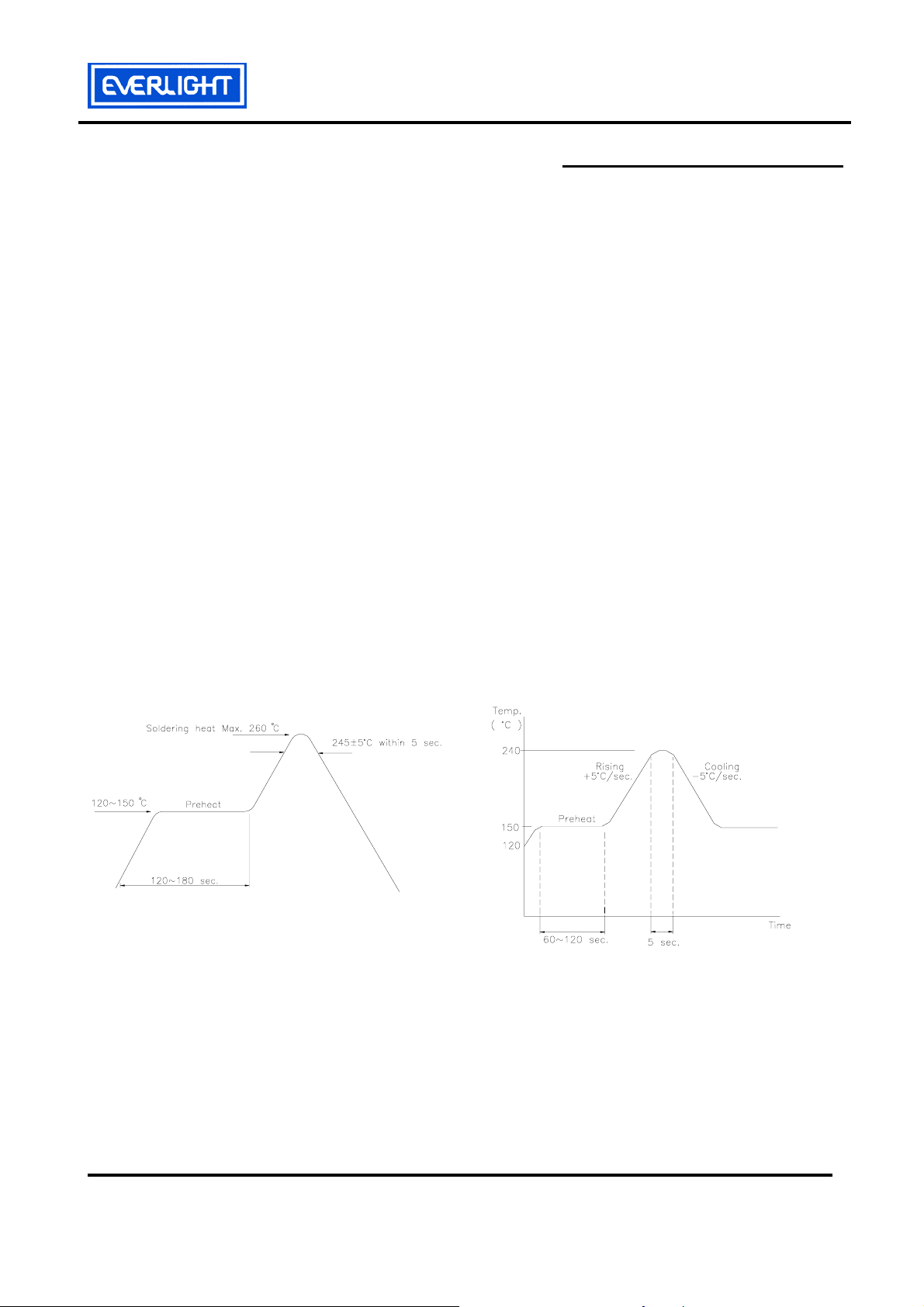

Soldering heat Reflow Temp / Time
Soldering Iron
Basic spec is 5 sec when 260.If temperature is higher, time should be shorter (+10℃→
-1sec). Power dissipation of Iron should be smaller than 15 W , and temperature should be controllable. Surface temperature of the device should be under 230 ℃.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.1 Page: 6 of 7 Device No. : DSE-171-102 ECN :
Page 7
EVERLIGHT ELECTRONICS CO.,LTD.

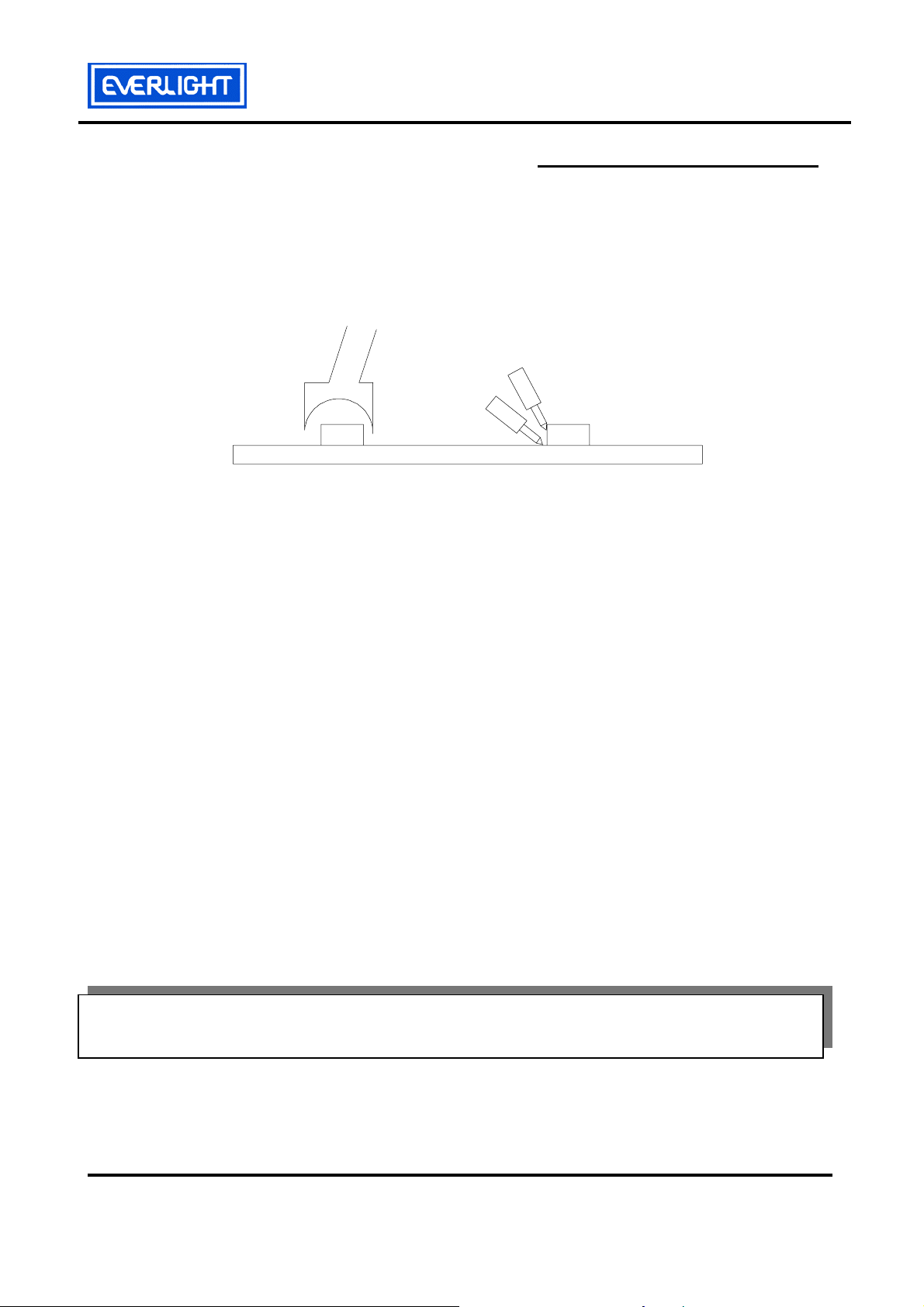

Rework
1. Customer must finish rework within 5 sec under 245℃.
2. The head of iron can not touch copper foil.
3. Twin-head type is preferred.
17-21SURC/S530-XX/TR8
×
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1.1 Page: 7 of 7 Device No. : DSE-171-102 ECN :
